Alaska Fisheries Sonar

Kenai (RM 8.6) River
Other Tools

Other Tools

Sonar site inriver gillnet crew catch and release fish migrating past the sonar site, including 300-500 early run king salmon and 800-1200 late run king salmon. The information they collect is an integral part of data used to generate estimates.

Sonar is only one source of information ADF&G uses to gauge Kenai king salmon run strength. It also uses information from non-sonar sources including inriver gillnets, sport fishery catch rates and commercial harvest, as indicators of king salmon abundance. In addition, inriver gillnets provide information about species and fish sizes key to processing sonar data to produce estimates.

Inriver Gillnets

In the lower river adjacent to the sonar site, sonar site crew drift gillnets six hours every day from mid-May to early August. To minimize injuring king salmon, they use undersized mesh nets and never remove captured king salmon from the water. The crew collect scale samples for age, and sex, length and species information as they catch and release fish. Data on fish length and the relative proportion of large kings, small kings and sockeye in the gillnet catches helps biologists determine how many small sonar-detected fish should be classified as king salmon rather than sockeye salmon.

Sport Fish Catches

Using what is called a creel survey, ADF&G technicians count and interview anglers on the river throughout the sport-fishing season to estimate king salmon harvest and sport fishery catch rates. Fisheries managers use the catch rates as an indicator of abundance, while recognizing potential biases due to unfavorable fishing conditions. King salmon are less likely to bite, for example, when water temperatures change suddenly and when high levels of turbidity make it difficult for king salmon to see lures.

Commercial Eastside Setnet Harvest

As another indicator of run strength, we also collect information in Cook Inlet about the commercial eastside setnet king salmon harvest from information setnet fishermen provide on fish tickets. This information is used as an indicator of abundance for the late king salmon run only. In addition to run strength, the commercial king salmon harvest is also influenced by other factors such as how intensively eastside setnet fishermen are fishing in the inlet, which generally correlates with how big the sockeye run is.

Gauging Run Strength:
The estimates and primary indicators managers use to assess Kenai king salmon
  • ELSD ESTIMATE (Echo Length Standard Deviation Estimate)
    Based on a combination of:
    • Sonar data that accounts for fish size.
    • Species and length data collected from inriver gillnet catches.

  • NET-APPORTIONED SONAR ESTIMATE
    Based on a combination of:
    • Data on the total number of fish detected by sonar (without using sonar size distinguishing techniques)
    • Species data collected from inriver gillnet catches.
  • SPORT CPUE (Sport Catch Per Unit Effort)
    Based on:
    • The number of king salmon sport fishermen catch per hour of fishing.
  • NETTING PROJECT CPUE (Gillnet Catch Per Unit Effort)
    Based on:
    • The number of king salmon ADF&G inriver gillnets catch per minute of drifting.


  • ESSN HARVEST (East Side Setnet Harvest)
    Based on:
    • The cumulative number of king salmon harvested in the eastside setnet fishery. (Used only during the late king salmon run)
The department reports all of these sources of information on its Kenai king salmon count page and updates them twice weekly.

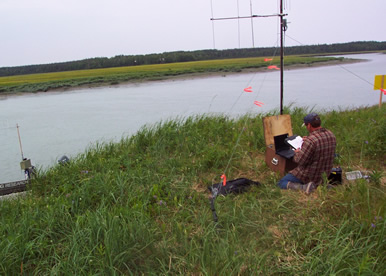

Ground stations established along the banks of the Kenai River detect and record radio-tagged king salmon passage. Each tag has a unique signal allowing us to track each individually as it migrates upstream.

Radio Tagging

In 2010 ADF&G began a multi-year project to track early and late king salmon migrations up the Kenai River with radio tags. At the Kenai king salmon sonar site, sonar site crew place the tags in the stomachs of king salmon caught in the inriver gillnets. Biologists then track the radio tagged fish with boats, from the air and with ground stations that detect and record fish passage. When the project is complete, biologists can analyze the collected data to provide an independent estimate of abundance to compare with the estimates generated using sonar at the king salmon site.

Why ADF&G only reports king salmon estimates on Tuesdays and Fridays

In previous years, the king salmon sonar project tried to follow the standard set by less-complicated sonar projects by providing the public with a daily estimate.

But the Kenai king salmon sonar project is unique in that the sonar data are analyzed along with other information to separate king salmon from sockeye salmon. The additional data processing and analyses requires extra time and attention. Compare, for example, the Kenai king salmon sonar site with the Kenai sockeye salmon sonar site at River Mile 19. The daily Kenai sockeye salmon estimate changes little, if at all, after it is reported. At the Kenai king sonar site, daily estimates are preliminary and may change as ADF&G receives additional data. By waiting three to four days between estimates ADF&G can produce numbers that are not subject to change.
