Alaska Fisheries Sonar

Yukon (Eagle) River
Sonar Tools

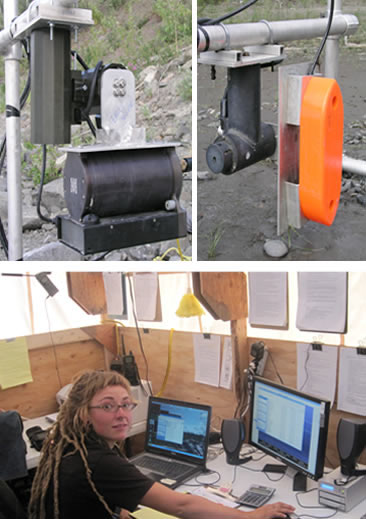

At the Eagle sonar site a DIDSON transducer (upper left) is used to detect salmon from the right bank and a split-beam sonar transducer (upper right) is used to detect salmon from the left bank. A site technician processes sonar data on computers in a tent at the site (bottom).

Sonar Tools

The Alaska Department of Fish and Game has been detecting fish using sonar at the Eagle Yukon River site since 2005. Each summer site technicians submerge two sonar transducers into the river - one approximately 50 feet from the left bank and a second approximately 13 feet from the right bank - and aim them towards the center of the river. They also install a partial weir between each transducer and the bank to prevent salmon from swimming behind the transducer where they cannot be detected.

The site uses two types of sonar technology - DIDSON and split-beam sonar. Two sonar technologies are used to accommodate differences in river bottom profile and salmon migrations along each of the river’s two banks. To aviod strong currents in the middle of the river, salmon swim close to shore - creating a migration band along each bank. The band is wide along the gradually-sloping left bank and narrow along the steeply-sloping right bank. Consequently, along the left bank technicians use split-beam sonar, which is adept at detecting fish at long ranges. And along the right bank they use DIDSON, which is best for detecting fish in near-shore ranges.

The split-beam sonar is used to detect fish out to 500 feet from the transducer, while DIDSON is used to detect fish out to 130 feet from the transducer. The Sonar data is transmitted to a tent on the left bank, where technicians processes it to produce a fish passage estimate. Fisheries managers then subtract the number of salmon harvested between the sonar site and Canadian border to determine the final escapement into Canada.

Sonar site operations begin July 5 and end October 6. Both sonar systems operate 24 hours per day, seven days a week.

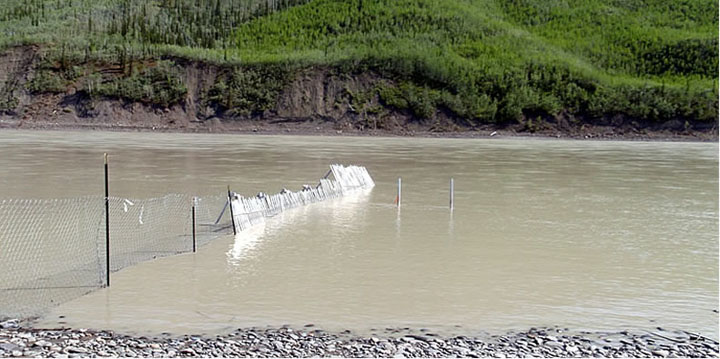

A partial weir extending from the bank and installed downstream of the submerged sonar transducer, prevents salmon from swimming behind the transducer without being detected.
