Fish Passage Site 20504060

Coordinates (dec. deg.): 61.58537°, -149.78315°
Legal Description: S017N003W03
Region: South Central

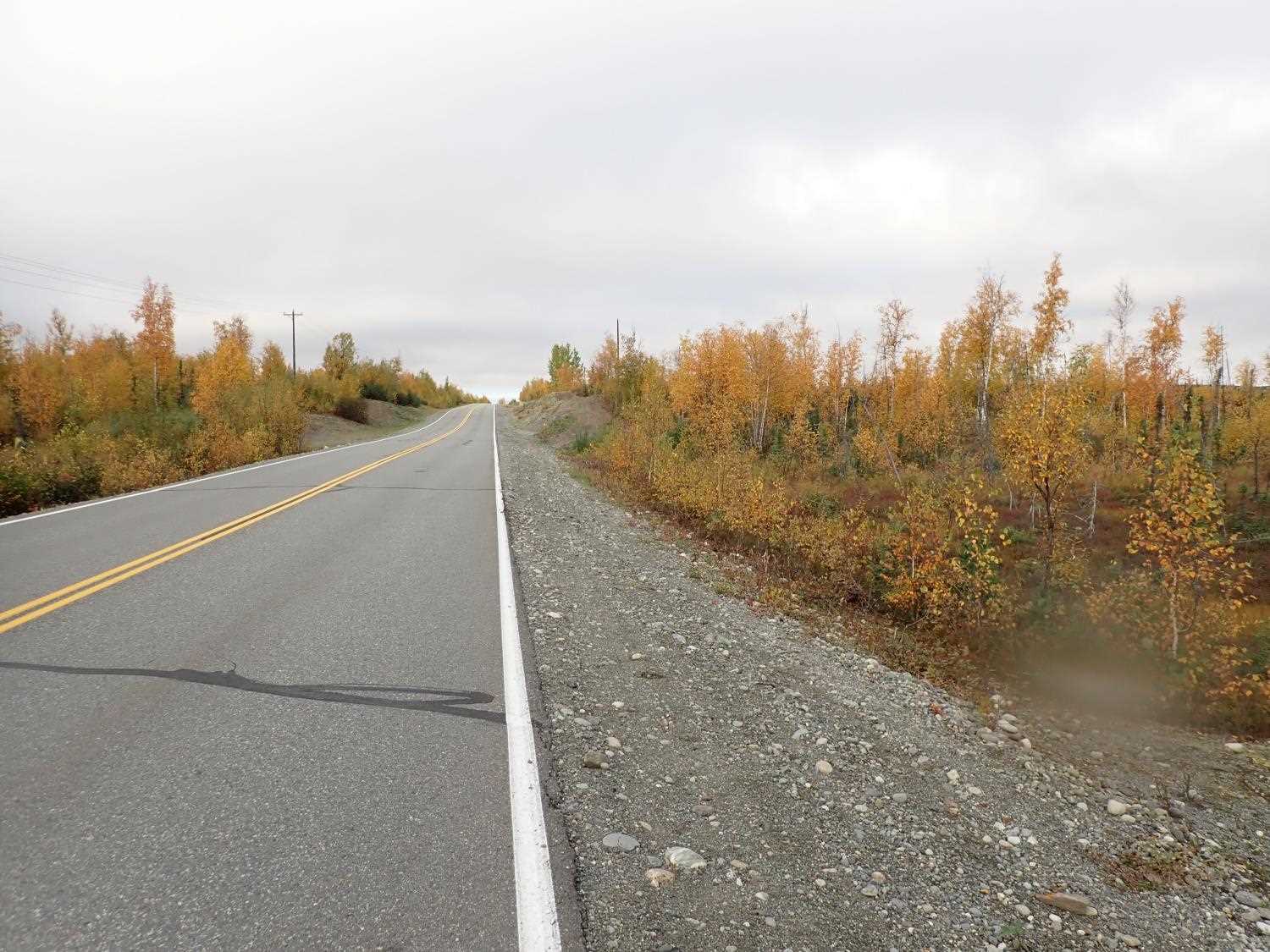

Road Name: Hawk Lane

Datum:
Quad Name / ITM: Anchorage C-8
AWC Stream #:
Stream Name:

Elevation:

Site Comments: None

Survey Date: Sep 22, 2023

Survey MSB23-MS056

Project Supervisor: Michael Mazzacavallo, Alaska Department of Fish and Game — Anchorage, AK
Observers: Kevin Keith, Beth Evers

Overall Fish Passage Rating: Green

Tidal: No
Backwatered: Yes

Step Pools: No
Construction Year:


Site Observations:

  1. None of this type

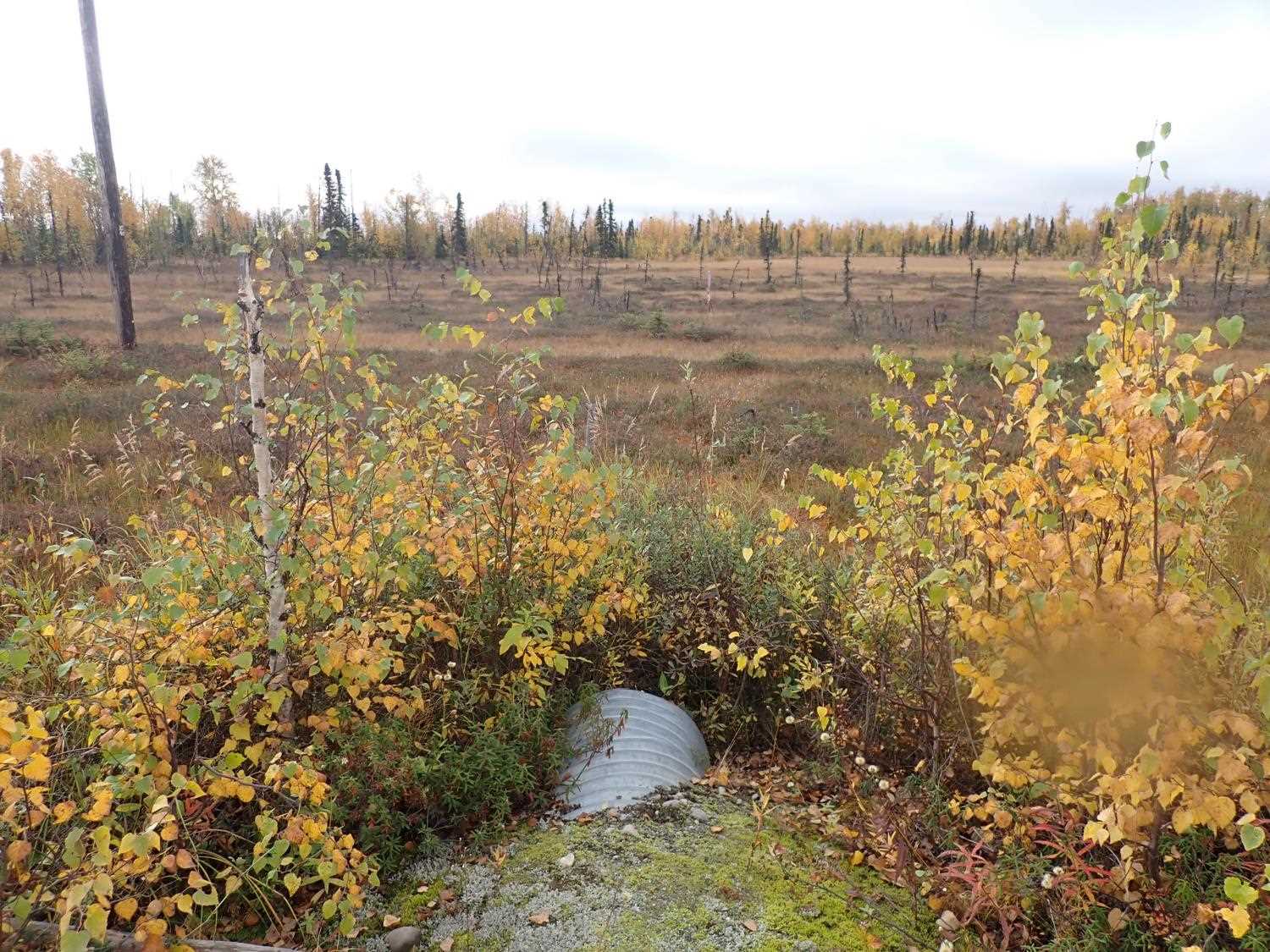

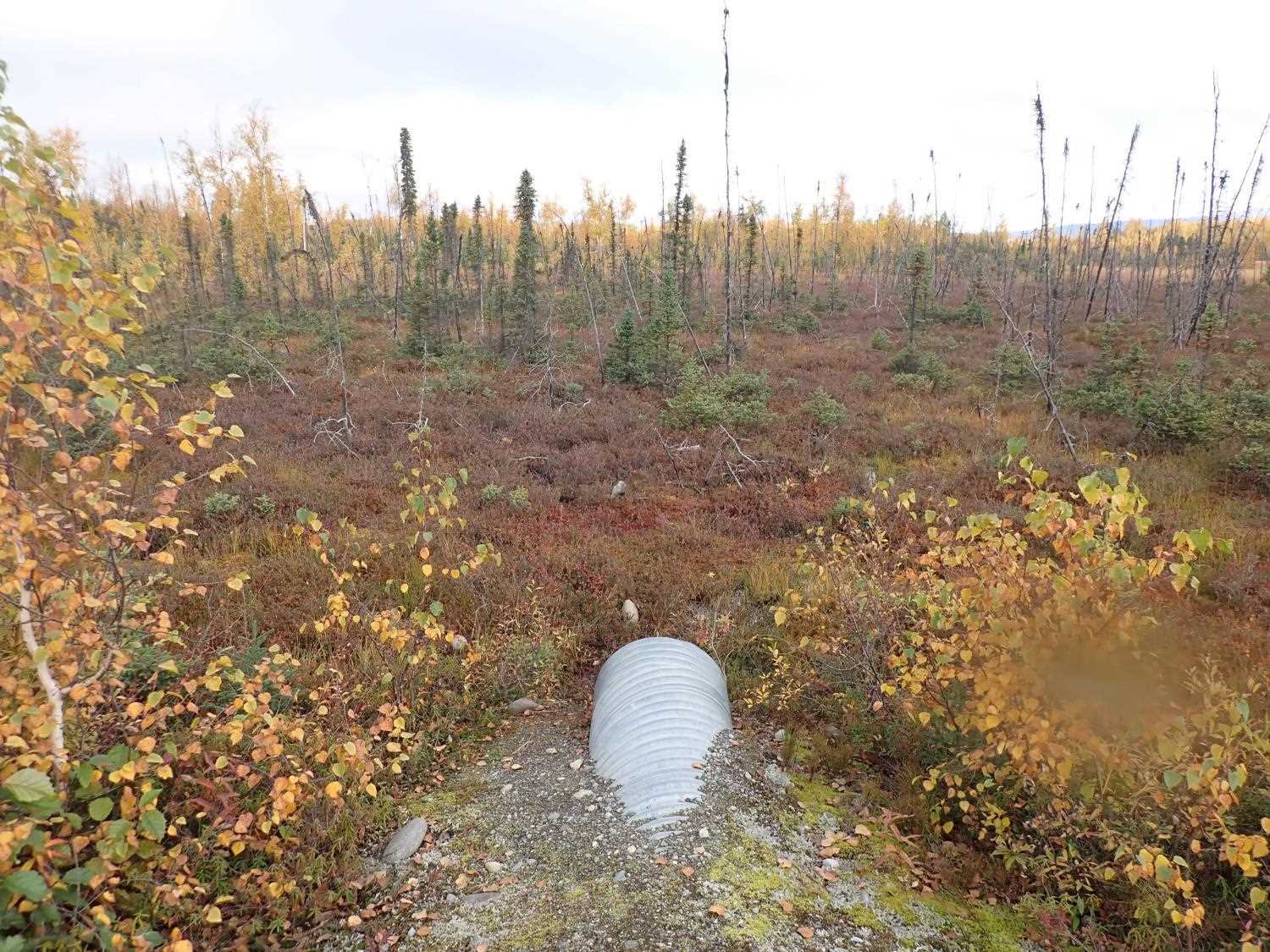

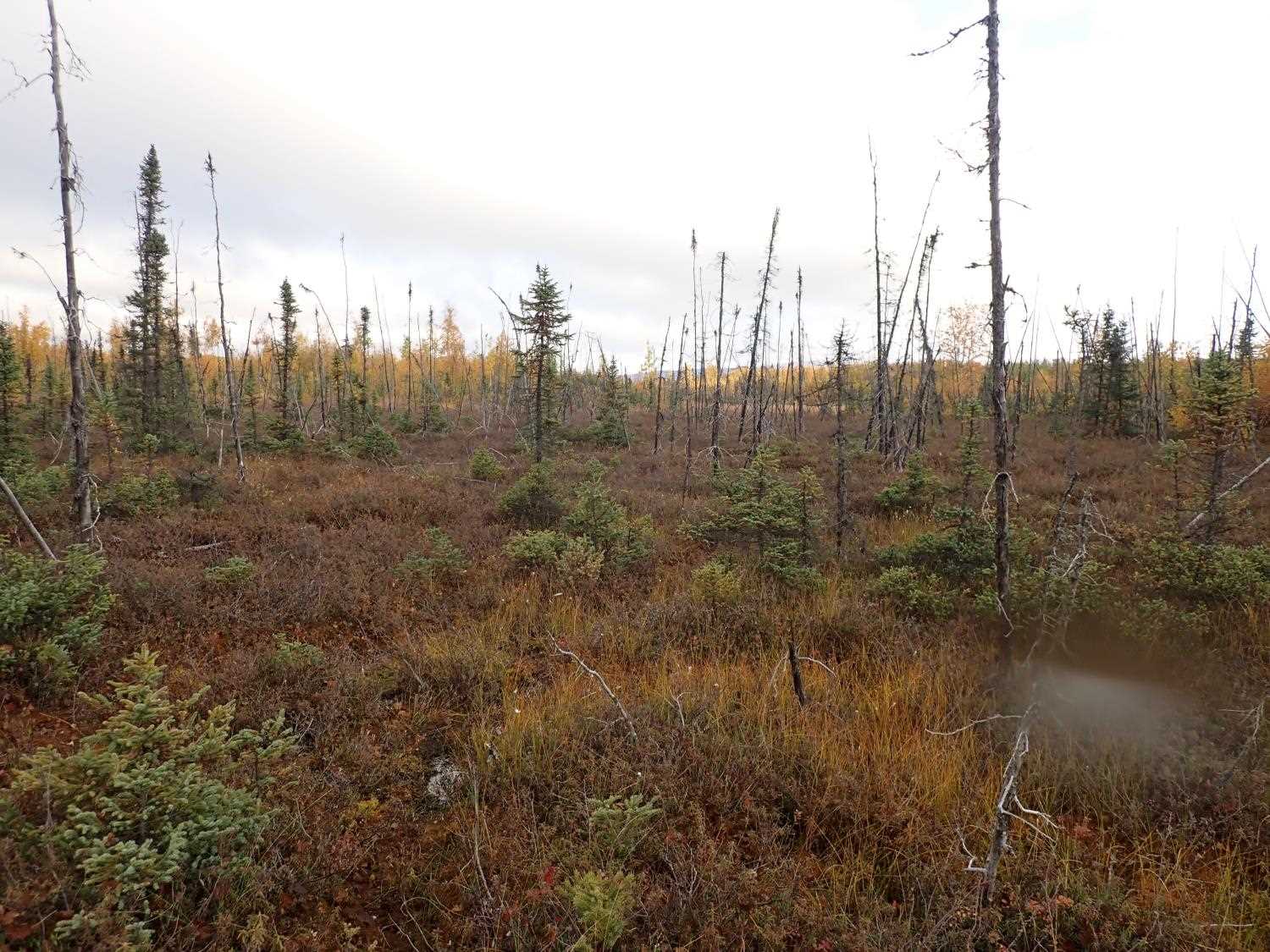

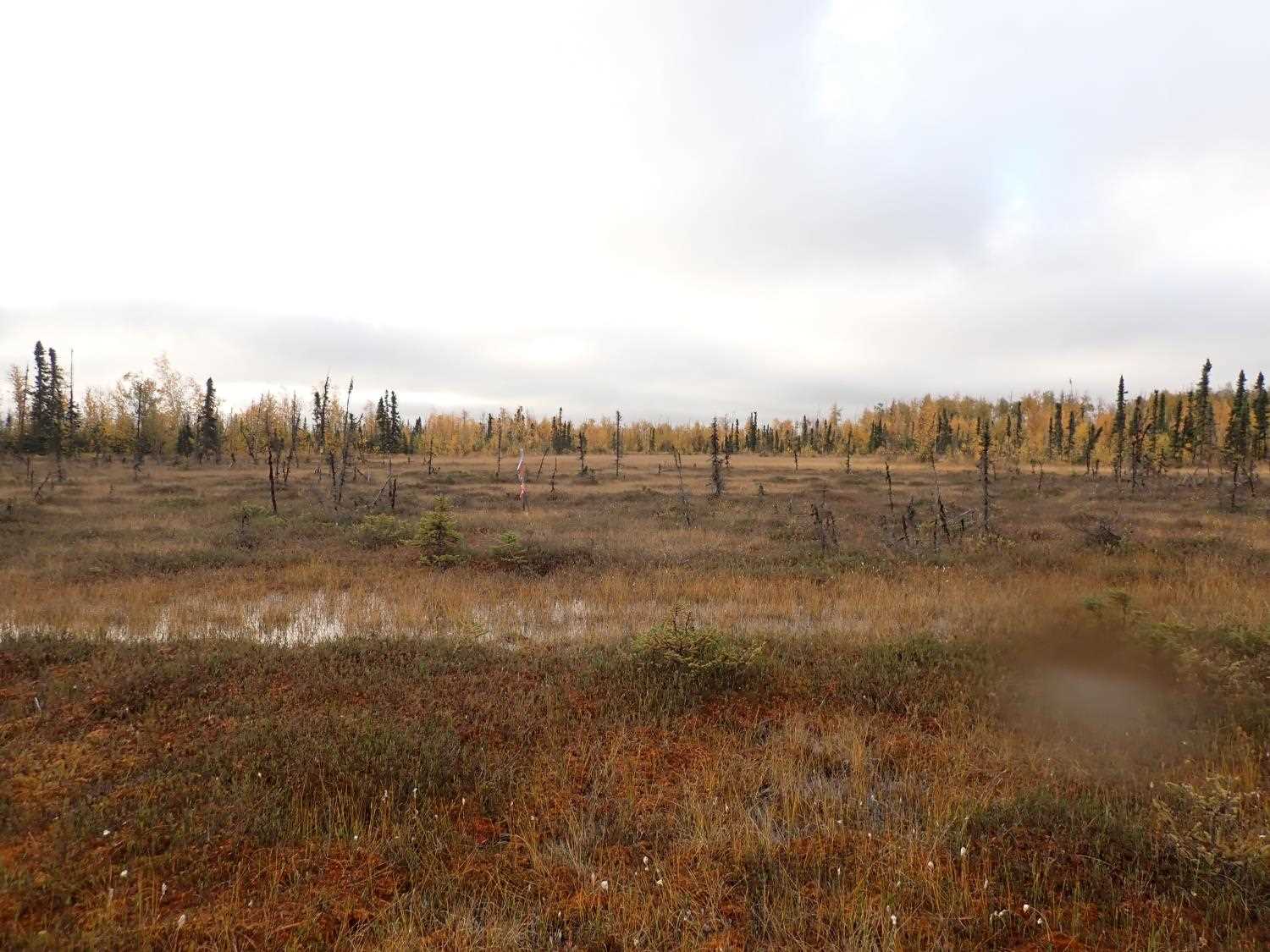

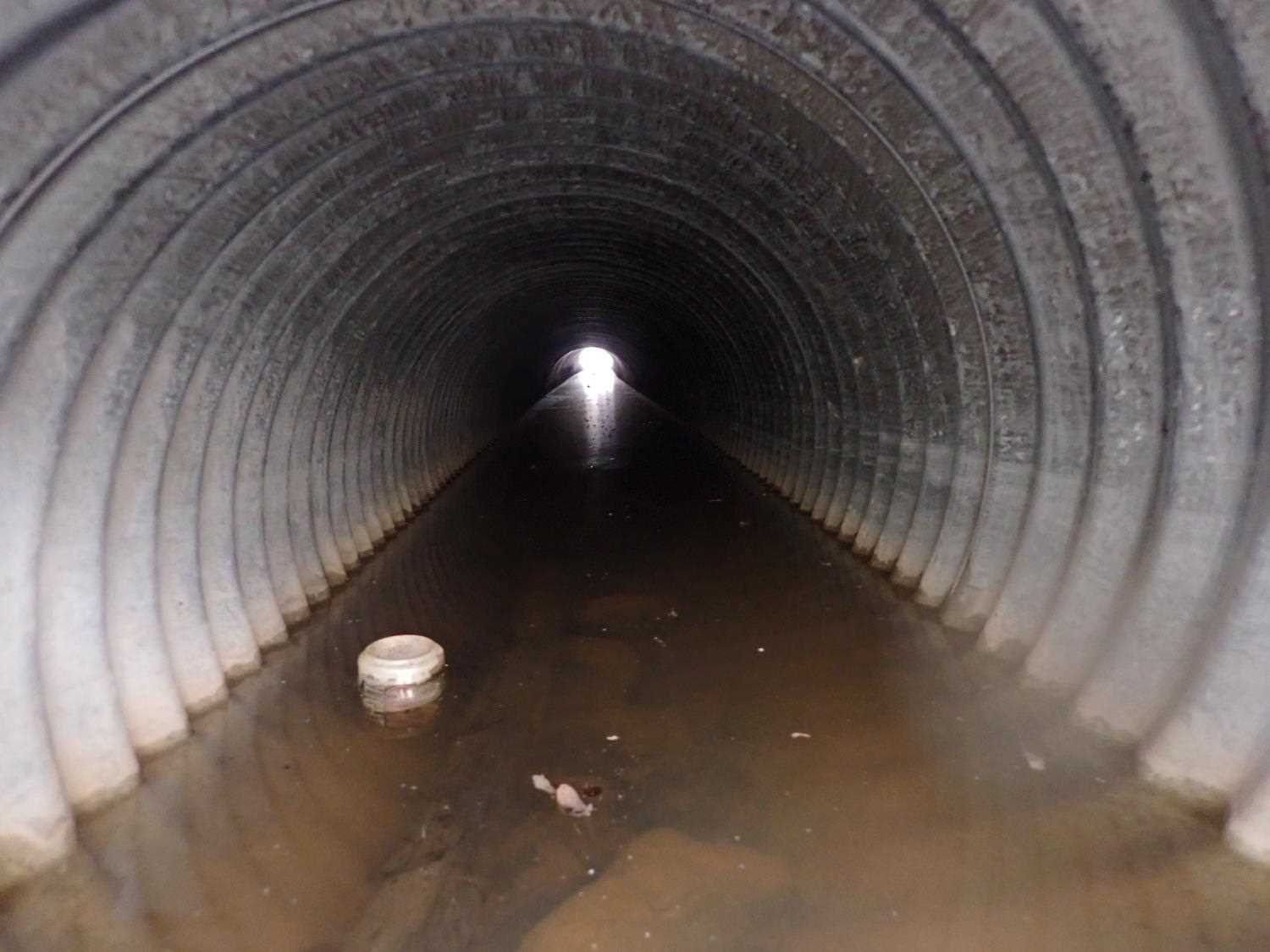

Comments: Culvert connects 2 wetland, type areas. Water in culvert, but it is not moving. This culvert function with culverts on Hawk Lane to the east and west to move water from the wetands North of Hawk Lane to the wetlands south of Hawk Lane. This one rarely has water moving through it.

Culvert Measurements

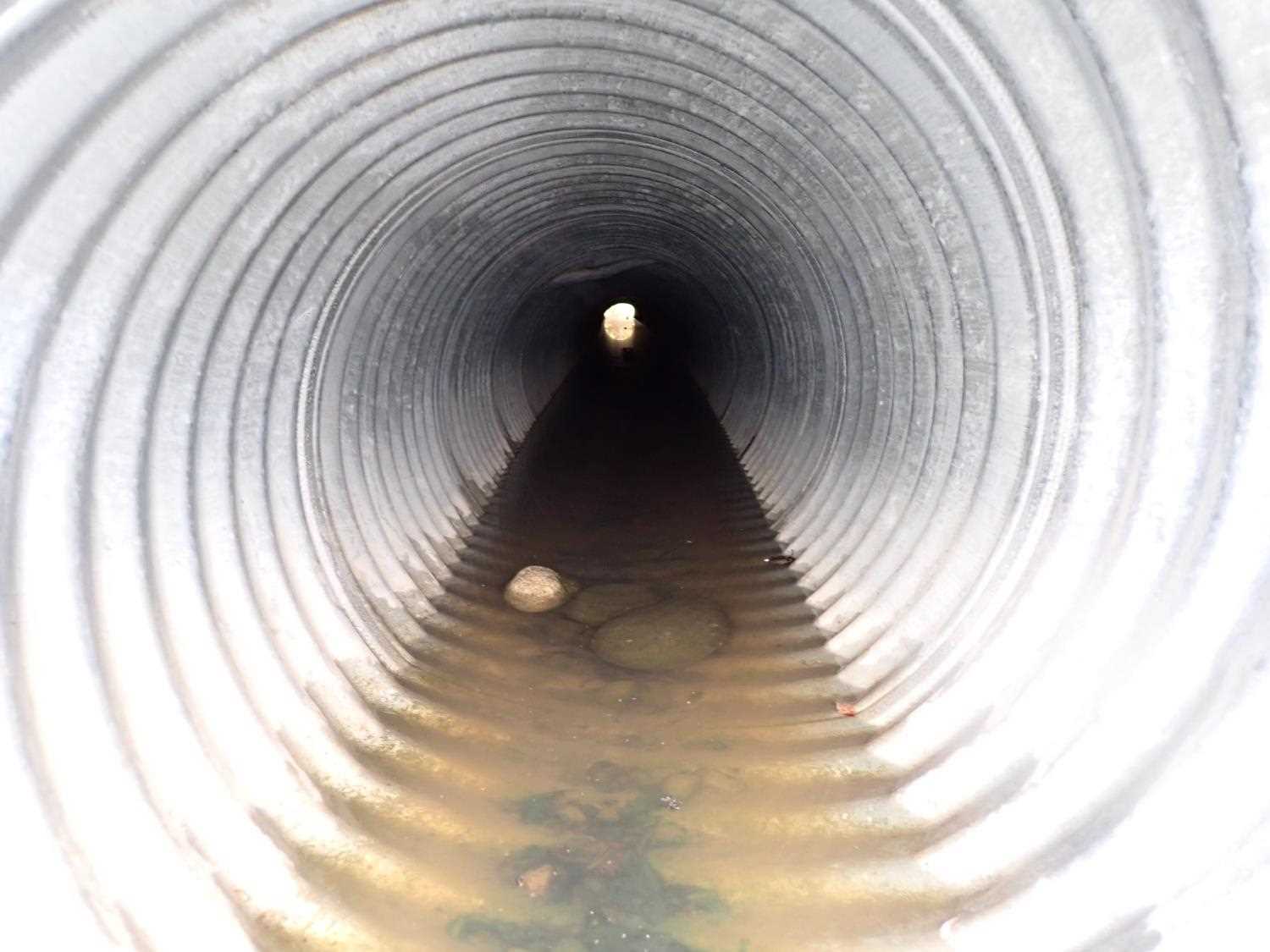

ID: 1 Structure Type: Circular pipe (Corrugated steel) Fish Passage Rating: Green

Length(ft): 66.2
Inlet Type: Projecting
Outlet Type: Projecting
Corrugation Depth(in.): 0.5
Corrugation Width(in.): 2.5
Condition Rating(1-5): 5
Approach Angle: 0.0
Sedimentation At Inlet: No
Inlet Substrate: Organic
Outlet Substrate: Organic
InletOutlet
Width(ft):2.0 2.0
Height(ft):2.0 1.9
Apron Length(ft):
Water Depth(ft):0.0 0.2
Rustline Height(ft):0.0
Substrate Depth(ft):0.0 0.1
Backwatered?: Yes
Baffles Present: No
Embedded?: No
Embedded Depth(ft): 0.0
Outfall Height: 0.0
Outfall Type: At Stream Grade
Constriction Ratio:
Culvert Gradient:
Max Slope:
Max Slope Length:
  Culvert Observations:
  1. None of this type

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:OrganicOrganic
Subdominant:Silt/ClaySilt/Clay
Stream Slope(deg.):
Stream Flow Stage:

No stream width data available.

Elevations

No elevation data available.

Fish Sampling Efforts

No fish sampling occurred during this survey.

Fish Observations

No fish observations occurred during this survey.
