Fish Passage Site 20503988

Coordinates (dec. deg.): 61.36883°, -149.96552°
Legal Description: S015N004W22
Region: South Central
Road Name: Johns Way

Datum: WGS84
Quad Name / ITM: Anchorage B-8
AWC Stream #:
Stream Name: Unnamed Stream

Elevation:

Site Comments: None

Survey Date: Aug 25, 2023

Survey MSB23-J0W03

Project Supervisor: Michael Mazzacavallo, Alaska Department of Fish and Game — Anchorage, AK
Observers: Michael Mazzacavallo, Kevin Keith

Overall Fish Passage Rating: Black

Tidal:
Backwatered:

Step Pools:
Construction Year:


Comments: Culvert is down stream from 20503987 This culvert Is not on a road, looks to be an old access way to adjacent field. Road appears to be abandoned.

Culvert Measurements

ID: 1 Structure Type: Circular pipe (Corrugated steel) Fish Passage Rating: Black

Length(ft):
Inlet Type:
Outlet Type:
Corrugation Depth(in.): 0.5
Corrugation Width(in.): 2.5
Condition Rating(1-5):
Approach Angle:
Sedimentation At Inlet:
Inlet Substrate:
Outlet Substrate:
InletOutlet
Width(ft):1.3 1.1
Height(ft):1.6 1.7
Apron Length(ft):
Water Depth(ft):0.0 1.0
Rustline Height(ft):
Substrate Depth(ft):
Backwatered?:
Baffles Present:
Embedded?:
Outfall Height: 0.3
Outfall Type: Free Fall In To Pool
Constriction Ratio:
Culvert Gradient:
Max Slope:
Max Slope Length:

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:
Subdominant:
Stream Slope(deg.):
Stream Flow Stage:

No stream width data available.

Elevations

No elevation data available.

Fish Sampling Efforts

No fish sampling occurred during this survey.

Fish Observations

No fish observations occurred during this survey.

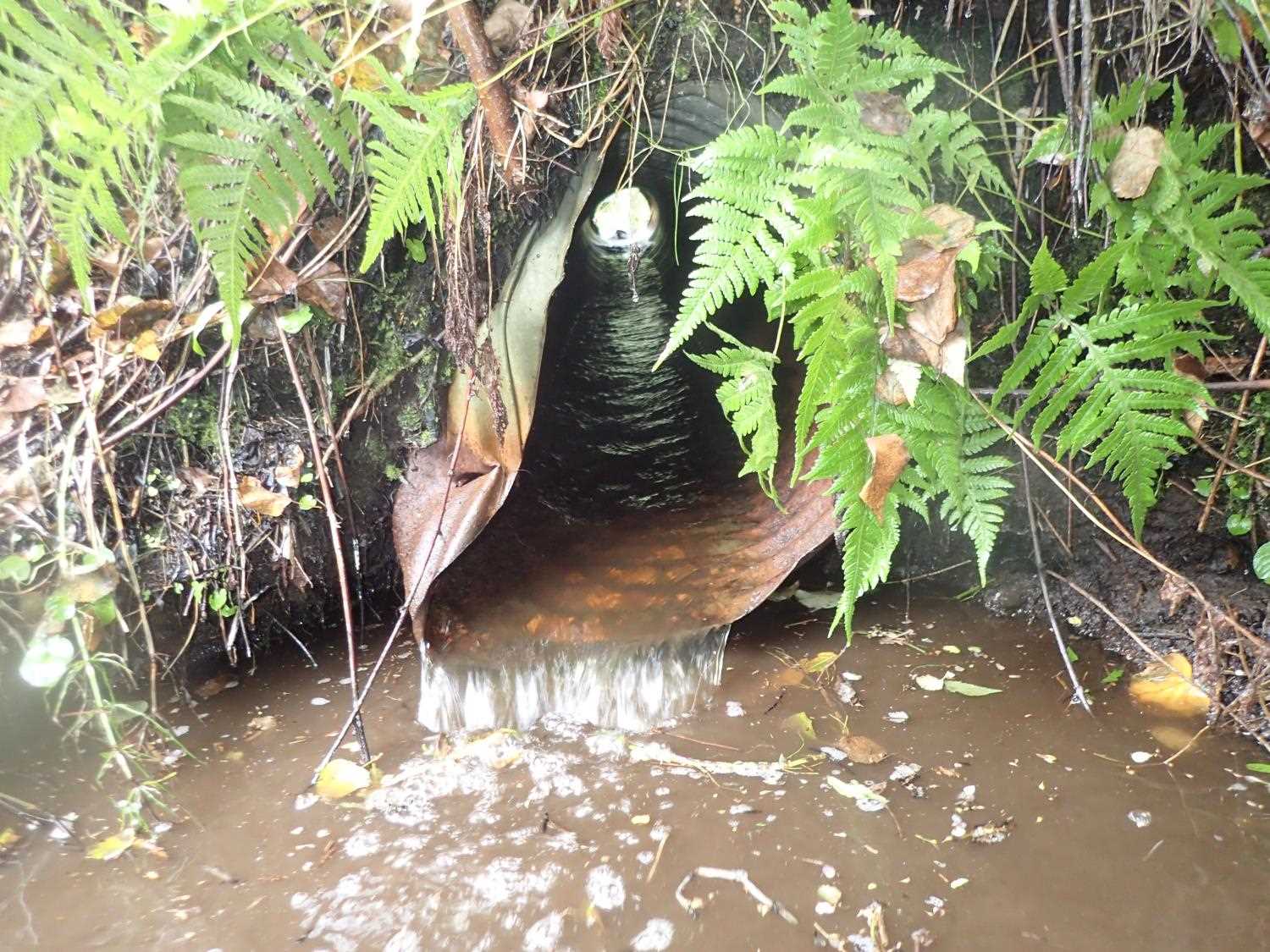

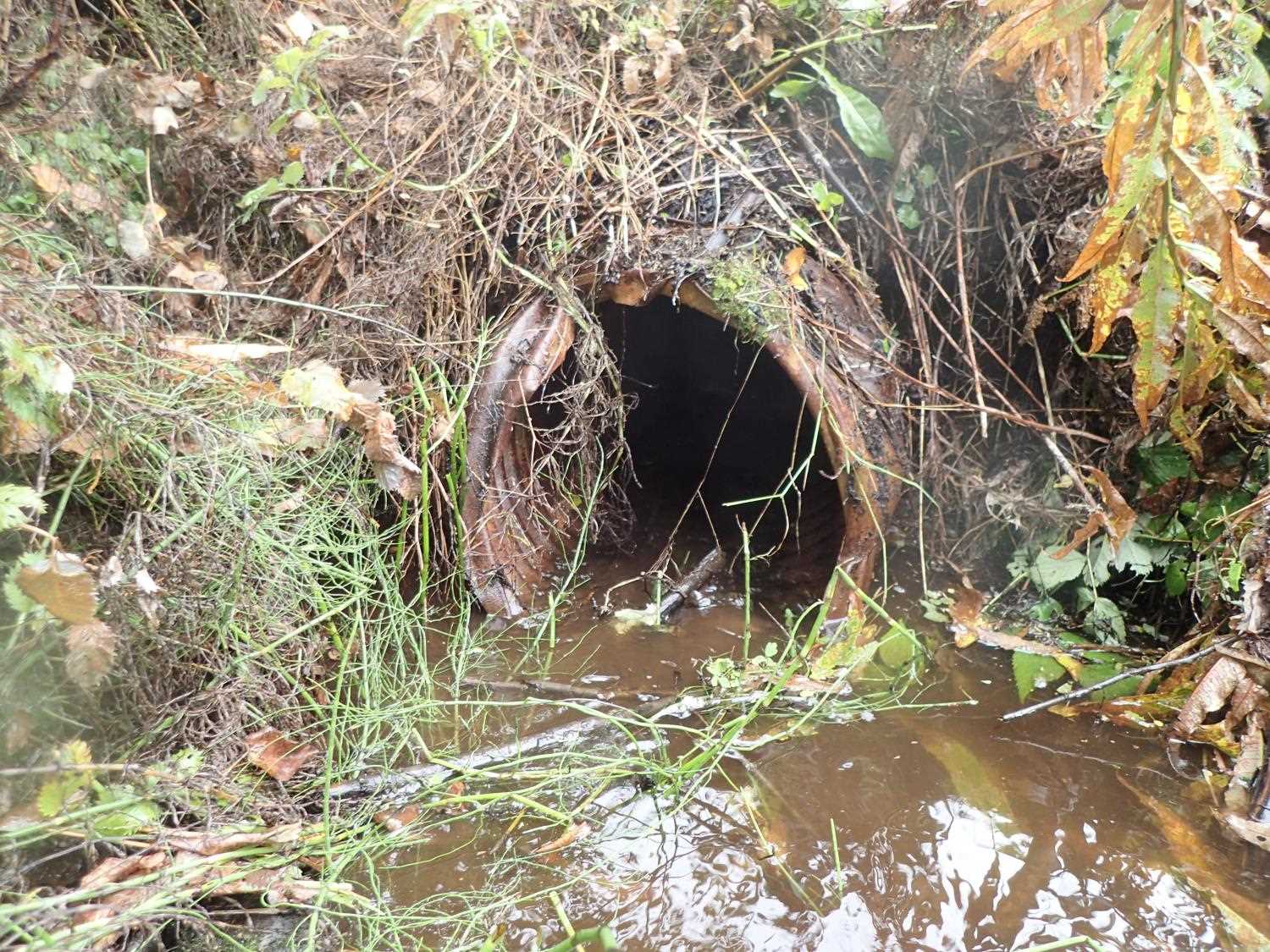

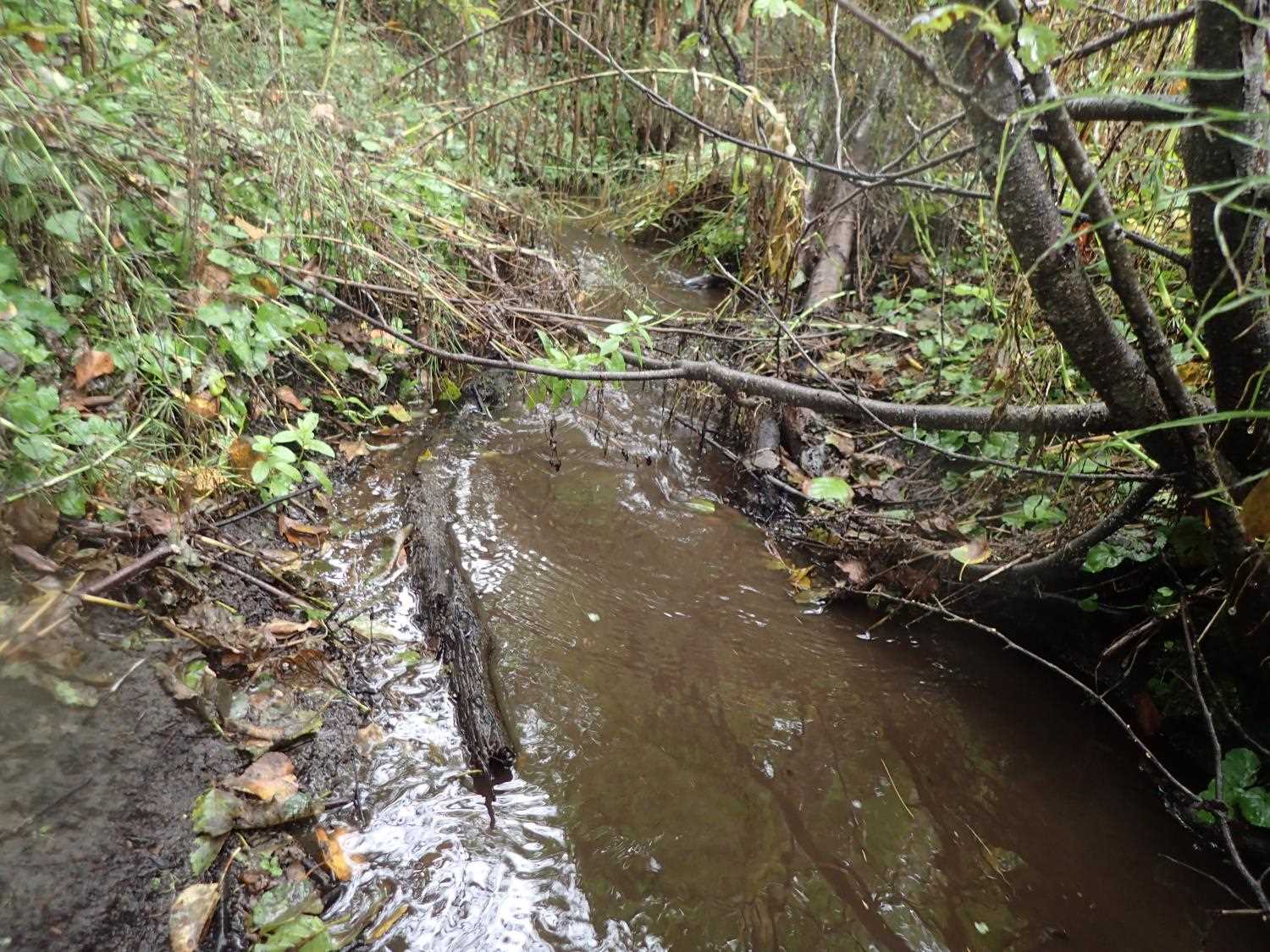

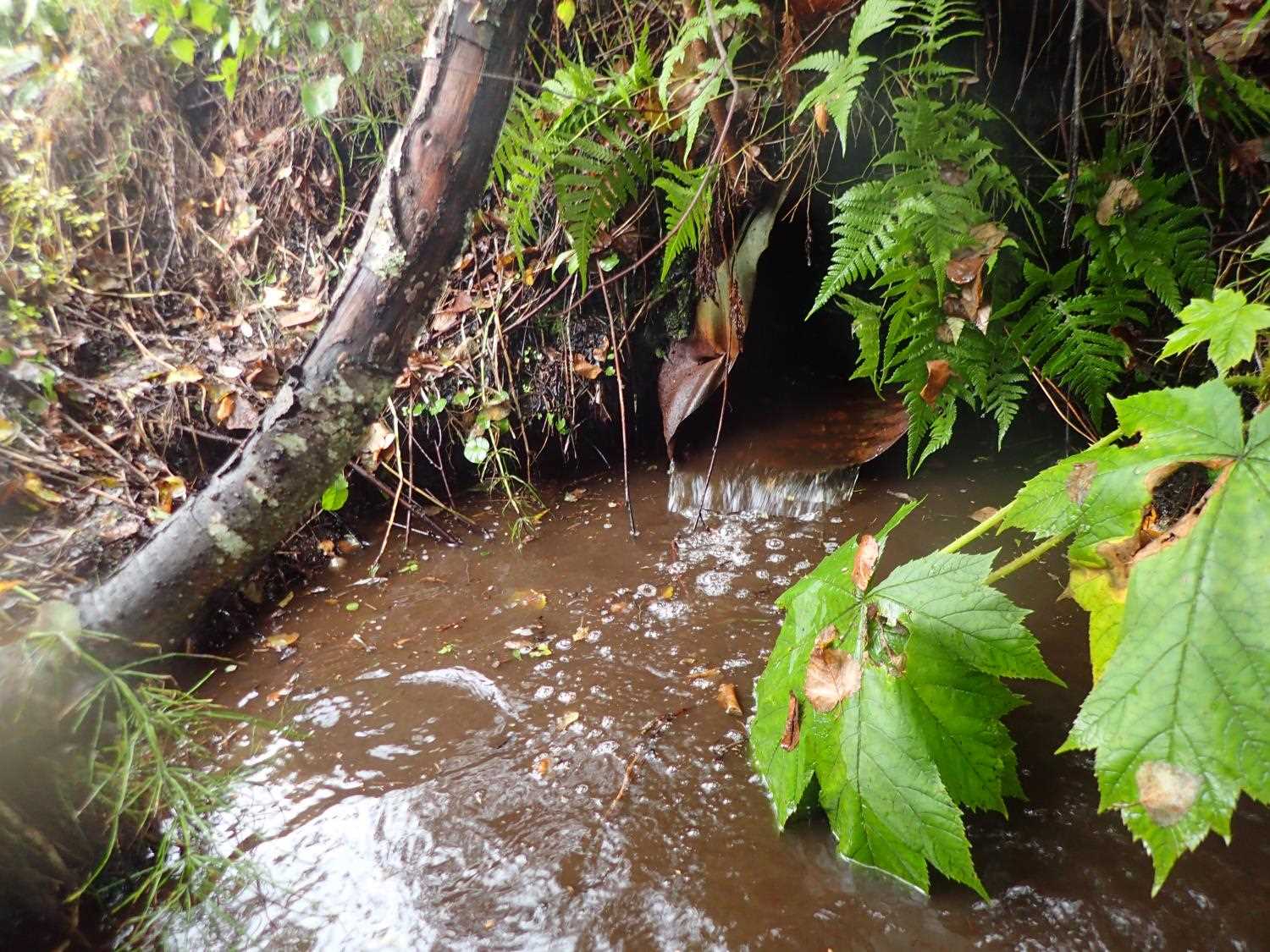

Photos
