Fish Passage Site 20501453

Coordinates (dec. deg.): 61.42619°, -149.87383°
Legal Description: S015N003W06
Region: South Central

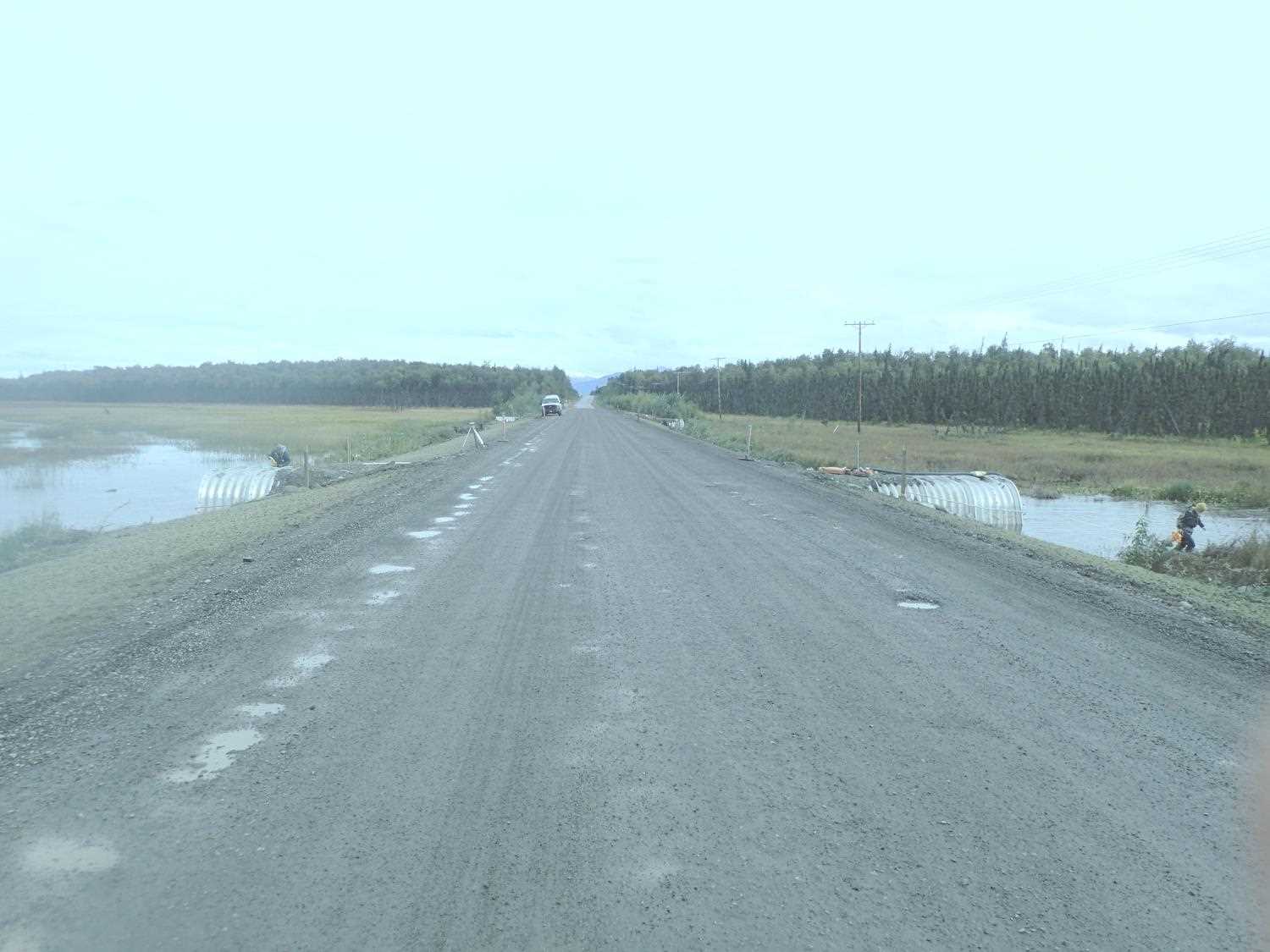

Road Name: Point MacKenzie Road

Datum: NAD83
Quad Name / ITM: Anchorage B-8
AWC Stream #: 247-50-10360
Stream Name: Goose Creek

Elevation:

Site Comments: GOOSE CREEK WATERSHED

Multiple surveys have been conducted at this site — click on the drop down
arrow to the right of the survey date below to choose a different report for this site.

Survey MSB23-MS037

Project Supervisor: Michael Mazzacavallo, Alaska Department of Fish and Game — Anchorage, AK
Observers: Michael Mazzacavallo, Kat Leavitt, Beth Evers, Kevin Keith

Overall Fish Passage Rating: Green

Tidal: No
Backwatered: No

Step Pools: No
Construction Year: 2023


Site Observations:

  1. None of this type

Comments: Two individuals noted that they had seen lamprey and pike but limited salmonoids; applicable to site#20501451 & 20501452 as well.

Culvert Measurements

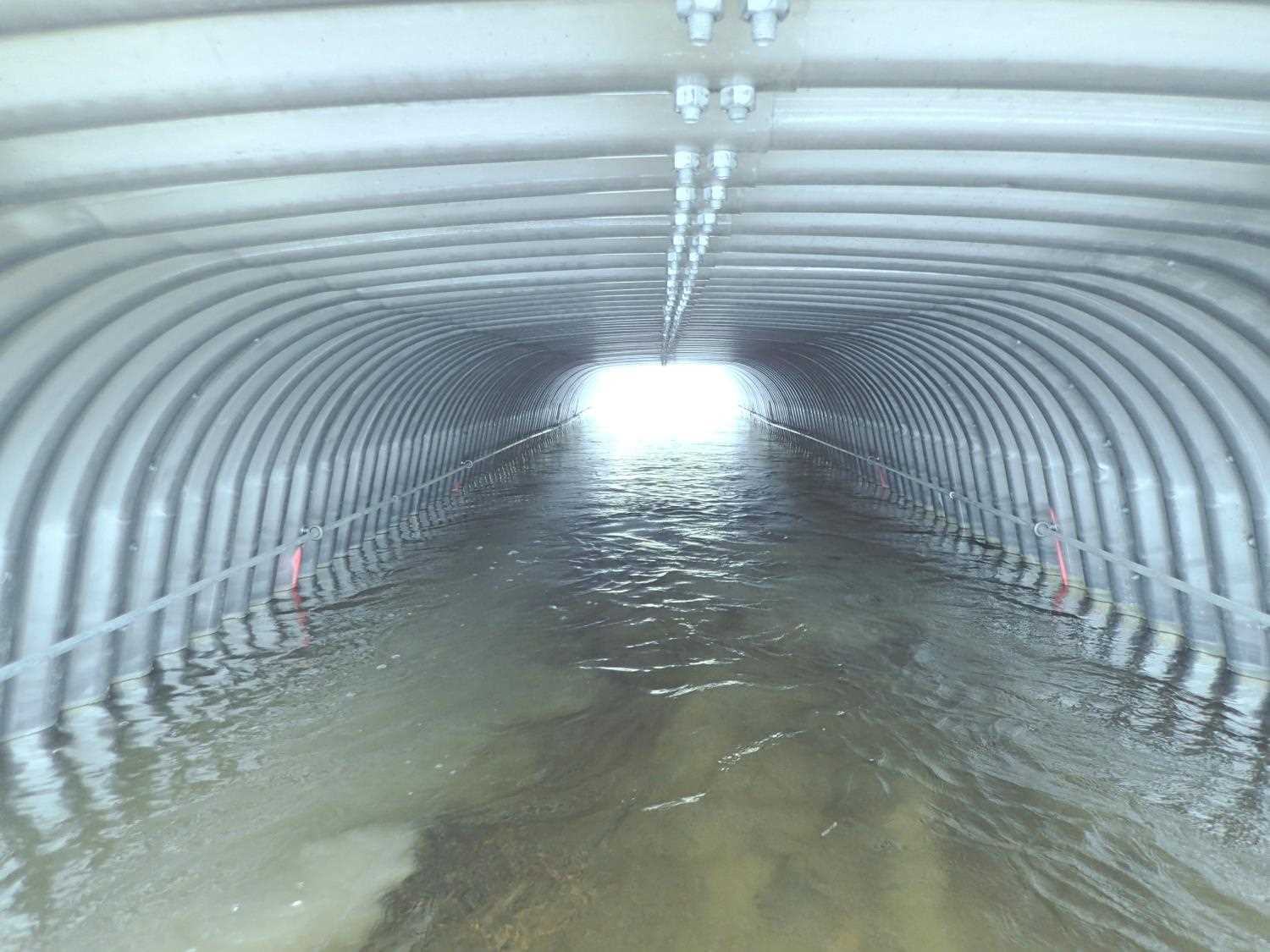

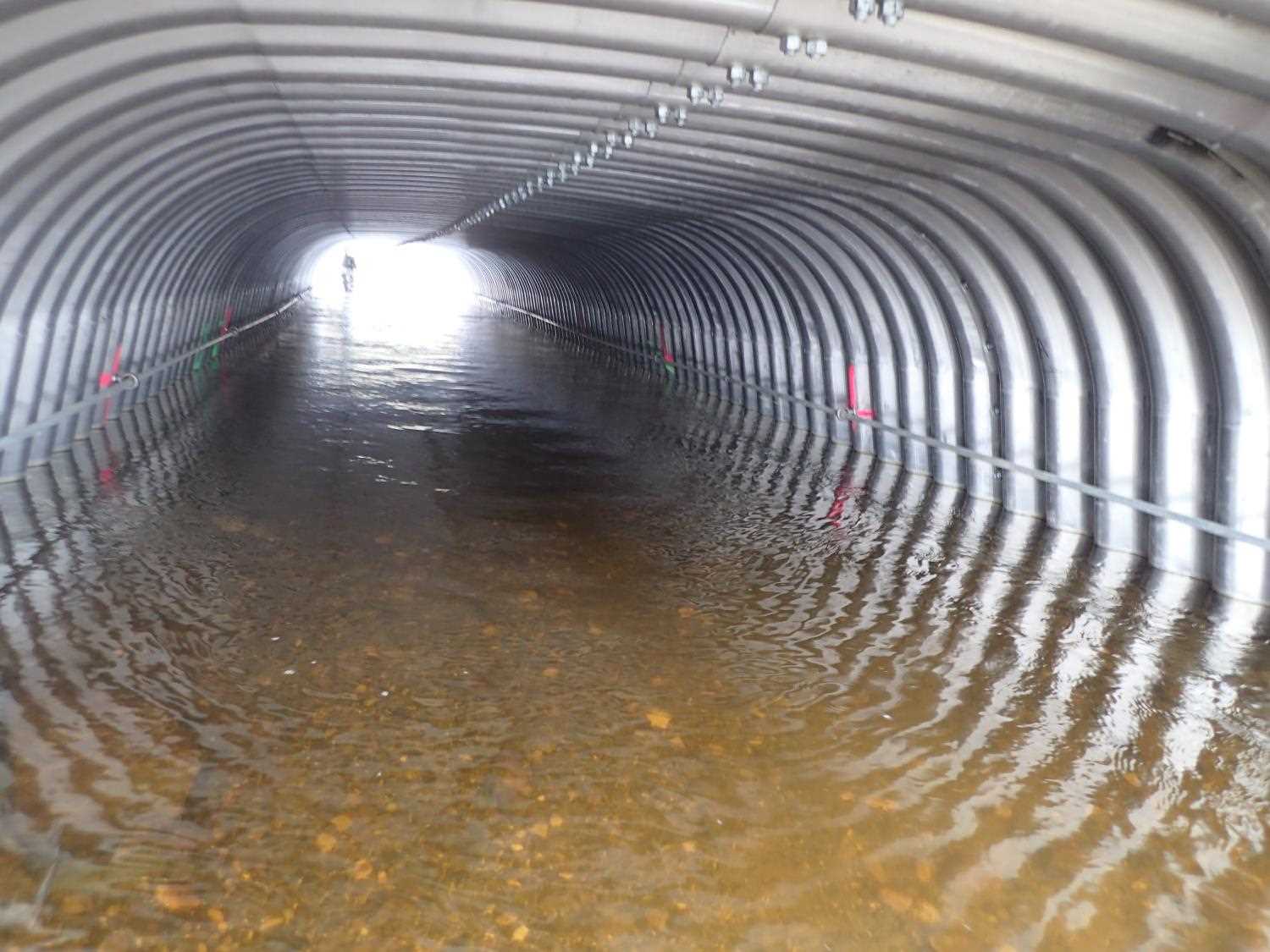

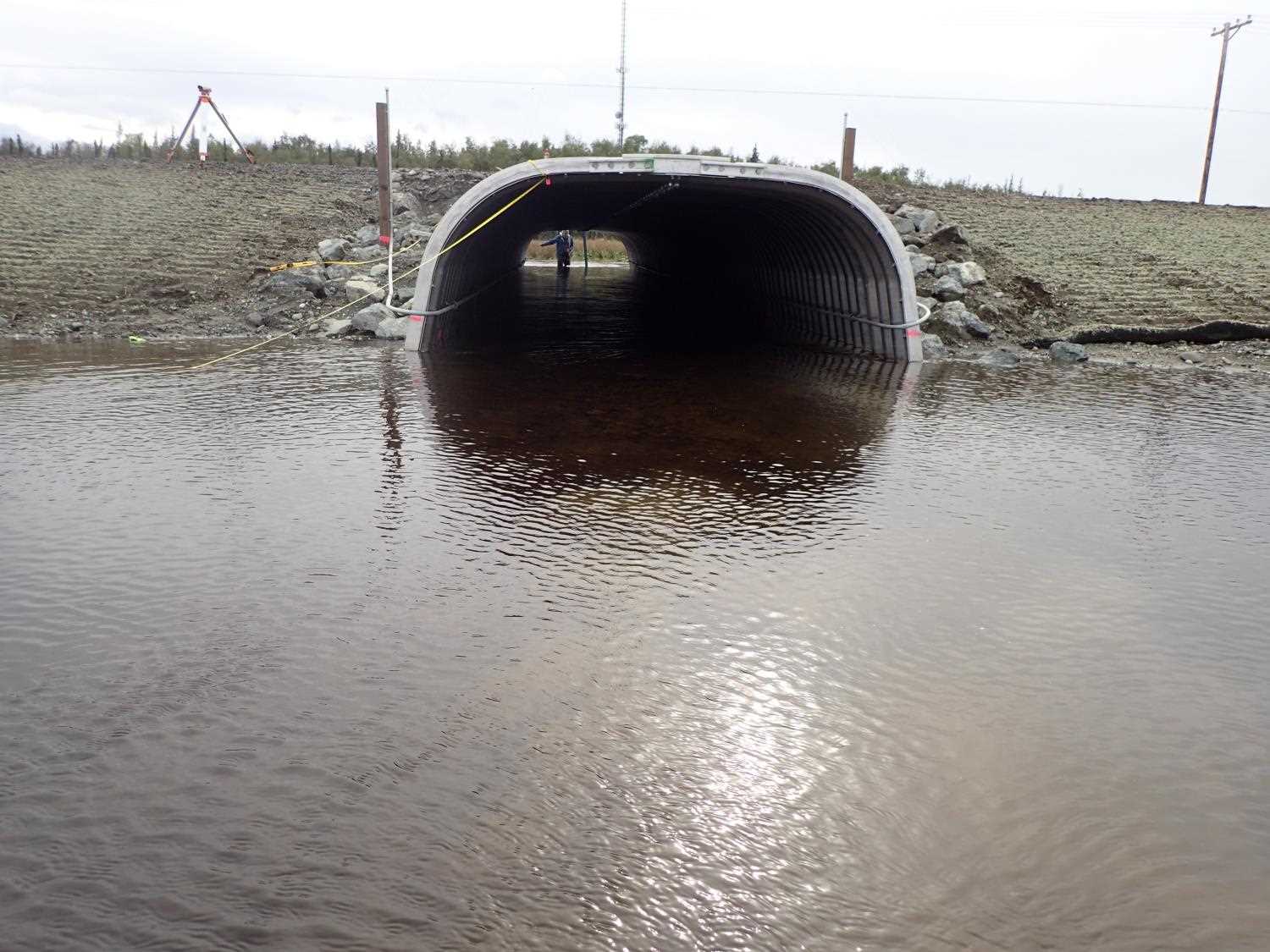

ID: 1 Structure Type: Box culvert (Structural aluminum plate) Fish Passage Rating: Green

Length(ft): 76.62

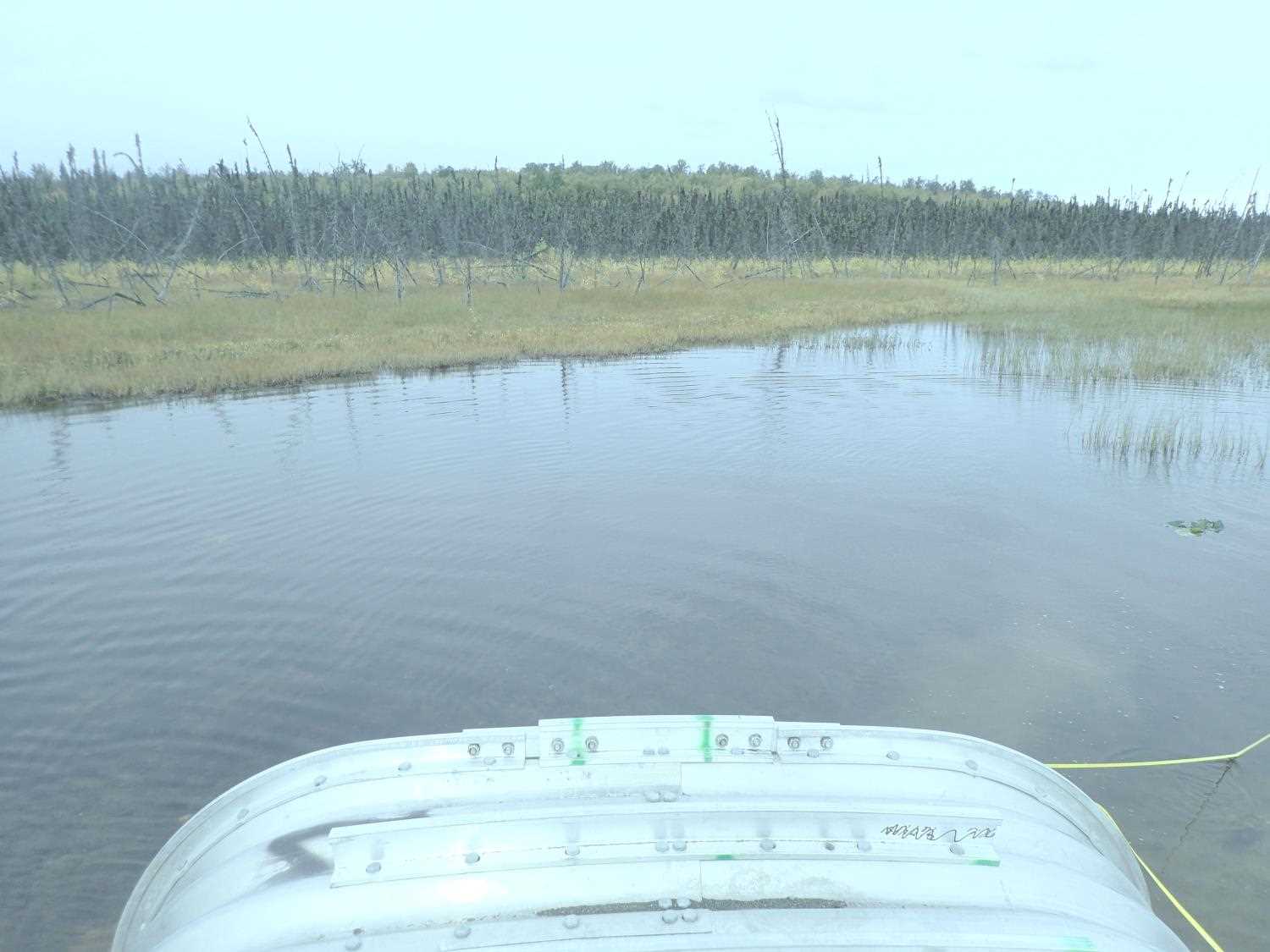

Inlet Type: Projecting

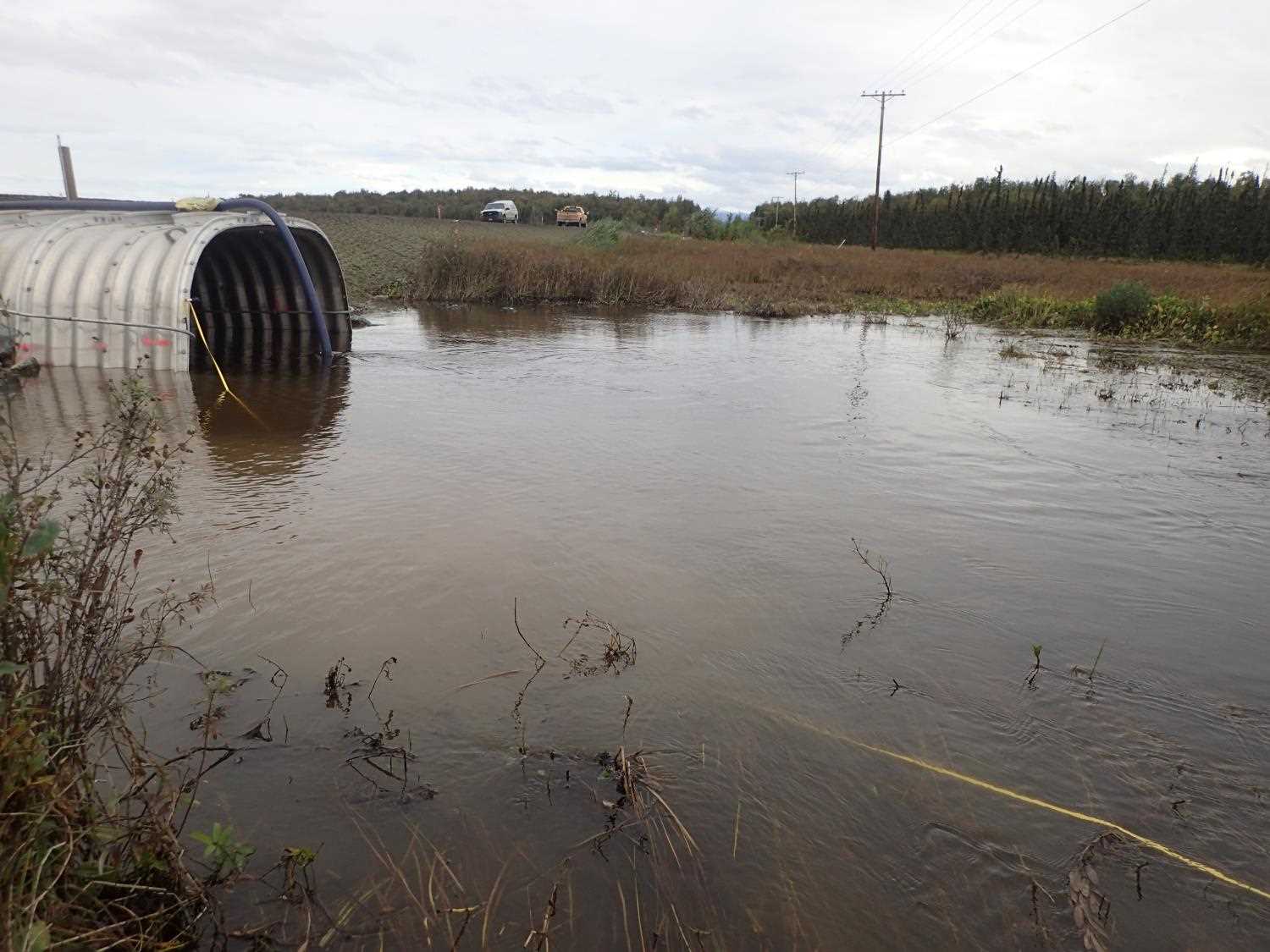

Outlet Type: Projecting
Corrugation Depth(in.): 2.5
Corrugation Width(in.): 9.0
Condition Rating(1-5): 5
Approach Angle:
Sedimentation At Inlet: No

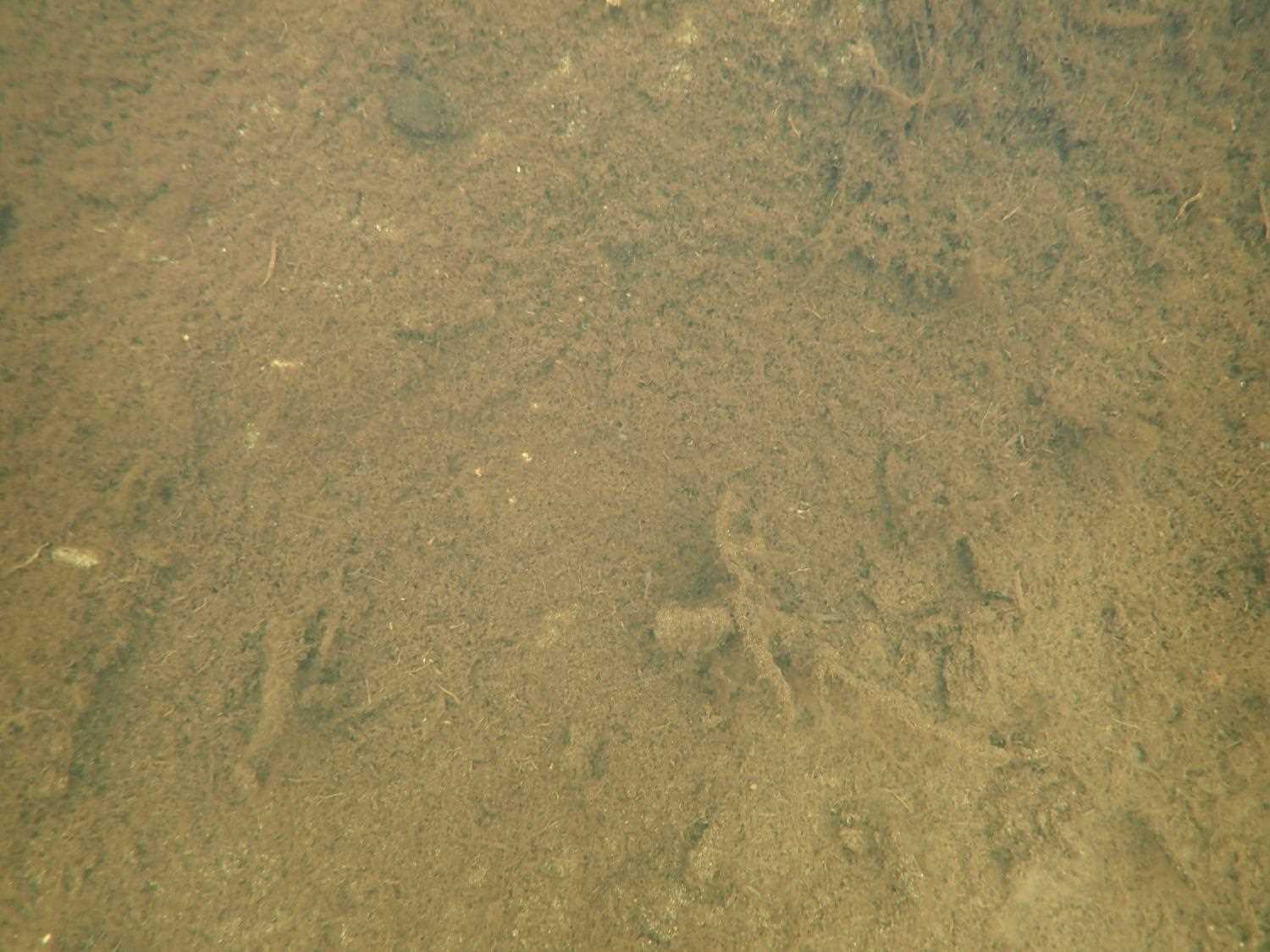

Inlet Substrate: Sand
Outlet Substrate: Sand
InletOutlet
Width(ft):10.75 10.8
Height(ft):5.4 5.6
Apron Length(ft):
Water Depth(ft):0.0 1.96
Rustline Height(ft):0.0
Substrate Depth(ft):
Backwatered?: No
Baffles Present: No
Embedded?: Yes
Outfall Height: 0.0
Outfall Type: At Stream Grade
Constriction Ratio:
Culvert Gradient: 0.21%
Max Slope:
Max Slope Length:
  Culvert Observations:
  1. None of this type

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:SandSand
Subdominant:OrganicOrganic
Stream Slope(deg.):0.71
Stream Flow Stage:High

No stream width data available.

Elevations

Locator ID Culvert
Number		 River
Distance (ft)1		 Distance From
Crossing (ft)2		 Relative
Elevation (ft)
Road Elev 98.87
U/S Water Surface Elev 0.00 93.36
Inlet Culvert Top 100.00 97.06
Inlet Culvert Invert 100.00 91.72
U/S Water Surface Elev 100.00 93.30
D/S Water Surface Elev 176.62 93.25
Outlet Invert 176.62 91.29
Outlet Culvert Top 176.62 96.90
D/S Thalweg 214.62 91.63
D/S Water Surface Elev 214.62 93.11
D/S Thalweg 277.62 91.27
D/S Water Surface Elev 277.62 92.87

Notes:

  1. River distance is measured continuously throughout the survey reach along the thalweg of the stream.
  2. Measured from each end of the crossing along the thalweg of the stream.

Fish Sampling Efforts

No fish sampling occurred during this survey.

Fish Observations

No fish observations occurred during this survey.
