Fish Passage Site 20501443

Coordinates (dec. deg.): 61.59412°, -149.63191°
Legal Description: S017N002W04
Region: South Central

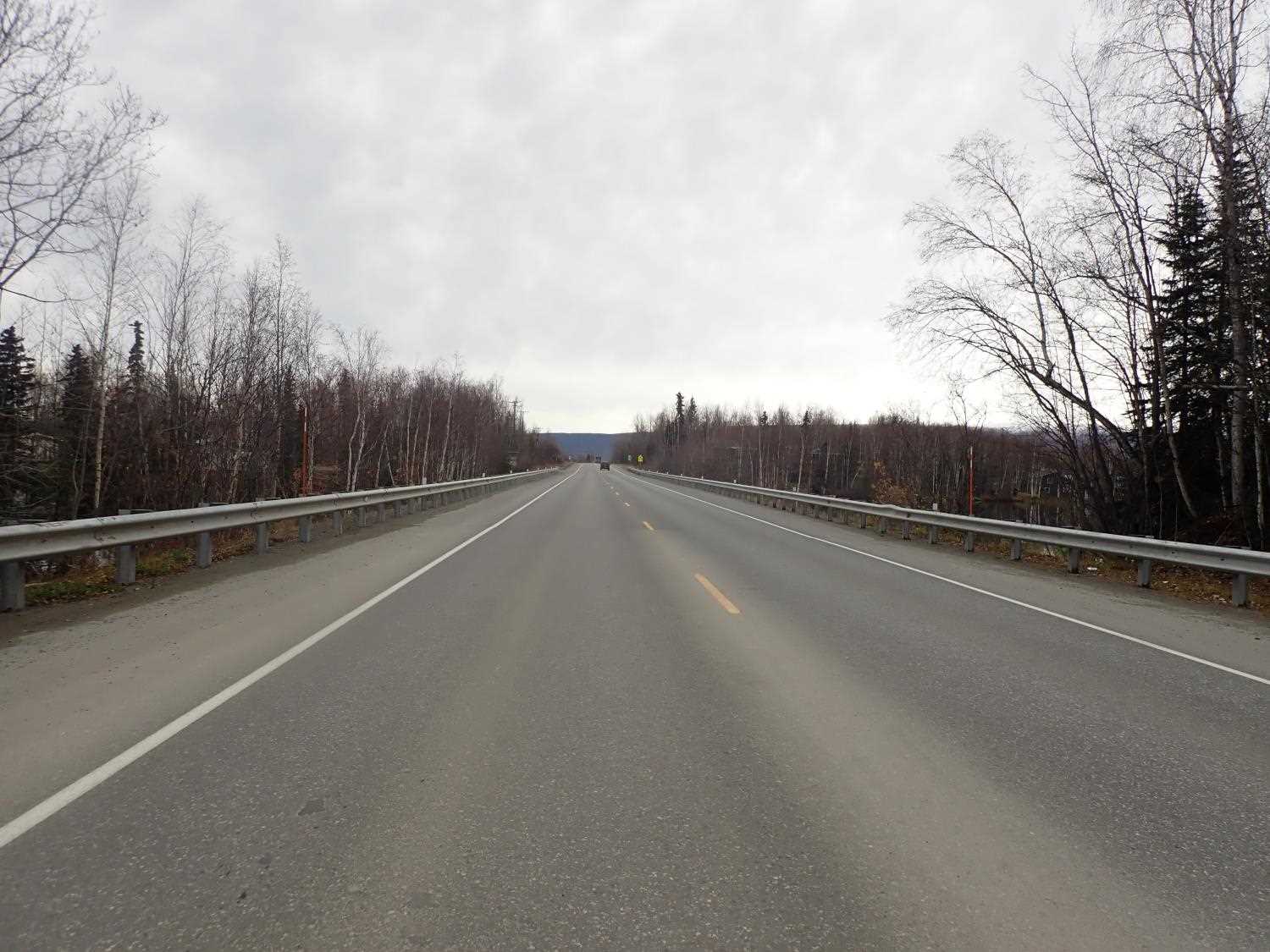

Road Name: Pittman Road

Datum: NAD83
Quad Name / ITM: Anchorage C-8
AWC Stream #:
Stream Name: Rainbow Lake

Elevation:

Site Comments: MEADOW LAKE WATERSHED, SITE IS BETWEEN 2 LAKES

Multiple surveys have been conducted at this site — click on the drop down
arrow to the right of the survey date below to choose a different report for this site.

Survey MSB23-MS116

Project Supervisor: Michael Mazzacavallo, Alaska Department of Fish and Game — Anchorage, AK
Observers: Michael Mazzacavallo, Kat Leavitt, Beth Evers

Overall Fish Passage Rating: Gray

Tidal: No
Backwatered: No

Step Pools: No
Construction Year:


Site Observations:

  1. None of this type

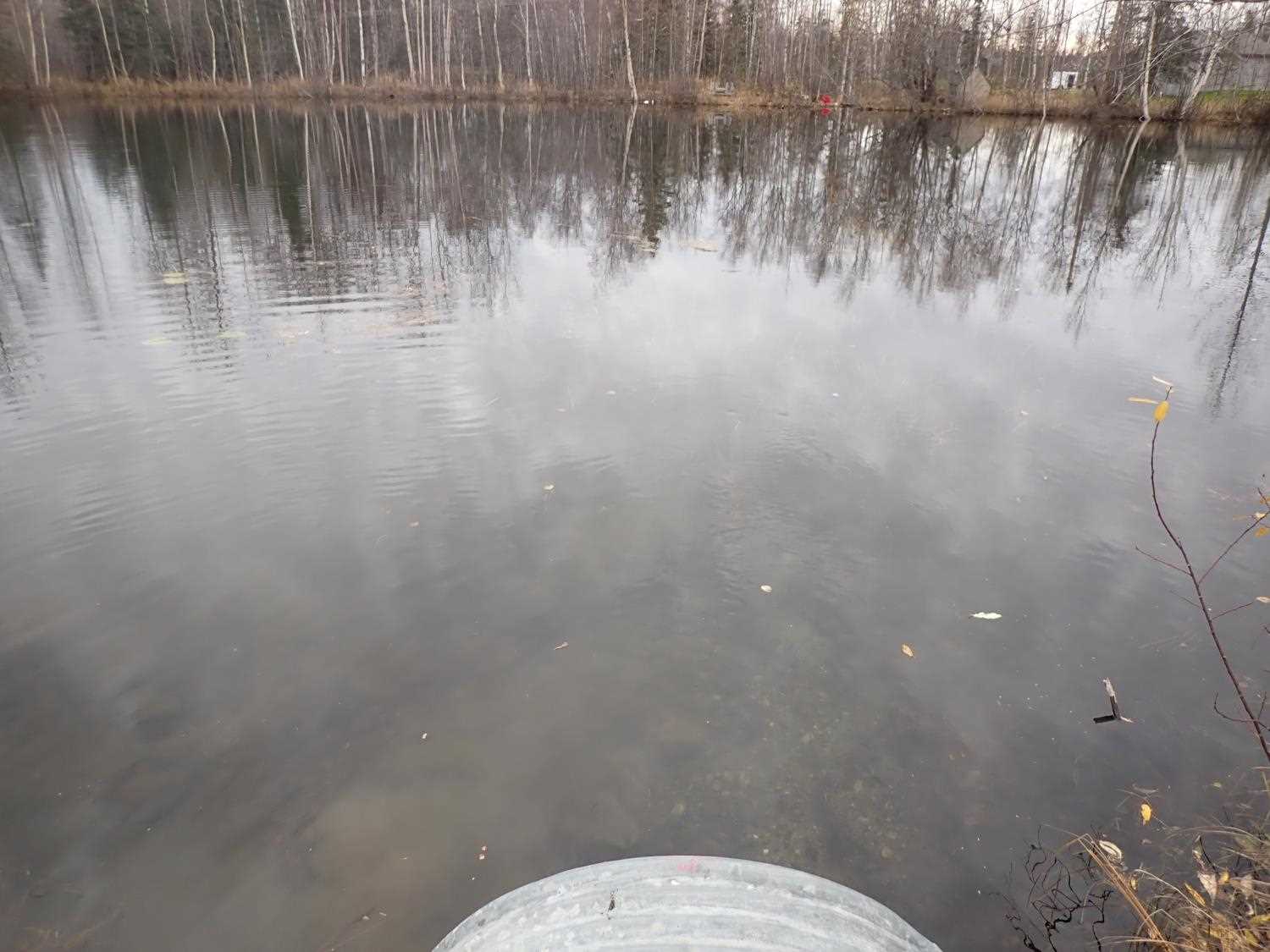

Comments: Lots of sticklebacks along the inlet lake shore and fresh water mussel shells in inlet lake.

Culvert Measurements

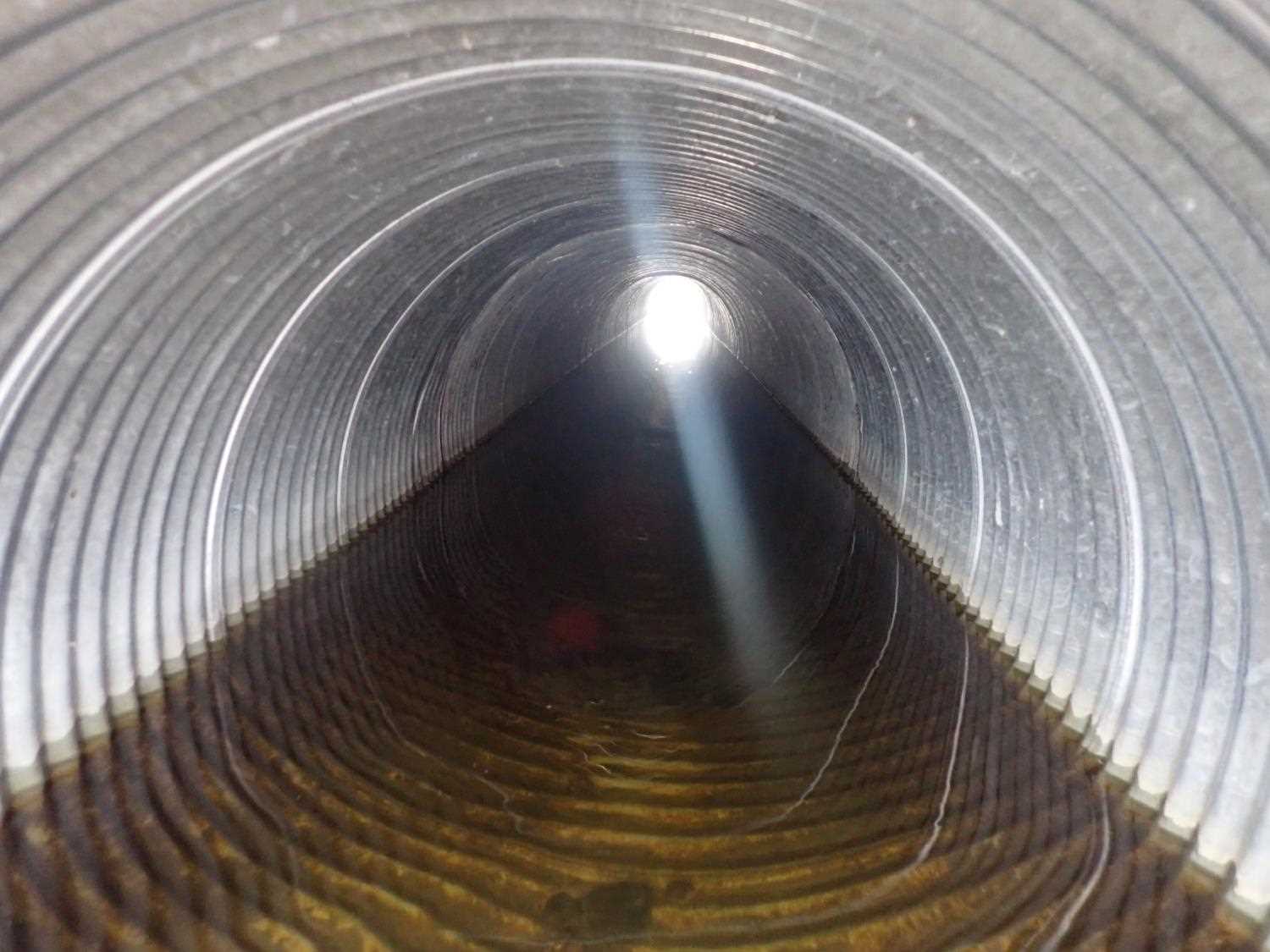

ID: 1 Structure Type: Pipe-arch (Corrugated steel) Fish Passage Rating: Gray

Length(ft): 89.7

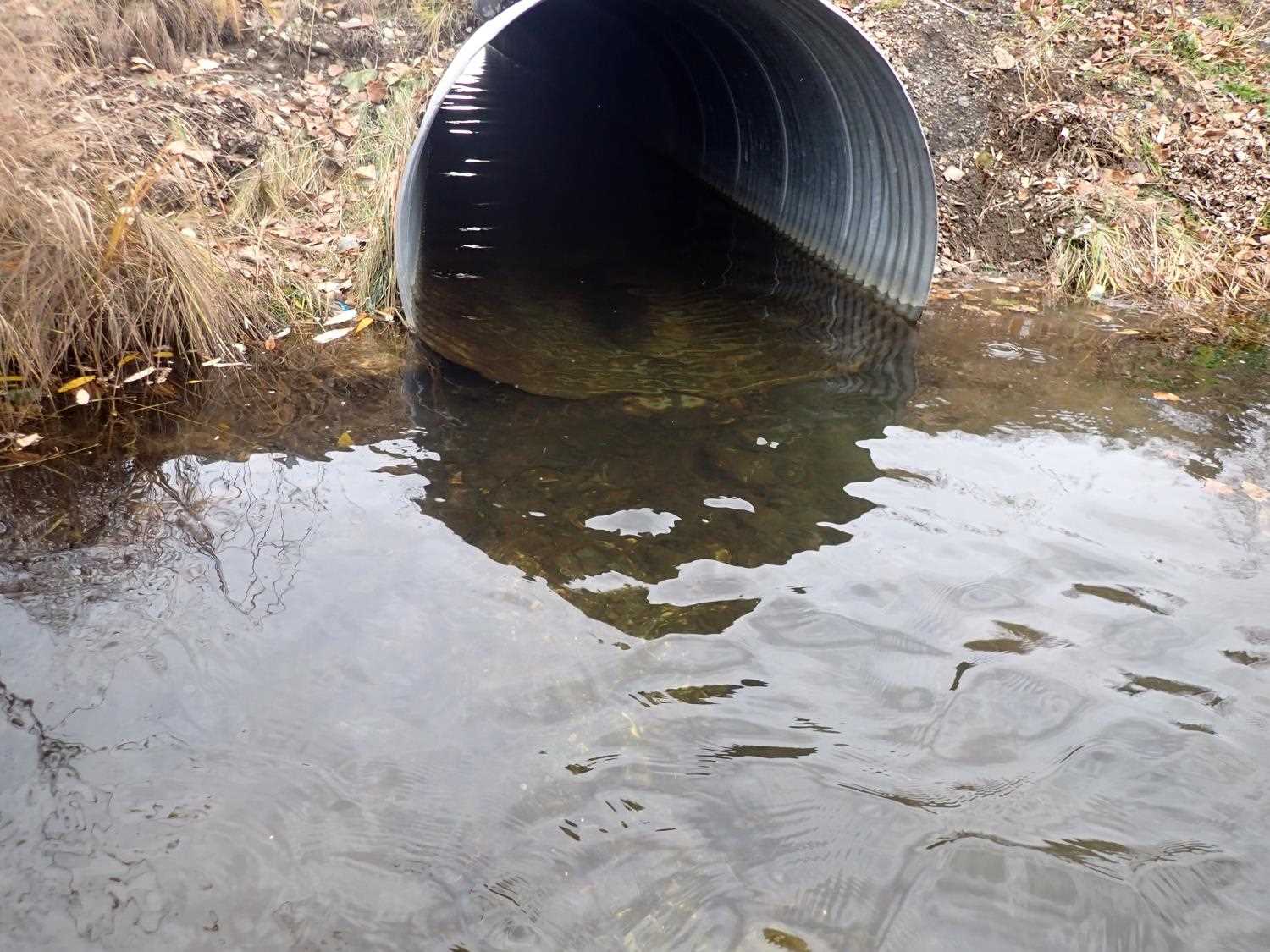

Inlet Type: Projecting
Outlet Type: Projecting
Corrugation Depth(in.): 0.5
Corrugation Width(in.): 3.0
Condition Rating(1-5): 4
Approach Angle: 0.0
Sedimentation At Inlet: No
Inlet Substrate: Gravel
Outlet Substrate: Gravel
InletOutlet
Width(ft):4.6 4.6
Height(ft):4.5 4.5
Apron Length(ft):
Water Depth(ft):0.0 1.79
Rustline Height(ft):1.1
Substrate Depth(ft):0.0 0.0
Backwatered?: No
Baffles Present: No
Embedded?: No
Embedded Depth(ft): 0.0
Outfall Height: 0.0
Outfall Type: At Stream Grade
Constriction Ratio:
Culvert Gradient: 0.72%
Max Slope:
Max Slope Length:
  Culvert Observations:
  1. None of this type

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:OrganicOrganic
Subdominant:Silt/ClaySilt/Clay
Stream Slope(deg.):0.04
Stream Flow Stage:Medium

No stream width data available.

Elevations

Locator ID Culvert
Number		 River
Distance (ft)1		 Distance From
Crossing (ft)2		 Relative
Elevation (ft)
Road Elev 97.52
D/S Water Surface Elev 0.00 89.17
D/S Water Surface Elev 10.00 89.20
Outlet Invert 10.00 87.41
Outlet Culvert Top 10.00 91.96
Inlet Culvert Top 99.70 92.61
Inlet Culvert Invert 99.70 88.04
U/S Water Surface Elev 99.70 89.22
U/S Water Surface Elev 109.70 89.22

Notes:

  1. River distance is measured continuously throughout the survey reach along the thalweg of the stream.
  2. Measured from each end of the crossing along the thalweg of the stream.

Fish Sampling Efforts

No fish sampling occurred during this survey.

Fish Observations

No fish observations occurred during this survey.
