Fish Passage Site 20501439

Coordinates (dec. deg.): 61.56609°, -149.89239°
Legal Description: S017N003W18
Region: South Central

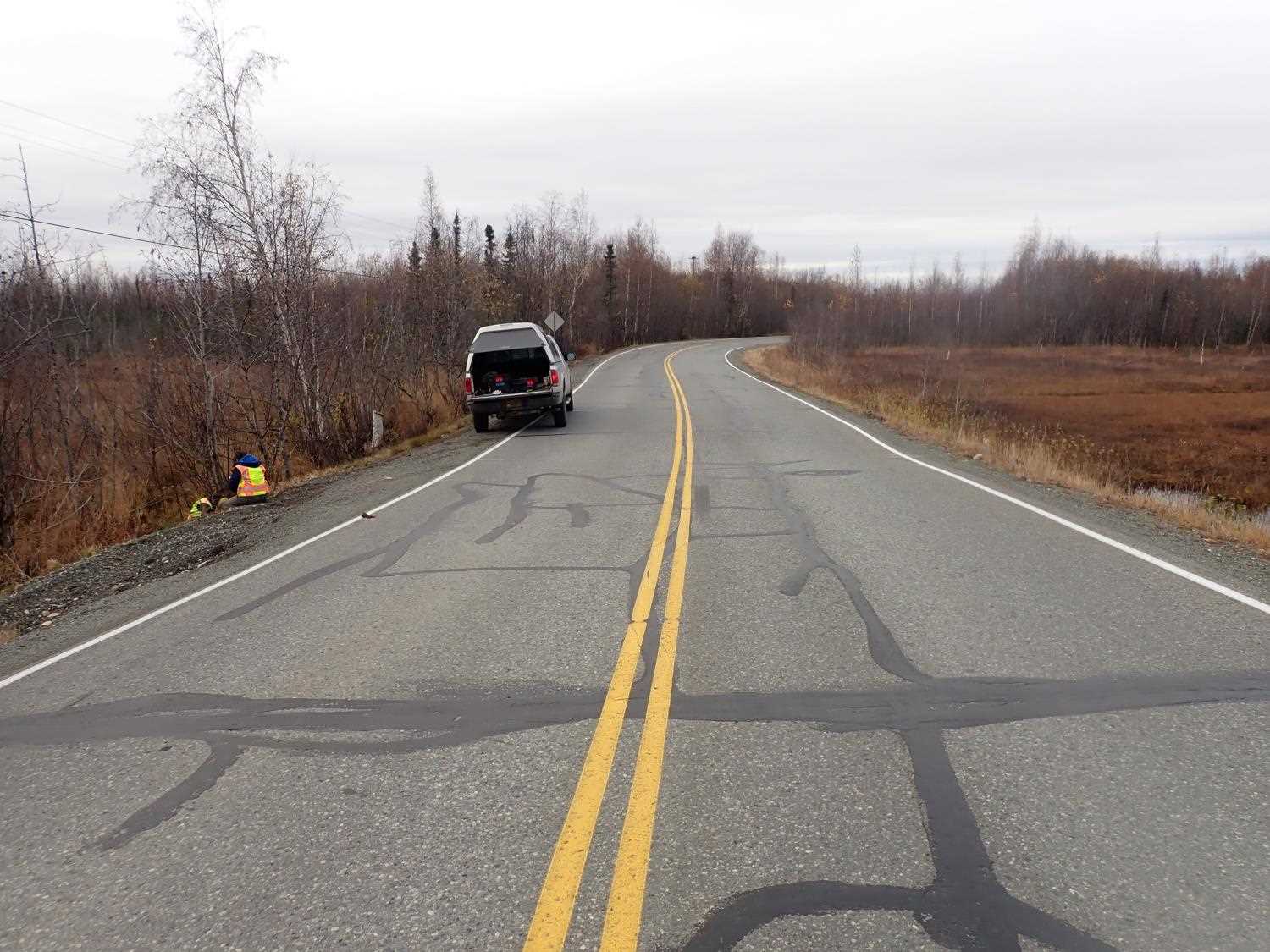

Road Name: Lakes Boulevard

Datum: NAD83
Quad Name / ITM: Anchorage C-8
AWC Stream #: 247-50-10330-2050-3007
Stream Name: Meadow Creek Tributary

Elevation:

Site Comments: SUSITNA RIVER WATERSHED

Multiple surveys have been conducted at this site — click on the drop down
arrow to the right of the survey date below to choose a different report for this site.

Survey MSB23-MS096

Project Supervisor: Michael Mazzacavallo, Alaska Department of Fish and Game — Anchorage, AK
Observers: Michael Mazzacavallo, Kat Leavitt, Beth Evers

Overall Fish Passage Rating: Green

Tidal: No
Backwatered: Yes

Step Pools: No
Construction Year:


Site Observations:

  1. None of this type

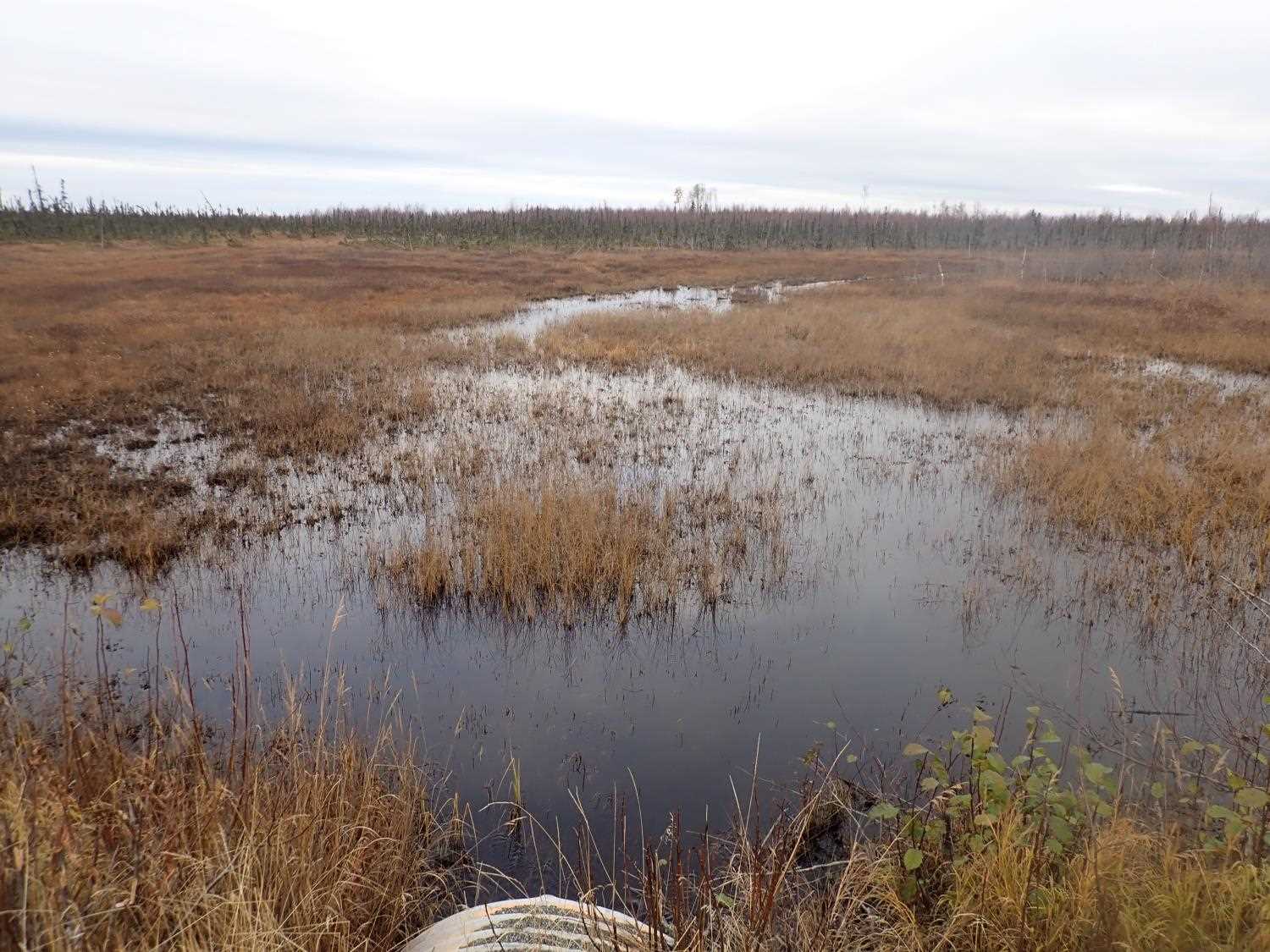

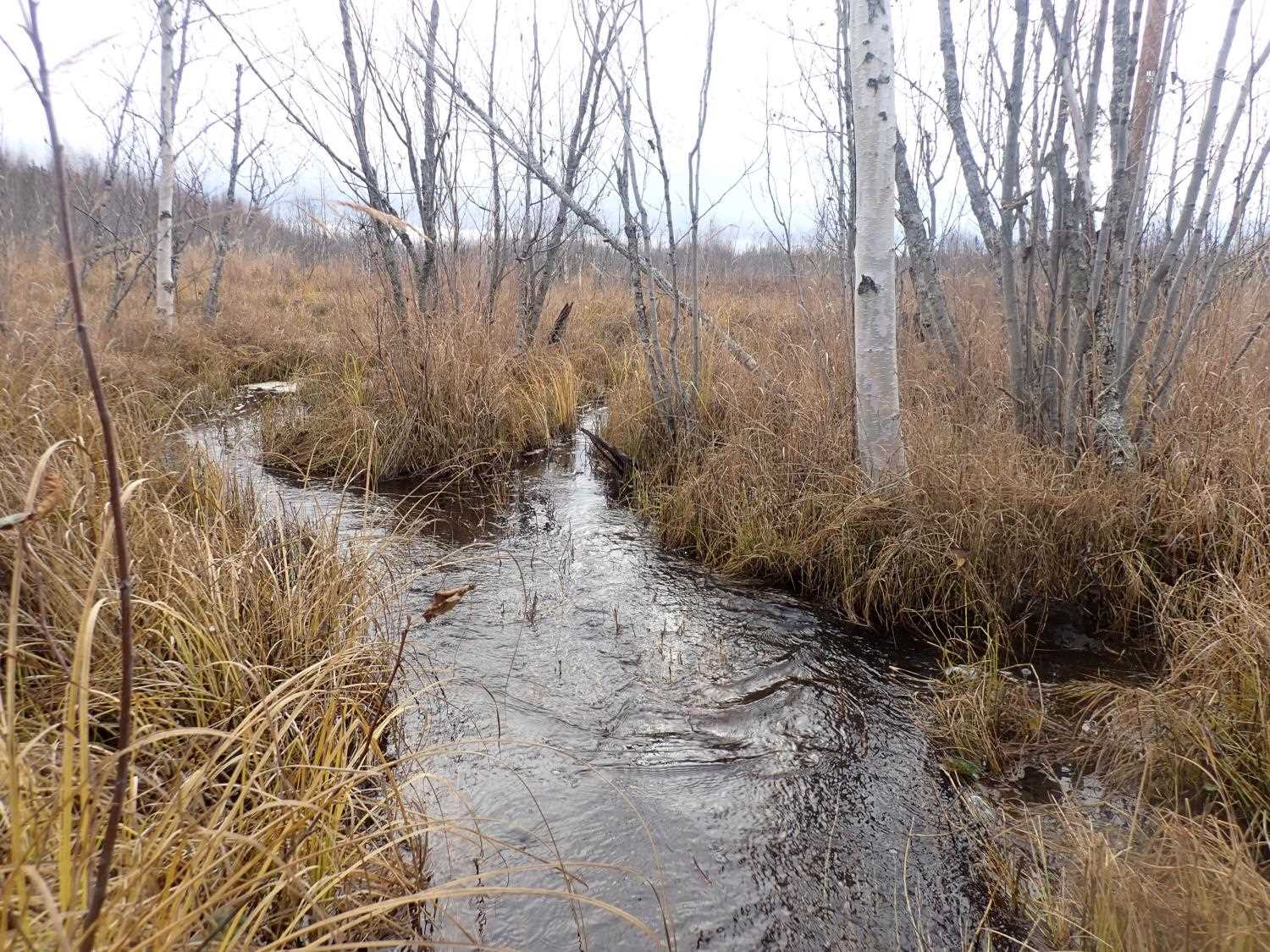

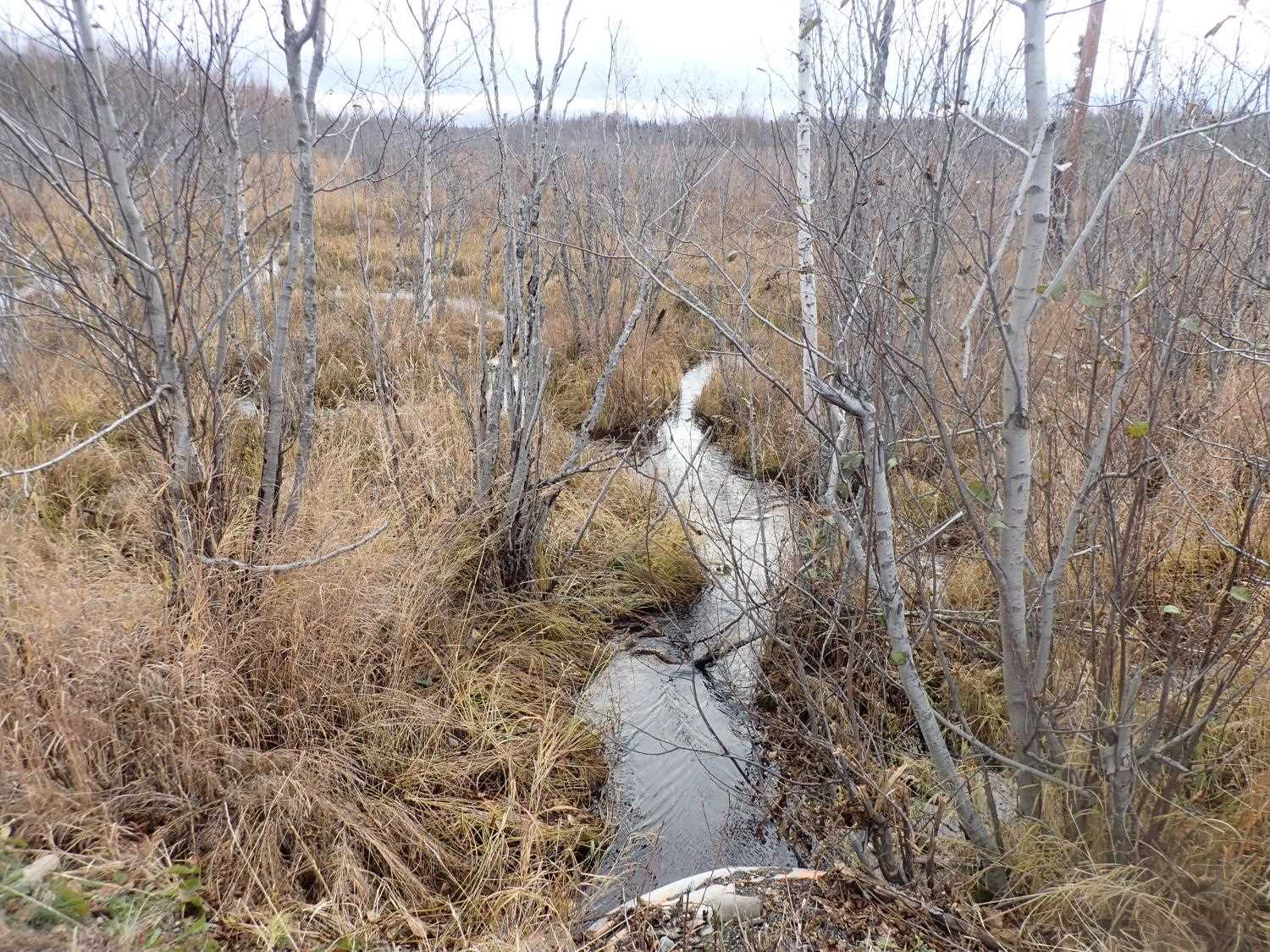

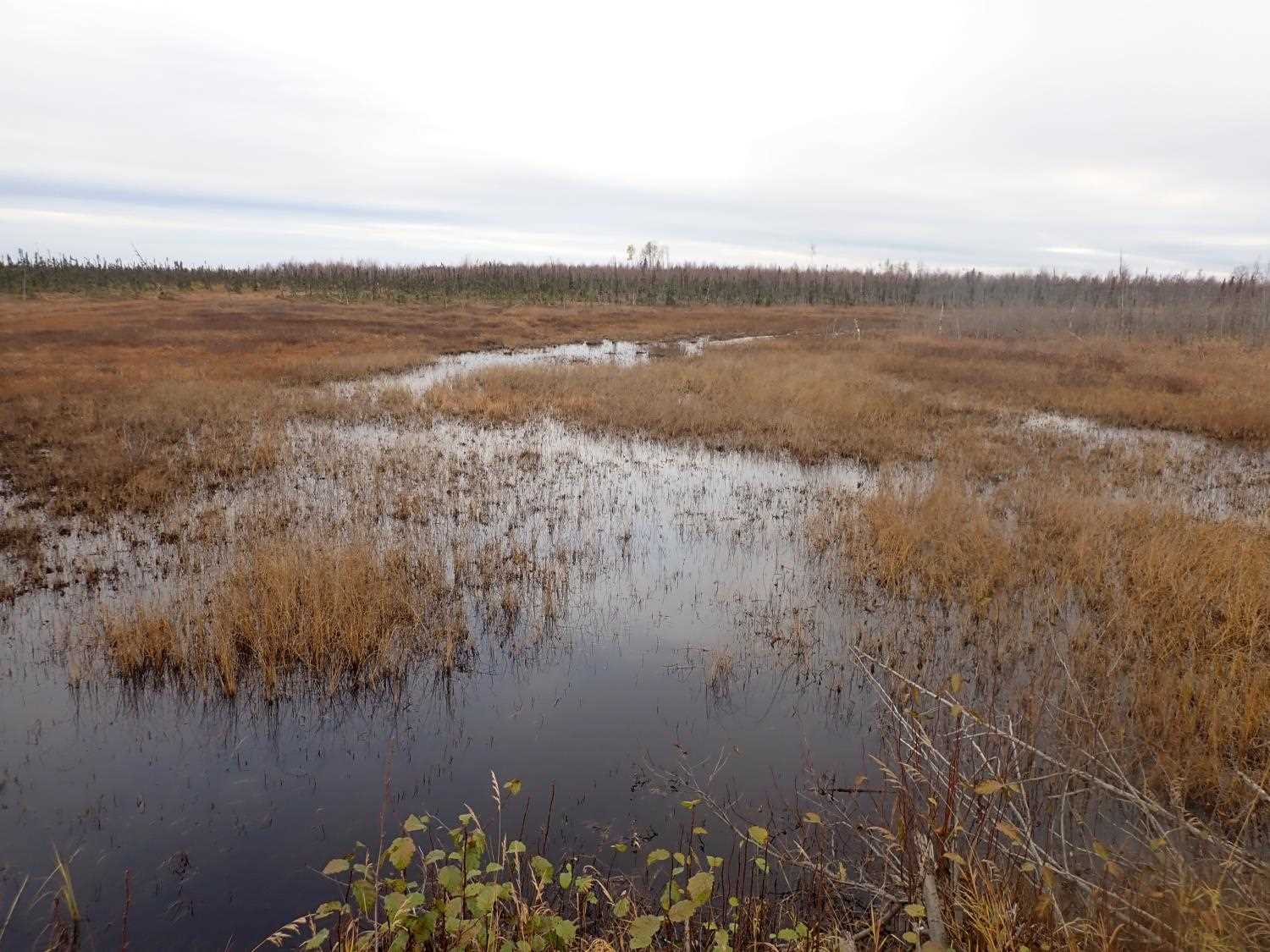

Comments: Open bog upstream and downstream.

Culvert Measurements

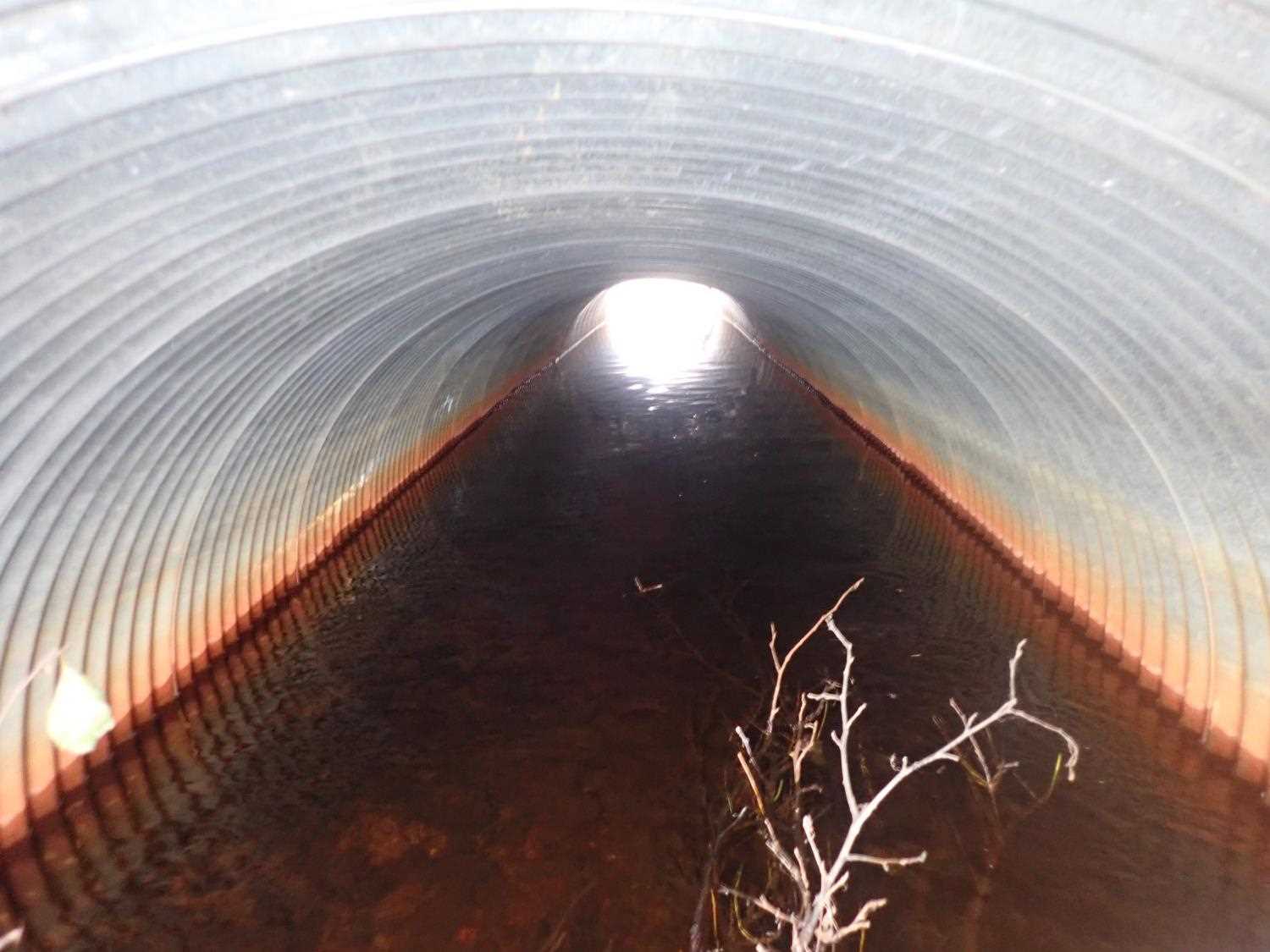

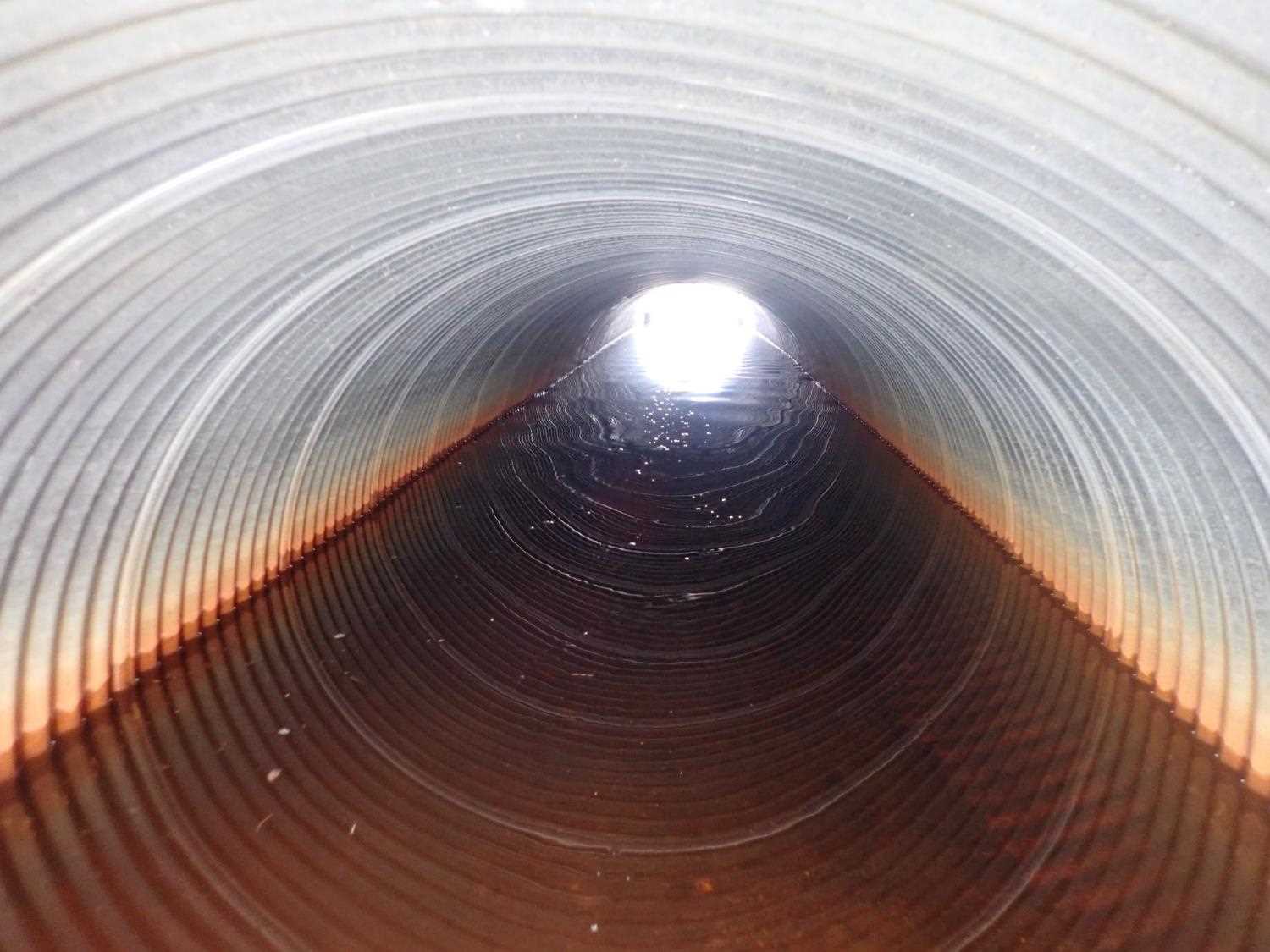

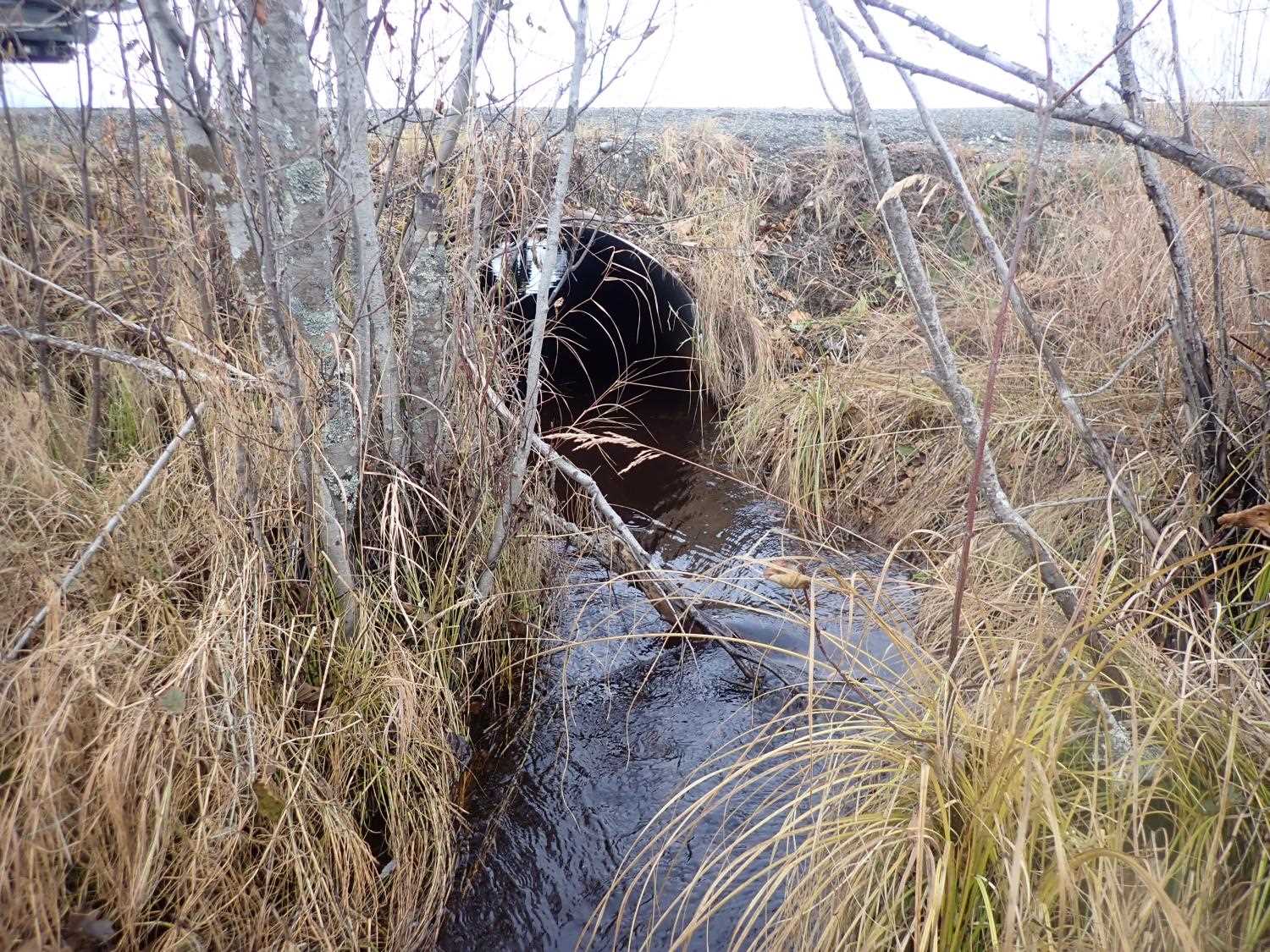

ID: 1 Structure Type: Pipe-arch (Corrugated steel) Fish Passage Rating: Green

Length(ft): 48.33

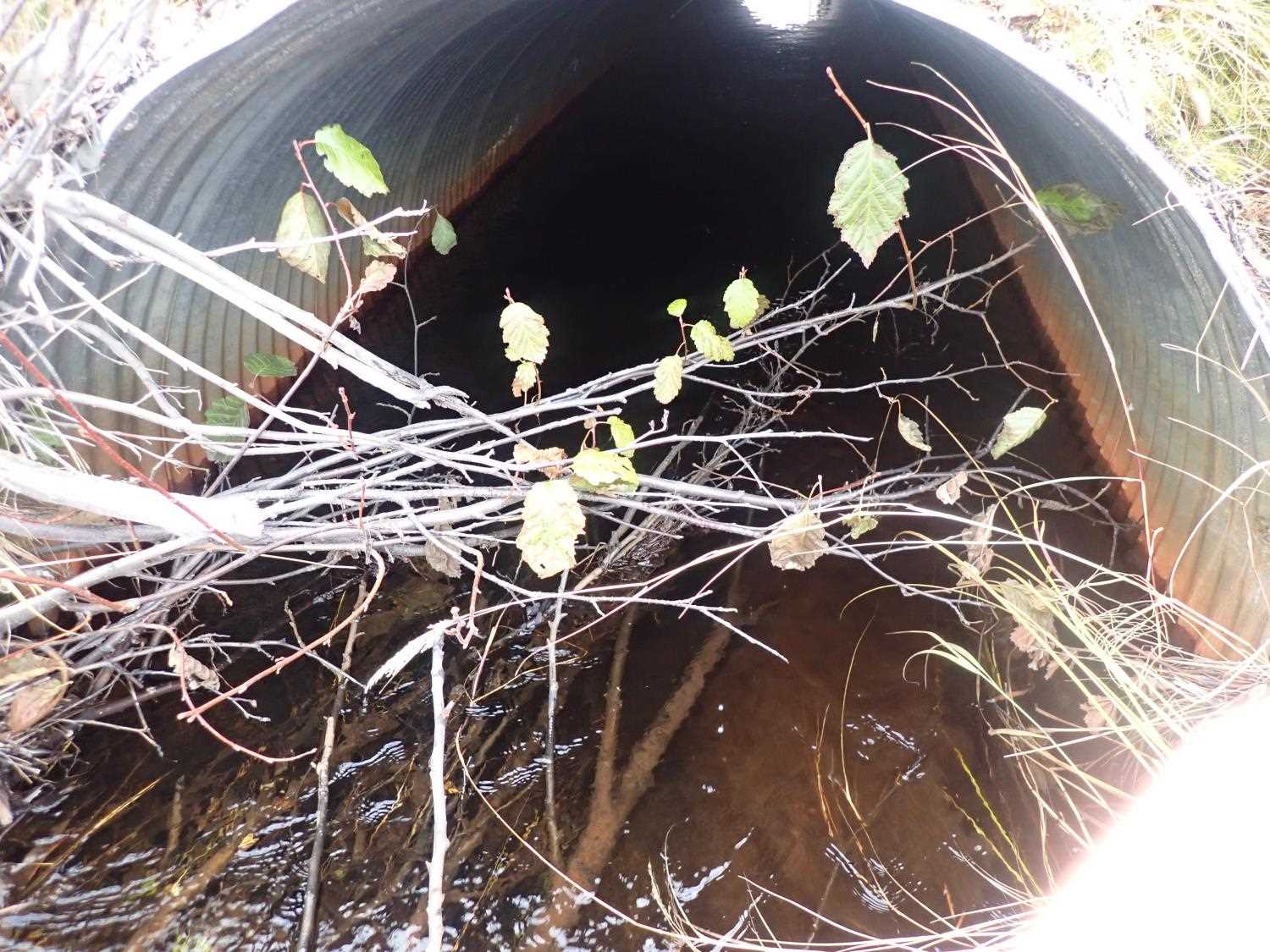

Inlet Type: Projecting
Outlet Type: Projecting
Corrugation Depth(in.): 0.5
Corrugation Width(in.): 3.0
Condition Rating(1-5): 4
Approach Angle: 0.0
Sedimentation At Inlet: No
Inlet Substrate: Sand
Outlet Substrate: Sand
InletOutlet
Width(ft):4.97 5.0
Height(ft):3.77 3.6
Apron Length(ft):
Water Depth(ft):0.0 0.94
Rustline Height(ft):1.2
Substrate Depth(ft):0.22 0.23
Backwatered?: Yes
Baffles Present: No
Embedded?: No
Embedded Depth(ft): 0.0
Outfall Height: 0.0
Outfall Type: At Stream Grade
Constriction Ratio:
Culvert Gradient: 0.23%
Max Slope:
Max Slope Length:
  Culvert Observations:
  1. None of this type

Stream Measurements

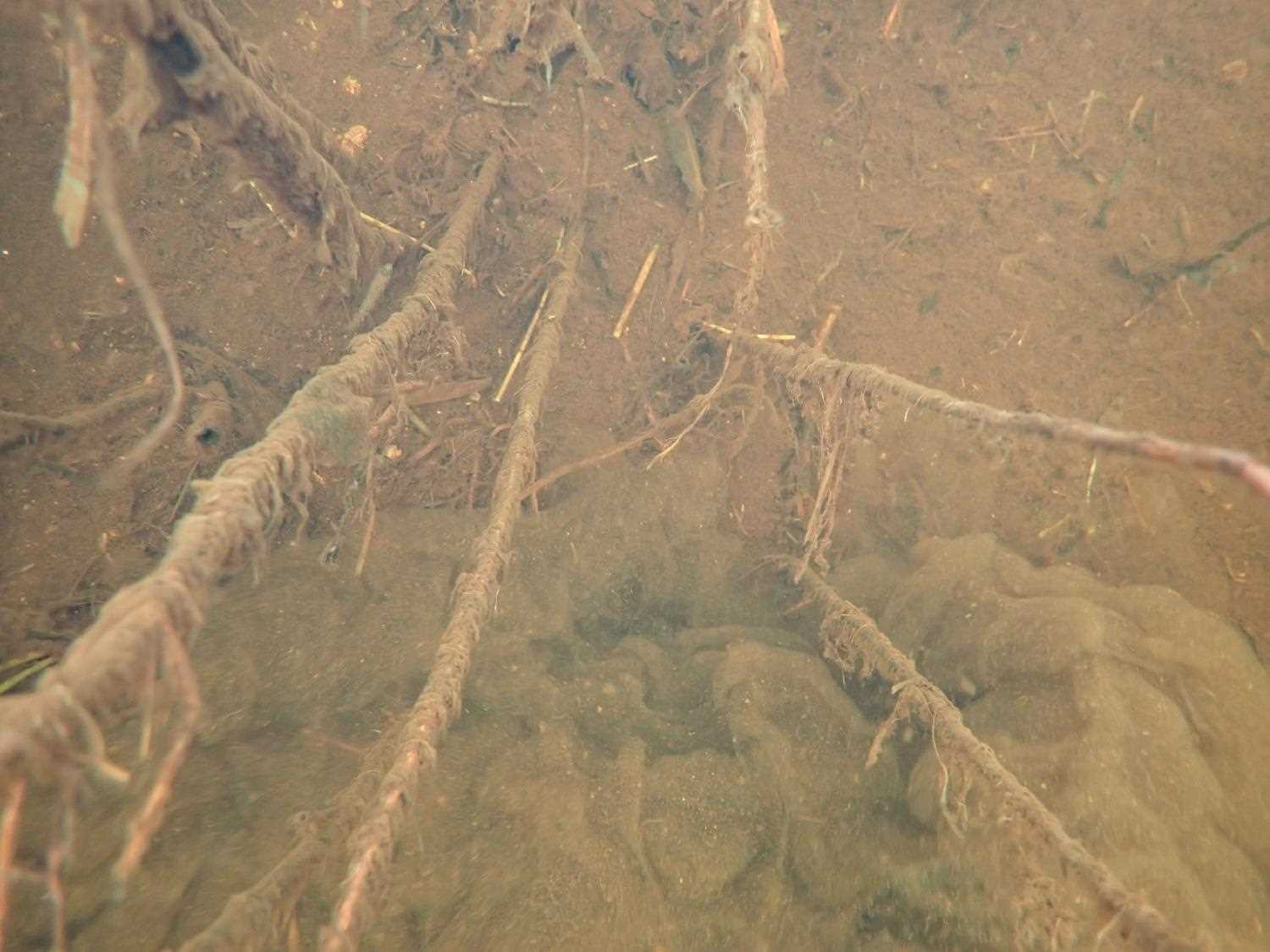

Stream SubstratesUpstreamDownstream
Dominant:OrganicSand
Subdominant:Silt/ClayOrganic
Stream Slope(deg.):0.25
Stream Flow Stage:Medium

No stream width data available.

Elevations

Locator ID Culvert
Number		 River
Distance (ft)1		 Distance From
Crossing (ft)2		 Relative
Elevation (ft)
Road Elev 99.76
D/S Water Surface Elev 0.00 93.84
D/S Water Surface Elev 40.00 94.08
Outlet Invert 40.00 93.14
Outlet Culvert Top 40.00 96.82
Inlet Culvert Top 88.33 96.93
Inlet Culvert Invert 88.33 93.14
U/S Water Surface Elev 88.33 94.10
U/S Water Surface Elev 128.33 94.16

Notes:

  1. River distance is measured continuously throughout the survey reach along the thalweg of the stream.
  2. Measured from each end of the crossing along the thalweg of the stream.

Fish Sampling Efforts

No fish sampling occurred during this survey.

Fish Observations

No fish observations occurred during this survey.

Questions or comments about this report can be directed to dfg.dsf.webmaster@alaska.gov
