Fish Passage Site 20501103

Coordinates (dec. deg.): 61.56861°, -149.82463°
Legal Description: S017N003W16
Region: South Central

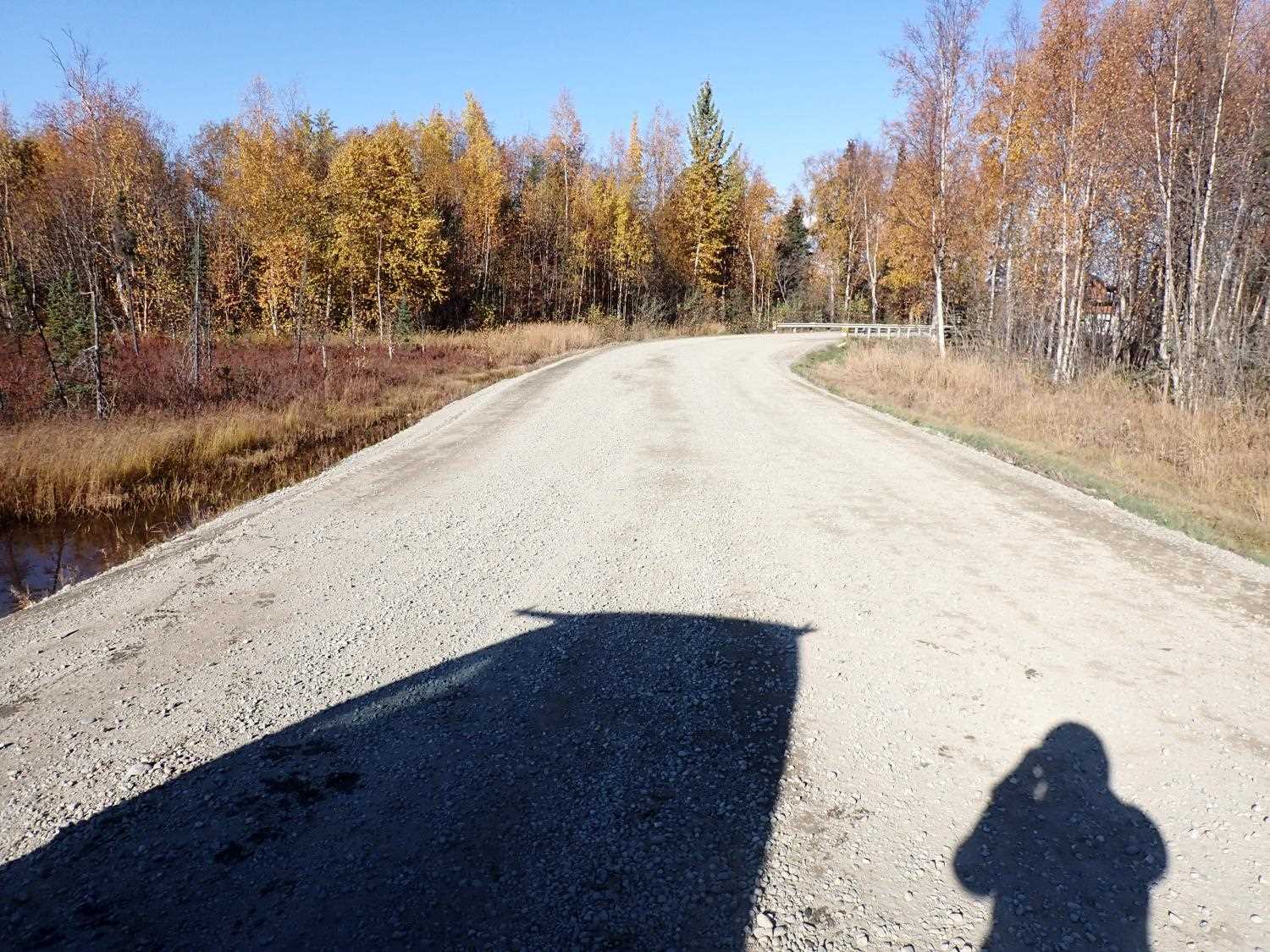

Road Name: Ryan's Creek Drive

Datum: NAD83
Quad Name / ITM: Anchorage C-8
AWC Stream #:
Stream Name:

Elevation:

Site Comments: None

Multiple surveys have been conducted at this site — click on the drop down
arrow to the right of the survey date below to choose a different report for this site.

Survey MSB23-LL01

Project Supervisor: Michael Mazzacavallo, Alaska Department of Fish and Game — Anchorage, AK
Observers: Michael Mazzacavallo, Kat Leavitt, Beth Evers

Overall Fish Passage Rating: Black

Tidal: No
Backwatered: Yes

Step Pools: No
Construction Year:

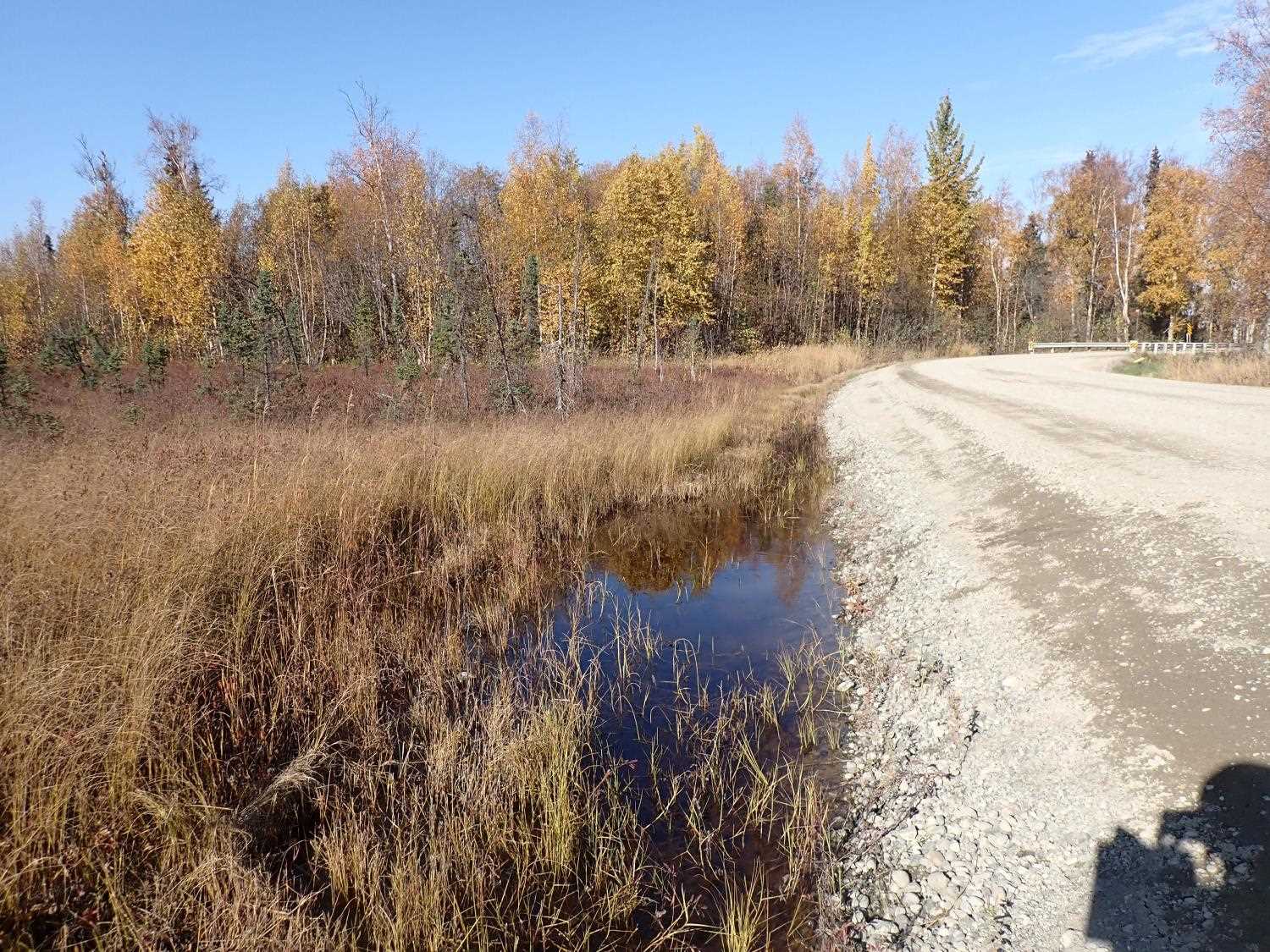

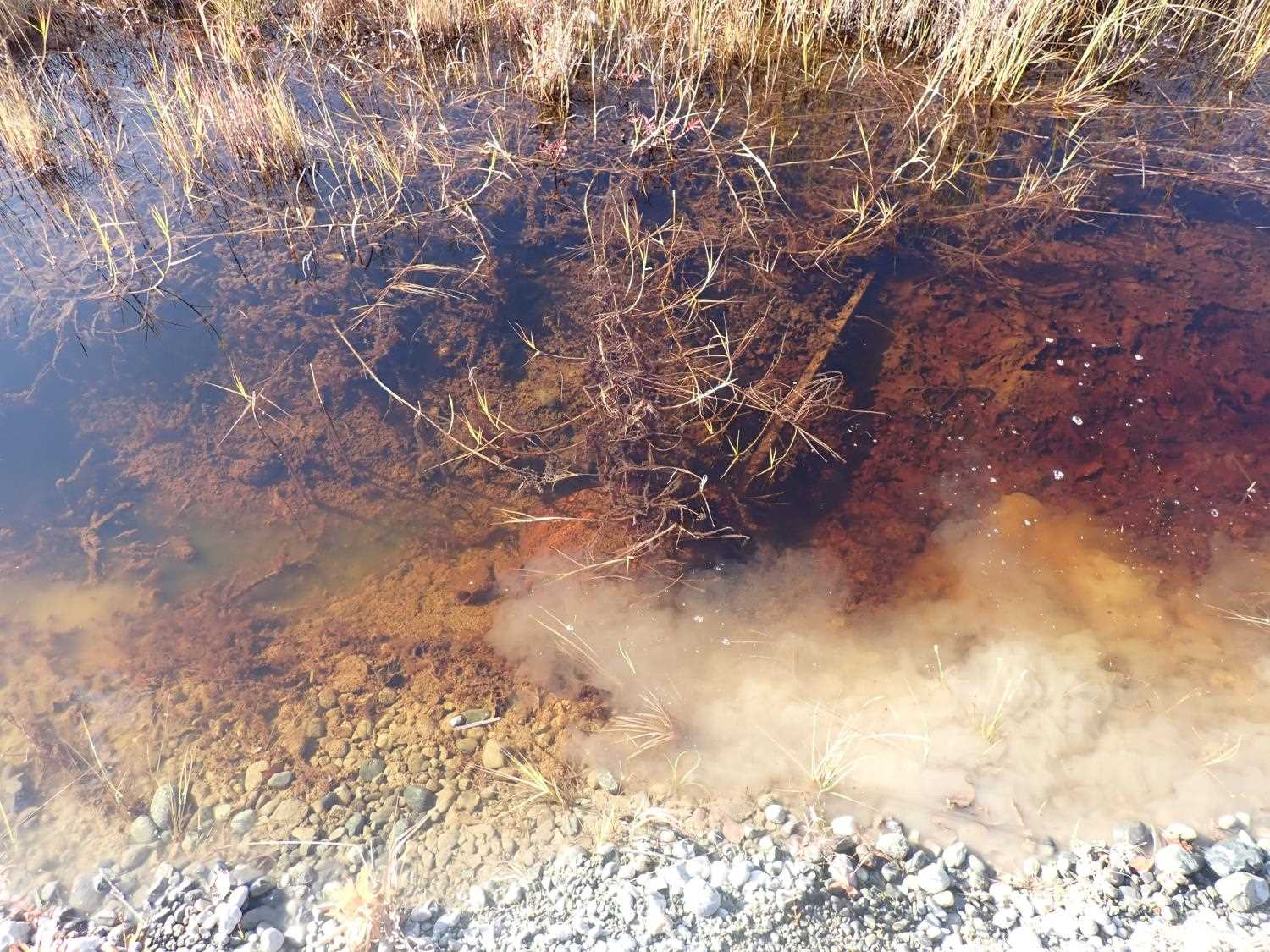

Comments: Outlet is a ditch, juvinele fish spotted.

Culvert Measurements

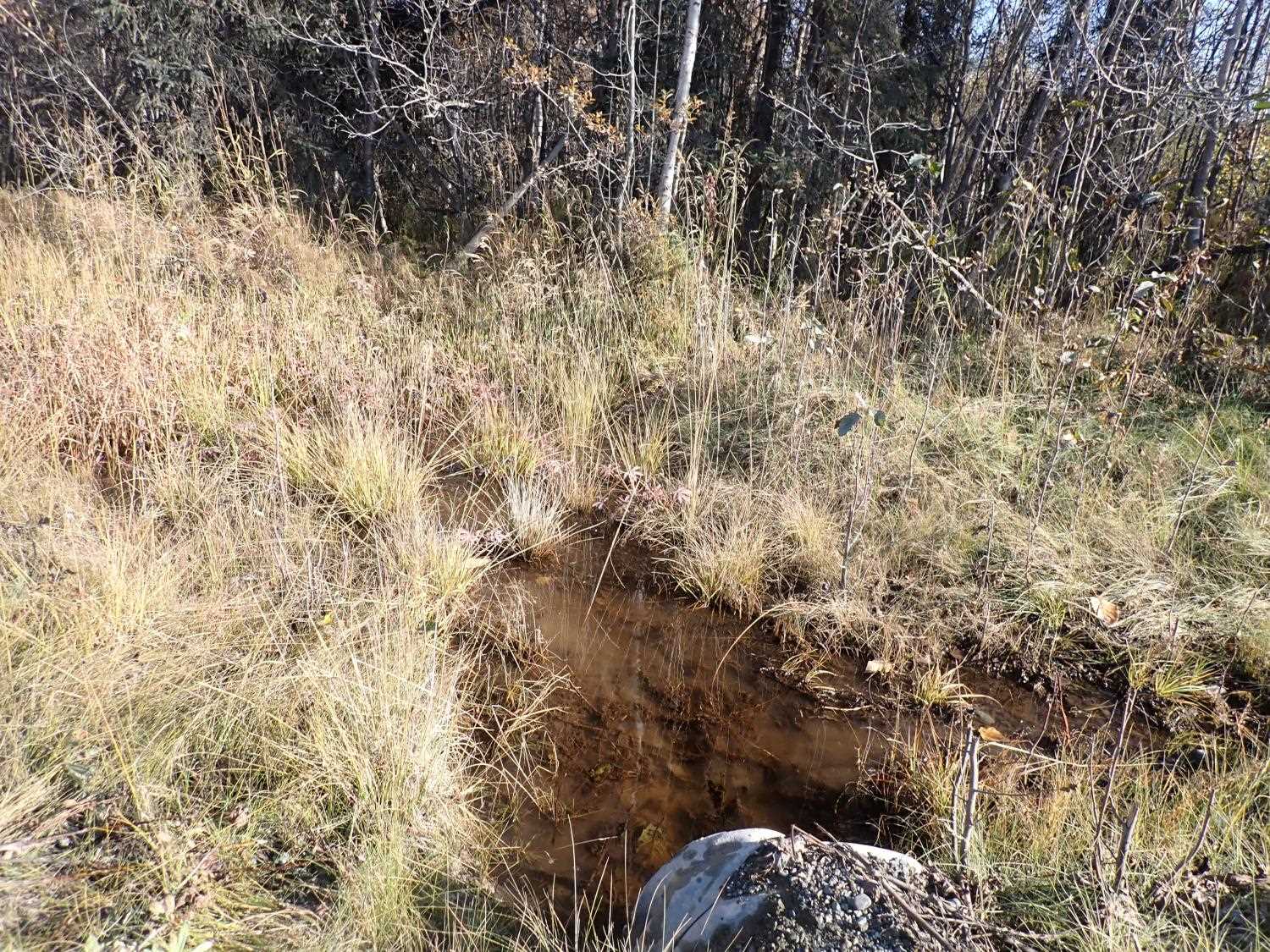

ID: 1 Structure Type: Circular pipe (Corrugated steel) Fish Passage Rating: Black

Length(ft): 70.0
Inlet Type: Projecting
Outlet Type: Projecting
Corrugation Depth(in.): 2.5
Corrugation Width(in.): 0.5
Condition Rating(1-5):
Approach Angle: 0.0
Sedimentation At Inlet: No
Inlet Substrate: Gravel
Outlet Substrate: Gravel
InletOutlet
Width(ft):1.53
Height(ft):1.43
Apron Length(ft):
Water Depth(ft):0.0
Rustline Height(ft):0.3
Substrate Depth(ft):0.0 0.0
Backwatered?: Yes
Baffles Present: No
Embedded?: No
Outfall Height: 0.0
Outfall Type: At Stream Grade
Constriction Ratio:
Culvert Gradient:
Max Slope:
Max Slope Length:

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:OrganicOrganic
Subdominant:GravelSilt/Clay
Stream Slope(deg.):
Stream Flow Stage:High

No stream width data available.

Elevations

No elevation data available.

Fish Sampling Efforts

No fish sampling occurred during this survey.

Fish Observations

No fish observations occurred during this survey.

Questions or comments about this report can be directed to dfg.dsf.webmaster@alaska.gov
