Fish Passage Site 20501097

Coordinates (dec. deg.): 61.58490°, -149.76123°
Legal Description: S017N003W11
Region: South Central

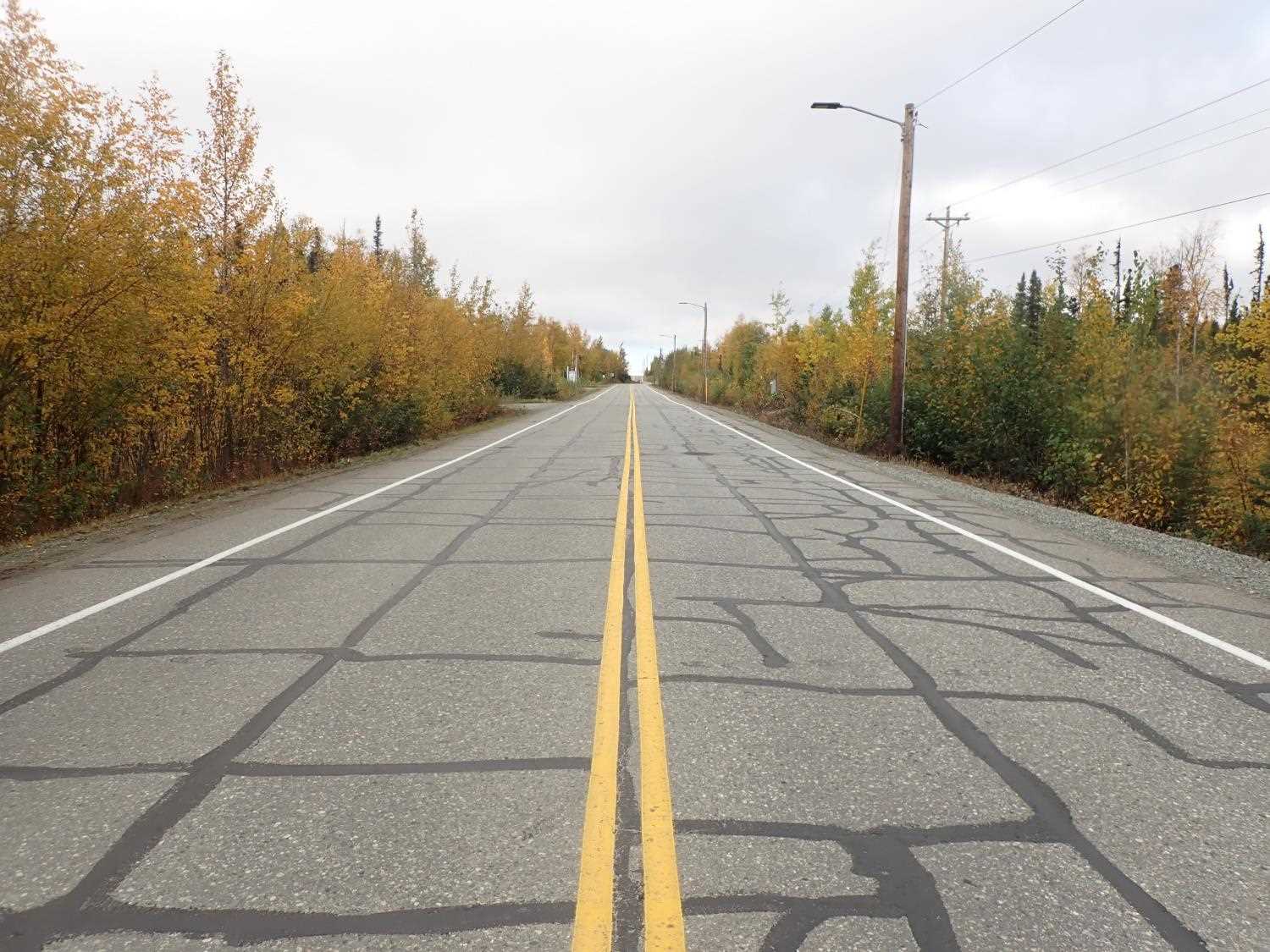

Road Name: Hawk Lane

Datum: NAD83
Quad Name / ITM: Anchorage C-8
AWC Stream #:
Stream Name:

Elevation:

Site Comments: None

Multiple surveys have been conducted at this site — click on the drop down
arrow to the right of the survey date below to choose a different report for this site.

Survey MSB23-MS057

Project Supervisor: Michael Mazzacavallo, Alaska Department of Fish and Game — Anchorage, AK
Observers: Kevin Keith, Beth Evers

Overall Fish Passage Rating: Gray

Tidal: No
Backwatered: No

Step Pools: No
Construction Year:


Site Observations:

  1. Other, including vibrations, cavitation, etc.
  2. Culvert is too short
  3. Inlet perch

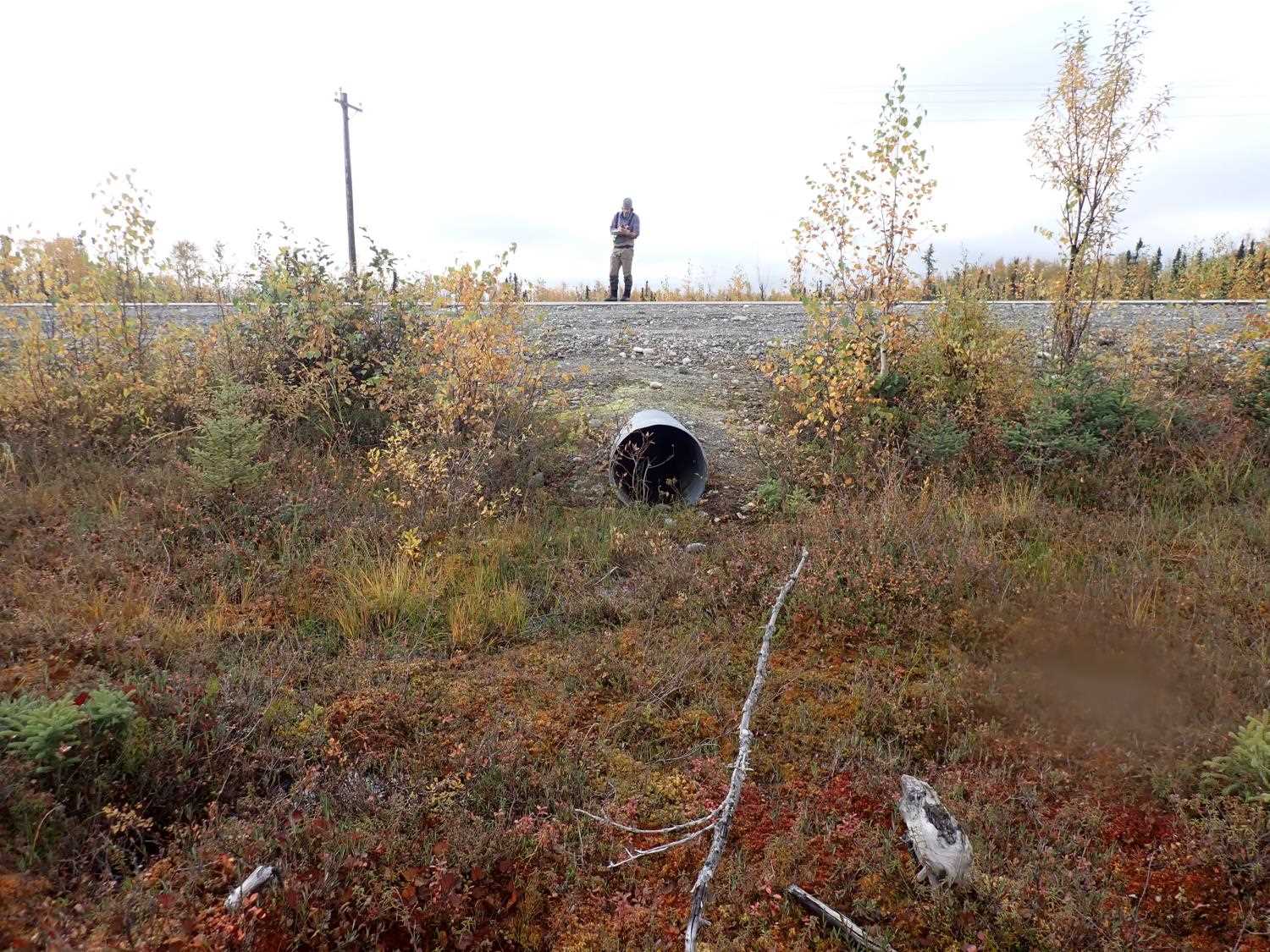

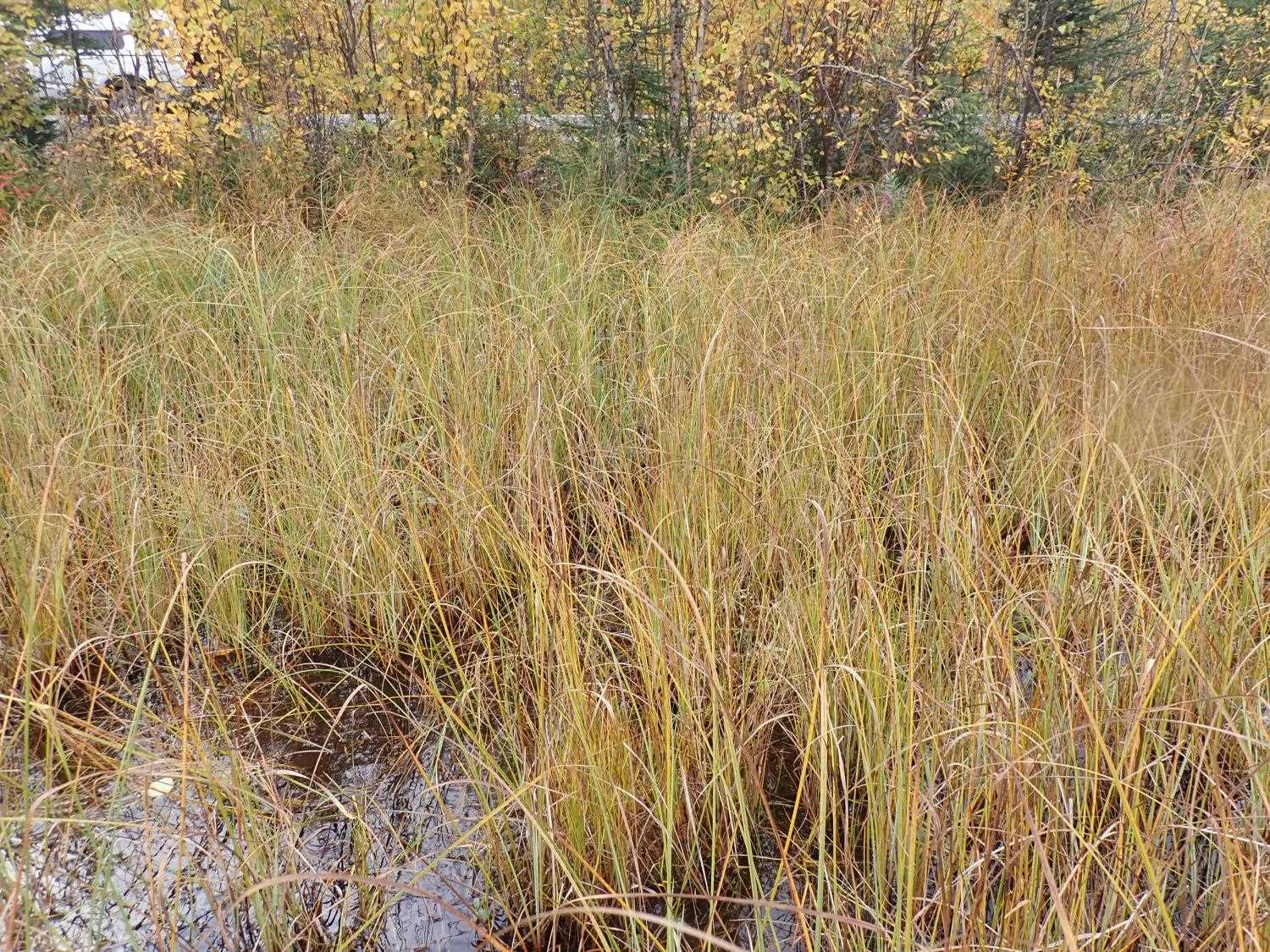

Comments: Culvert connects wetland areas. Culvert would be backwatered except inlet perch is continually the elevation of water surface in upstream wetland. Outlet badly damaged, bent down.

Culvert Measurements

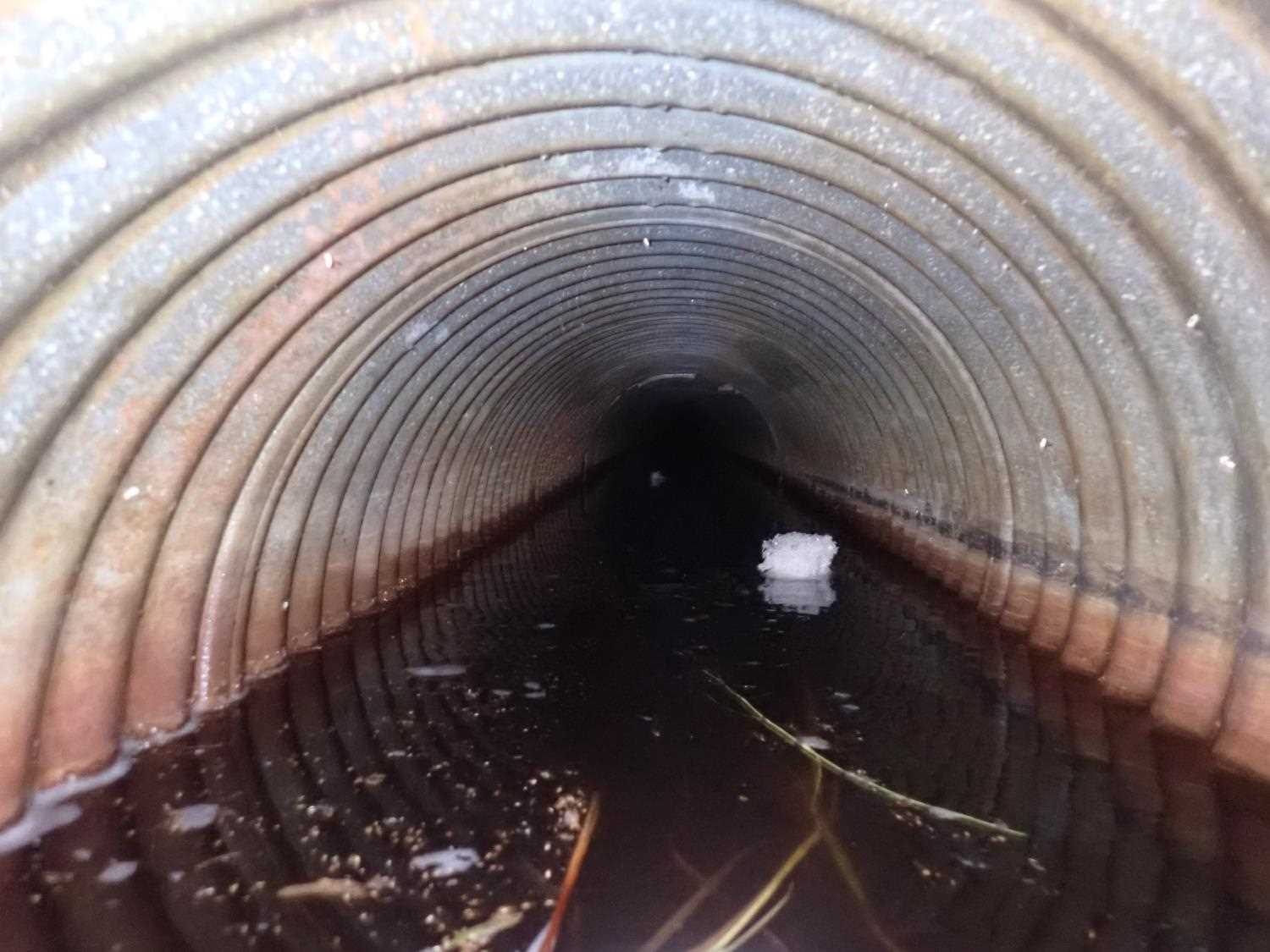

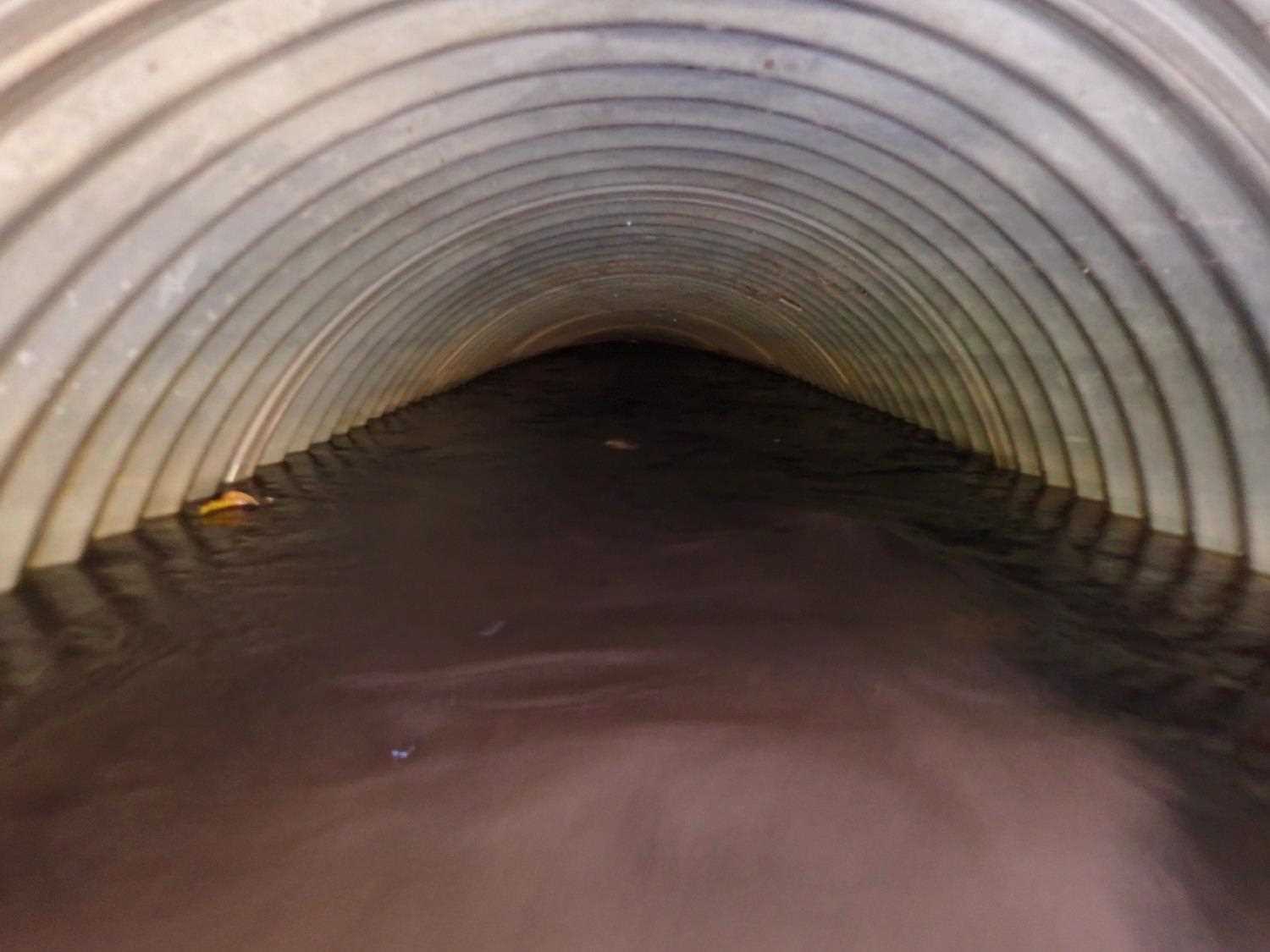

ID: 1 Structure Type: Circular pipe (Corrugated steel) Fish Passage Rating: Gray

Length(ft): 70.0
Inlet Type: Projecting
Outlet Type: Projecting
Corrugation Depth(in.): 0.5
Corrugation Width(in.): 3.0
Condition Rating(1-5): 2
Approach Angle:
Sedimentation At Inlet: No
Inlet Substrate: Organic
Outlet Substrate: Organic
InletOutlet
Width(ft):2.0 2.0
Height(ft):1.7 0.3
Apron Length(ft):
Water Depth(ft):0.0 0.8
Rustline Height(ft):1.0
Substrate Depth(ft):0.2 0.4
Backwatered?: No
Baffles Present: No
Embedded?: No
Embedded Depth(ft): 0.2
Outfall Height: 0.0
Outfall Type: At Stream Grade
Constriction Ratio:
Culvert Gradient:
Max Slope:
Max Slope Length:


Comments: Inlet perch of 3'' due to vegetation accumulation.
  Culvert Observations:
  1. Other, including vibrations, cavitation, etc.
  2. Culvert is too short
  3. Inlet perch

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:OrganicOrganic
Subdominant:Silt/ClaySilt/Clay
Stream Slope(deg.):
Stream Flow Stage:High

No stream width data available.

Elevations

No elevation data available.

Fish Sampling Efforts

No fish sampling occurred during this survey.

Fish Observations

No fish observations occurred during this survey.

Questions or comments about this report can be directed to dfg.dsf.webmaster@alaska.gov
