Fish Passage Site 20501096

Coordinates (dec. deg.): 61.58574°, -149.79711°
Legal Description: S017N003W03
Region: South Central

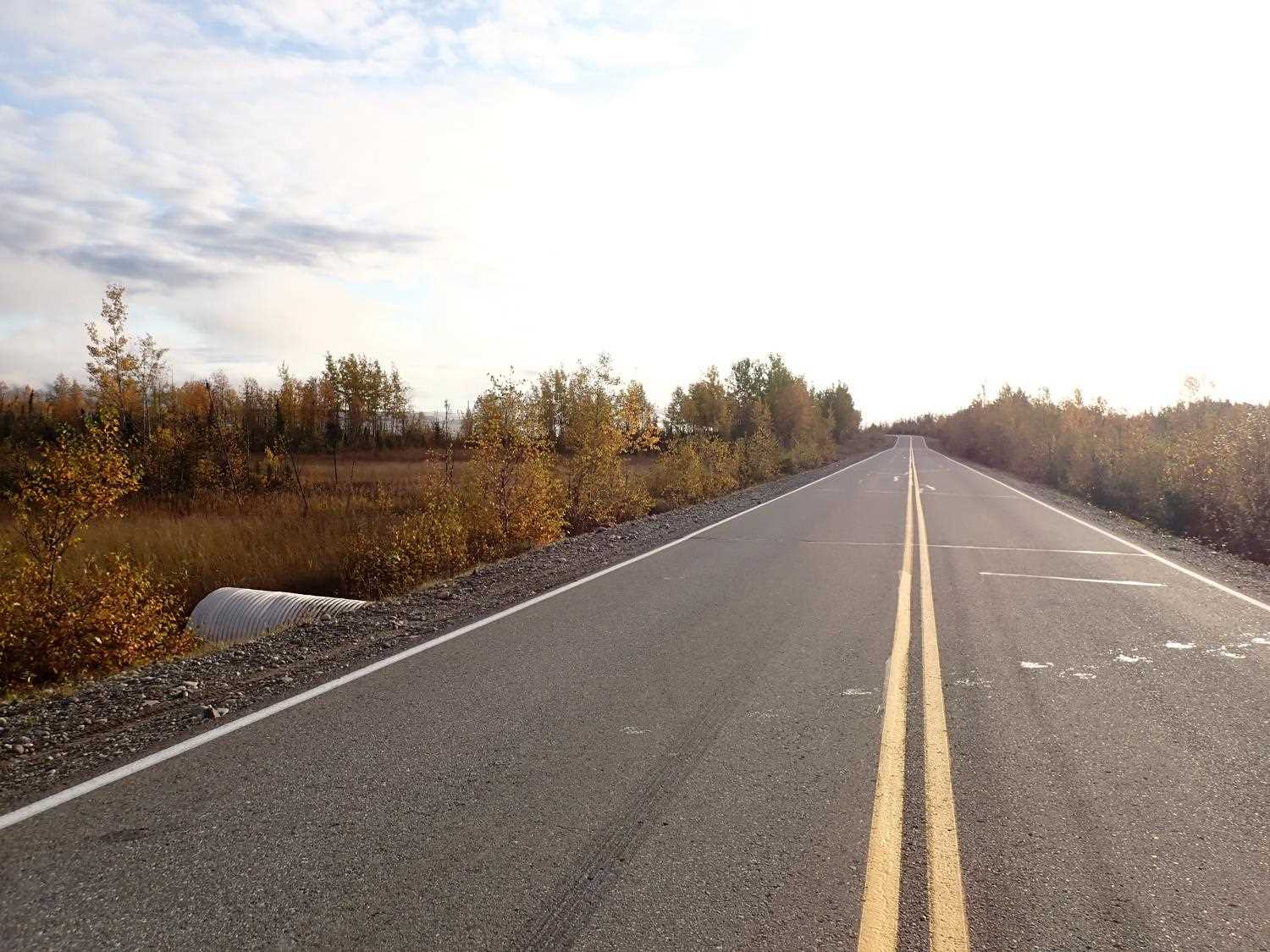

Road Name: Hawk Lane

Datum: NAD83
Quad Name / ITM: Anchorage C-8
AWC Stream #:
Stream Name:

Elevation:

Site Comments: None

Multiple surveys have been conducted at this site — click on the drop down
arrow to the right of the survey date below to choose a different report for this site.

Survey MSB23-MS054

Project Supervisor: Michael Mazzacavallo, Alaska Department of Fish and Game — Anchorage, AK
Observers: Michael Mazzacavallo, Kat Leavitt, Beth Evers

Overall Fish Passage Rating: Green

Tidal: No
Backwatered: Yes

Step Pools: No
Construction Year:


Site Observations:

  1. None of this type

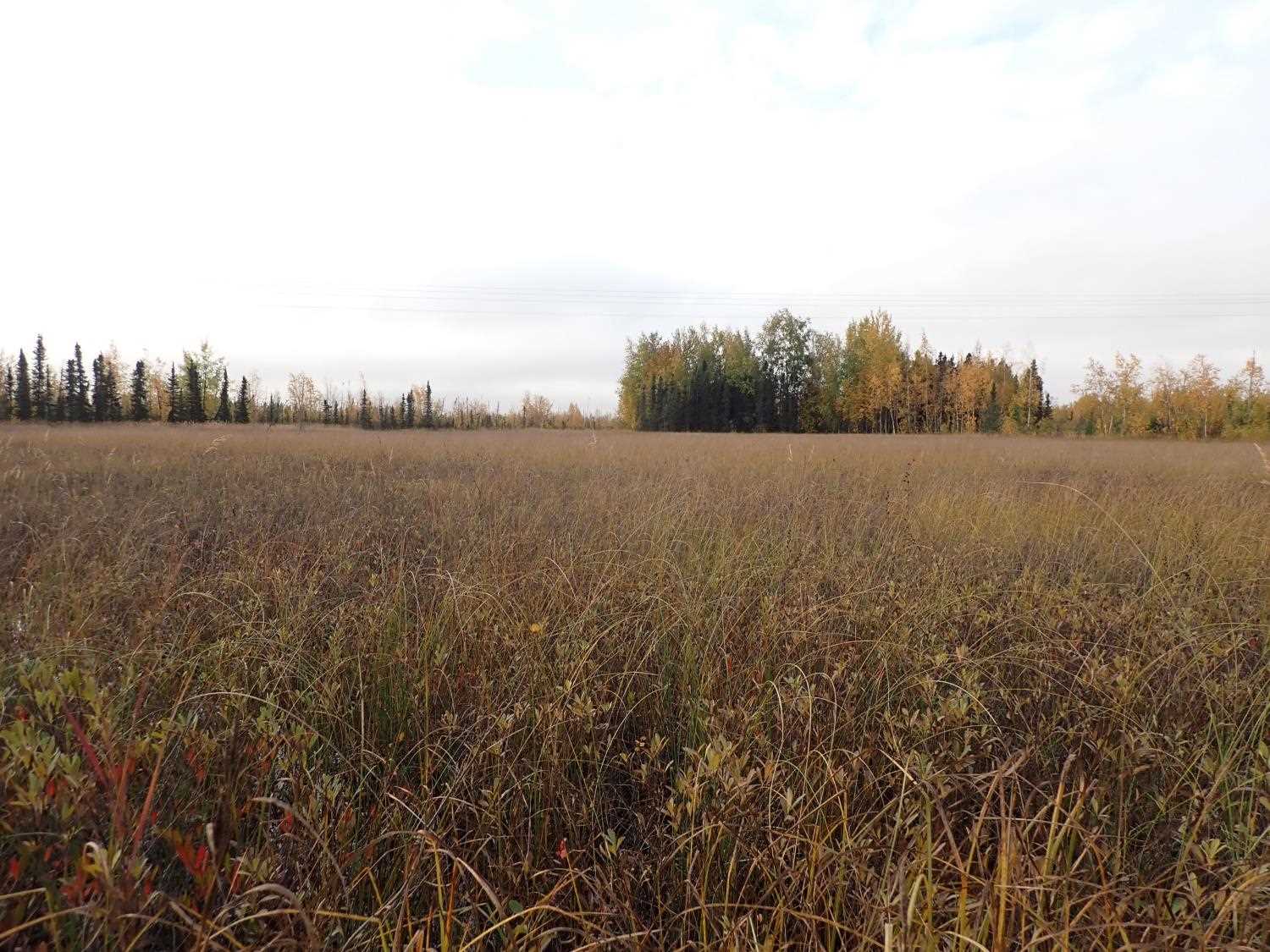

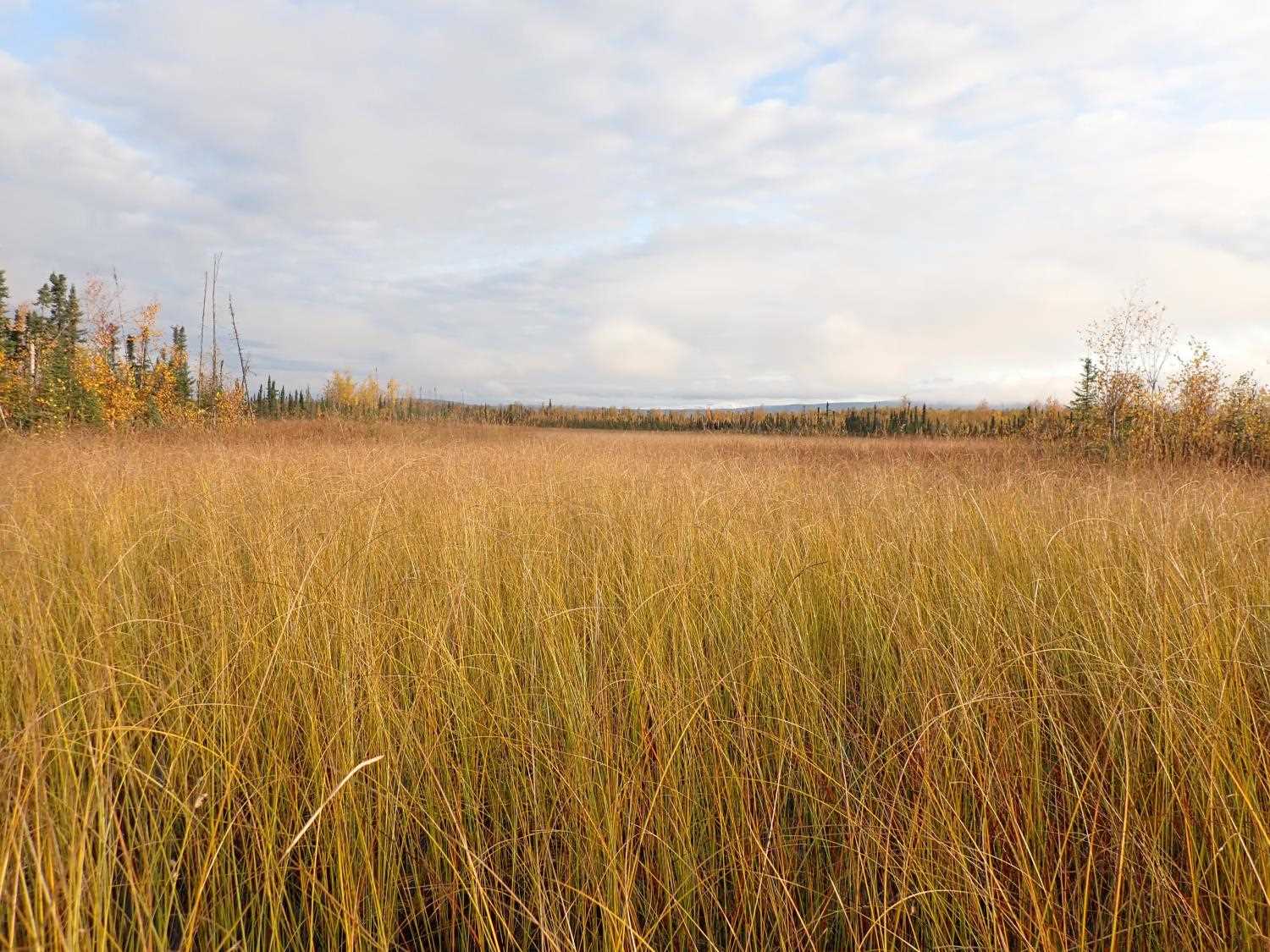

Comments: No flow through culverts, culvert connects 2 wetland-type areas.

Culvert Measurements

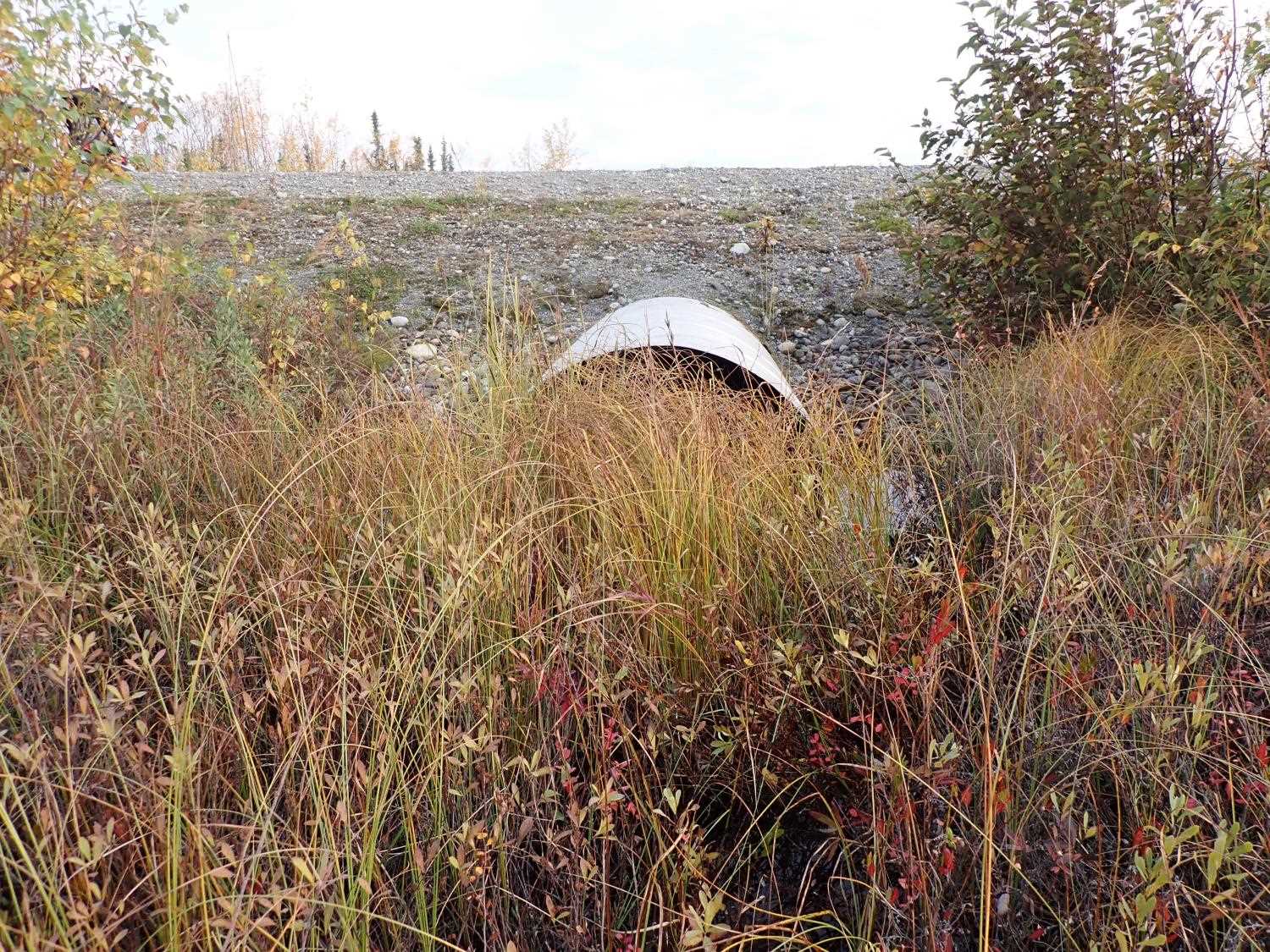

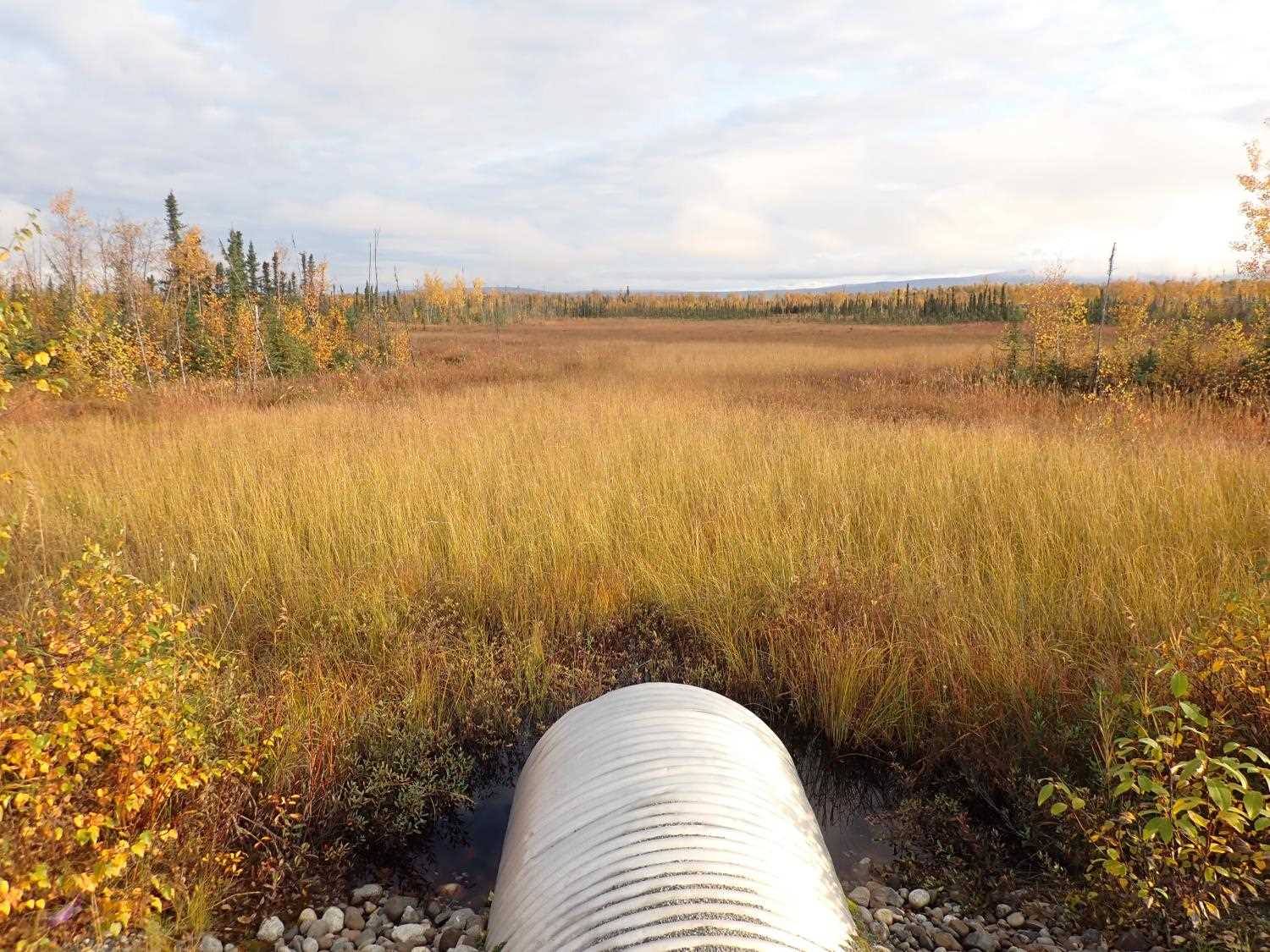

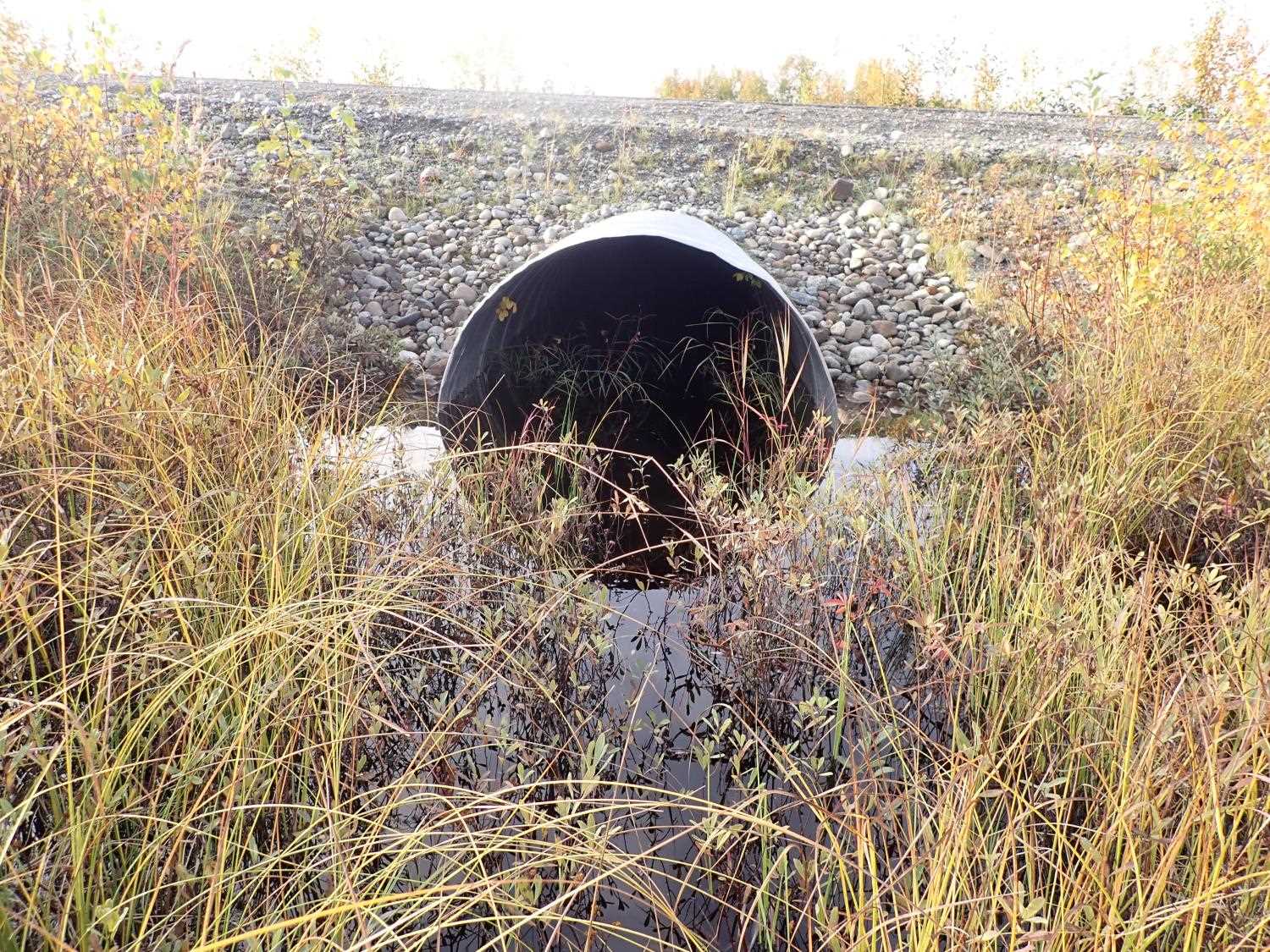

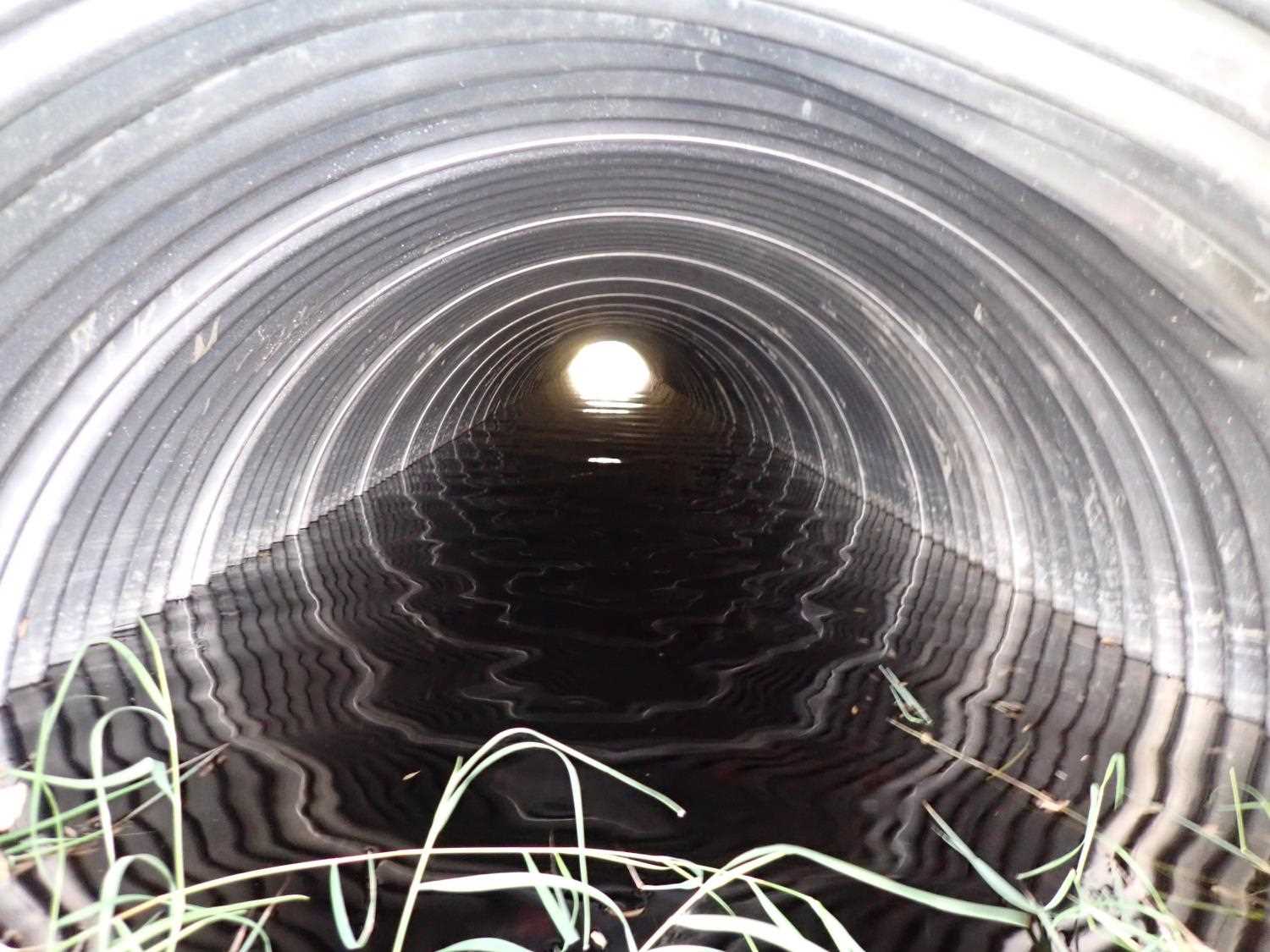

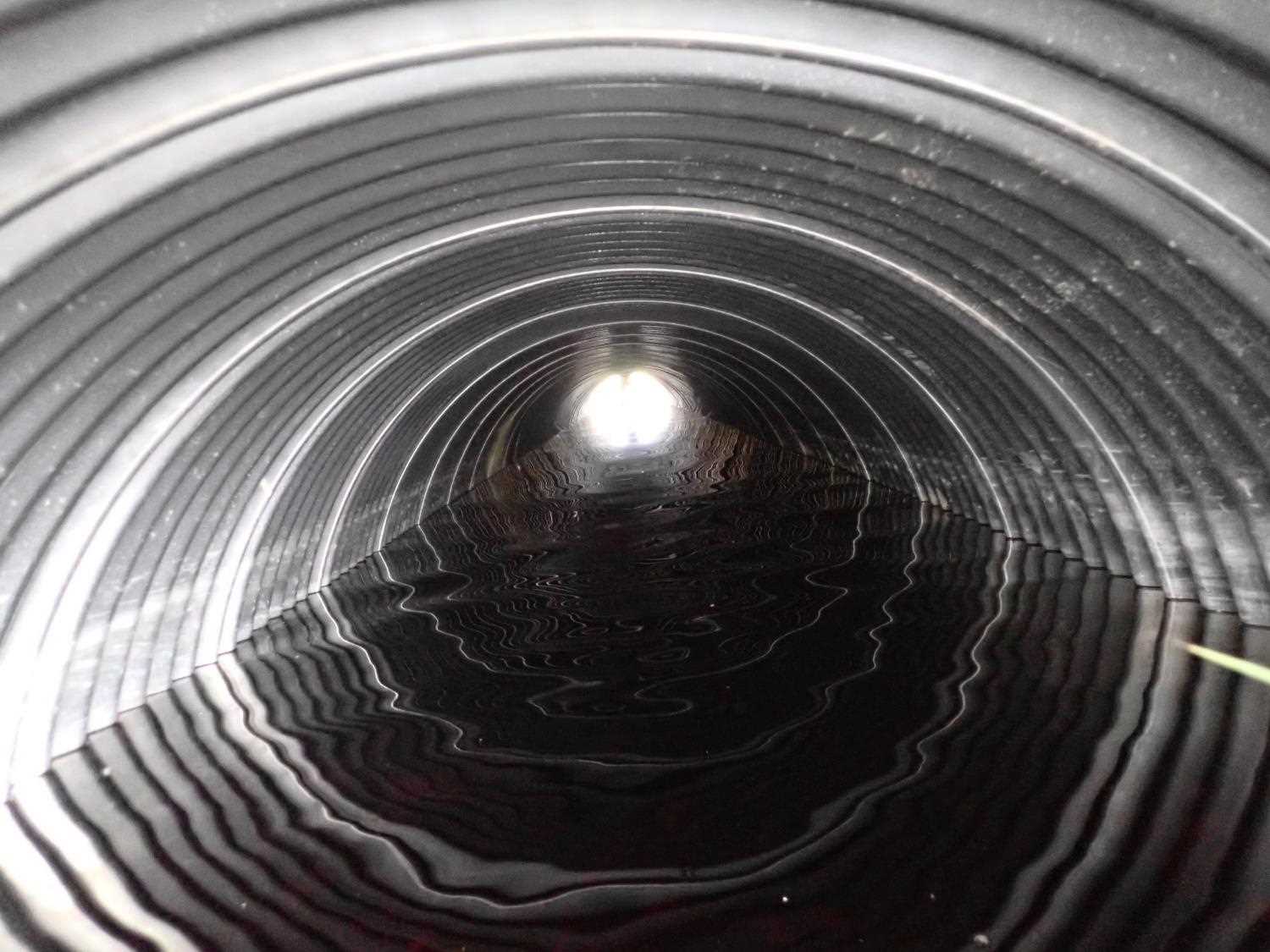

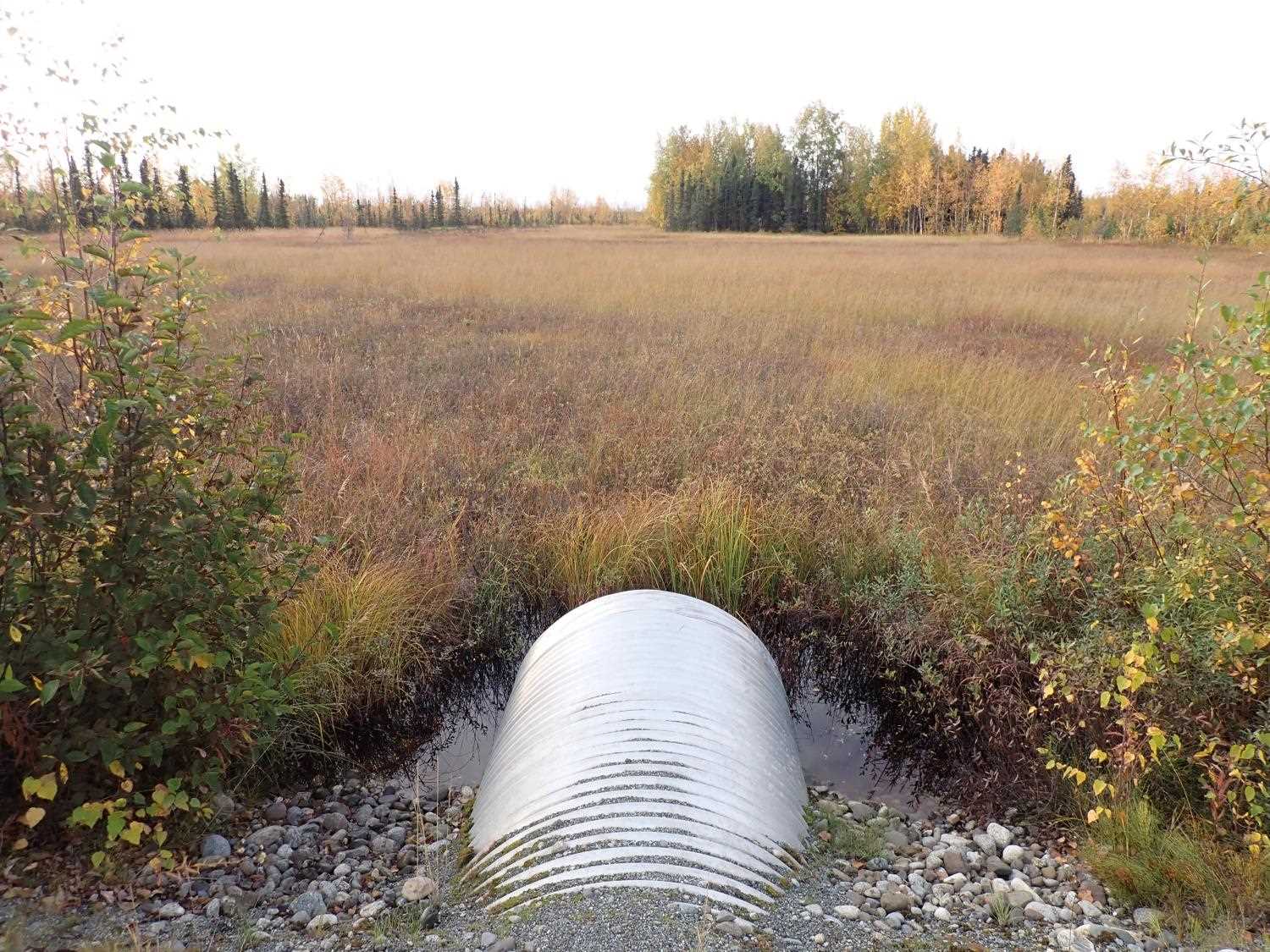

ID: 1 Structure Type: Circular pipe (Corrugated aluminum) Fish Passage Rating: Green

Length(ft): 65.5
Inlet Type: Projecting
Outlet Type: Projecting
Corrugation Depth(in.): 0.3
Corrugation Width(in.): 3.0
Condition Rating(1-5): 5
Approach Angle: 0.0
Sedimentation At Inlet: No
Inlet Substrate: Cobble
Outlet Substrate: Cobble
InletOutlet
Width(ft):5.0 5.2
Height(ft):3.5 3.2
Apron Length(ft):
Water Depth(ft):0.0 1.2
Rustline Height(ft):0.0
Substrate Depth(ft):1.5 1.9
Backwatered?: Yes
Baffles Present: No
Embedded?: Yes
Embedded Depth(ft): 1.5
Outfall Height: 0.0
Outfall Type: At Stream Grade
Constriction Ratio:
Culvert Gradient: 0.00%
Max Slope:
Max Slope Length:
  Culvert Observations:
  1. None of this type

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:OrganicOrganic
Subdominant:Silt/ClaySilt/Clay
Stream Slope(deg.):
Stream Flow Stage:High

No stream width data available.

Elevations

No elevation data available.

Fish Sampling Efforts

No fish sampling occurred during this survey.

Fish Observations

No fish observations occurred during this survey.
