Fish Passage Site 20501095

Coordinates (dec. deg.): 61.58533°, -149.78111°
Legal Description: S017N003W02
Region: South Central

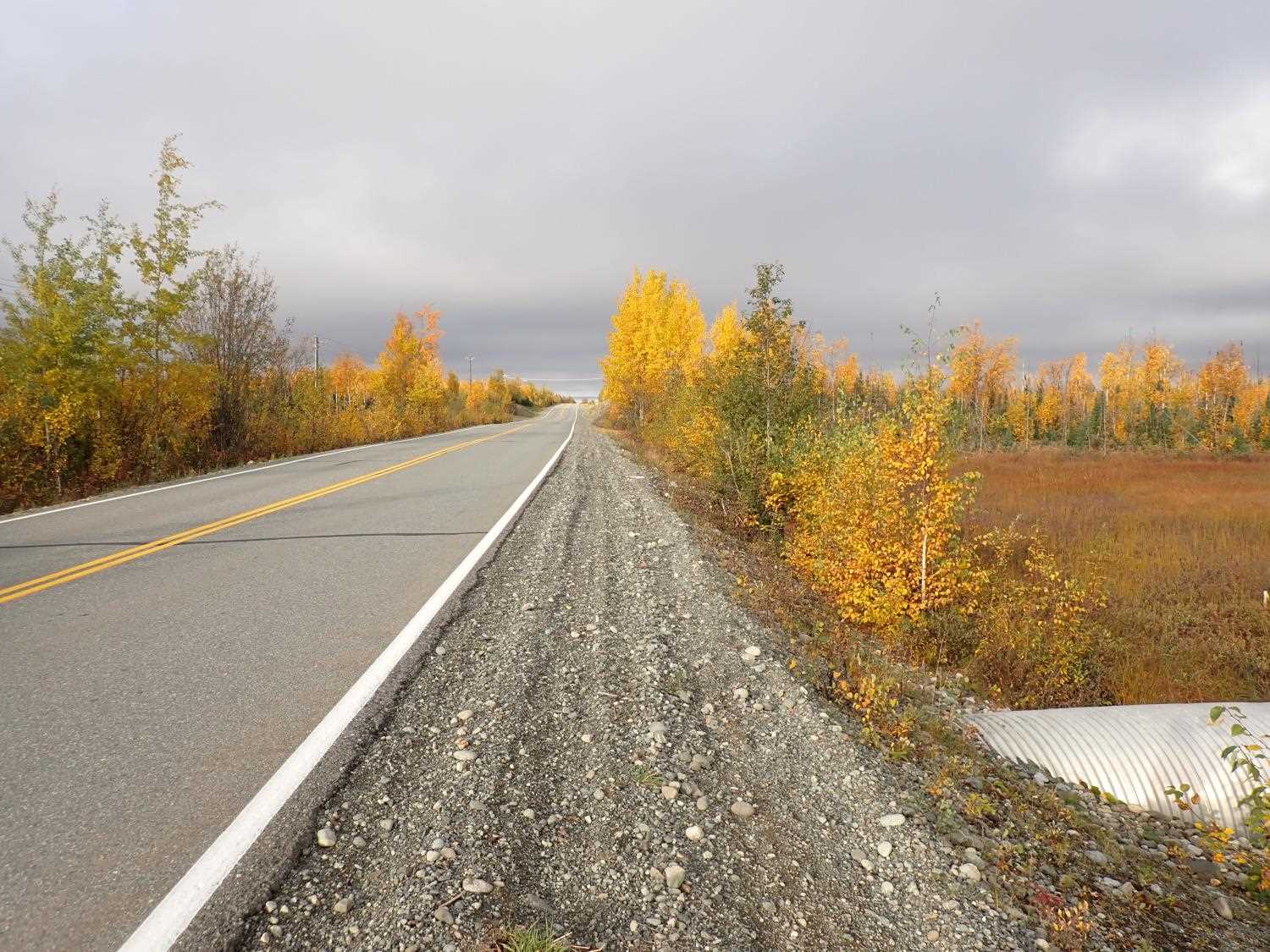

Road Name: Hawk Lane

Datum: NAD83
Quad Name / ITM: Anchorage C-8
AWC Stream #:
Stream Name:

Elevation:

Site Comments: None

Multiple surveys have been conducted at this site — click on the drop down
arrow to the right of the survey date below to choose a different report for this site.

Survey MSB23-MS055

Project Supervisor: Michael Mazzacavallo, Alaska Department of Fish and Game — Anchorage, AK
Observers: Michael Mazzacavallo, Kat Leavitt, Beth Evers

Overall Fish Passage Rating: Green

Tidal: No
Backwatered: Yes

Step Pools: No
Construction Year:


Site Observations:

  1. None of this type

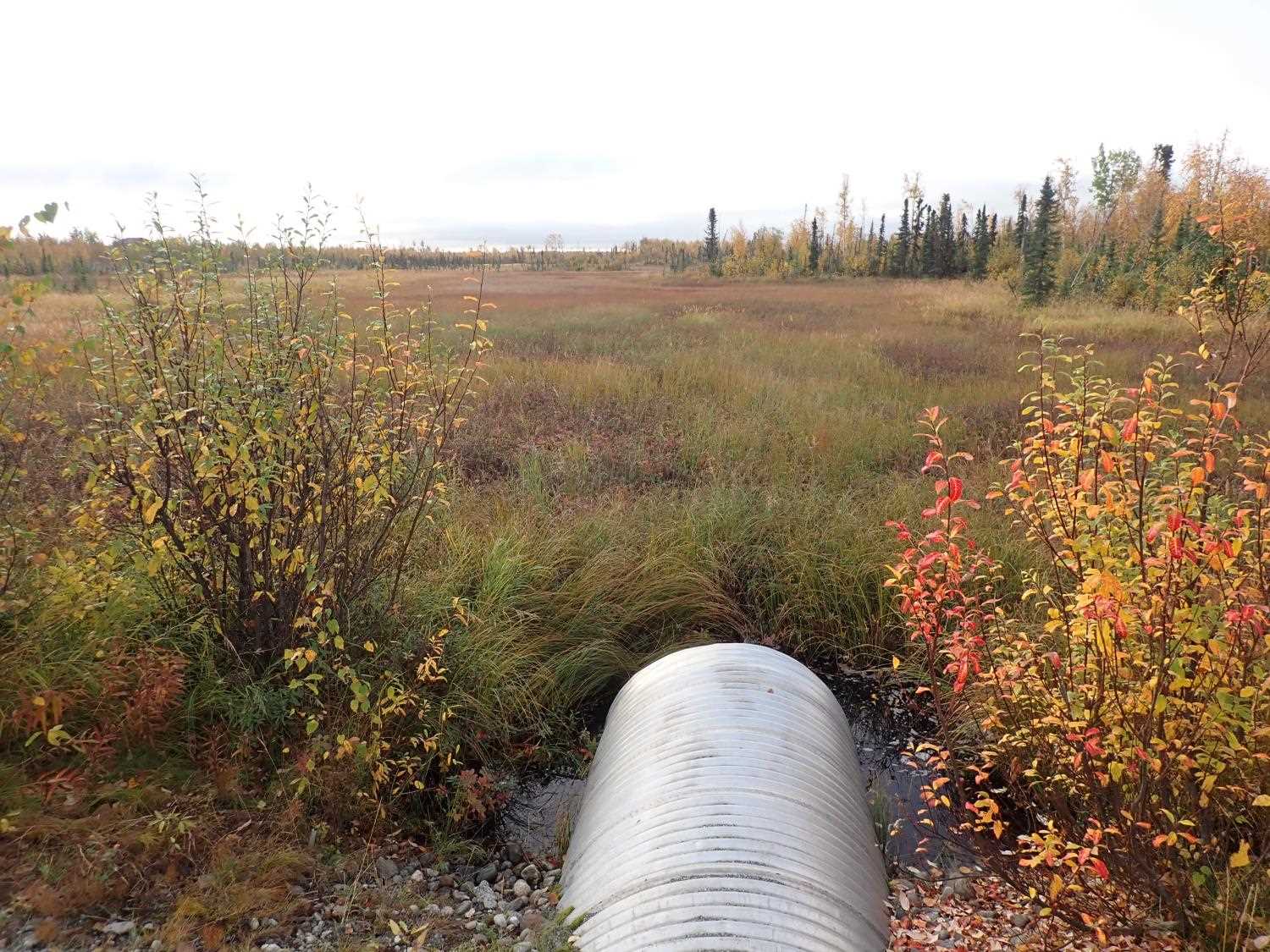

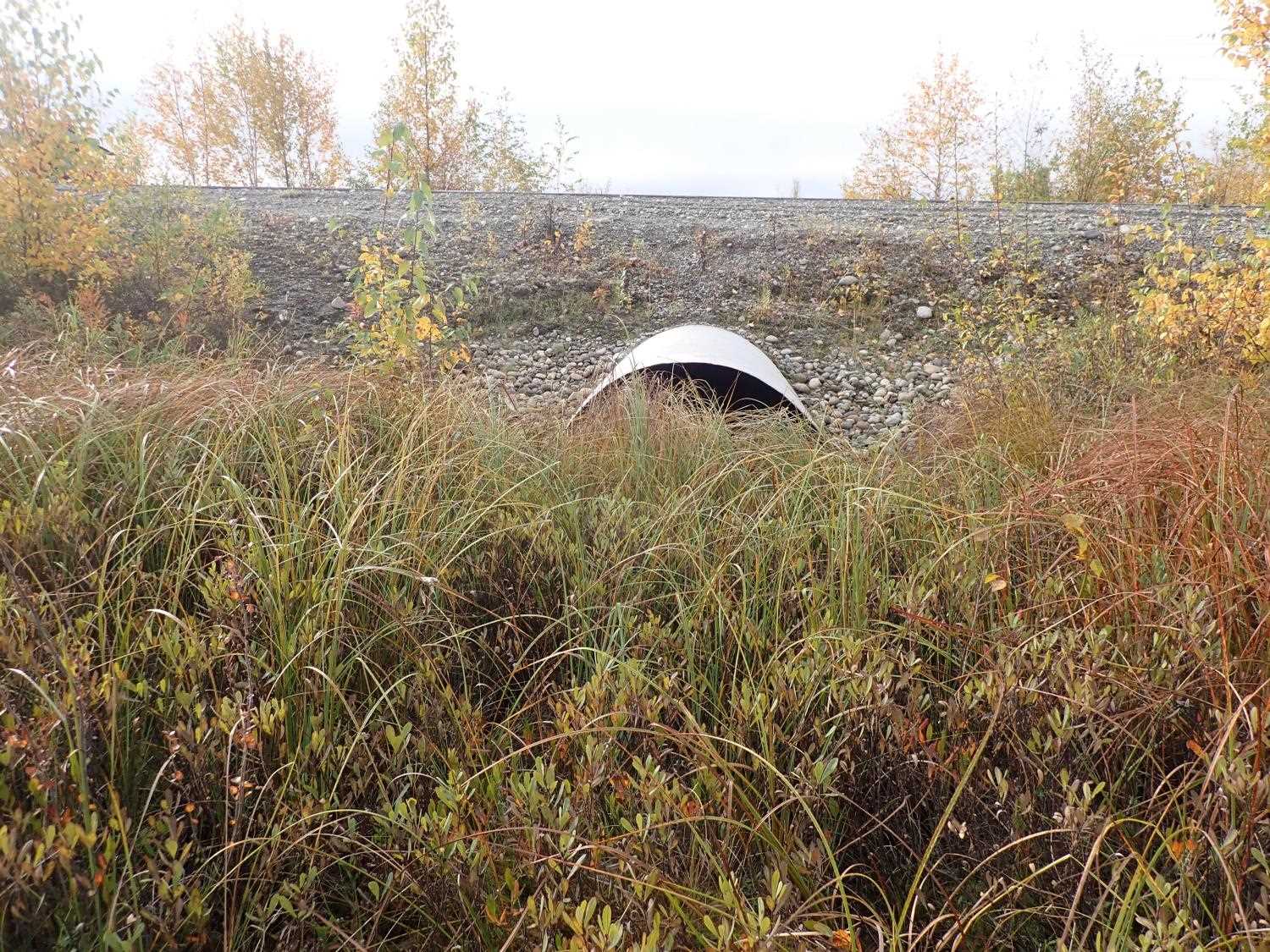

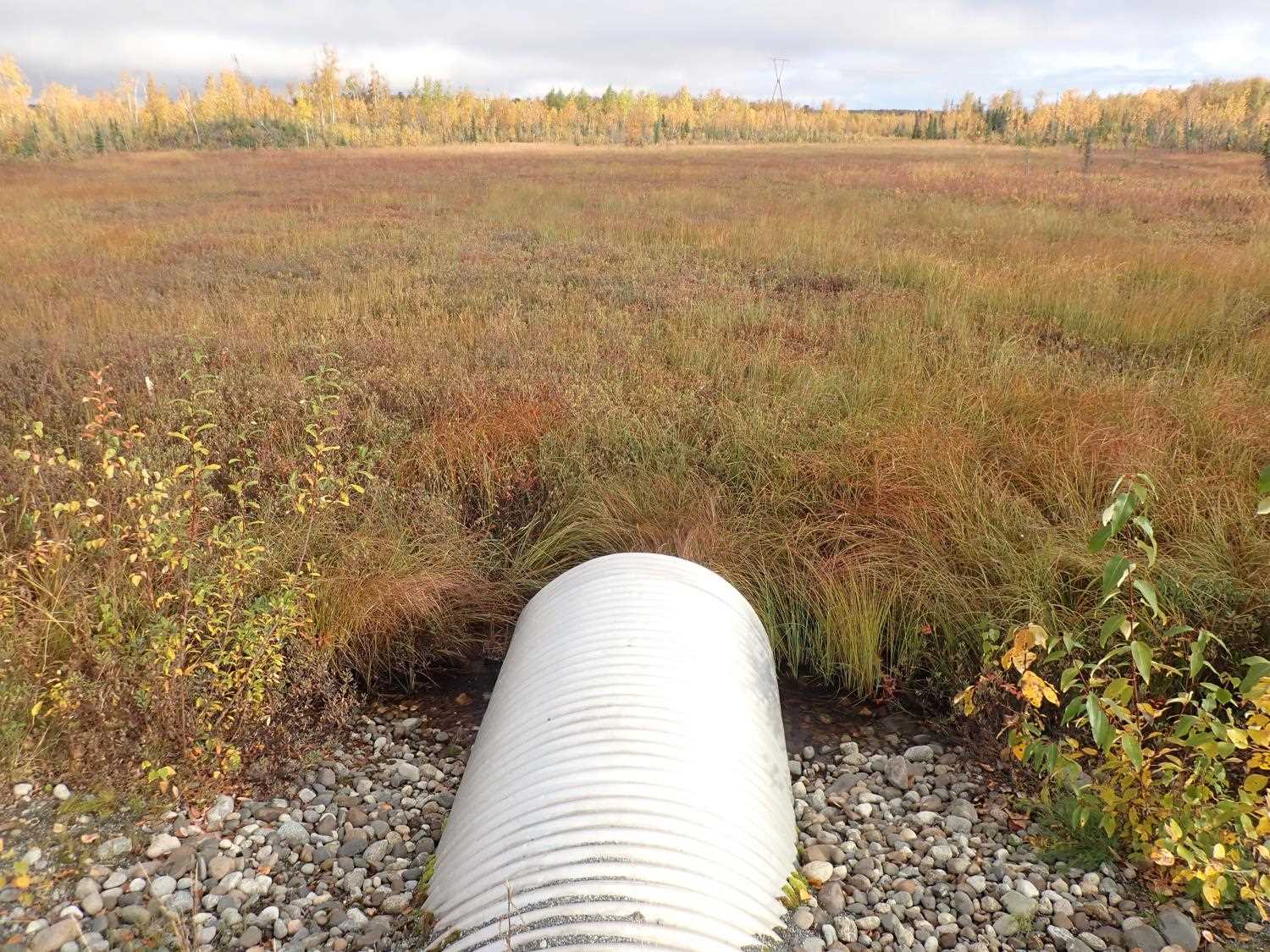

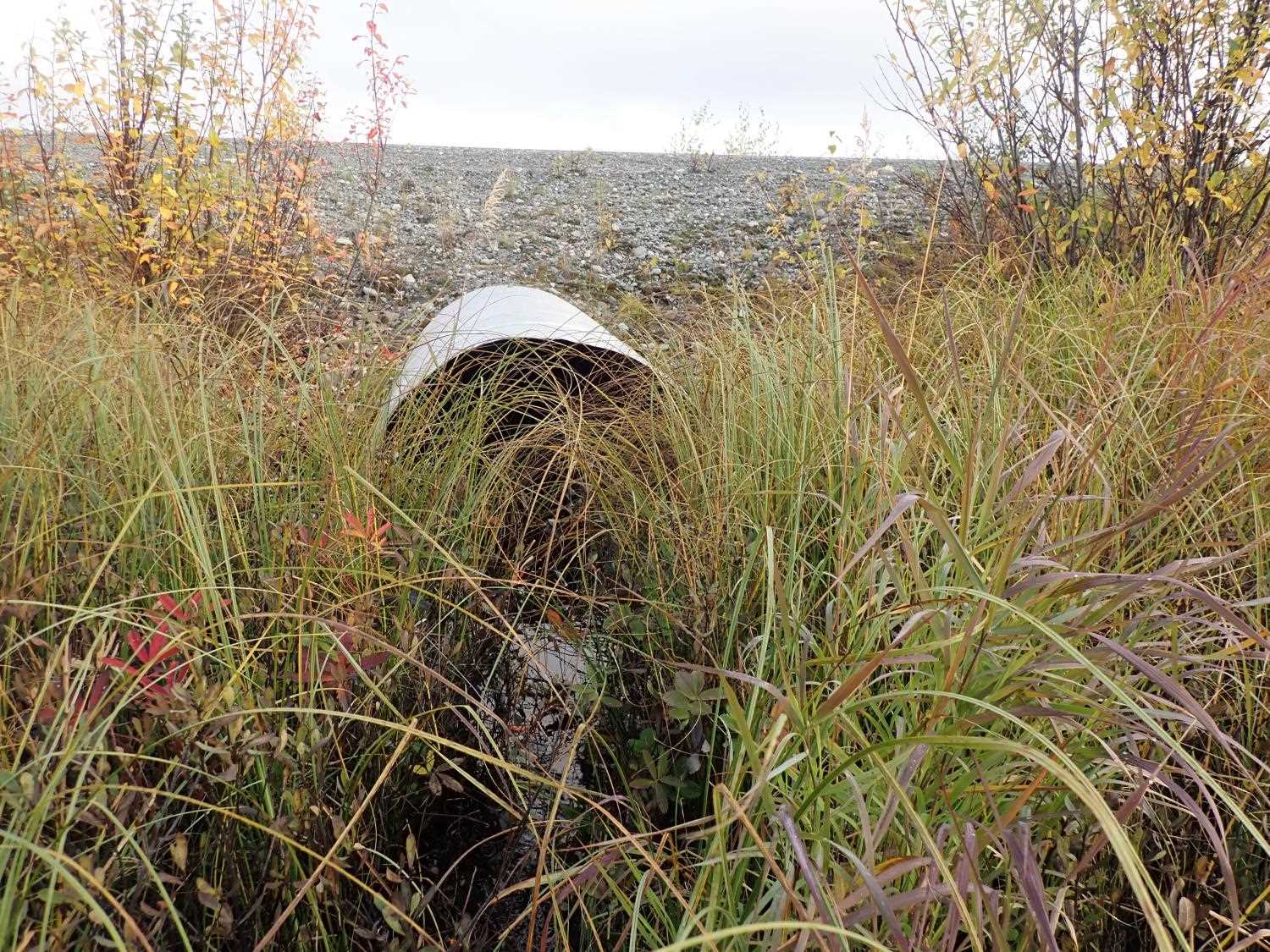

Comments: Pipe connects 2 wetland-type areas. There is a little flow through the culvert, but the change in water surface level through the culvert is close to zero.

Culvert Measurements

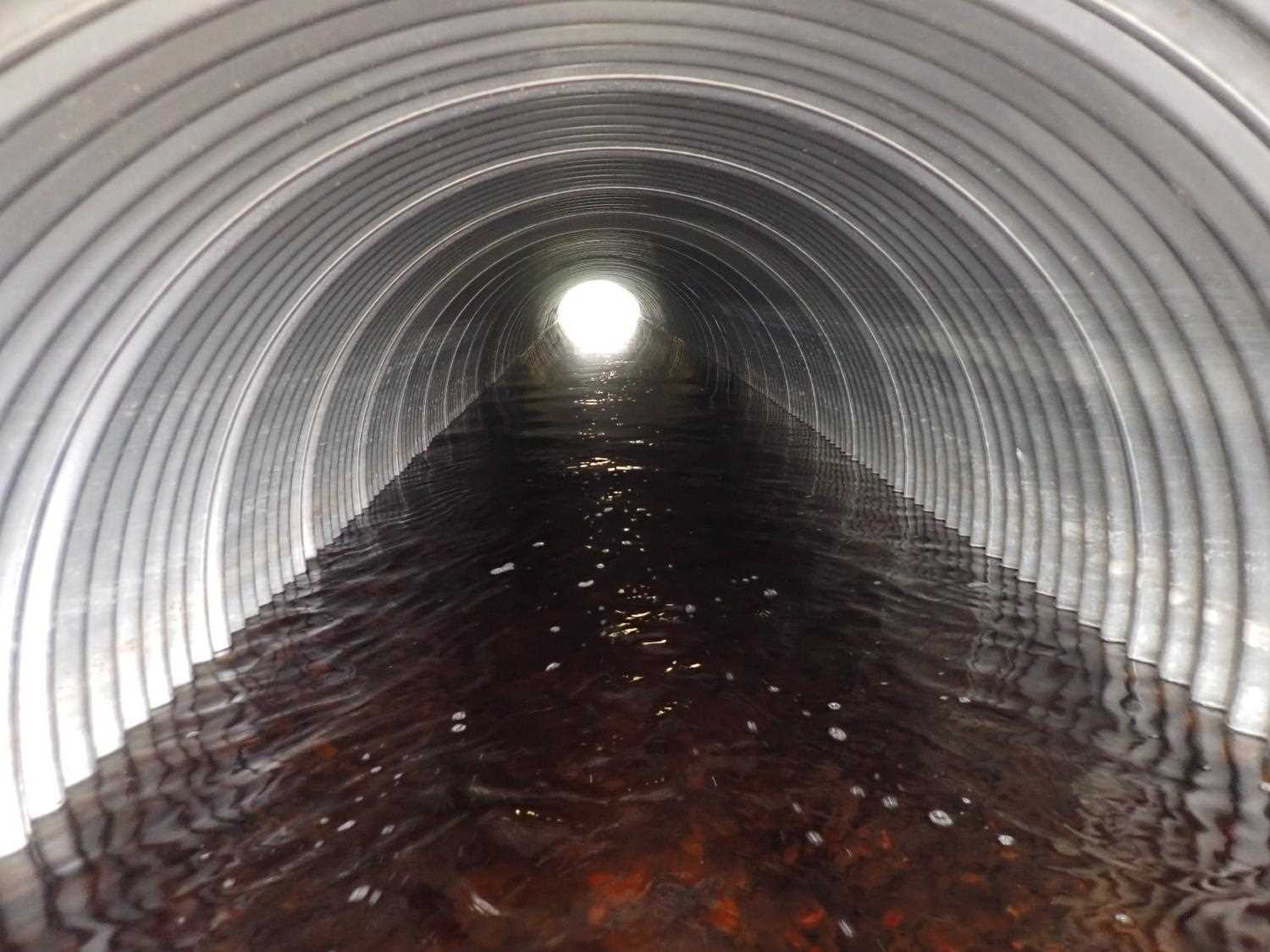

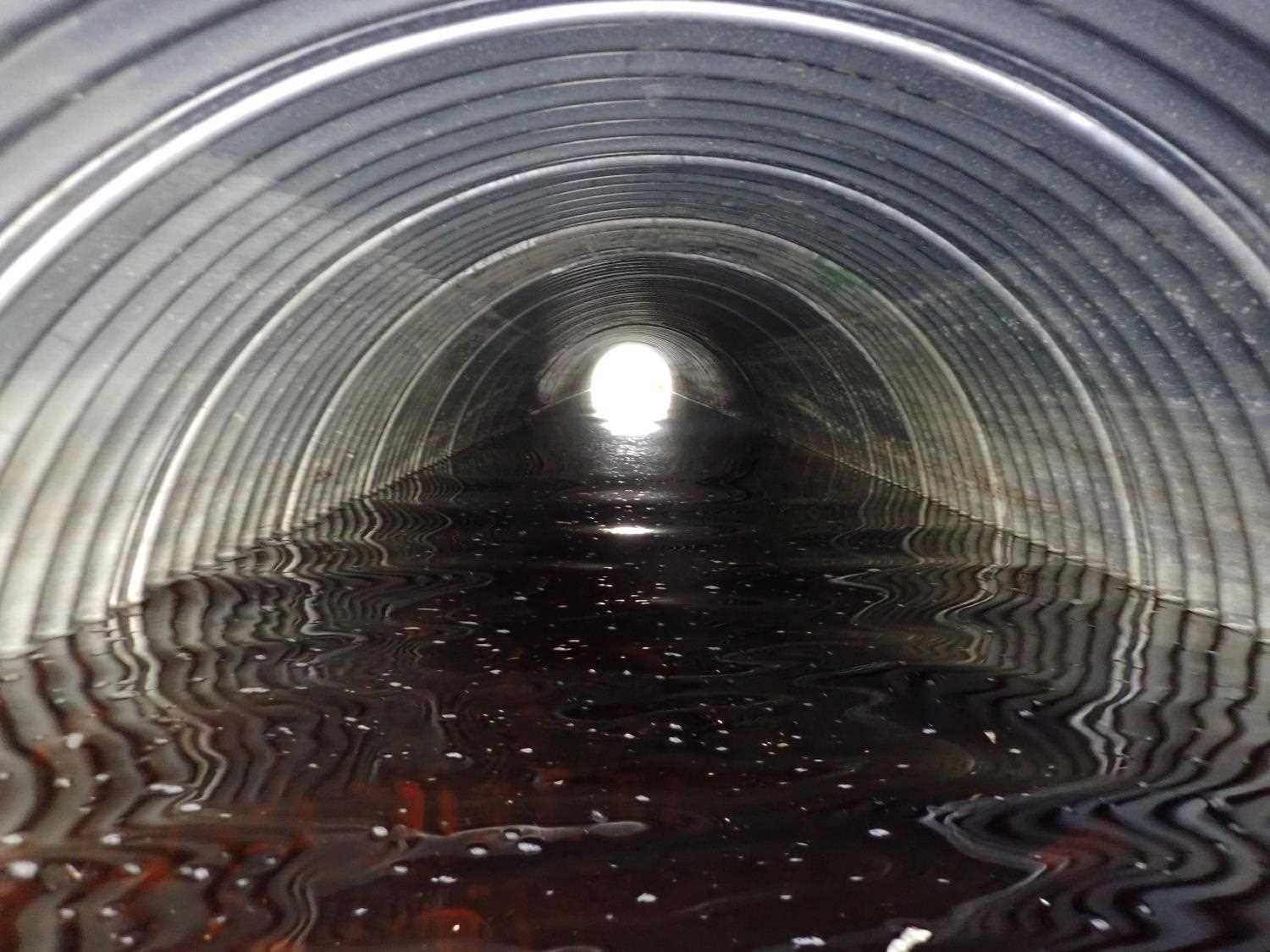

ID: 1 Structure Type: Circular pipe (Corrugated aluminum) Fish Passage Rating: Green

Length(ft): 65.4
Inlet Type: Projecting
Outlet Type: Projecting
Corrugation Depth(in.): 0.5
Corrugation Width(in.): 3.0
Condition Rating(1-5): 5
Approach Angle:
Sedimentation At Inlet: No
Inlet Substrate: Cobble
Outlet Substrate: Cobble
InletOutlet
Width(ft):5.1 5.0
Height(ft):3.3 3.3
Apron Length(ft):
Water Depth(ft):0.0 1.2
Rustline Height(ft):0.0
Substrate Depth(ft):0.7 0.9
Backwatered?: Yes
Baffles Present: No
Embedded?: Yes
Embedded Depth(ft): 0.7
Outfall Height: 0.0
Outfall Type: At Stream Grade
Constriction Ratio:
Culvert Gradient:
Max Slope:
Max Slope Length:
  Culvert Observations:
  1. None of this type
ID: 2 Structure Type:N/A Fish Passage Rating:

Length(ft):
Inlet Type:
Outlet Type:
Corrugation Depth(in.):
Corrugation Width(in.):
Condition Rating(1-5):
Approach Angle:
Sedimentation At Inlet:
Inlet Substrate:
Outlet Substrate:
InletOutlet
Width(ft):
Height(ft):
Apron Length(ft):
Water Depth(ft):
Rustline Height(ft):
Substrate Depth(ft):
Backwatered?:
Baffles Present:
Embedded?:
Outfall Height:
Outfall Type:
Constriction Ratio:
Culvert Gradient:
Max Slope:
Max Slope Length:
ID: 3 Structure Type:N/A Fish Passage Rating:

Length(ft):
Inlet Type:
Outlet Type:
Corrugation Depth(in.):
Corrugation Width(in.):
Condition Rating(1-5):
Approach Angle:
Sedimentation At Inlet:
Inlet Substrate:
Outlet Substrate:
InletOutlet
Width(ft):
Height(ft):
Apron Length(ft):
Water Depth(ft):
Rustline Height(ft):
Substrate Depth(ft):
Backwatered?:
Baffles Present:
Embedded?:
Outfall Height:
Outfall Type:
Constriction Ratio:
Culvert Gradient:
Max Slope:
Max Slope Length:
ID: 4 Structure Type:N/A Fish Passage Rating:

Length(ft):
Inlet Type:
Outlet Type:
Corrugation Depth(in.):
Corrugation Width(in.):
Condition Rating(1-5):
Approach Angle:
Sedimentation At Inlet:
Inlet Substrate:
Outlet Substrate:
InletOutlet
Width(ft):
Height(ft):
Apron Length(ft):
Water Depth(ft):
Rustline Height(ft):
Substrate Depth(ft):
Backwatered?:
Baffles Present:
Embedded?:
Outfall Height:
Outfall Type:
Constriction Ratio:
Culvert Gradient:
Max Slope:
Max Slope Length:
ID: 5 Structure Type: Circular pipe (Corrugated aluminum) Fish Passage Rating: Green

Length(ft): 65.4
Inlet Type: Projecting
Outlet Type: Projecting
Corrugation Depth(in.): 0.5
Corrugation Width(in.): 3.0
Condition Rating(1-5): 5
Approach Angle:
Sedimentation At Inlet: No
Inlet Substrate: Cobble
Outlet Substrate: Cobble
InletOutlet
Width(ft):5.1 5.0
Height(ft):3.3 3.3
Apron Length(ft):
Water Depth(ft):0.0 1.2
Rustline Height(ft):0.0
Substrate Depth(ft):0.7 0.9
Backwatered?: Yes
Baffles Present: No
Embedded?: Yes
Embedded Depth(ft): 0.7
Outfall Height: 0.0
Outfall Type: At Stream Grade
Constriction Ratio:
Culvert Gradient:
Max Slope:
Max Slope Length:
  Culvert Observations:
  1. None of this type

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:OrganicOrganic
Subdominant:Silt/ClaySilt/Clay
Stream Slope(deg.):
Stream Flow Stage:High

No stream width data available.

Elevations

No elevation data available.

Fish Sampling Efforts

No fish sampling occurred during this survey.

Fish Observations

No fish observations occurred during this survey.
