Fish Passage Site 20501074

Coordinates (dec. deg.): 61.61636°, -149.56656°
Legal Description: S018N002W25
Region: South Central

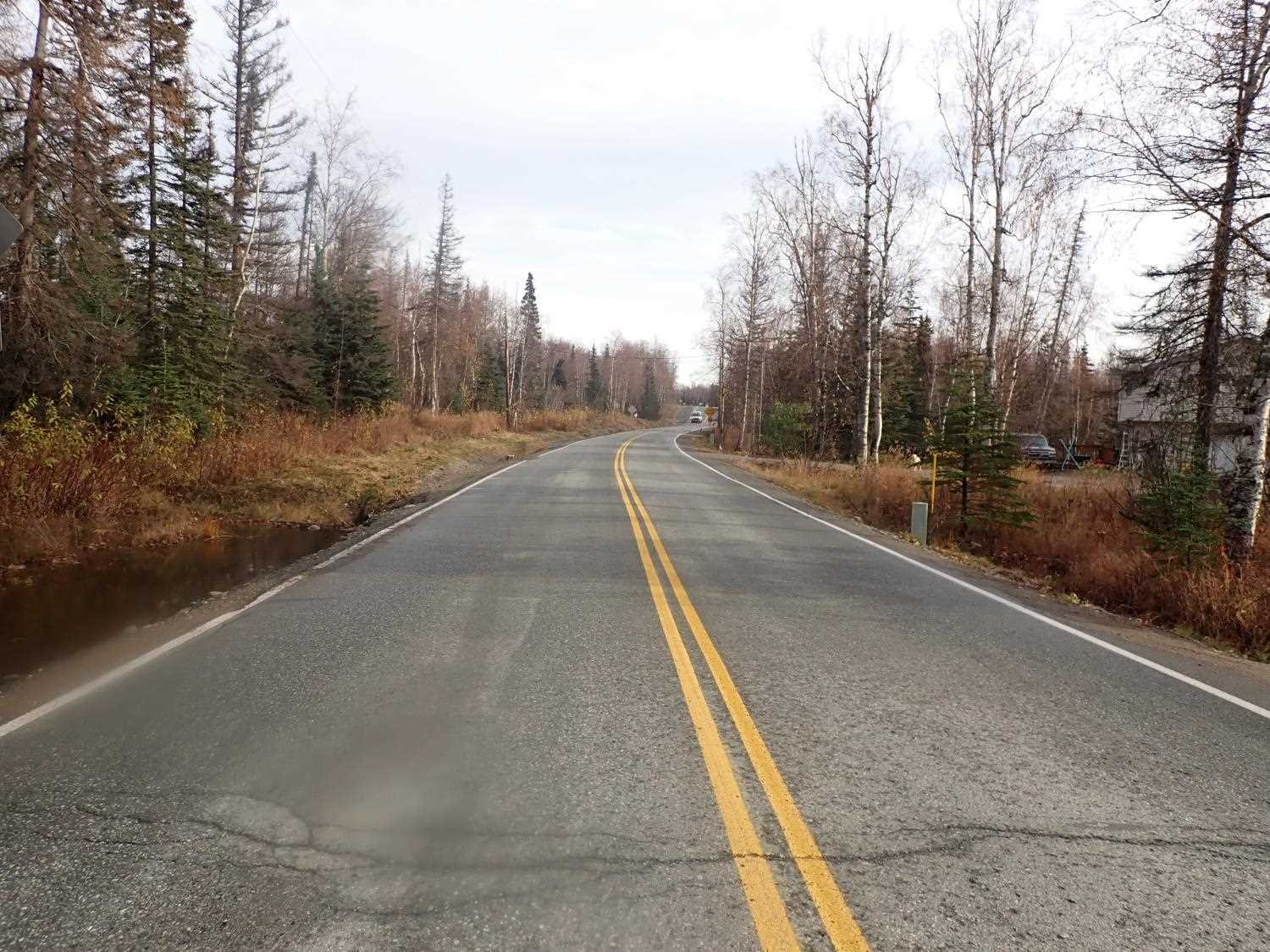

Road Name: Beverly Lake Road

Datum: NAD83
Quad Name / ITM: Anchorage C-7
AWC Stream #:
Stream Name: Unnamed

Elevation:

Site Comments: None

Multiple surveys have been conducted at this site — click on the drop down
arrow to the right of the survey date below to choose a different report for this site.

Survey MSB23-MS113

Project Supervisor: Michael Mazzacavallo, Alaska Department of Fish and Game — Anchorage, AK
Observers: Michael Mazzacavallo, Kat Leavitt, Beth Evers

Overall Fish Passage Rating: Red

Tidal: No
Backwatered: No

Step Pools: No
Construction Year:


Site Observations:

  1. Constriction ratio red
  2. Culvert gradient red
  3. Outfall height gray

Comments: None

Culvert Measurements

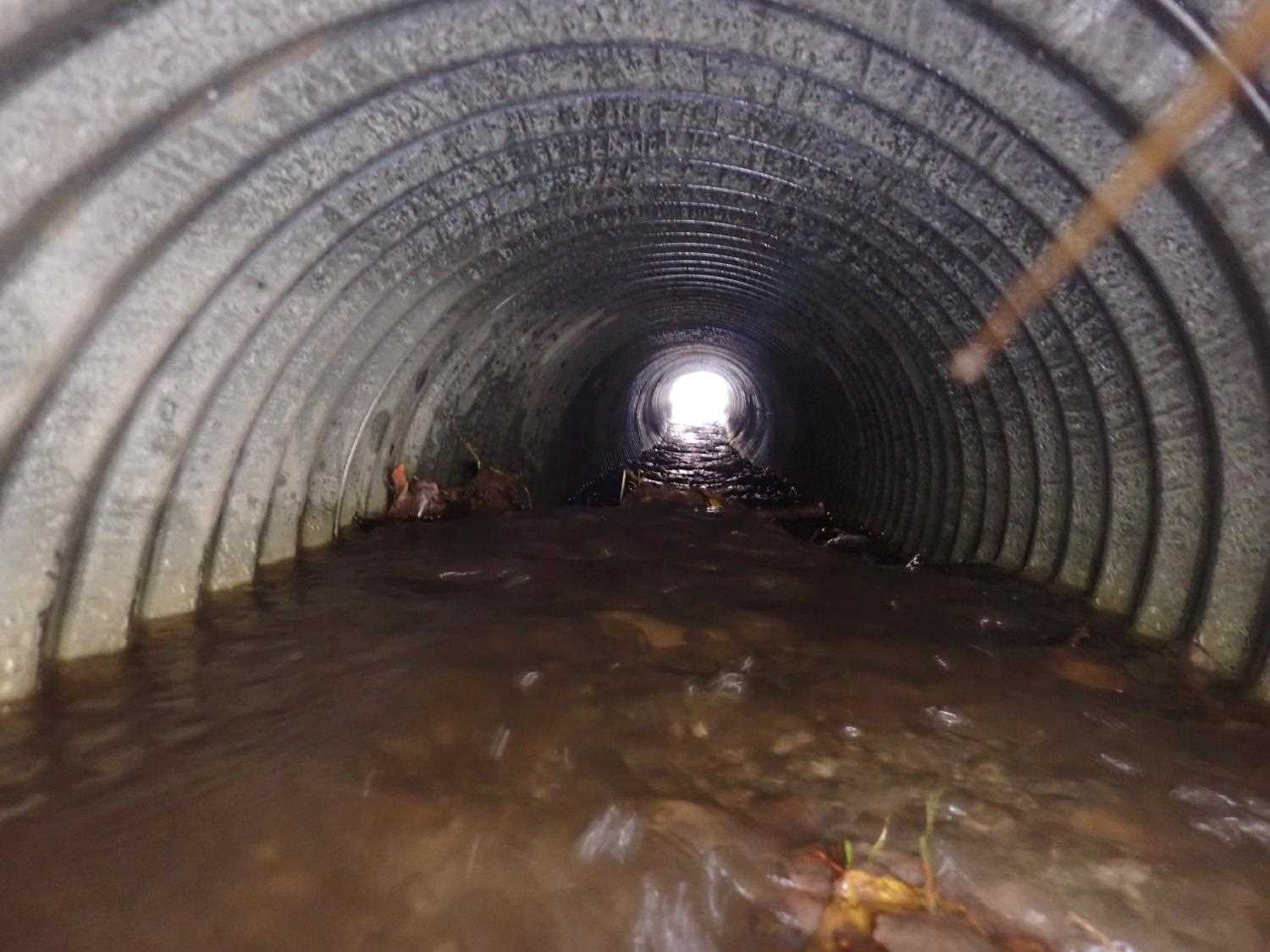

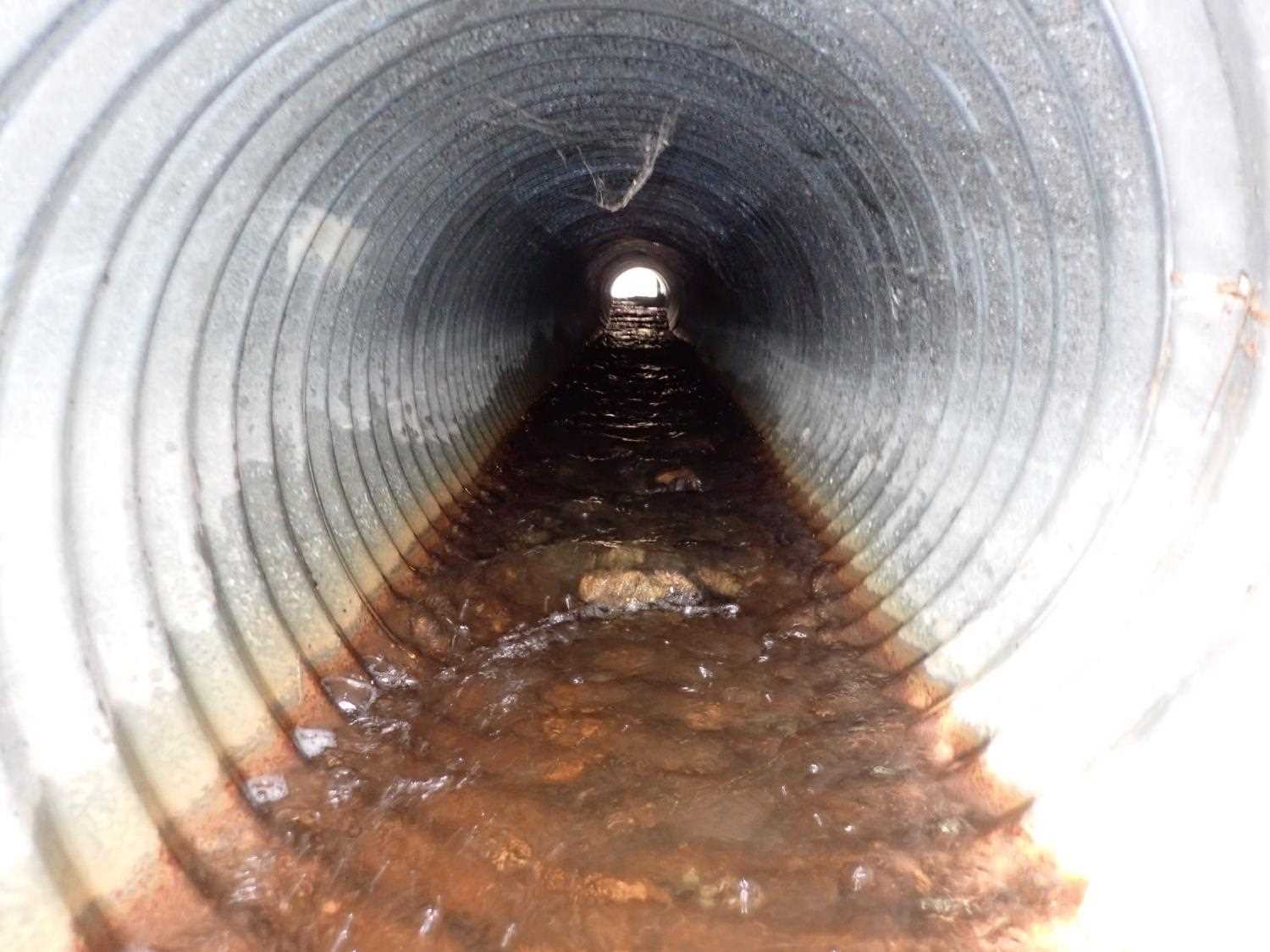

ID: 1 Structure Type: Circular pipe (Corrugated steel) Fish Passage Rating: Red

Length(ft): 40.92
Inlet Type: Projecting
Outlet Type: Projecting
Corrugation Depth(in.): 0.5
Corrugation Width(in.): 2.5
Condition Rating(1-5): 4
Approach Angle: 0.0
Sedimentation At Inlet: No
Inlet Substrate: Gravel
Outlet Substrate: Gravel
InletOutlet
Width(ft):1.96 1.92
Height(ft):1.35 1.92
Apron Length(ft):
Water Depth(ft):0.0 0.12
Rustline Height(ft):0.35
Substrate Depth(ft):0.25 0.0
Backwatered?: No
Baffles Present: No
Embedded?: No
Embedded Depth(ft): 0.0
Outfall Height: 0.06
Outfall Type: Free Fall In To Pool
Constriction Ratio: 0.49
Culvert Gradient: 2.37%
Max Slope:
Max Slope Length:
  Culvert Observations:
  1. Constriction ratio red
  2. Culvert gradient red
  3. Outfall height gray

Stream Measurements

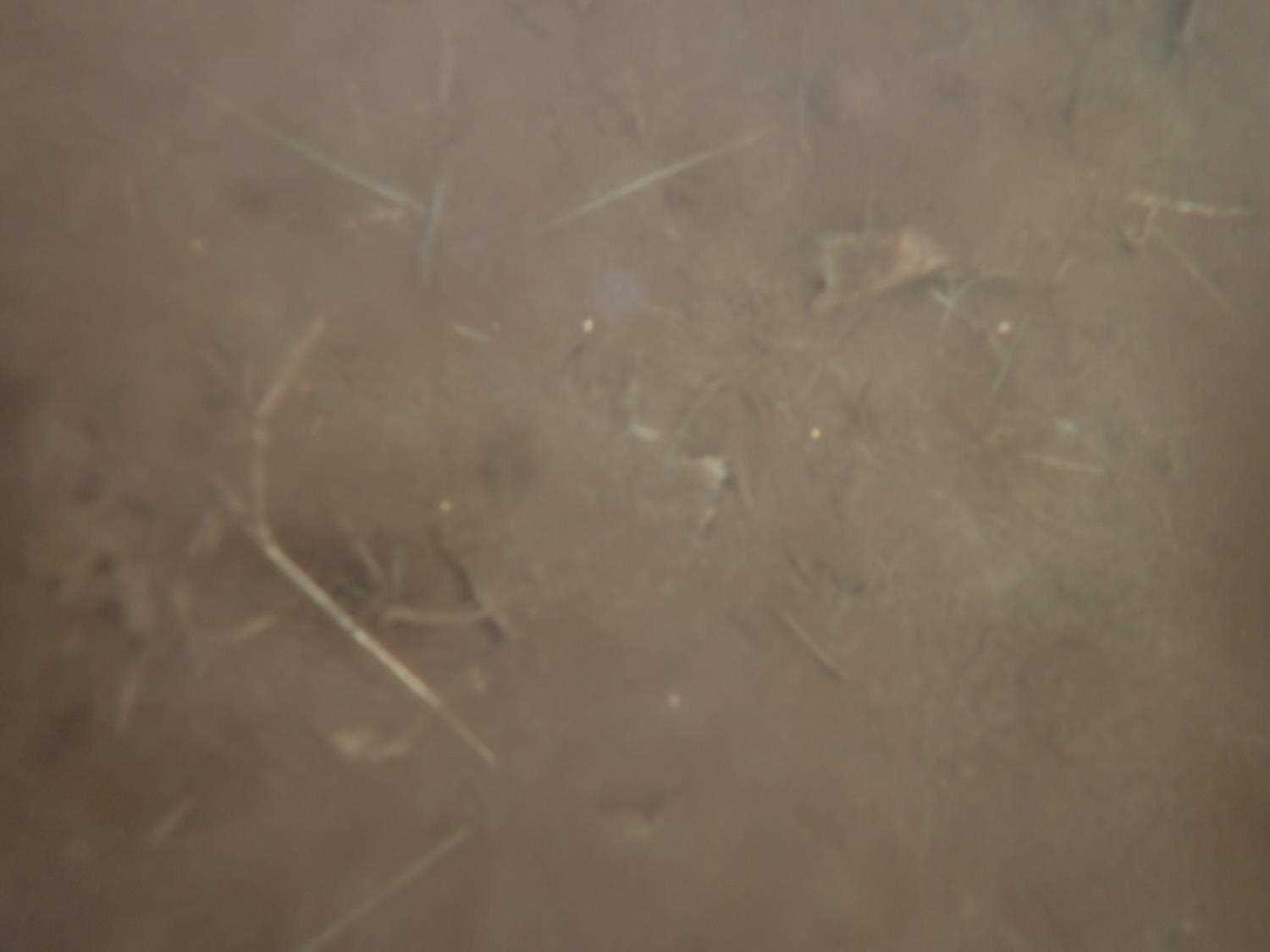

Stream SubstratesUpstreamDownstream
Dominant:SandGravel
Subdominant:GravelSand
Stream Slope(deg.):2.9
Stream Flow Stage:High

No stream width data available.

Elevations

No elevation data available.

Fish Sampling Efforts

No fish sampling occurred during this survey.

Fish Observations

No fish observations occurred during this survey.

Questions or comments about this report can be directed to dfg.dsf.webmaster@alaska.gov
