Fish Passage Site 20501064

Coordinates (dec. deg.): 61.63361°, -149.61333°
Legal Description: S018N002W22
Region: South Central

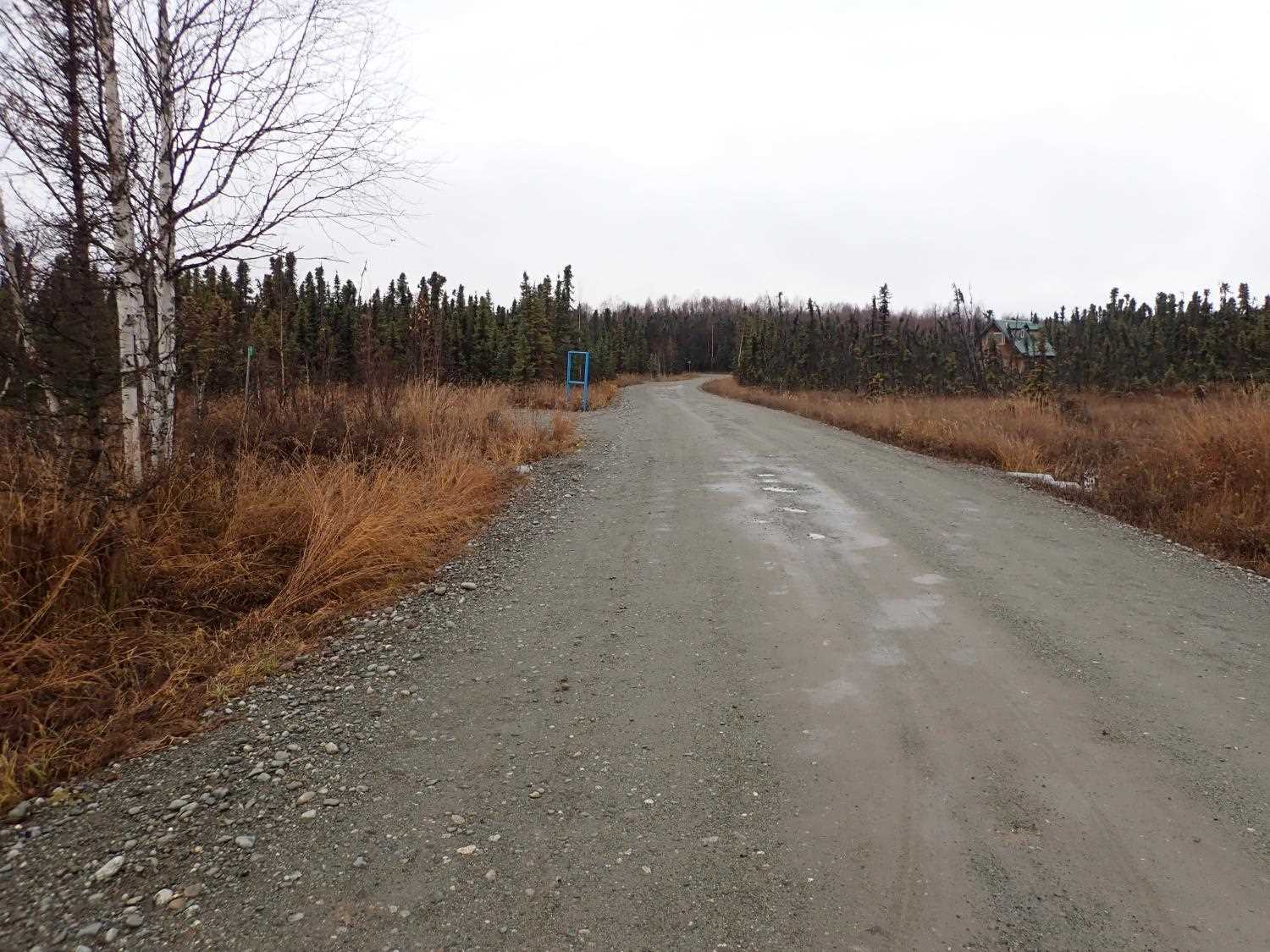

Road Name: Cove Drive

Datum: NAD83
Quad Name / ITM: Anchorage C-7
AWC Stream #:
Stream Name: Unnamed

Elevation:

Site Comments: None

Multiple surveys have been conducted at this site — click on the drop down
arrow to the right of the survey date below to choose a different report for this site.

Survey MSB23-MS105

Project Supervisor: Michael Mazzacavallo, Alaska Department of Fish and Game — Anchorage, AK
Observers: Michael Mazzacavallo, Kat Leavitt, Beth Evers, Amy LaBarre

Overall Fish Passage Rating: Green

Tidal: No
Backwatered: Yes

Step Pools: No
Construction Year:


Site Observations:

  1. None of this type

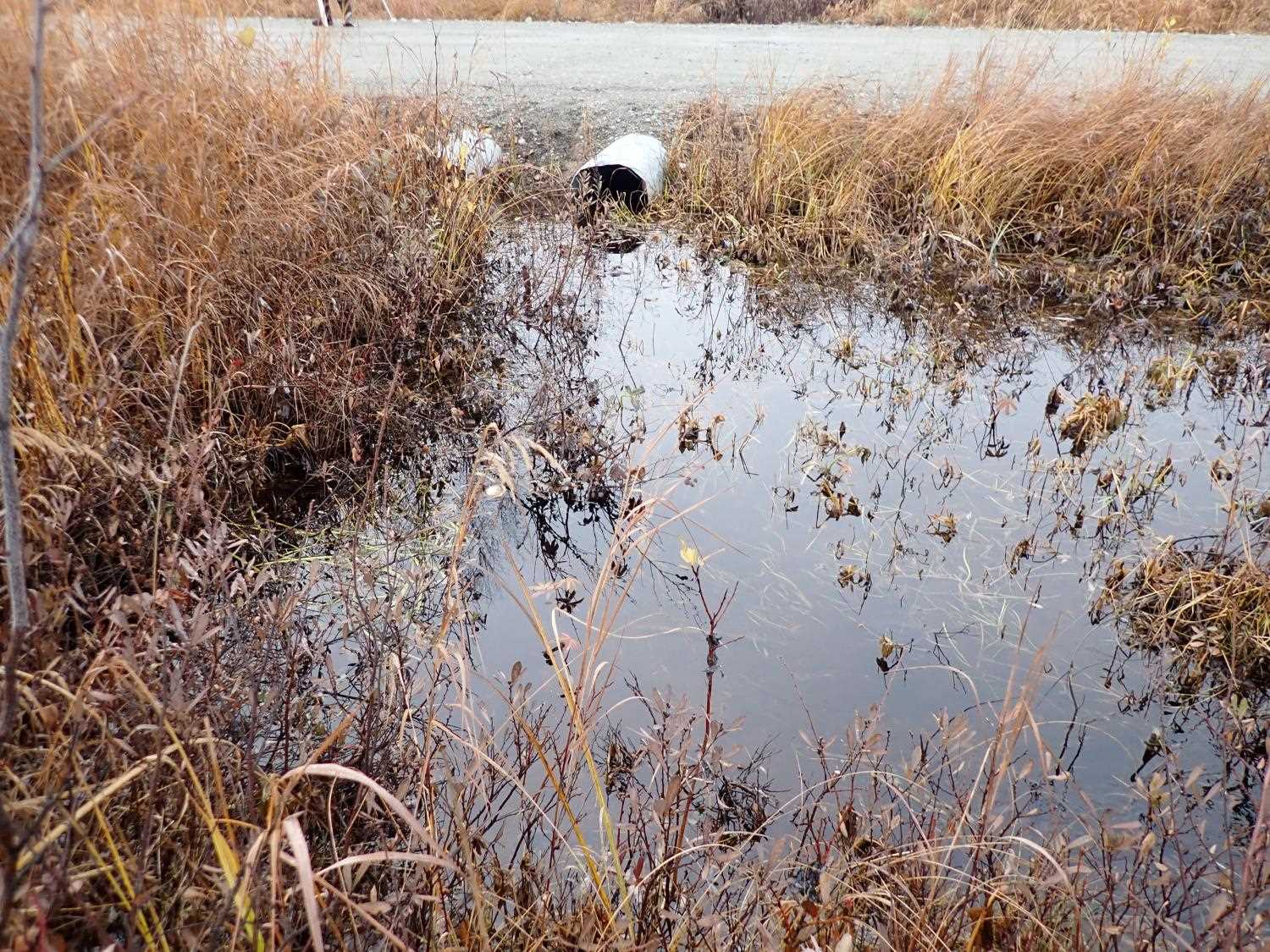

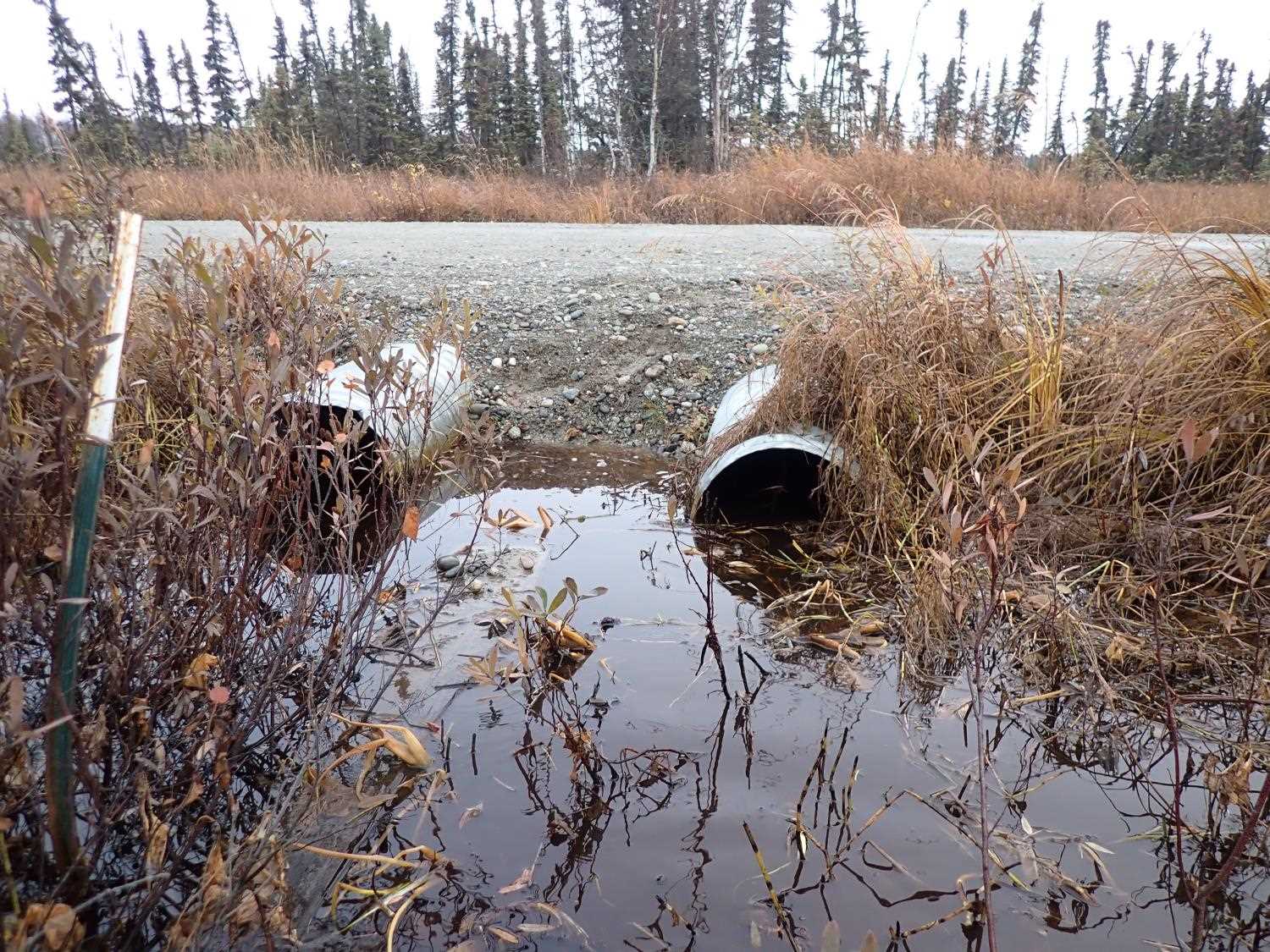

Comments: Culvert connects two wetland areas.

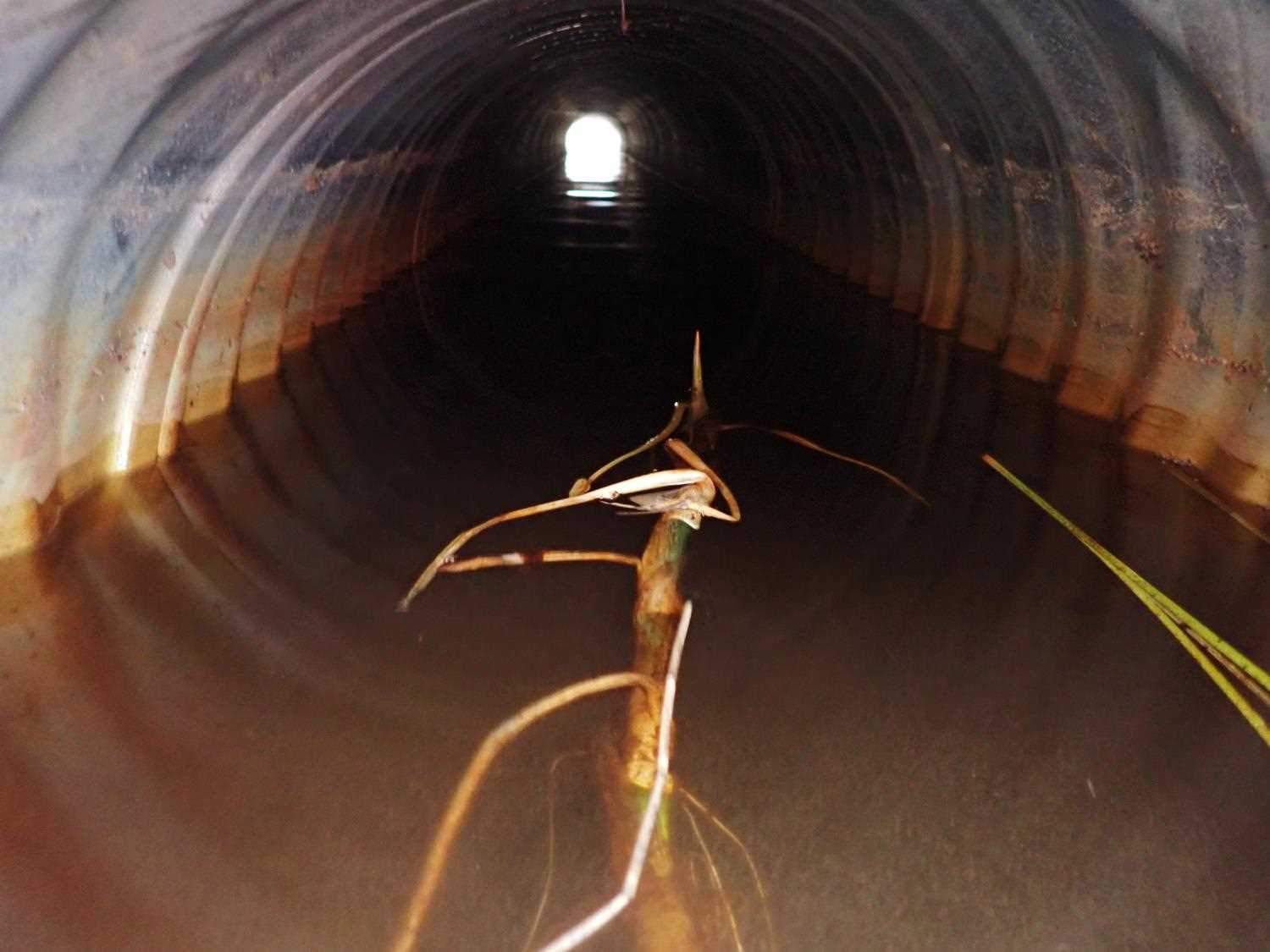

Culvert Measurements

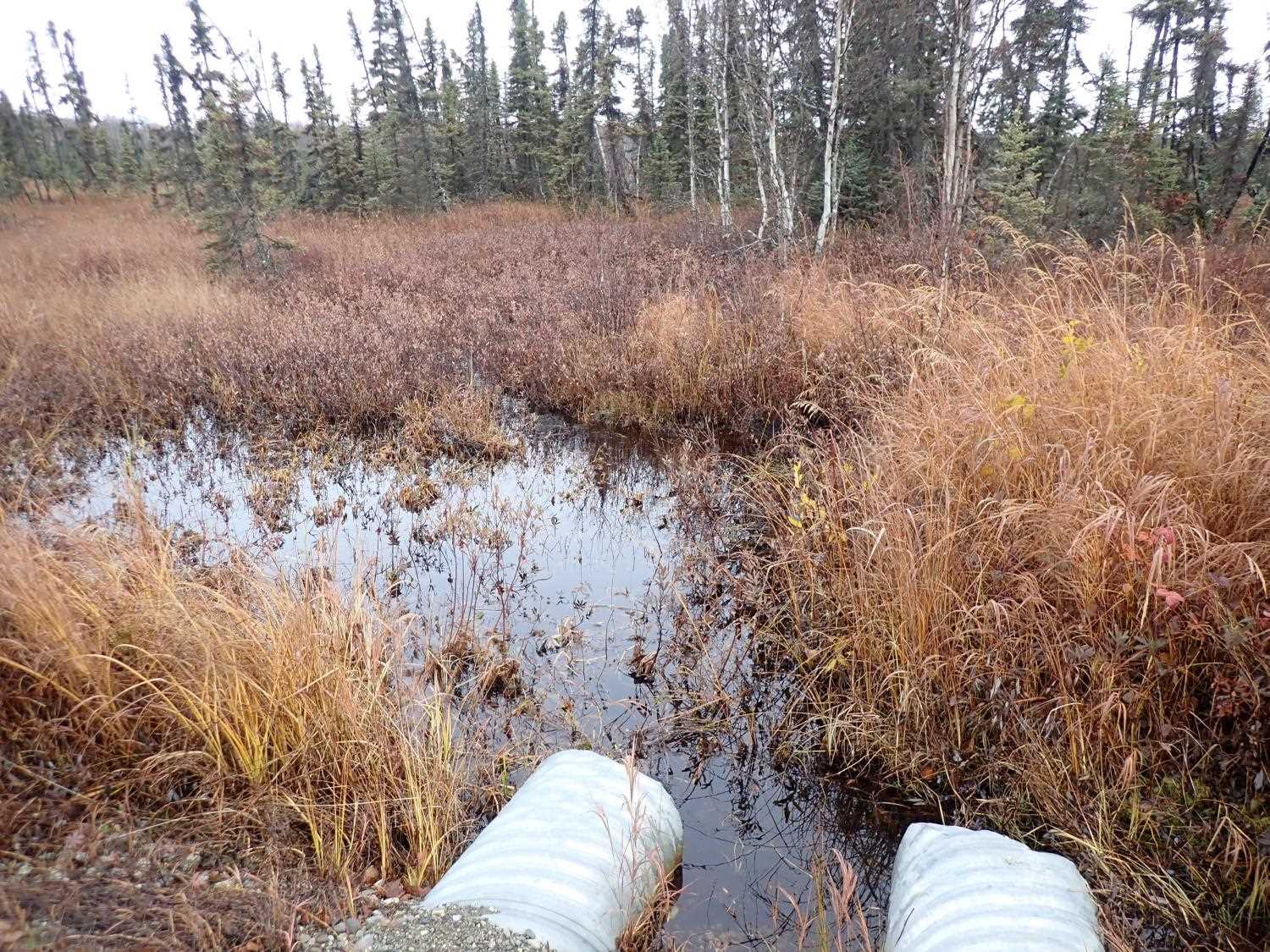

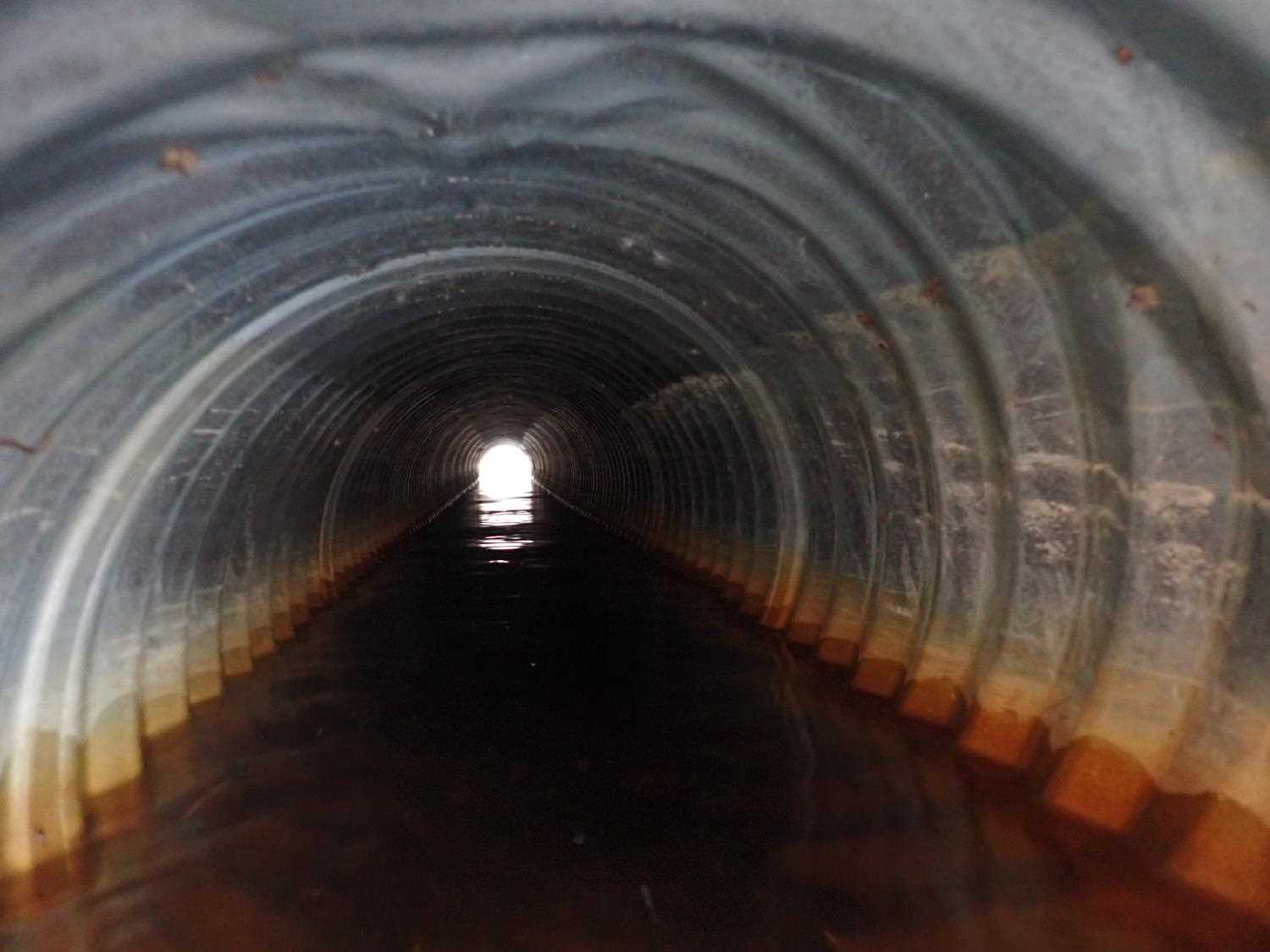

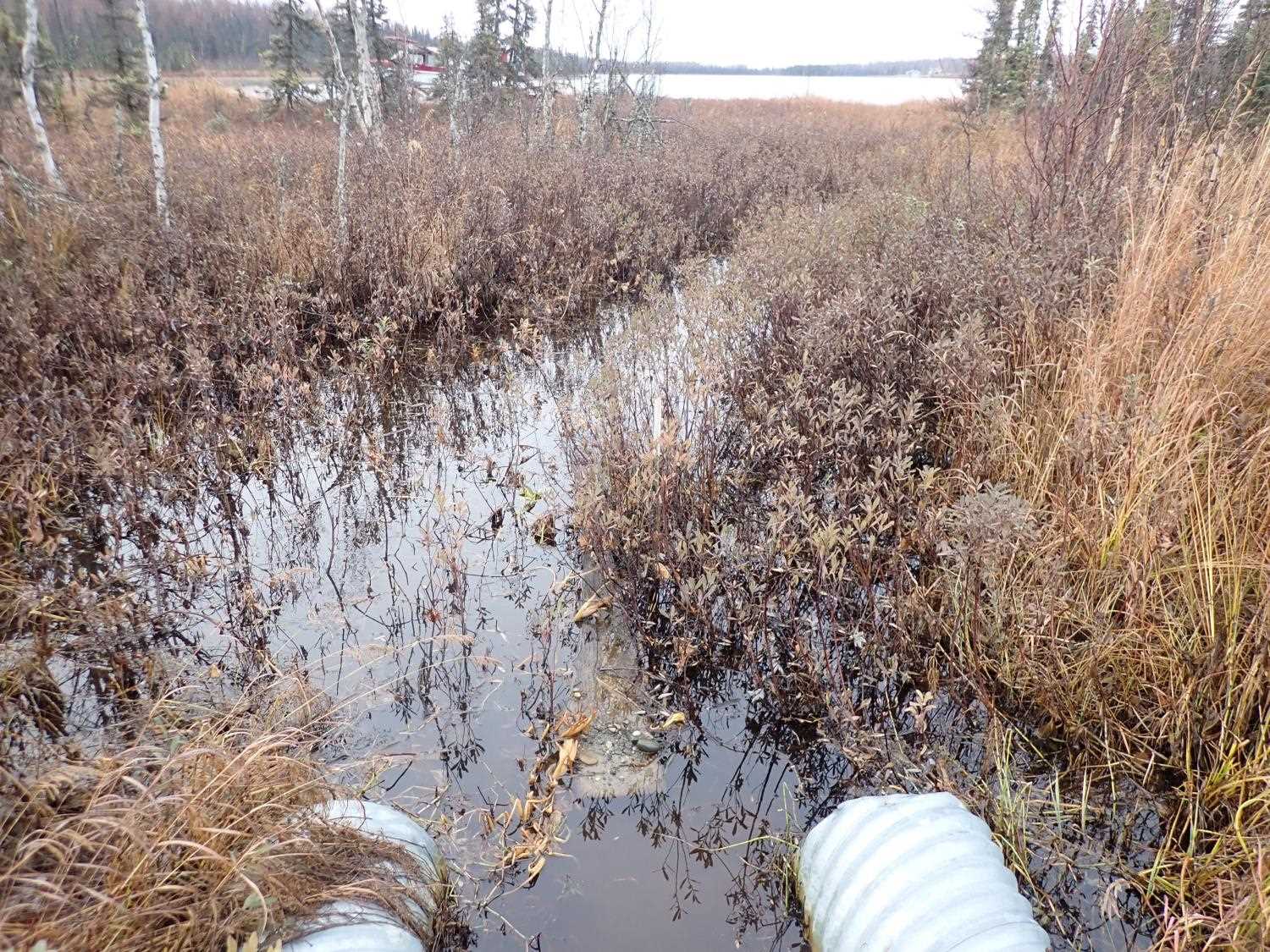

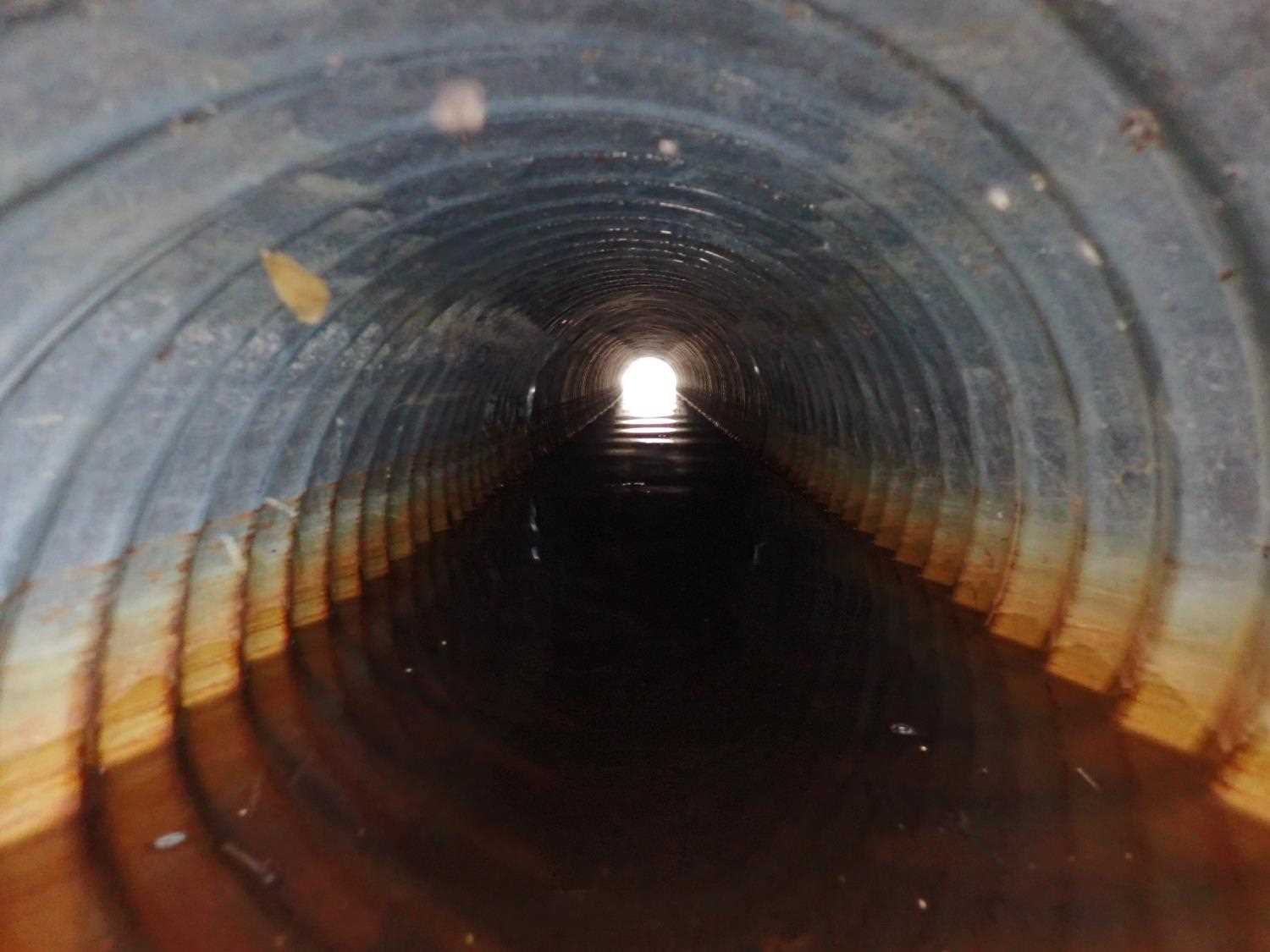

ID: 1 Structure Type: Circular pipe (Corrugated steel) Fish Passage Rating: Green

Length(ft): 30.29
Inlet Type: Projecting
Outlet Type: Projecting
Corrugation Depth(in.): 0.5
Corrugation Width(in.): 2.5
Condition Rating(1-5): 4
Approach Angle: 0.0
Sedimentation At Inlet: No
Inlet Substrate: Organic
Outlet Substrate: Organic
InletOutlet
Width(ft):1.56 1.41
Height(ft):1.37 1.5
Apron Length(ft):
Water Depth(ft):0.0 0.75
Rustline Height(ft):0.7
Substrate Depth(ft):0.0 0.0
Backwatered?: Yes
Baffles Present: No
Embedded?: No
Embedded Depth(ft): 0.0
Outfall Height: 0.0
Outfall Type: At Stream Grade
Constriction Ratio:
Culvert Gradient: 0.87%
Max Slope:
Max Slope Length:
  Culvert Observations:
  1. None of this type

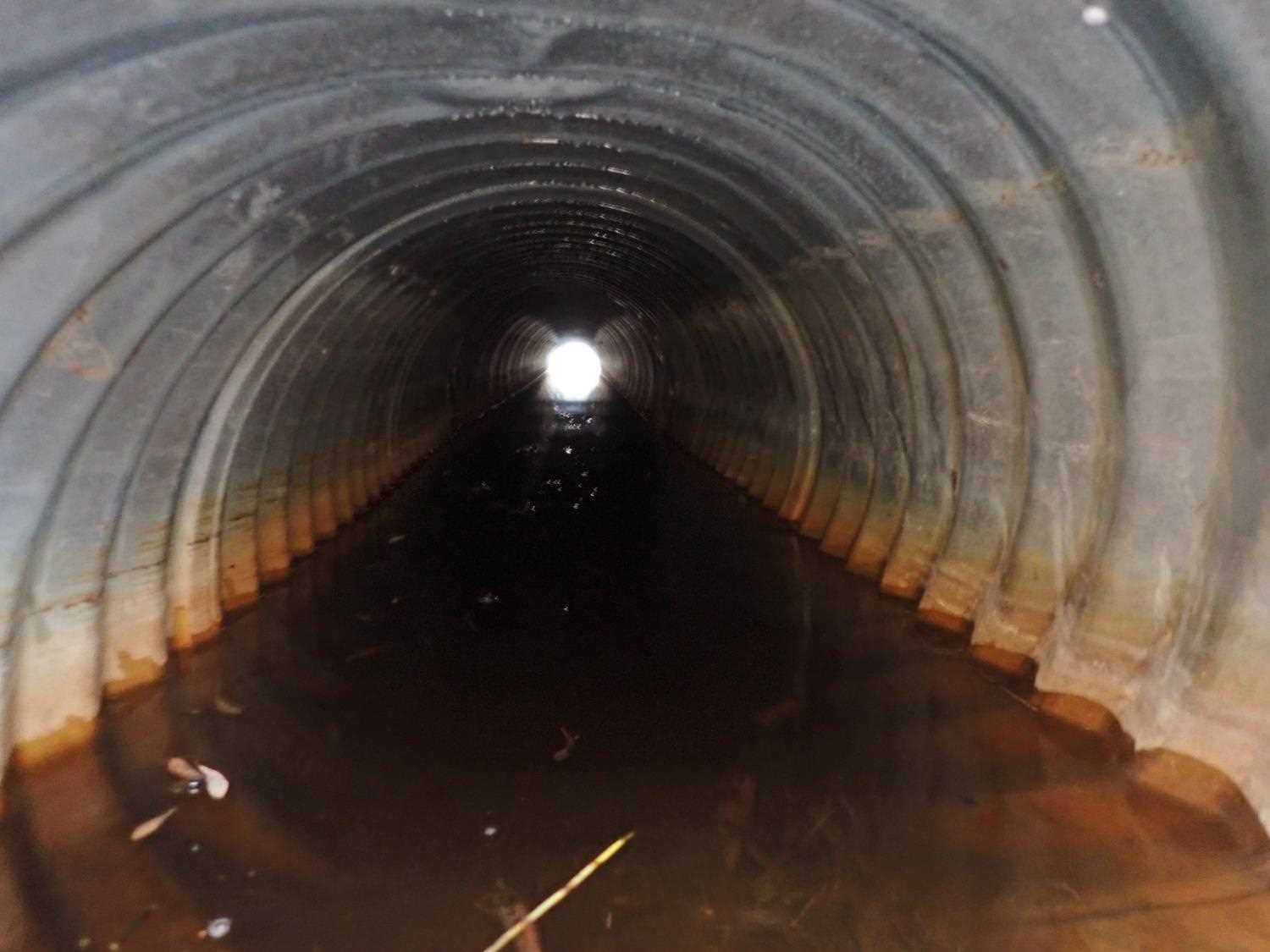

ID: 2 Structure Type: Circular pipe (Corrugated steel) Fish Passage Rating:

Length(ft): 29.88
Inlet Type: Projecting
Outlet Type: Projecting
Corrugation Depth(in.): 0.5
Corrugation Width(in.): 2.5
Condition Rating(1-5): 4
Approach Angle: 0.0
Sedimentation At Inlet: No
Inlet Substrate: Organic
Outlet Substrate: Organic
InletOutlet
Width(ft):1.47 1.54
Height(ft):1.4 1.45
Apron Length(ft):
Water Depth(ft):0.0 0.62
Rustline Height(ft):0.8
Substrate Depth(ft):0.0 0.0
Backwatered?: Yes
Baffles Present: No
Embedded?: No
Embedded Depth(ft): 0.0
Outfall Height: 0.0
Outfall Type: At Stream Grade
Constriction Ratio:
Culvert Gradient: 0.13%
Max Slope:
Max Slope Length:
  Culvert Observations:
  1. None of this type

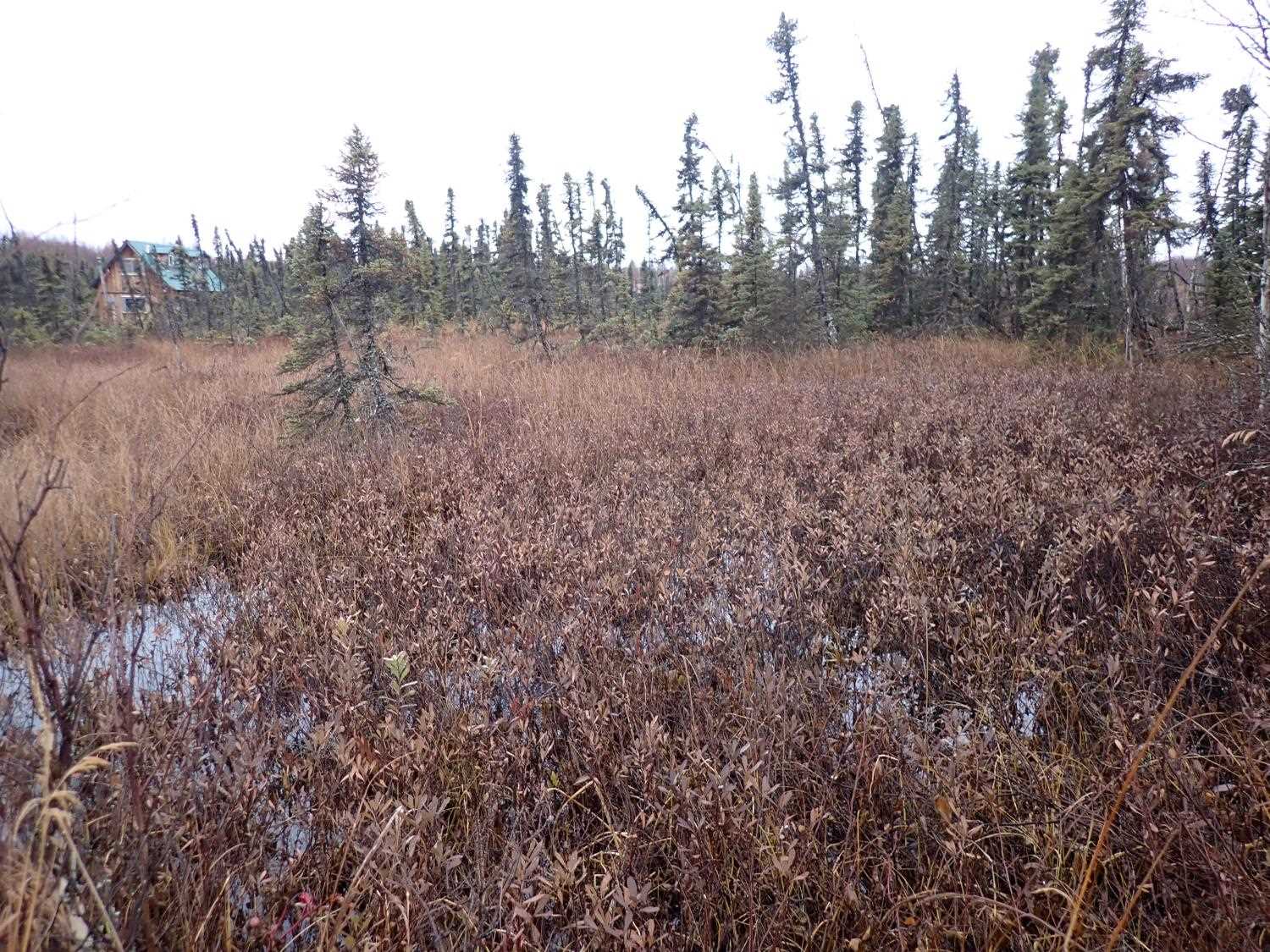

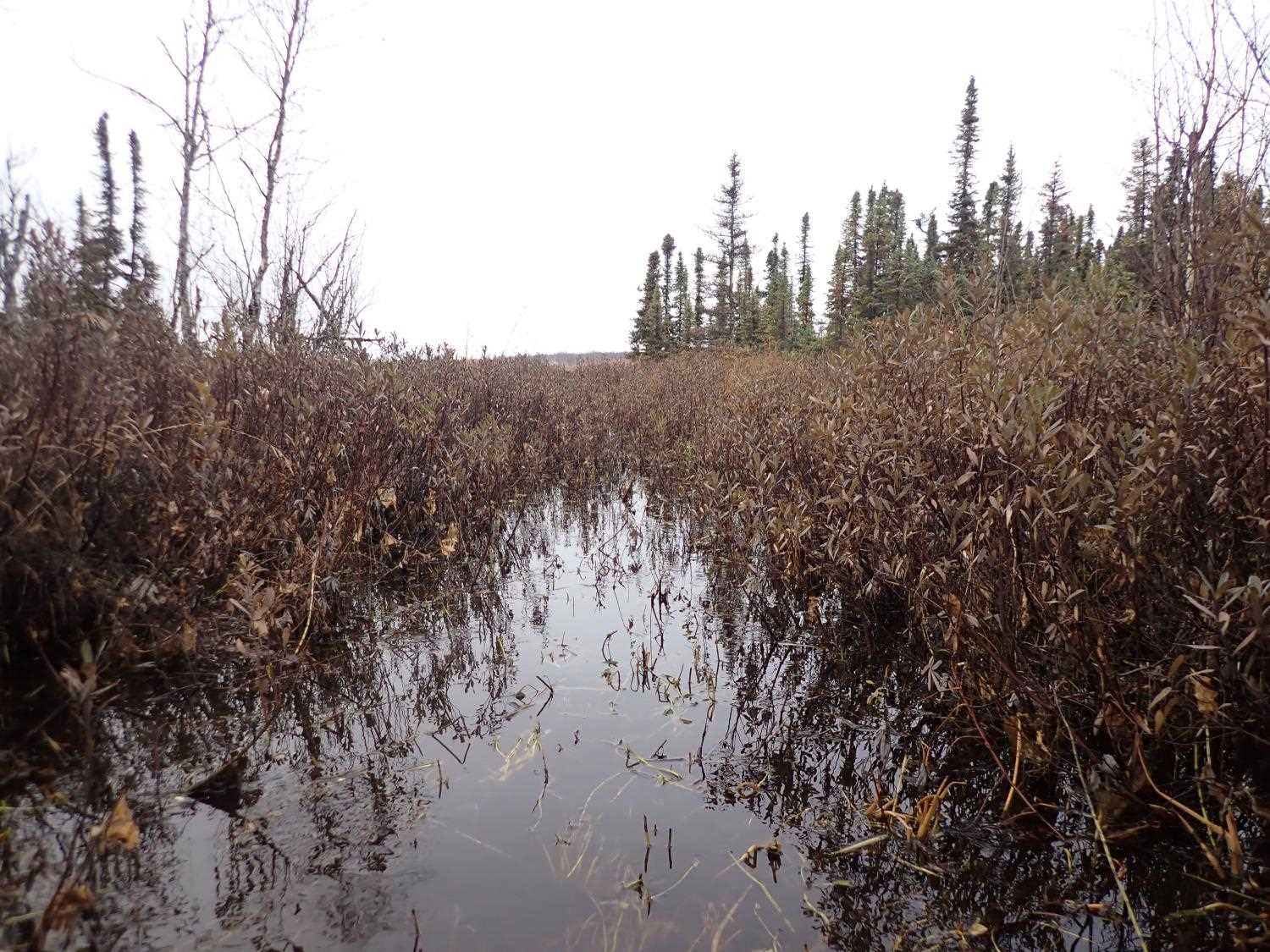

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:OrganicOrganic
Subdominant:Silt/ClaySilt/Clay
Stream Slope(deg.):0.13
Stream Flow Stage:Medium

No stream width data available.

Elevations

Locator ID Culvert
Number		 River
Distance (ft)1		 Distance From
Crossing (ft)2		 Relative
Elevation (ft)
Road Elev 100.20
U/S Water Surface Elev 0.00 98.67
Inlet Culvert Top 2 20.00 99.52
Inlet Culvert Top 1 20.00 99.56
Inlet Culvert Invert 2 20.00 97.92
Inlet Culvert Invert 1 20.00 98.05
U/S Water Surface Elev 1 20.00 98.61
U/S Water Surface Elev 2 20.00 98.61
Outlet Invert 2 49.88 97.98
D/S Water Surface Elev 2 49.88 98.60
Outlet Culvert Top 2 49.88 99.48
Outlet Culvert Top 1 50.29 99.31
Outlet Invert 1 50.29 97.85
D/S Water Surface Elev 1 50.29 98.60
D/S Water Surface Elev 70.00 98.58

Notes:

  1. River distance is measured continuously throughout the survey reach along the thalweg of the stream.
  2. Measured from each end of the crossing along the thalweg of the stream.

Fish Sampling Efforts

No fish sampling occurred during this survey.

Fish Observations

No fish observations occurred during this survey.
