Fish Passage Site 20401355

Coordinates (dec. deg.): 61.57862°, -149.28677°
Legal Description: S017N001E09
Region: South Central

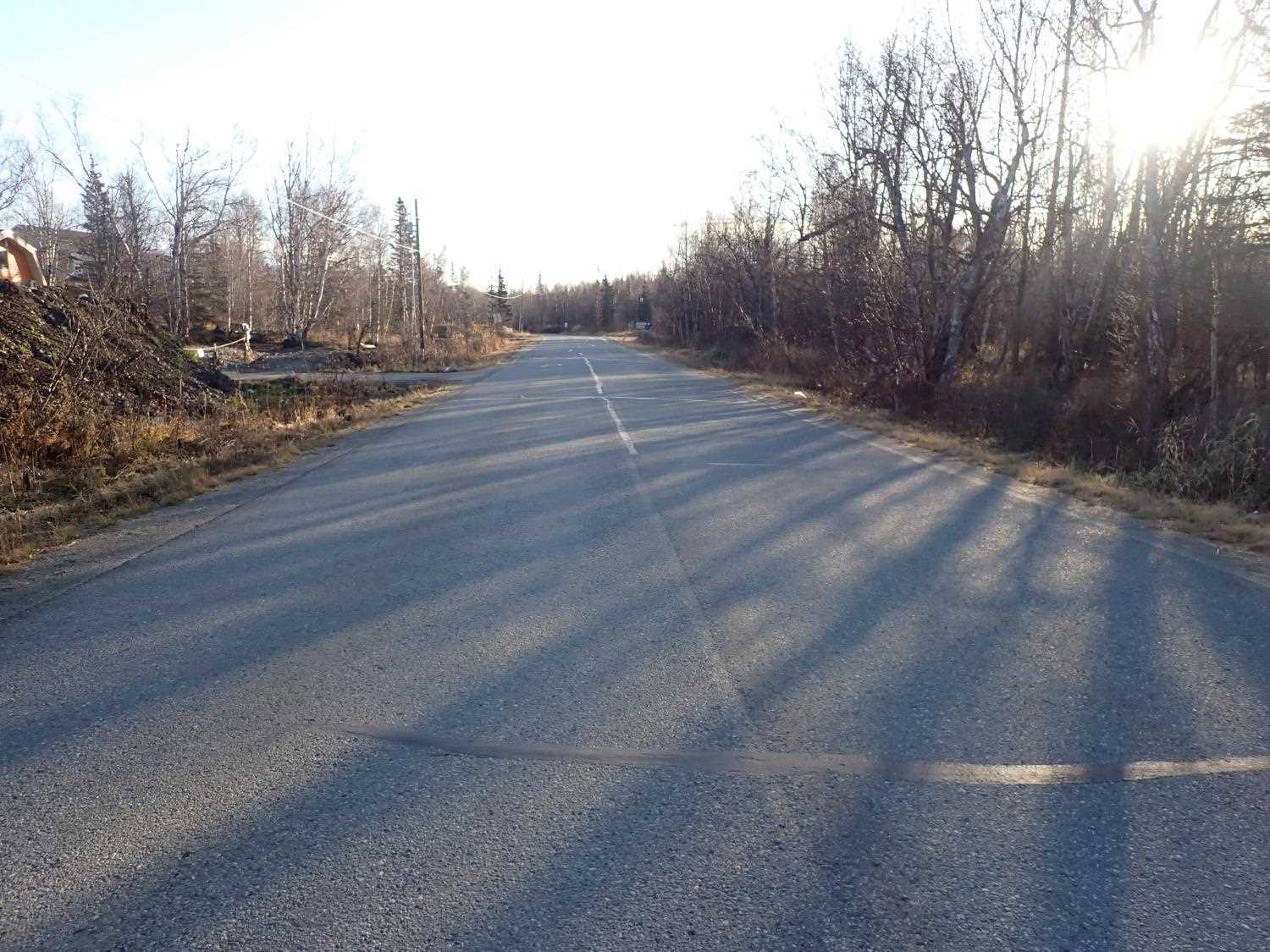

Road Name: Lower Road

Datum: NAD83
Quad Name / ITM: Anchorage C-7
AWC Stream #: 247-50-10260-2019-3041
Stream Name: Wasilla Creek tributary

Elevation:

Site Comments: Lower Road - near Hyer Road

Multiple surveys have been conducted at this site — click on the drop down
arrow to the right of the survey date below to choose a different report for this site.

Survey MSB23-MS120

Project Supervisor: Michael Mazzacavallo, Alaska Department of Fish and Game — Anchorage, AK
Observers: Michael Mazzacavallo, Kat Leavitt, Beth Evers

Overall Fish Passage Rating: Gray

Tidal: No
Backwatered: No

Step Pools: No
Construction Year:


Site Observations:

  1. Constriction ratio gray

Comments: None

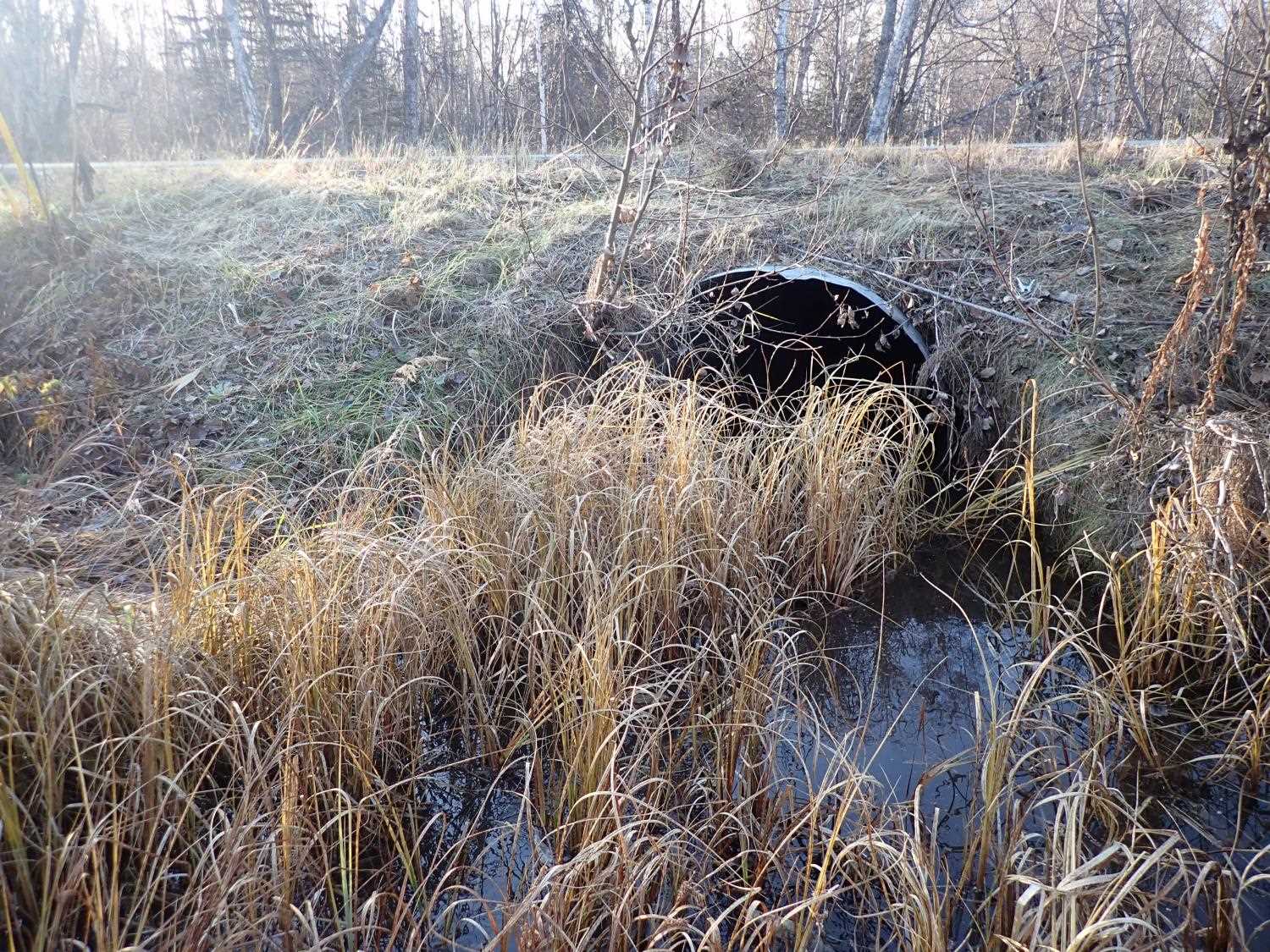

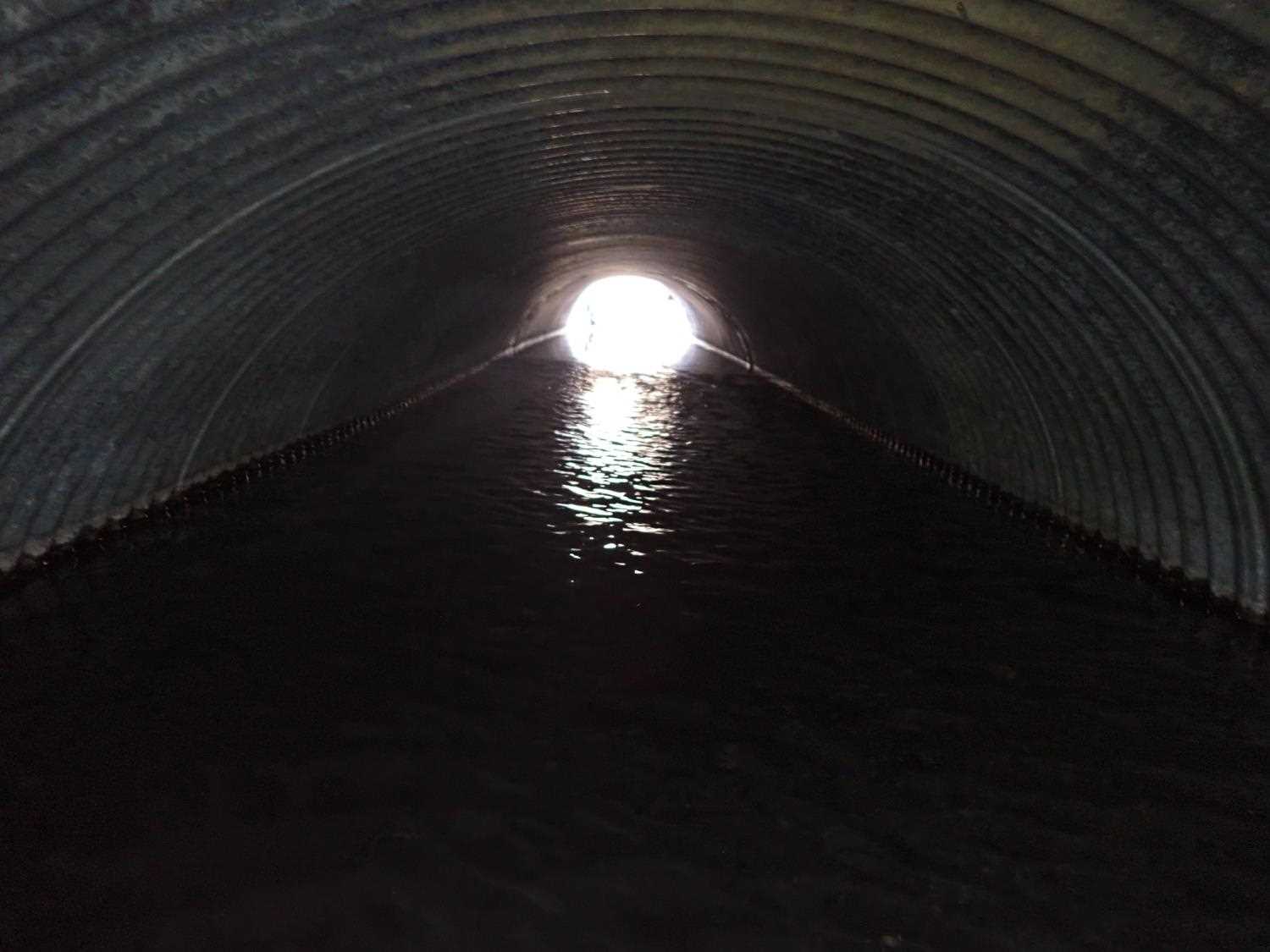

Culvert Measurements

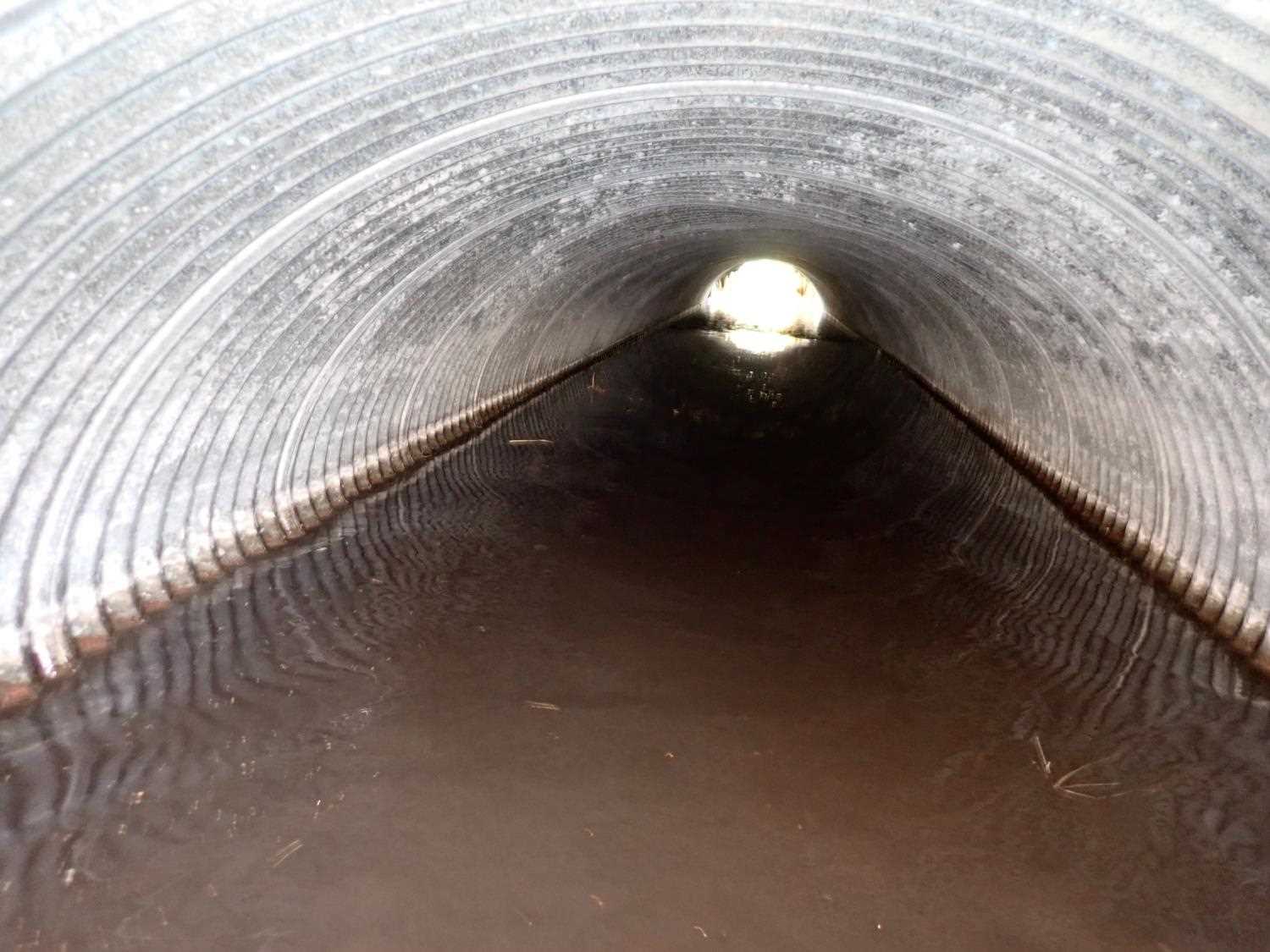

ID: 1 Structure Type: Pipe-arch (Corrugated steel) Fish Passage Rating: Gray

Length(ft): 45.87
Inlet Type: Flared Inlet
Outlet Type: Flared Inlet
Corrugation Depth(in.): 0.5
Corrugation Width(in.): 3.0
Condition Rating(1-5): 4
Approach Angle: 0.0
Sedimentation At Inlet: Yes

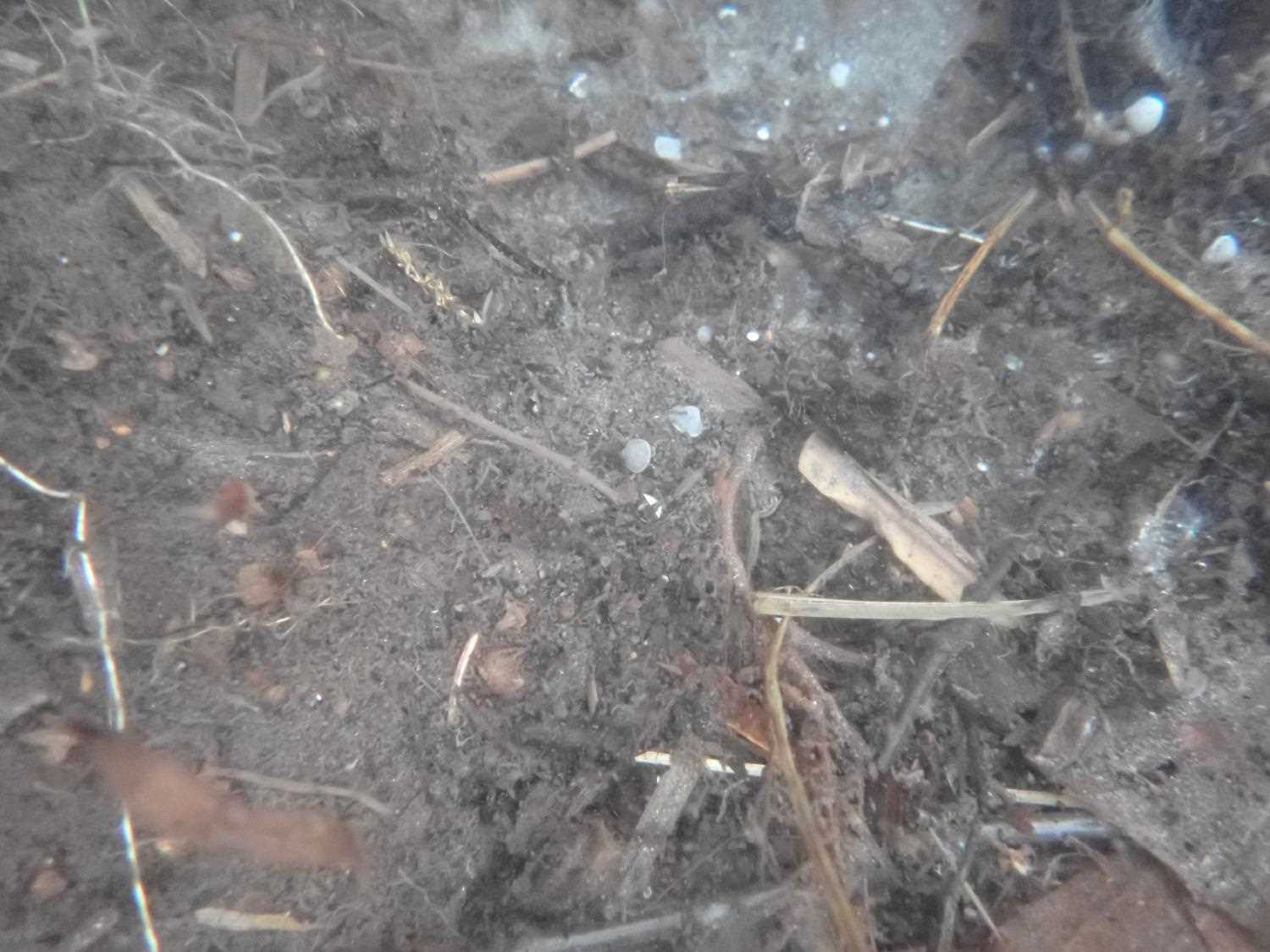

Inlet Substrate: Sand
Outlet Substrate: Sand
InletOutlet
Width(ft):4.9 4.8
Height(ft):3.2 3.1
Apron Length(ft):5.0 5.0
Water Depth(ft):0.0 0.84
Rustline Height(ft):0.65
Substrate Depth(ft):0.6 0.8
Backwatered?: No
Baffles Present: No
Embedded?: No
Embedded Depth(ft): 0.0
Outfall Height: 0.0
Outfall Type: At Stream Grade
Constriction Ratio:
Culvert Gradient: 1.58%
Max Slope:
Max Slope Length:
  Culvert Observations:
  1. Constriction ratio gray

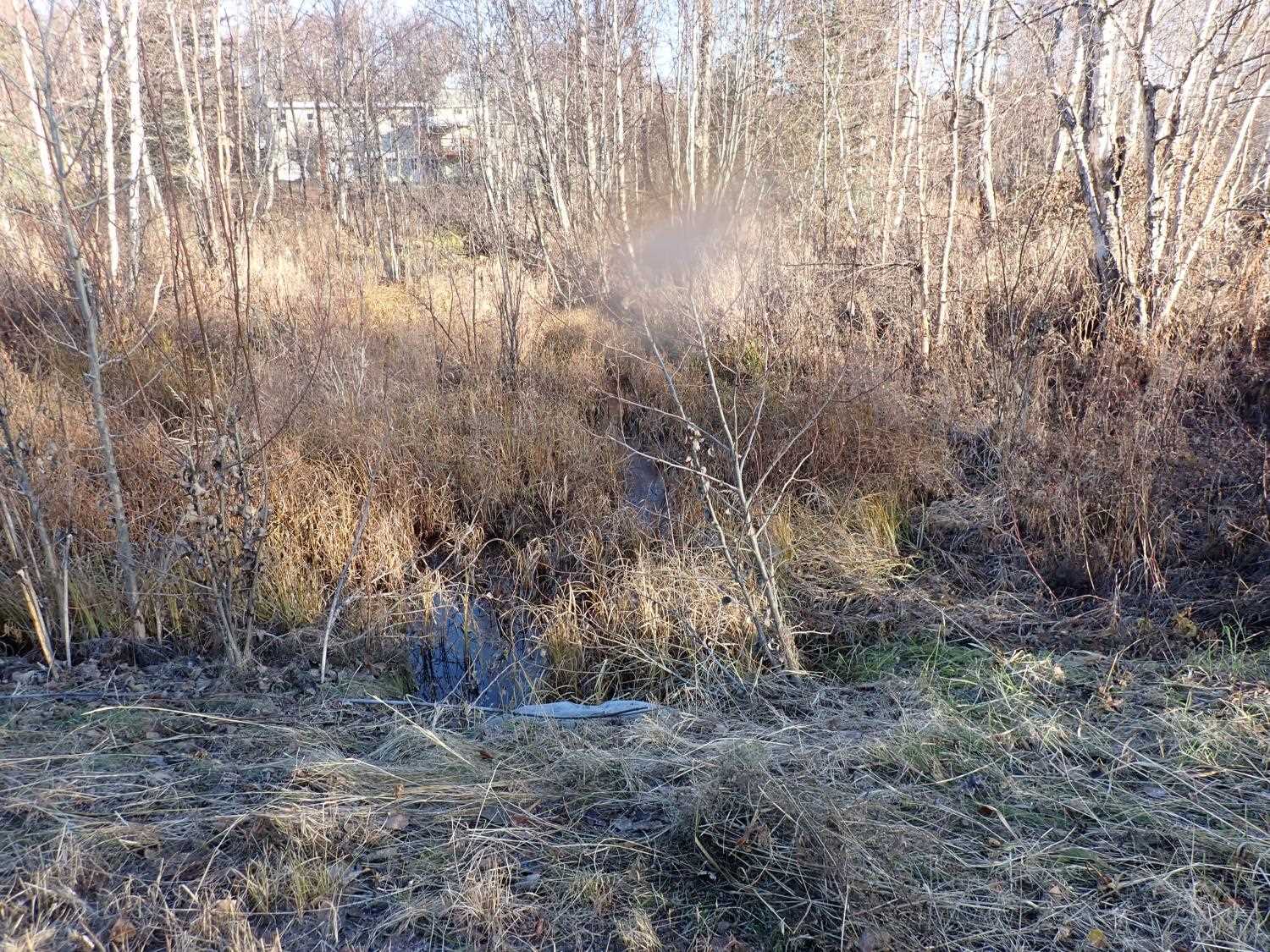

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:OrganicOrganic
Subdominant:Silt/ClaySilt/Clay
Stream Slope(deg.):1.08
Stream Flow Stage:Medium

No stream width data available.

Elevations

Locator ID Culvert
Number		 River
Distance (ft)1		 Distance From
Crossing (ft)2		 Relative
Elevation (ft)
Road Elev 100.17
D/S Water Surface Elev 0.00 94.53
Outlet Invert 40.00 94.70
D/S Water Surface Elev 40.00 95.54
Outlet Culvert Top 40.00 97.59
Inlet Culvert Top 85.47 98.31
U/S Water Surface Elev 85.87 95.64
Inlet Culvert Invert 85.87 95.04
U/S Water Surface Elev 100.87 95.62

Notes:

  1. River distance is measured continuously throughout the survey reach along the thalweg of the stream.
  2. Measured from each end of the crossing along the thalweg of the stream.

Fish Sampling Efforts

No fish sampling occurred during this survey.

Fish Observations

No fish observations occurred during this survey.
