Fish Passage Site 20400628

Coordinates (dec. deg.): 61.47535°, -149.16338°
Legal Description: S016N002E18
Region: South Central

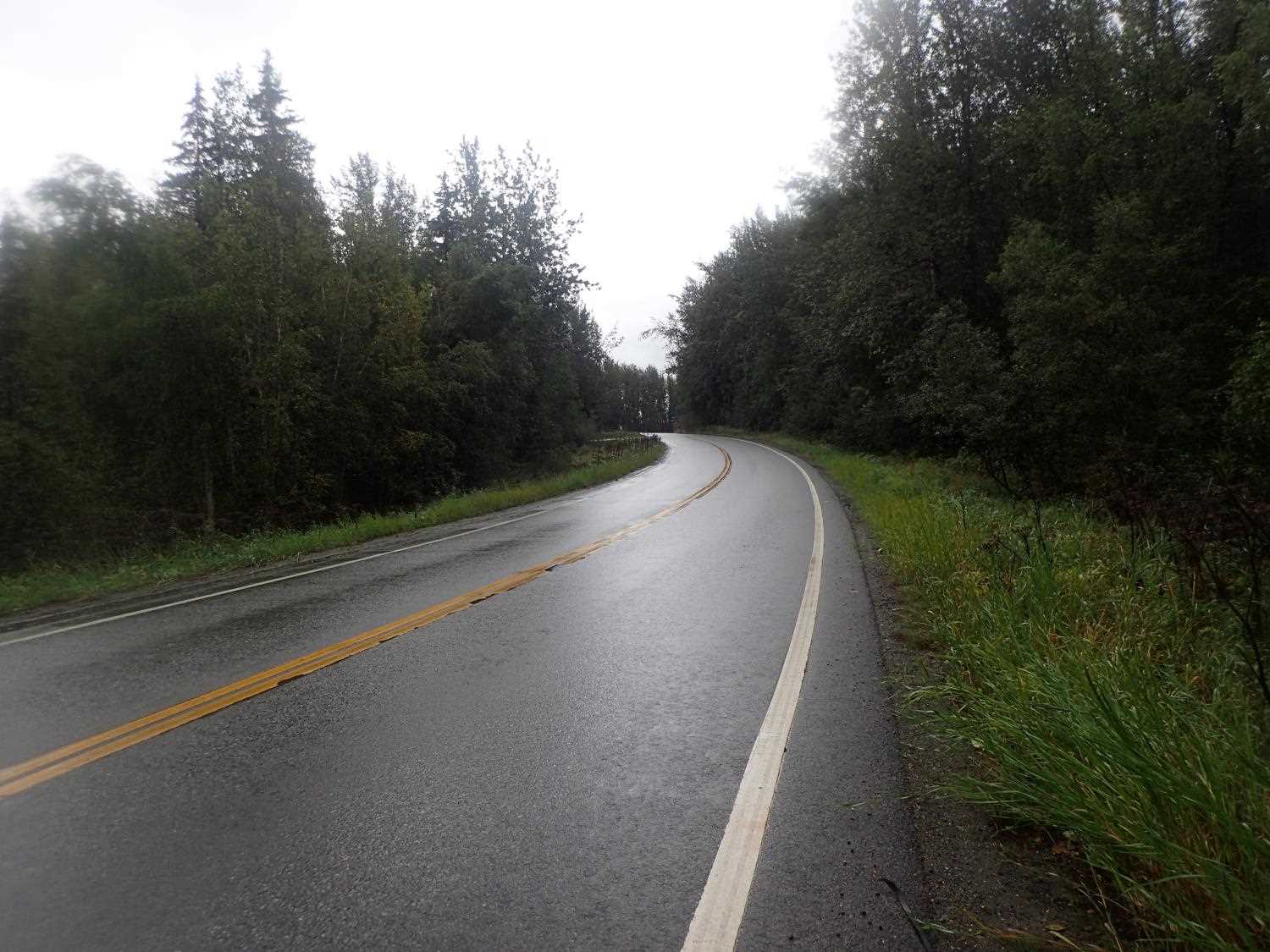

Road Name: Old Glenn Highway

Datum: NAD83
Quad Name / ITM: Anchorage B-6
AWC Stream #:
Stream Name: Unnamed

Elevation:

Site Comments: None

Multiple surveys have been conducted at this site — click on the drop down
arrow to the right of the survey date below to choose a different report for this site.

Survey MSB23-MS014

Project Supervisor: Michael Mazzacavallo, Alaska Department of Fish and Game — Anchorage, AK
Observers: Michael Mazzacavallo, Kat Leavitt, Beth Evers

Overall Fish Passage Rating: Red

Tidal: No
Backwatered: Unknown

Step Pools: No
Construction Year:


Comments: None

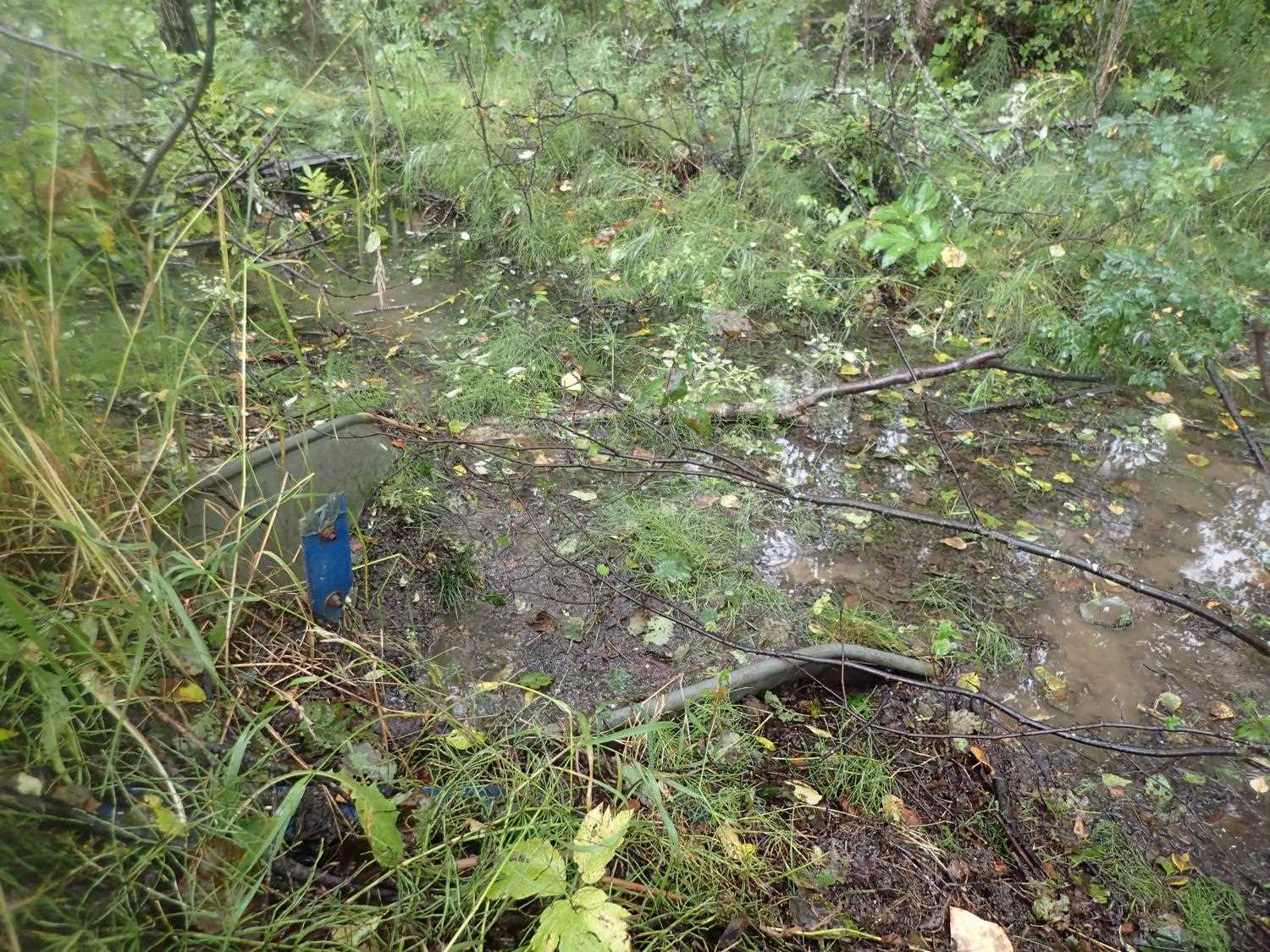

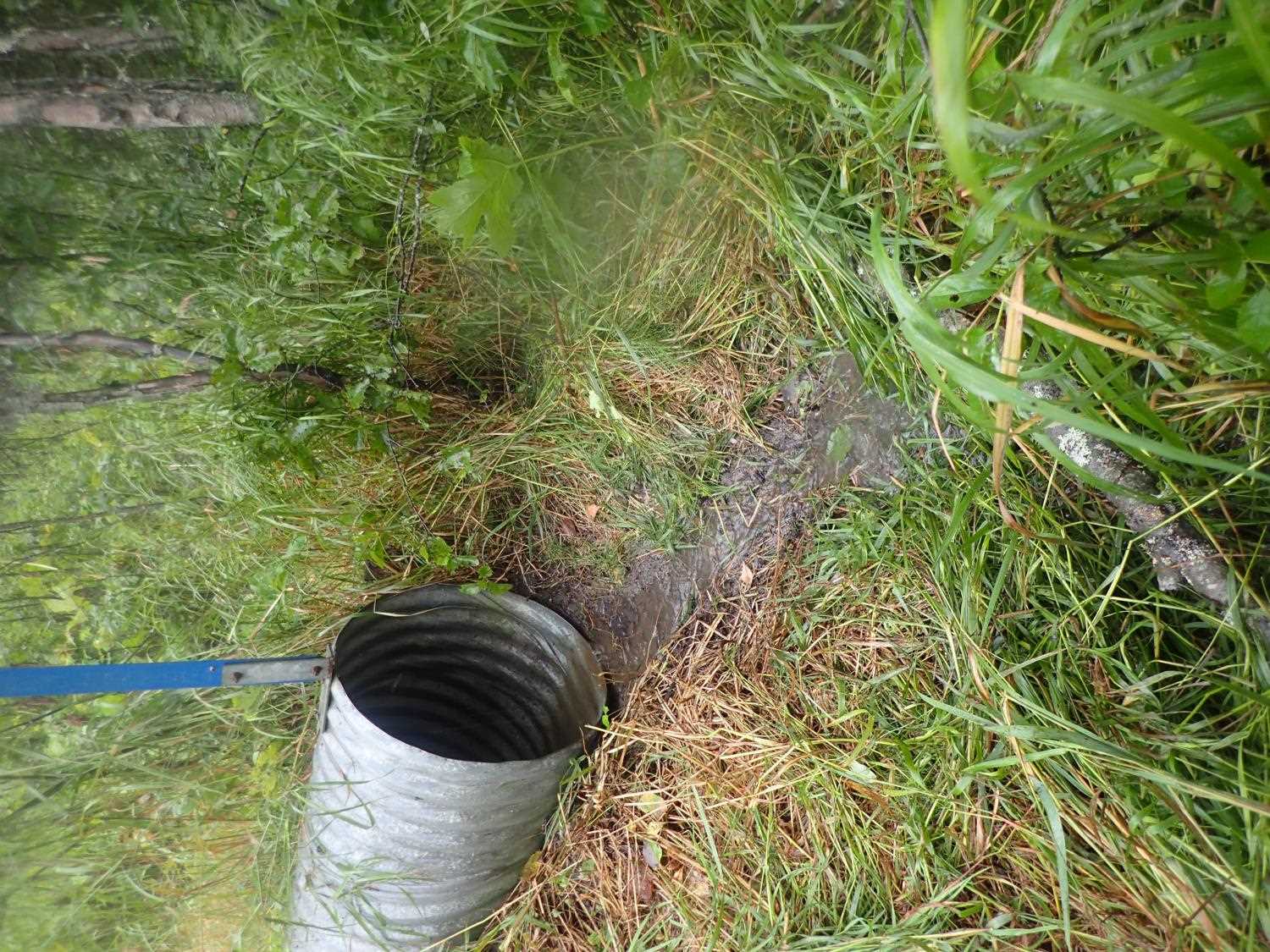

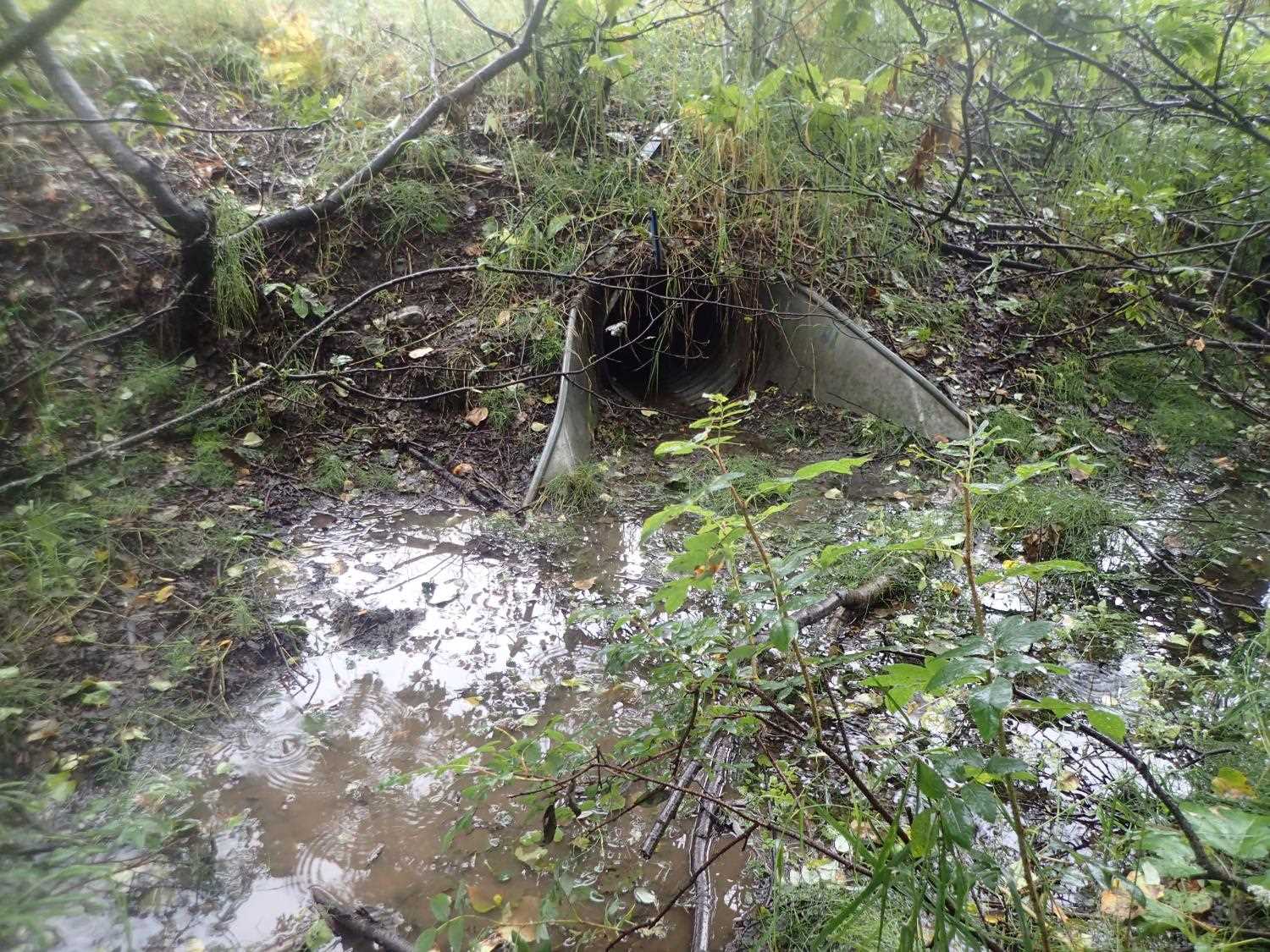

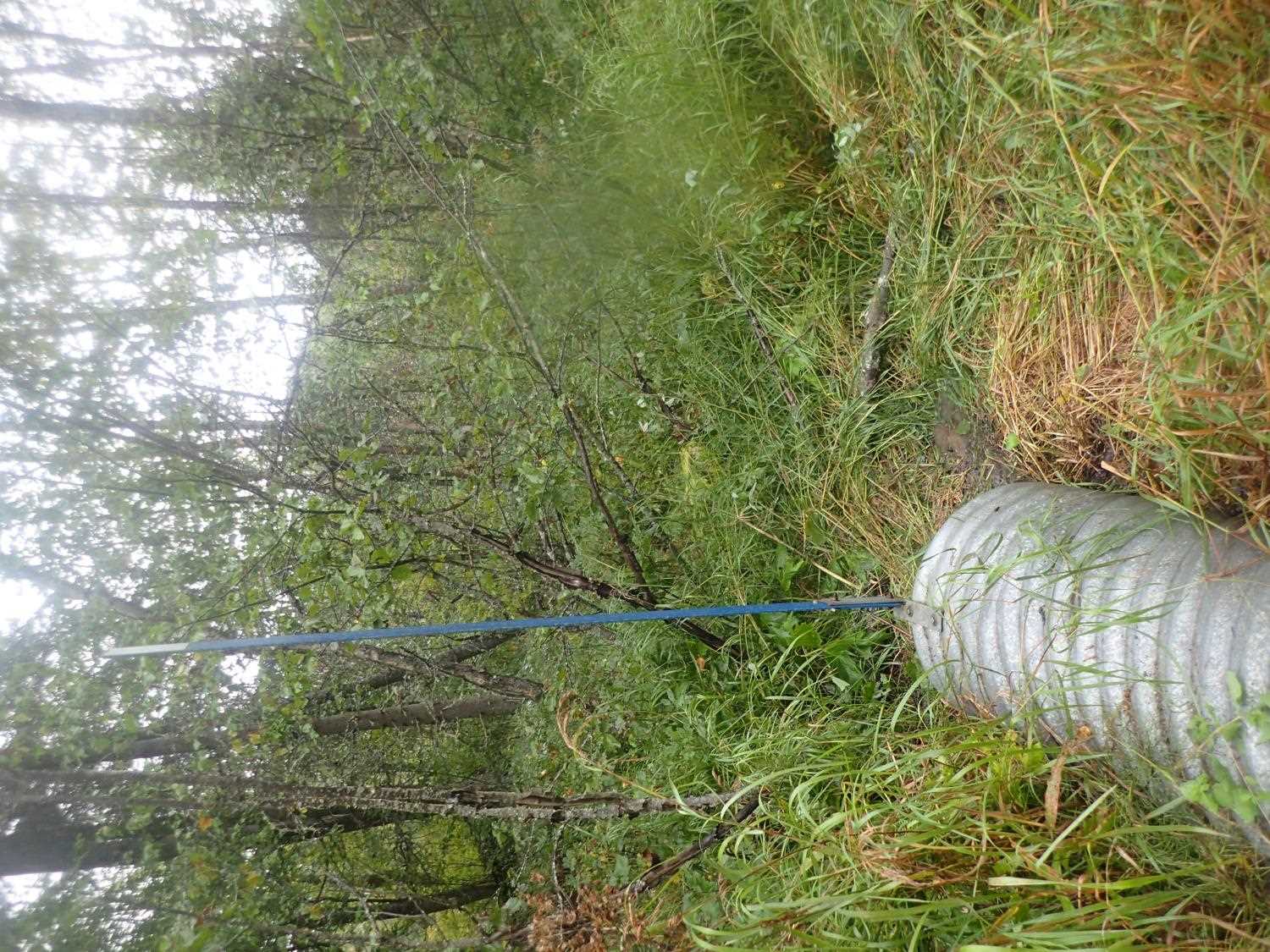

Culvert Measurements

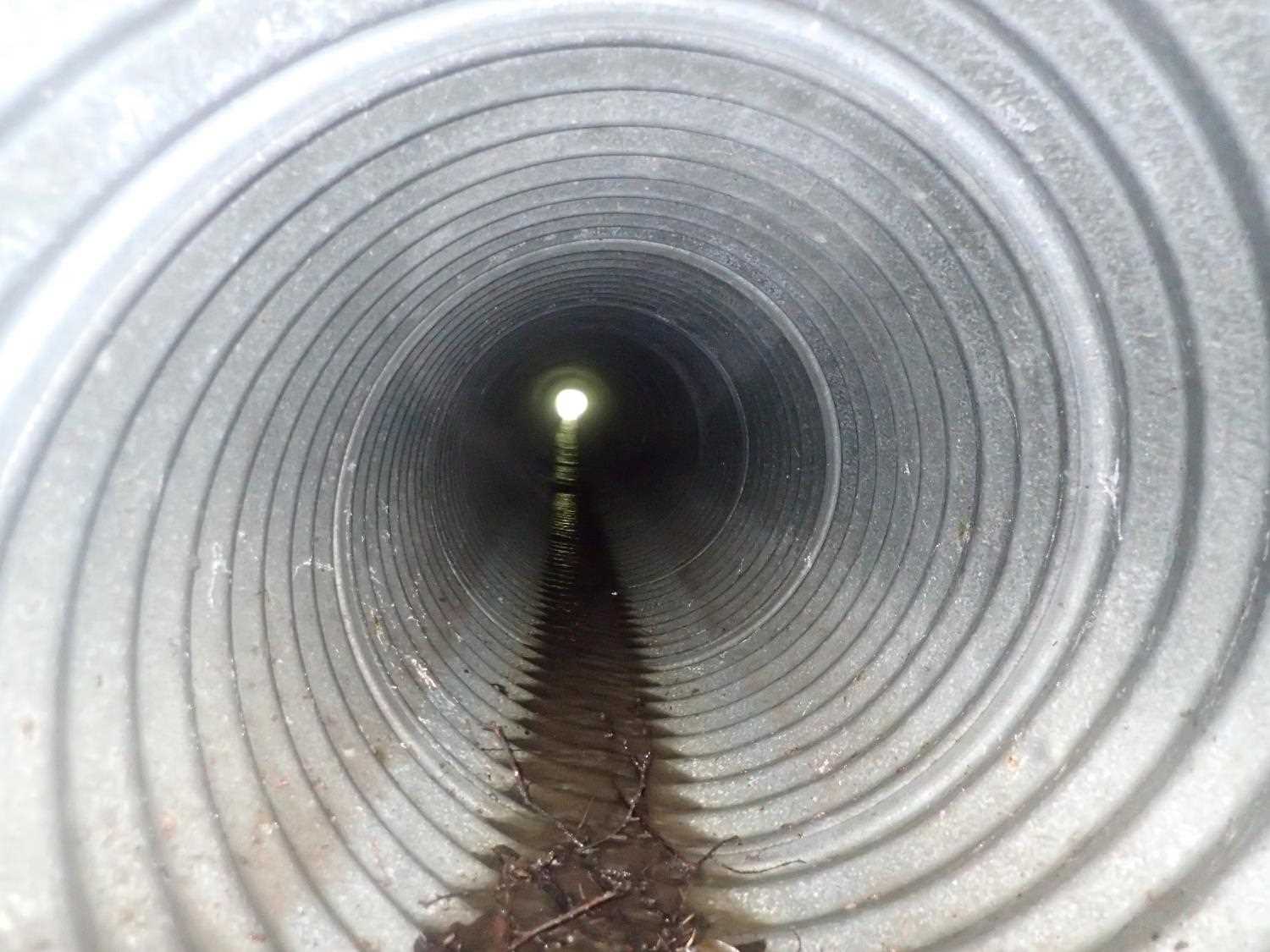

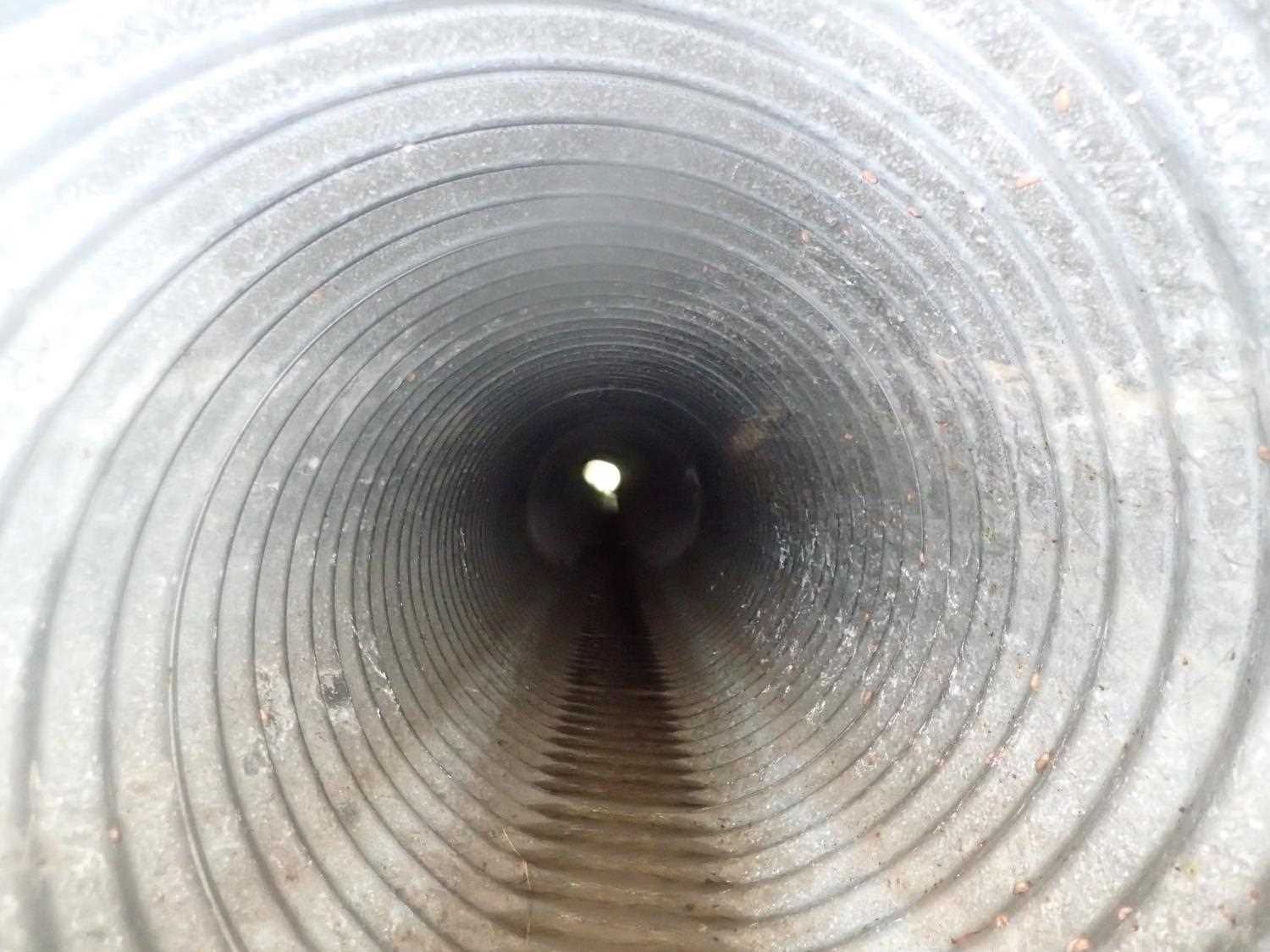

ID: 1 Structure Type: Circular pipe (Corrugated steel) Fish Passage Rating: Red

Length(ft): 78.04
Inlet Type:
Outlet Type:
Corrugation Depth(in.): 0.5
Corrugation Width(in.): 2.5
Condition Rating(1-5):
Approach Angle:
Sedimentation At Inlet: No
Inlet Substrate:
Outlet Substrate:
InletOutlet
Width(ft):2.0 2.0
Height(ft):2.0 2.0
Apron Length(ft):
Water Depth(ft): 0.05
Rustline Height(ft):
Substrate Depth(ft):
Backwatered?: Unknown
Baffles Present: No
Embedded?:
Outfall Height: 0.08
Outfall Type:
Constriction Ratio:
Culvert Gradient:
Max Slope:
Max Slope Length:

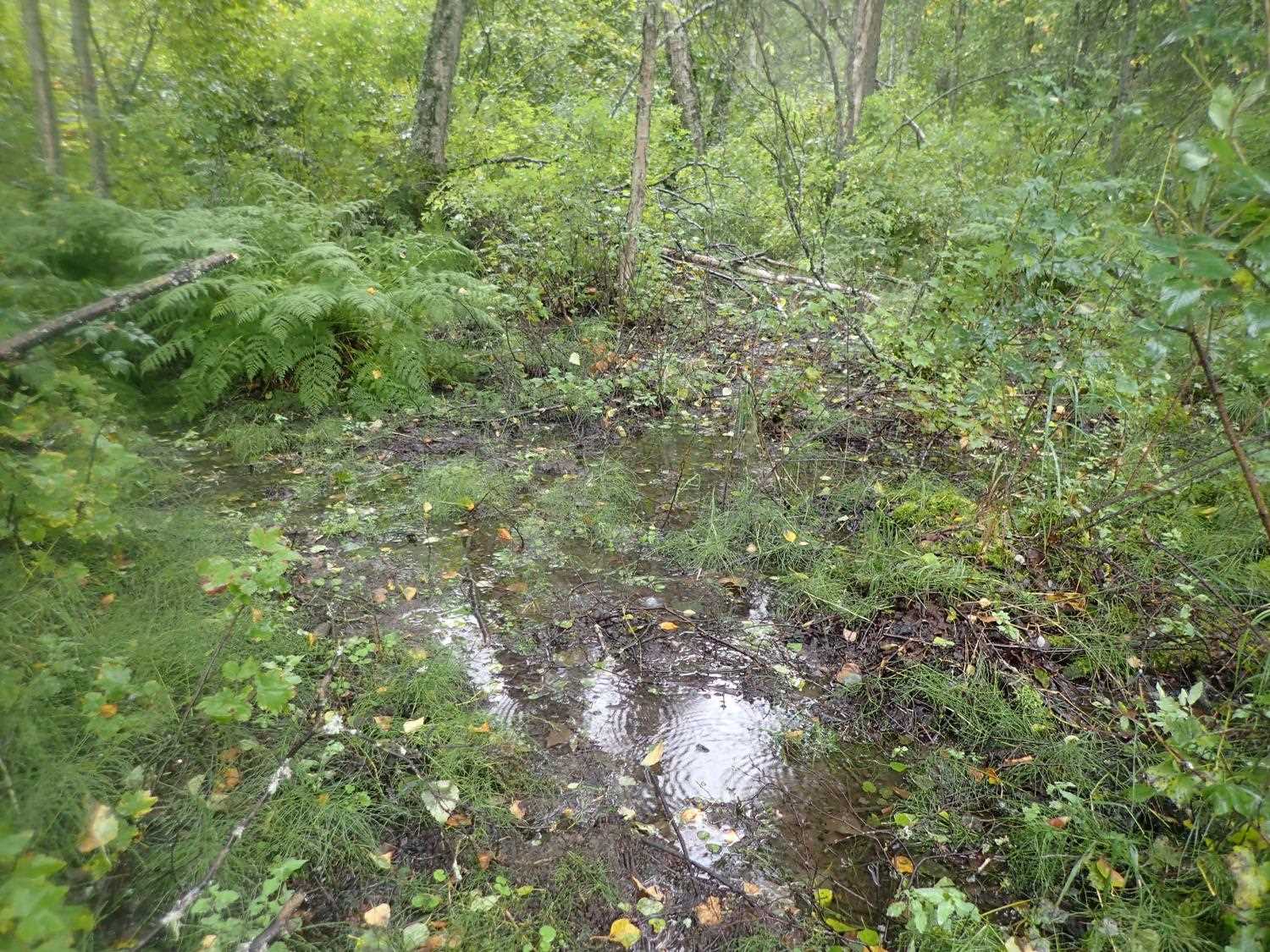

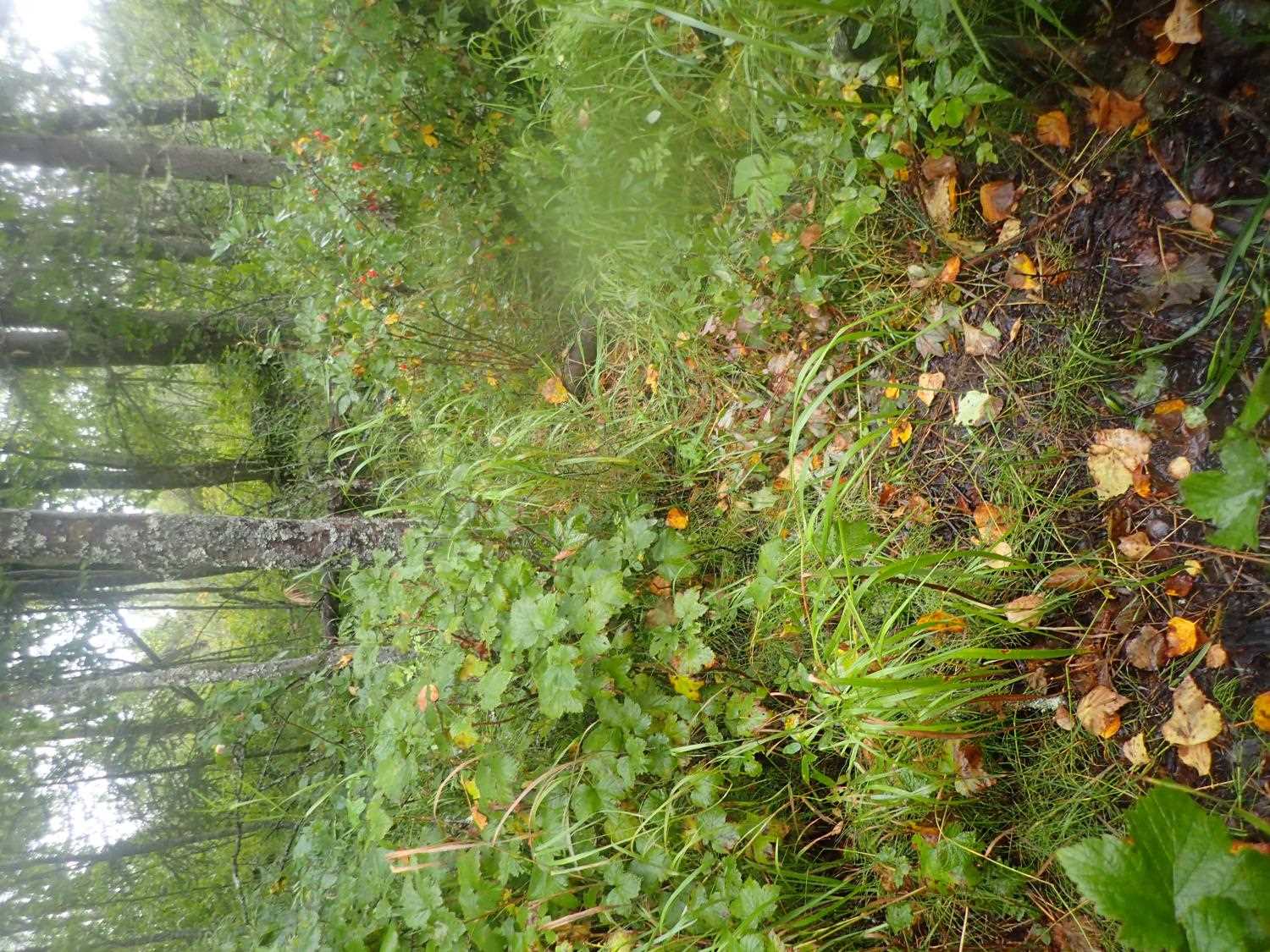

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:
Subdominant:
Stream Slope(deg.):
Stream Flow Stage:Wet, No Defined Channel

No stream width data available.

Elevations

No elevation data available.

Fish Sampling Efforts

No fish sampling occurred during this survey.

Fish Observations

No fish observations occurred during this survey.

Questions or comments about this report can be directed to dfg.dsf.webmaster@alaska.gov
