Fish Passage Site 10302267

Coordinates (dec. deg.): 58.45442°, -135.87398°
Legal Description: C039S058E32
Region: Southeast

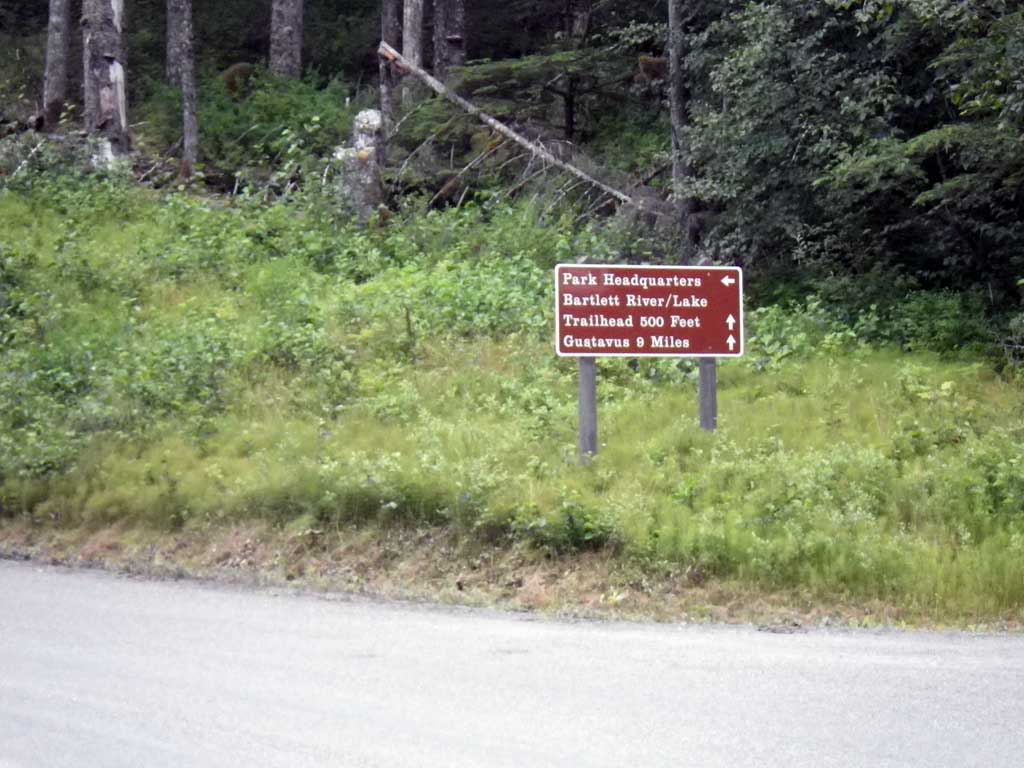

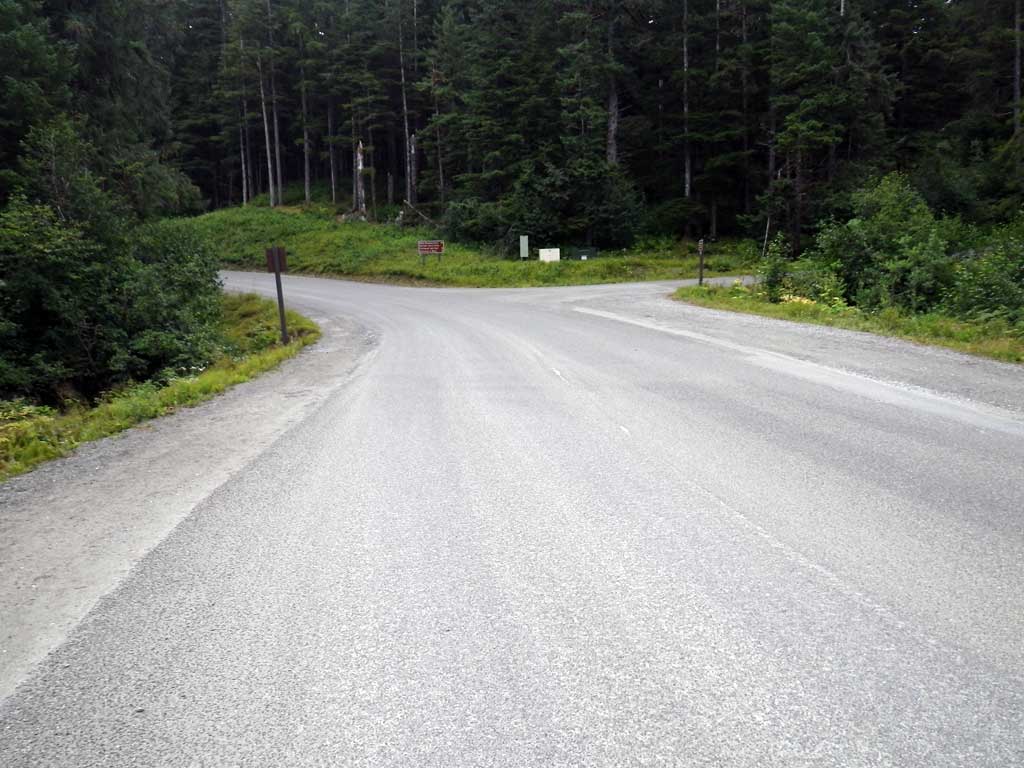

Road Name: Glacier National Park Drive

Datum: NAD83
Quad Name / ITM: Juneau B-6
AWC Stream #:
Stream Name: Bartlett Cove tributary

Elevation:

Site Comments: None

Survey Date: Aug 14, 2011

Survey SEA11-GNP01

Project Supervisor: Gillian O'Doherty, Alaska Department of Fish and Game — Anchorage, AK
Observers: Jason Olds, Charmagne Gutierrez

Overall Fish Passage Rating: Red

Tidal: No
Backwatered: No

Step Pools: No
Construction Year:


Site Observations:

  1. Outfall height red
  2. Culvert is poorly aligned

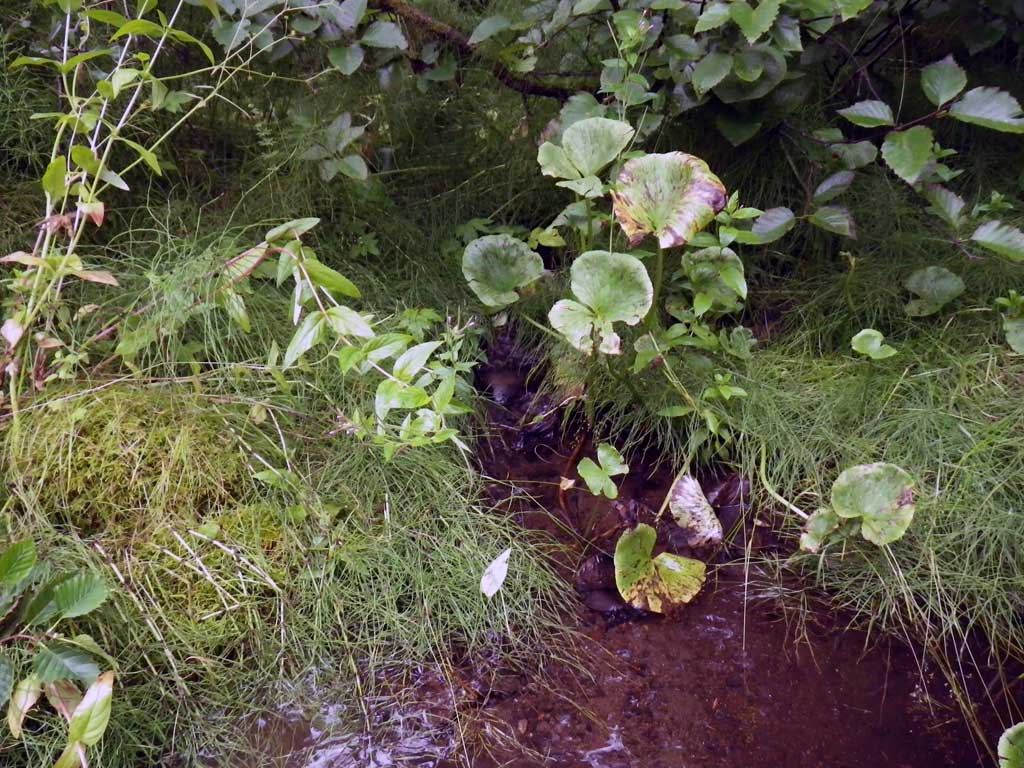

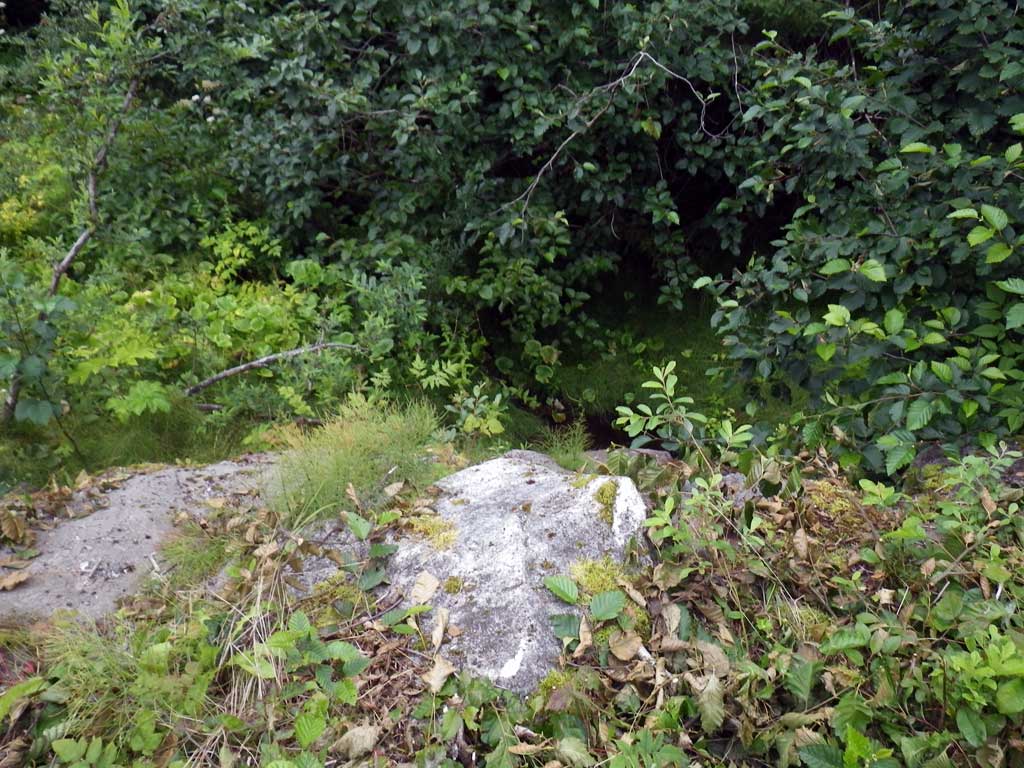

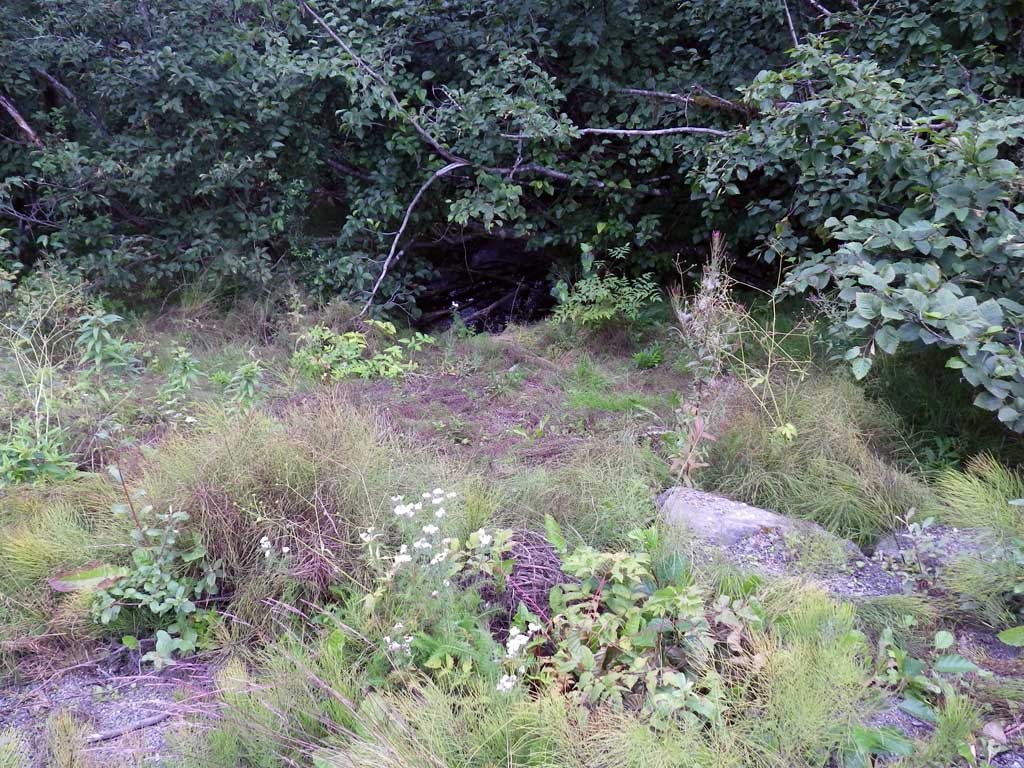

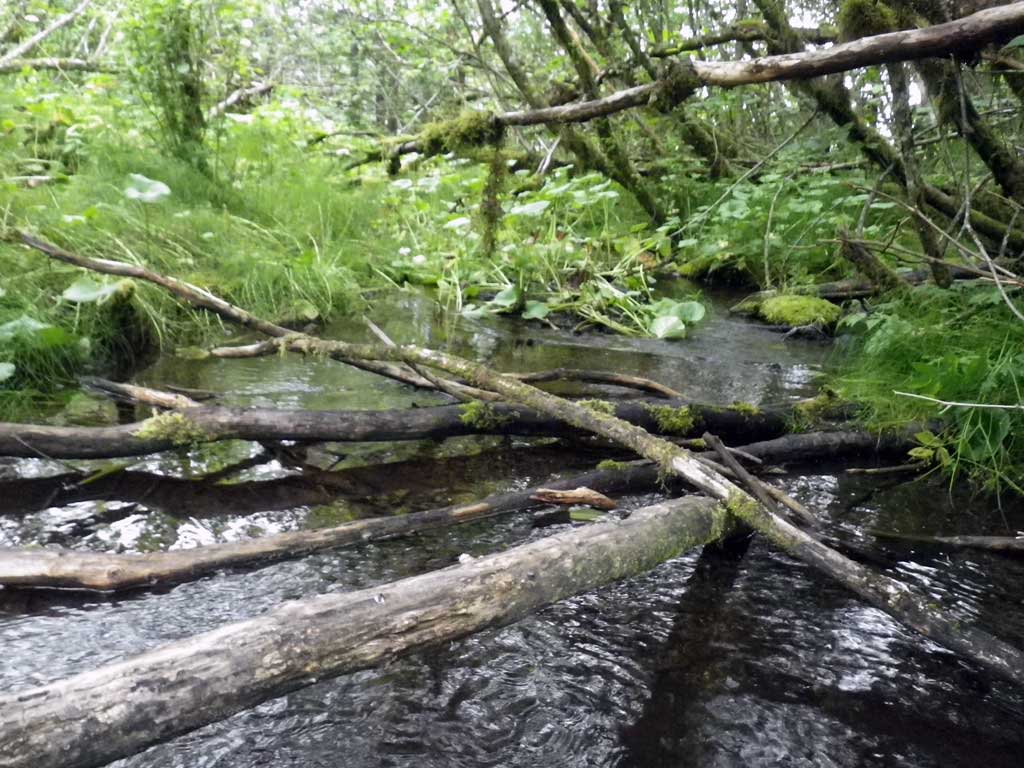

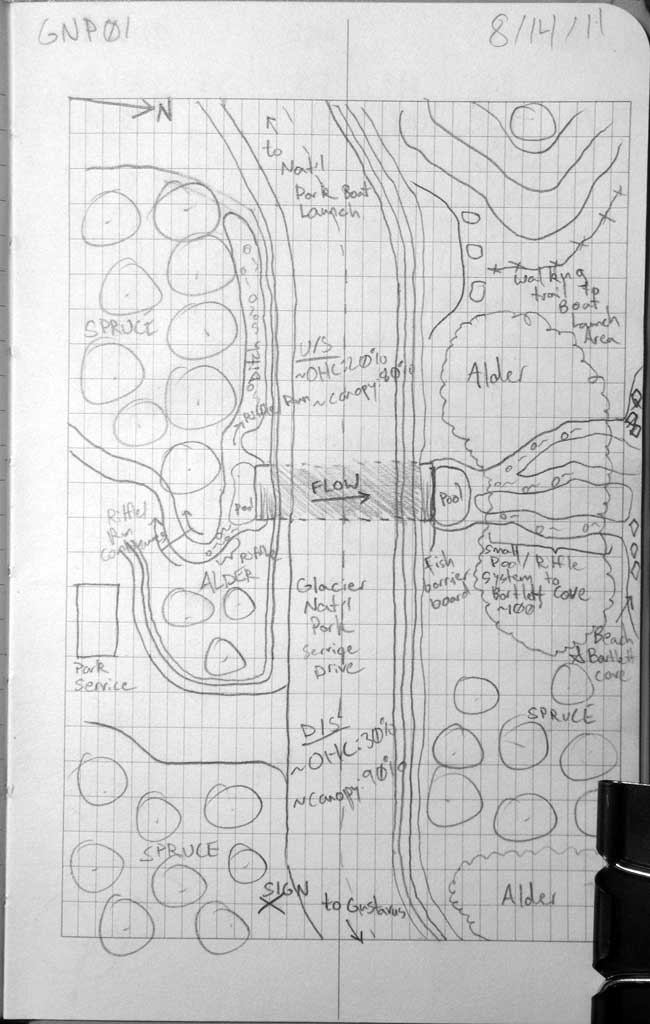

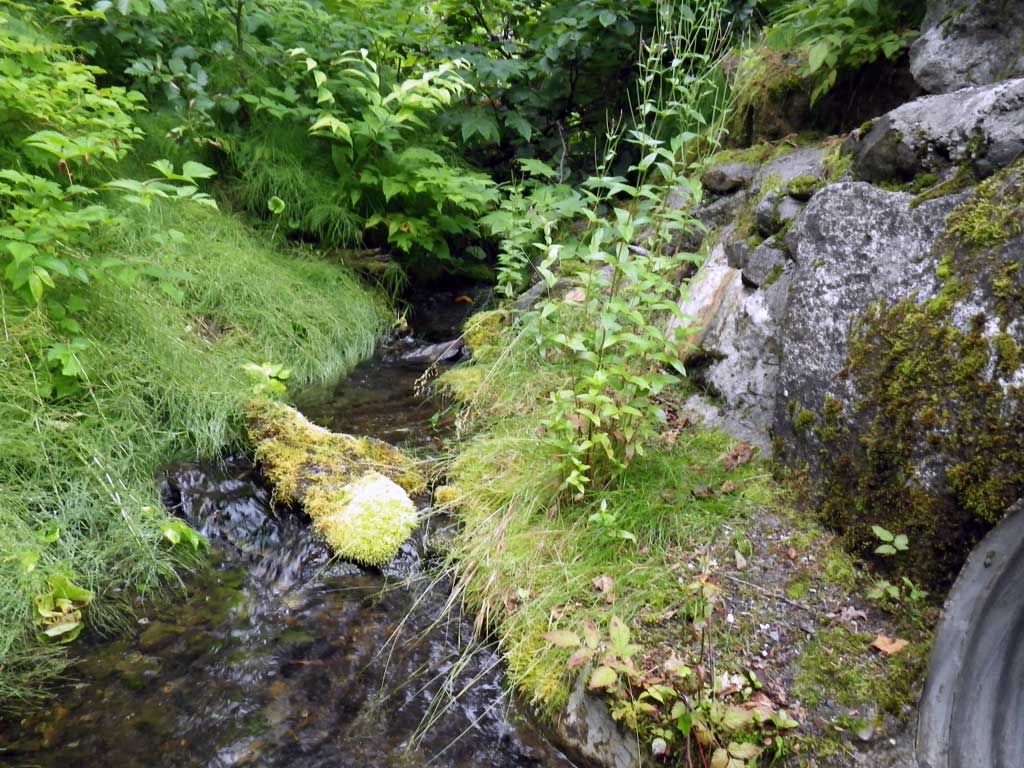

Comments: No stream calculated. Intentional fish barrier constructed at invert out as upstream is source of park water supply approximately 50 feet of invert in. Channel braids upstream and downstream of culvert to ditch adjacent road upstream and delta to confluence of Bartlett Cove downstream. In AWC below fish barrier structure so no traps were set or fish observed. Local biologist reports trapping above culvert numerous times without catching anything. Nearly right angle aproach.

Culvert Measurements

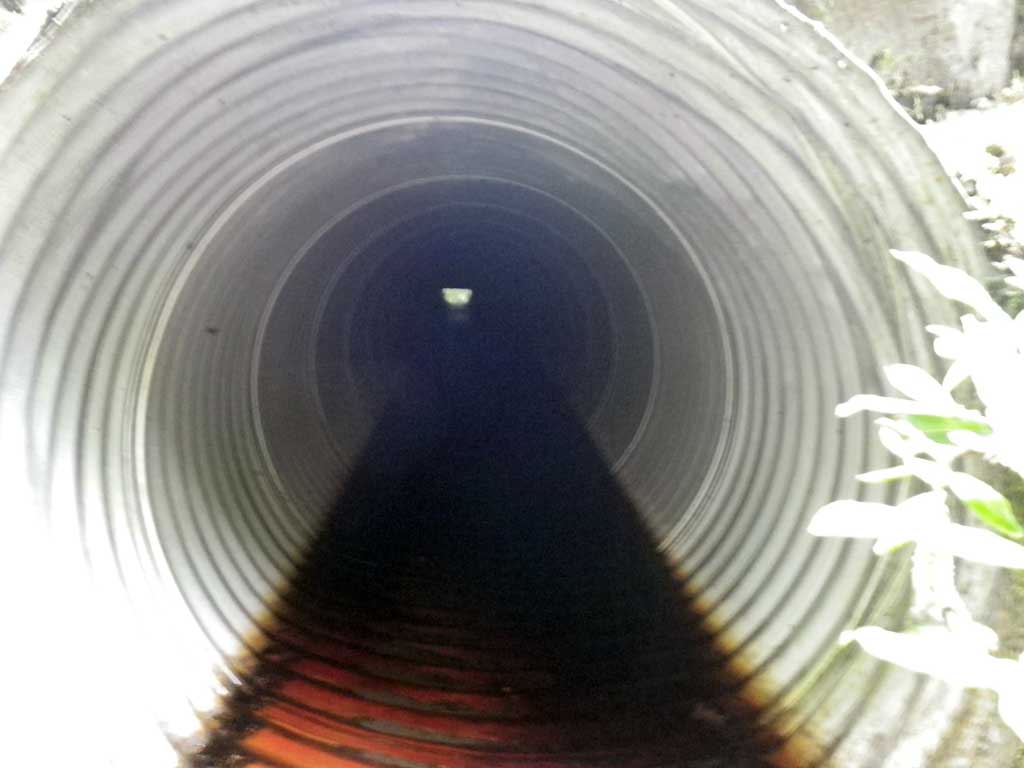

ID: 1 Structure Type: Circular pipe (Corrugated steel) Fish Passage Rating: Red

Length(ft): 98.5

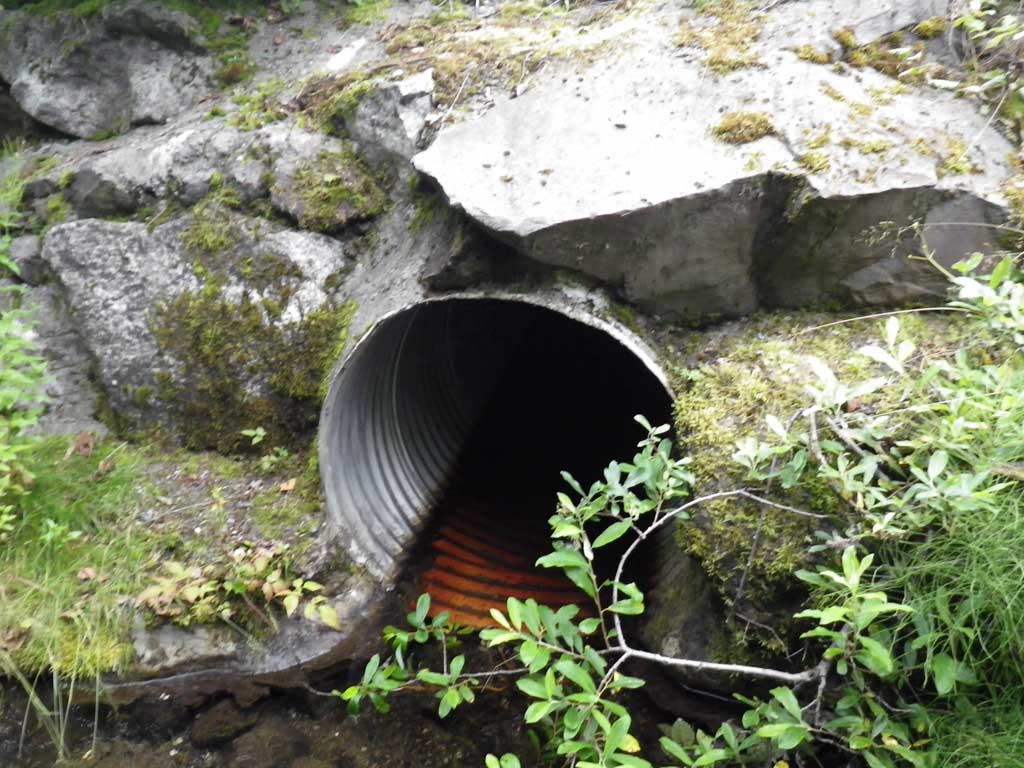

Inlet Type: Projecting
Outlet Type: Projecting
Corrugation Depth(in.): 0.5
Corrugation Width(in.): 3.0
Condition Rating(1-5): 3
Approach Angle: 94.0
Sedimentation At Inlet: No
Inlet Substrate: None
Outlet Substrate: Gravel
InletOutlet
Width(ft):3.0 3.0
Height(ft):3.0 1.8
Apron Length(ft):0.0 0.0
Water Depth(ft): 0.02
Rustline Height(ft):0.5
Substrate Depth(ft):0.0 1.2
Backwatered?: No
Baffles Present: No
Embedded?: No
Outfall Height: 1.29

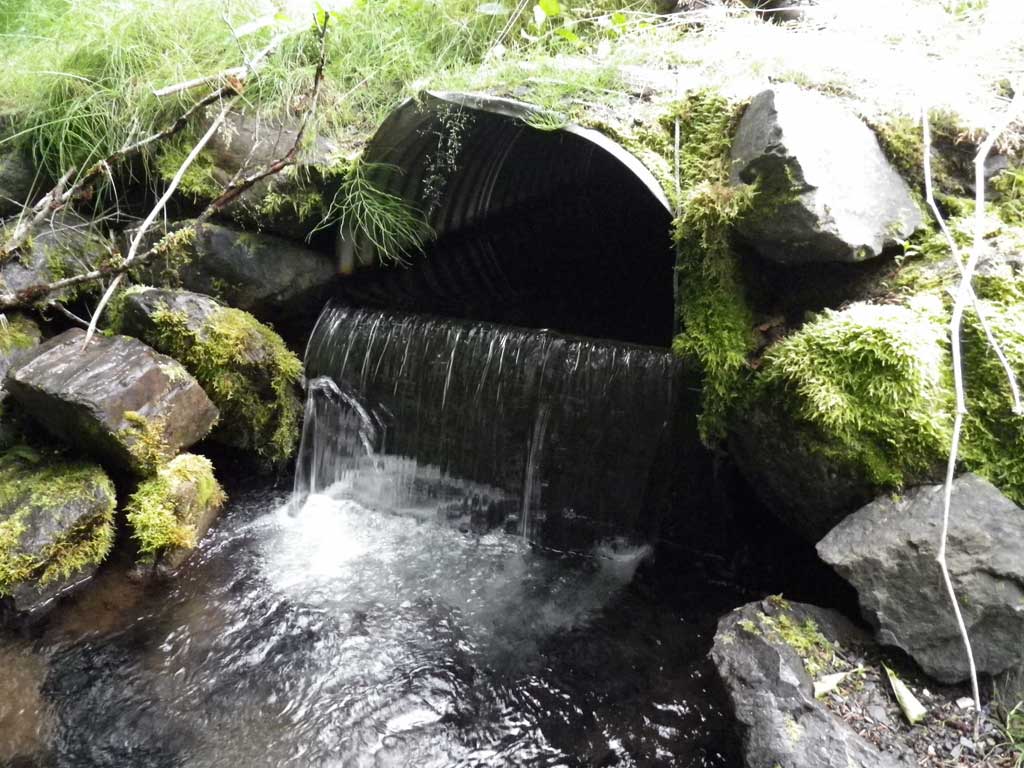

Outfall Type: Free Fall In To Pool
Constriction Ratio:
Culvert Gradient: 0.07%
Max Slope:
Max Slope Length:


Comments: Dam at outlet.
  Culvert Observations:
  1. Outfall height red
  2. Culvert is poorly aligned

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:GravelGravel
Subdominant:CobbleCobble
Stream Slope(deg.):
Stream Flow Stage:Medium

No stream width data available.

Elevations

Locator ID Culvert
Number		 River
Distance (ft)1		 Distance From
Crossing (ft)2		 Relative
Elevation (ft)
Road Elev 100.11
D/S Grade Ctrl (Thalweg) 0.00 89.10
D/S Water Surface Elev 0.00 89.37
D/S Water Surface Elev 12.00 89.42
D/S Tailcrest or 1st Thalweg 12.00 89.16
Max Pool Depth 21.00 87.32
Outlet Pool Water Elev 21.00 89.44

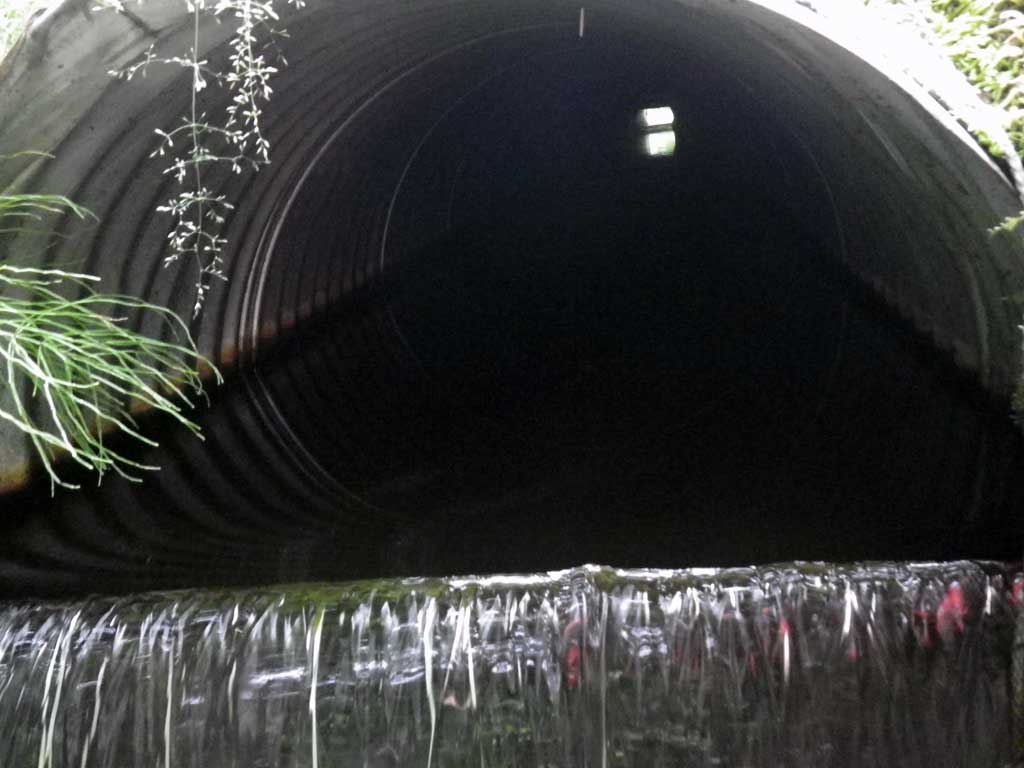

Outlet Invert (Top of wooden barrier wall at invert out) 24.00 90.71
D/S Water Surface Elev (Water flowing over barrier wall) 24.00 90.73
Outlet Culvert Top 24.00 92.16
Inlet Culvert Invert 122.50 90.78
U/S Water Surface Elev 122.50 91.18
U/S Headwater 125.00 91.18
U/S Grade Ctrl (Thalweg) (Max pool depth at inlet) 125.00 90.15

Notes:

  1. River distance is measured continuously throughout the survey reach along the thalweg of the stream.
  2. Measured from each end of the crossing along the thalweg of the stream.

Fish Sampling Efforts

Gear Type: None (A)
Comments: No traps set no fish observed.

Fish Observations

No fish observations occurred during this survey.
