Fish Passage Site 10302254

Coordinates (dec. deg.): 58.42347°, -135.75714°
Legal Description: C040S058E12
Region: Southeast

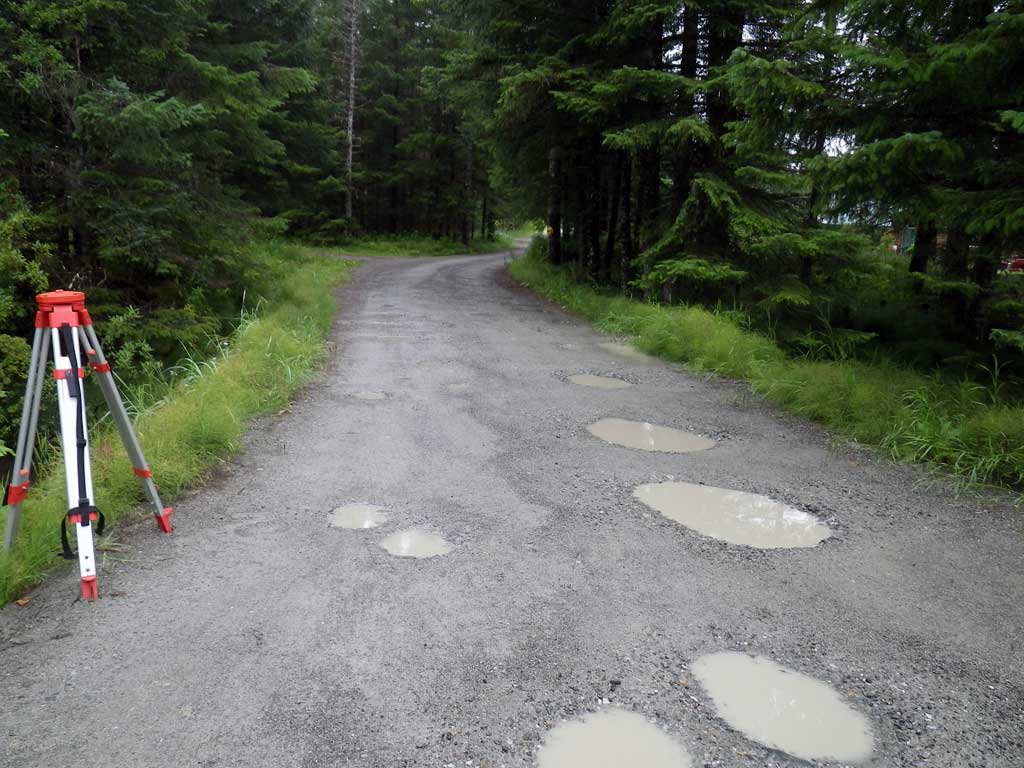

Road Name: Spruce Lane

Datum: NAD83
Quad Name / ITM: Juneau B-6
AWC Stream #:
Stream Name: Good River

Elevation:

Site Comments: None

Multiple surveys have been conducted at this site — click on the drop down
arrow to the right of the survey date below to choose a different report for this site.

Survey SEA11-SPL01

Project Supervisor: Gillian O'Doherty, Alaska Department of Fish and Game — Anchorage, AK
Observers: Jason Olds, Charmagne Gutierrez

Overall Fish Passage Rating: Gray

Tidal: No
Backwatered: No

Step Pools: No
Construction Year:


Site Observations:

  1. Constriction ratio gray
  2. Culvert is too short
  3. Hydraulic flows exceeded capacity
  4. Culvert gradient gray
  5. Outfall height gray

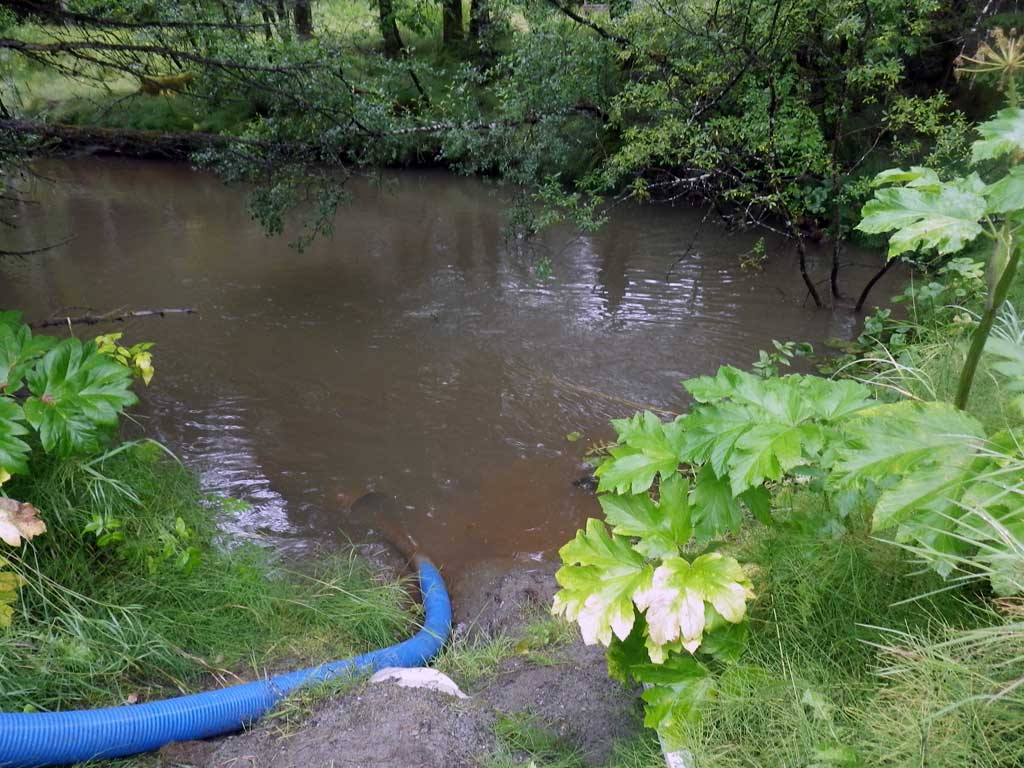

Comments: No fish observed or traps set as stream is already in the AWC. Pump structure at outlet pool. Large outlet pool, possibly dredged for pump.

Culvert Measurements

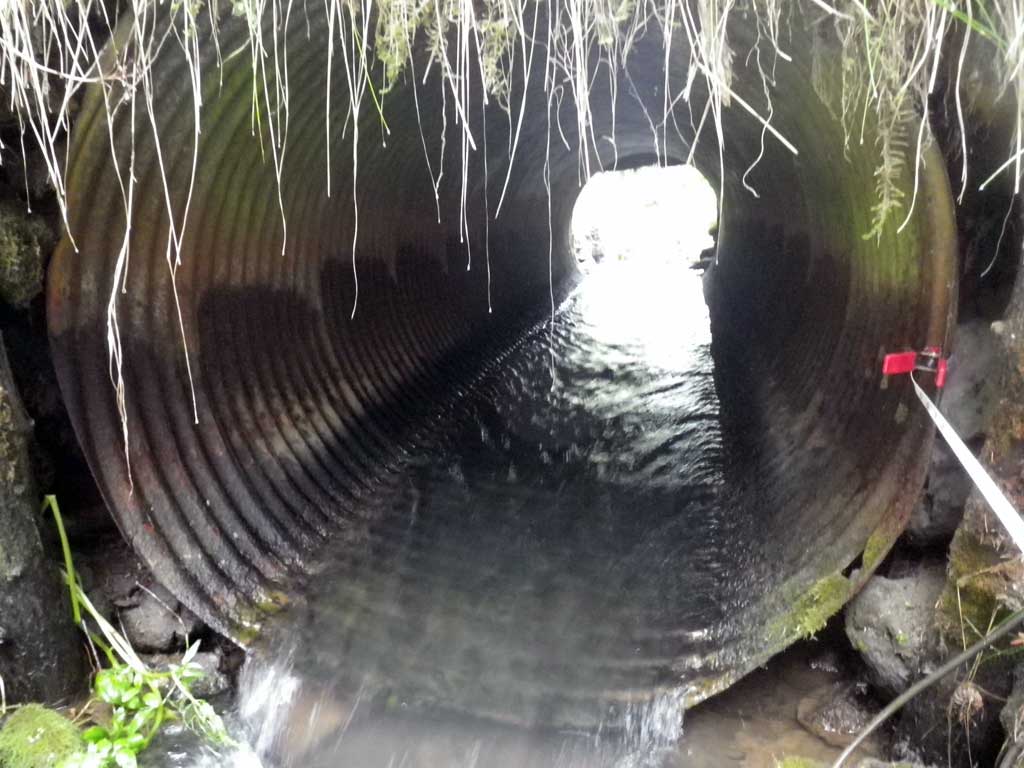

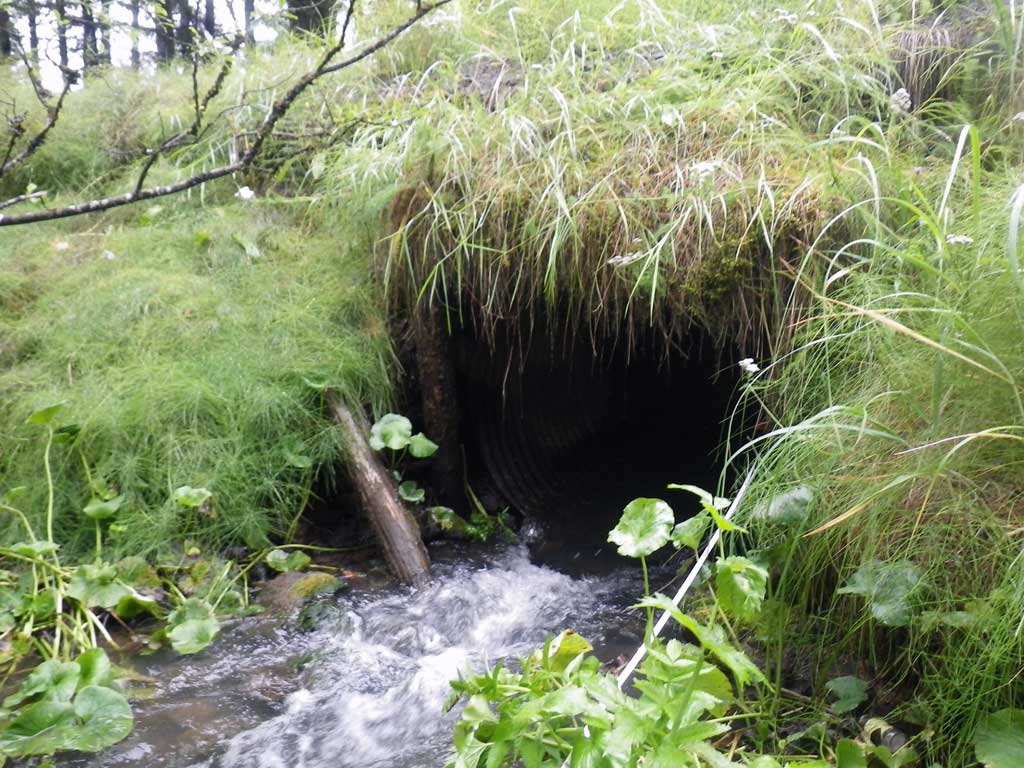

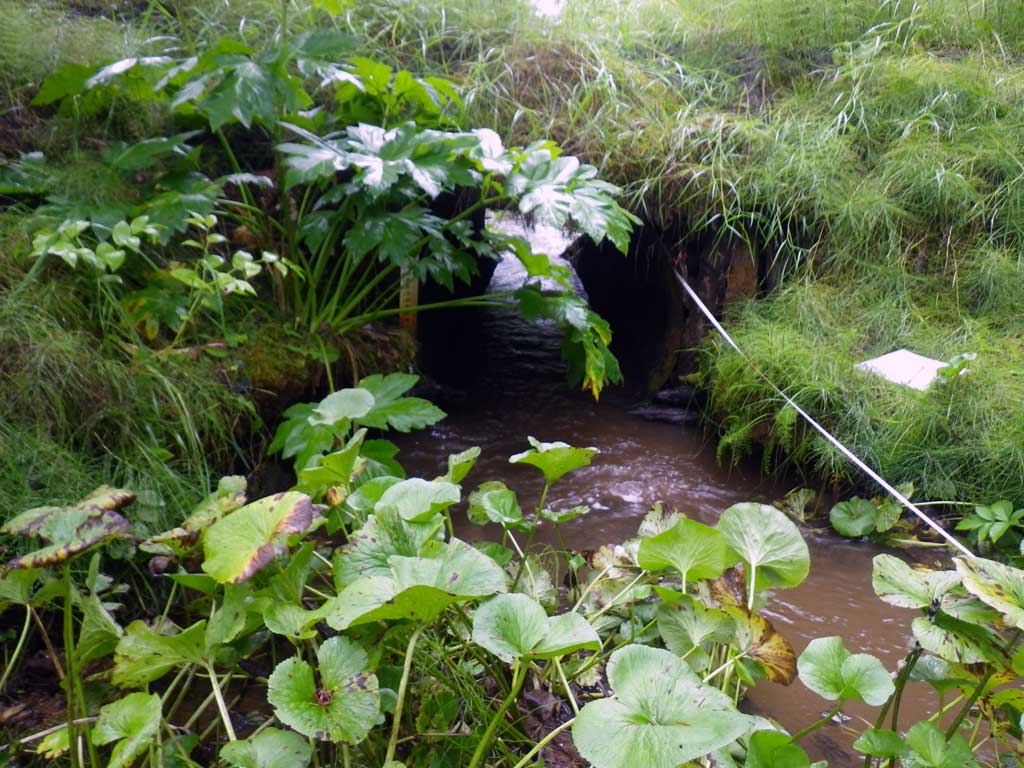

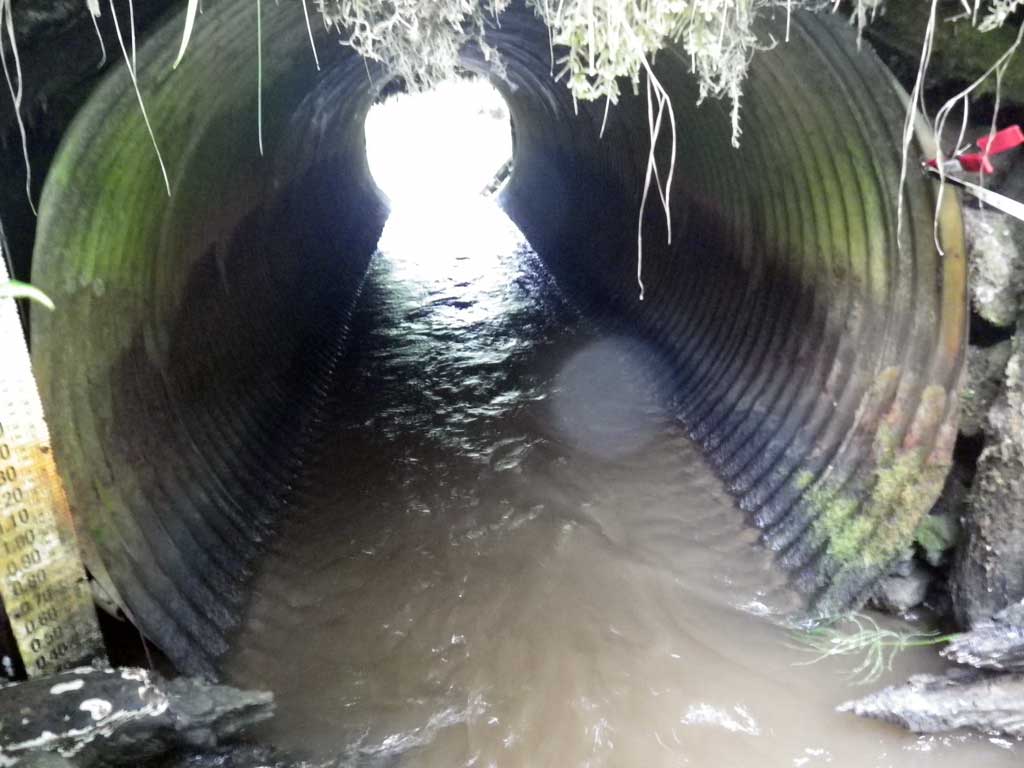

ID: 1 Structure Type: Circular pipe (Corrugated steel) Fish Passage Rating: Gray

Length(ft): 20.6
Inlet Type: Projecting
Outlet Type: Projecting
Corrugation Depth(in.): 1.0
Corrugation Width(in.): 3.0
Condition Rating(1-5): 2
Approach Angle: 2.0
Sedimentation At Inlet: No
Inlet Substrate: None
Outlet Substrate: None
InletOutlet
Width(ft):4.0 4.0
Height(ft):4.0 4.0
Apron Length(ft):
Water Depth(ft): 0.21
Rustline Height(ft):3.1
Substrate Depth(ft):0.0 0.0
Backwatered?: No
Baffles Present: No
Embedded?: No
Outfall Height: 0.05
Outfall Type: Hydraulic Jump
Constriction Ratio: 0.54
Culvert Gradient: 0.58%
Max Slope:
Max Slope Length:
  Culvert Observations:
  1. Constriction ratio gray
  2. Culvert is too short
  3. Hydraulic flows exceeded capacity
  4. Culvert gradient gray

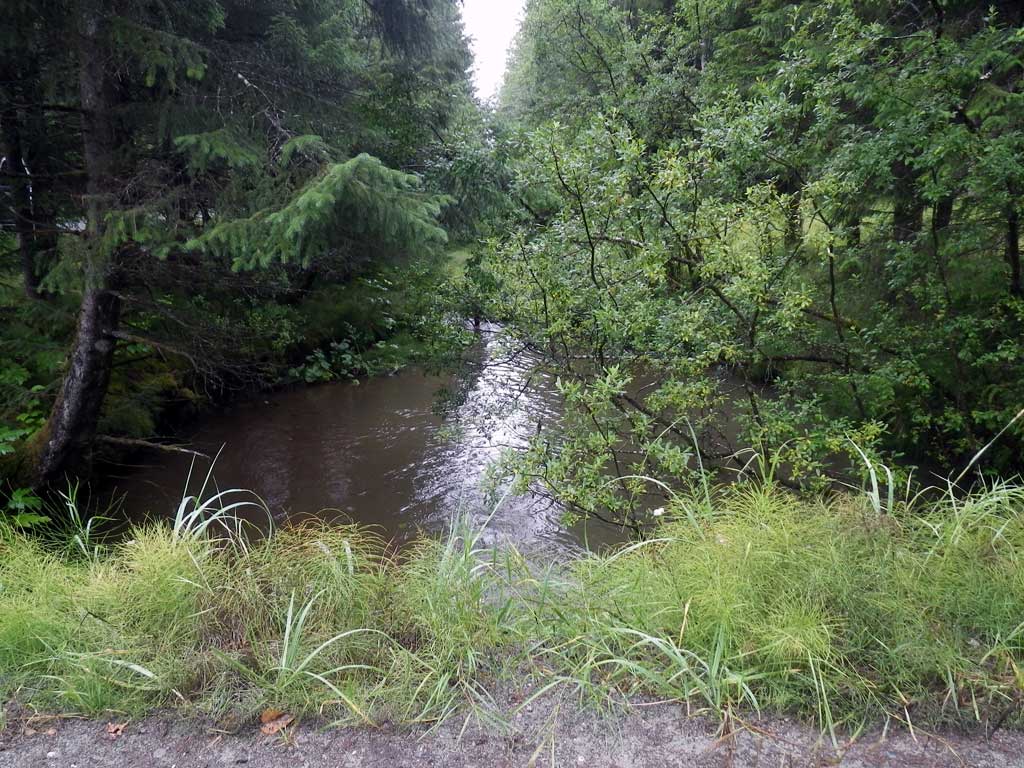

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:SandSand
Subdominant:Silt/ClaySilt/Clay
Stream Slope(deg.):0.03
Stream Flow Stage:Medium
Stream Width Type Distance From
Crossing (ft)		 Stream
Width (ft)
Upstream ordinary high water 100.0 7.70
Upstream ordinary high water 180.0 6.40
Upstream ordinary high water 230.0 8.10

Elevations

Locator ID Culvert
Number		 River
Distance (ft)1		 Distance From
Crossing (ft)2		 Relative
Elevation (ft)
Road Elev 98.79
D/S Water Surface Elev 0.00 92.40
D/S Tailcrest or 1st Thalweg 0.00 91.76
Max Pool Depth 51.00 87.92
Outlet Pool Water Elev 51.00 92.39
Outlet Invert 66.00 92.19
D/S Water Surface Elev 66.00 92.44
Inlet Culvert Invert 86.60 92.31
U/S Water Surface Elev 86.60 93.08
U/S Headwater 91.50 93.33
U/S Grade Ctrl (Thalweg) 91.50 92.66
U/S Grade Ctrl (Thalweg) 116.50 92.63
U/S Water Surface Elev 116.50 93.36
U/S Water Surface Elev 351.00 93.42

Notes:

  1. River distance is measured continuously throughout the survey reach along the thalweg of the stream.
  2. Measured from each end of the crossing along the thalweg of the stream.

Fish Sampling Efforts

Gear Type: None (A)
Comments: No traps set no fish observed.

Fish Observations

No fish observations occurred during this survey.

Questions or comments about this report can be directed to dfg.dsf.webmaster@alaska.gov
