Fish Passage Site 10302226

Coordinates (dec. deg.): 58.50908°, -134.78040°
Legal Description: C039S064E12
Region: Southeast
Road Name: Glacier Highway

Datum: NAD83
Quad Name / ITM: Juneau C-3
AWC Stream #:
Stream Name: Strawberry Creek tributary

Elevation:

Site Comments: None

Survey Date: Jul 01, 2011

Survey SEA11-GLH08

Project Supervisor: Gillian O'Doherty, Alaska Department of Fish and Game — Anchorage, AK
Observers: Jason Olds, Charmagne Gutierrez

Overall Fish Passage Rating: Green

Tidal: No
Backwatered: Yes

Step Pools: No
Construction Year:


Site Observations:

  1. Road Fill (pushed off road by grader)

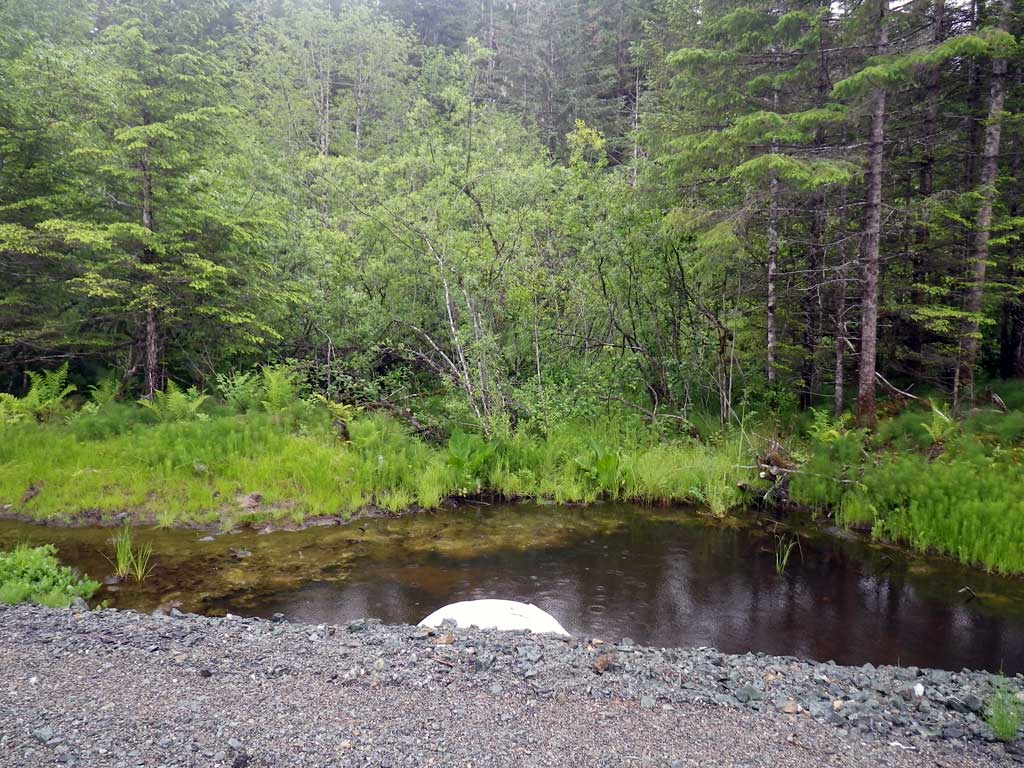

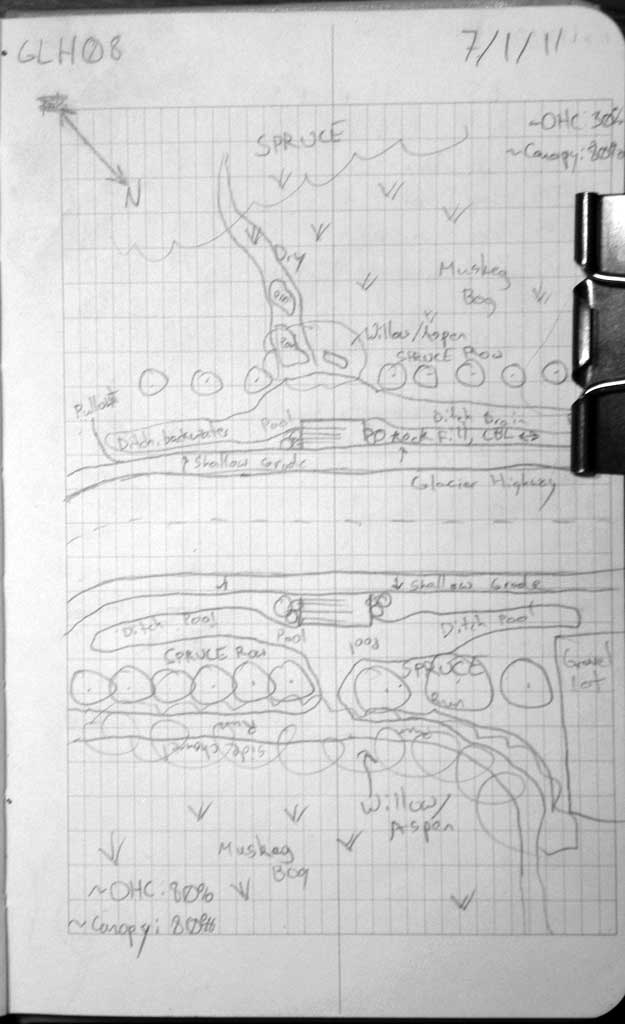

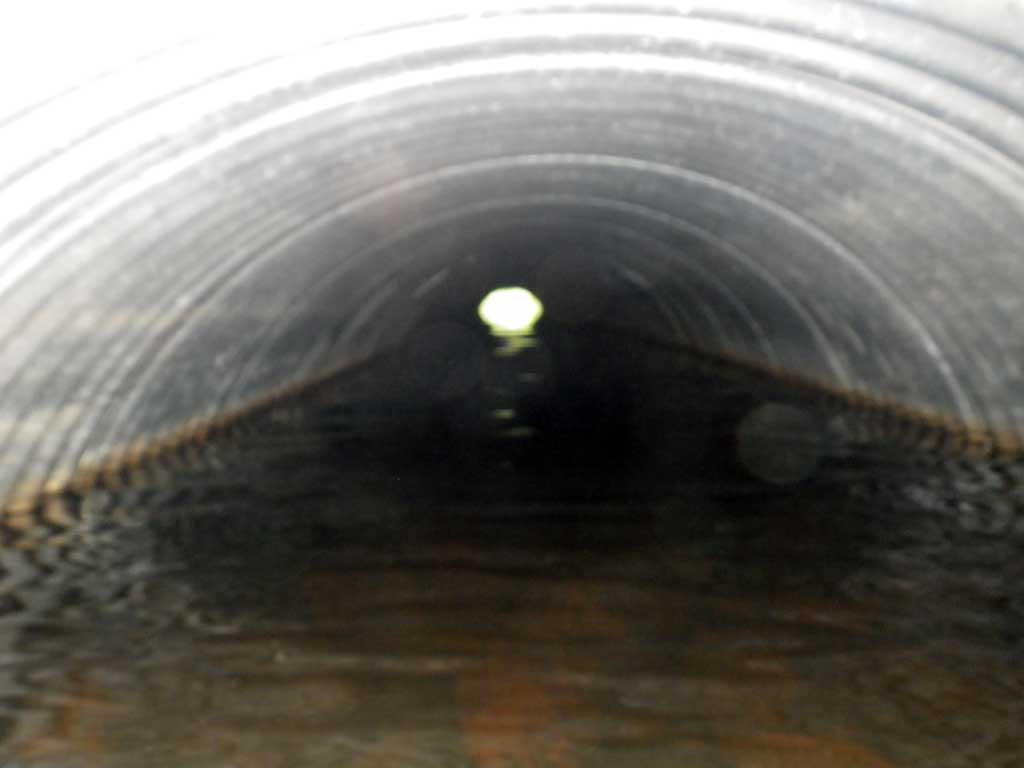

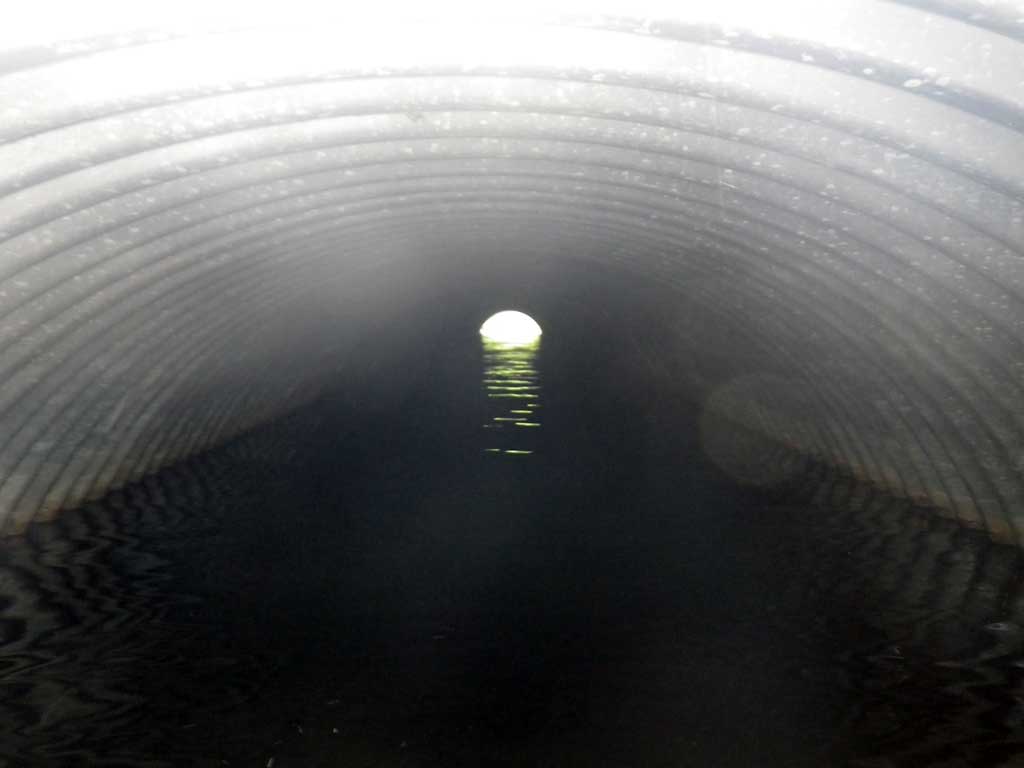

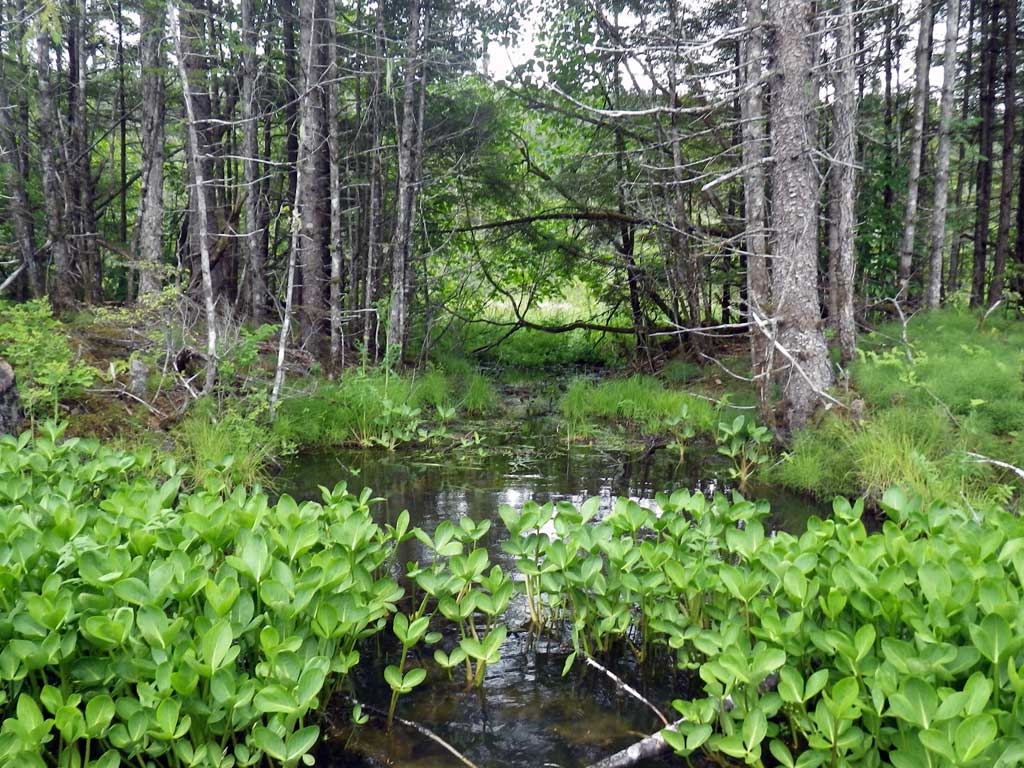

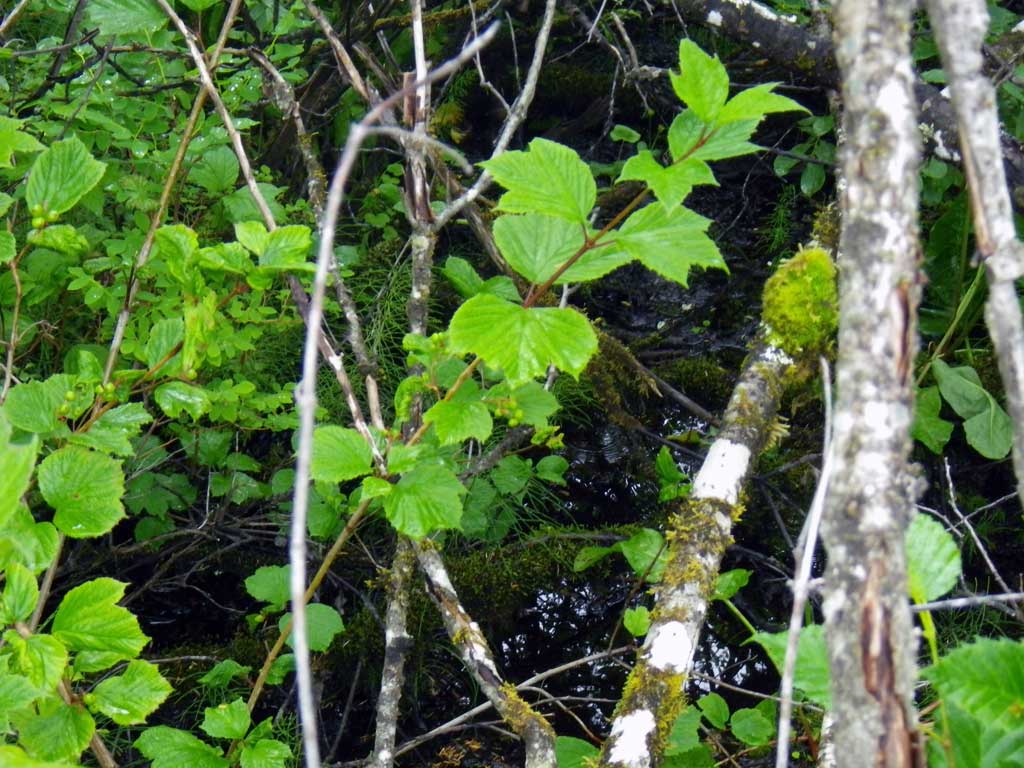

Comments: No traps set as stream is already in the AWC. Pipe not embedded, substrate at inverts likely road grade fill flowing in, quickly drops down to metal ~4 feet into pipe. Upstream very mechanically influenced, ditch drain adjacent to field and gravel lot. Both upstream and downstream drain or flow through a muskeg/bog system.

Culvert Measurements

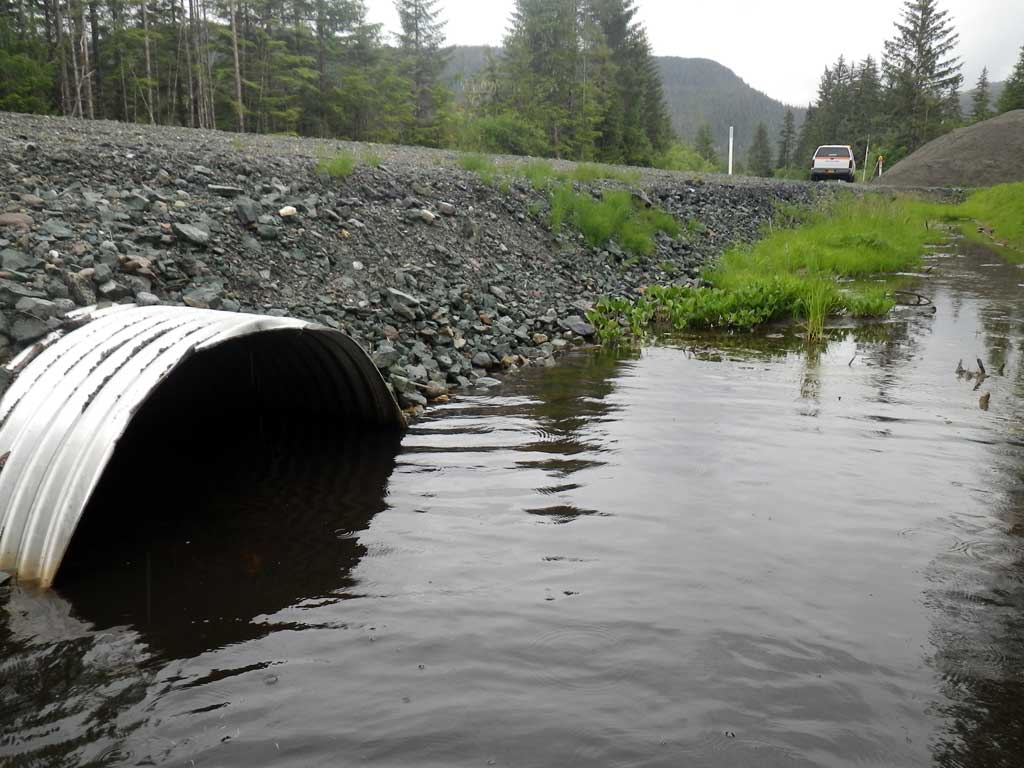

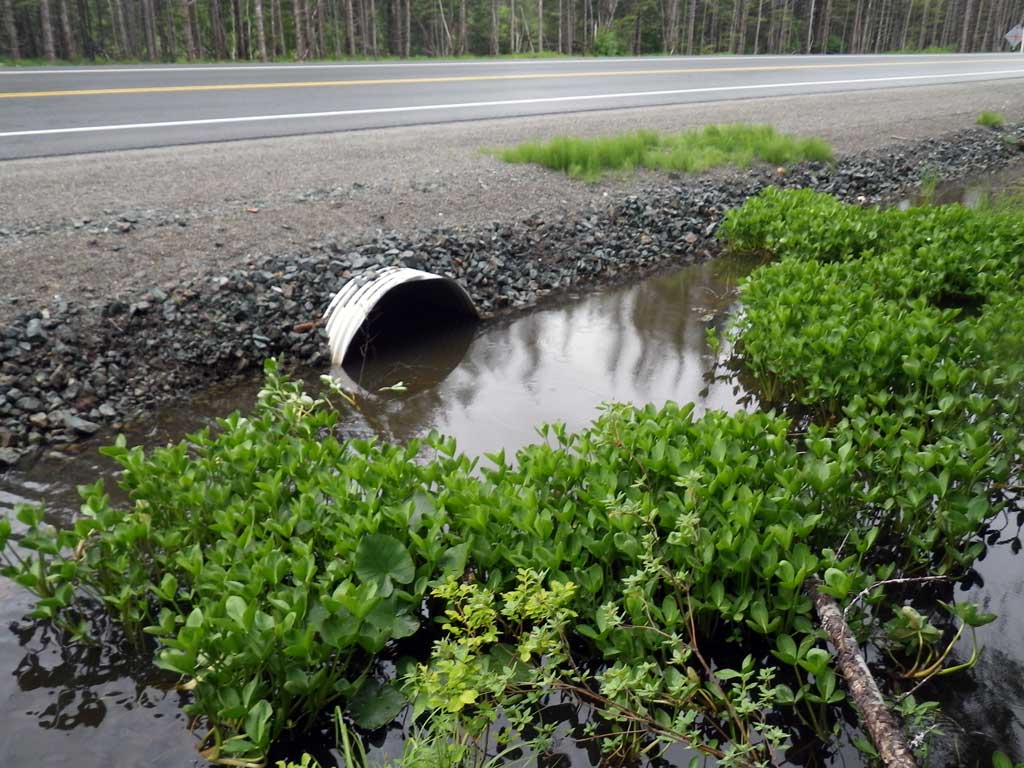

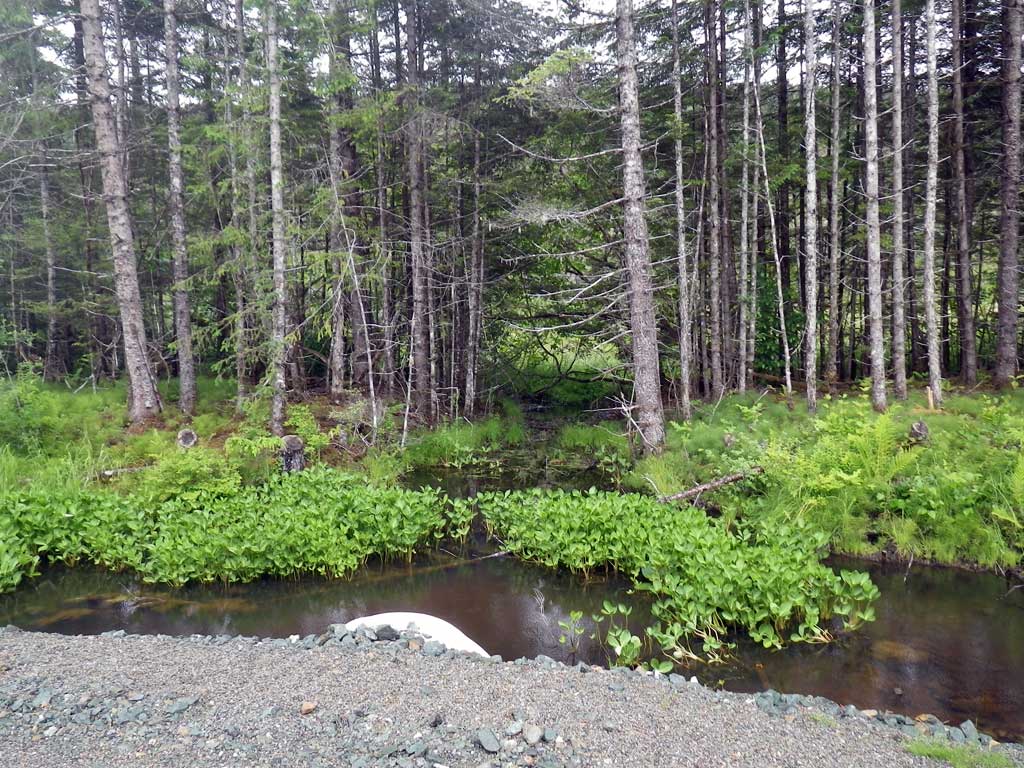

ID: 1 Structure Type: Circular pipe (Corrugated aluminum) Fish Passage Rating: Green

Length(ft): 62.8
Inlet Type: Projecting
Outlet Type: Projecting
Corrugation Depth(in.): 1.0
Corrugation Width(in.): 3.0
Condition Rating(1-5): 4
Approach Angle: 4.0
Sedimentation At Inlet: No
Inlet Substrate: Cobble
Outlet Substrate: Cobble
InletOutlet
Width(ft):5.0 5.0
Height(ft):3.0 3.0
Apron Length(ft):
Water Depth(ft): 1.12
Rustline Height(ft):
Substrate Depth(ft):2.0 2.3
Backwatered?: Yes
Baffles Present: No
Embedded?: No
Outfall Height: 0.0
Outfall Type: At Stream Grade
Constriction Ratio: 0.88
Culvert Gradient: -0.02%
Max Slope:
Max Slope Length:
  Culvert Observations:
  1. Road Fill (pushed off road by grader)

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:OrganicOrganic
Subdominant:GravelGravel
Stream Slope(deg.):0.07
Stream Flow Stage:Medium
Stream Width Type Distance From
Crossing (ft)		 Stream
Width (ft)
Upstream ordinary high water 60.0 7.00
Upstream ordinary high water 70.0 5.00
Upstream ordinary high water 80.0 5.00

Elevations

Locator ID Culvert
Number		 River
Distance (ft)1		 Distance From
Crossing (ft)2		 Relative
Elevation (ft)
Road Elev 103.11
D/S Tailcrest or 1st Thalweg (Dry) 0.00 98.69
Max Pool Depth 8.00 96.13
Outlet Pool Water Elev 8.00 98.39
D/S Water Surface Elev (Invert out) 14.00 98.45
Outlet Invert (Invert out, on substrate) 14.00 97.33
Outlet Culvert Top (Invert out, on metal) 14.00 100.01
Inlet Culvert Top (Invert in) 76.70 100.00
Inlet Culvert Invert (Invert in) 76.70 97.09
U/S Headwater (Invert in, 1st resting) 76.70 98.42
U/S Grade Ctrl (Thalweg) 123.00 98.04
U/S Water Surface Elev 123.00 98.47
U/S Grade Ctrl (Thalweg) 138.00 98.09
U/S Water Surface Elev 138.00 98.46

Notes:

  1. River distance is measured continuously throughout the survey reach along the thalweg of the stream.
  2. Measured from each end of the crossing along the thalweg of the stream.

Fish Sampling Efforts

Gear Type: None (A)
Comments: No traps set no fish observed.

Fish Observations

No fish observations occurred during this survey.
