Fish Passage Site 10302223

Coordinates (dec. deg.): 58.45557°, -134.77261°
Legal Description: C039S064E36
Region: Southeast

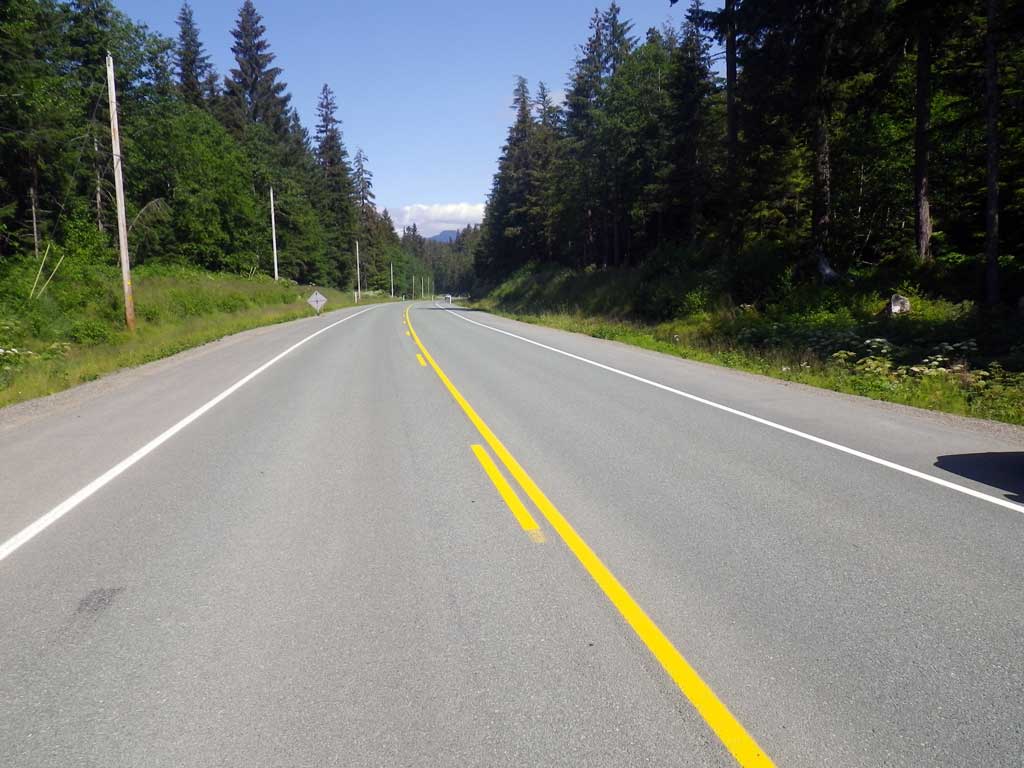

Road Name: Glacier Highway

Datum: NAD83
Quad Name / ITM: Juneau B-3
AWC Stream #:
Stream Name: Shrine Creek

Elevation:

Site Comments: None

Survey Date: Jul 13, 2011

Survey SEA11-GLH13

Project Supervisor: Gillian O'Doherty, Alaska Department of Fish and Game — Anchorage, AK
Observers: Jason Olds, Charmagne Gutierrez

Overall Fish Passage Rating: Green

Tidal: No
Backwatered: No

Step Pools: No
Construction Year:


Site Observations:

  1. None of this type

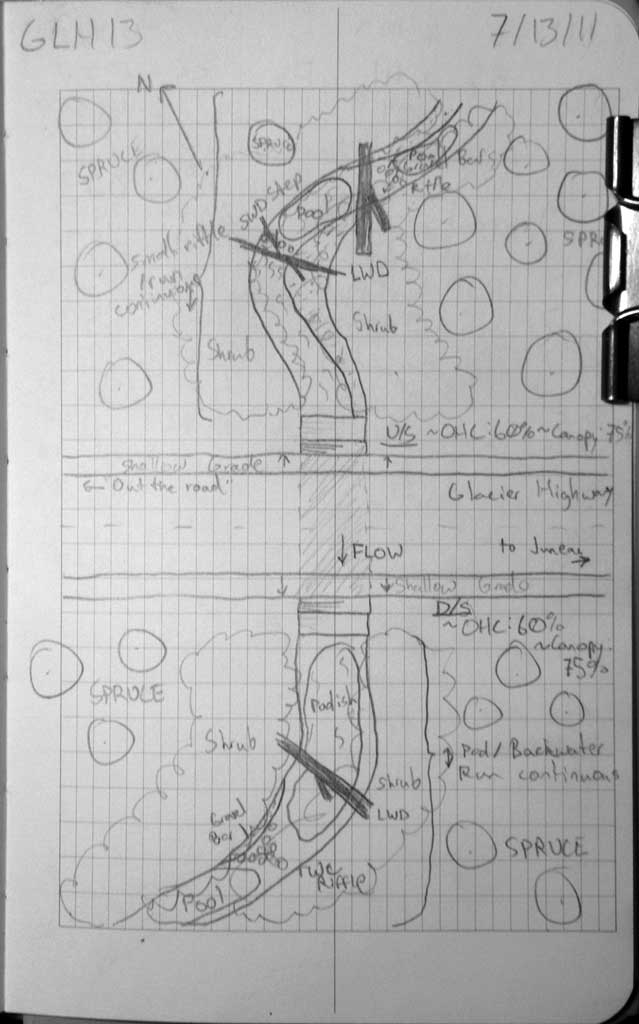

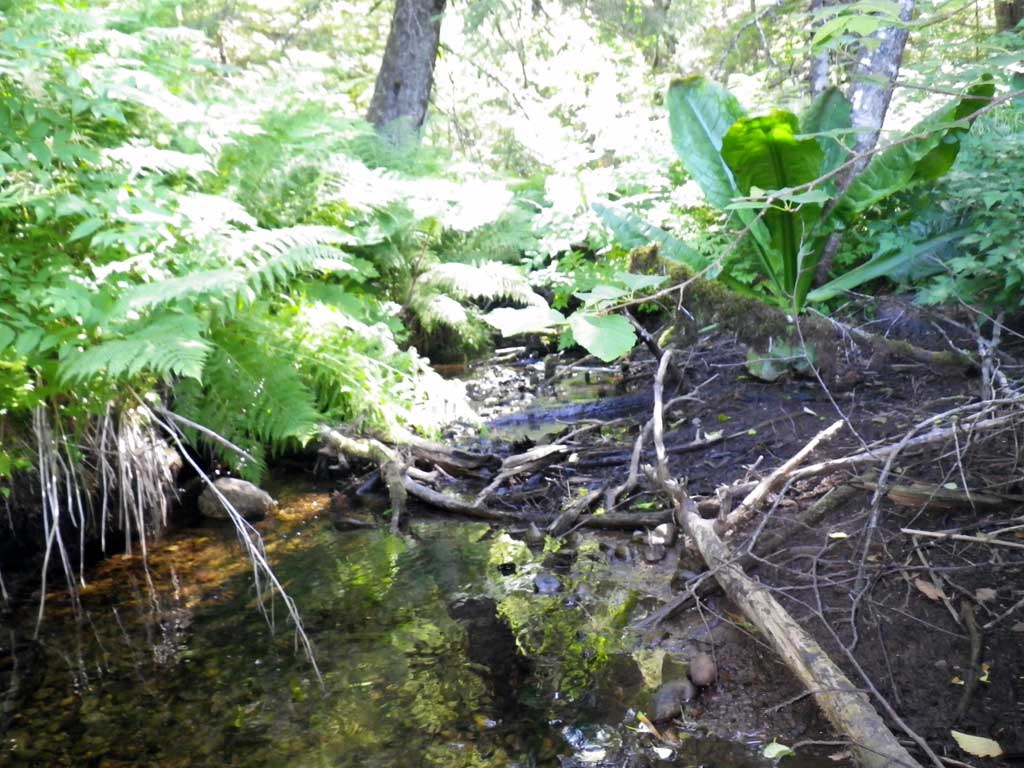

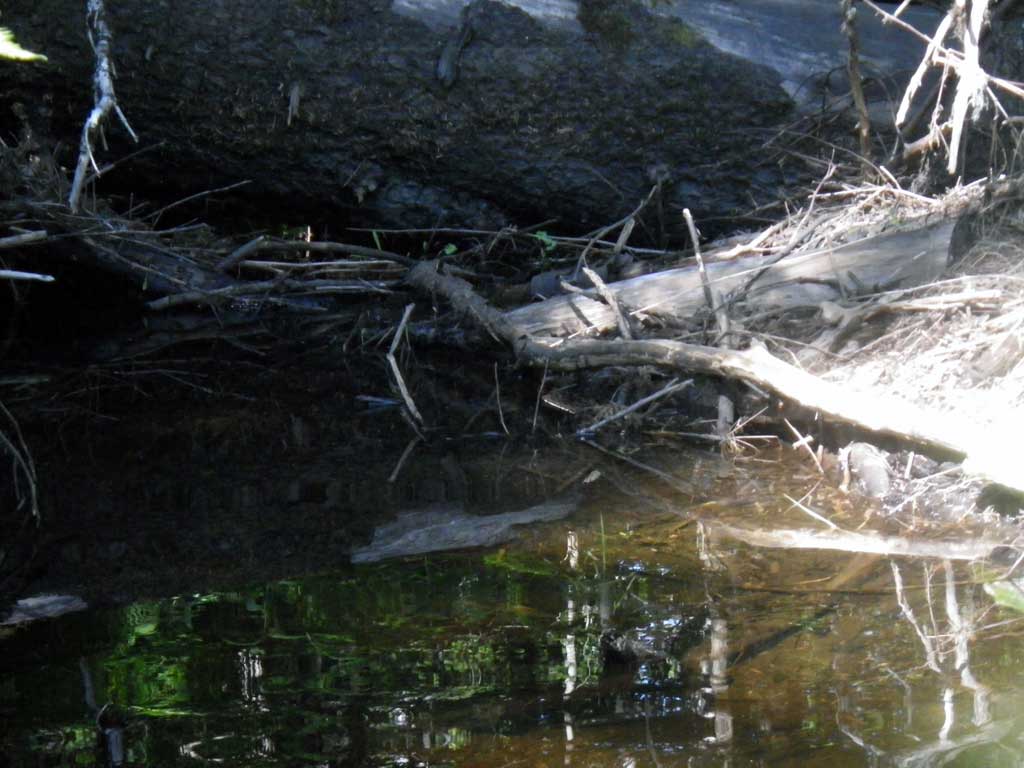

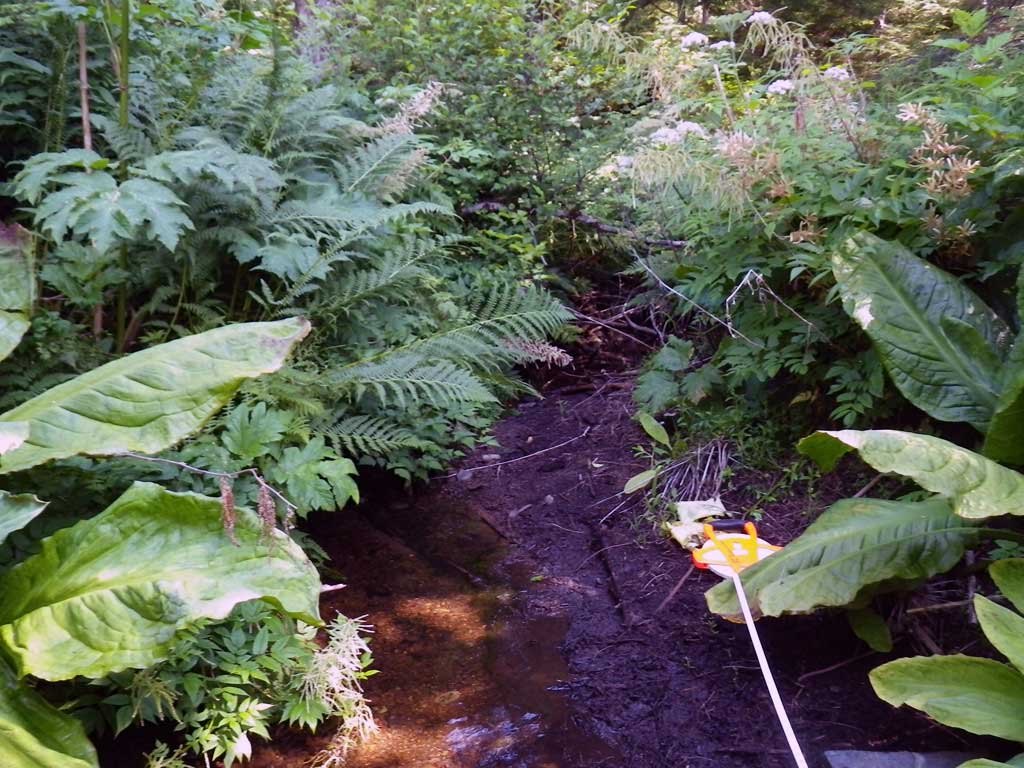

Comments: No traps were set as stream is already in the AWC. 100+ juvenile salmonids observed upstream and downstream of pipe. Stream channel has heavy vegetation making stream gradient impossible to shoot, however it would apear to be at or near 0% as stream is flatwater throughout with very small step riffles aproximately every 150 to 200 feet. Nearly continuous pool systems.

Culvert Measurements

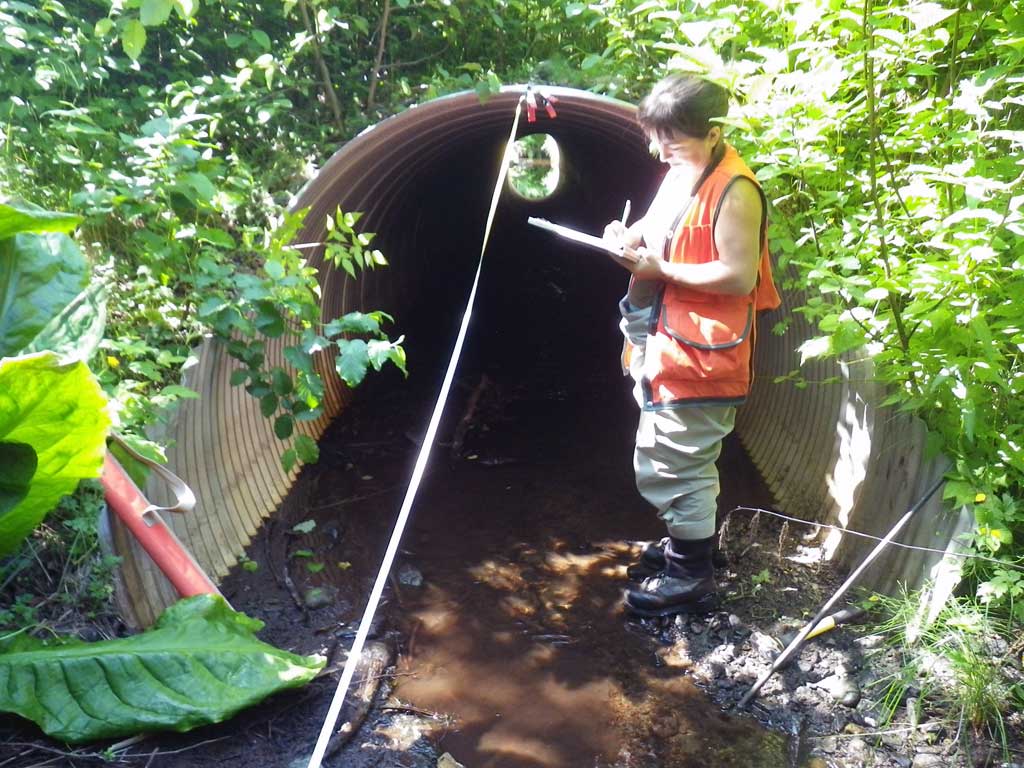

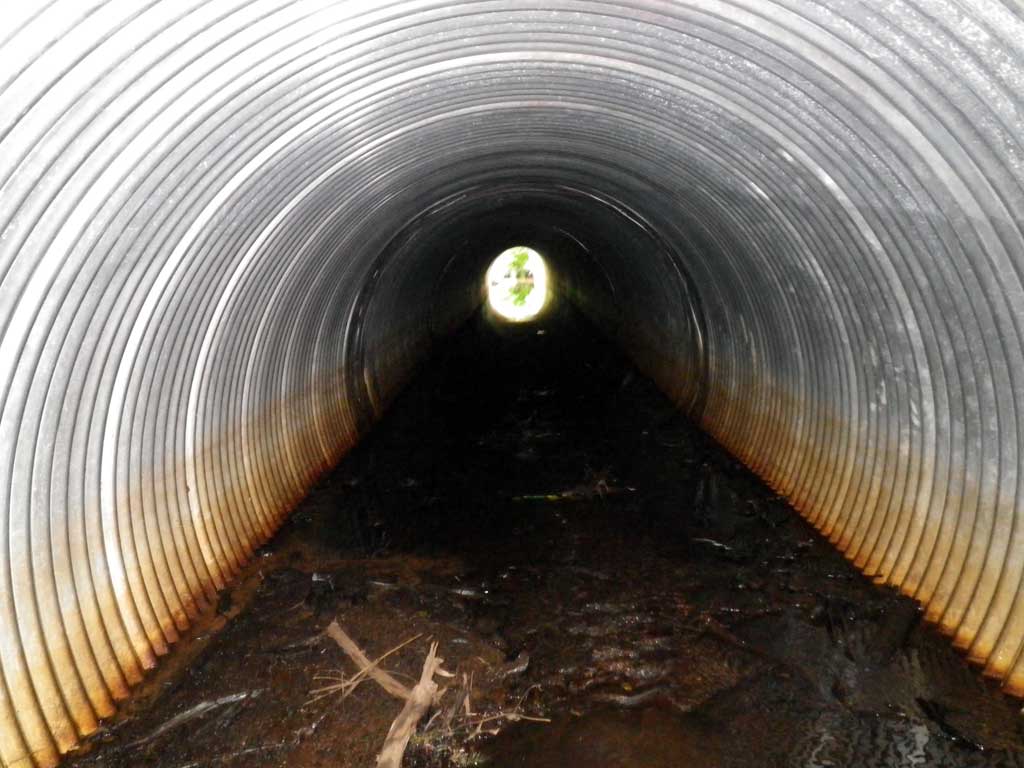

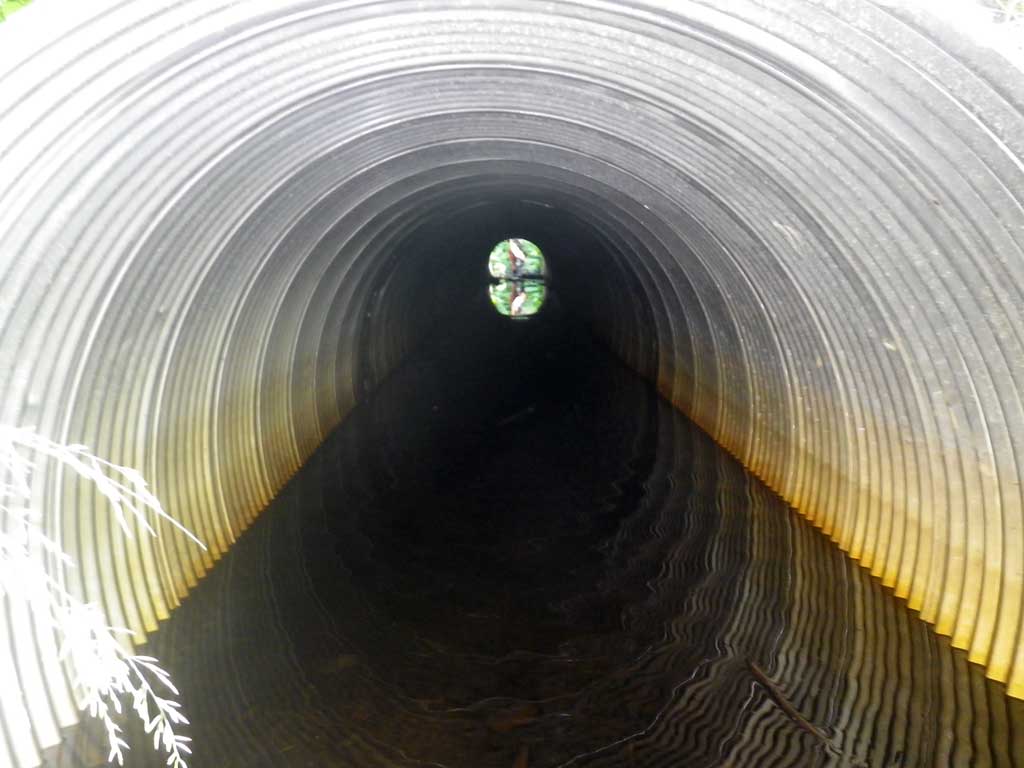

ID: 1 Structure Type: Circular pipe (Corrugated aluminum) Fish Passage Rating: Green

Length(ft): 115.3
Inlet Type: Mitered
Outlet Type: Mitered
Corrugation Depth(in.): 1.0
Corrugation Width(in.): 3.0
Condition Rating(1-5): 4
Approach Angle: 16.0
Sedimentation At Inlet: No
Inlet Substrate: Silt/Clay
Outlet Substrate: Silt/Clay
InletOutlet
Width(ft):7.0 7.0
Height(ft):5.2 4.9
Apron Length(ft):
Water Depth(ft): 0.54
Rustline Height(ft):
Substrate Depth(ft):1.8 2.1
Backwatered?: No
Baffles Present: No
Embedded?: Yes
Embedded Depth(ft): 2.1
Outfall Height: 0.0
Outfall Type: At Stream Grade
Constriction Ratio: 1.15
Culvert Gradient: 0.54%
Max Slope:
Max Slope Length:
  Culvert Observations:
  1. None of this type

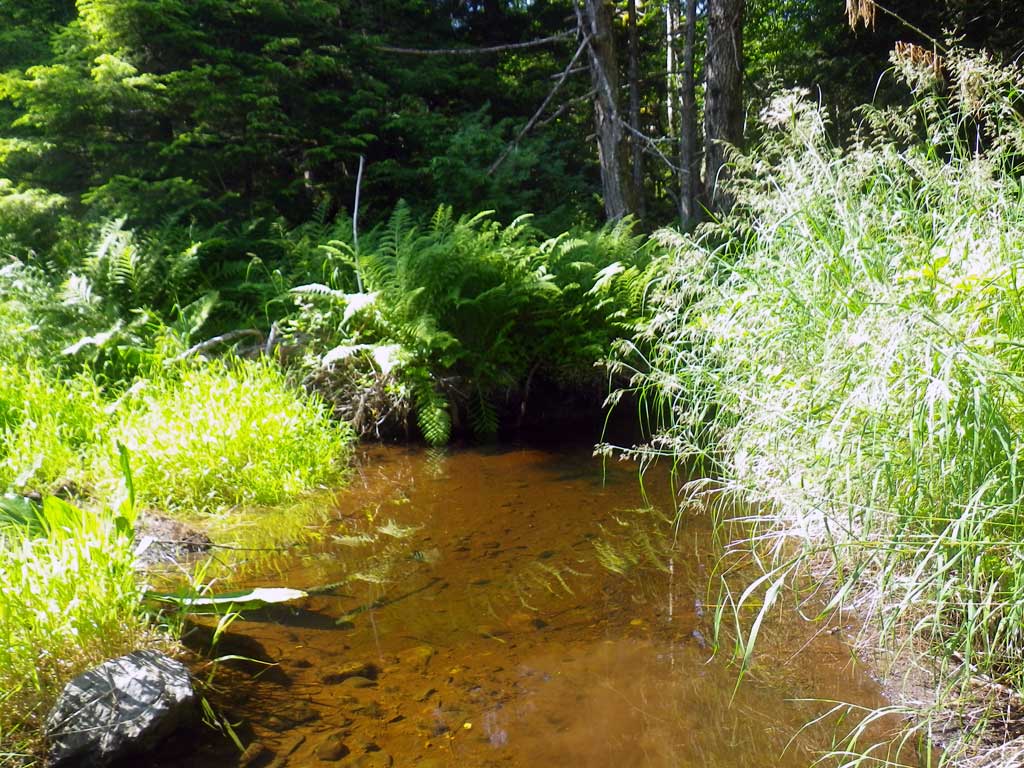

Stream Measurements

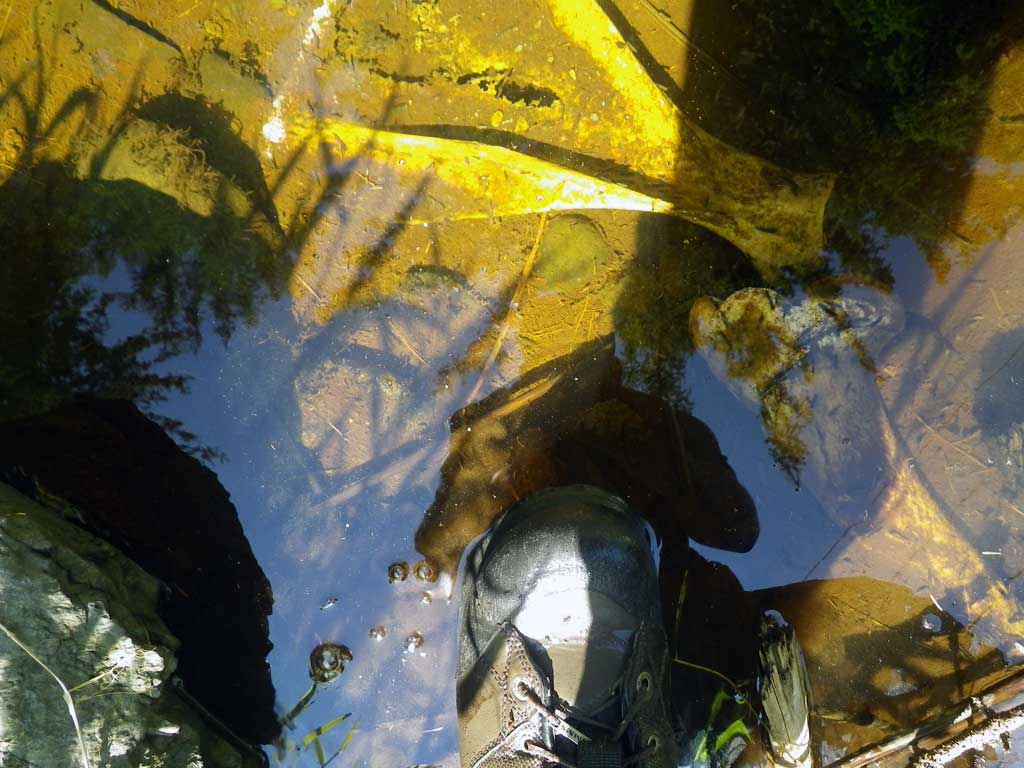

Stream SubstratesUpstreamDownstream
Dominant:GravelSilt/Clay
Subdominant:CobbleCobble
Stream Slope(deg.):
Stream Flow Stage:Medium
Stream Width Type Distance From
Crossing (ft)		 Stream
Width (ft)
Upstream ordinary high water 38.0 7.20
Upstream ordinary high water 70.0 6.00
Upstream ordinary high water 86.0 5.10

Elevations

Locator ID Culvert
Number		 River
Distance (ft)1		 Distance From
Crossing (ft)2		 Relative
Elevation (ft)
Road Elev 100.00
D/S Tailcrest or 1st Thalweg (Run, Continuous downstream over 150 feet, small step riffle) 0.00 85.74
D/S Water Surface Elev 0.00 85.94
Outlet Pool Water Elev 73.00 85.96
Max Pool Depth 73.00 84.57
Outlet Culvert Top (Invert out, on metal, top of miter) 80.80 90.49
Outlet Invert (Invert out, on substrate, end of miter) 84.00 85.42
D/S Water Surface Elev (Invert out, end of miter) 84.00 85.96
Inlet Culvert Top (Invert in, on metal) 125.50 91.27
Inlet Culvert Invert (Invert it, on substrate, end of miter) 129.30 85.98
U/S Water Surface Elev (Invert in, end of miter) 129.30 86.22
U/S Headwater (1st resting) 130.00 86.21

Notes:

  1. River distance is measured continuously throughout the survey reach along the thalweg of the stream.
  2. Measured from each end of the crossing along the thalweg of the stream.

Fish Sampling Efforts

Gear Type: Visual Observation, Ground (A) Trap Duration(h): 30.0
Channel Type: Main Channel (>50% of water flow)
Comments: Visual observation

Gear Type: Visual Observation, Ground (B) Trap Duration(h): 30.0
Channel Type: Main Channel (>50% of water flow)
Comments: Visual observation

Fish Observations

Species: juvenile coho salmon Life History: Unknown
Total Fish Observed: 102 Fish Measured: 2 Fork Lengths (mm) Min: 8 Max: 8 Mean: 8
Collected/Observed by Gear Type: Downstream Visual Observation, Ground (1)  Upstream Visual Observation, Ground (101)
