Fish Passage Site 10302214

Coordinates (dec. deg.): 58.38876°, -134.74419°
Legal Description: C040S065E19
Region: Southeast

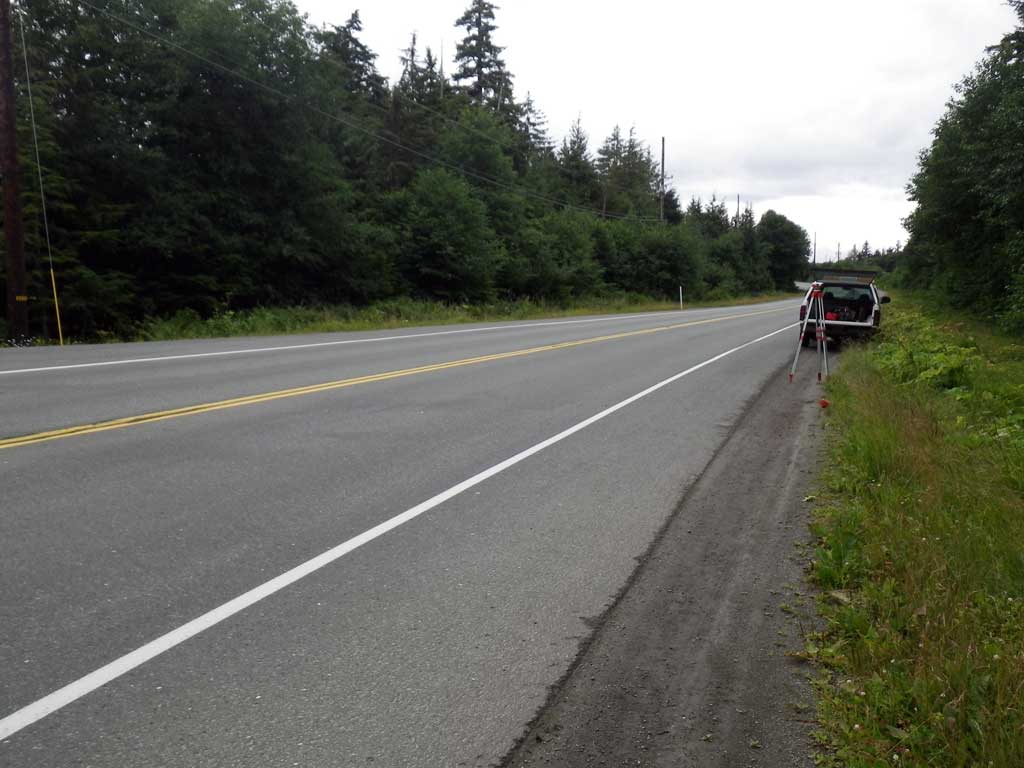

Road Name: Glacier Highway

Datum: NAD83
Quad Name / ITM: Juneau B-3
AWC Stream #:
Stream Name: Campground Creek Tributary

Elevation:

Site Comments: None

Multiple surveys have been conducted at this site — click on the drop down
arrow to the right of the survey date below to choose a different report for this site.

Survey SEA11-GLH21

Project Supervisor: Gillian O'Doherty, Alaska Department of Fish and Game — Anchorage, AK
Observers: Jason Olds, Charmagne Gutierrez

Overall Fish Passage Rating: Red

Tidal: No
Backwatered: No

Step Pools: No
Construction Year:


Site Observations:

  1. Constriction ratio gray
  2. Culvert gradient red

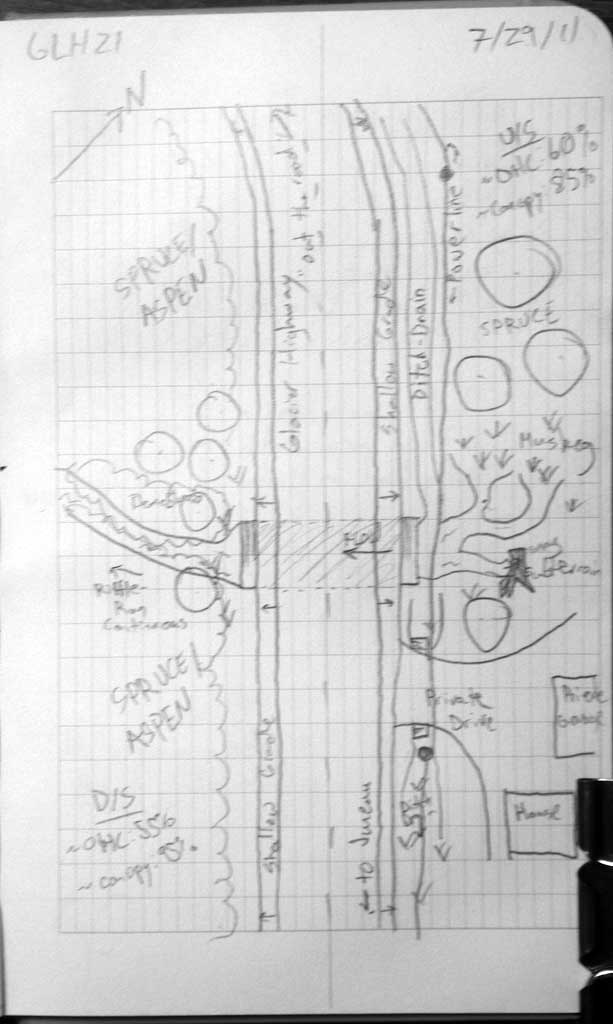

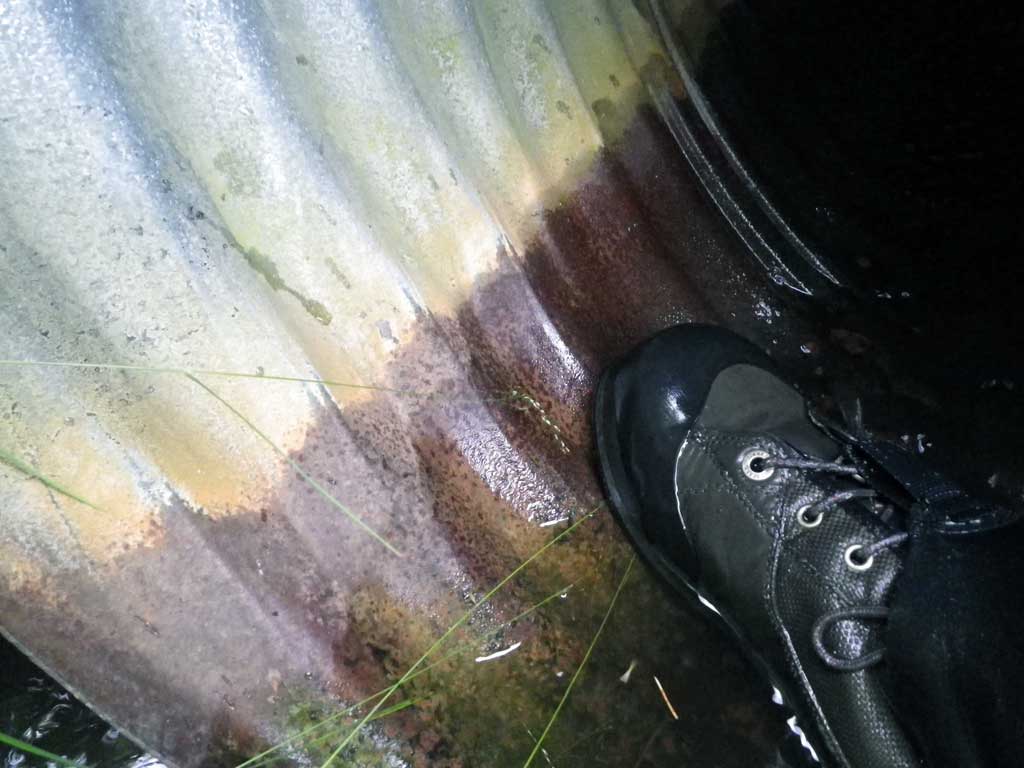

Comments: Pipe rusted through at oulet; likely goes dry. Too braided for Upstream Widths. Visual observation of Salmonids US/DS

Culvert Measurements

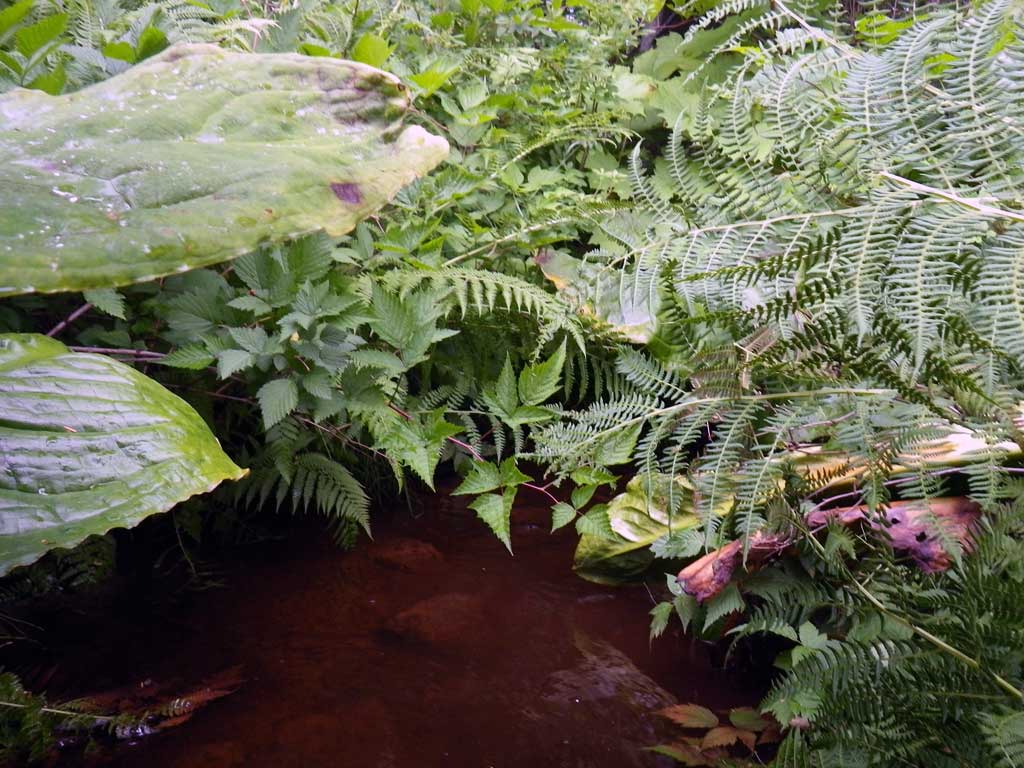

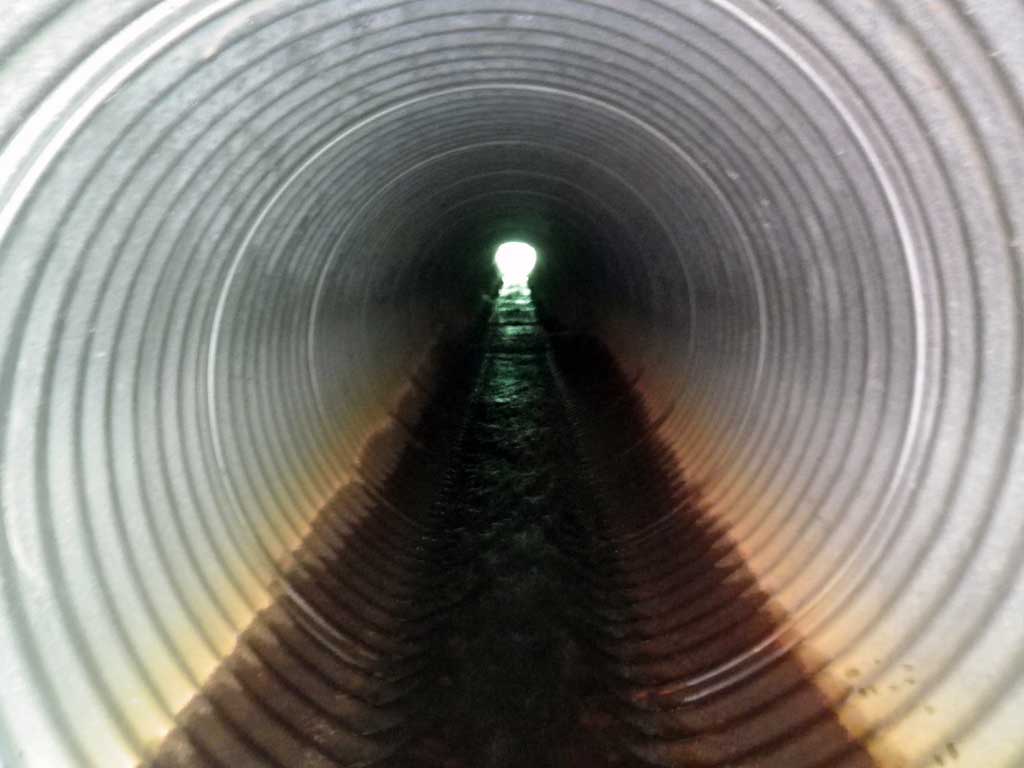

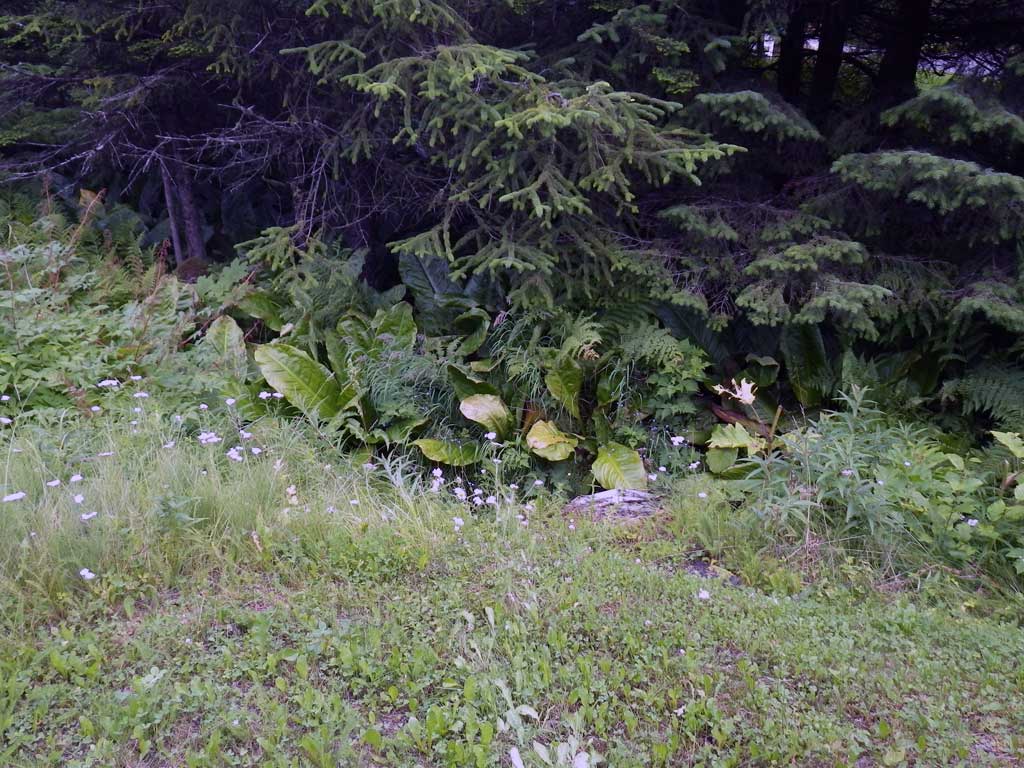

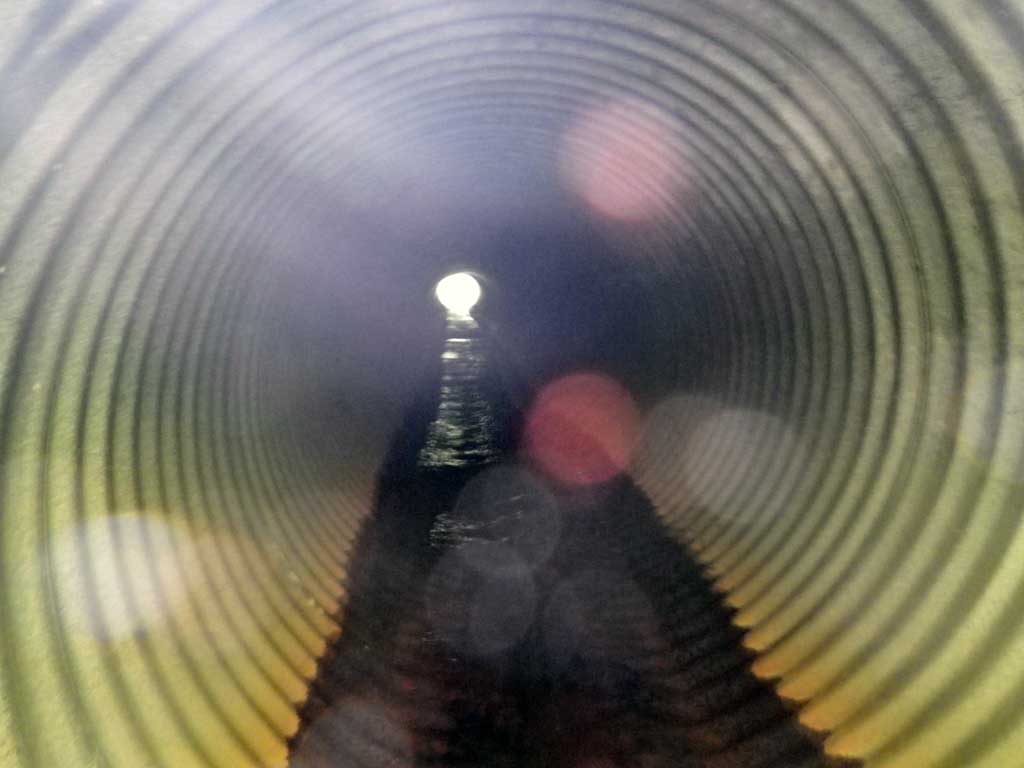

ID: 1 Structure Type: Circular pipe (Corrugated steel) Fish Passage Rating: Red

Length(ft): 72.3

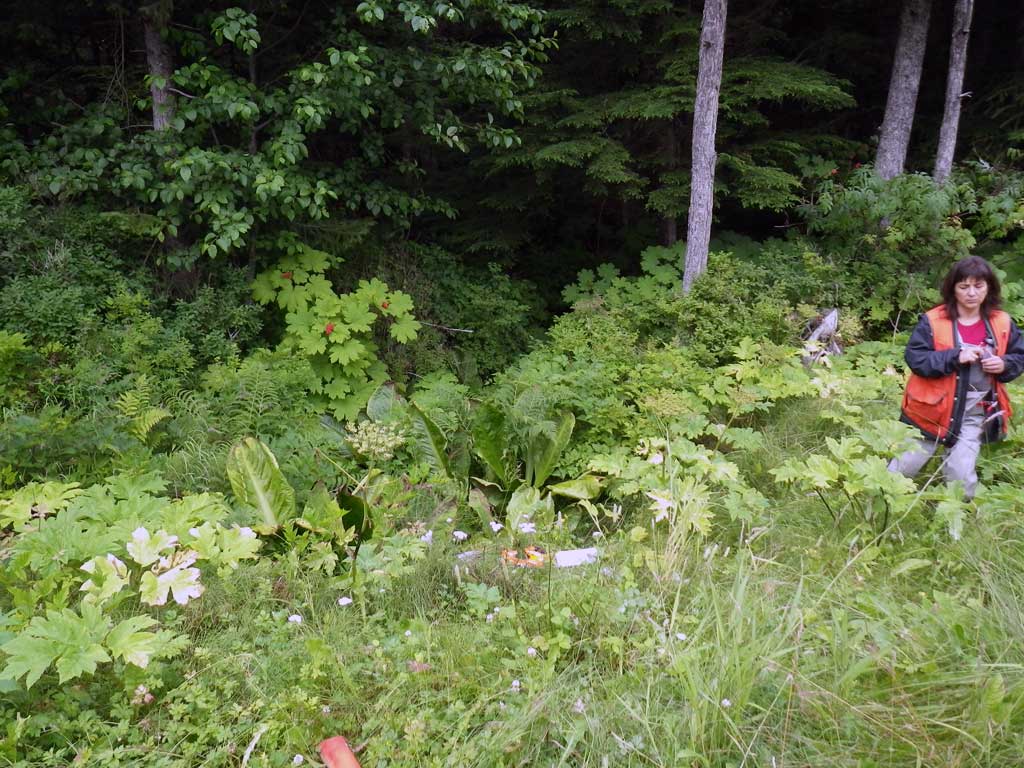

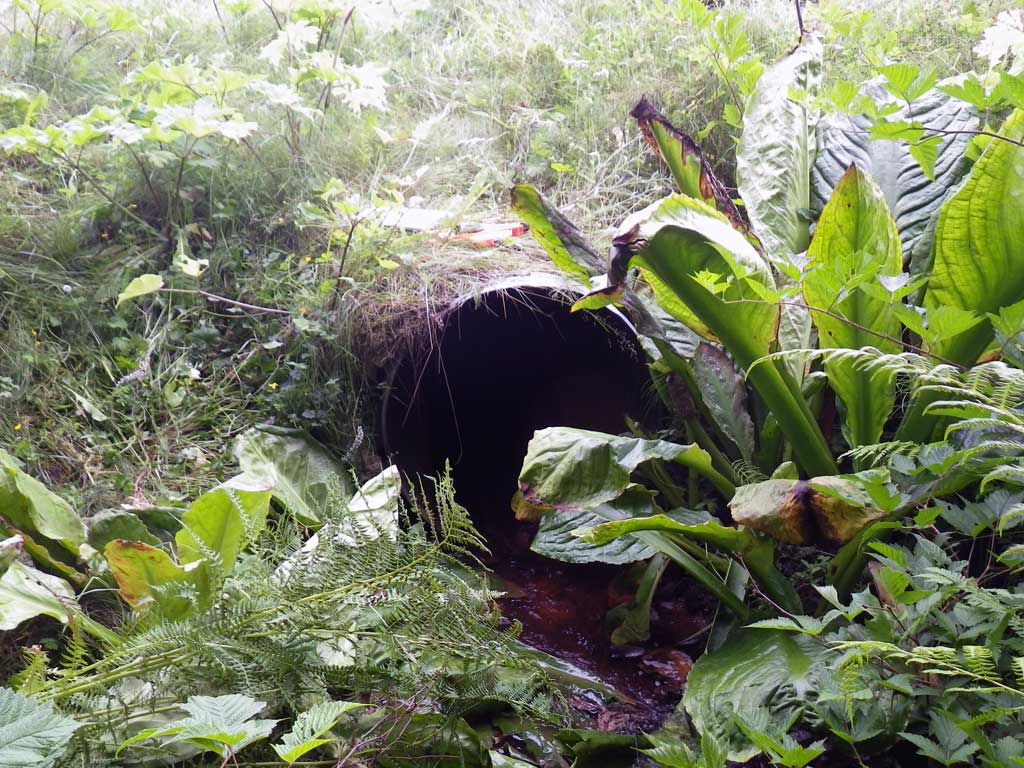

Inlet Type: Projecting

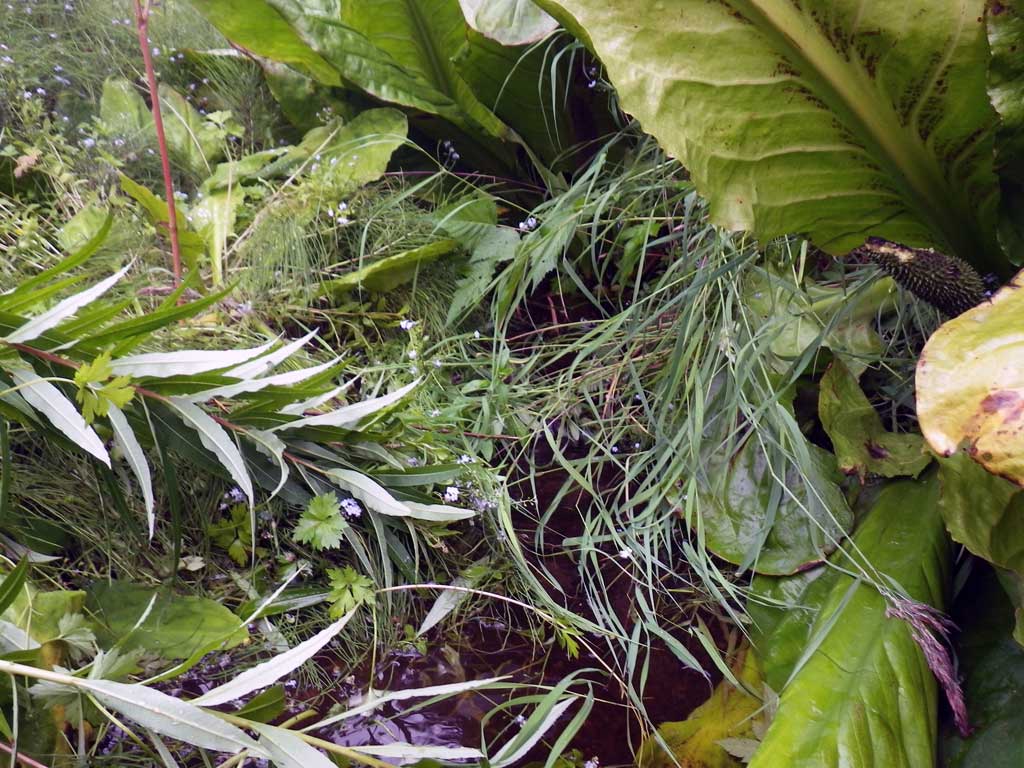

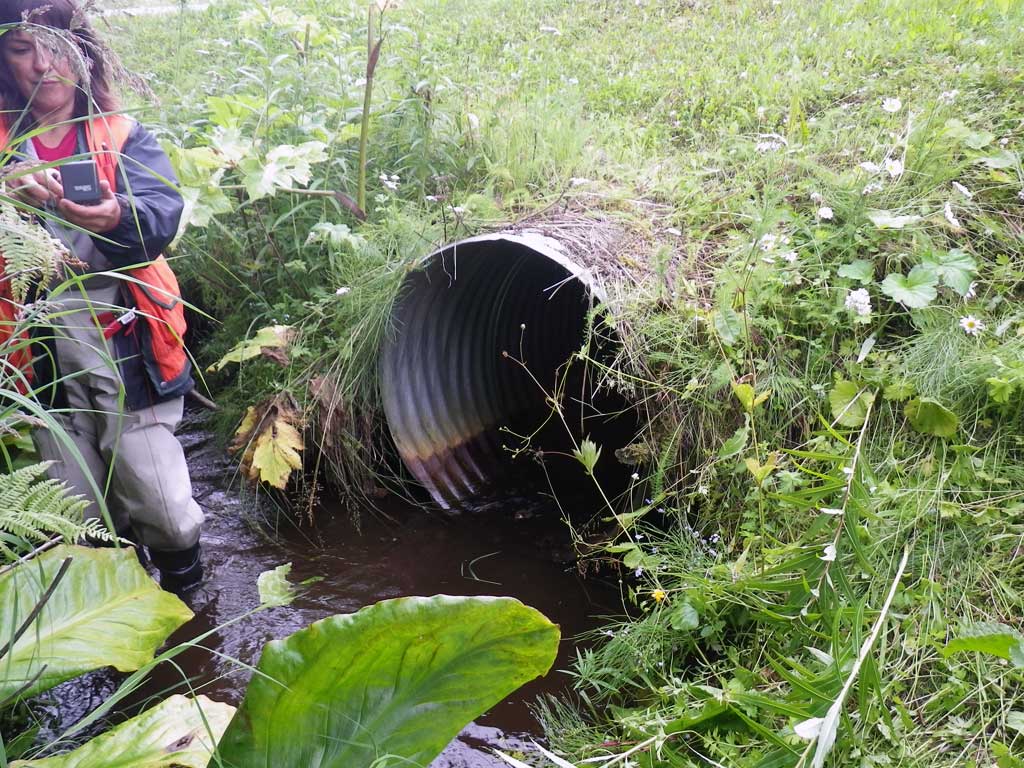

Outlet Type: Projecting
Corrugation Depth(in.): 0.33
Corrugation Width(in.): 2.5
Condition Rating(1-5): 2
Approach Angle: 60.0
Sedimentation At Inlet: No
Inlet Substrate: None
Outlet Substrate: None
InletOutlet
Width(ft):3.0 2.9
Height(ft):3.1 2.9
Apron Length(ft):
Water Depth(ft): 0.1
Rustline Height(ft):0.6
Substrate Depth(ft):0.0 0.0
Backwatered?: No
Baffles Present: No
Embedded?: No
Outfall Height: 0.0
Outfall Type: At Stream Grade
Constriction Ratio: 0.75
Culvert Gradient: 3.36%
Max Slope:
Max Slope Length:


Comments: Pipe rusted through at oulet; likely goes dry. Too braided for upstream widths. Visual observation of juvenile salmonids US/DS.
  Culvert Observations:
  1. Constriction ratio gray
  2. Culvert gradient red

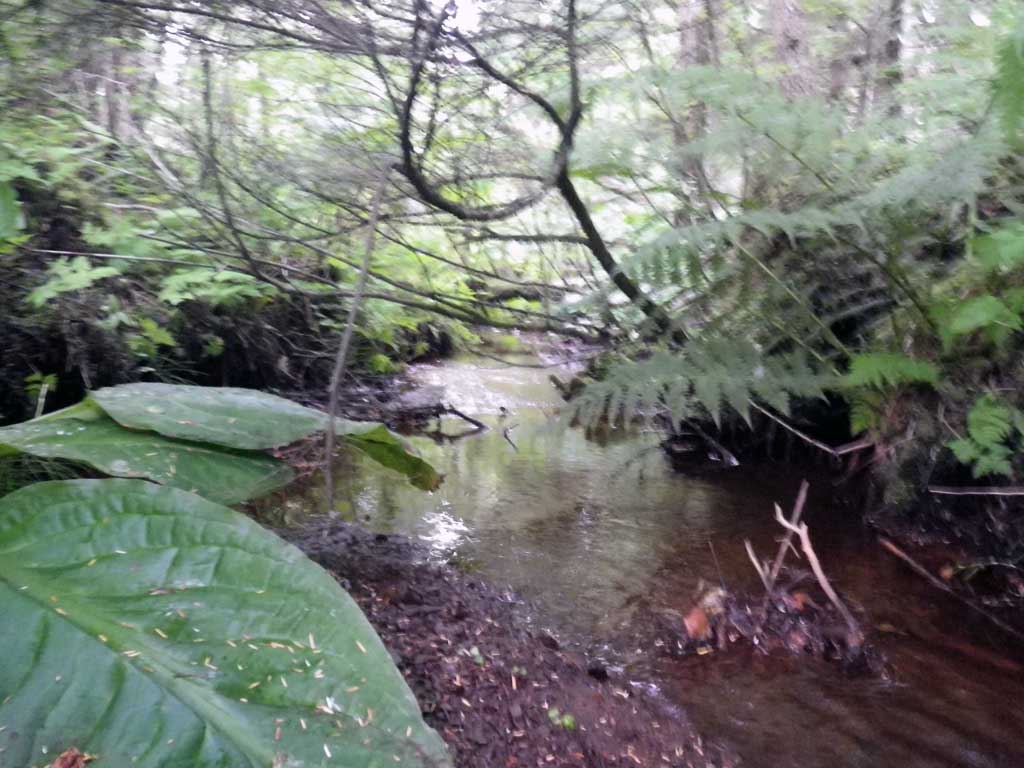

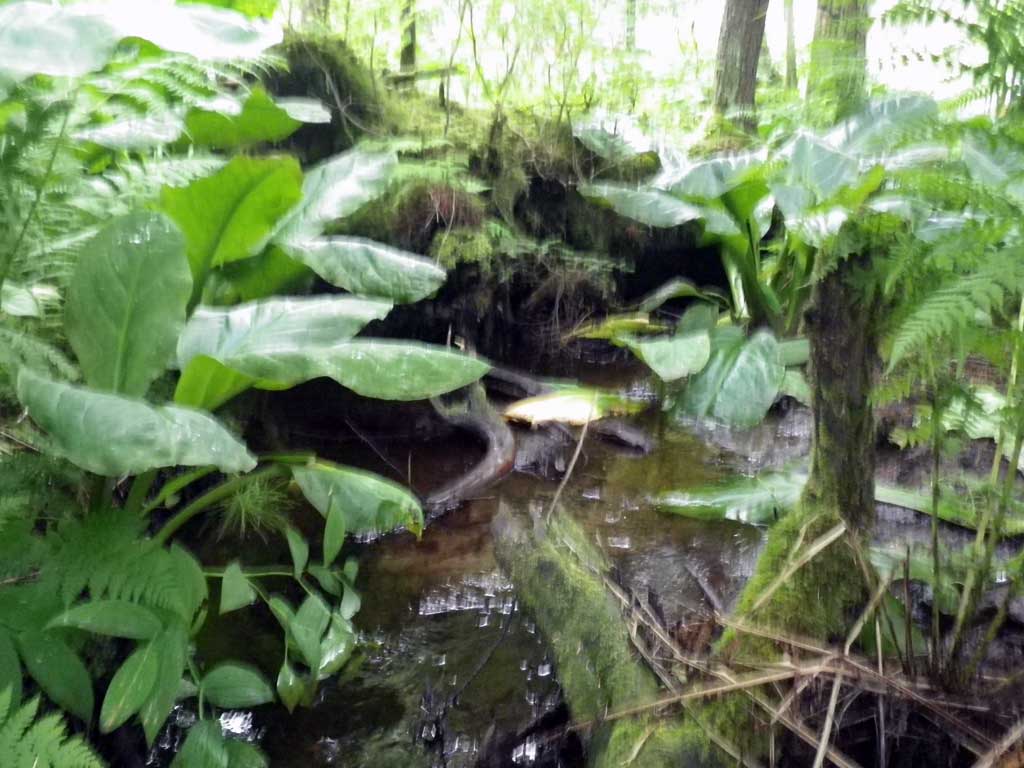

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:GravelGravel
Subdominant:SandCobble
Stream Slope(deg.):
Stream Flow Stage:Medium
Stream Width Type Distance From
Crossing (ft)		 Stream
Width (ft)
Downstream ordinary high water 20.0 2.40
Downstream ordinary high water 47.0 4.50
Downstream ordinary high water 62.0 5.10

Elevations

Locator ID Culvert
Number		 River
Distance (ft)1		 Distance From
Crossing (ft)2		 Relative
Elevation (ft)
Road Elev 100.00
D/S Tailcrest or 1st Thalweg 0.00 93.73
D/S Water Surface Elev 0.00 93.93
Outlet Pool Water Elev 5.00 93.98
Max Pool Depth 5.00 93.39
Outlet Culvert Top 10.00 96.89
D/S Water Surface Elev (Invert Out, BOP rusted through) 10.00 93.98
Inlet Culvert Invert 82.30 96.25
U/S Headwater 82.30 96.48
Inlet Culvert Top 82.30 99.32

Notes:

  1. River distance is measured continuously throughout the survey reach along the thalweg of the stream.
  2. Measured from each end of the crossing along the thalweg of the stream.

Fish Sampling Efforts

Gear Type: Visual Observation, Ground (A)
Comments: Visual observation of juvenile salmonids upstream and downstream from culvert.

Fish Observations

No fish observations occurred during this survey.
