Fish Passage Site 10302212

Coordinates (dec. deg.): 58.38528°, -134.65869°
Legal Description: C040S065E22
Region: Southeast

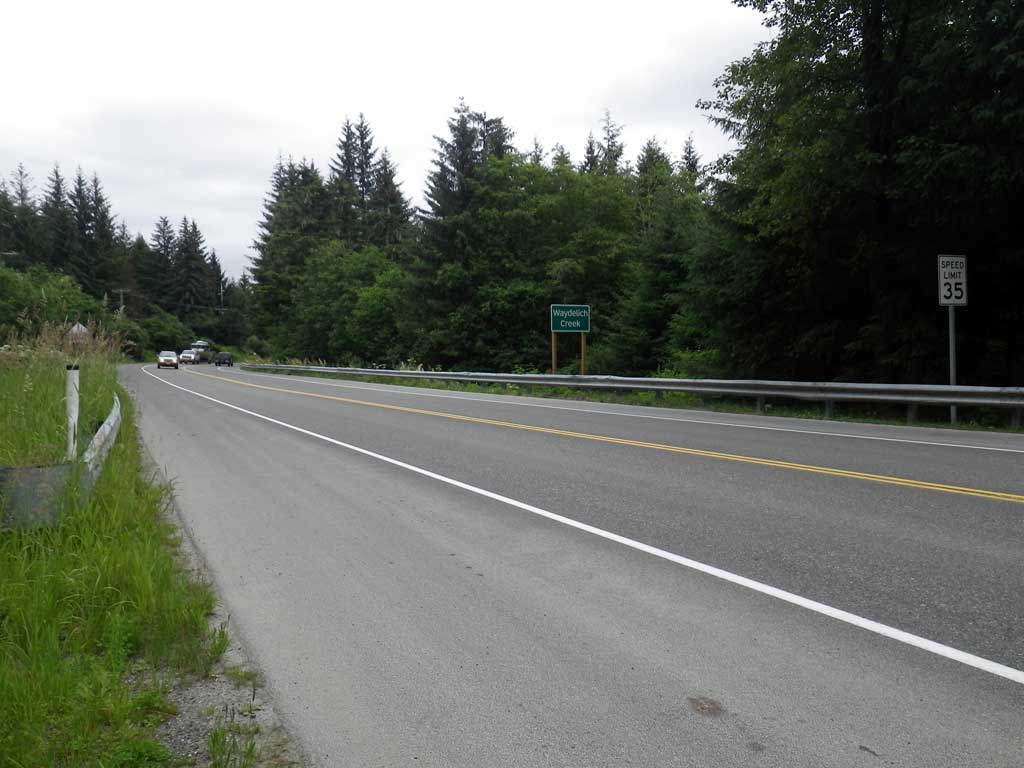

Road Name: Glacier Highway

Datum: NAD83
Quad Name / ITM: Juneau B-2
AWC Stream #:
Stream Name: Waydelich Creek

Elevation:

Site Comments: None

Survey Date: Jul 14, 2011

Survey SEA11-GLH17

Project Supervisor: Gillian O'Doherty, Alaska Department of Fish and Game — Anchorage, AK
Observers: Jason Olds, Charmagne Gutierrez

Overall Fish Passage Rating: Red

Tidal: No
Backwatered: No

Step Pools: No
Construction Year:


Site Observations:

  1. Outfall height red
  2. Constriction ratio gray
  3. Culvert gradient red

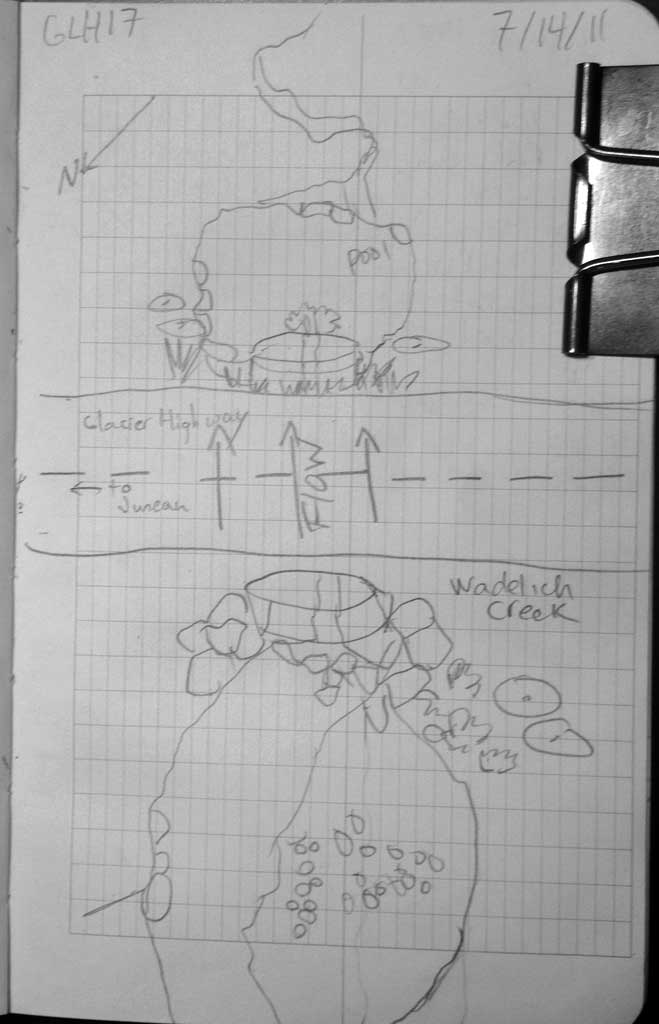

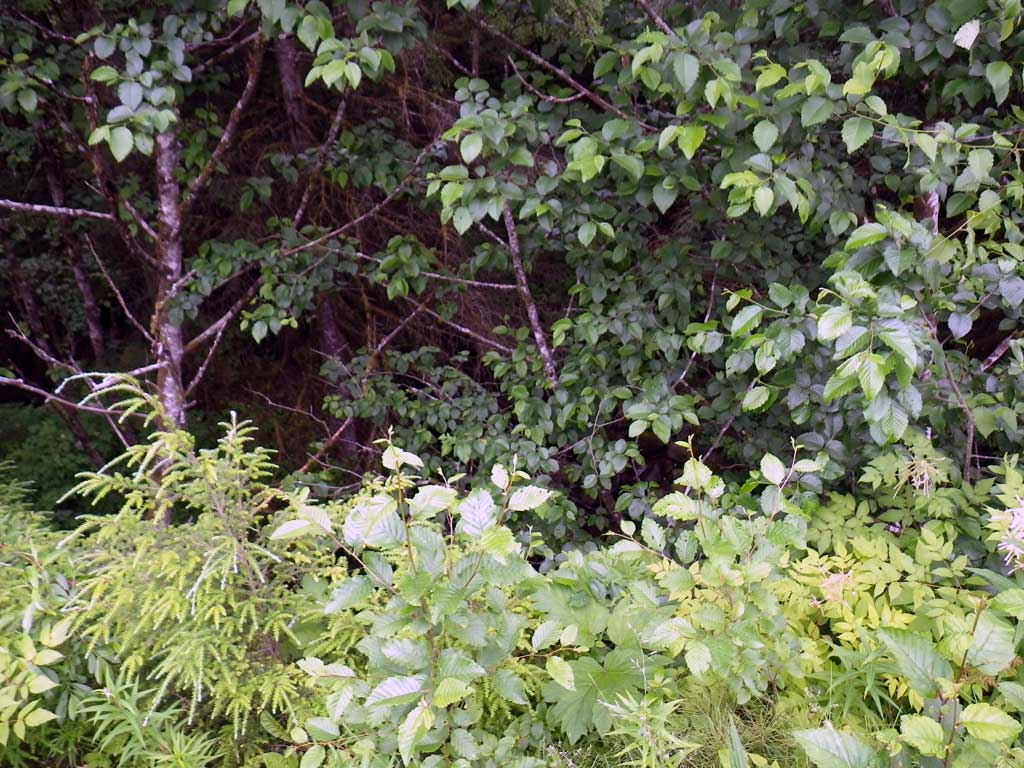

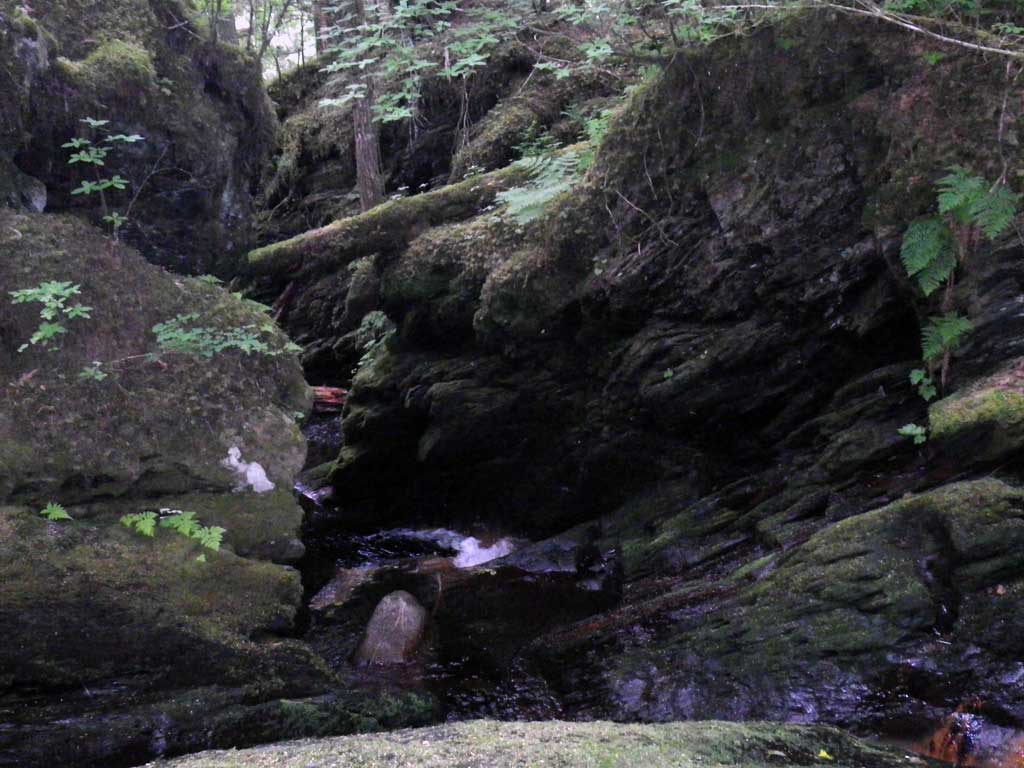

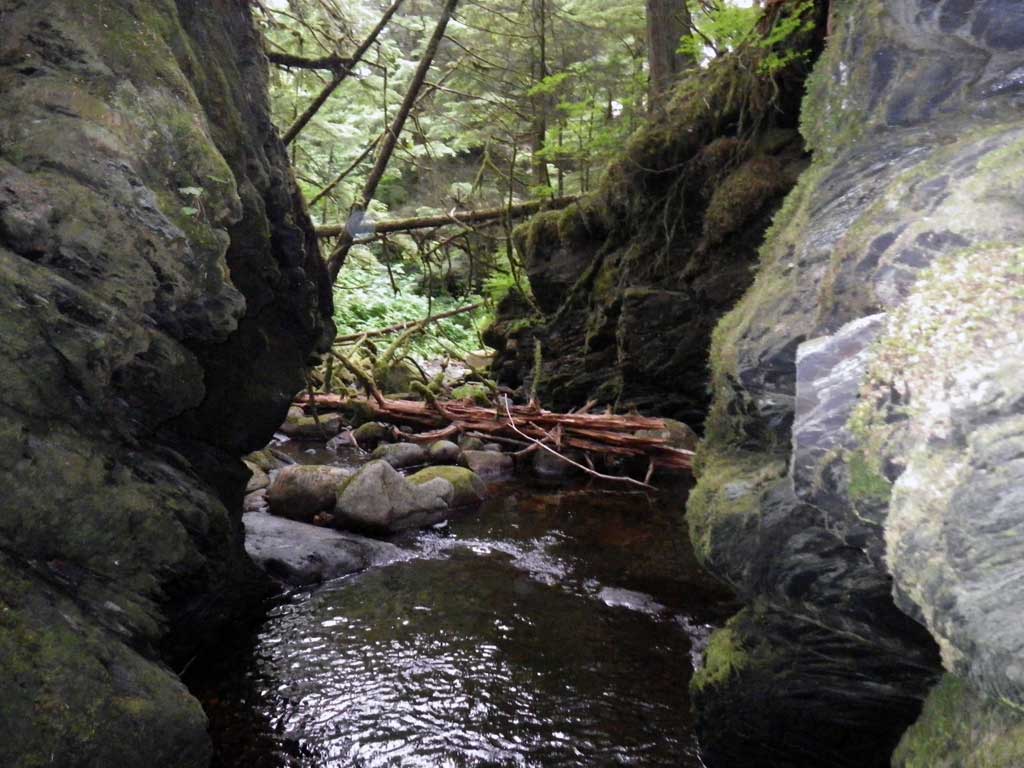

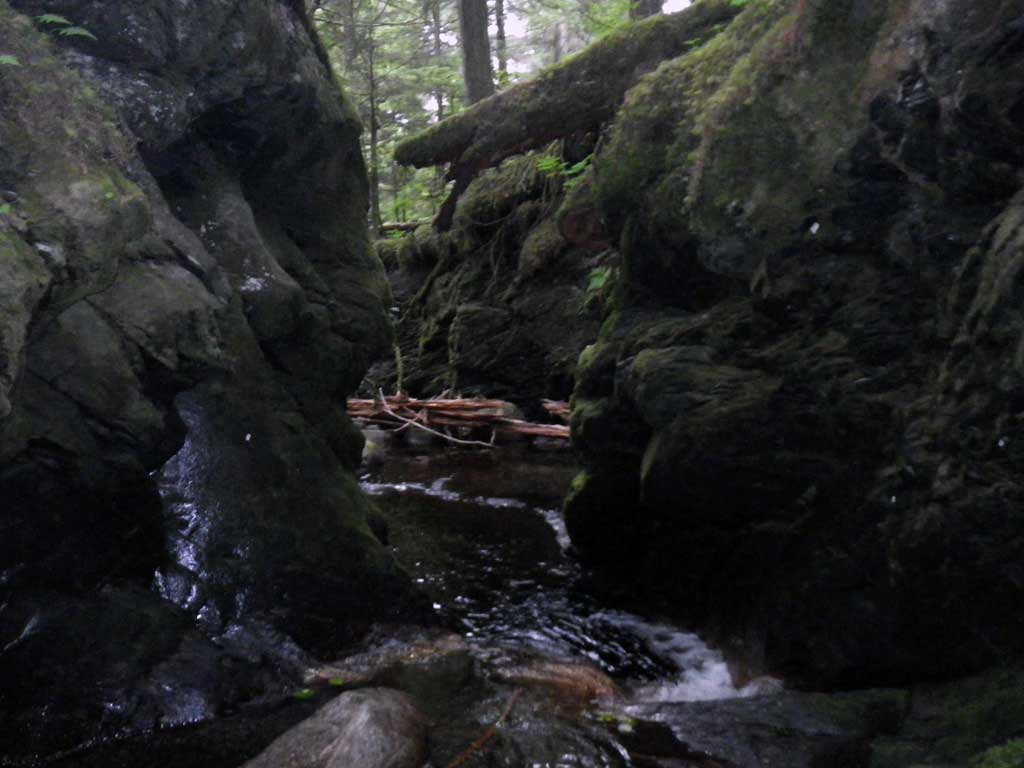

Comments: Fish observed upstream/downstream. Nice habitat upstream ~200 downstream to Auke Bay. Stream gradient calculated at 380 feet upstream of culvert beginning outside influence of culvert at 79 feet upstream for a total of 16.4 x mean OHW, beyond this point became too difficult with large woody debris in stream and foilage.

Culvert Measurements

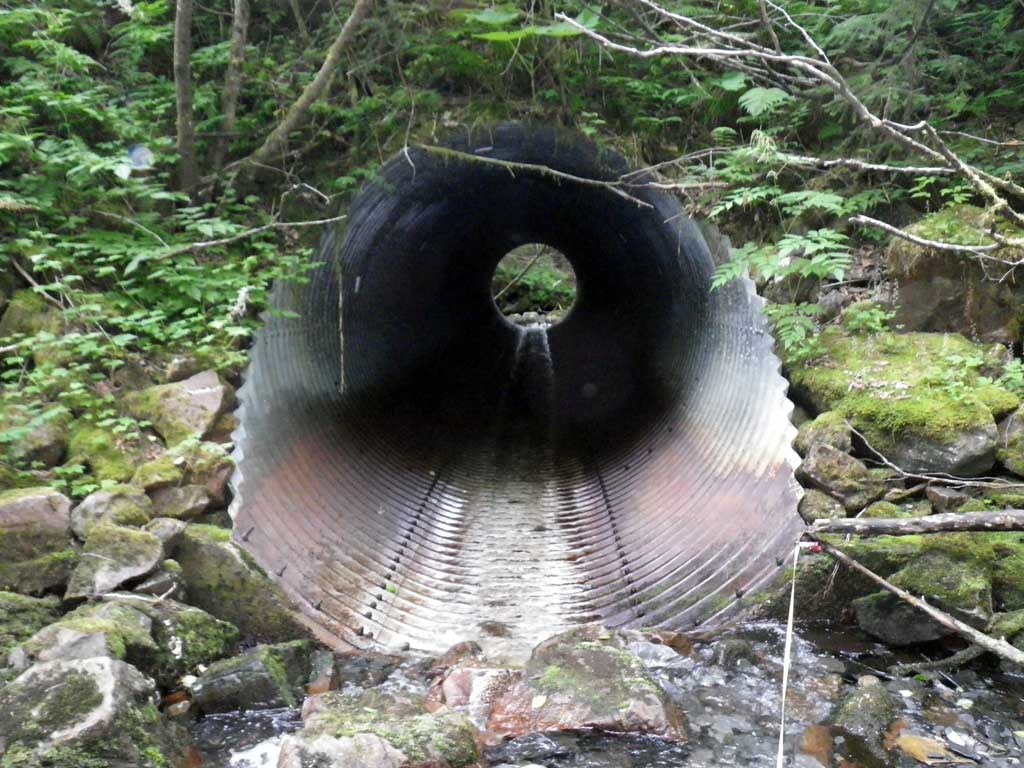

ID: 1 Structure Type: Circular pipe (Structural steel plate) Fish Passage Rating: Red

Length(ft): 90.3
Inlet Type: Mitered
Outlet Type: Headwall
Corrugation Depth(in.): 2.0
Corrugation Width(in.): 6.0
Condition Rating(1-5): 3
Approach Angle: 36.0
Sedimentation At Inlet: No
Inlet Substrate: None
Outlet Substrate: None
InletOutlet
Width(ft):10.0 10.0
Height(ft):10.0 10.0
Apron Length(ft):
Water Depth(ft): 0.17
Rustline Height(ft):3.2
Substrate Depth(ft):0.0 0.0
Backwatered?: No
Baffles Present: No
Embedded?: No
Outfall Height: 2.63

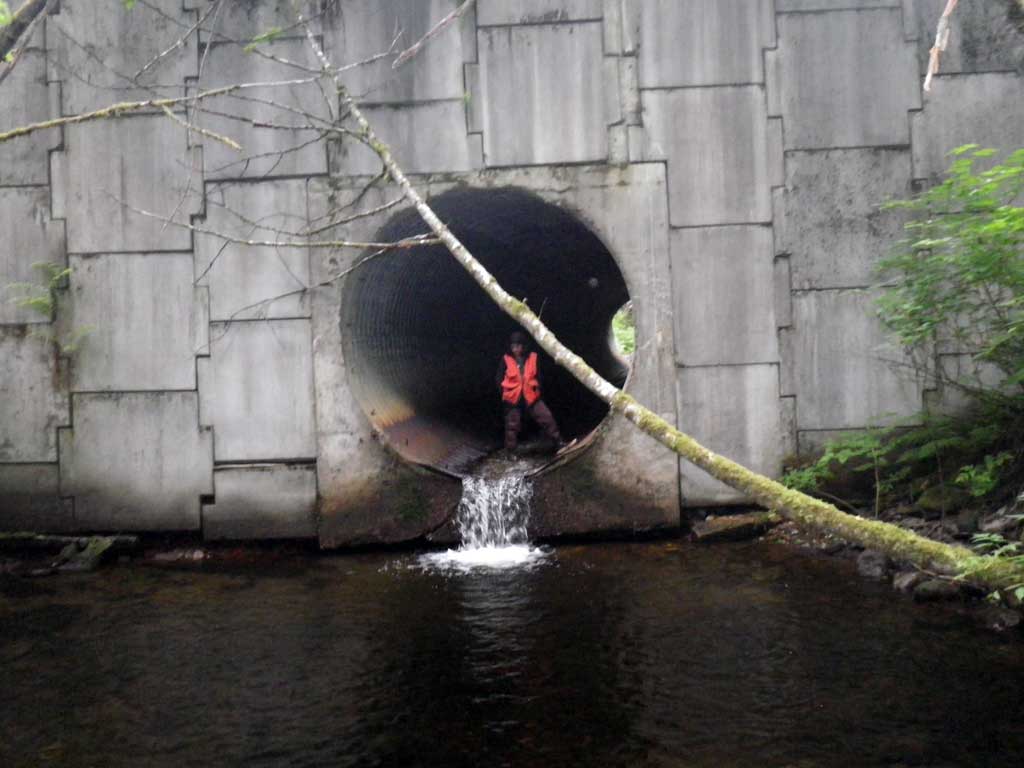

Outfall Type: Free Fall In To Pool
Constriction Ratio: 0.53
Culvert Gradient: 5.13%
Max Slope:
Max Slope Length:
  Culvert Observations:
  1. Outfall height red
  2. Constriction ratio gray
  3. Culvert gradient red

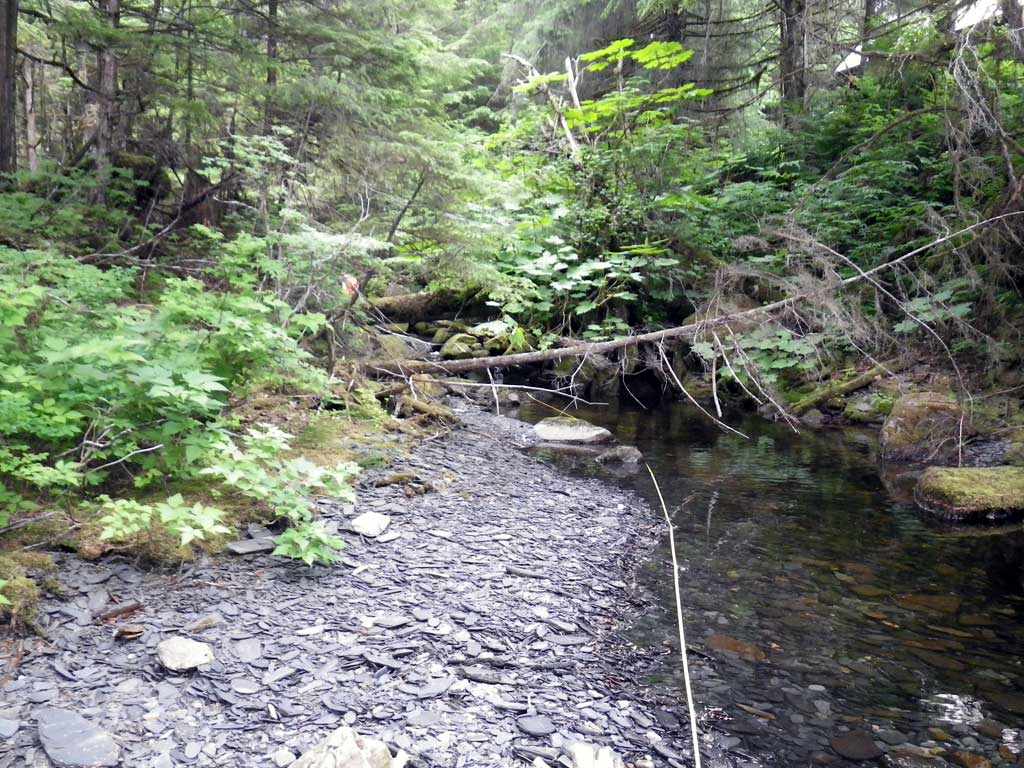

Stream Measurements

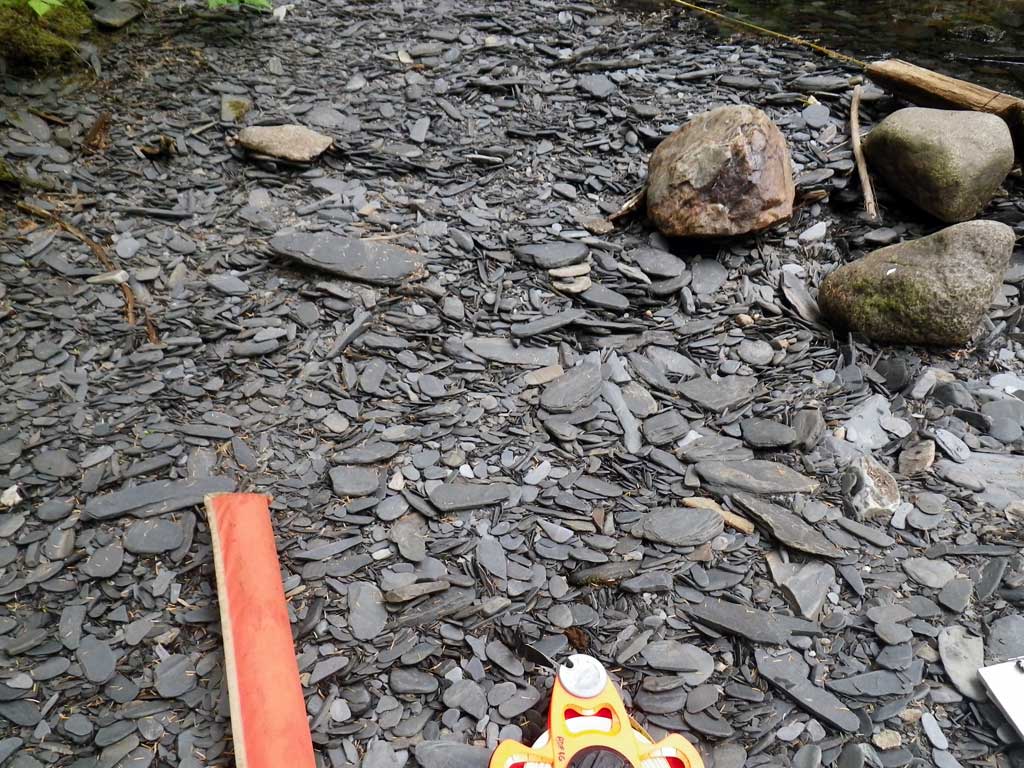

Stream SubstratesUpstreamDownstream
Dominant:CobbleCobble
Subdominant:BoulderBoulder
Stream Slope(deg.):3.28
Stream Flow Stage:Medium
Stream Width Type Distance From
Crossing (ft)		 Stream
Width (ft)
Upstream ordinary high water 69.0 17.80
Upstream ordinary high water 127.0 13.00
Upstream ordinary high water 176.0 26.10

Elevations

Locator ID Culvert
Number		 River
Distance (ft)1		 Distance From
Crossing (ft)2		 Relative
Elevation (ft)
D/S Tailcrest or 1st Thalweg 0.00 94.38
D/S Water Surface Elev 0.00 94.55

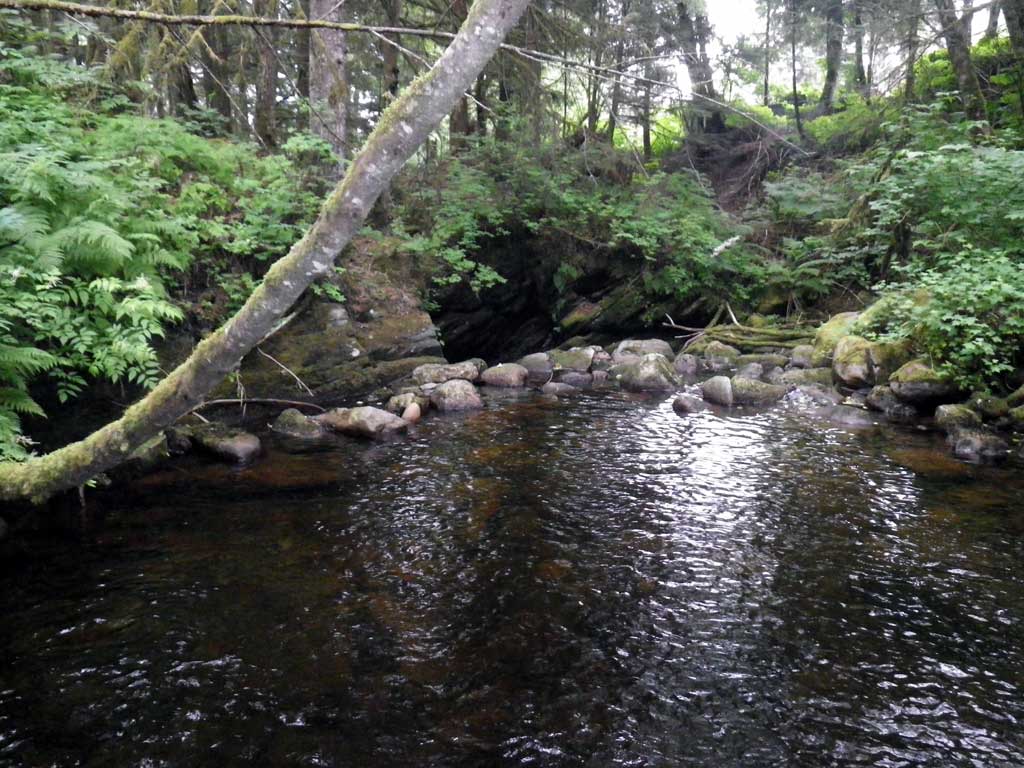

Outlet Pool Water Elev 21.00 94.62
Max Pool Depth 21.00 88.62
Outlet Invert 35.00 97.04
D/S Water Surface Elev 35.00 97.25
Inlet Culvert Invert 125.00 101.67
U/S Water Surface Elev 125.00 101.94
U/S Headwater 126.00 102.18
U/S Grade Ctrl (Thalweg) 147.00 103.51
U/S Water Surface Elev 147.00 103.89

Notes:

  1. River distance is measured continuously throughout the survey reach along the thalweg of the stream.
  2. Measured from each end of the crossing along the thalweg of the stream.

Fish Sampling Efforts

Gear Type: Visual Observation, Ground (A)
Channel Type: Main Channel (>50% of water flow)
Comments: Unidentified fish observed upstream and downstream from culvert

Gear Type: Visual Observation, Ground (B) Trap Duration(h): 30.0
Channel Type: Main Channel (>50% of water flow)

Gear Type: (C)

Fish Observations

No fish observations occurred during this survey.
