Fish Passage Site 10302168

Coordinates (dec. deg.): 58.29556°, -134.54587°
Legal Description: C041S066E24
Region: Southeast

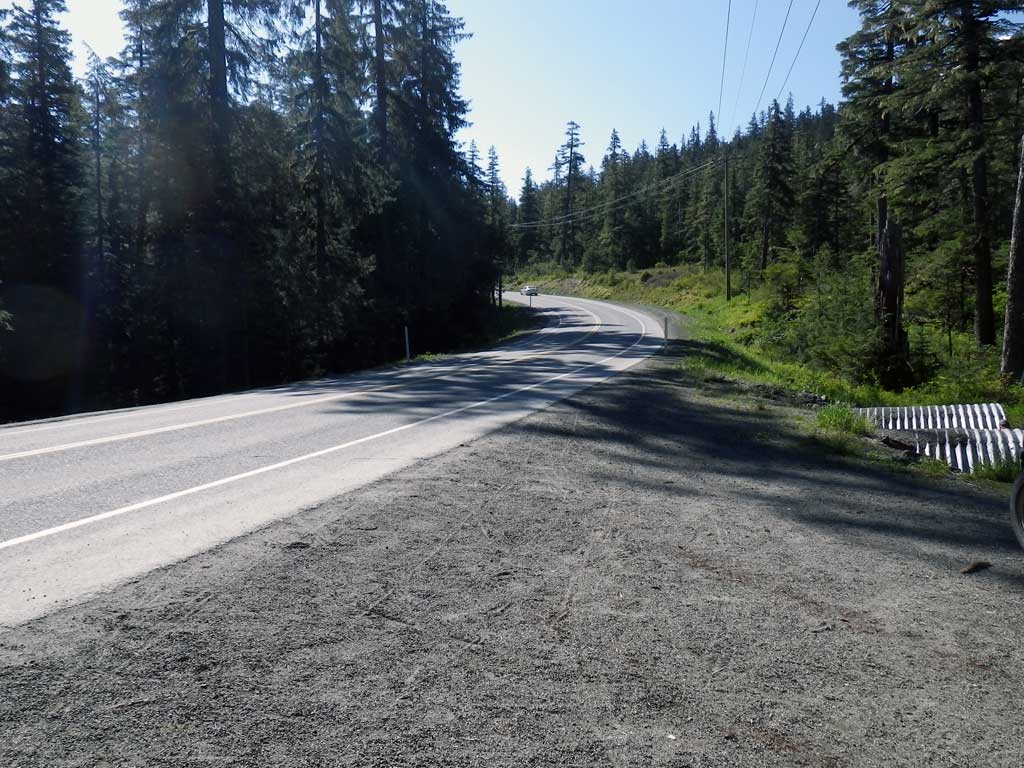

Road Name: Fish Creek Road

Datum: NAD83
Quad Name / ITM: Juneau B-2
AWC Stream #:
Stream Name: Fish Creek

Elevation:

Site Comments: Site is on a campground road at the Eagle River campground out the Glacier Highway.

Survey Date: Jun 07, 2011

Survey SEA11-FCR01

Project Supervisor: Gillian O'Doherty, Alaska Department of Fish and Game — Anchorage, AK
Observers: Mark Eisenman, Jason Olds

Overall Fish Passage Rating: Red

Tidal: No
Backwatered: No

Step Pools: No
Construction Year:


Site Observations:

  1. Culvert gradient red
  2. Constriction ratio gray

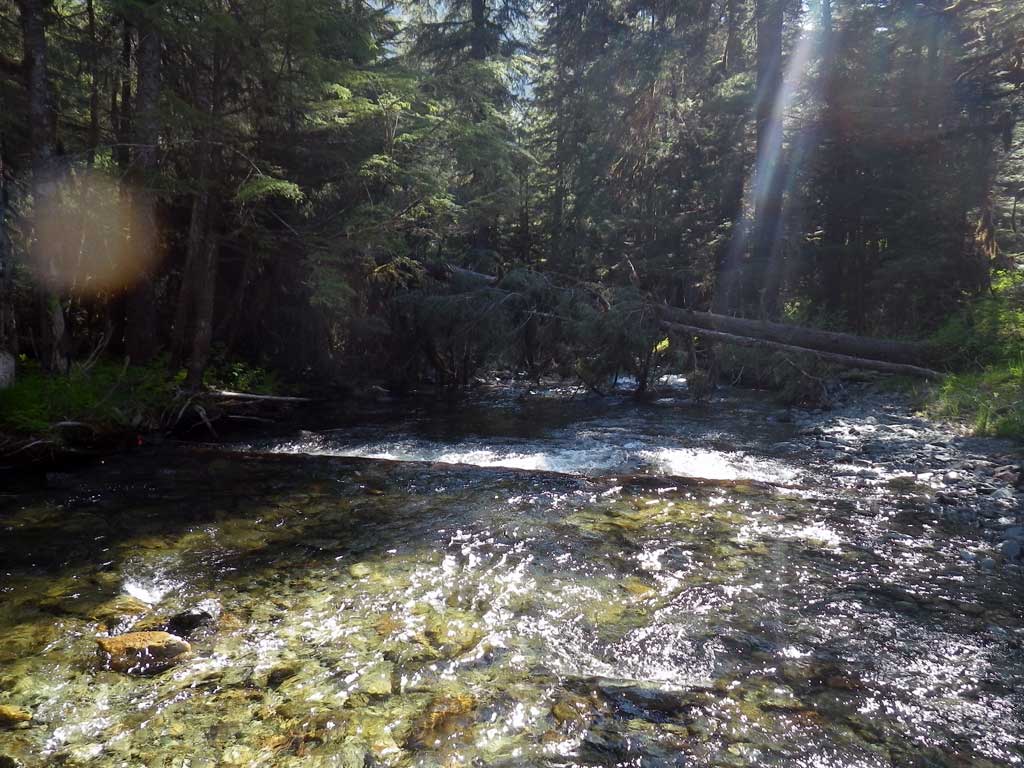

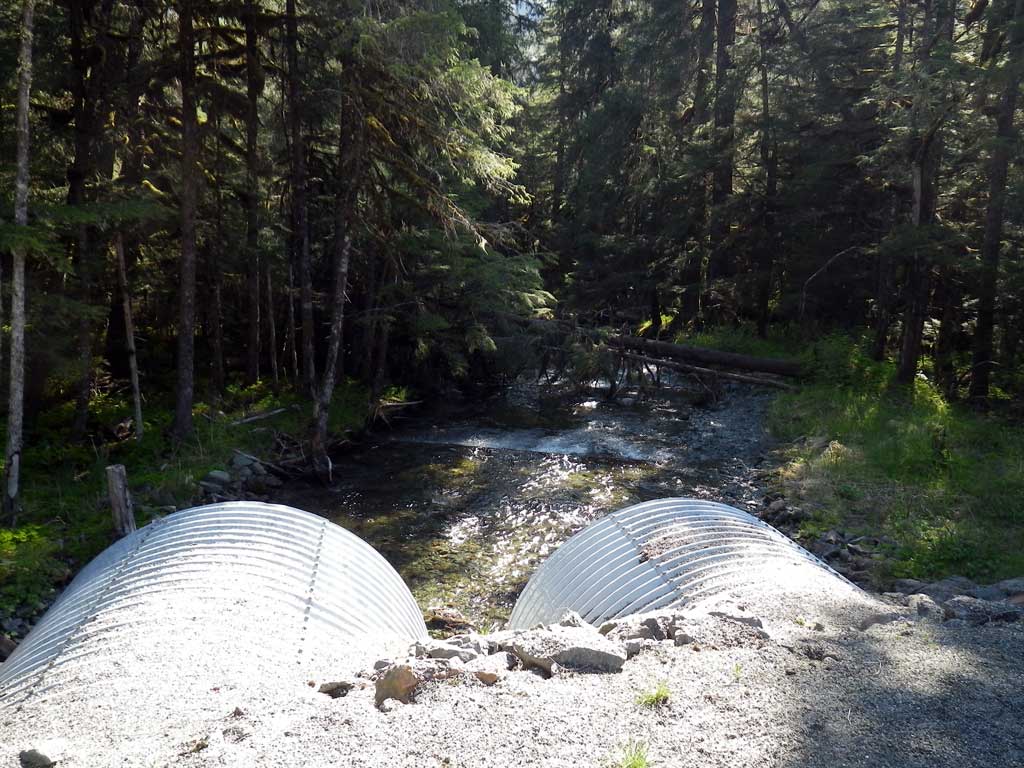

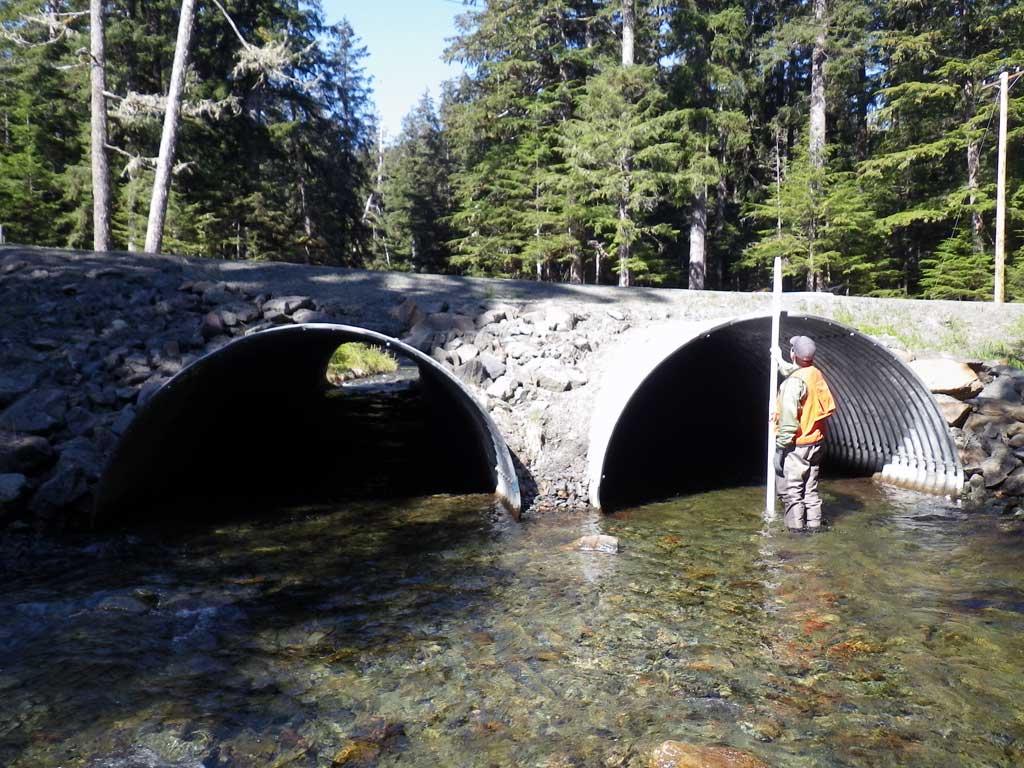

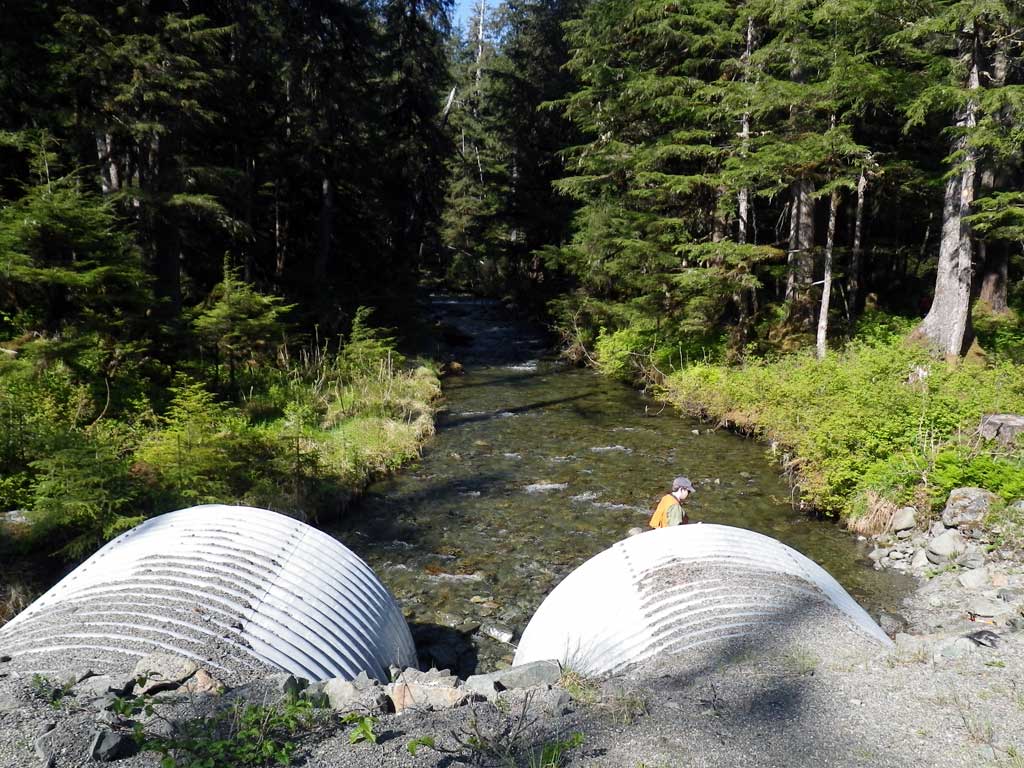

Comments: Downstream 2 log wier gradient control structures. Culverts likely embedded at one time, substrate in both pipes partially pushed out. Culvert 1 has substrate at inlet and culvert 2 has substrate at outlet, both insufficient depth. Upstream habitat high quality despite reported falls barrier downstream. Sighted a fish upstream from culvert in a pool, likely a Dolly. Upstream habitat high quality despite reoprted falls barrier downstream.

Culvert Measurements

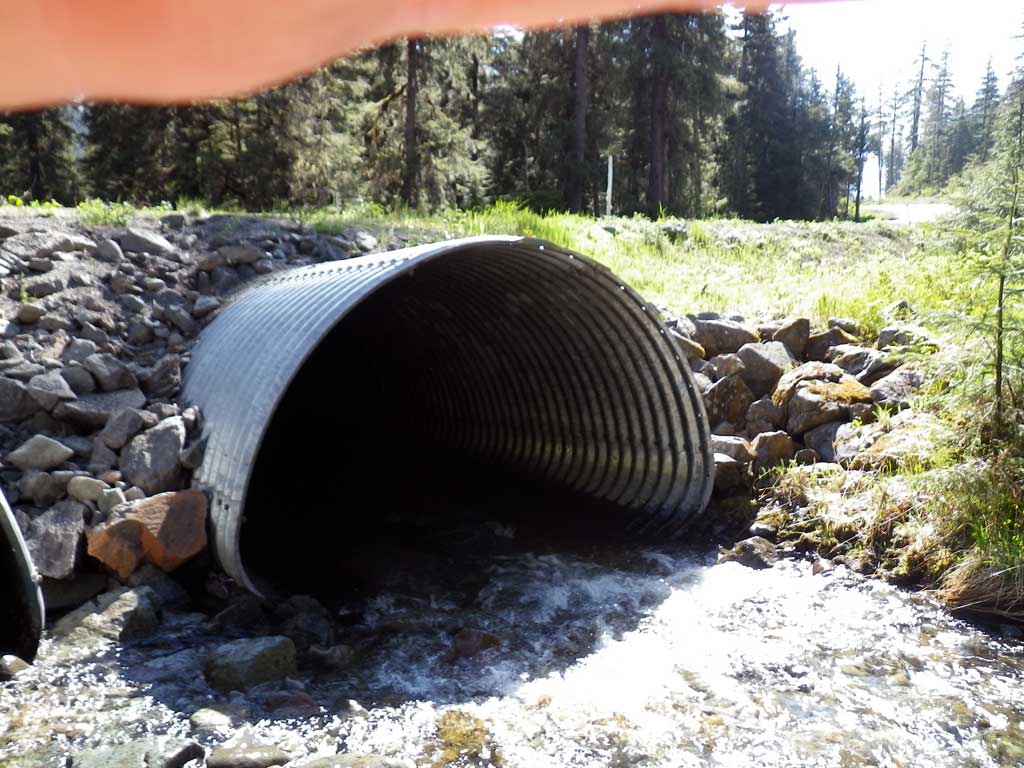

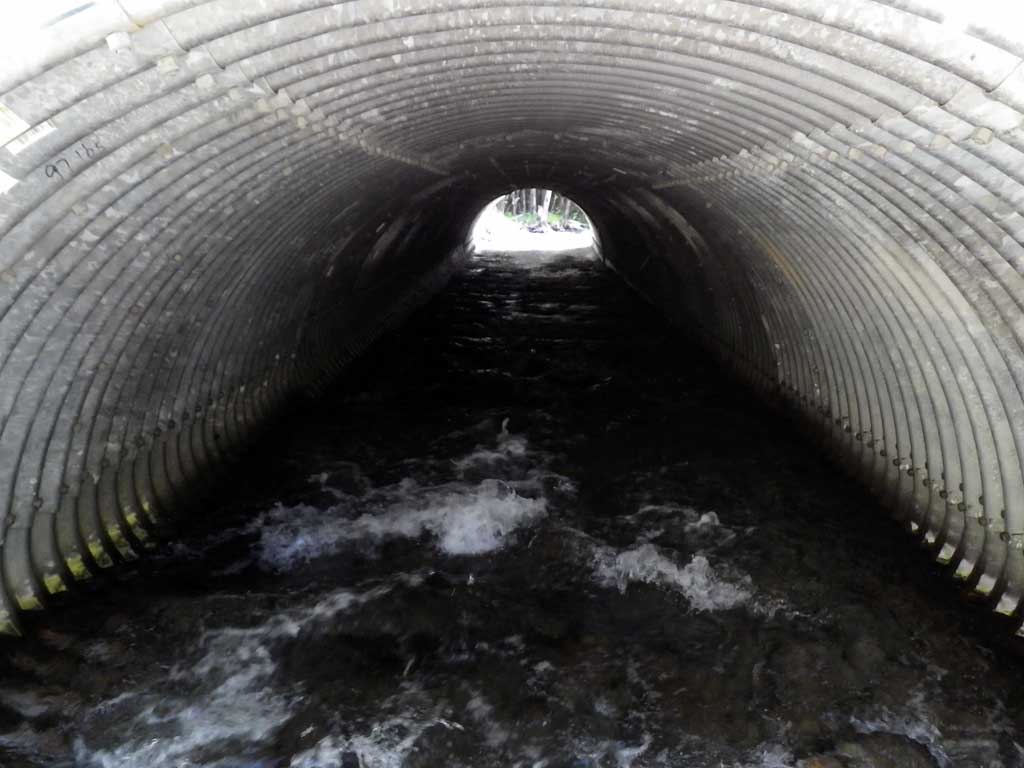

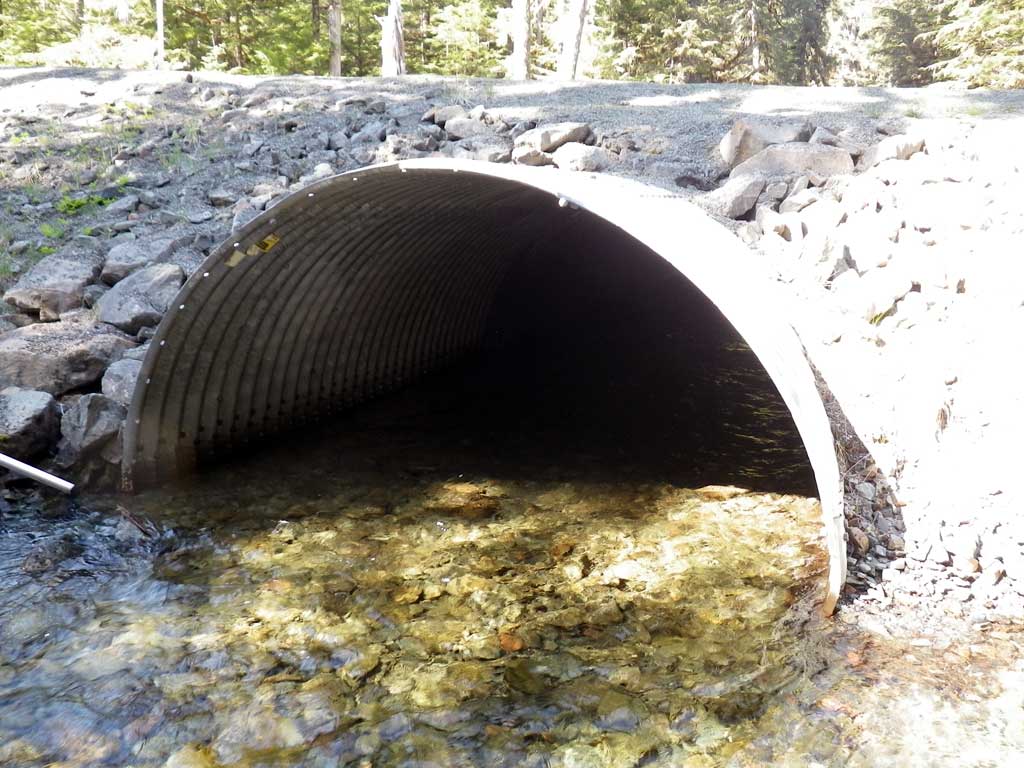

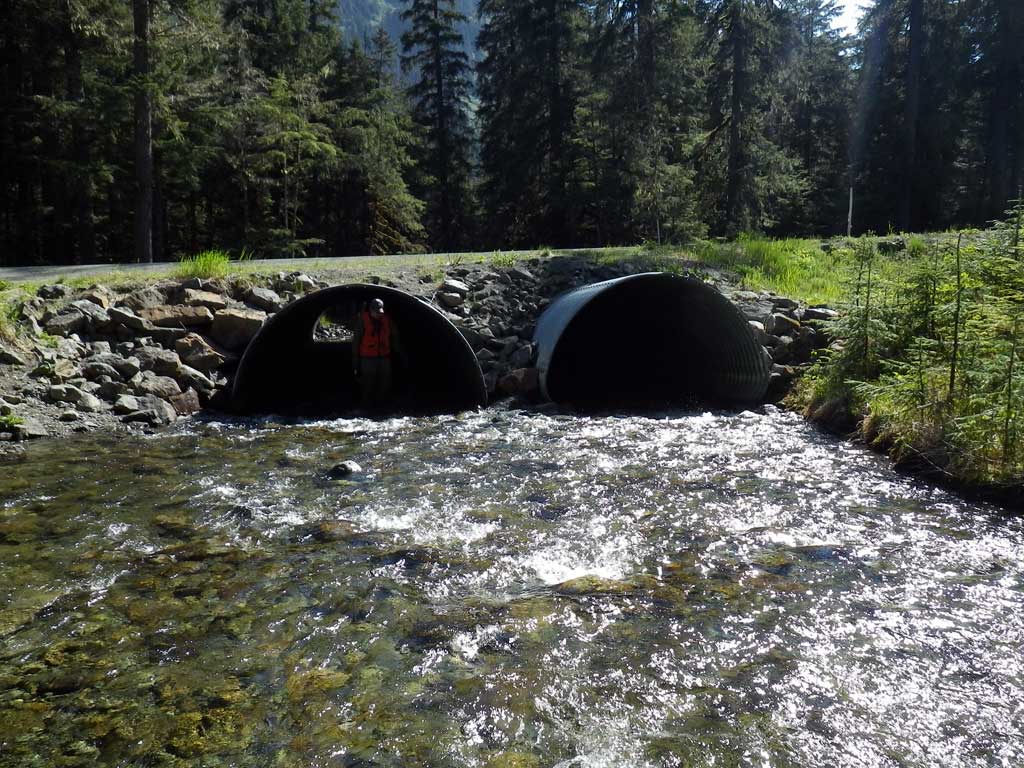

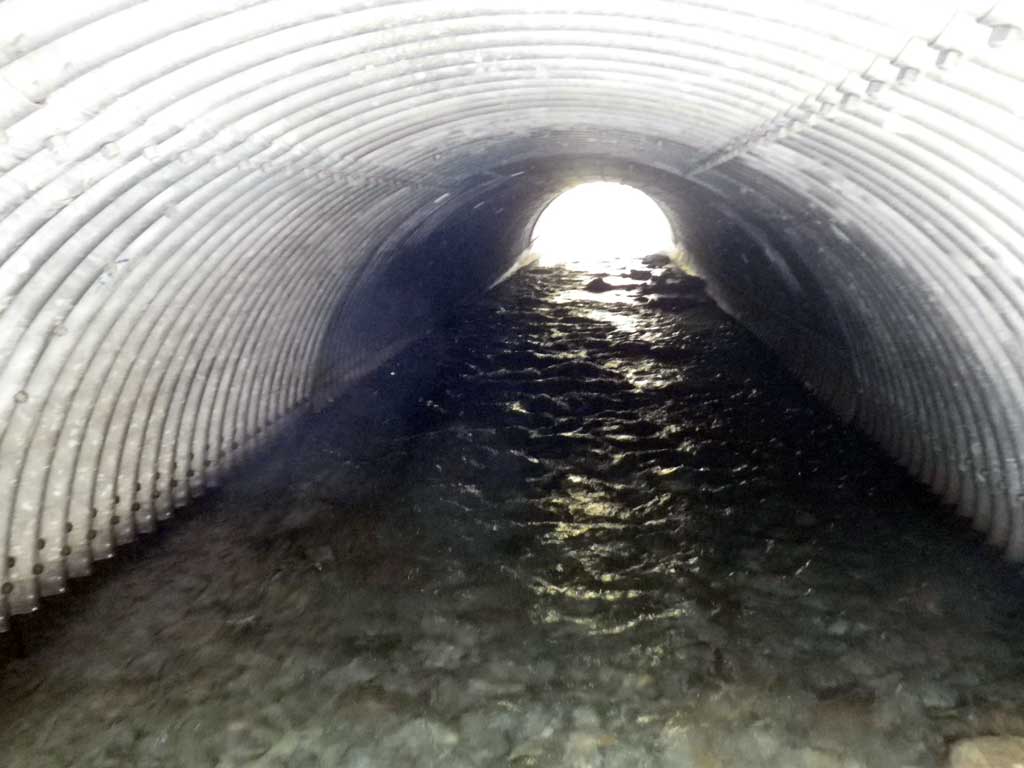

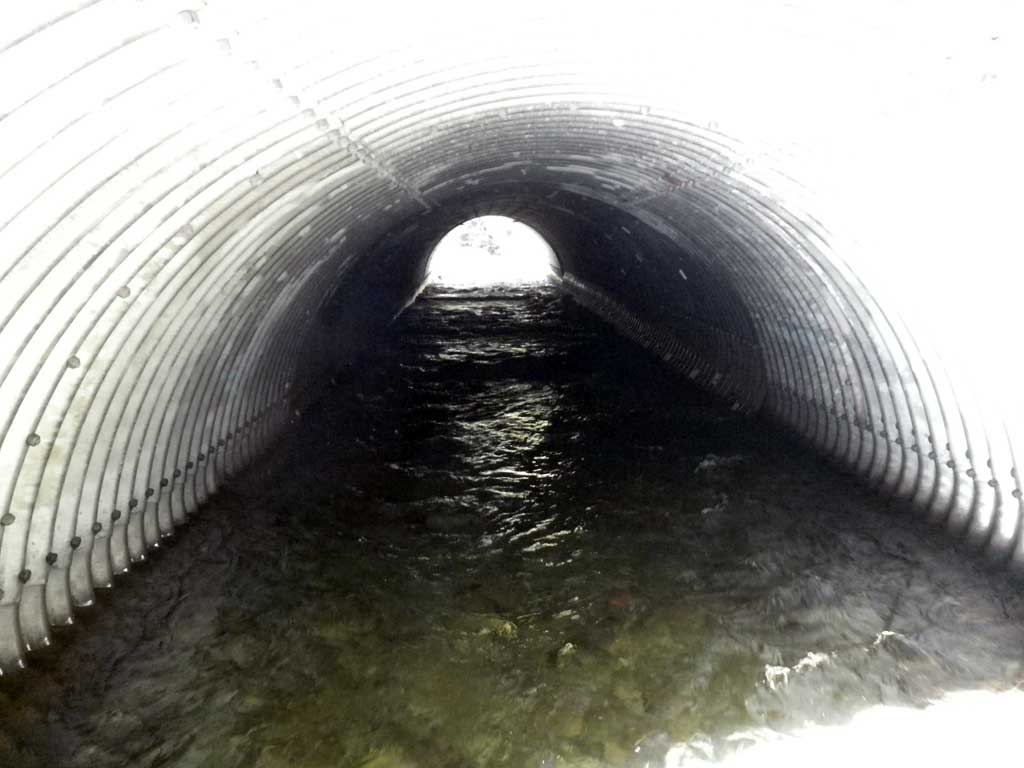

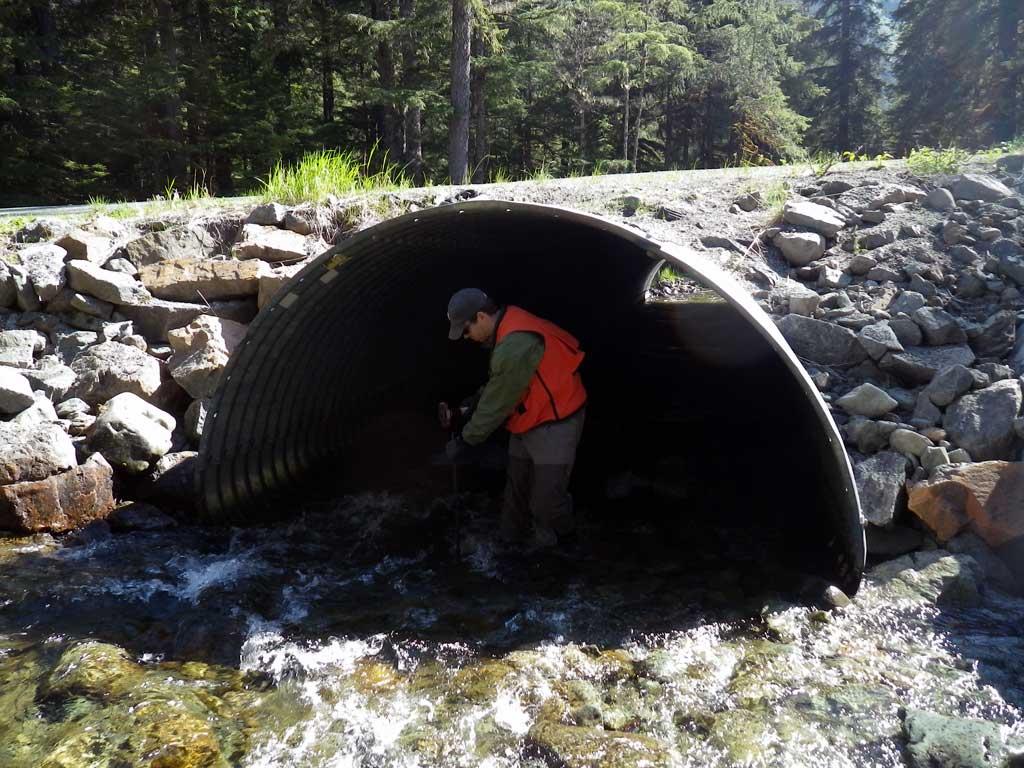

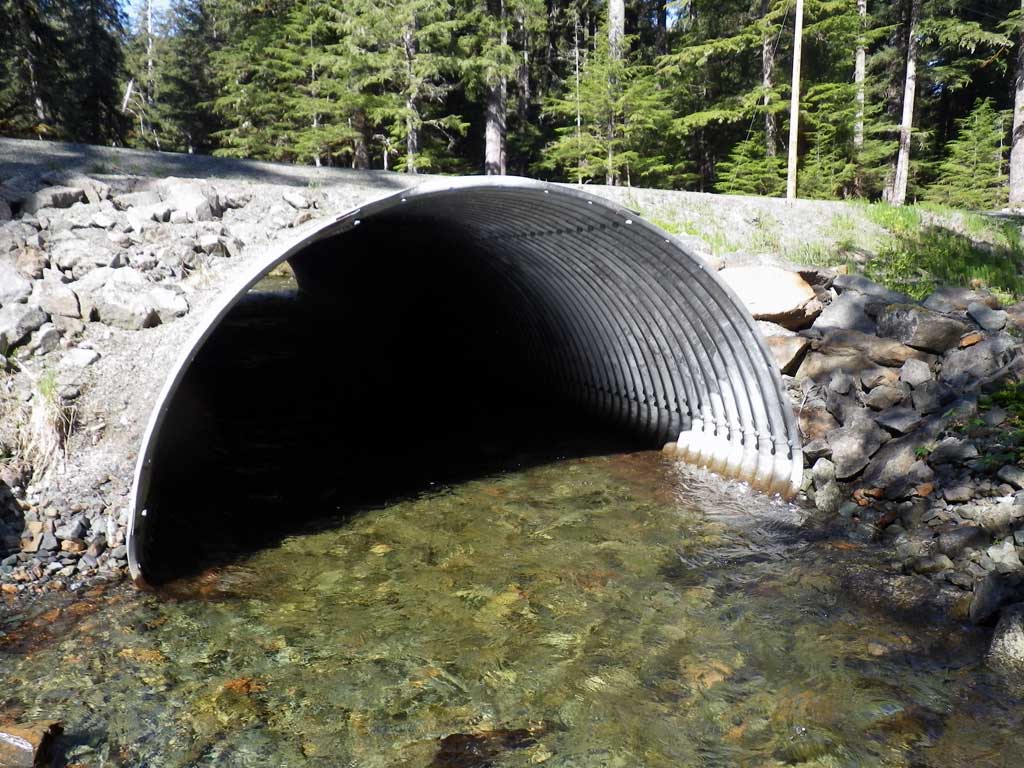

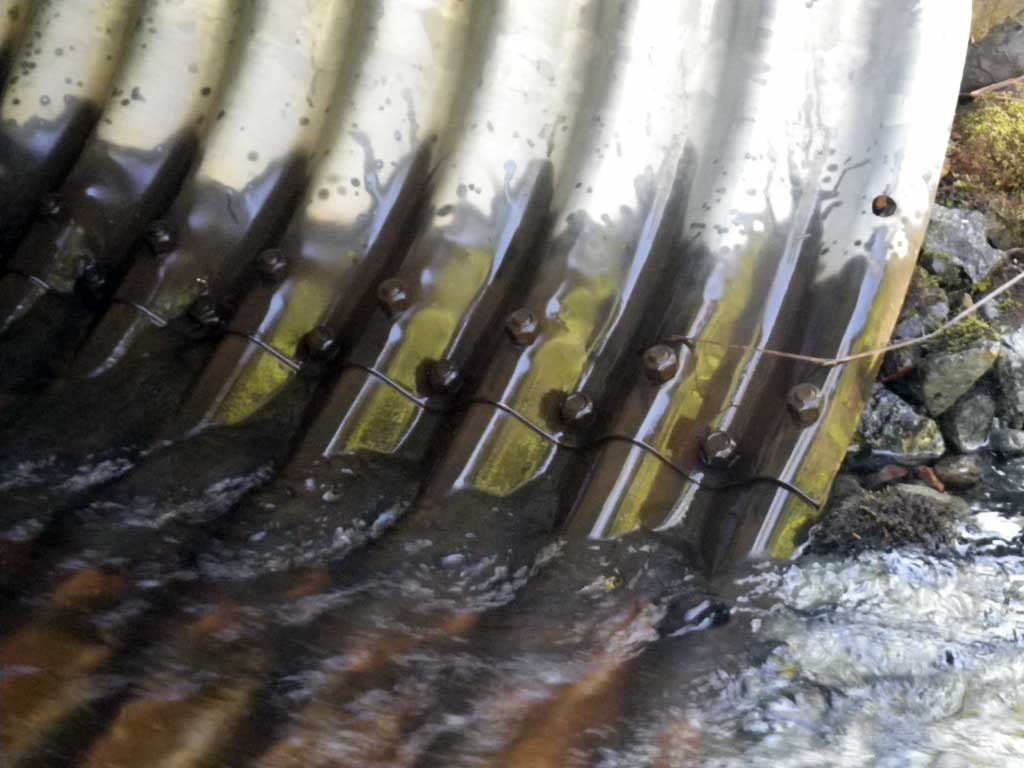

ID: 1 Structure Type: Pipe-arch (Structural steel plate) Fish Passage Rating: Red

Length(ft): 82.1
Inlet Type: Projecting
Outlet Type: Projecting
Corrugation Depth(in.): 2.0
Corrugation Width(in.): 6.0
Condition Rating(1-5): 5
Approach Angle: 11.0
Sedimentation At Inlet: Yes
Inlet Substrate: Boulder
Outlet Substrate: Cobble
InletOutlet
Width(ft):11.5 11.5
Height(ft):6.65 7.09
Apron Length(ft):
Water Depth(ft): 1.29
Rustline Height(ft):0.87
Substrate Depth(ft):0.55 0.65
Backwatered?: No
Baffles Present: No
Embedded?: No
Outfall Height: 0.0
Outfall Type: At Stream Grade
Constriction Ratio: 0.65
Culvert Gradient: 2.03%
Max Slope:
Max Slope Length:
  Culvert Observations:
  1. Culvert gradient red
  2. Constriction ratio gray

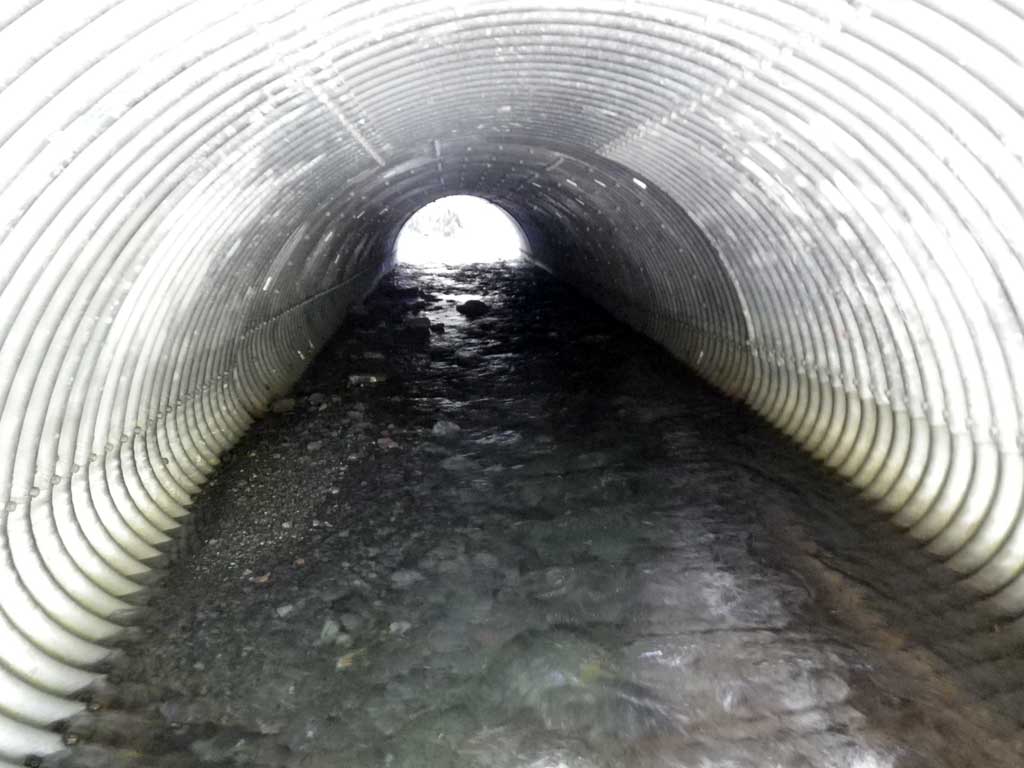

ID: 2 Structure Type: Pipe-arch (Structural steel plate) Fish Passage Rating: Red

Length(ft): 82.1
Inlet Type: Projecting
Outlet Type: Projecting
Corrugation Depth(in.): 2.0
Corrugation Width(in.): 6.0
Condition Rating(1-5): 5
Approach Angle: 11.0
Sedimentation At Inlet: Yes
Inlet Substrate: None
Outlet Substrate: Cobble
InletOutlet
Width(ft):11.5 11.5
Height(ft):7.62 6.15
Apron Length(ft):
Water Depth(ft): 0.72
Rustline Height(ft):1.0
Substrate Depth(ft):0.0 0.27
Backwatered?: No
Baffles Present: No
Embedded?: No
Outfall Height: 0.0
Outfall Type: At Stream Grade
Constriction Ratio: 0.65
Culvert Gradient: 2.97%
Max Slope:
Max Slope Length:
  Culvert Observations:
  1. Culvert gradient red
  2. Constriction ratio gray

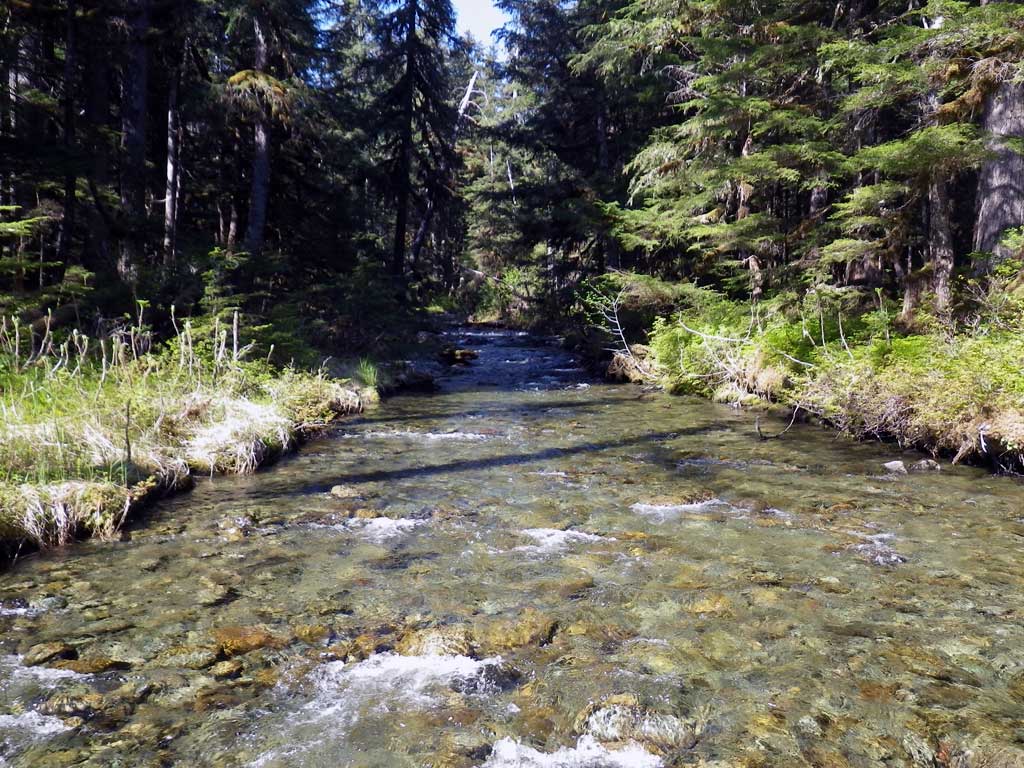

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:BoulderCobble
Subdominant:CobbleGravel
Stream Slope(deg.):3.34
Stream Flow Stage:Medium
Stream Width Type Distance From
Crossing (ft)		 Stream
Width (ft)
Upstream ordinary high water 31.0 25.90
Upstream ordinary high water 55.0 24.30
Upstream ordinary high water 79.0 24.20

Elevations

Locator ID Culvert
Number		 River
Distance (ft)1		 Distance From
Crossing (ft)2		 Relative
Elevation (ft)
Road Elev 101.06
D/S Grade Ctrl (Thalweg) 0.00 87.80
D/S Water Surface Elev 0.00 88.67
D/S Grade Ctrl (Thalweg) 53.50 90.30
D/S Water Surface Elev 53.50 90.78
D/S Tailcrest or 1st Thalweg 84.00 90.20
D/S Water Surface Elev 84.00 91.68
Outlet Pool Water Elev 97.50 91.80
Max Pool Depth 97.50 90.02
Outlet Thalweg (C1 substrate) 1 111.00 90.58
D/S Water Surface Elev (C2) 2 111.00 91.84
D/S Water Surface Elev (C1) 1 111.00 91.87
Outlet Thalweg (C2 substrate) 2 111.00 91.12
Outlet Culvert Top (C2) 2 111.00 97.33
Outlet Culvert Top (C1) 1 111.00 97.62
Inlet Culvert Top (C1) 1 199.10 99.29
Inlet Culvert Top (C2) 2 199.10 99.77
Inlet Culvert Invert (C2 bottom of pipe) 2 199.10 92.18
Inlet Thalweg (C1 substrate) 1 199.10 92.63
U/S Water Surface Elev (C2) 2 199.10 93.01
U/S Water Surface Elev (C1) 1 199.10 93.41
U/S Headwater (C1) 1 202.10 93.46
U/S Headwater (C2) 2 202.10 93.09
U/S Grade Ctrl (Thalweg) 343.10 95.84
U/S Water Surface Elev 343.10 96.84
U/S Grade Ctrl (Thalweg) 394.10 98.70
U/S Water Surface Elev 394.10 99.17

Notes:

  1. River distance is measured continuously throughout the survey reach along the thalweg of the stream.
  2. Measured from each end of the crossing along the thalweg of the stream.

Fish Sampling Efforts

Gear Type: Minnow Trap (A) Trap Duration(h): 4.75
Comments: Likely Dolly observed in a pool upstream approximately 200 feet from culvert, none captured however

Gear Type: Minnow Trap (B) Trap Duration(h): 4.75
Comments: No fish observed or captured downstream from culvert

Gear Type: Visual Observation, Ground (C)
Comments: Unidentified fish (probably Dolly Varden) sighted upstream from culvert.

Fish Observations

No fish observations occurred during this survey.
