Fish Passage Site 30103686
Coordinates (dec. deg.): 51.87490°, -176.65303°
Legal Description: S096S195W10
Region: Southwest

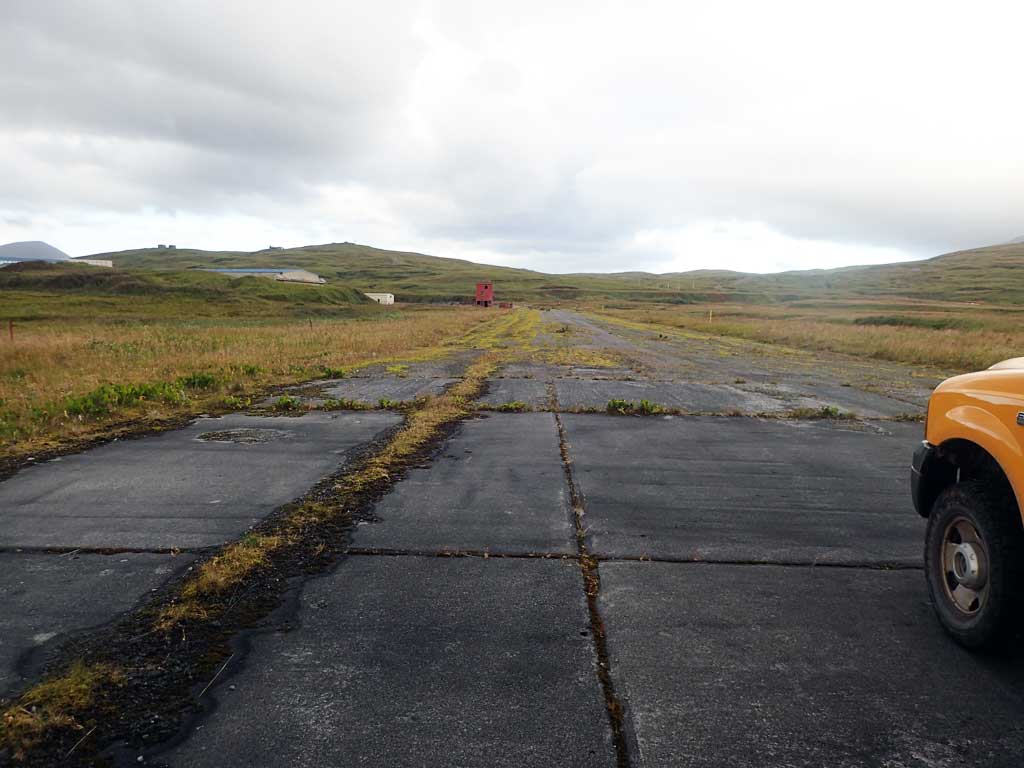

Road Name: Airport Access Road
Datum: NAD83
Quad Name / ITM: Adak C-2
AWC Stream #: 306-70-10200
Stream Name: Sweeper Creek
Site Comments: None
Survey Date: Sep 15, 2017
Observers: Mark Eisenman, Jeanette Alas
Overall Fish Passage Rating: Black
Tidal: No
Backwatered: No
Step Pools: No
Construction Year:
Comments: This information was gathered as part of the joint reconnaissance level project between the ADF&G Habitat Division and the Fish Passage Assessment Project on Adak Island. Due to time constraints full site assessments were not conducted, but base line information was collected. South Sweeper Creek (AWC #306-70-10200-2015) enters Sweeper Creek from the west at inlet. Site C100 east along this access road about 100 feet to the east and the airport drainage system is separted from Sweeper creek by a large earthen dike

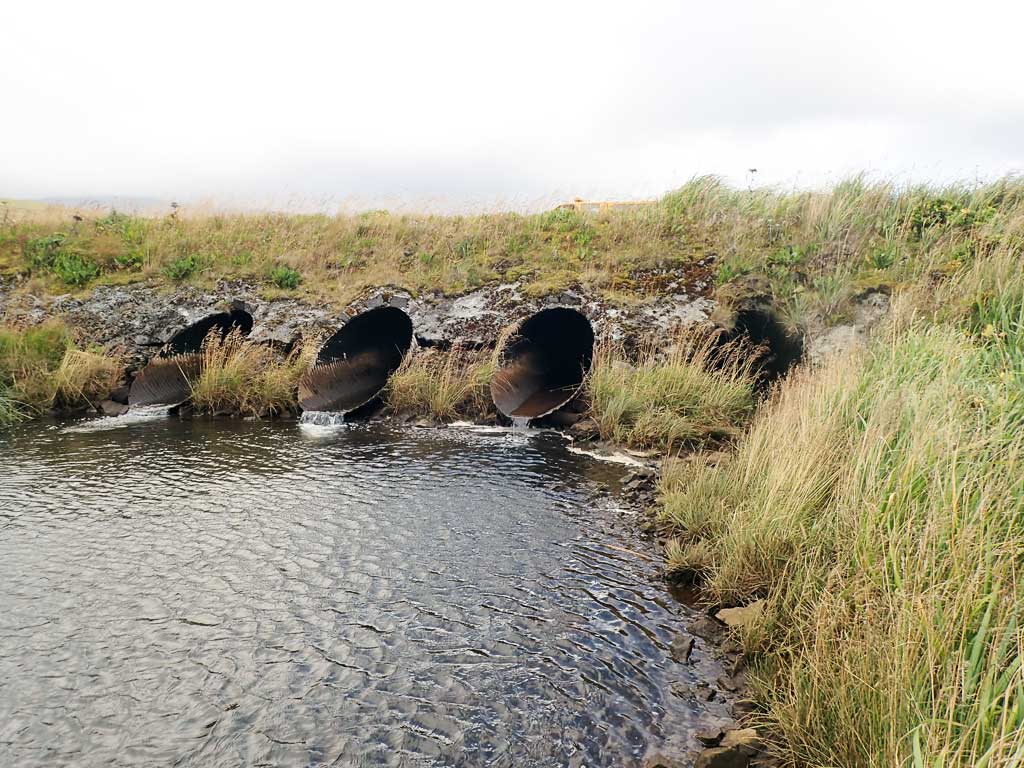

Culvert Measurements
| ID: 1 |
Structure Type: Circular pipe (Corrugated steel) |
Fish Passage Rating: Black |
| |
| Length(ft): 130.0 |
| Inlet Type: Mitered |
| Outlet Type: Mitered |
| Corrugation Depth(in.): |
| Corrugation Width(in.): |
| Condition Rating(1-5): 3 |
| Approach Angle: |
| Sedimentation At Inlet: Yes |
| Inlet Substrate: |
| Outlet Substrate: |
|
| Inlet | Outlet |
|---|
| Width(ft): | 4.0 | 4.0 |
| Height(ft): | 4.0 | 4.0 |
| Apron Length(ft): | | |
| Water Depth(ft): | | 0.0 |
| Rustline Height(ft): | | |
| Substrate Depth(ft): | | |
|
| Backwatered?: No |
| Baffles Present: No |
| Embedded?: No |
| Outfall Height: |
| Outfall Type: At Stream Grade |
Constriction Ratio: |
| Culvert Gradient: |
| Max Slope: |
| Max Slope Length: |
|
| |
Comments: This culvert was not taking any flows at the water level during time of visit. |
| ID: 2 |
Structure Type: Circular pipe (Corrugated steel) |
Fish Passage Rating: Gray |
| |
| Length(ft): 130.0 |
| Inlet Type: Mitered |
| Outlet Type: Mitered |
| Corrugation Depth(in.): |
| Corrugation Width(in.): |
| Condition Rating(1-5): 3 |
| Approach Angle: |
| Sedimentation At Inlet: Yes |
| Inlet Substrate: |
| Outlet Substrate: |
|
| Inlet | Outlet |
|---|
| Width(ft): | 4.0 | 4.0 |
| Height(ft): | 4.0 | 4.0 |
| Apron Length(ft): | | |
| Water Depth(ft): | | |
| Rustline Height(ft): | | |
| Substrate Depth(ft): | | |
|
| Backwatered?: No |
| Baffles Present: No |
| Embedded?: No |
| Outfall Height: |

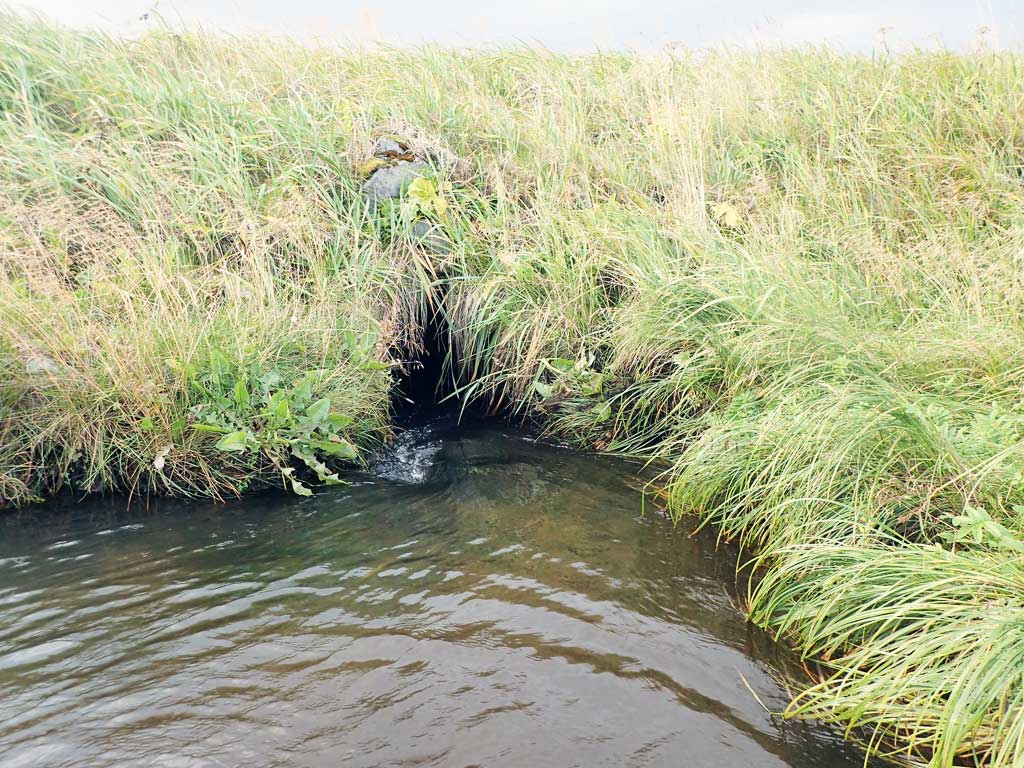

| Outfall Type: Free Fall In To Pool |
Constriction Ratio: |
| Culvert Gradient: |
| Max Slope: |
| Max Slope Length: |
|
| |

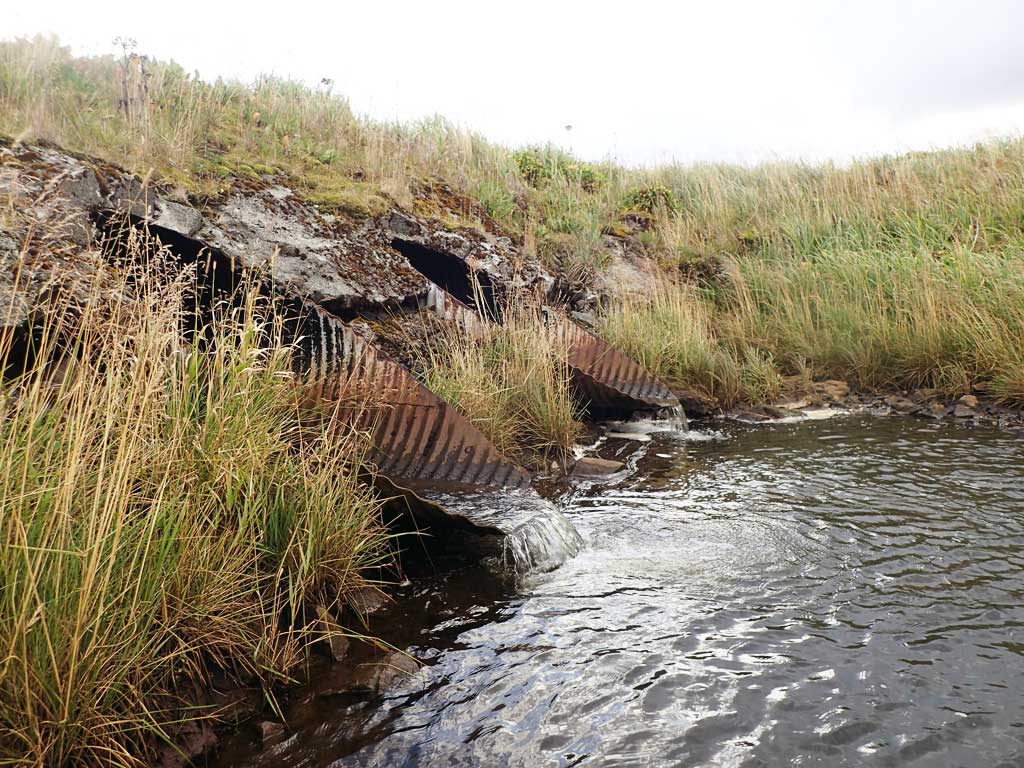

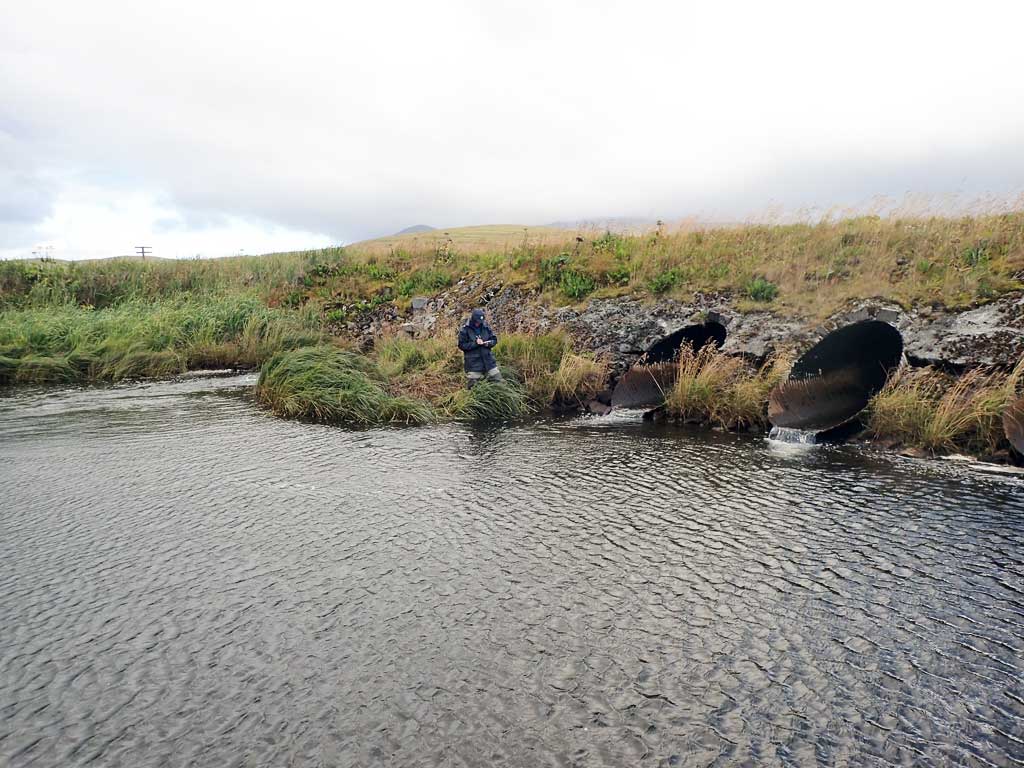

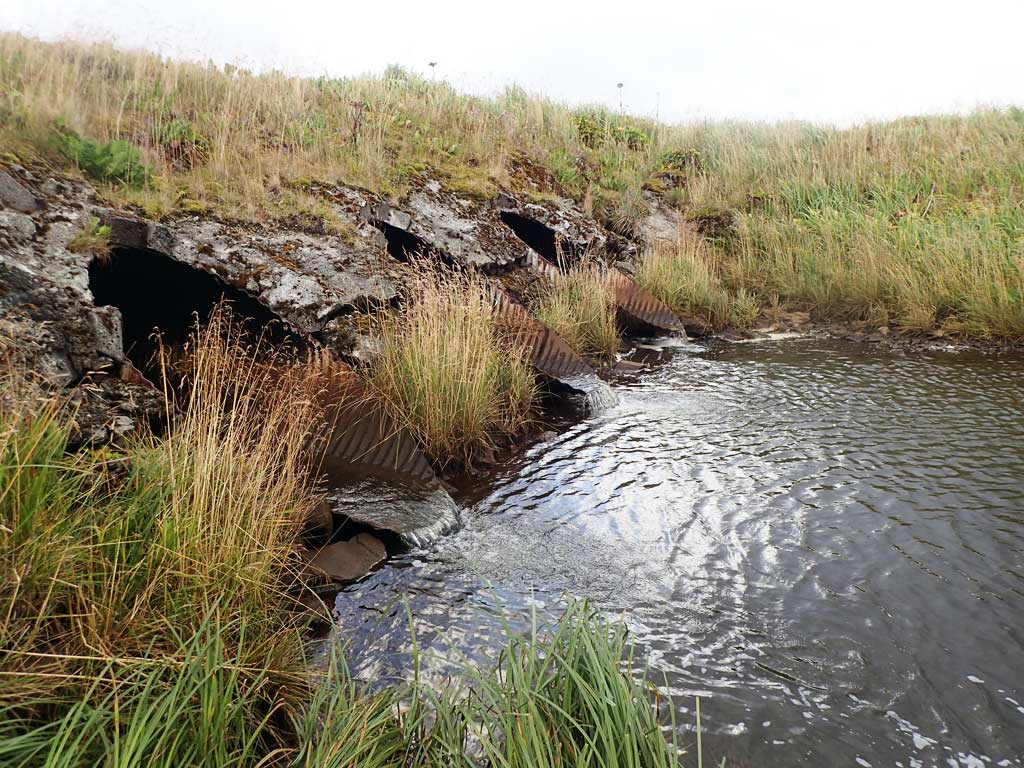

Comments: Culvert has a perch, maybe over 0.40 inches, but not measured at time of visit. |
| |
Culvert Observations:
- Outfall height gray
|
| ID: 3 |
Structure Type: Circular pipe (Corrugated steel) |
Fish Passage Rating: Gray |
| |
| Length(ft): 130.0 |
| Inlet Type: Mitered |
| Outlet Type: Mitered |
| Corrugation Depth(in.): |
| Corrugation Width(in.): |
| Condition Rating(1-5): 3 |
| Approach Angle: |
| Sedimentation At Inlet: Yes |
| Inlet Substrate: |
| Outlet Substrate: |
|
| Inlet | Outlet |
|---|
| Width(ft): | 4.0 | 4.0 |
| Height(ft): | 4.0 | 4.0 |
| Apron Length(ft): | | |
| Water Depth(ft): | | |
| Rustline Height(ft): | | |
| Substrate Depth(ft): | | |
|
| Backwatered?: No |
| Baffles Present: No |
| Embedded?: No |
| Outfall Height: |
| Outfall Type: Free Fall In To Pool |
Constriction Ratio: |
| Culvert Gradient: |
| Max Slope: |
| Max Slope Length: |
|
| |

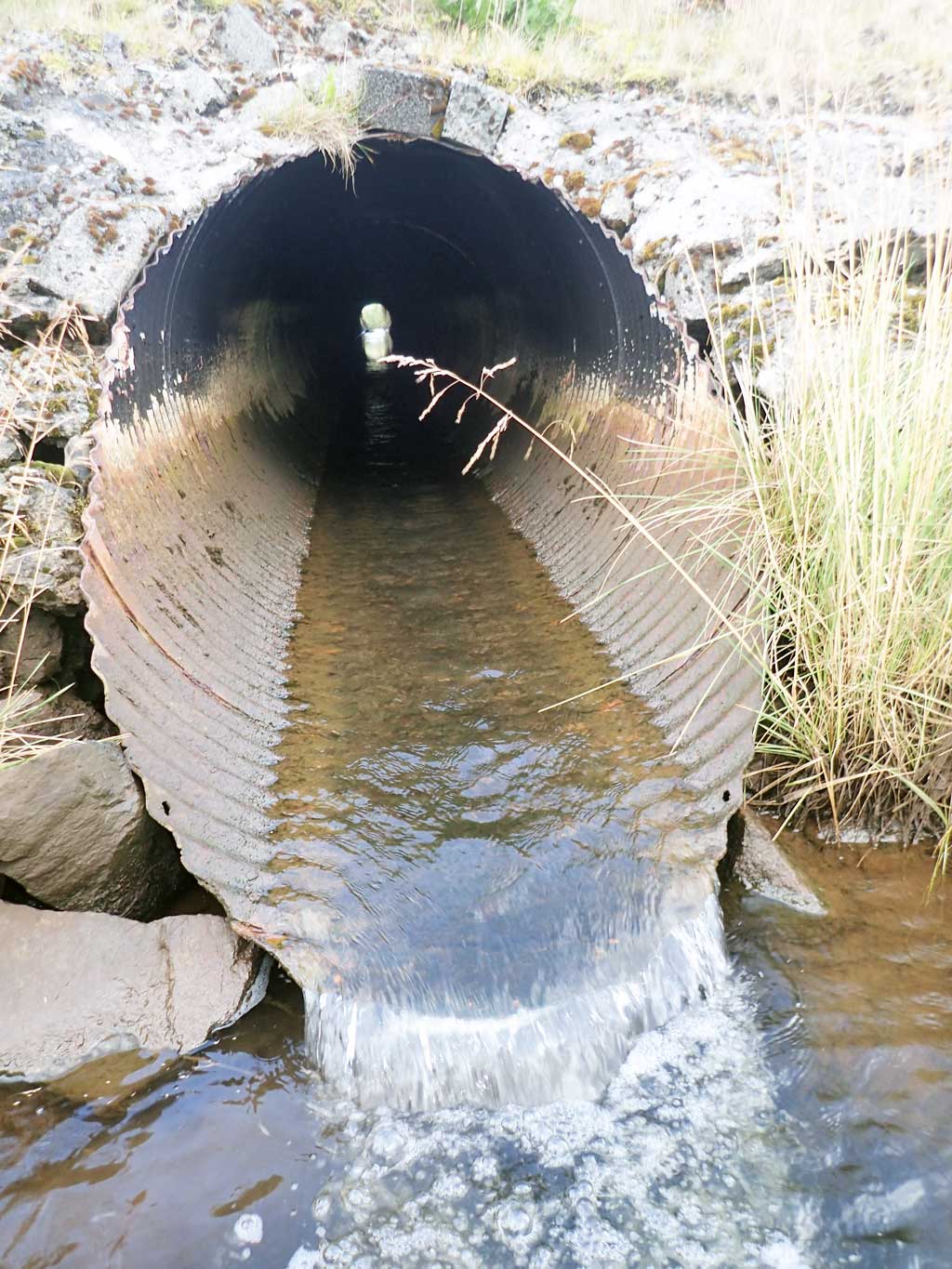

Comments: Culvert is perched, maybe over 0.40 feet, but not measured at time of visit. |
| |
Culvert Observations:
- Outfall height gray
|
| ID: 4 |
Structure Type: Circular pipe (Corrugated steel) |
Fish Passage Rating: Gray |
| |
| Length(ft): 130.0 |
| Inlet Type: Mitered |
| Outlet Type: Mitered |
| Corrugation Depth(in.): |
| Corrugation Width(in.): |
| Condition Rating(1-5): 3 |
| Approach Angle: |
| Sedimentation At Inlet: Yes |
| Inlet Substrate: |
| Outlet Substrate: |
|
| Inlet | Outlet |
|---|
| Width(ft): | 4.0 | 4.0 |
| Height(ft): | 4.0 | 4.0 |
| Apron Length(ft): | | |
| Water Depth(ft): | | |
| Rustline Height(ft): | | |
| Substrate Depth(ft): | | |
|
| Backwatered?: No |
| Baffles Present: No |
| Embedded?: No |
| Outfall Height: |
| Outfall Type: Free Fall In To Pool |
Constriction Ratio: |
| Culvert Gradient: |
| Max Slope: |
| Max Slope Length: |
|
| |

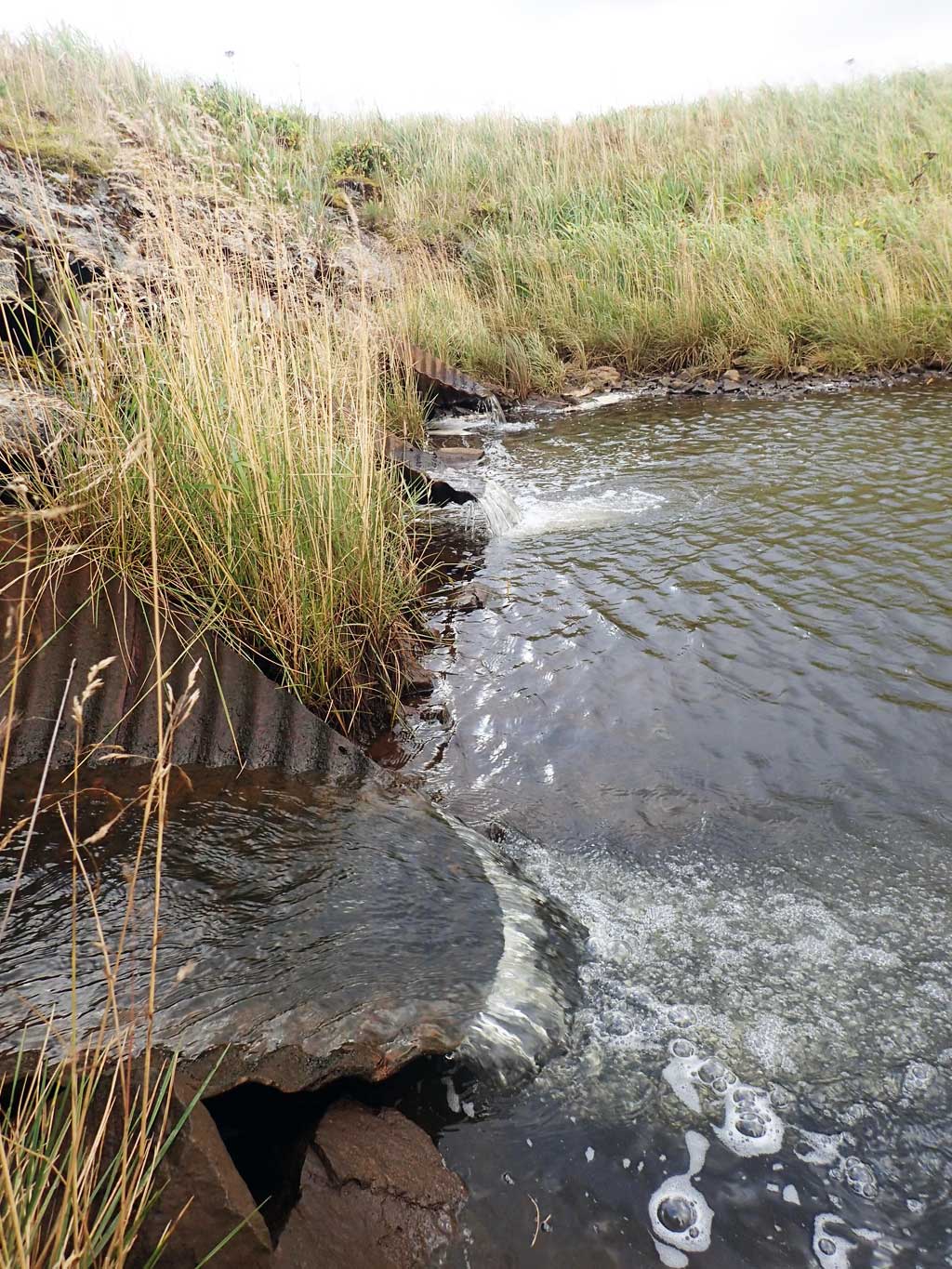

Comments: Culvert is perched, outfall maybe over 0.40', but was not measured at time of survey. |
| ID: 5 |
Structure Type: Circular pipe (Corrugated steel) |
Fish Passage Rating: Black |
| |
| Length(ft): 130.0 |
| Inlet Type: Mitered |
| Outlet Type: Mitered |
| Corrugation Depth(in.): |
| Corrugation Width(in.): |
| Condition Rating(1-5): 3 |
| Approach Angle: |
| Sedimentation At Inlet: Yes |
| Inlet Substrate: |
| Outlet Substrate: |
|
| Inlet | Outlet |
|---|
| Width(ft): | 4.0 | 4.0 |
| Height(ft): | 4.0 | 4.0 |
| Apron Length(ft): | | |
| Water Depth(ft): | | |
| Rustline Height(ft): | | |
| Substrate Depth(ft): | | |
|
| Backwatered?: No |
| Baffles Present: No |
| Embedded?: No |
| Outfall Height: 0.0 |
| Outfall Type: At Stream Grade |
Constriction Ratio: |
| Culvert Gradient: |
| Max Slope: |
| Max Slope Length: |
|
| |

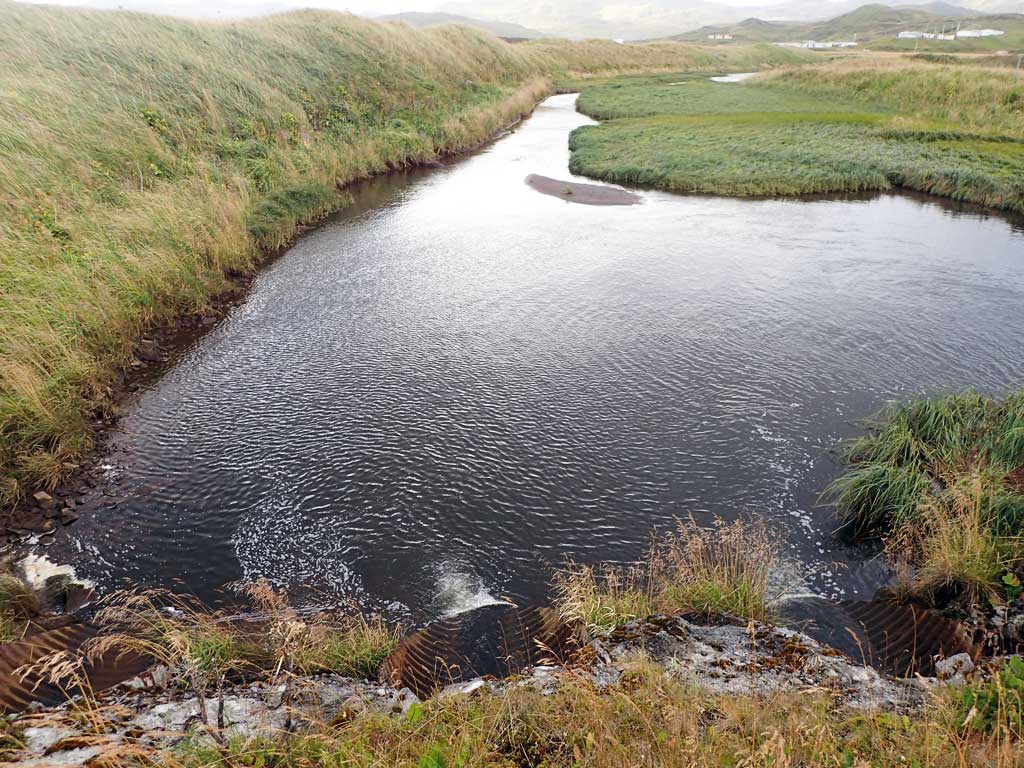

Comments: Culvert taken majority of flow from bank of culverts, also the only one with water that has an outlet at grade. |
| |
Culvert Observations:
- Inlet perch
|
Stream Measurements
| Stream Substrates | Upstream | Downstream |
|---|
| Dominant: | | |
| Subdominant: | | |
|
| Stream Slope(deg.): | |
|---|
| Stream Flow Stage: | Medium |
|---|
|
No stream width data available.
Elevations
No elevation data available.
Fish Sampling Efforts
| Gear Type: Visual Observation, Ground (A) |
|
| |
| Gear Type: Visual Observation, Ground (B) |
|
Fish Observations
| Species: adult spawning pink salmon |
Life History: Anadromous |
| Total Fish Observed: 5 |
Fish Measured: |
Fork Lengths (mm) Min: Max: Mean: |
| Collected/Observed by Gear Type: Downstream Visual Observation, Ground (2) Upstream Visual Observation, Ground (3) |
