Fish Passage Site 30103681

Coordinates (dec. deg.): 51.88104°, -176.65549°
Legal Description: S096S195W10
Region: Southwest

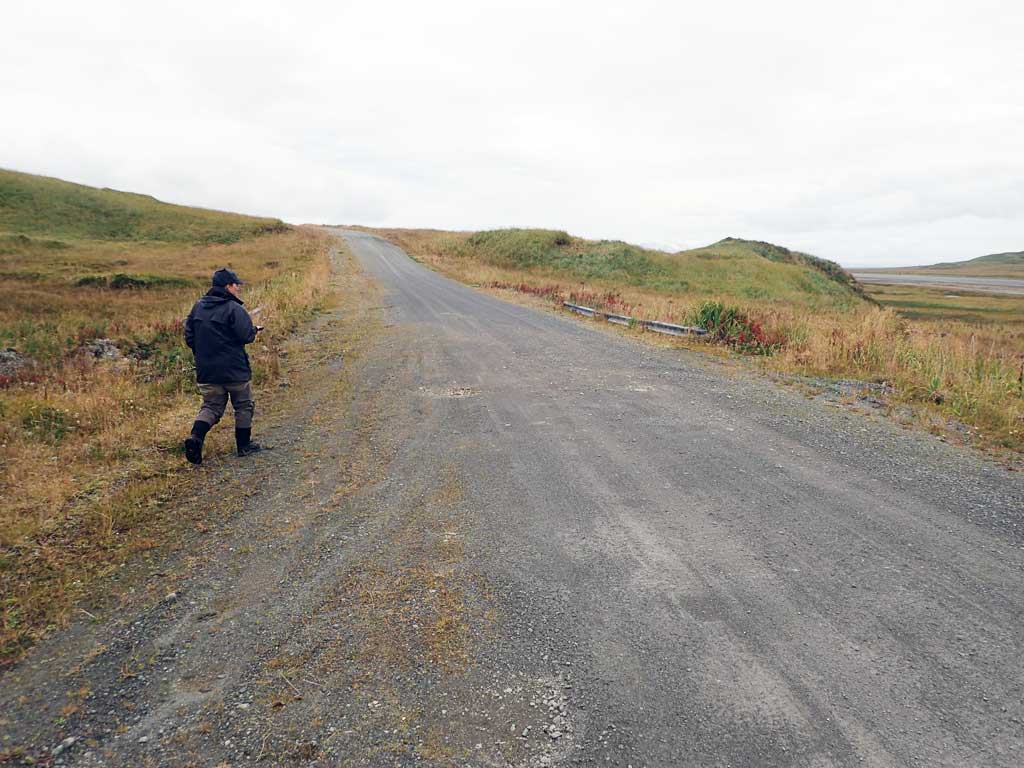

Road Name: Hillside Boulevard

Datum: NAD83
Quad Name / ITM: Adak C-2
AWC Stream #:
Stream Name: Unnamed

Elevation:

Site Comments: Tributary to Airport Creek

Survey Date: Sep 17, 2017

Survey ADAK17-C91

Observers: Mark Eisenman, Jeanette Alas

Overall Fish Passage Rating: Red

Tidal: No
Backwatered: No

Step Pools: No
Construction Year:


Site Observations:

  1. Outfall height red

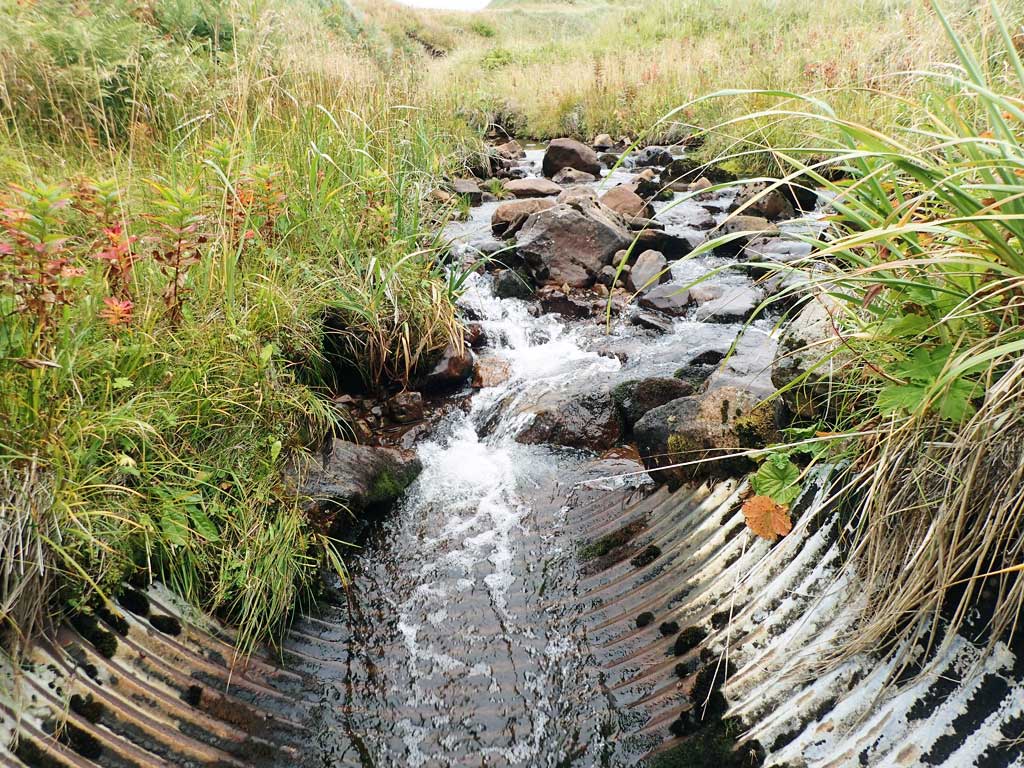

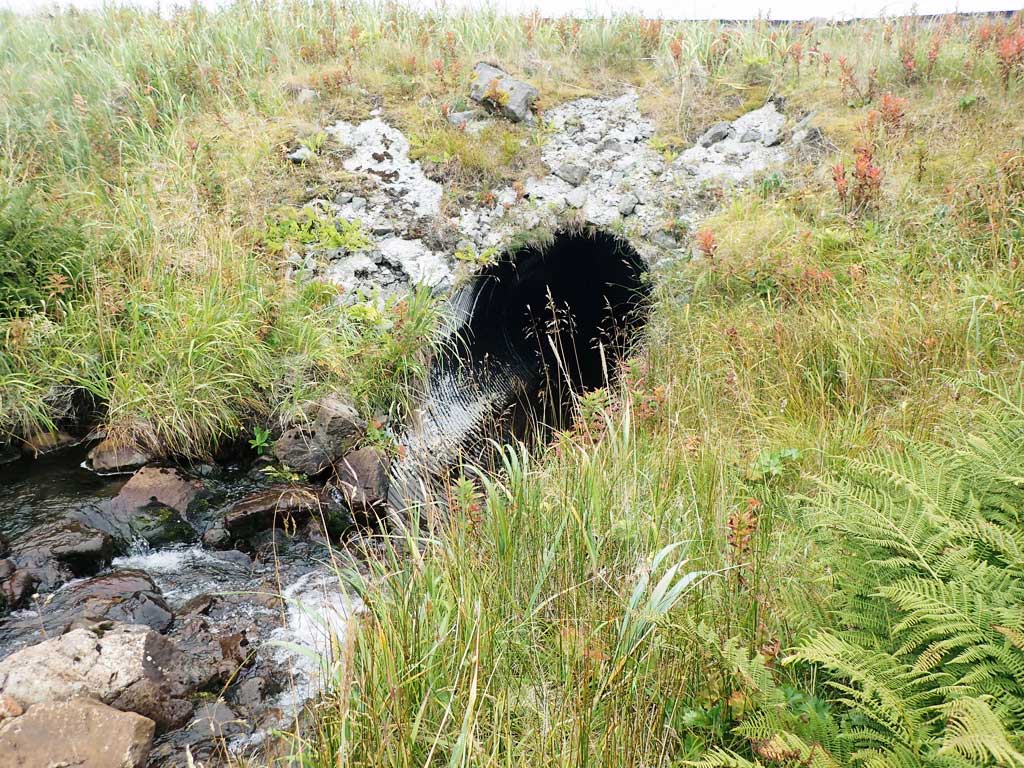

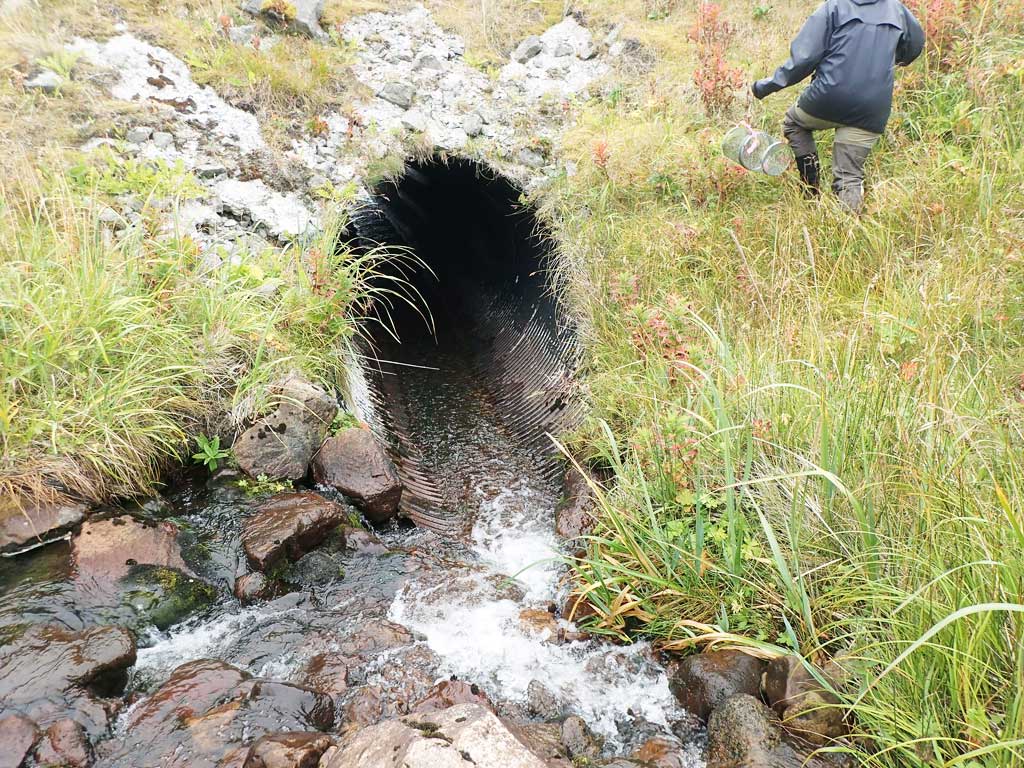

  2. Inlet perch

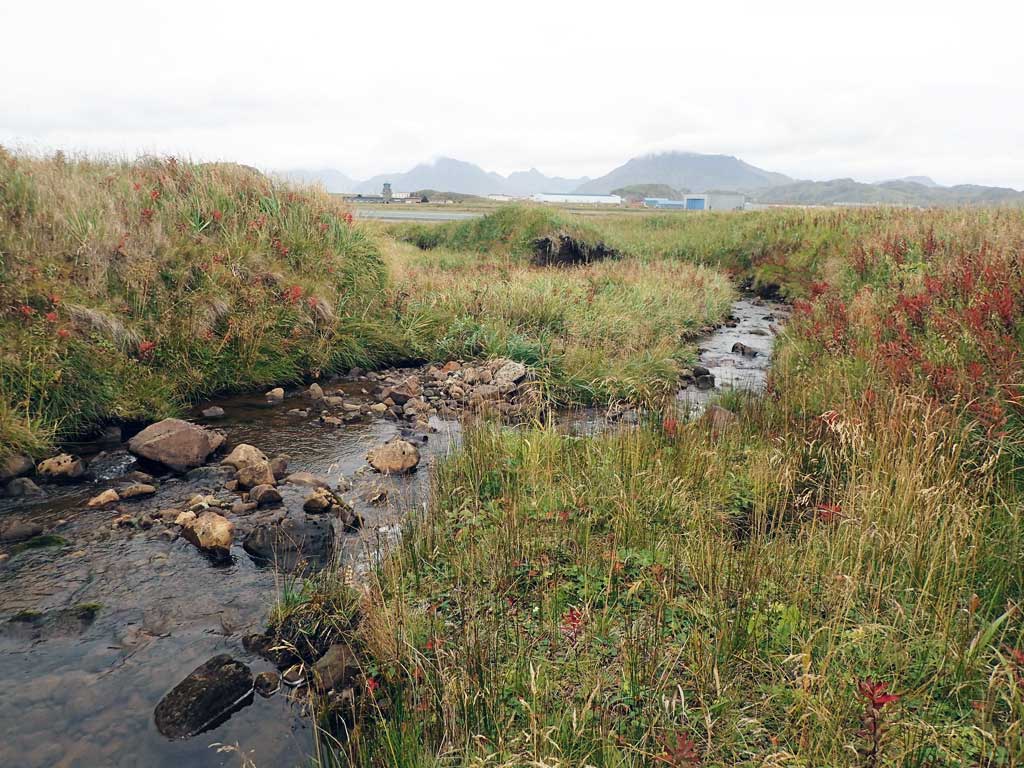

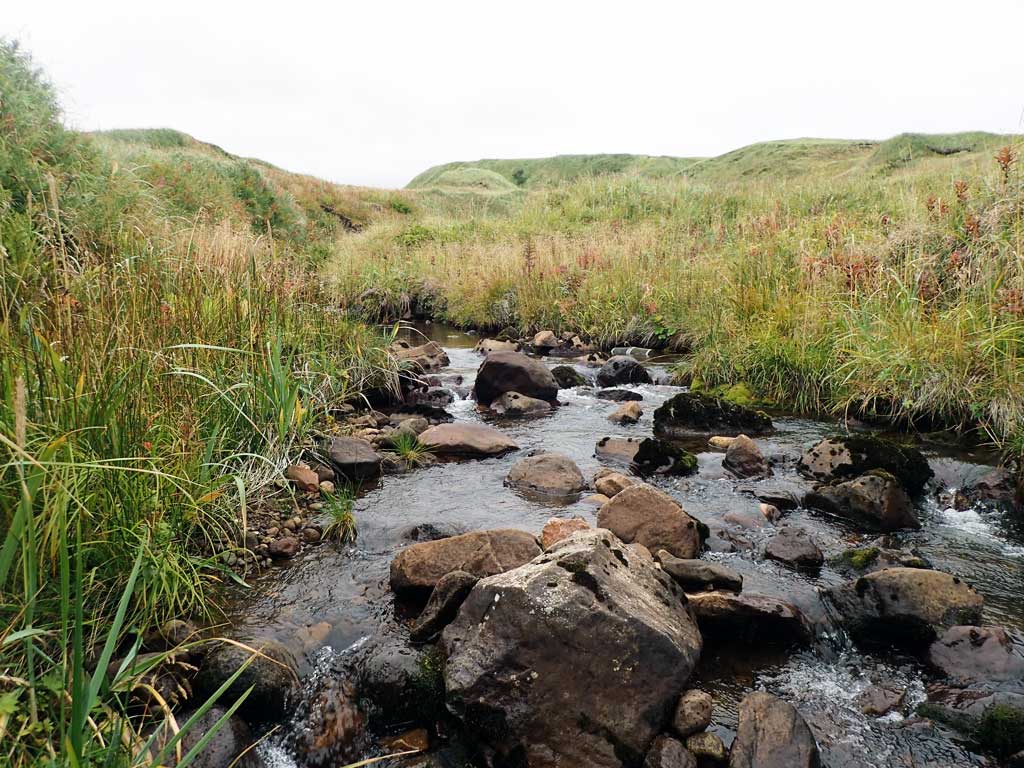

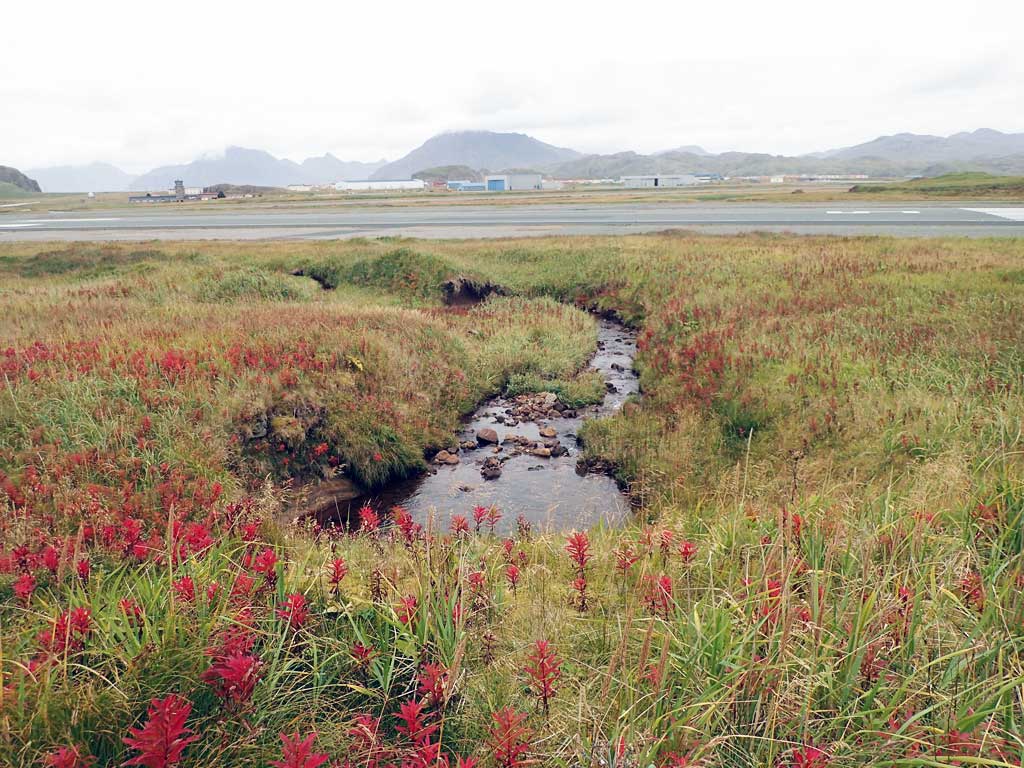

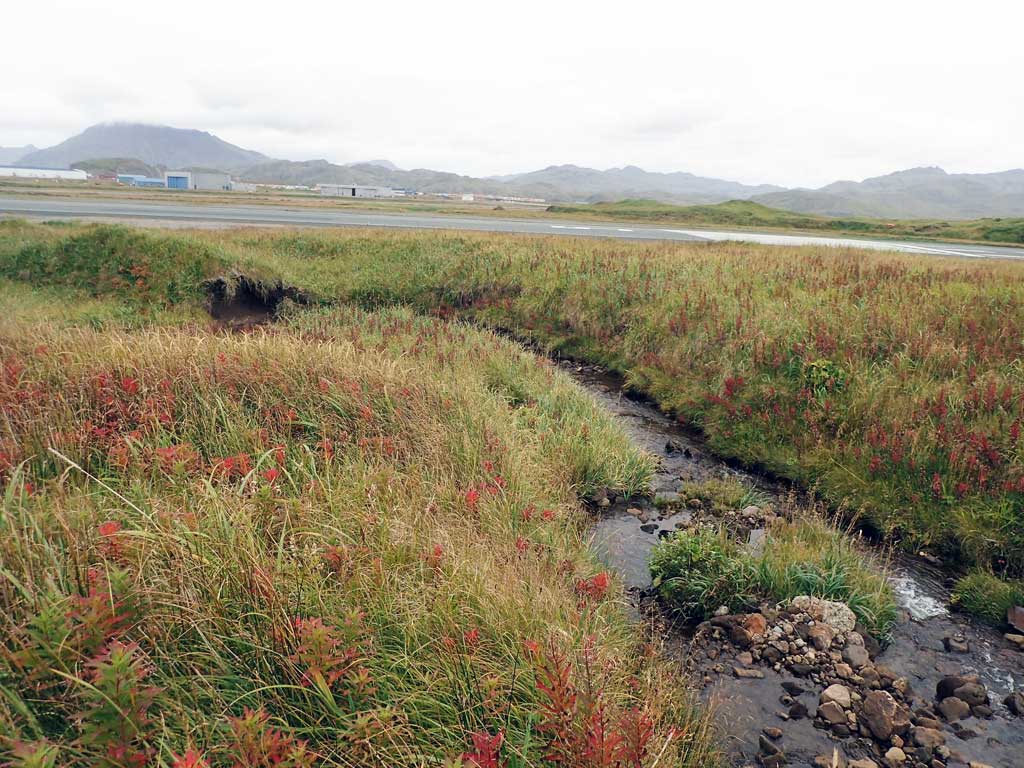

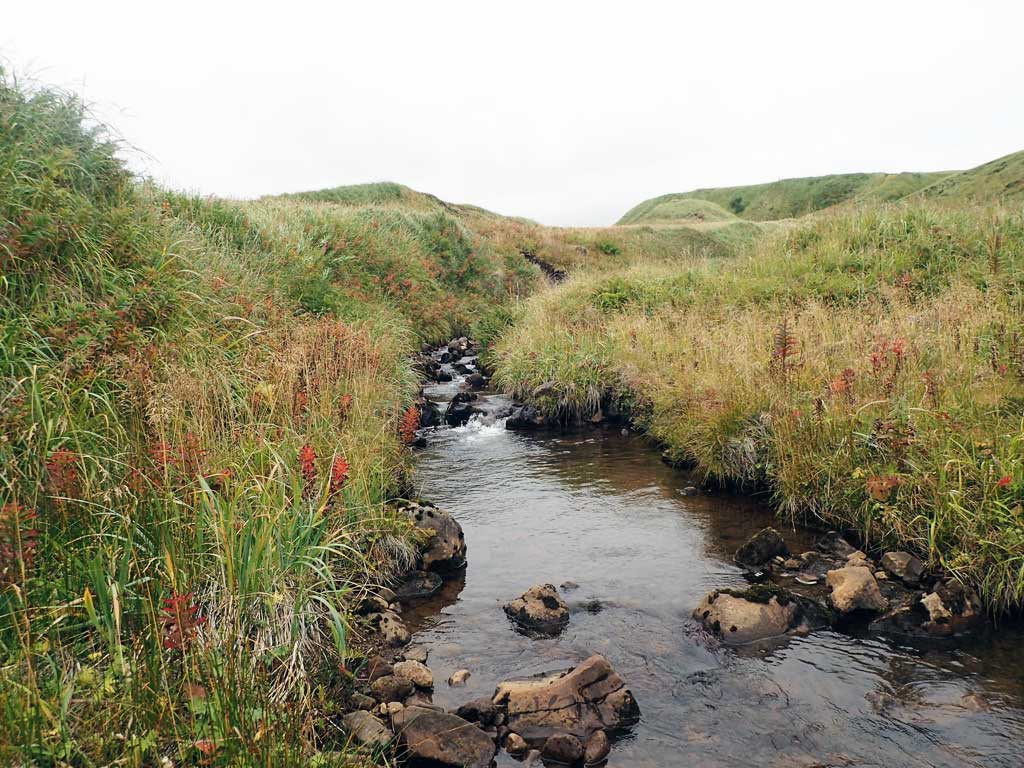

Comments: This information was gathered as part of the joint reconnaissance level project between the ADF&G Habitat Division and the Fish Passage Assessment Project on Adak Island. Due to time constraints full site assessments were not conducted, but base line information was collected. Deep outlet pool and nice habitat upstream. If adults can make it above culvert likely anadromy continues for quite a ways. Lots of healthy looking juvenile coho caught in outlet pool.

Culvert Measurements

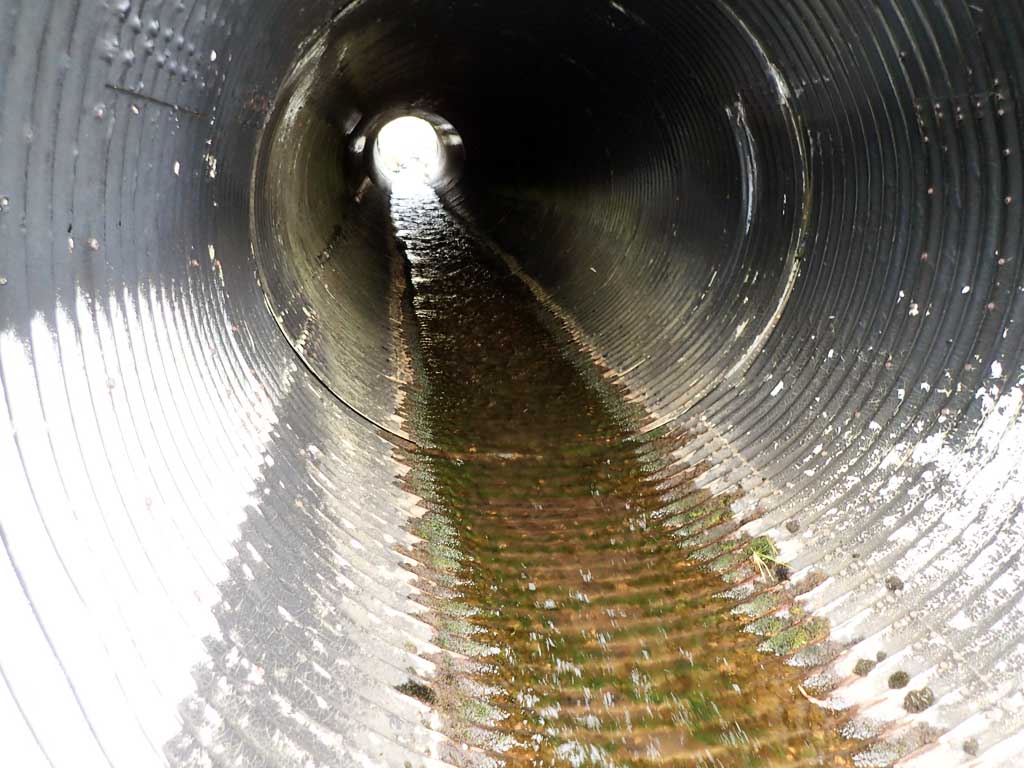

ID: 1 Structure Type: Circular pipe (Corrugated steel) Fish Passage Rating: Red

Length(ft): 82.0
Inlet Type: Mitered
Outlet Type: Mitered
Corrugation Depth(in.):
Corrugation Width(in.):
Condition Rating(1-5): 3
Approach Angle:
Sedimentation At Inlet: Yes
Inlet Substrate: None
Outlet Substrate: None
InletOutlet
Width(ft):6.0 6.0
Height(ft):6.0 6.0
Apron Length(ft):
Water Depth(ft):
Rustline Height(ft):
Substrate Depth(ft):0.0 0.0
Backwatered?: No
Baffles Present: No
Embedded?: No

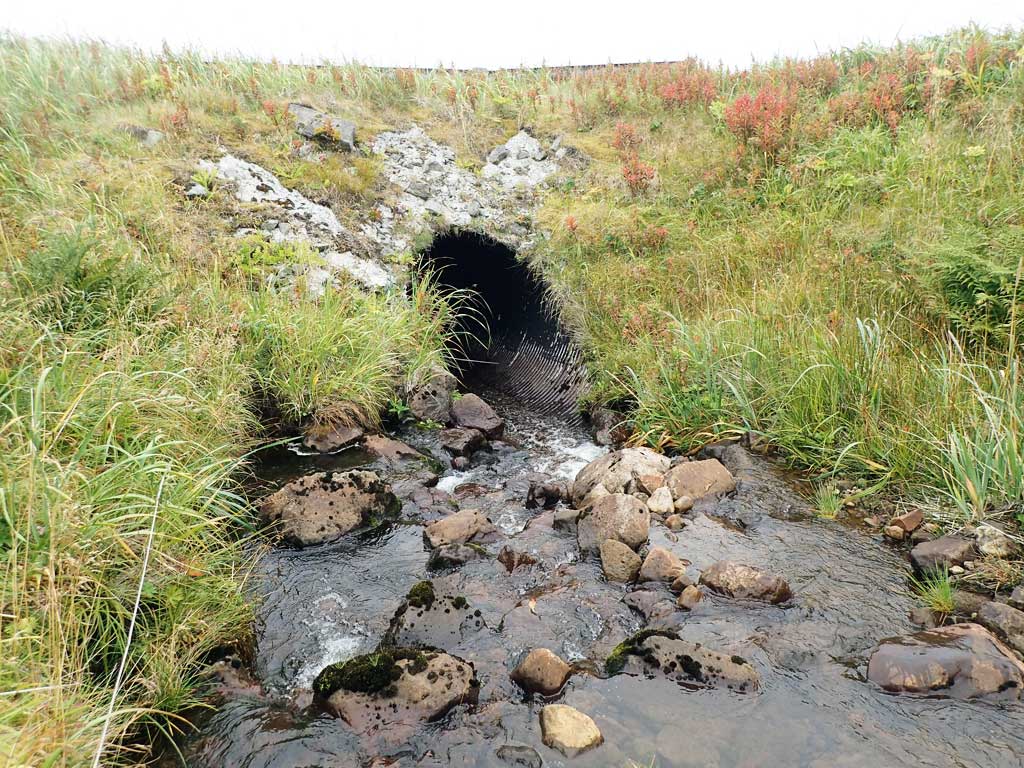

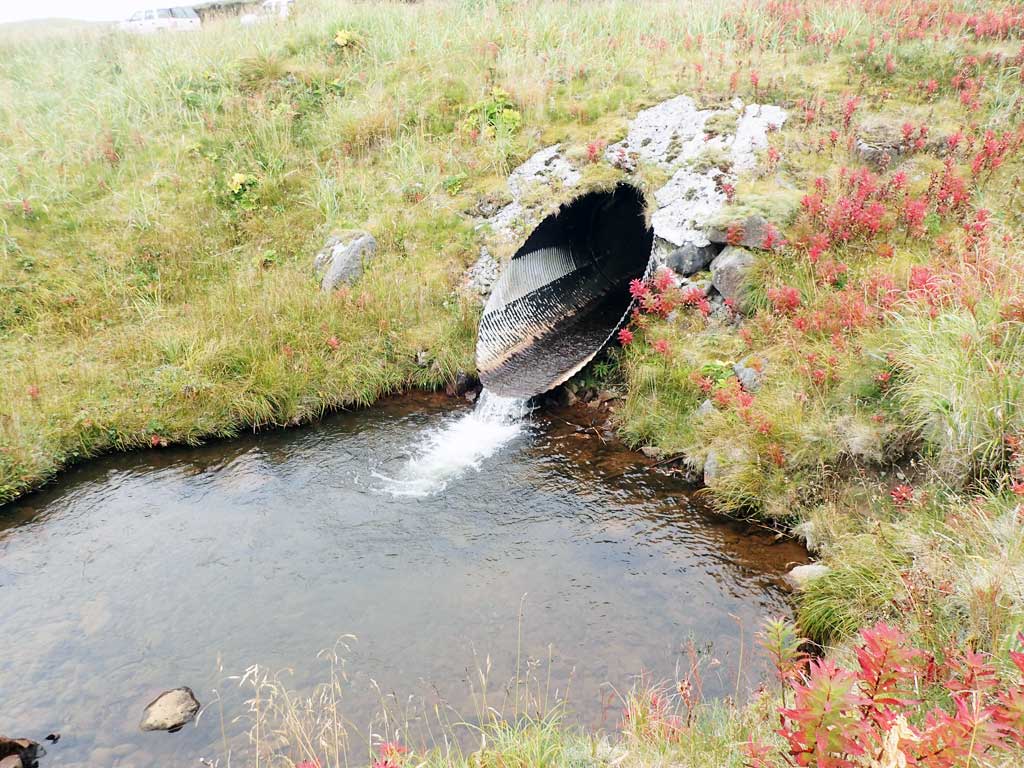

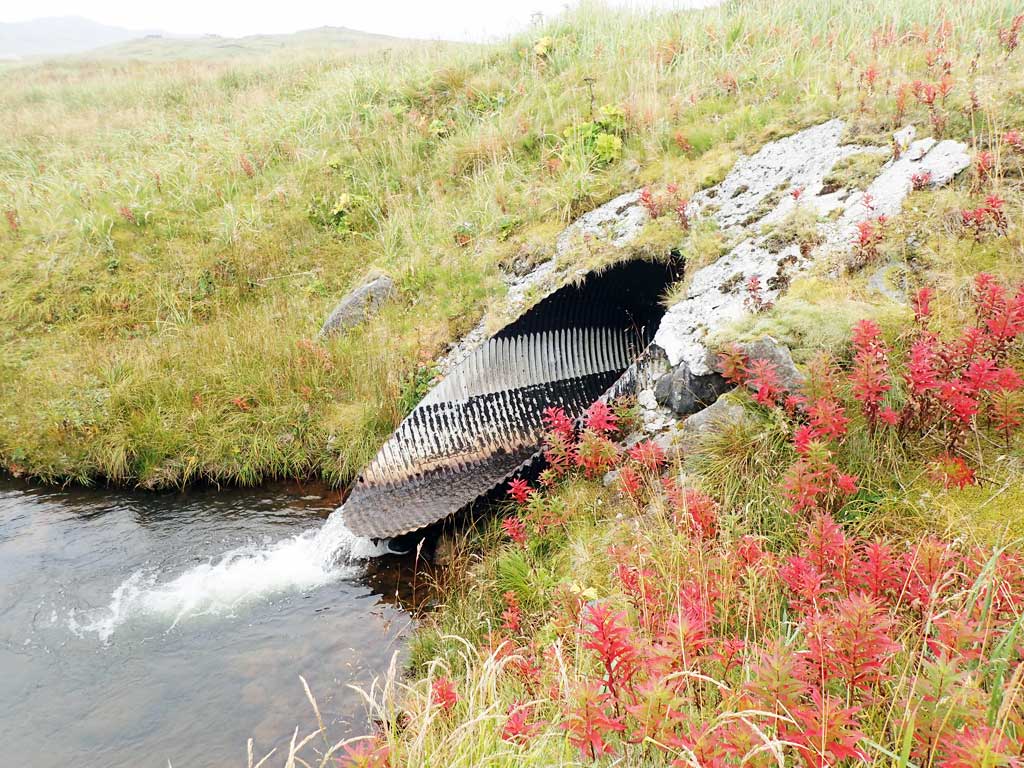

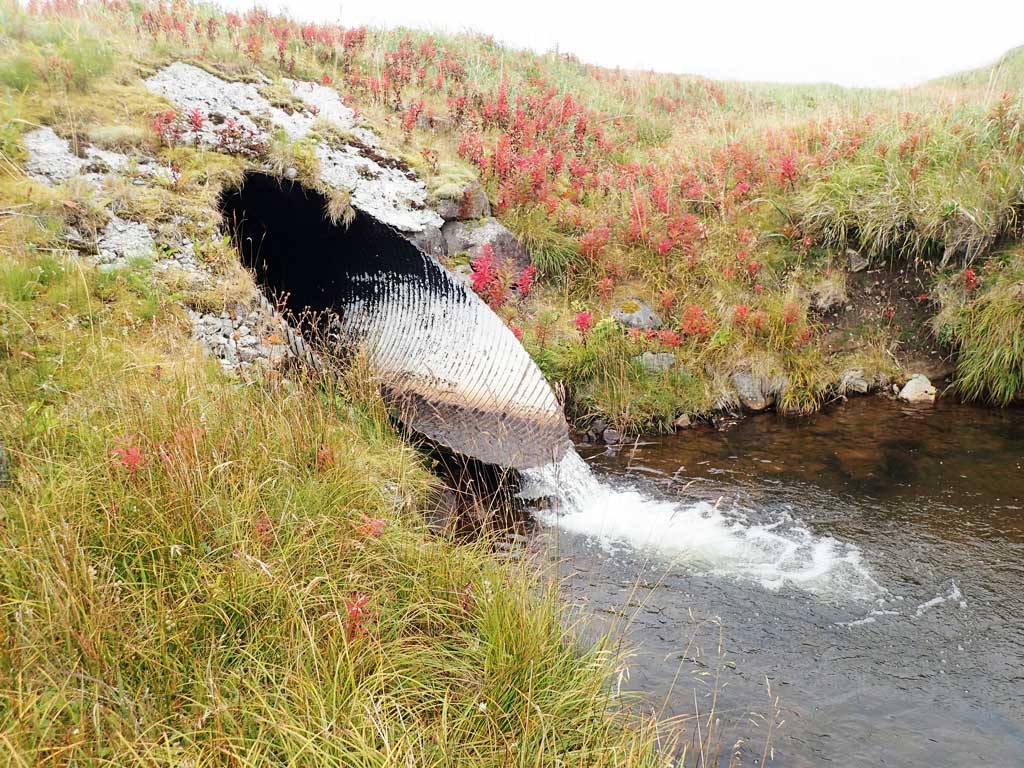

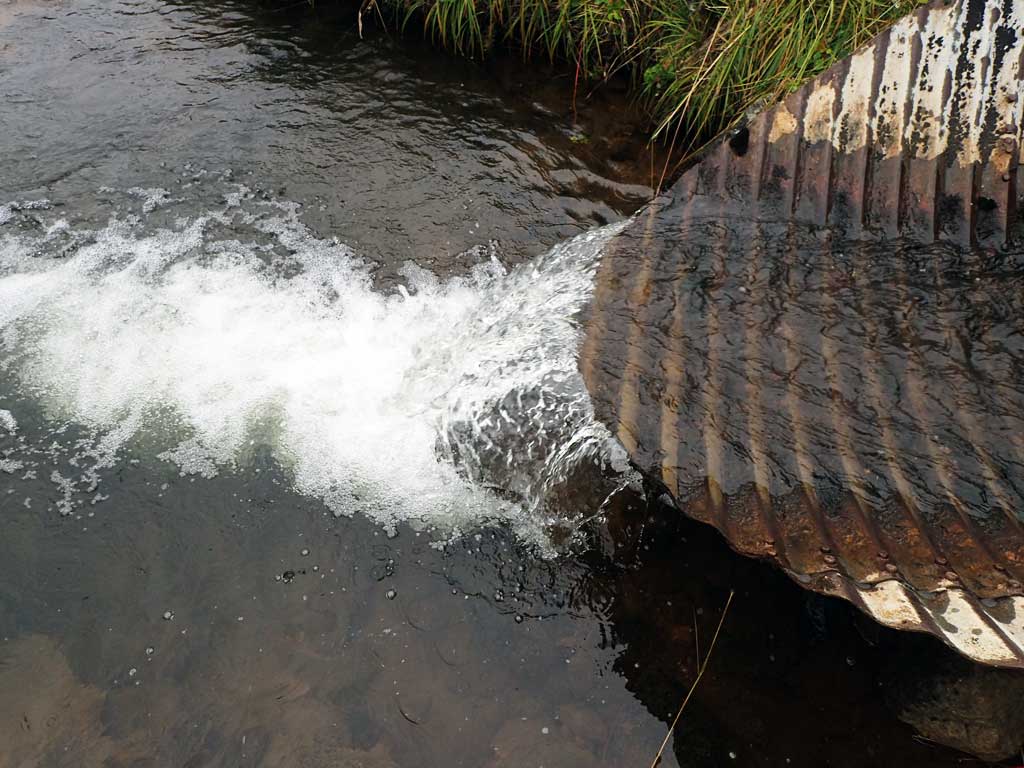

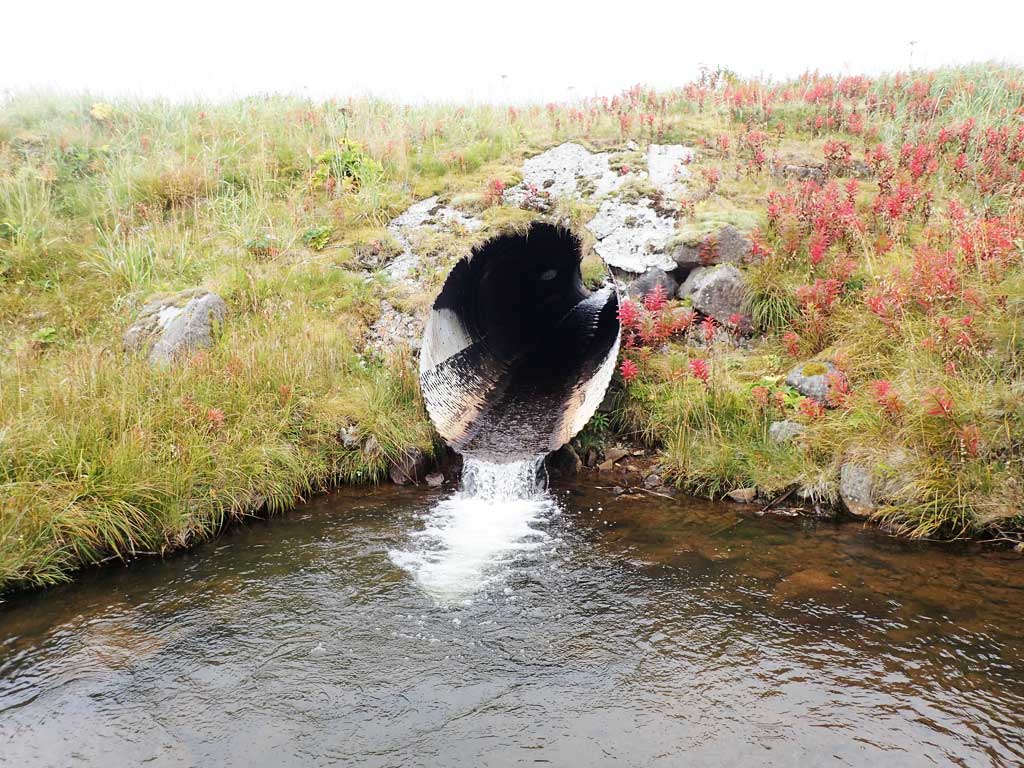

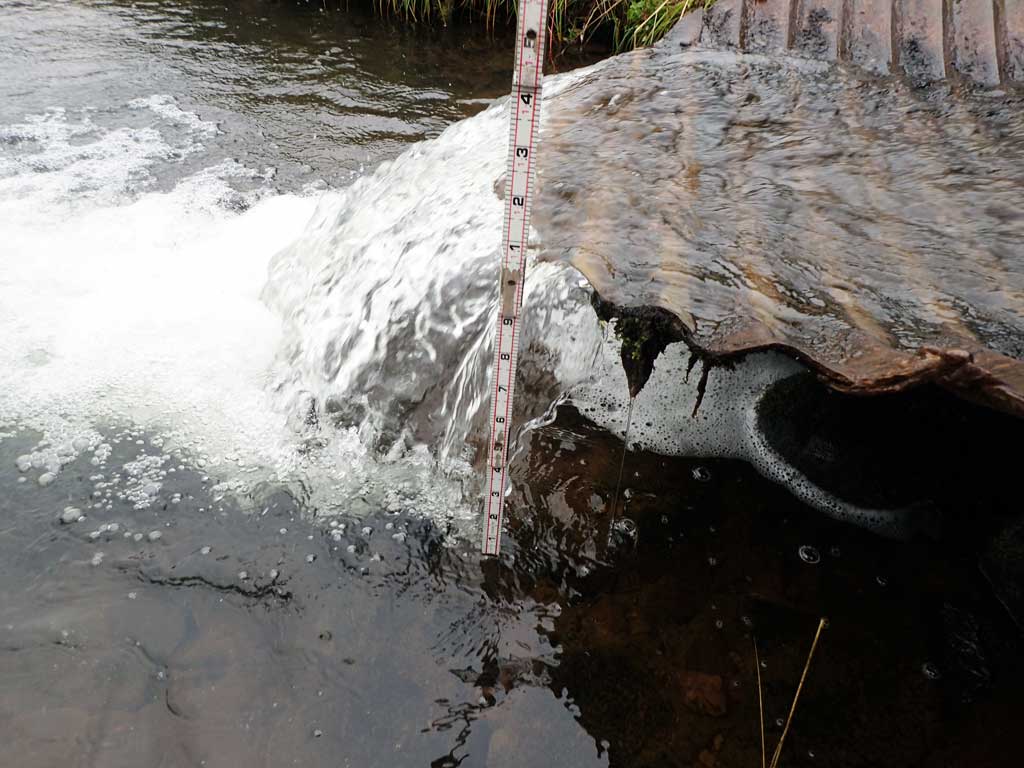

Outfall Height: 1.0

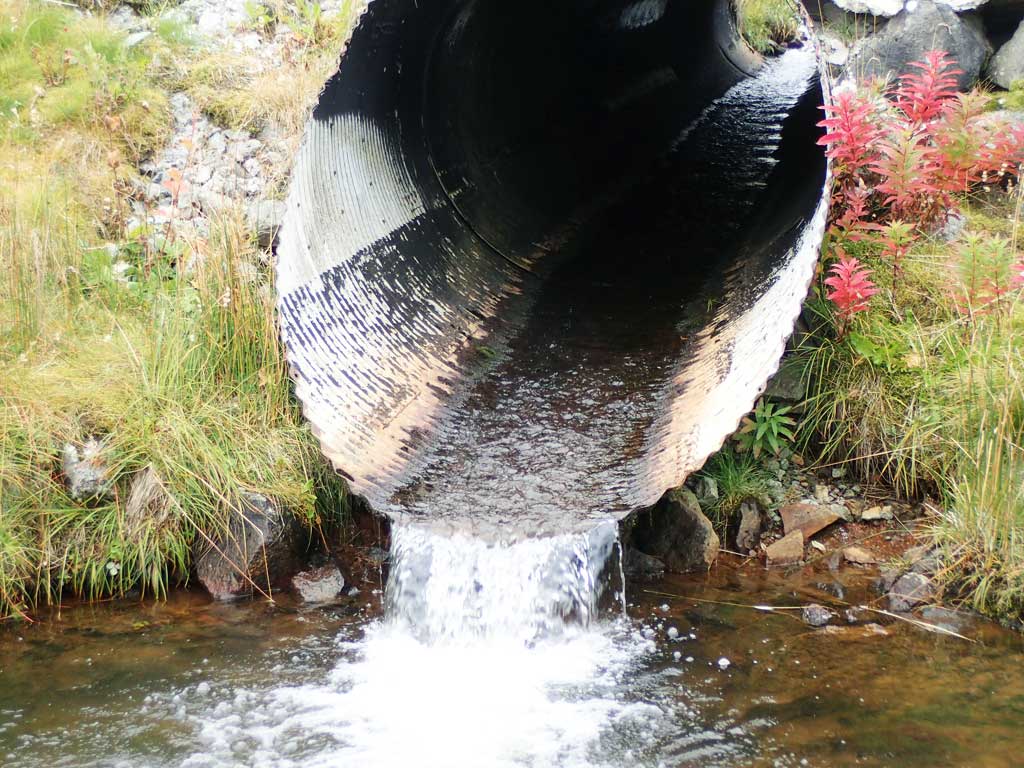

Outfall Type: Free Fall In To Pool
Constriction Ratio:
Culvert Gradient:
Max Slope:
Max Slope Length:

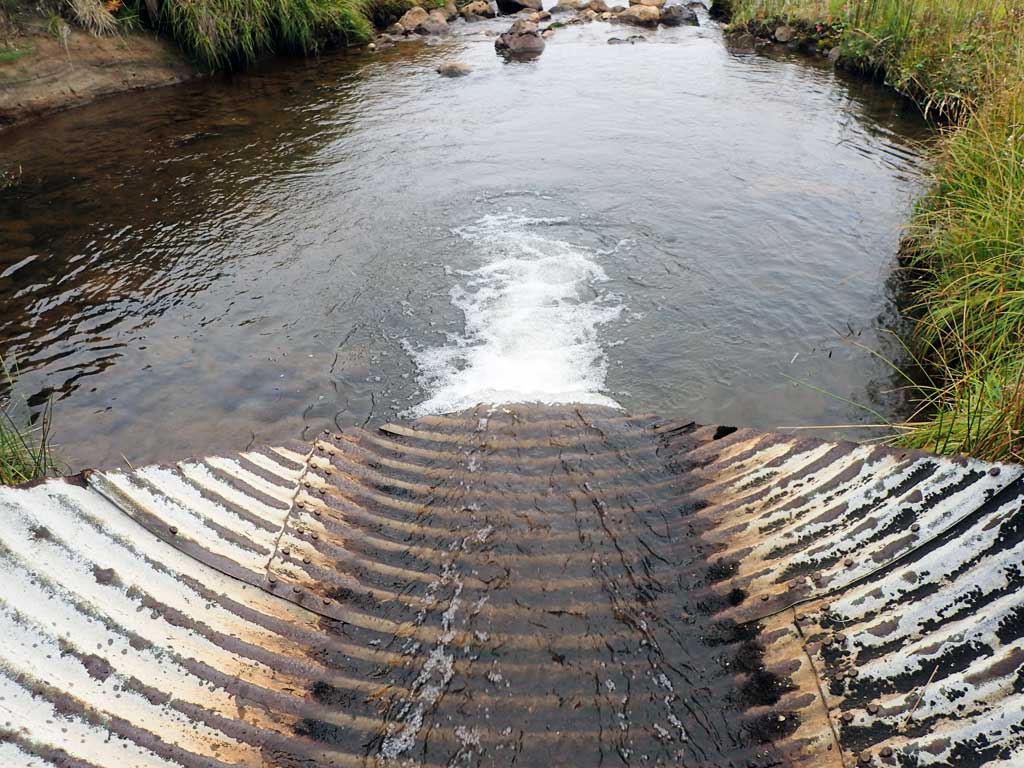

Comments: Culvert length estimated using aerial imagery. Outfall over 1 foot. Deep outlet pool.
  Culvert Observations:
  1. Outfall height red
  2. Inlet perch

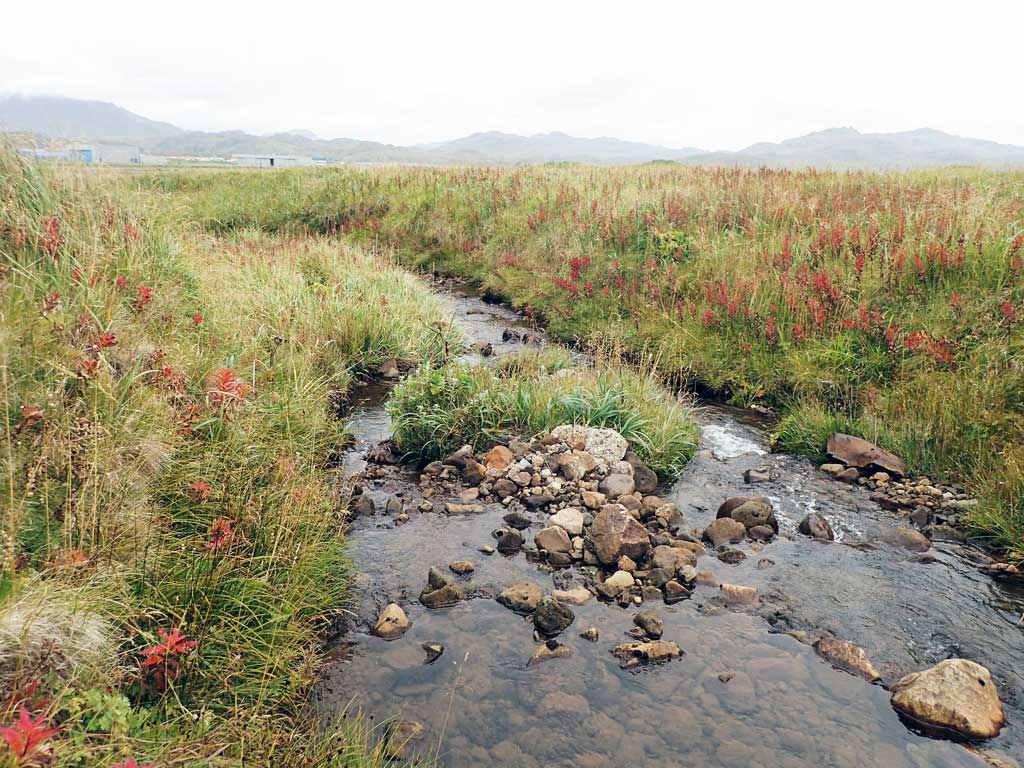

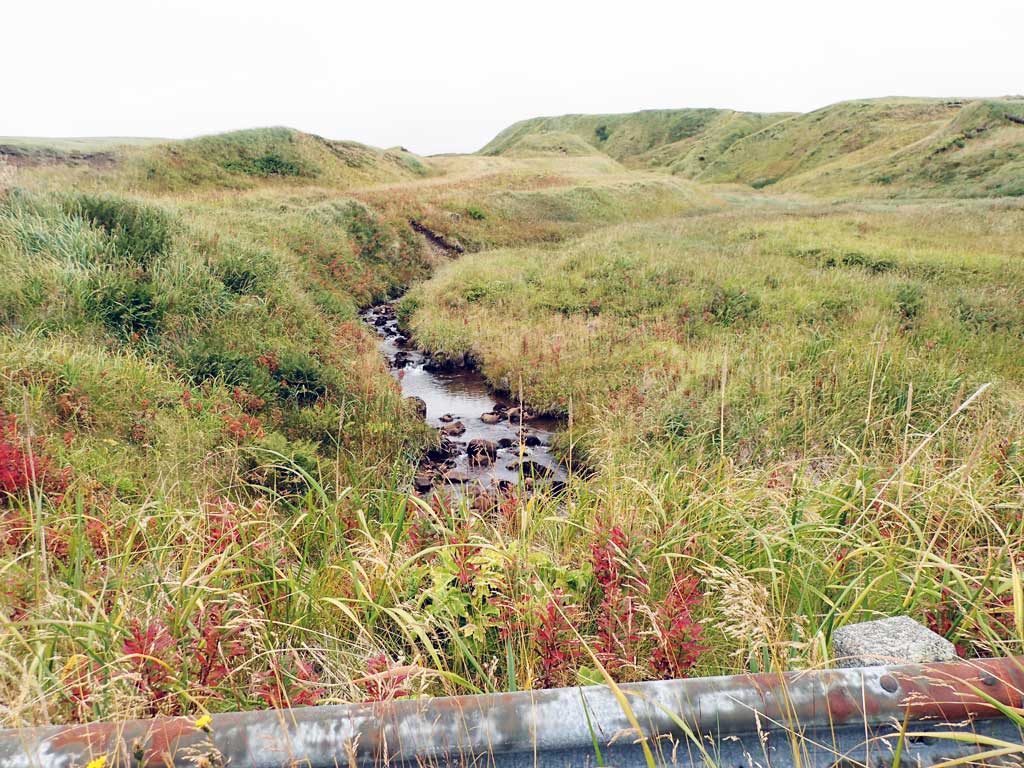

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:
Subdominant:
Stream Slope(deg.):
Stream Flow Stage:Medium

No stream width data available.

Elevations

No elevation data available.

Fish Sampling Efforts

Gear Type: Minnow Trap (A) Trap Duration(h): 1.5
Comments: Trap set in outlet pool

Fish Observations

Species: juvenile coho salmon Life History: Anadromous
Total Fish Observed: 10 Fish Measured: 10 Fork Lengths (mm) Min: 62 Max: 122 Mean: 91
Collected/Observed by Gear Type: Downstream Minnow Trap (10)

Species: juvenile/adult Dolly Varden Life History: Unknown
Total Fish Observed: 1 Fish Measured: 1 Fork Lengths (mm) Min: 90 Max: 90 Mean: 90
Collected/Observed by Gear Type: Downstream Minnow Trap (1)

Questions or comments about this report can be directed to dfg.dsf.webmaster@alaska.gov
