Fish Passage Site 30103678

Coordinates (dec. deg.): 51.91629°, -176.58702°
Legal Description: S095S194W30
Region: Southwest

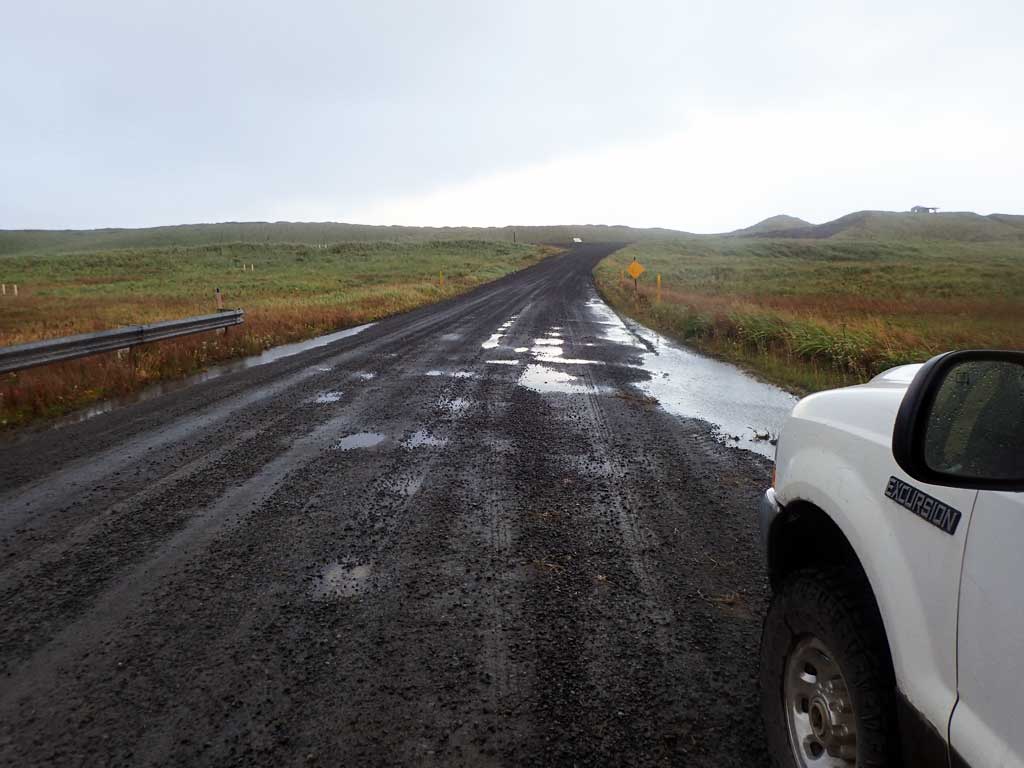

Road Name: Clam Lagoon Road

Datum: NAD83
Quad Name / ITM: Adak C-2
AWC Stream #:
Stream Name: Unnamed

Elevation:

Site Comments: None

Survey Date: Sep 14, 2017

Survey ADAK17-C8

Observers: Mark Eisenman, Jeanette Alas

Overall Fish Passage Rating: Gray

Tidal: Maybe
Backwatered: No

Step Pools: No
Construction Year:


Site Observations:

  1. Outfall height gray

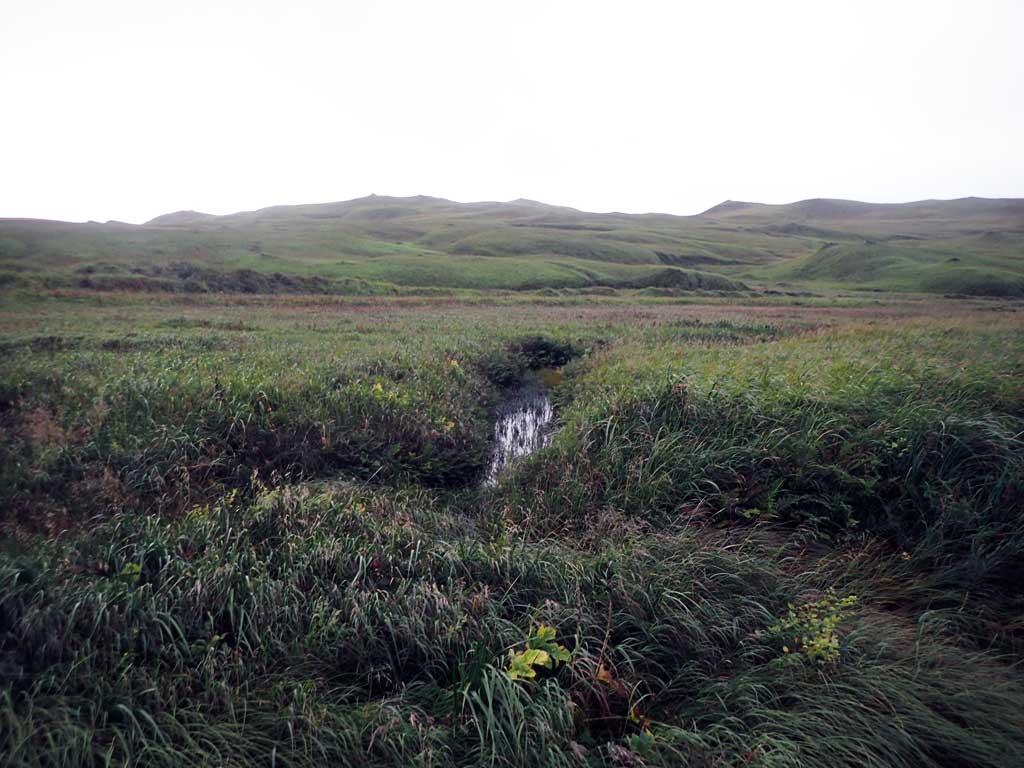

Comments: This information was gathered as part of the joint reconnaissance level project between the ADF&G Habitat Division and the Fish Passage Assessment Project on Adak Island. Due to time constraints full site assessments were not conducted, but base line information was collected. Creek empties into Clam Lagoon downstream, coho caught in upstream and downstream trap. Creek will be nominated to AWC. Culvert maybe tidal, but lack of deterioration suggests that it is not, but may get tidal push back.

Culvert Measurements

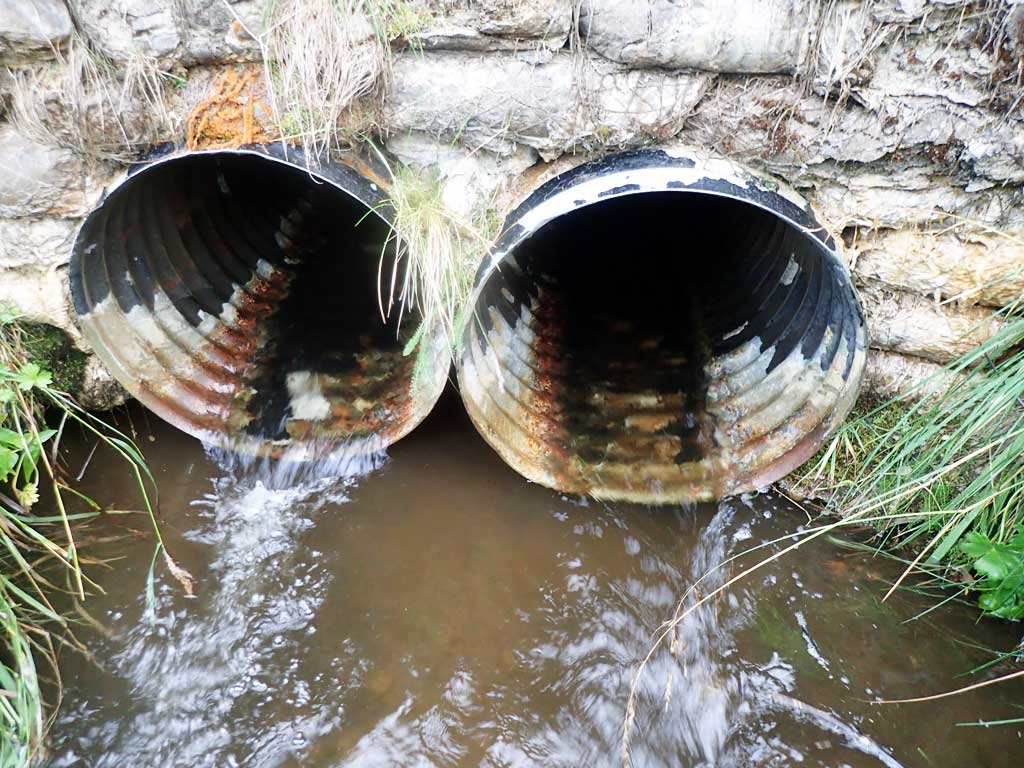

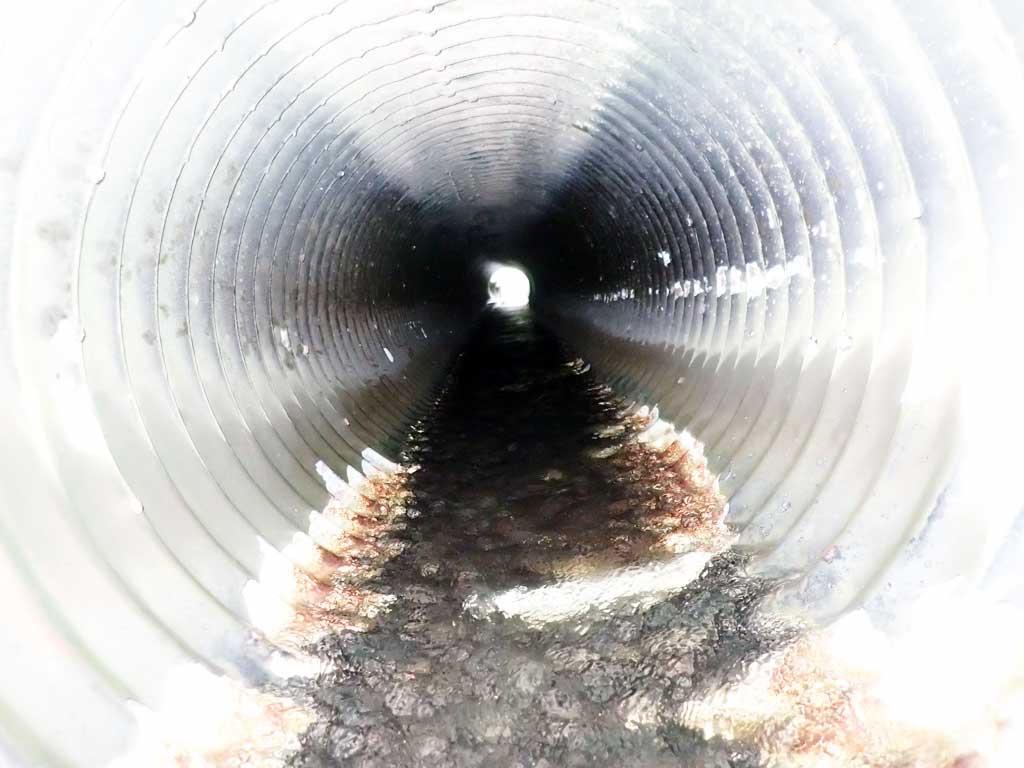

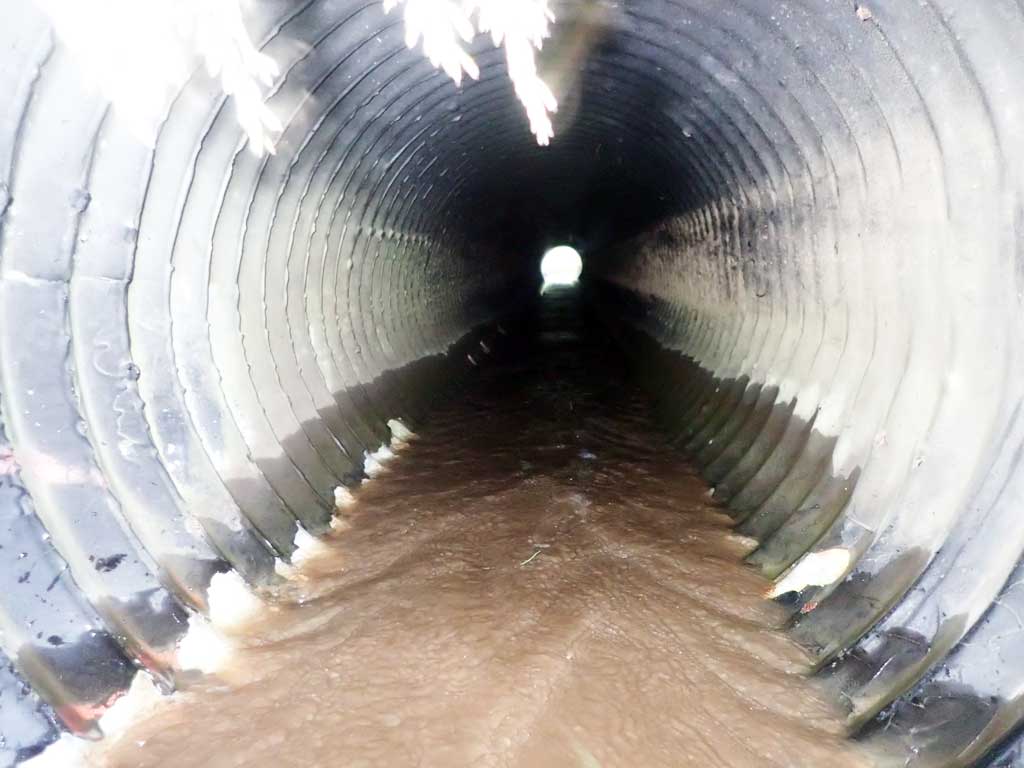

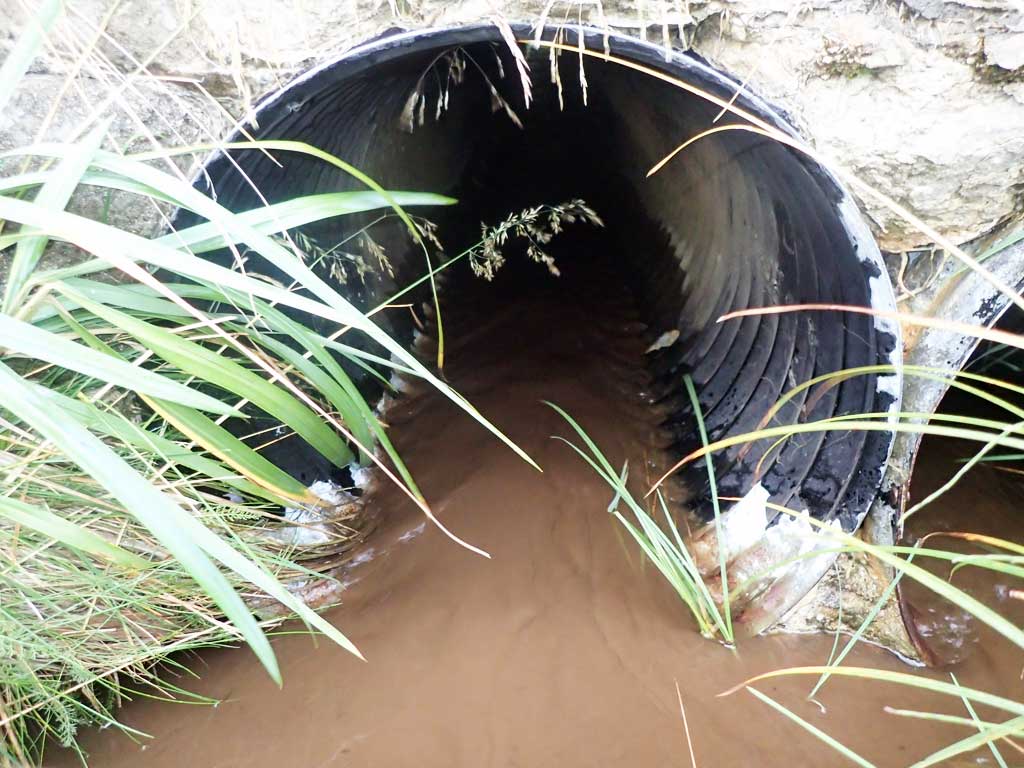

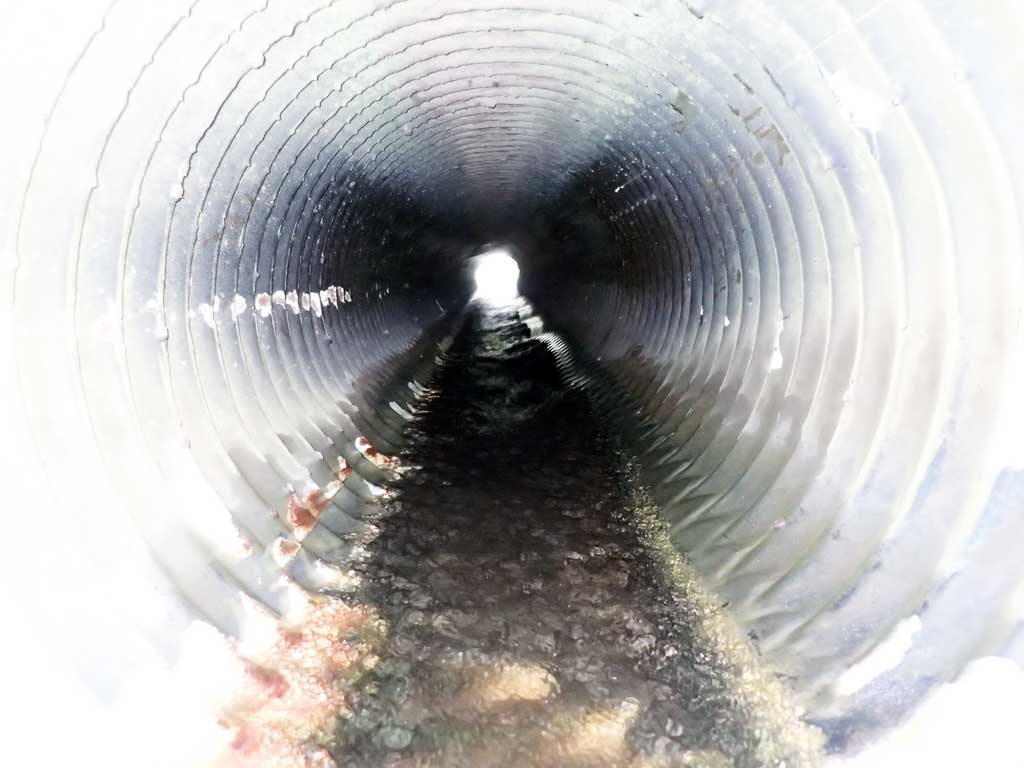

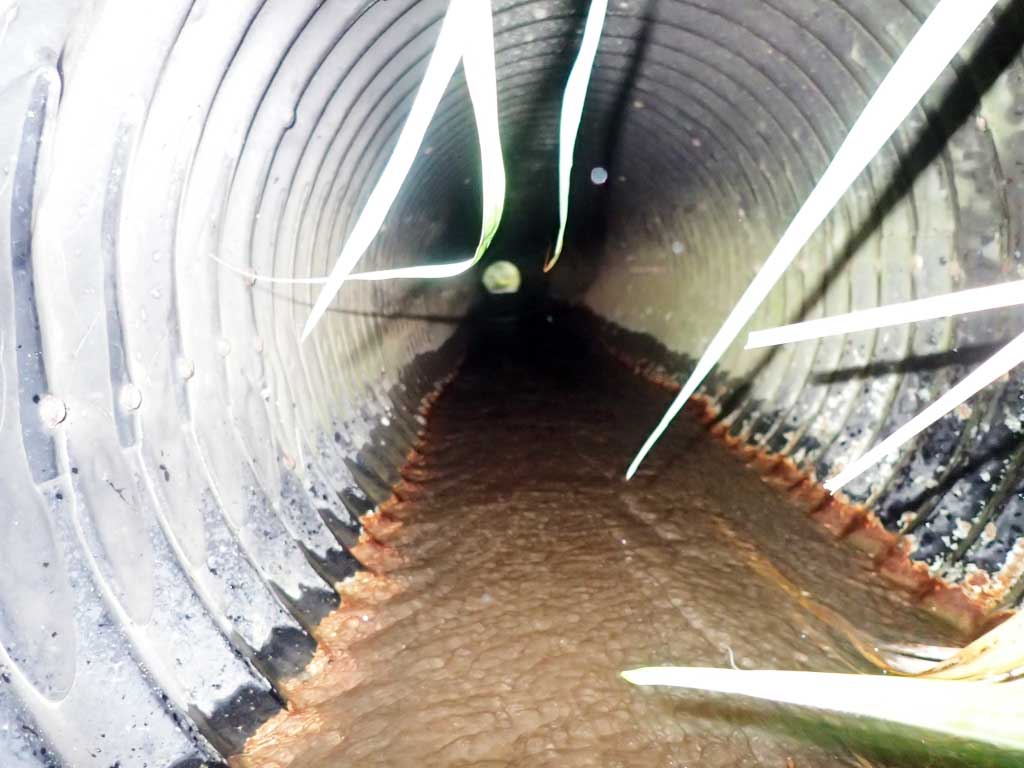

ID: 1 Structure Type: Circular pipe (Corrugated steel) Fish Passage Rating: Gray

Length(ft): 43.0
Inlet Type: Headwall
Outlet Type: Headwall
Corrugation Depth(in.):
Corrugation Width(in.):
Condition Rating(1-5): 3
Approach Angle:
Sedimentation At Inlet: Yes
Inlet Substrate: None
Outlet Substrate: None
InletOutlet
Width(ft):2.0 2.0
Height(ft):2.0 2.0
Apron Length(ft):
Water Depth(ft):
Rustline Height(ft):
Substrate Depth(ft):
Backwatered?: No
Baffles Present: No
Embedded?: No
Outfall Height:

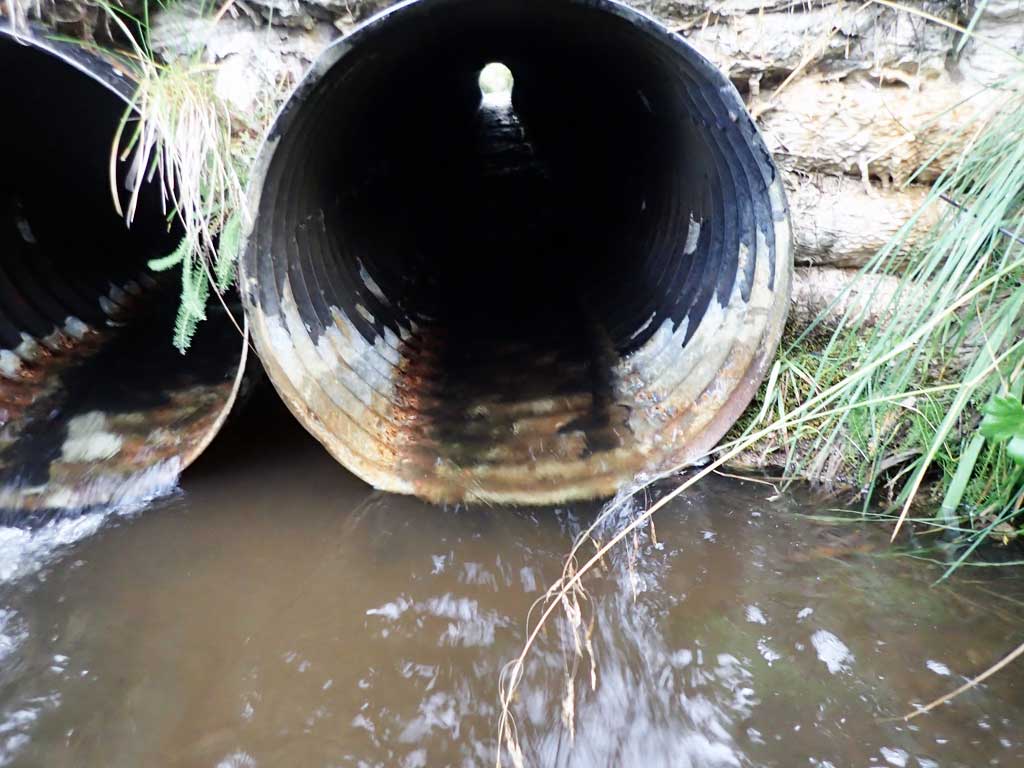

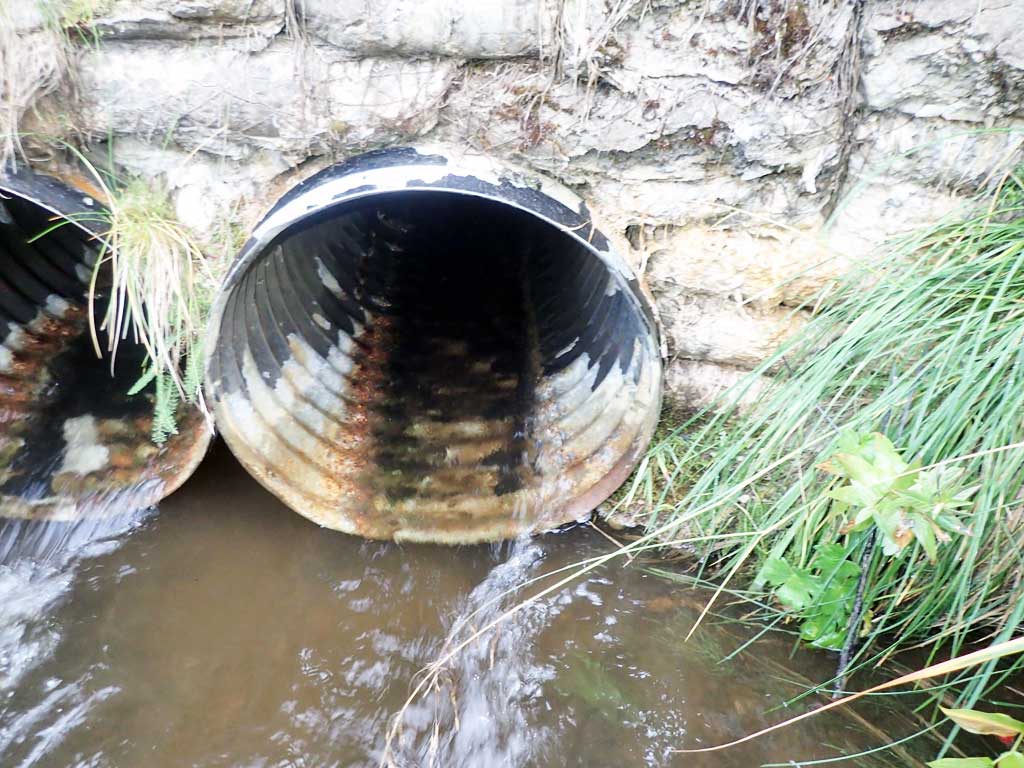

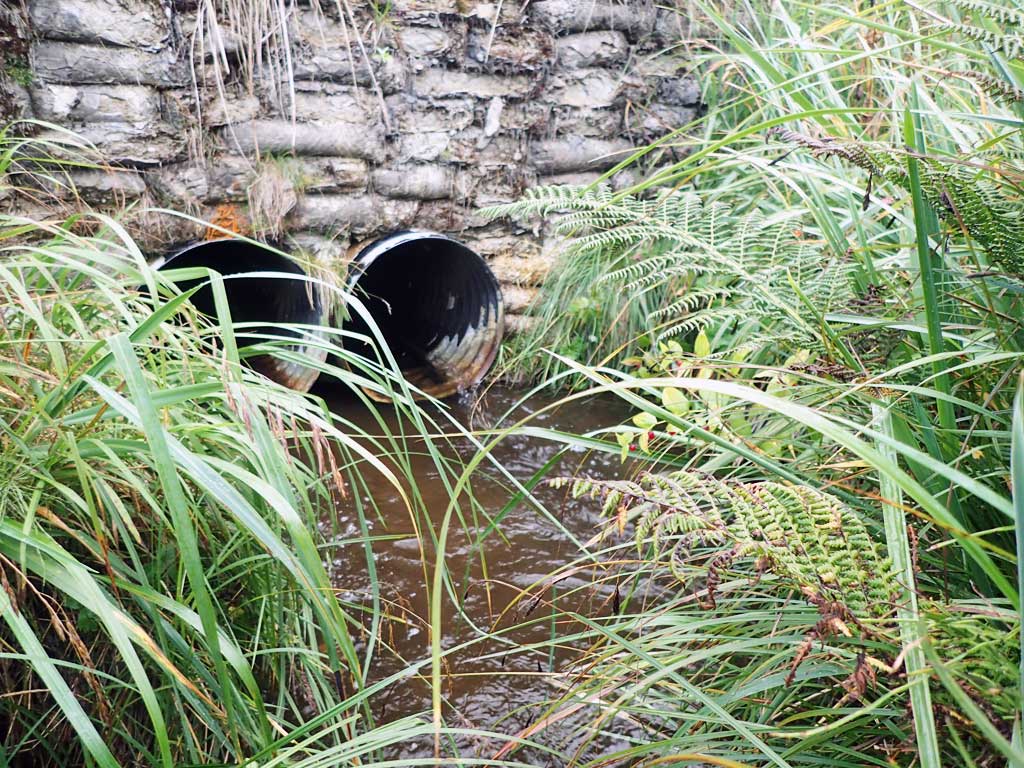

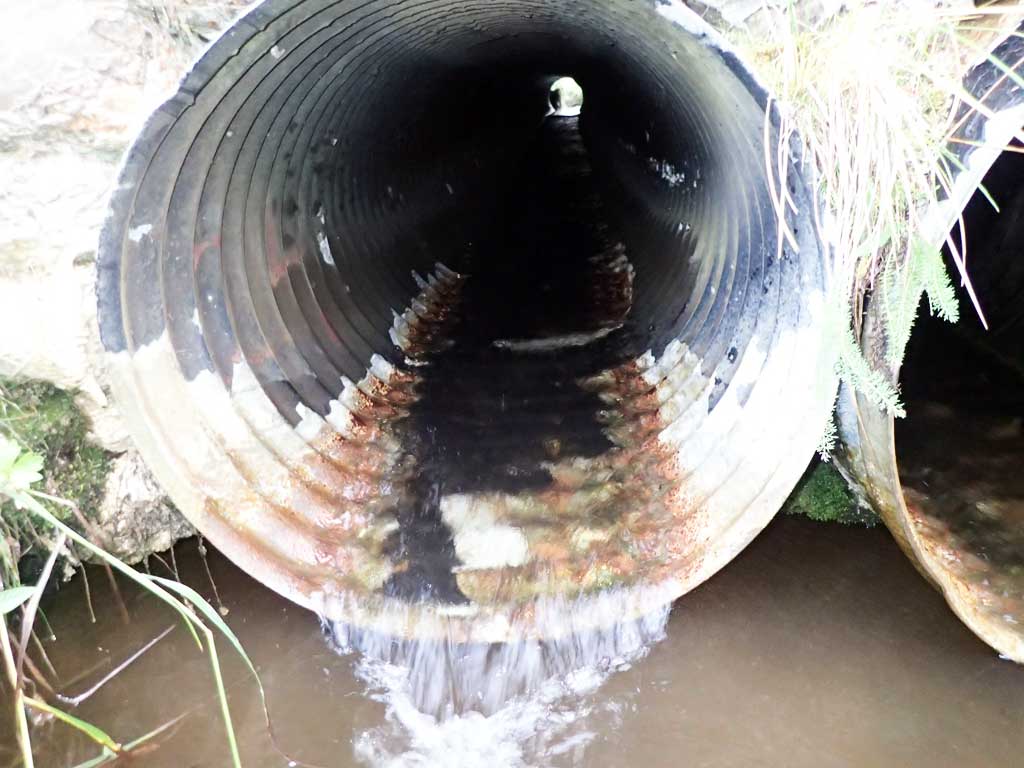

Outfall Type: Free Fall In To Pool
Constriction Ratio:
Culvert Gradient:
Max Slope:
Max Slope Length:

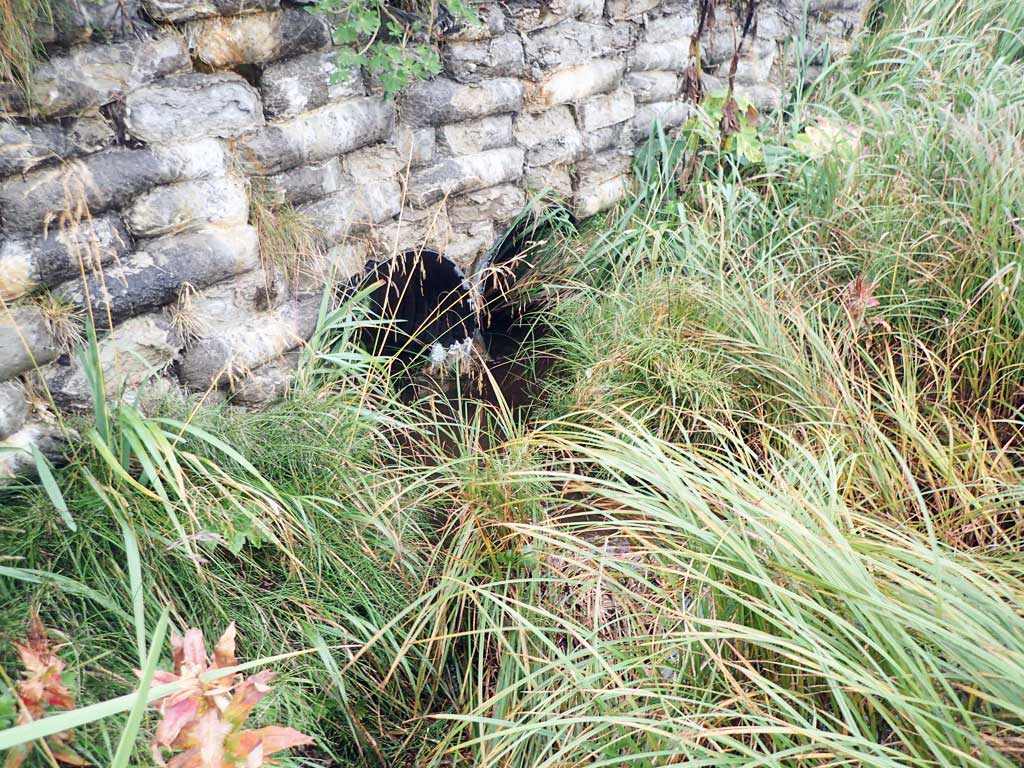

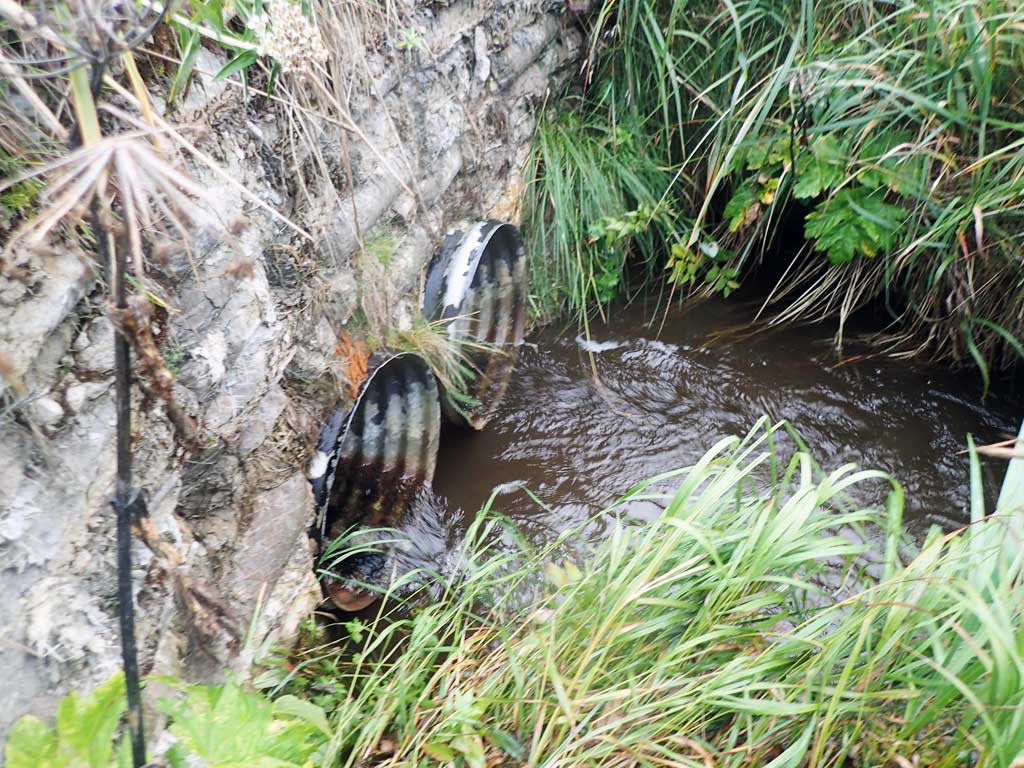

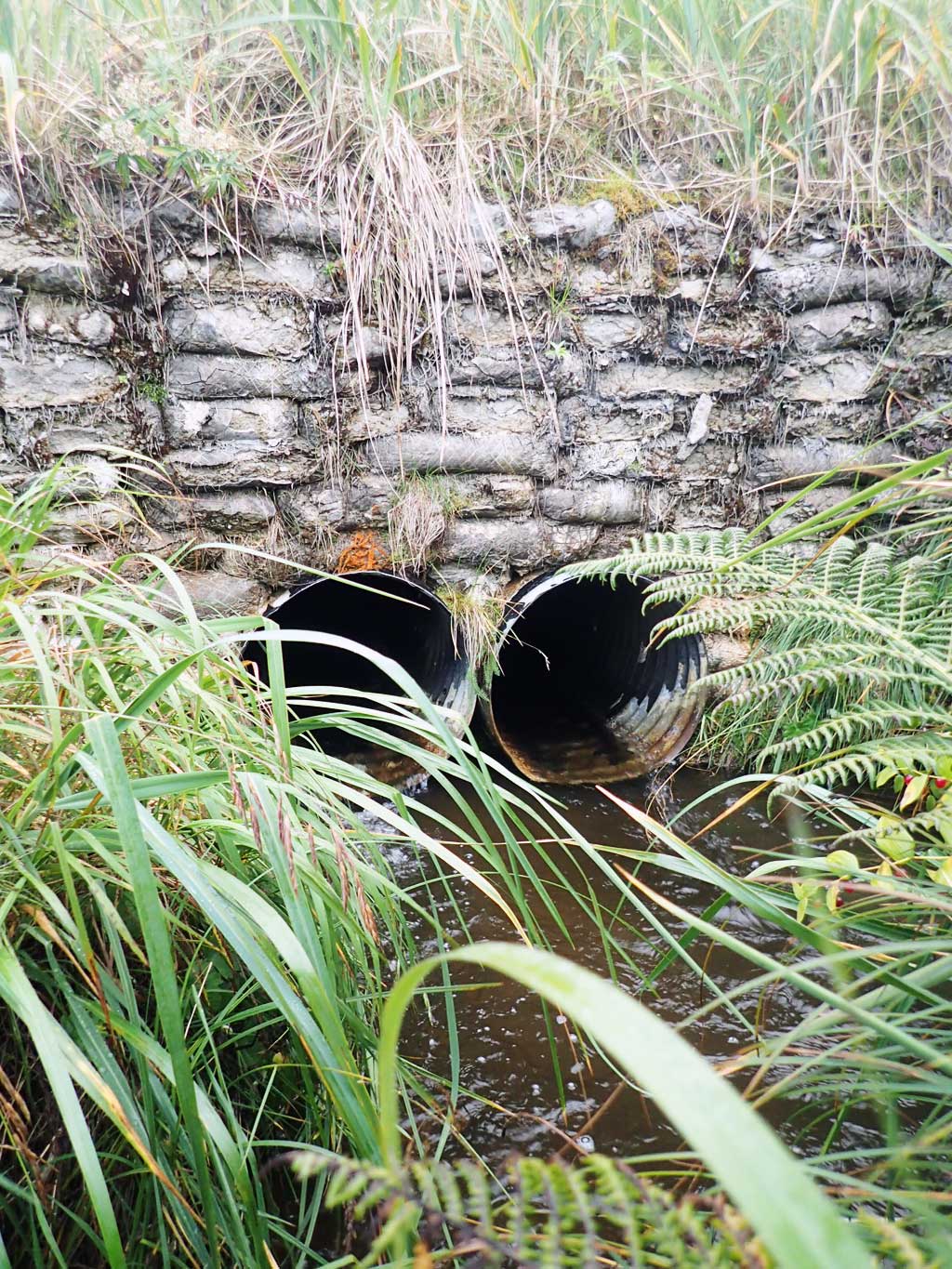

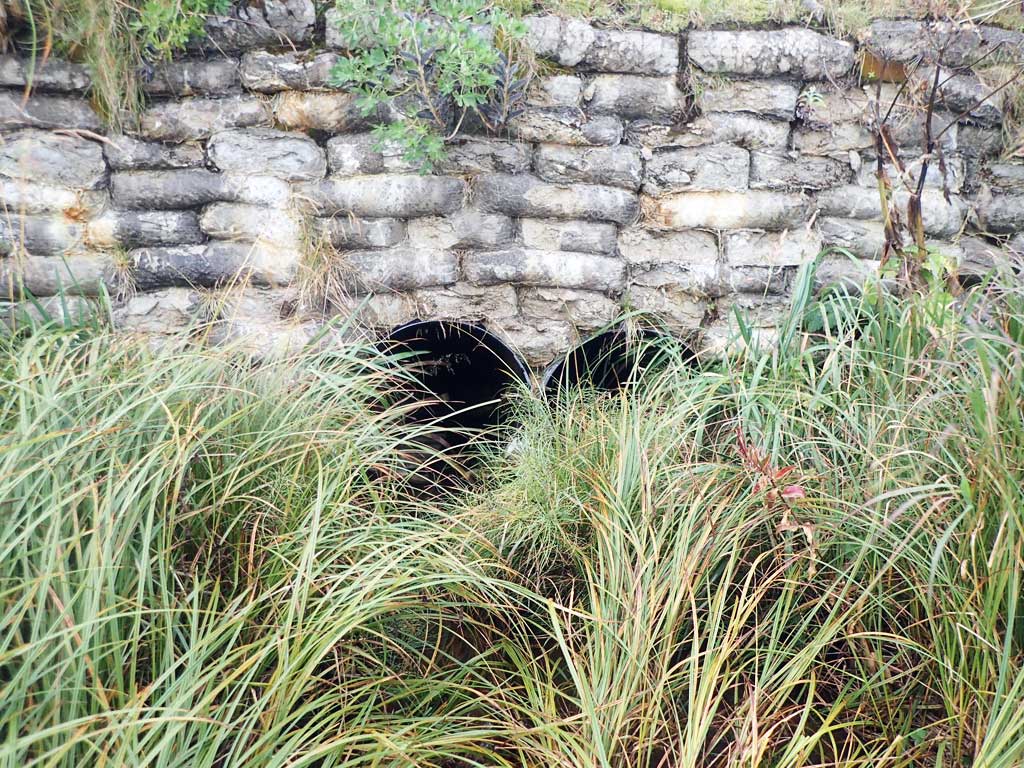

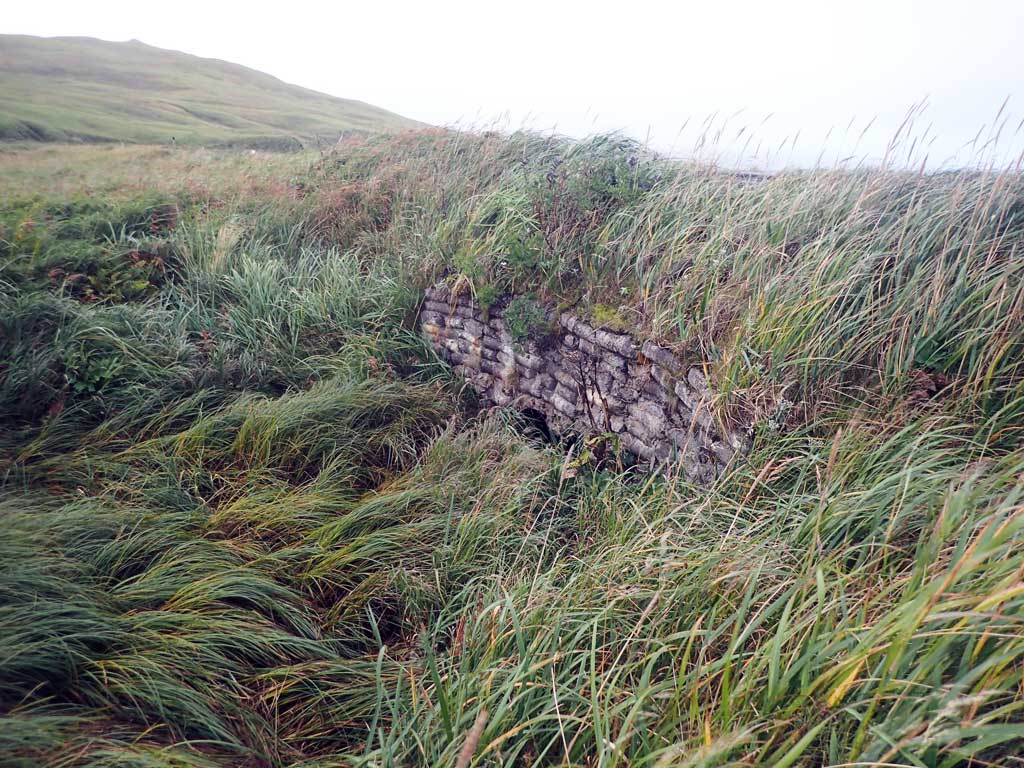

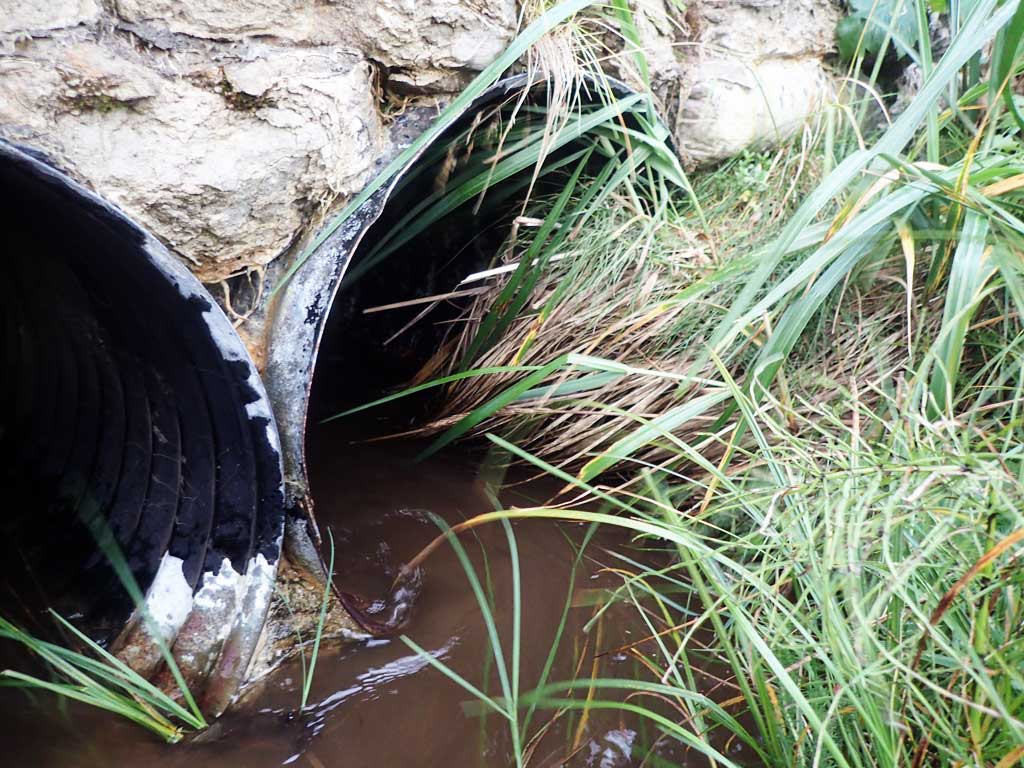

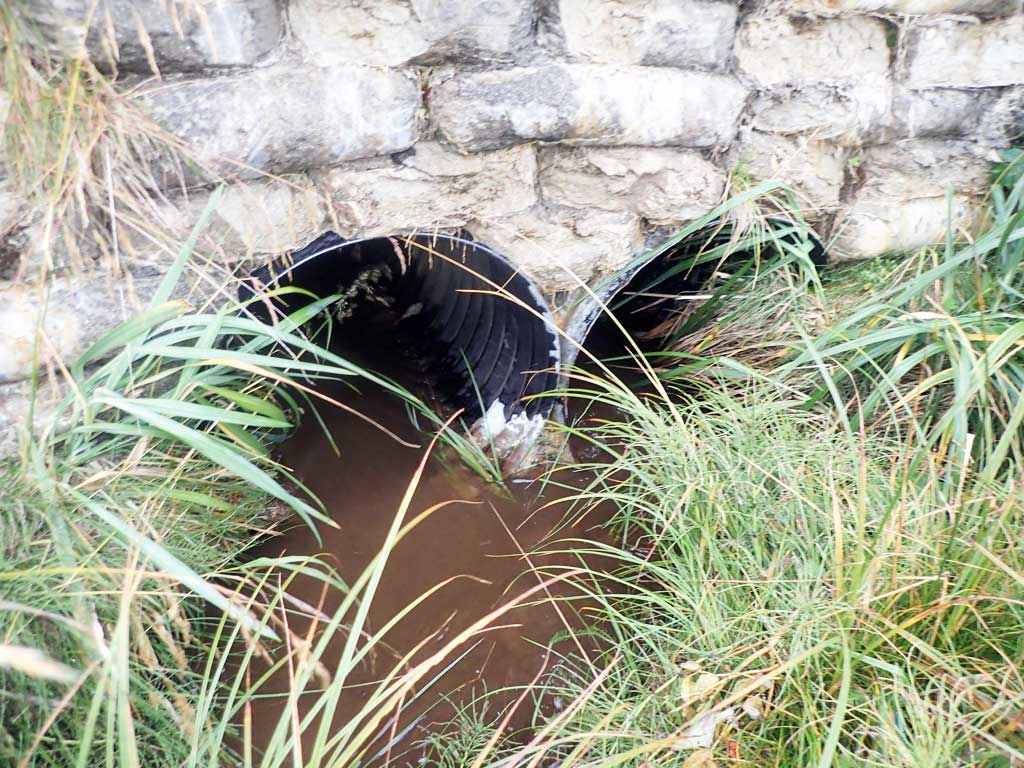

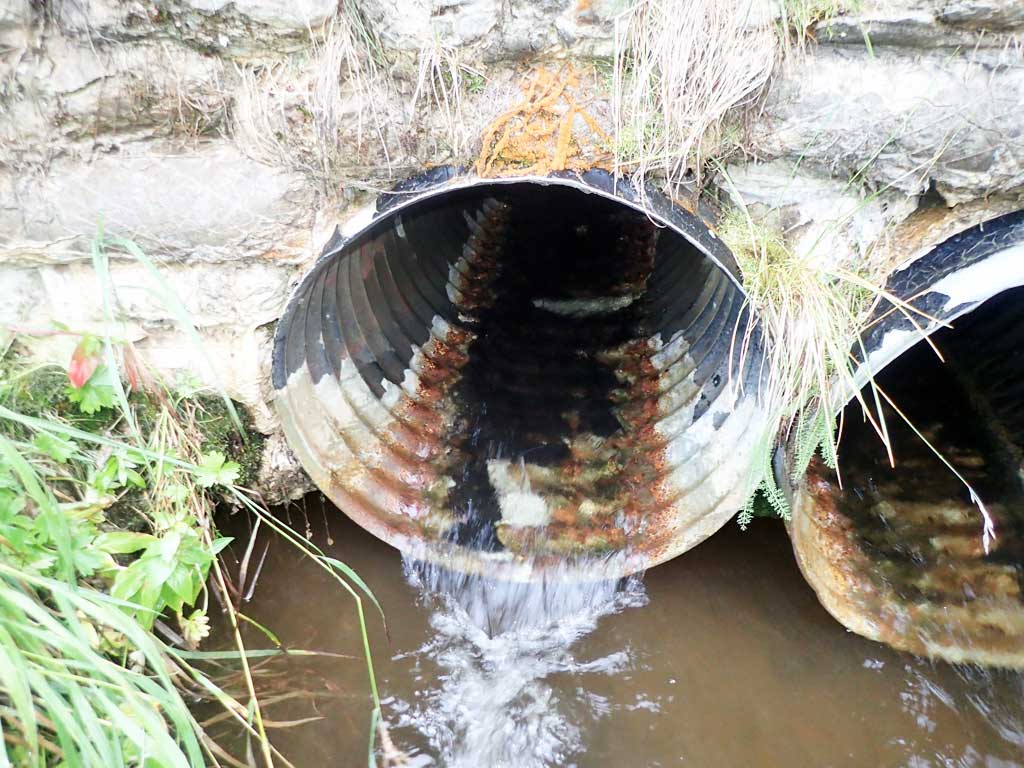

Comments: Small outfall. Gradient might be red. Concrete pillow headwalls at inlet and outlet.
  Culvert Observations:
  1. Outfall height gray
ID: 2 Structure Type: Circular pipe (Corrugated steel) Fish Passage Rating: Gray

Length(ft): 43.0
Inlet Type: Headwall
Outlet Type: Headwall
Corrugation Depth(in.):
Corrugation Width(in.):
Condition Rating(1-5): 3
Approach Angle:
Sedimentation At Inlet: Yes
Inlet Substrate: None
Outlet Substrate: None
InletOutlet
Width(ft):2.0 2.0
Height(ft):2.0 2.0
Apron Length(ft):
Water Depth(ft):
Rustline Height(ft):
Substrate Depth(ft):
Backwatered?: No
Baffles Present: No
Embedded?: No
Outfall Height:
Outfall Type: Free Fall In To Pool
Constriction Ratio:
Culvert Gradient:
Max Slope:
Max Slope Length:


Comments: Small outfall. Gradient might be red. Concrete pillow headwalls at inlet and outlet.
  Culvert Observations:
  1. Outfall height gray

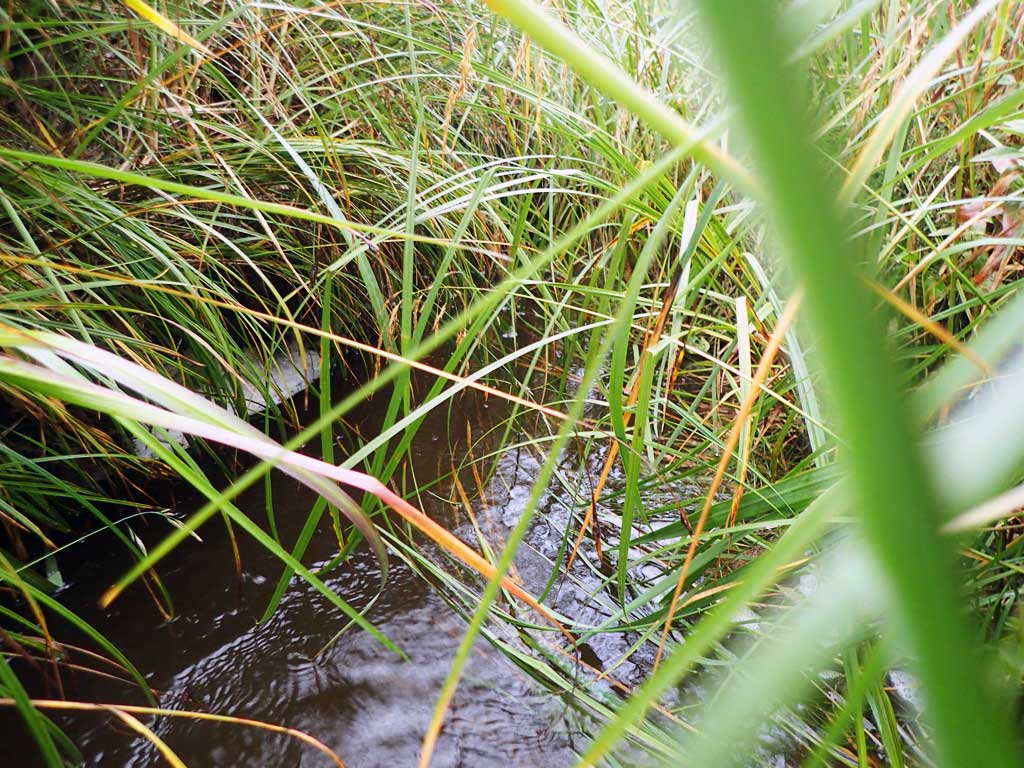

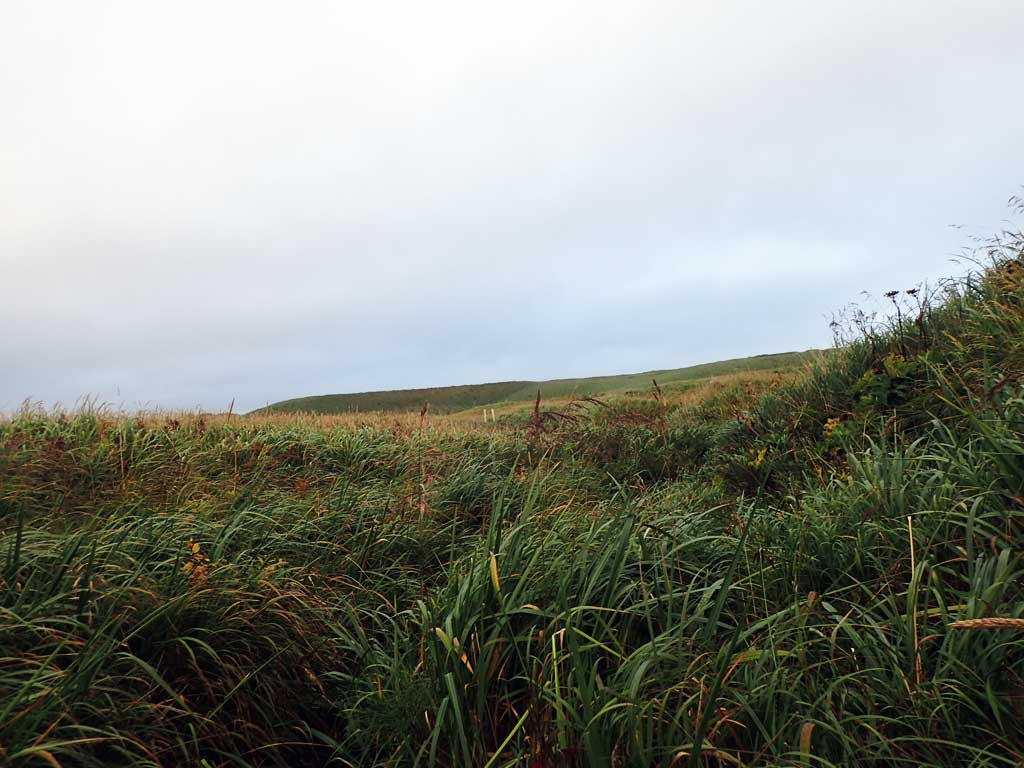

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:
Subdominant:
Stream Slope(deg.):
Stream Flow Stage:High

No stream width data available.

Elevations

No elevation data available.

Fish Sampling Efforts

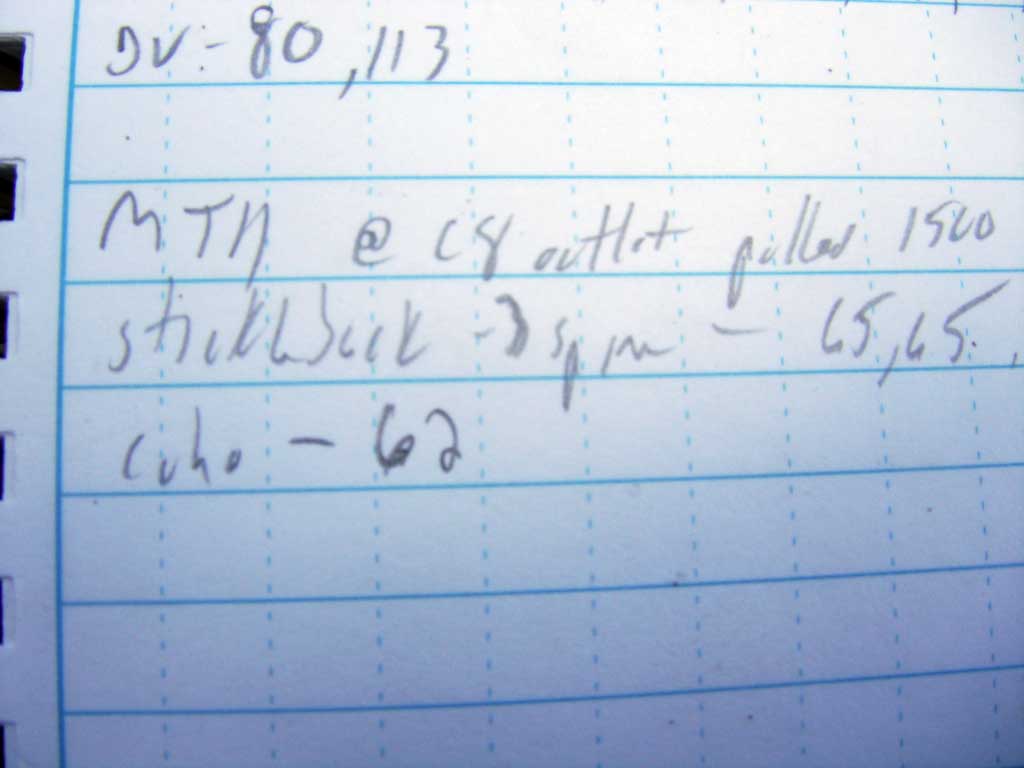

Gear Type: Minnow Trap (A) Trap Duration(h): 18.0
Comments: MT12

Gear Type: Minnow Trap (B) Trap Duration(h): 18.0
Comments: MT11

Fish Observations

Species: juvenile coho salmon Life History: Anadromous
Total Fish Observed: 11 Fish Measured: 11 Fork Lengths (mm) Min: 62 Max: 128 Mean: 104
Collected/Observed by Gear Type: Downstream Minnow Trap (1)  Upstream Minnow Trap (10)

Species: juvenile/adult Dolly Varden Life History: Unknown
Total Fish Observed: 2 Fish Measured: 2 Fork Lengths (mm) Min: 80 Max: 113 Mean: 96
Collected/Observed by Gear Type: Upstream Minnow Trap (2)

Species: threespine stickleback Life History: Unknown
Total Fish Observed: 9 Fish Measured: 5 Fork Lengths (mm) Min: 40 Max: 70 Mean: 57
Collected/Observed by Gear Type: Downstream Minnow Trap (6)  Upstream Minnow Trap (3)
