Fish Passage Site 30103676

Coordinates (dec. deg.): 51.89107°, -176.63185°
Legal Description: S096S195W02
Region: Southwest
Road Name: Airport Access Road

Datum: NAD83
Quad Name / ITM: Adak C-2
AWC Stream #: 306-70-10180
Stream Name: Airport Creek

Elevation:

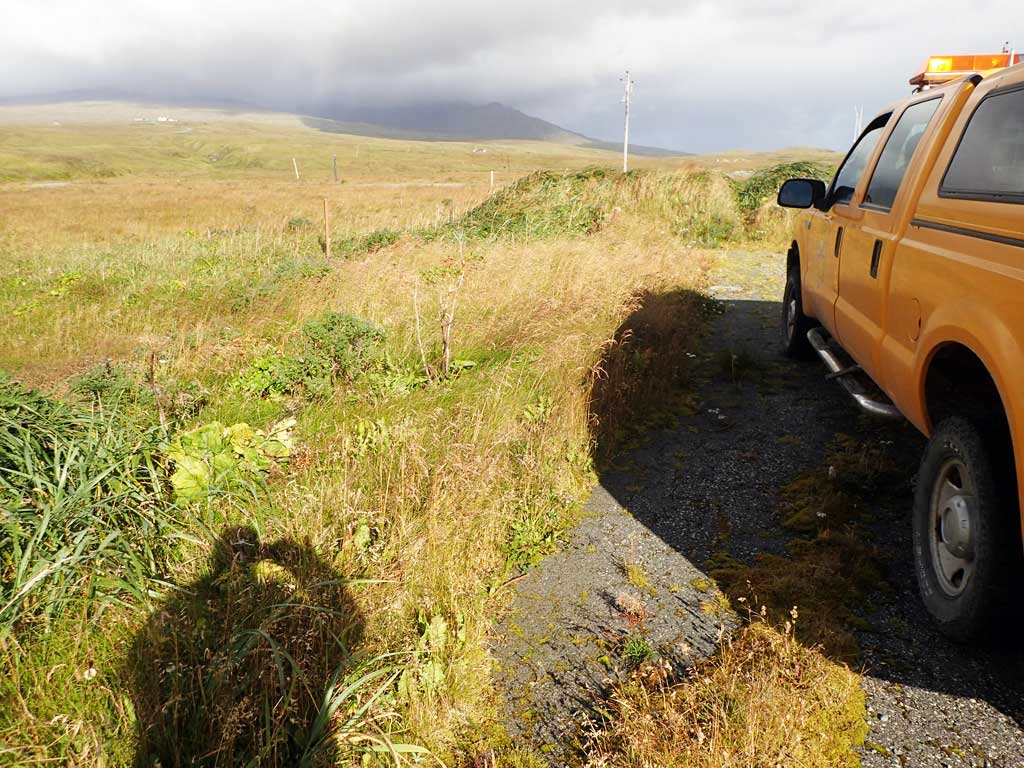

Site Comments: Site is on an old airport access road that has been bermed

Survey Date: Sep 15, 2017

Survey ADAK17-C77

Observers: Mark Eisenman, Jeanette Alas

Overall Fish Passage Rating: Black

Tidal: No
Backwatered: No

Step Pools: No
Construction Year:

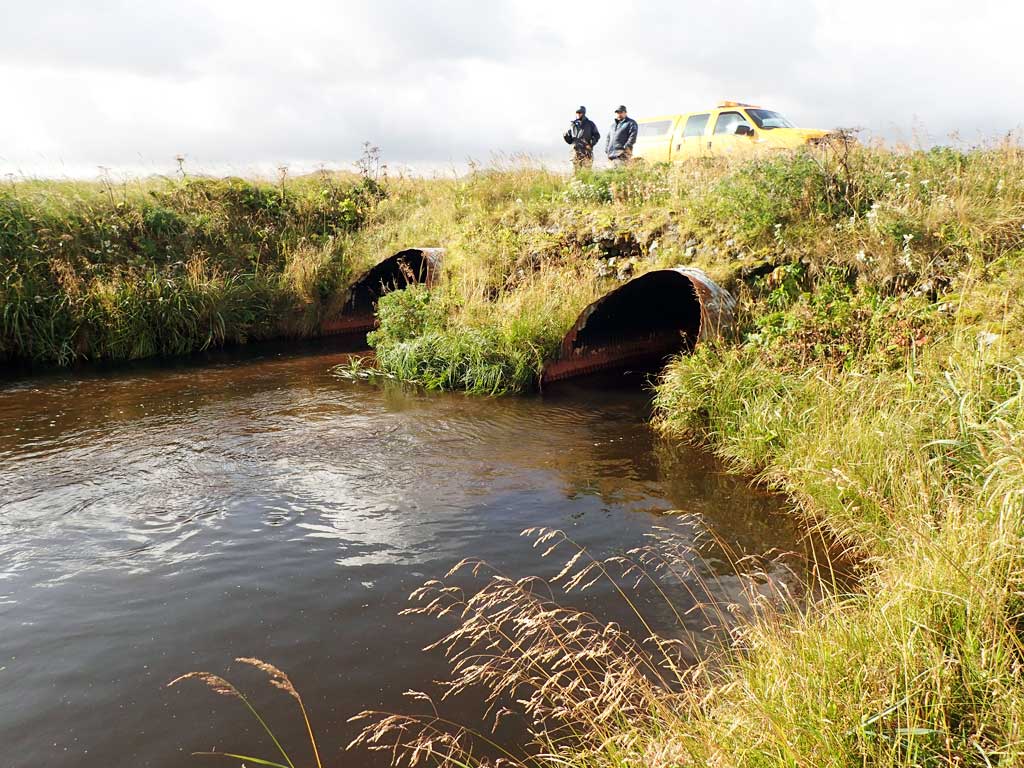

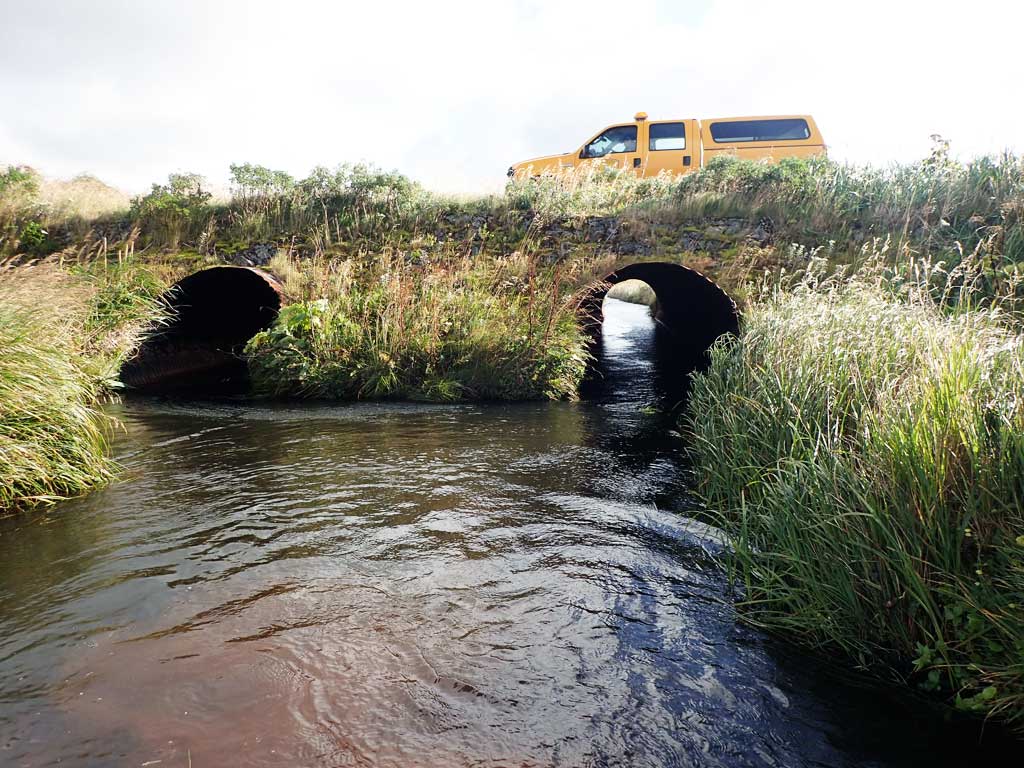

Comments: This information was gathered as part of the joint reconnaissance level project between the ADF&G Habitat Division and the Fish Passage Assessment Project on Adak Island. Due to time constraints full site assessments were not conducted, but base line information was collected. Culvert(s) submerged. Adult pink salmon observed upstream and downstream from crossing. Stream maybe constricted. Access has been blocked by an earthen berm and crossing is no longer needed.

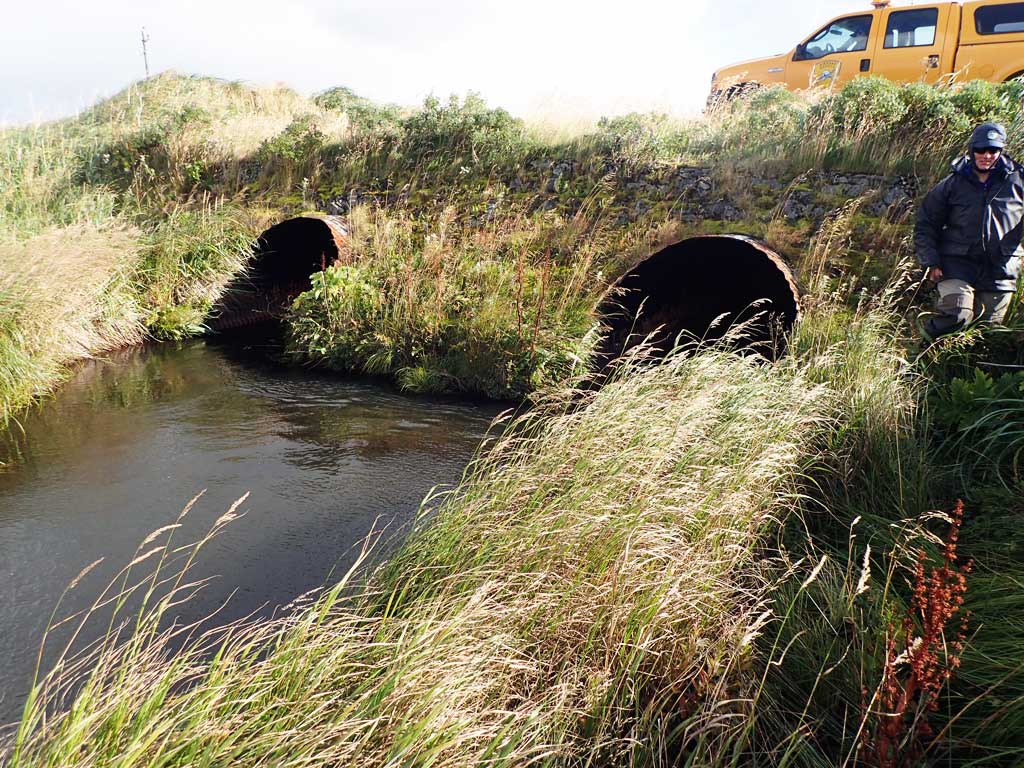

Culvert Measurements

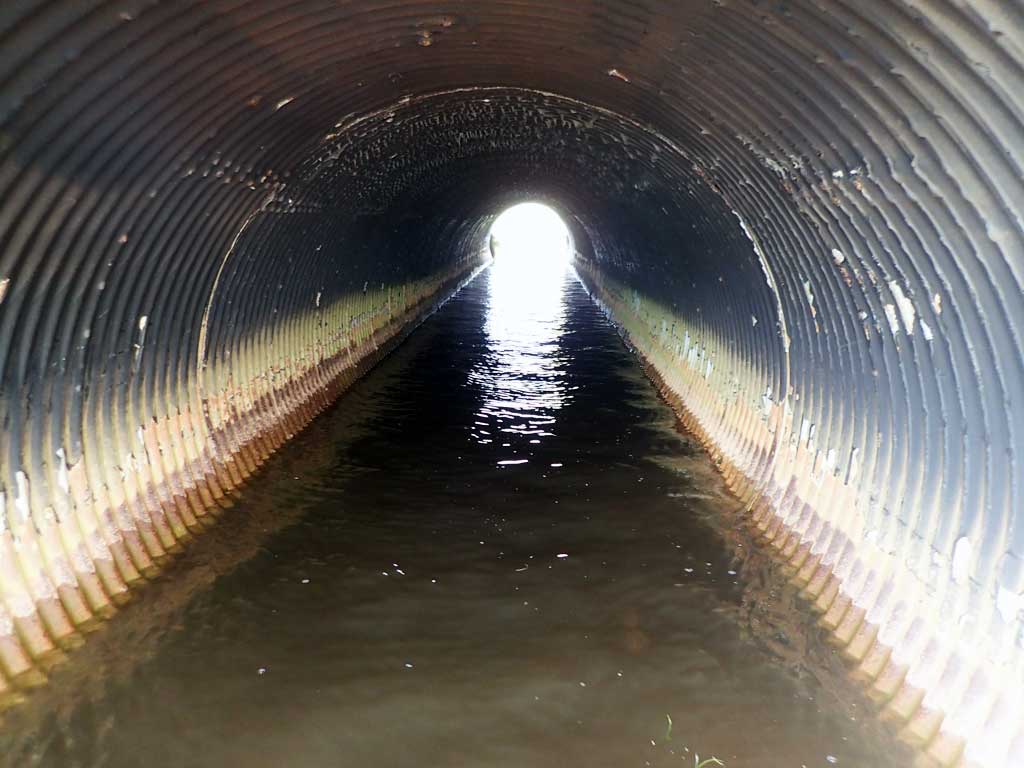

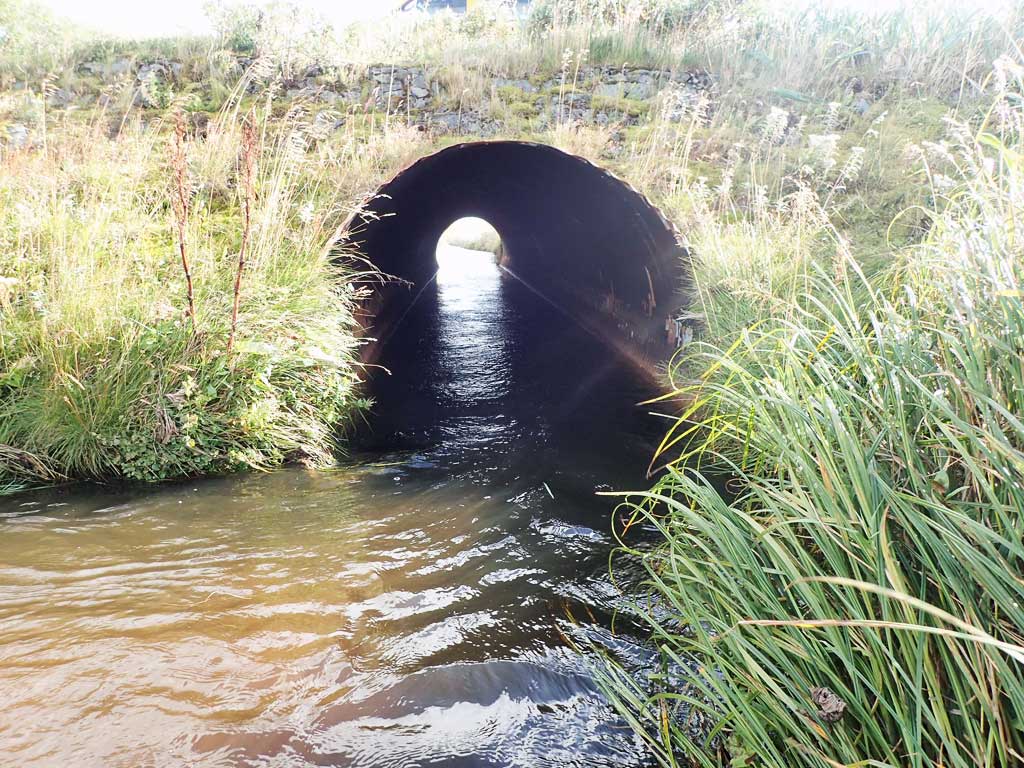

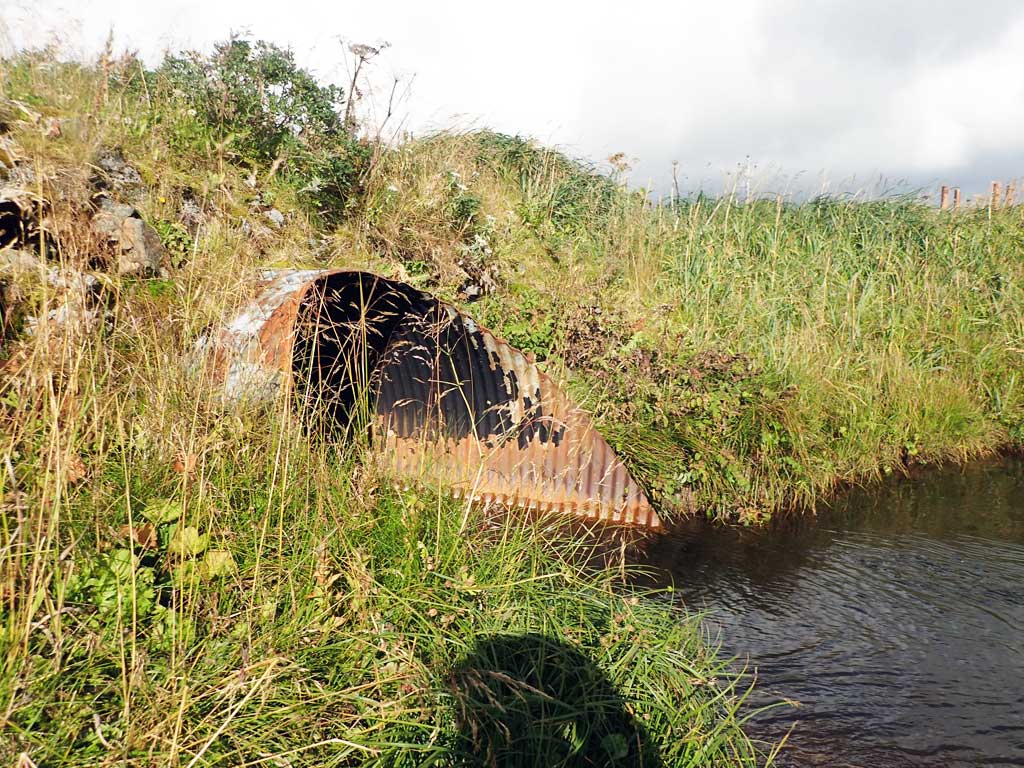

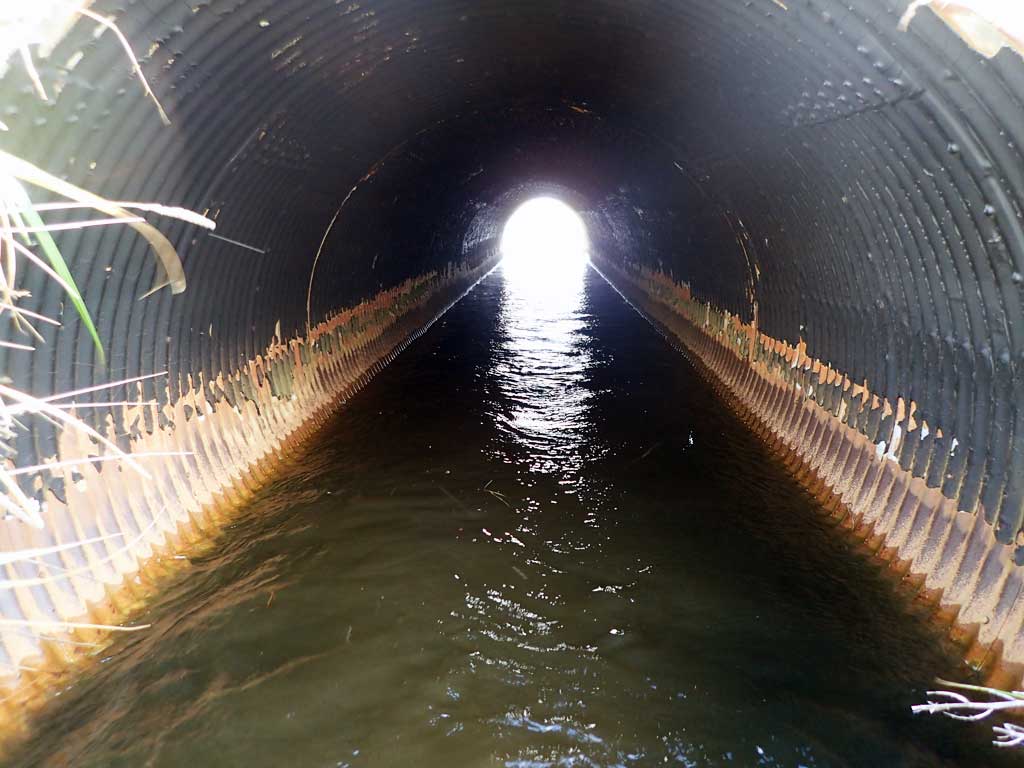

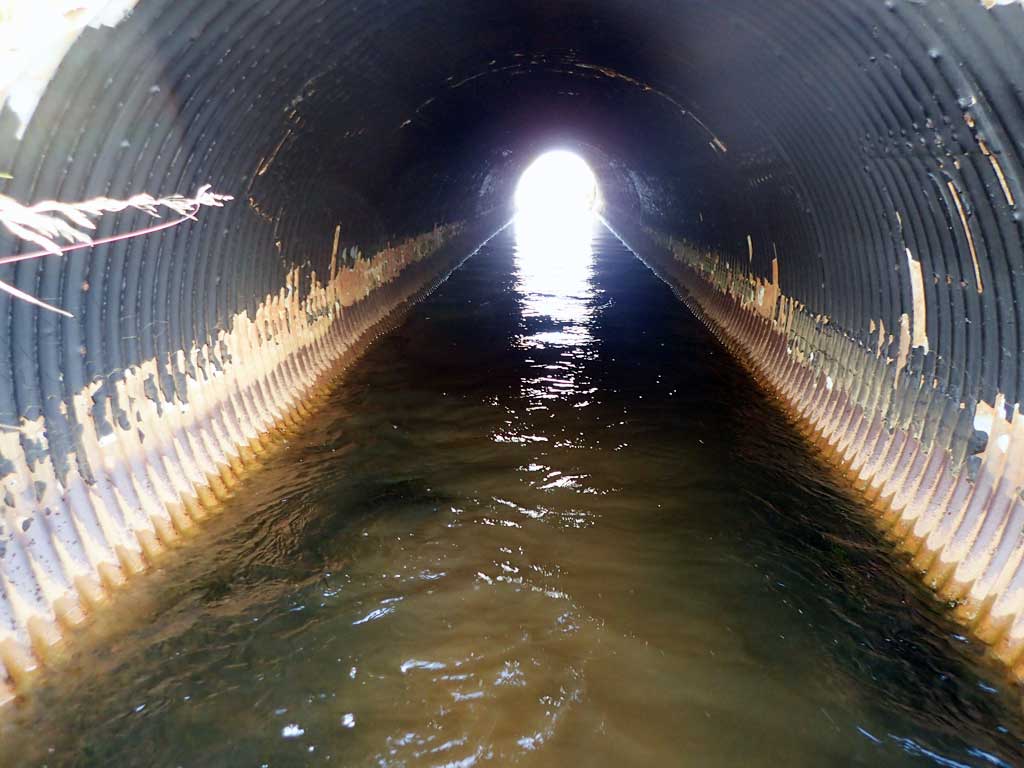

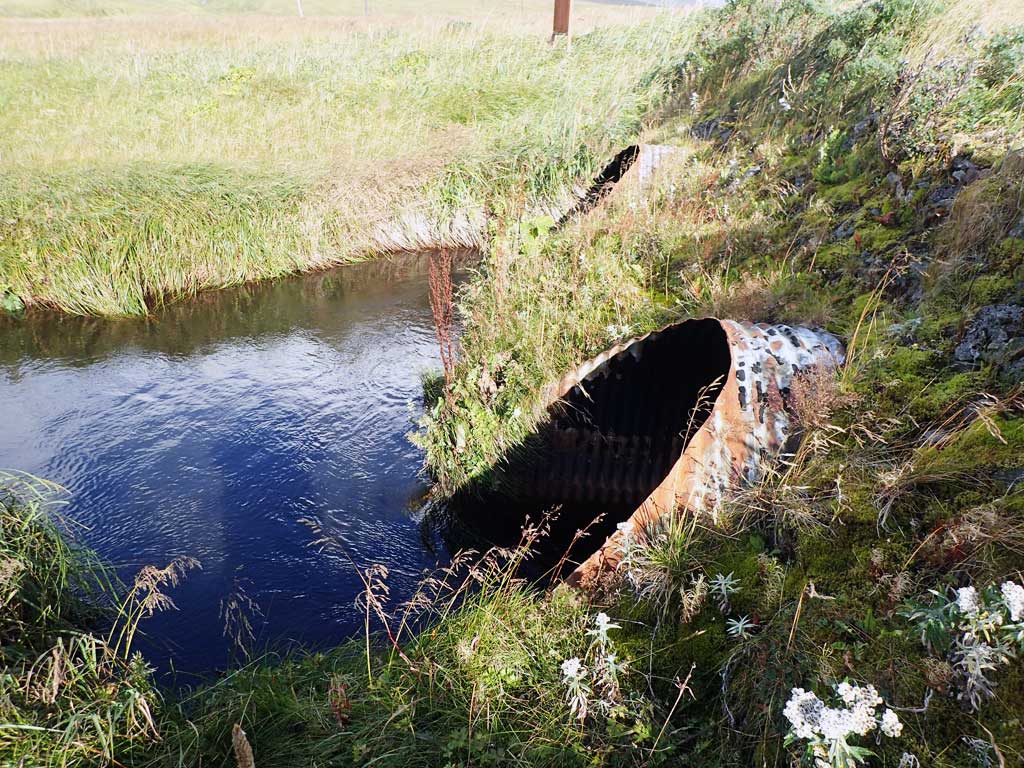

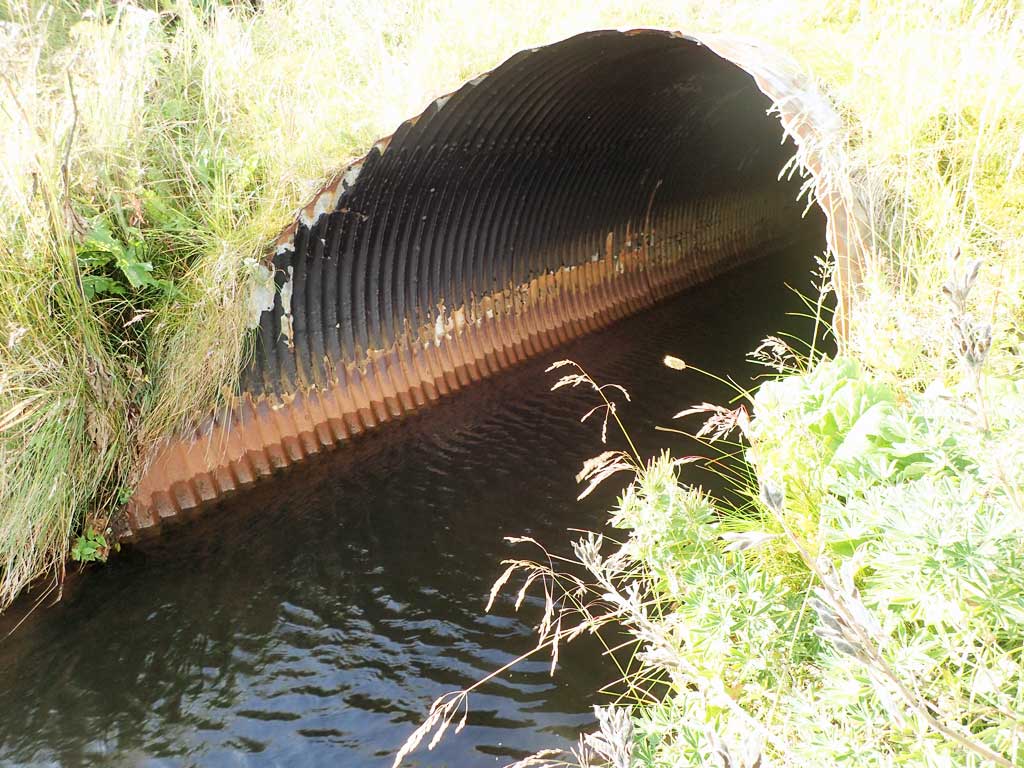

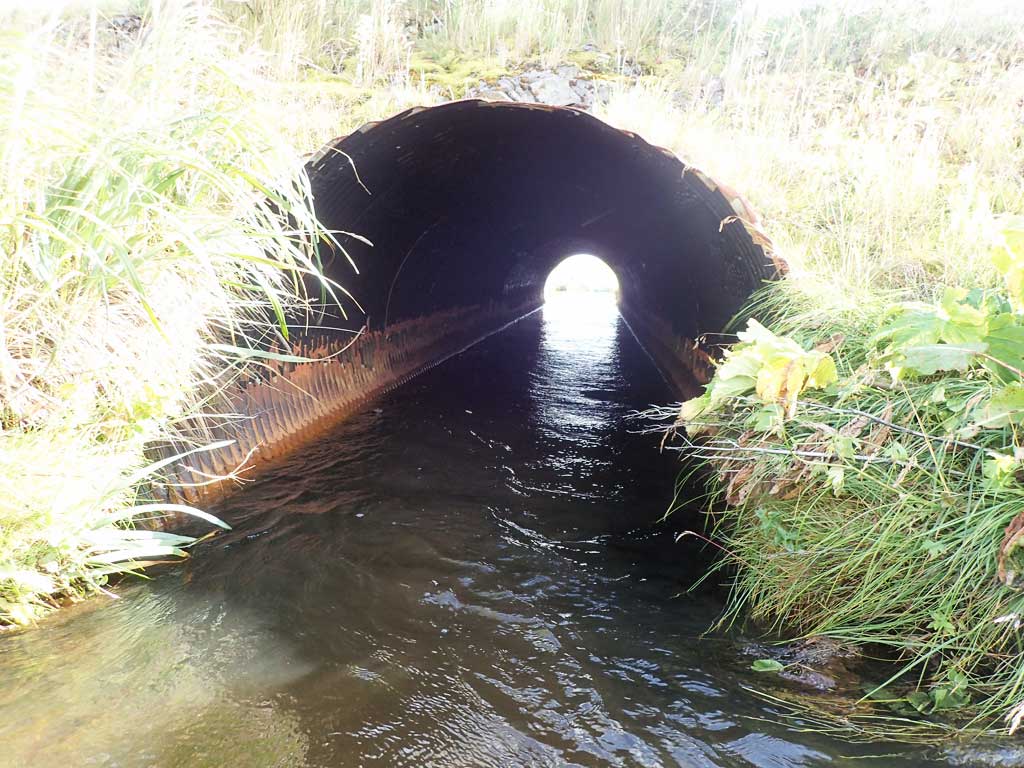

ID: 1 Structure Type: Circular pipe (Corrugated steel) Fish Passage Rating: Black

Length(ft): 65.0
Inlet Type: Mitered
Outlet Type: Mitered
Corrugation Depth(in.):
Corrugation Width(in.):
Condition Rating(1-5): 3
Approach Angle:
Sedimentation At Inlet: Yes
Inlet Substrate:
Outlet Substrate:
InletOutlet
Width(ft):6.0 6.0
Height(ft):6.0 6.0
Apron Length(ft):
Water Depth(ft):
Rustline Height(ft):
Substrate Depth(ft):
Backwatered?: No
Baffles Present: No
Embedded?: No
Outfall Height: 0.0
Outfall Type: At Stream Grade
Constriction Ratio:
Culvert Gradient:
Max Slope:
Max Slope Length:

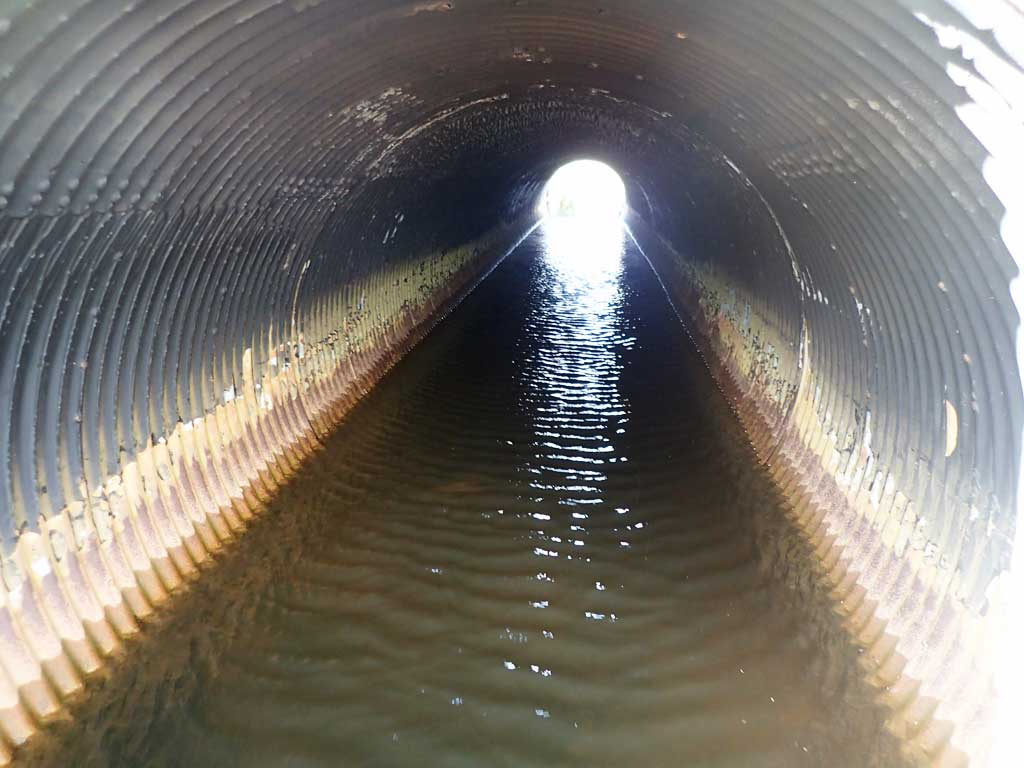

ID: 2 Structure Type: Circular pipe (Corrugated steel) Fish Passage Rating: Black

Length(ft): 65.0
Inlet Type: Mitered
Outlet Type: Mitered
Corrugation Depth(in.):
Corrugation Width(in.):
Condition Rating(1-5): 3
Approach Angle:
Sedimentation At Inlet: Yes
Inlet Substrate:
Outlet Substrate:
InletOutlet
Width(ft):6.0 6.0
Height(ft):6.0 6.0
Apron Length(ft):
Water Depth(ft):
Rustline Height(ft):
Substrate Depth(ft):
Backwatered?: No
Baffles Present: No
Embedded?: No
Outfall Height: 0.0
Outfall Type: At Stream Grade
Constriction Ratio:
Culvert Gradient:
Max Slope:
Max Slope Length:

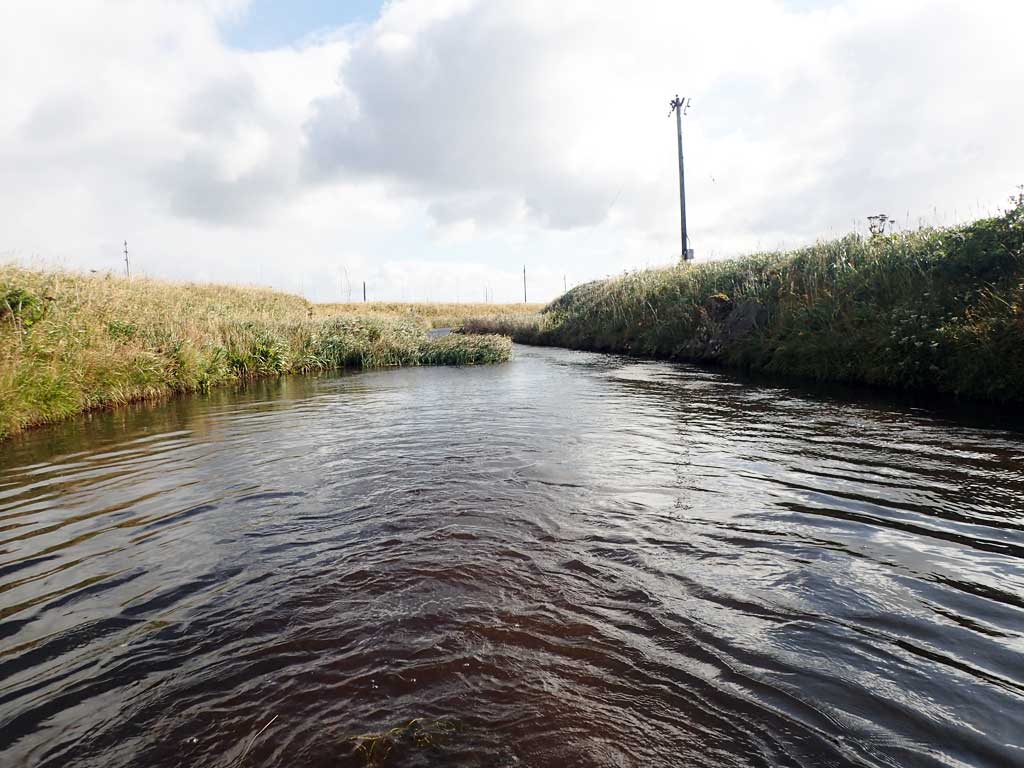

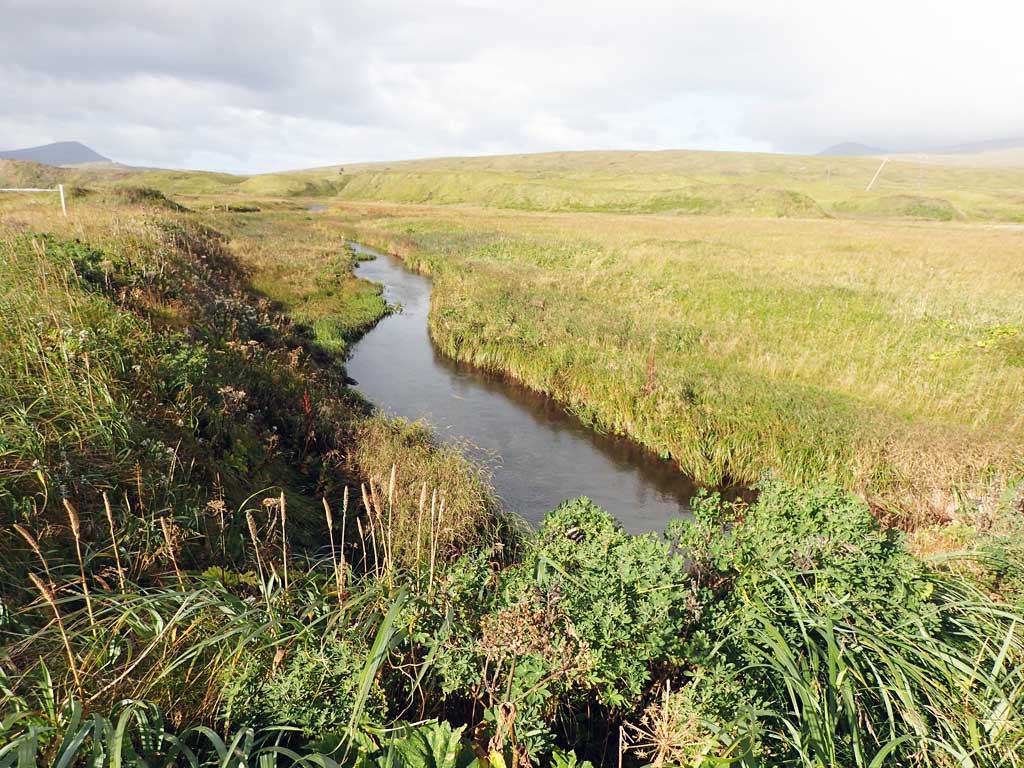

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:
Subdominant:
Stream Slope(deg.):
Stream Flow Stage:Medium

No stream width data available.

Elevations

No elevation data available.

Fish Sampling Efforts

Gear Type: Visual Observation, Ground (A)

Fish Observations

Species: adult spawning pink salmon Life History: Anadromous
Total Fish Observed: 5 Fish Measured: Fork Lengths (mm) Min: Max: Mean:
Collected/Observed by Gear Type: At Site Visual Observation, Ground (5)
