Fish Passage Site 30103675

Coordinates (dec. deg.): 51.89210°, -176.63873°
Legal Description: S096S195W02
Region: Southwest

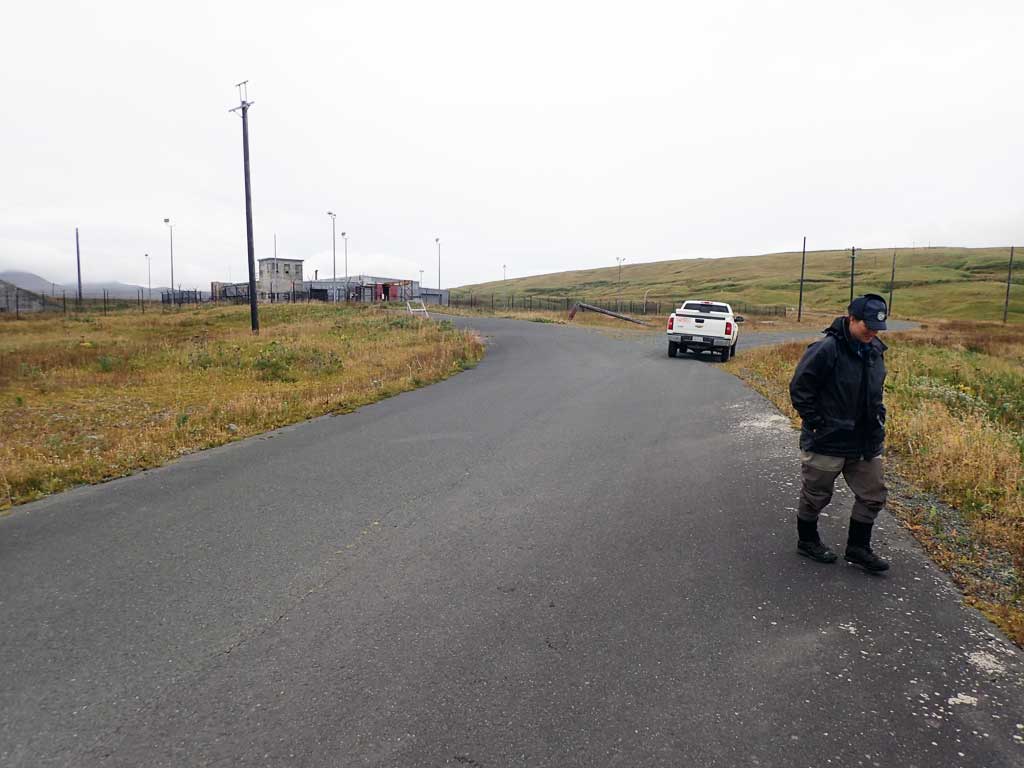

Road Name: Hillside Bouelvard

Datum: NAD83
Quad Name / ITM: Adak C-2
AWC Stream #: 306-70-10180
Stream Name: Airport Creek

Elevation:

Site Comments: None

Survey Date: Sep 17, 2017

Survey ADAK17-C76

Observers: Mark Eisenman, Jeanette Alas

Overall Fish Passage Rating: Red

Tidal: No
Backwatered: No

Step Pools: No
Construction Year:


Site Observations:

  1. Outfall height red
  2. Mechanical damage or joints parting
  3. Structural Problem

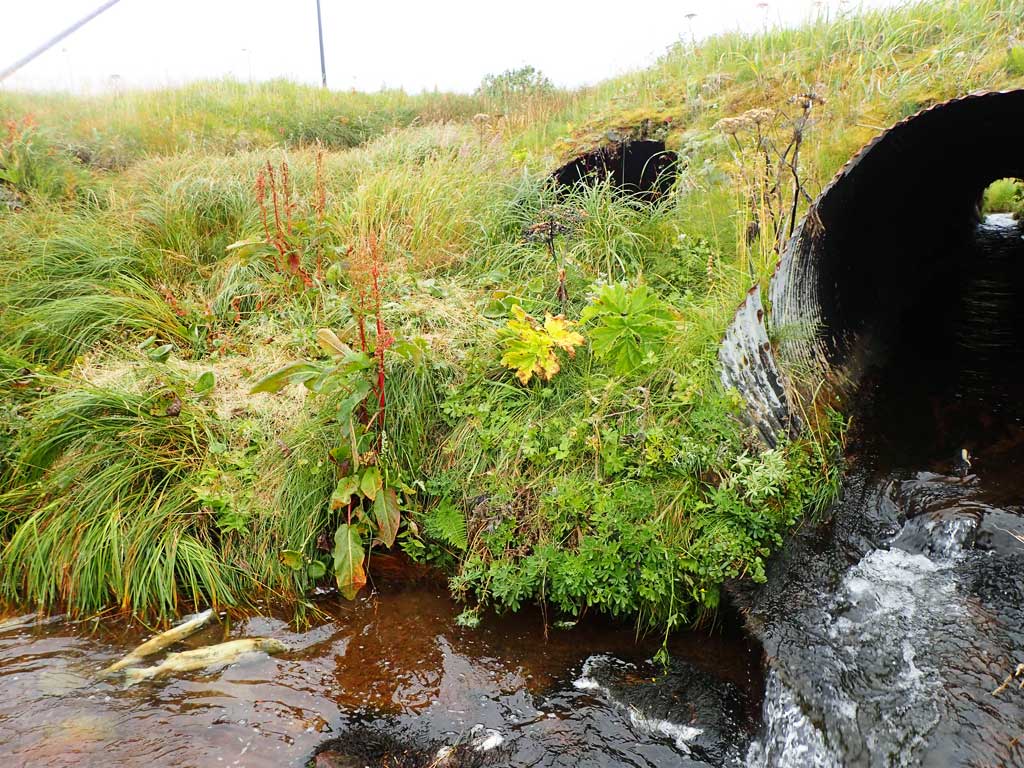

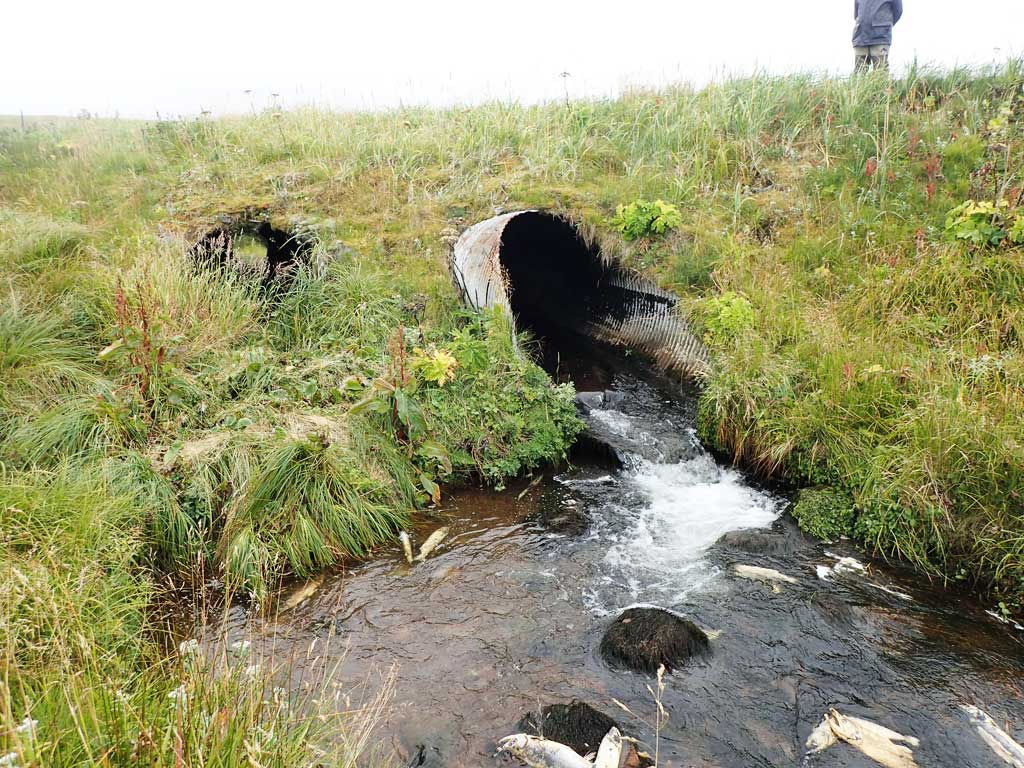

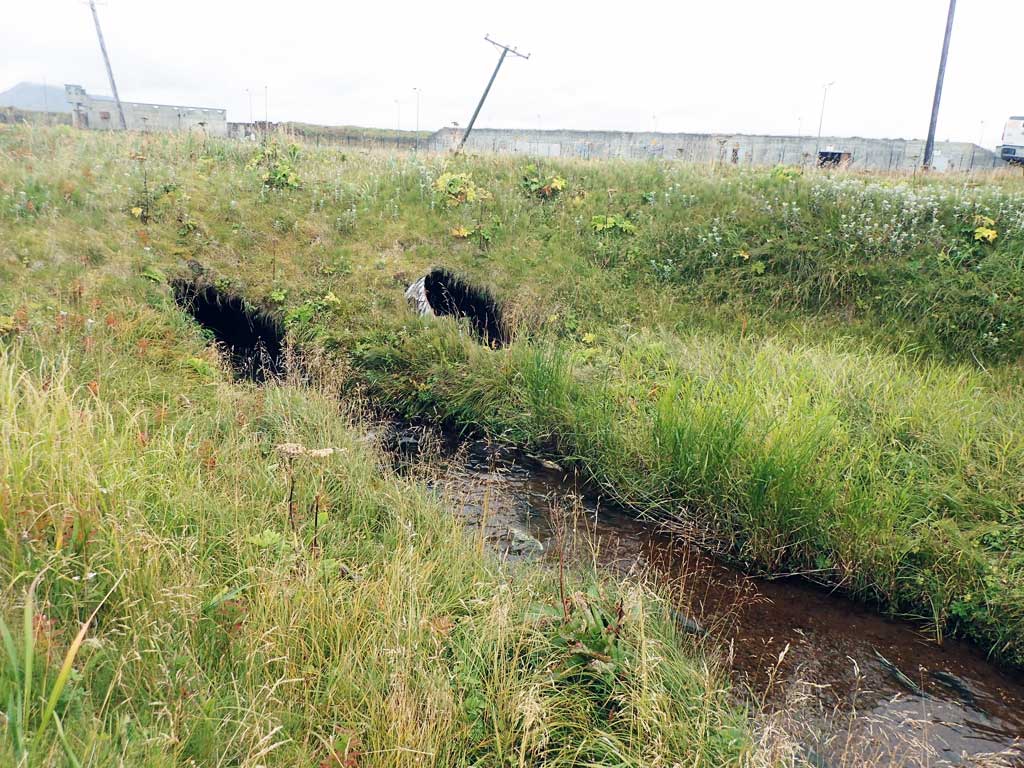

Comments: This information was gathered as part of the joint reconnaissance level project between the ADF&G Habitat Division and the Fish Passage Assessment Project on Adak Island. Due to time constraints full site assessments were not conducted, but base line information was collected. C2 is completely blocked all flow being pushed into C1. 100's of pinks (alive and carcasses) observed upstream and downstream of culverts.

Culvert Measurements

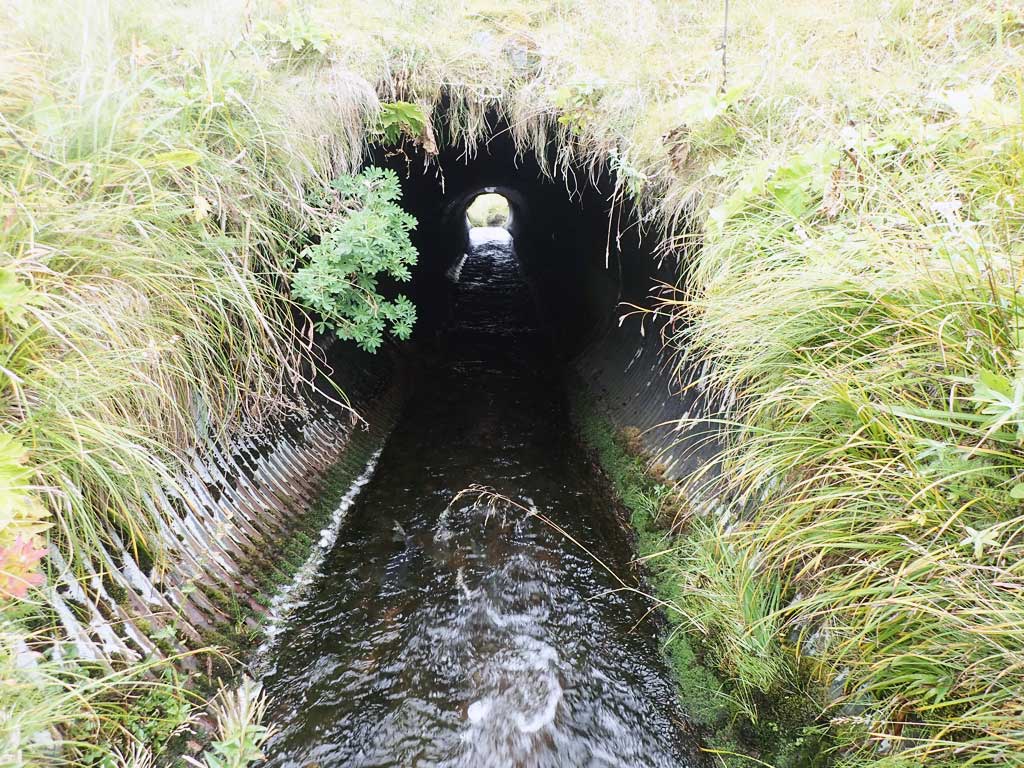

ID: 1 Structure Type: Circular pipe (Corrugated steel) Fish Passage Rating: Red

Length(ft): 210.0
Inlet Type: Mitered
Outlet Type: Mitered
Corrugation Depth(in.):
Corrugation Width(in.):
Condition Rating(1-5): 1
Approach Angle:
Sedimentation At Inlet: No
Inlet Substrate: None
Outlet Substrate: None
InletOutlet
Width(ft):6.0 6.0
Height(ft):6.0 6.0
Apron Length(ft):
Water Depth(ft):
Rustline Height(ft):
Substrate Depth(ft):
Backwatered?: No
Baffles Present: No
Embedded?: No
Outfall Height:
Outfall Type: Free Fall In To Pool
Constriction Ratio:
Culvert Gradient:
Max Slope:
Max Slope Length:

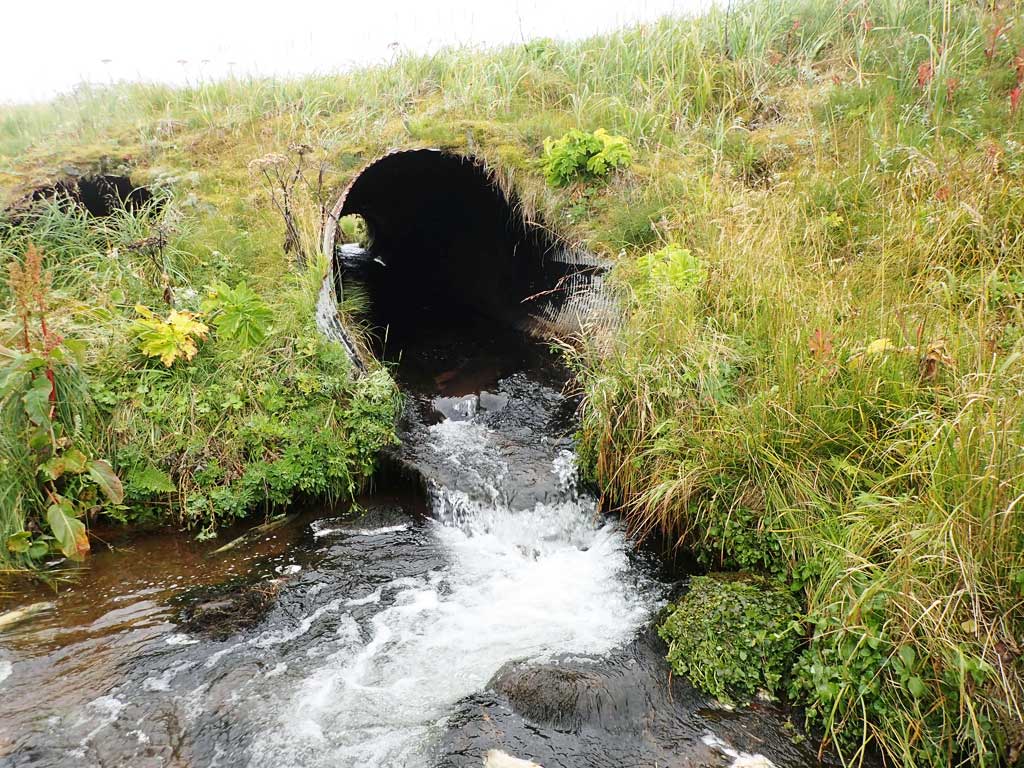

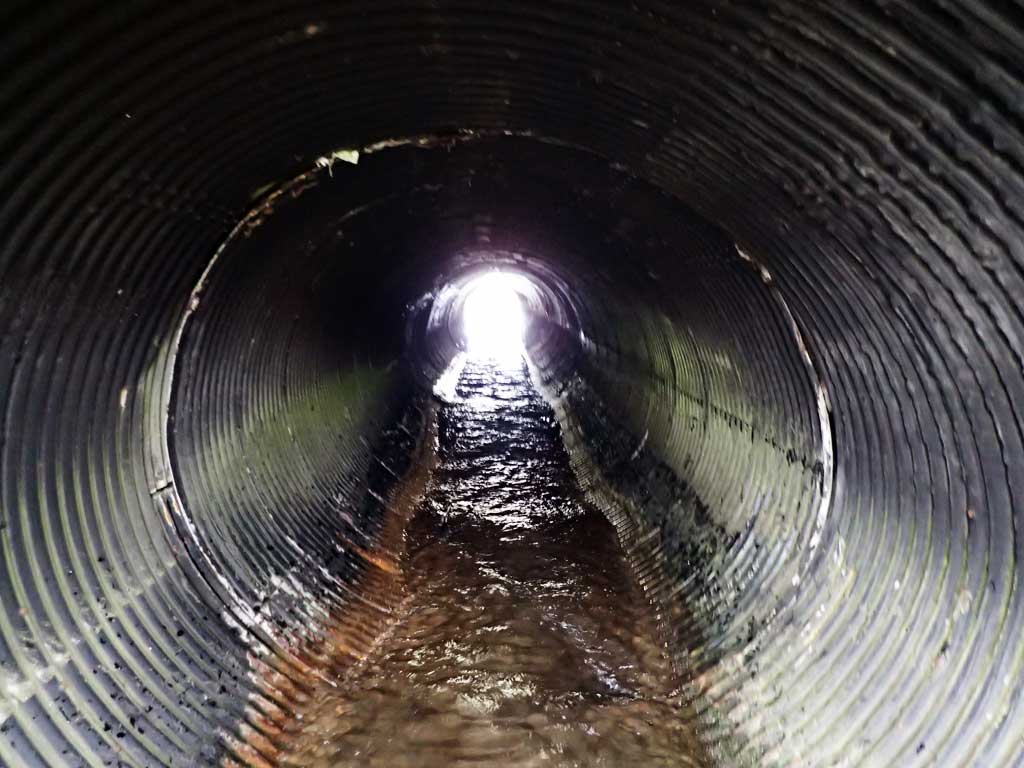

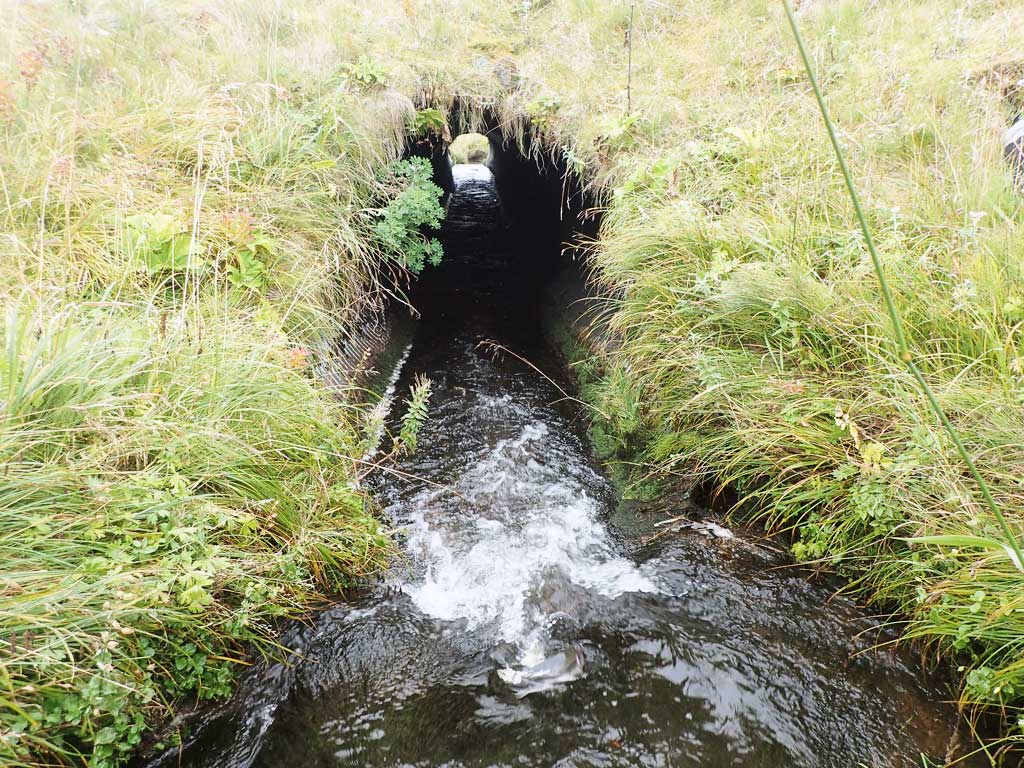

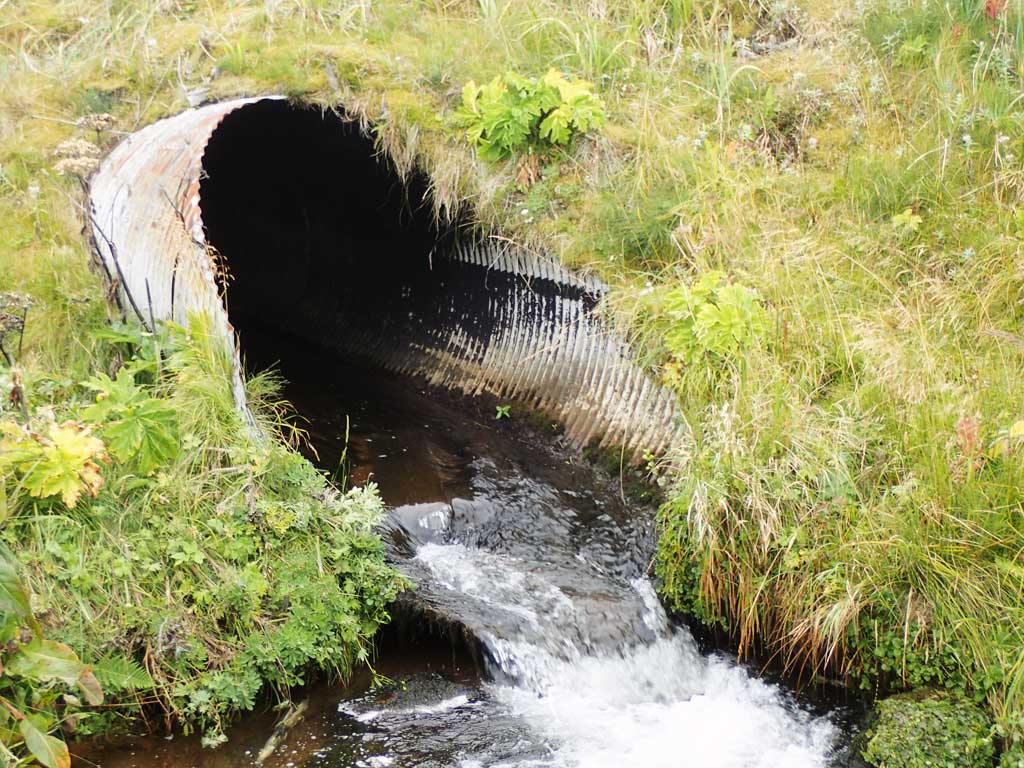

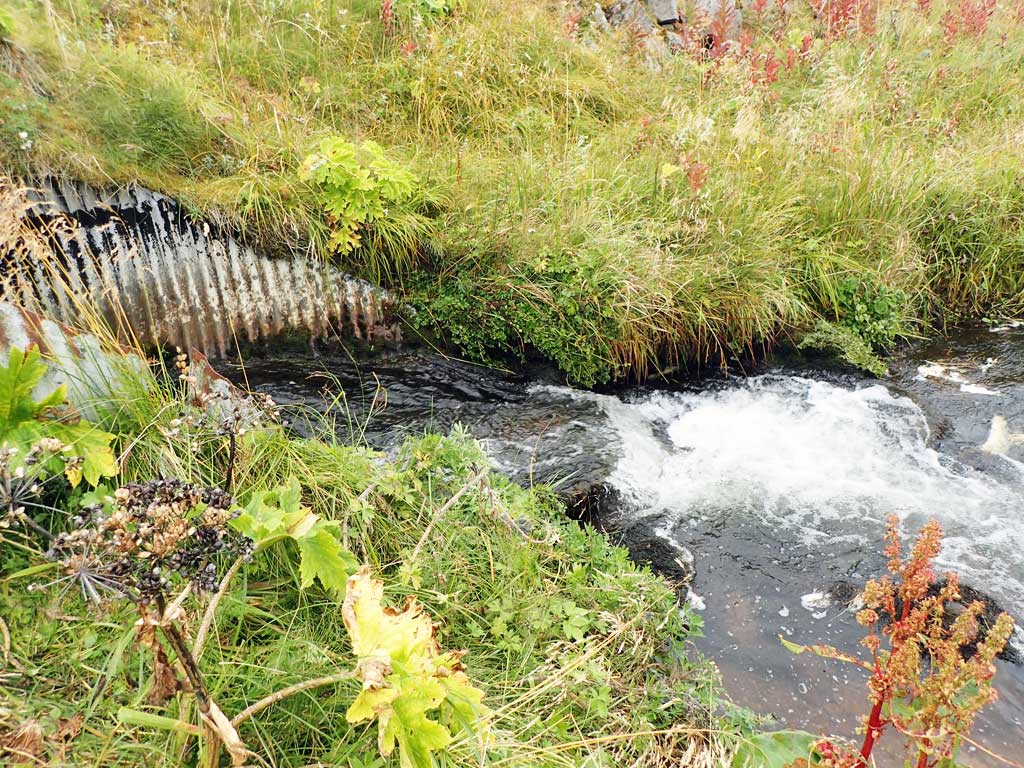

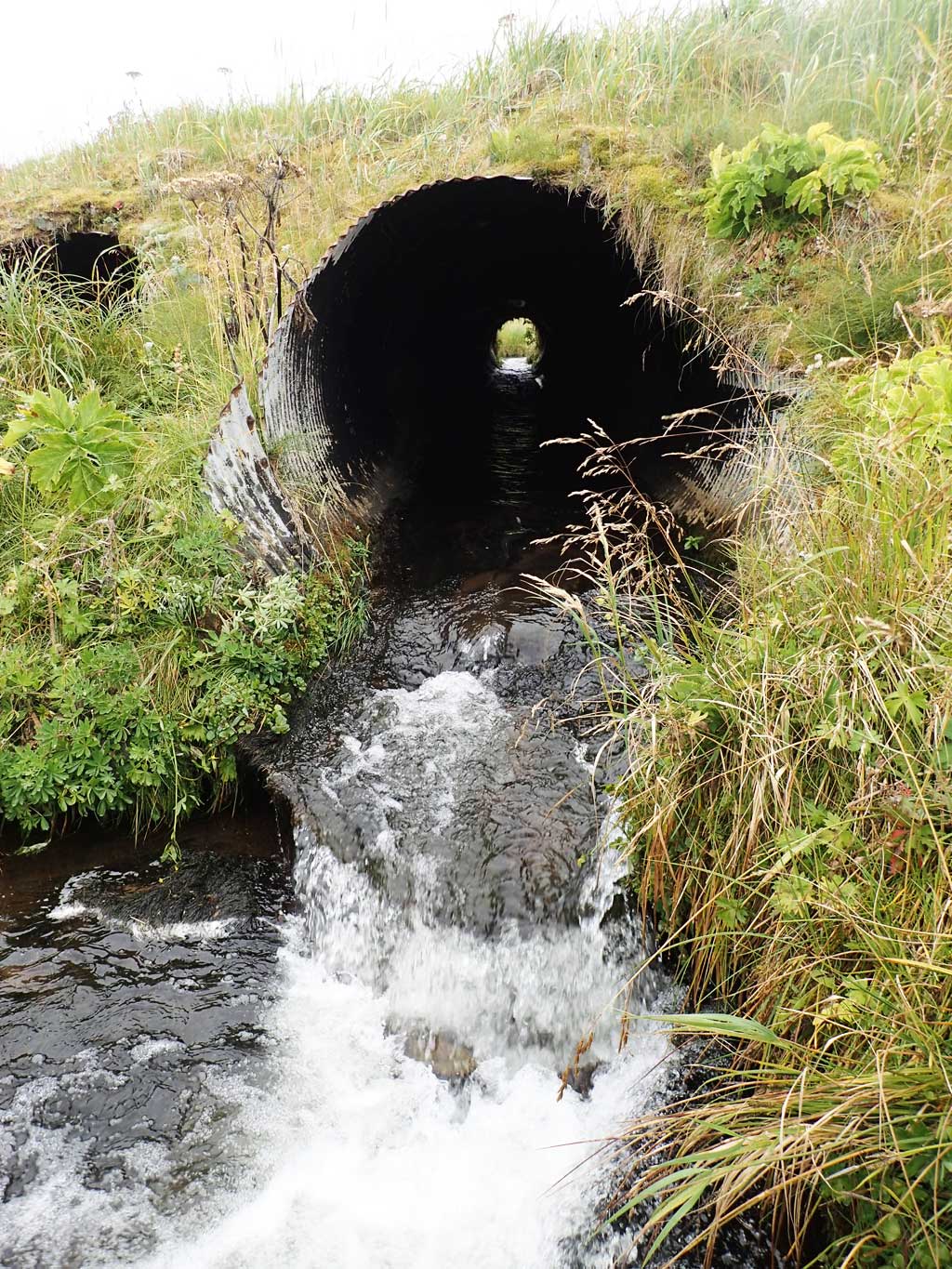

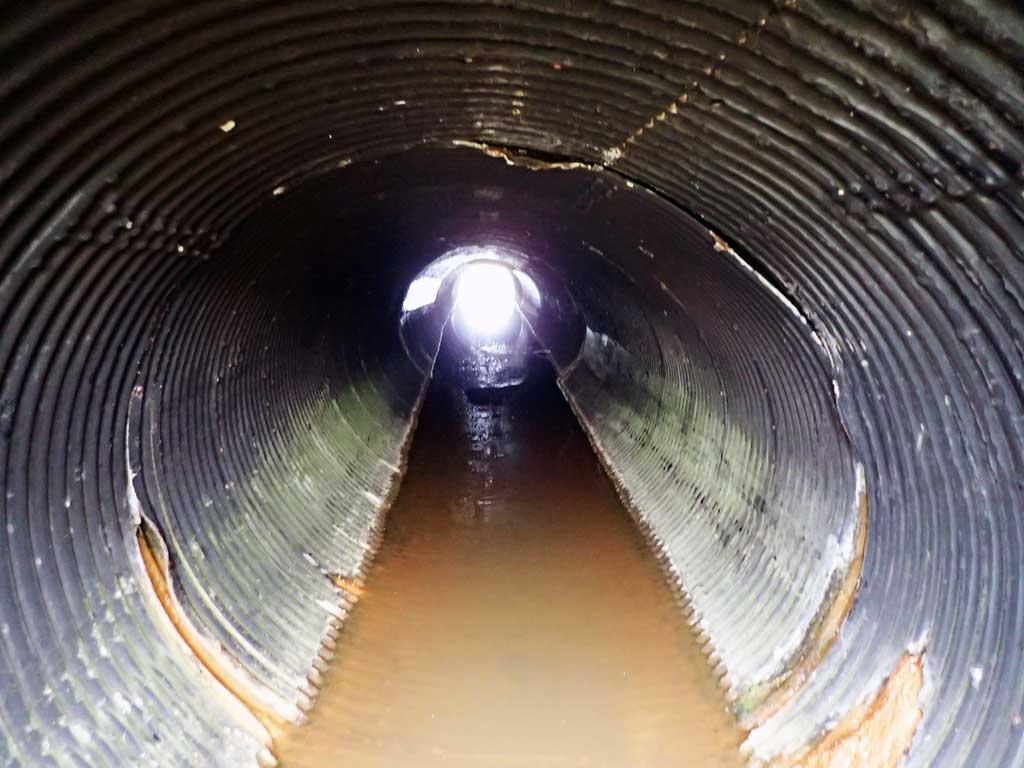

Comments: All flow being pushed into this culvert. Outfall height greater than 0.40'. Culvert length estimated using aerial imagery. Culvert is starting to separate.
  Culvert Observations:
  1. Outfall height red
  2. Material inadequate for designed use
  3. Structural Problem
ID: 2 Structure Type: Circular pipe (Corrugated steel) Fish Passage Rating: Red

Length(ft): 210.0
Inlet Type:
Outlet Type:
Corrugation Depth(in.):
Corrugation Width(in.):
Condition Rating(1-5): 1
Approach Angle:
Sedimentation At Inlet: Yes
Inlet Substrate:
Outlet Substrate:
InletOutlet
Width(ft):6.0 6.0
Height(ft):6.0 6.0
Apron Length(ft):
Water Depth(ft):
Rustline Height(ft):
Substrate Depth(ft):
Backwatered?: No
Baffles Present: No
Embedded?:
Outfall Height:
Outfall Type: Free Fall In To Pool
Constriction Ratio:
Culvert Gradient:
Max Slope:
Max Slope Length:

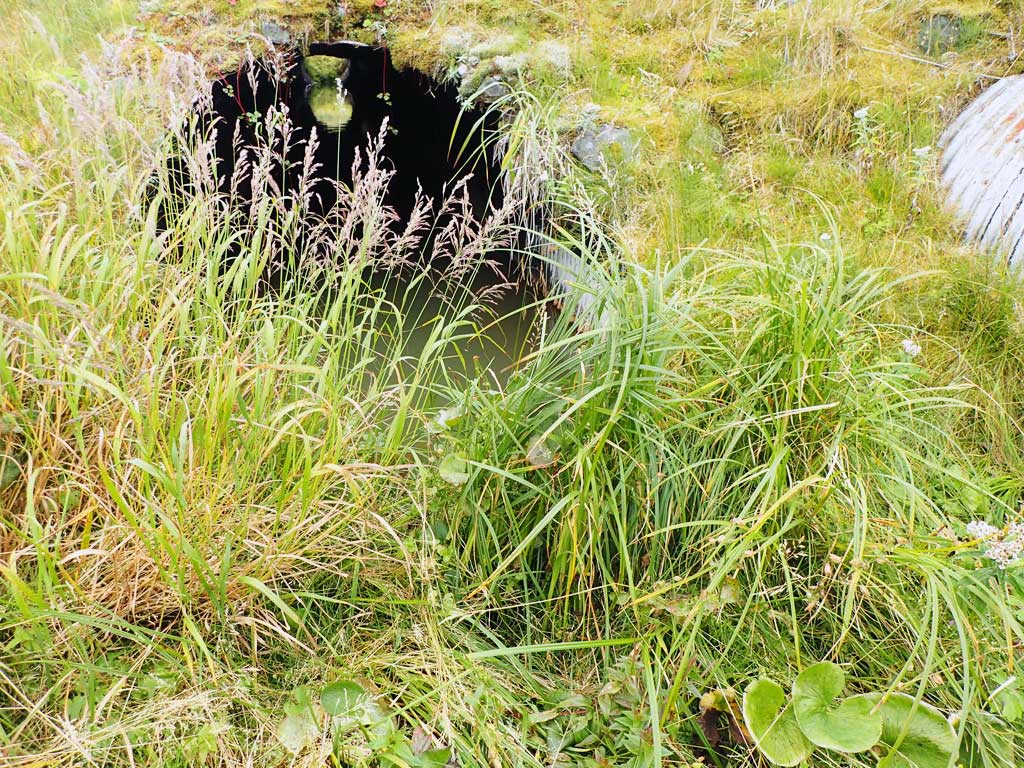

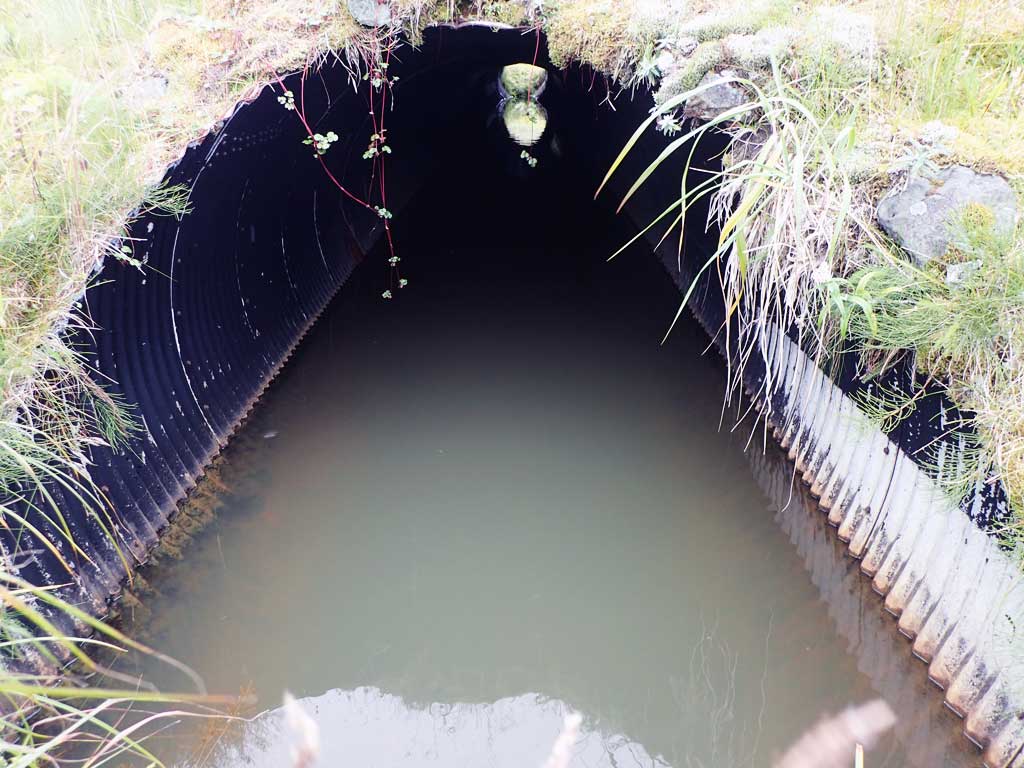

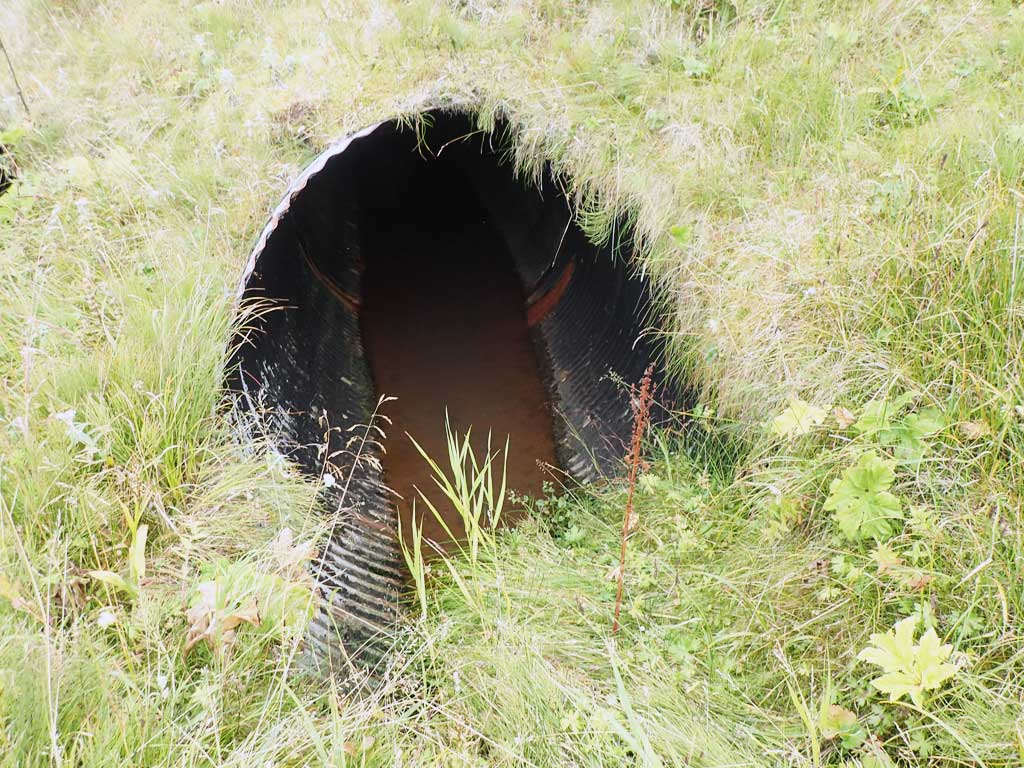

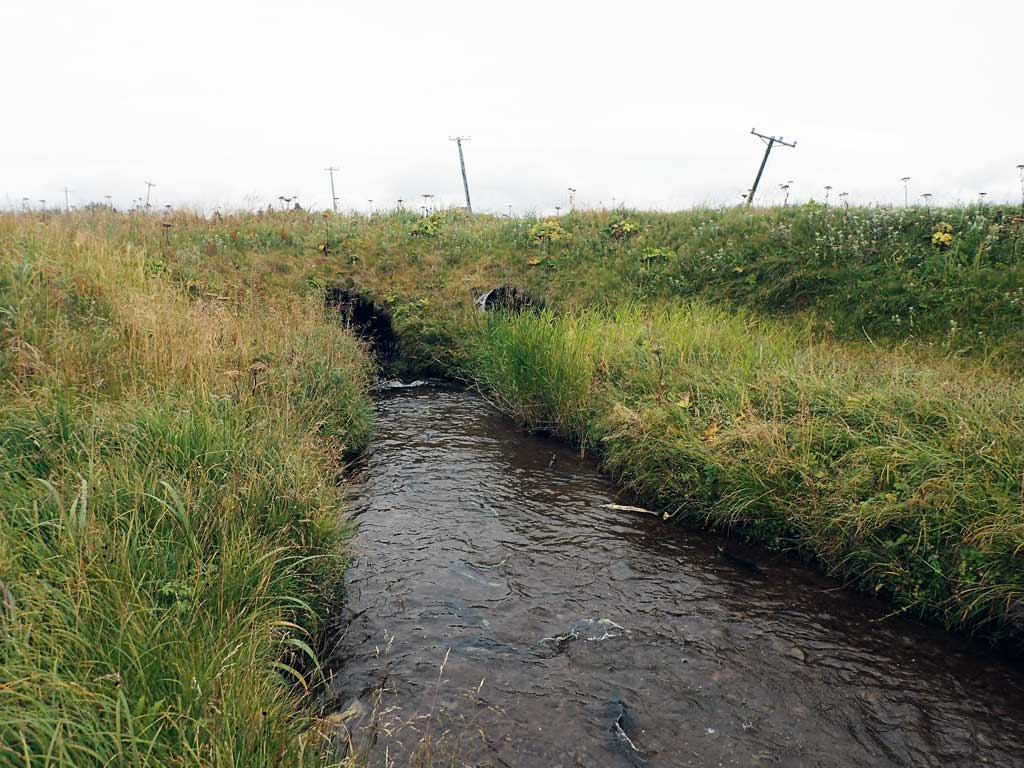

Comments: Culvert is completely blocked at inlet and outlet with vegetation. Culvert length estimated using aerial imagery.
  Culvert Observations:
  1. Outfall height red
  2. Mechanical damage or joints parting
  3. Structural Problem

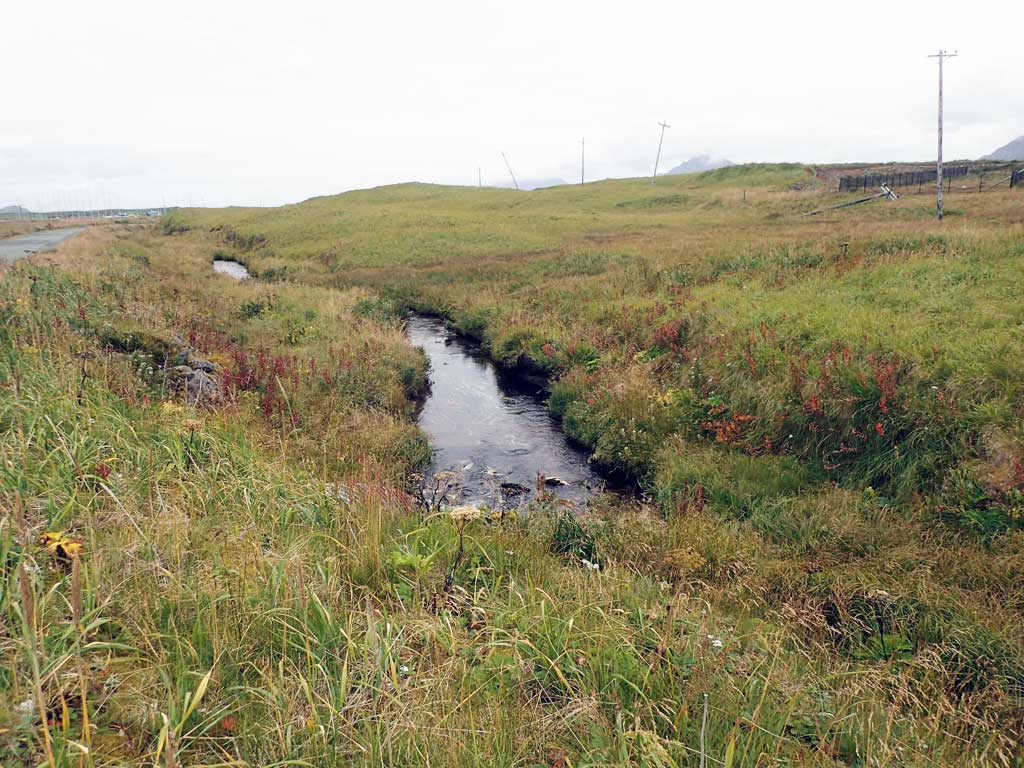

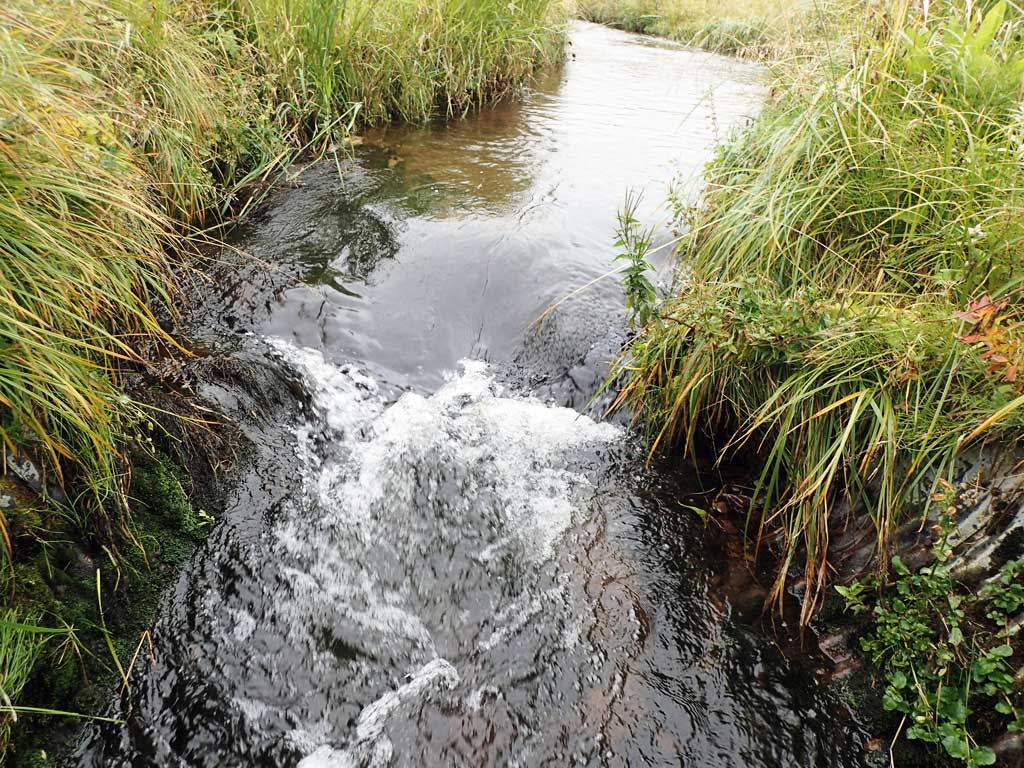

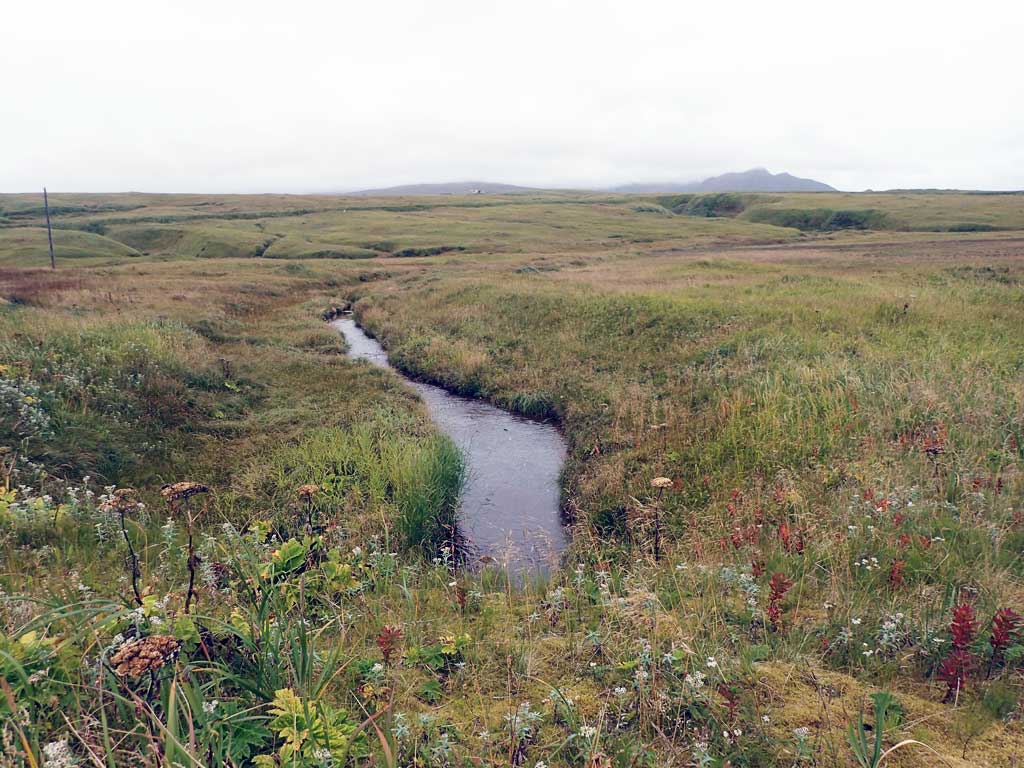

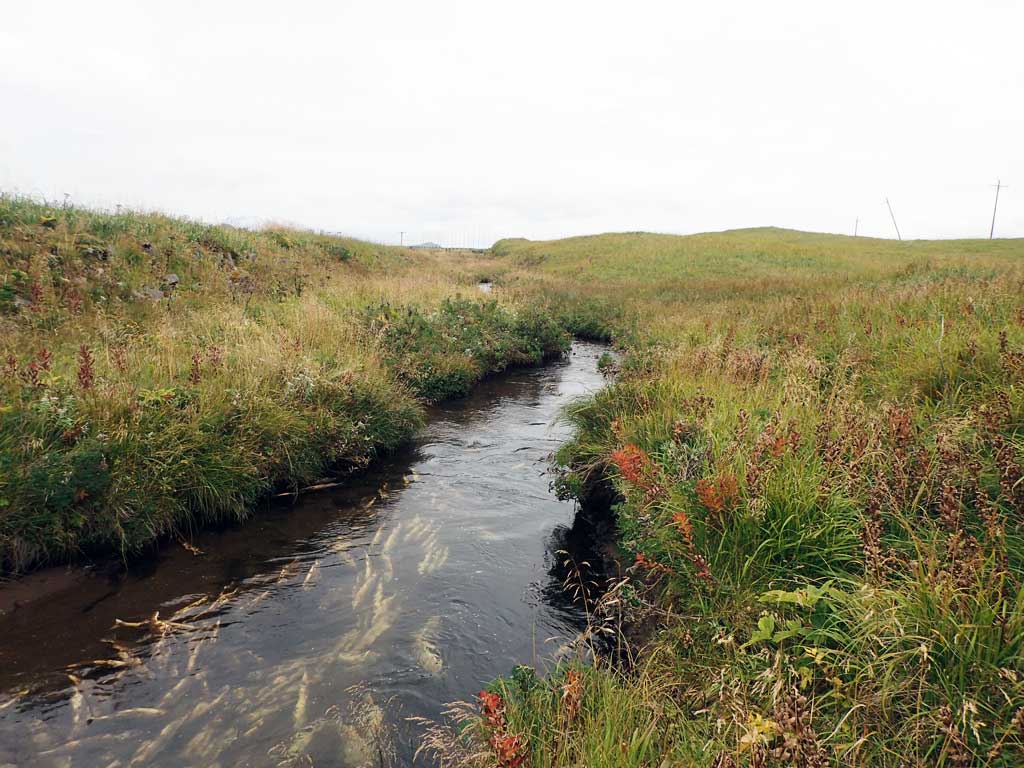

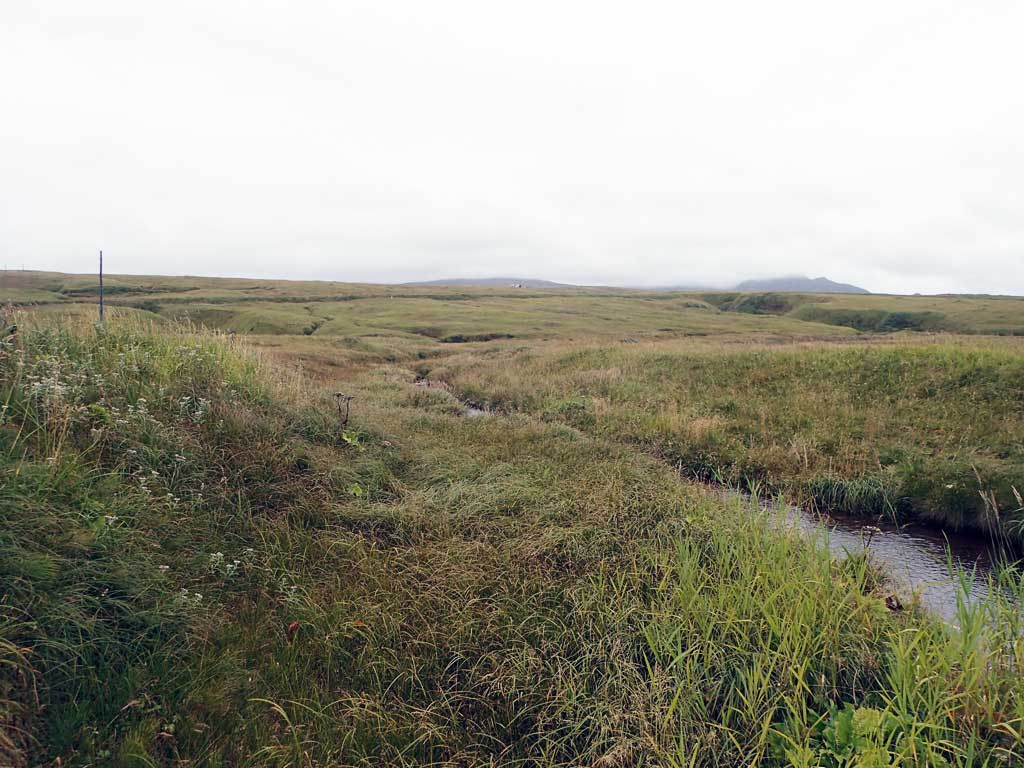

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:
Subdominant:
Stream Slope(deg.):
Stream Flow Stage:Medium

No stream width data available.

Elevations

No elevation data available.

Fish Sampling Efforts

Gear Type: Visual Observation, Ground (A)

Fish Observations

Species: adult spawning pink salmon Life History: Anadromous
Total Fish Observed: 200 Fish Measured: Fork Lengths (mm) Min: Max: Mean:
Collected/Observed by Gear Type: At Site Visual Observation, Ground (200)
Comments: Hundreds of pinks observed upstream and downstream of culverts, lots of carcasses.
