Fish Passage Site 30103669

Coordinates (dec. deg.): 51.94085°, -176.66493°
Legal Description: S095S195W15
Region: Southwest

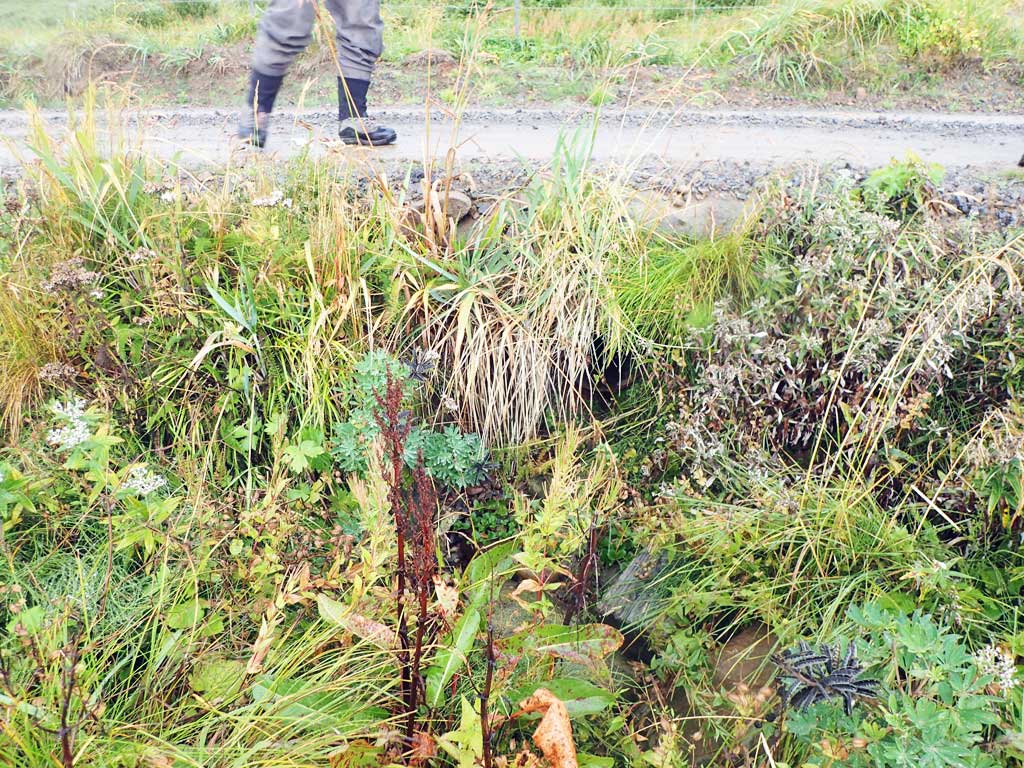

Road Name: Andrew Lake Road

Datum: NAD83
Quad Name / ITM: Adak C-2
AWC Stream #:
Stream Name: Unnamed

Elevation:

Site Comments: None

Survey Date: Sep 14, 2017

Survey ADAK17-C50

Observers: Mark Eisenman, Jeanette Alas

Overall Fish Passage Rating: Black

Tidal: No
Backwatered: No

Step Pools: No
Construction Year:

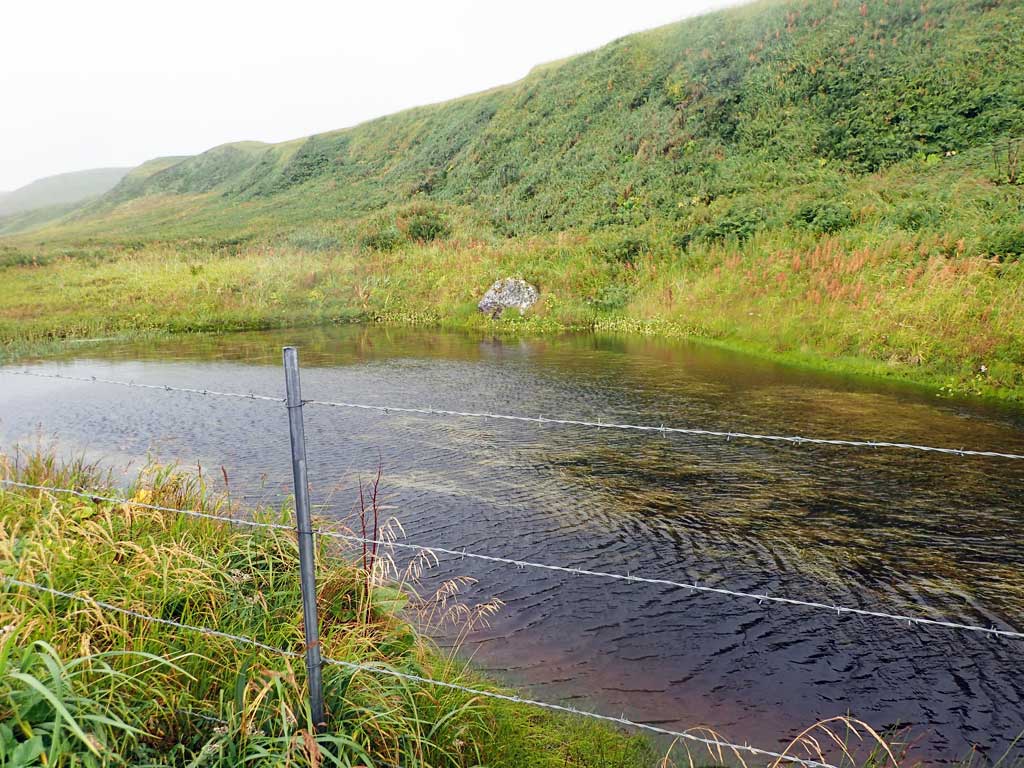

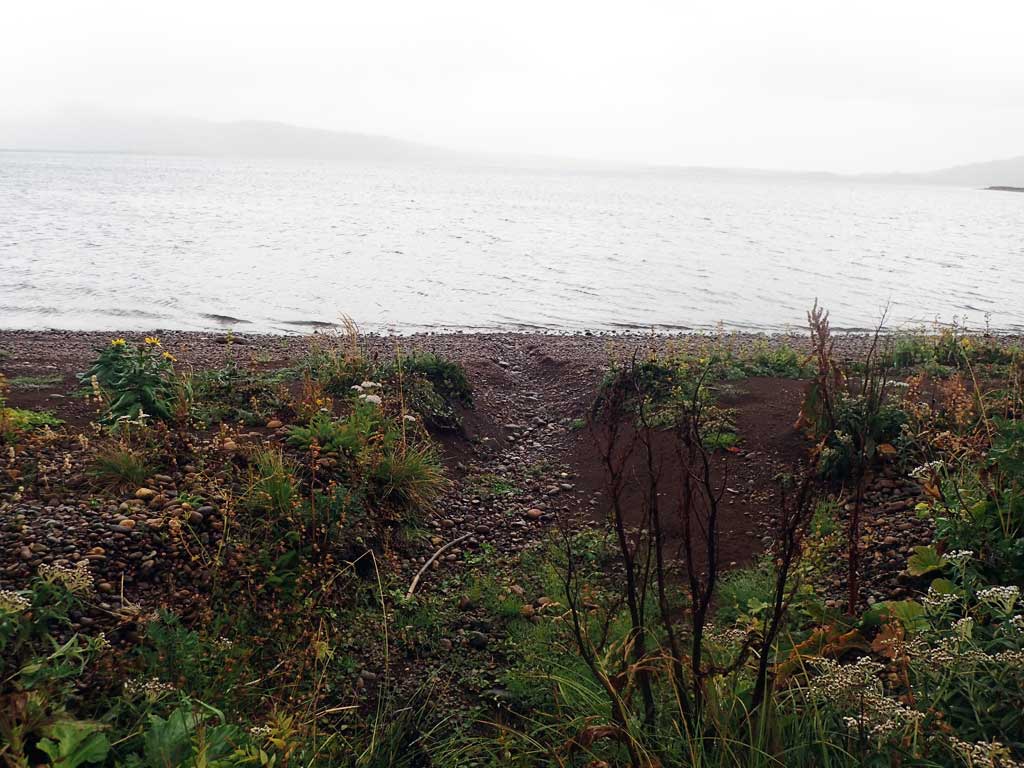

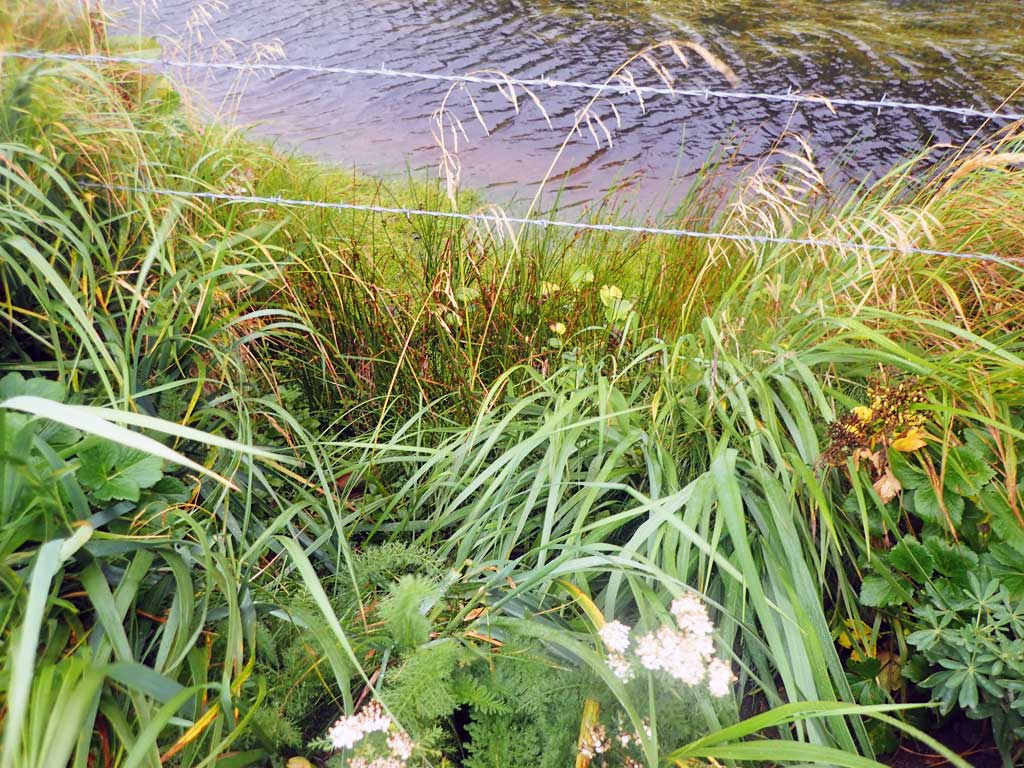

Comments: This information was gathered as part of the joint reconnaissance level project between the ADF&G Habitat Division and the Fish Passage Assessment Project on Adak Island. Due to time constraints full site assessments were not conducted, but base line information was collected. Pond upstream and flows directly into Andrew Lake. No flow through culvert at time of visit.

Culvert Measurements

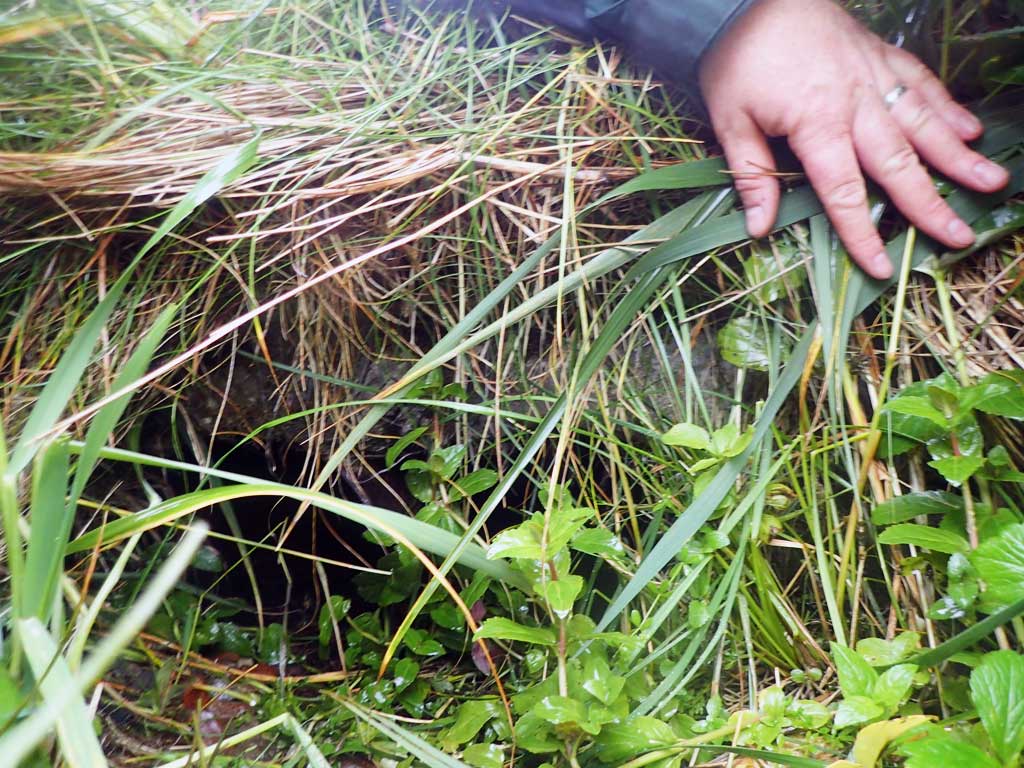

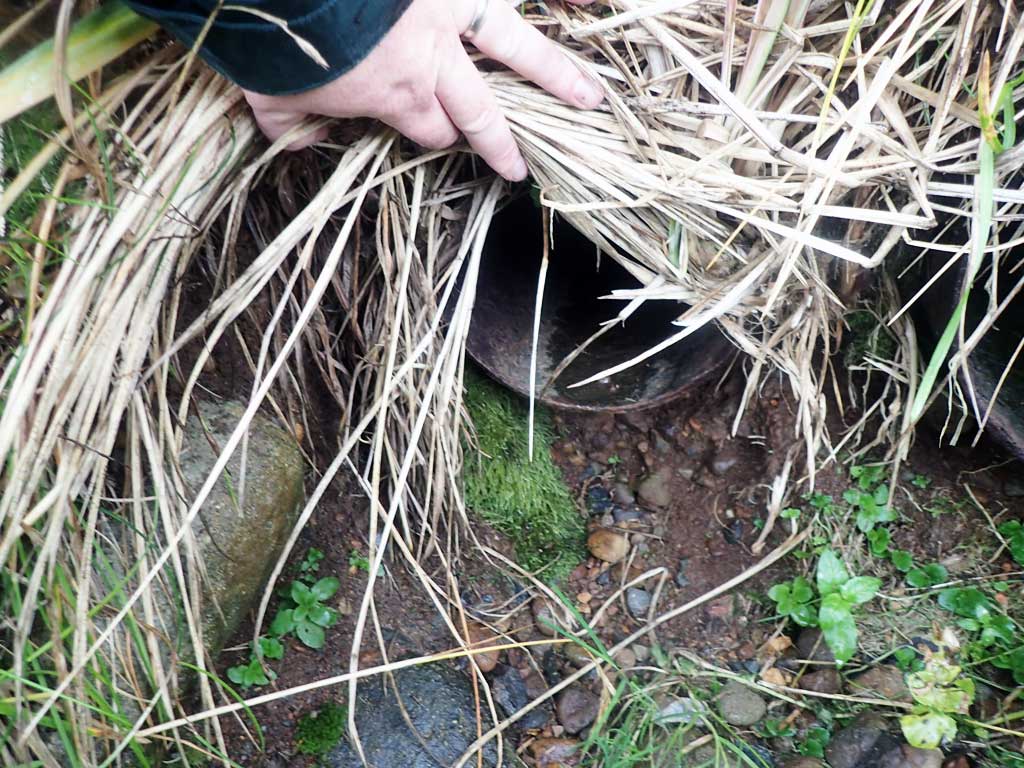

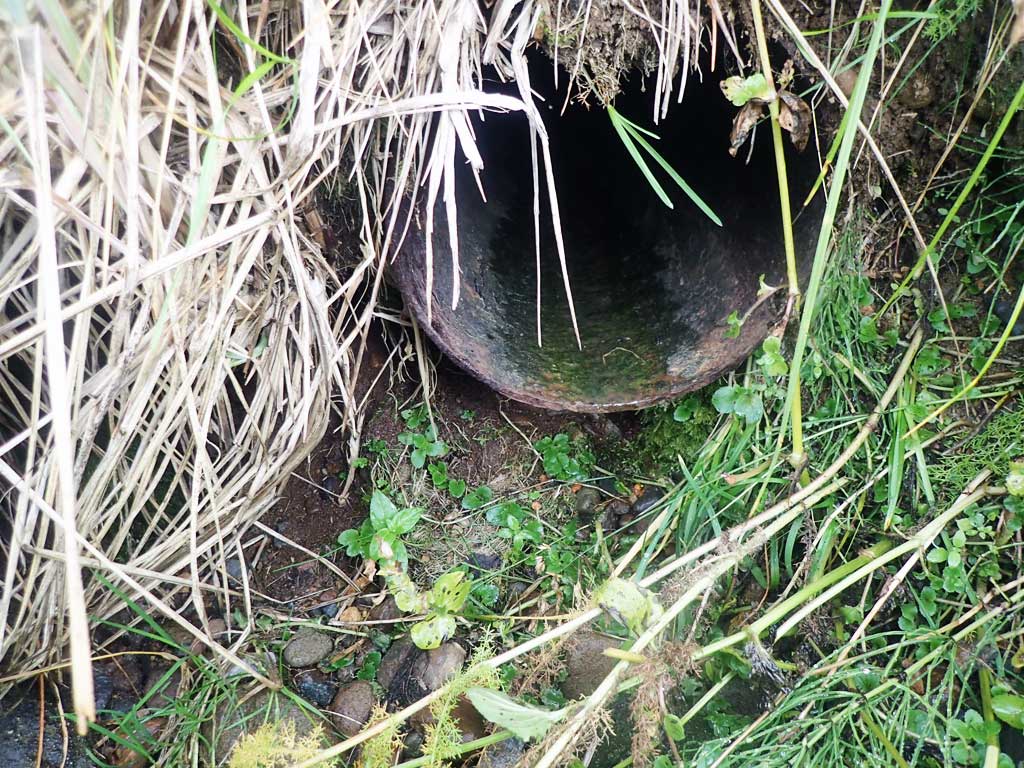

ID: 1 Structure Type: Circular pipe (Non-corrugated metal) Fish Passage Rating: Black

Length(ft): 30.0
Inlet Type: Projecting
Outlet Type: Projecting
Corrugation Depth(in.):
Corrugation Width(in.):
Condition Rating(1-5): 3
Approach Angle:
Sedimentation At Inlet: Unknown
Inlet Substrate: None
Outlet Substrate: None
InletOutlet

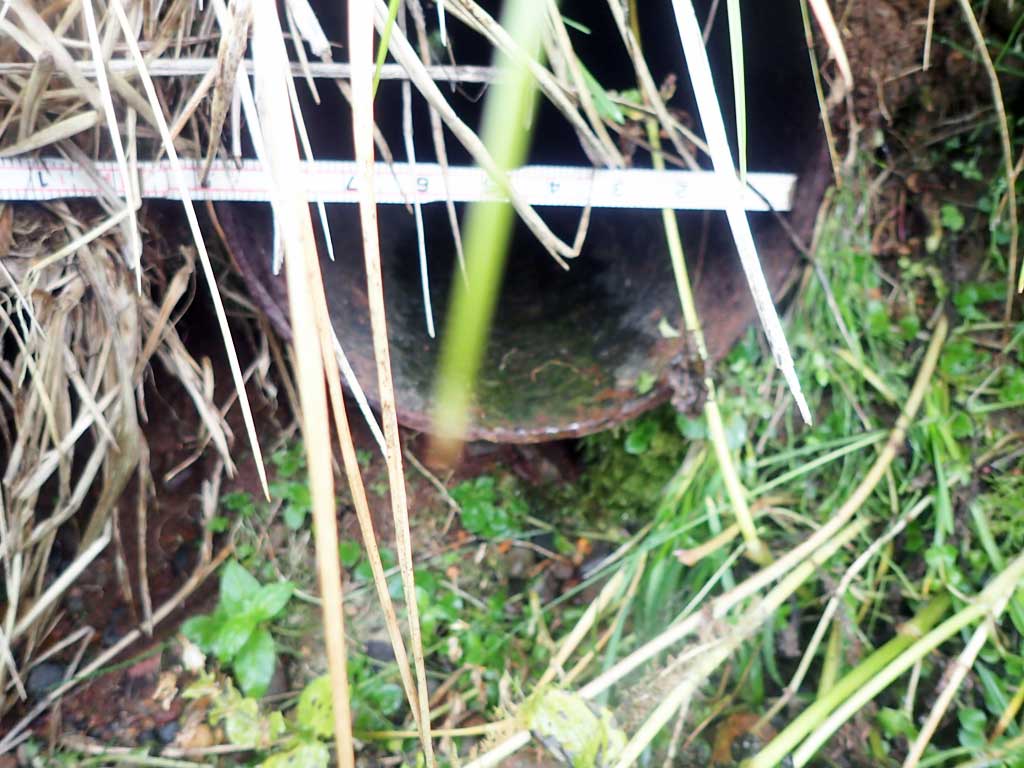

Width(ft):0.9 0.9
Height(ft):0.9 0.9
Apron Length(ft):
Water Depth(ft): 0.0
Rustline Height(ft):
Substrate Depth(ft):0.0 0.0
Backwatered?: No
Baffles Present: No
Embedded?: No
Outfall Height:
Outfall Type: Free Fall In To Pool
Constriction Ratio:
Culvert Gradient:
Max Slope:
Max Slope Length:


Comments: No flow through culvert at time of visit. Ponded upstream.

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:
Subdominant:
Stream Slope(deg.):
Stream Flow Stage:Dry

No stream width data available.

Elevations

No elevation data available.

Fish Sampling Efforts

No fish sampling occurred during this survey.

Fish Observations

No fish observations occurred during this survey.
