Fish Passage Site 30103668

Coordinates (dec. deg.): 51.95216°, -176.58408°
Legal Description: S095S194W18
Region: Southwest

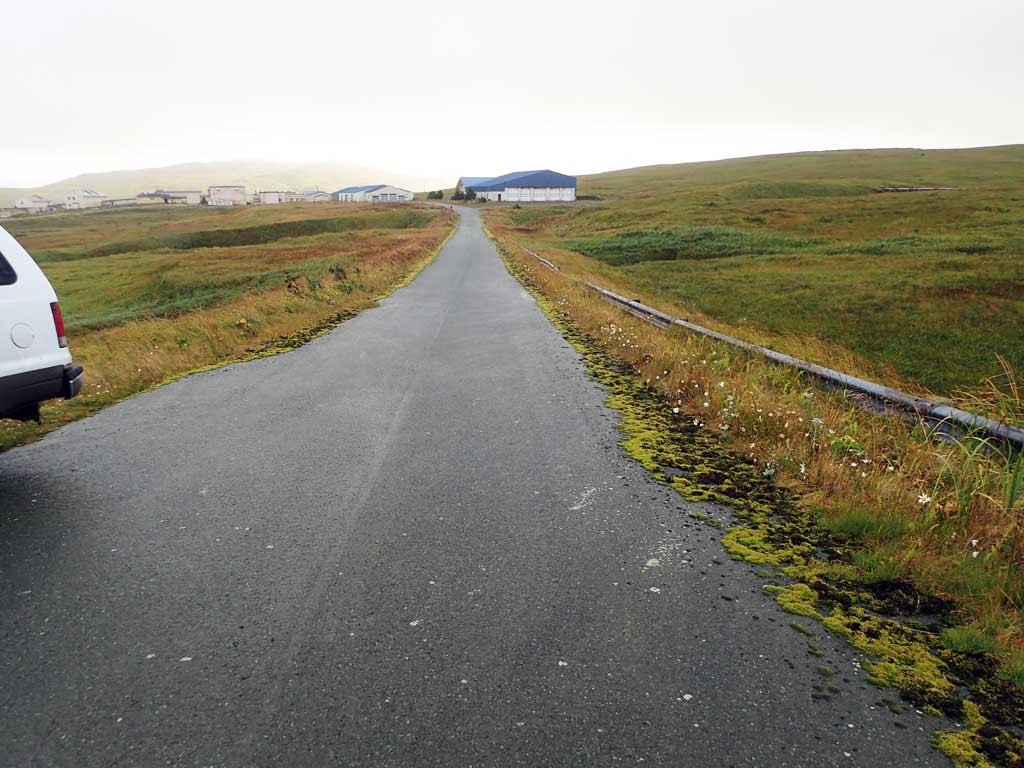

Road Name: Old Military Road

Datum: NAD83
Quad Name / ITM: Adak C-2
AWC Stream #:
Stream Name: Unnamed

Elevation:

Site Comments: Tributary to Transpo Creek

Survey Date: Sep 14, 2017

Survey ADAK17-C5

Observers: Mark Eisenman, Jeanette Alas

Overall Fish Passage Rating: Black

Tidal: No
Backwatered: No

Step Pools: No
Construction Year:

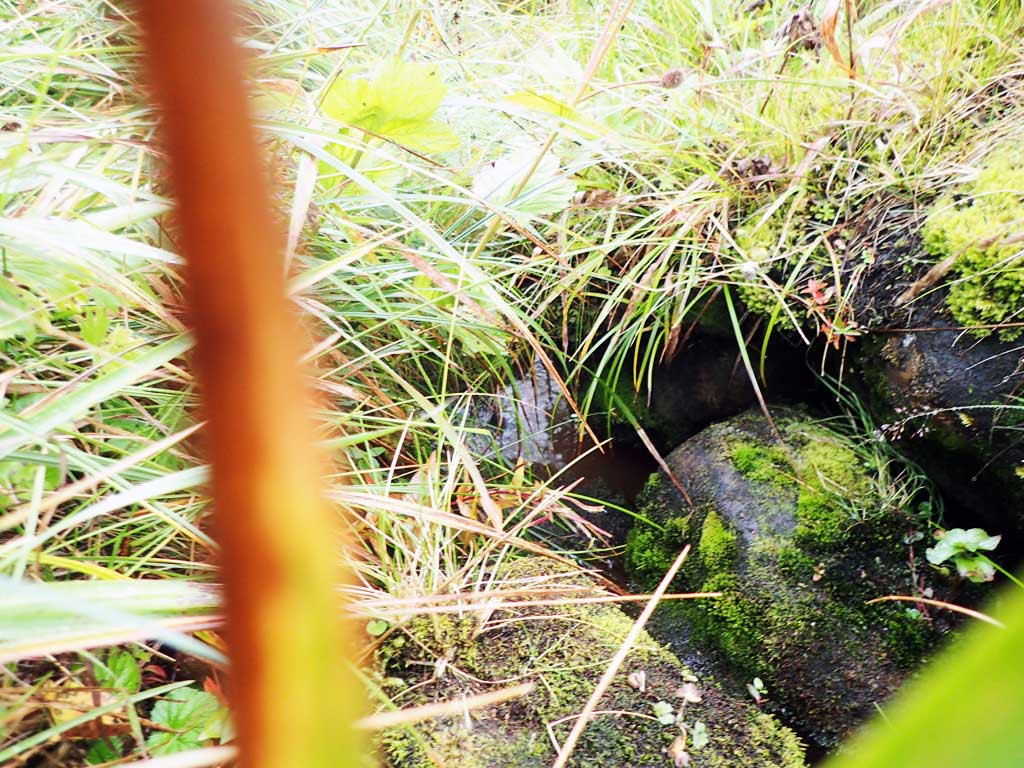

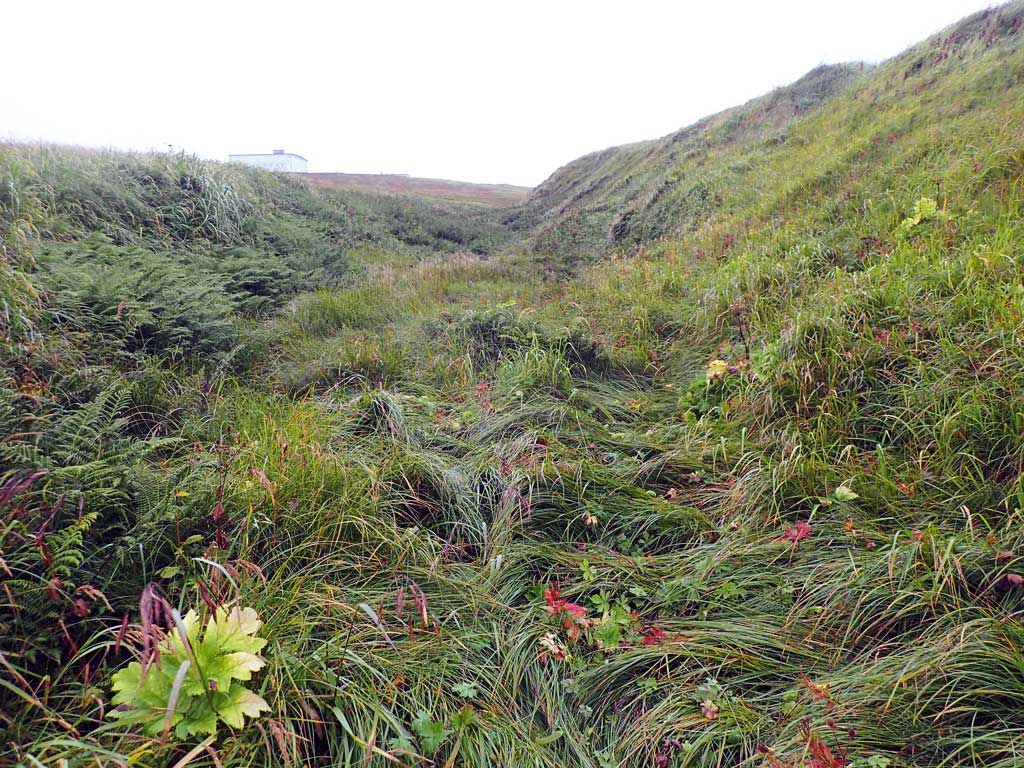

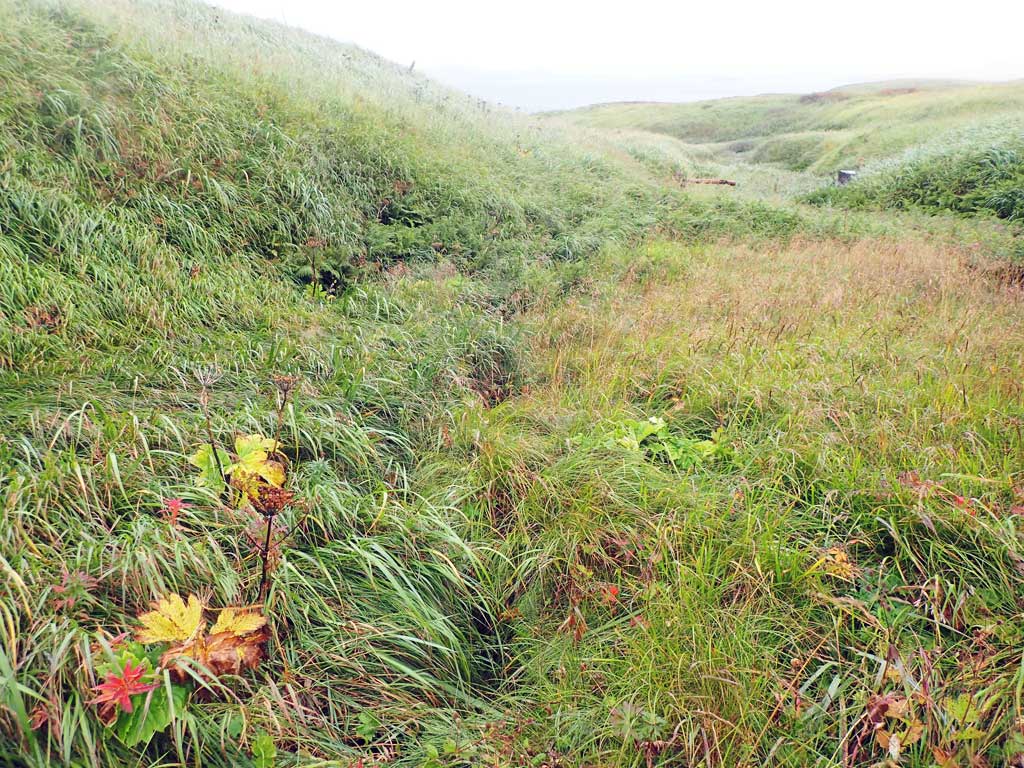

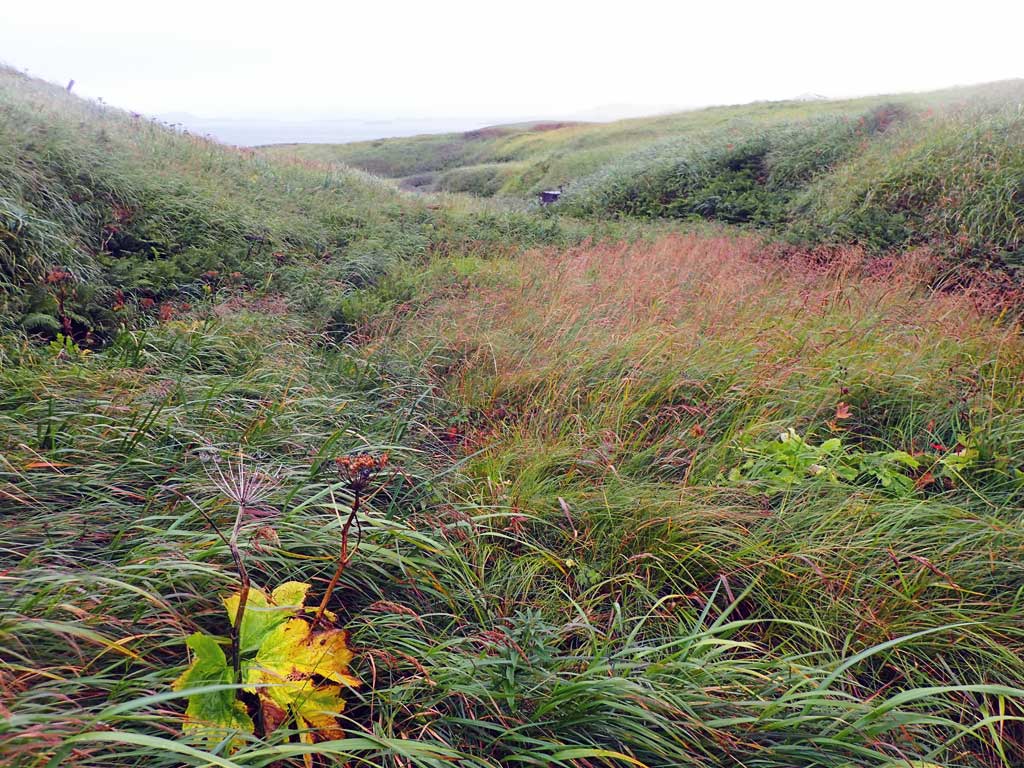

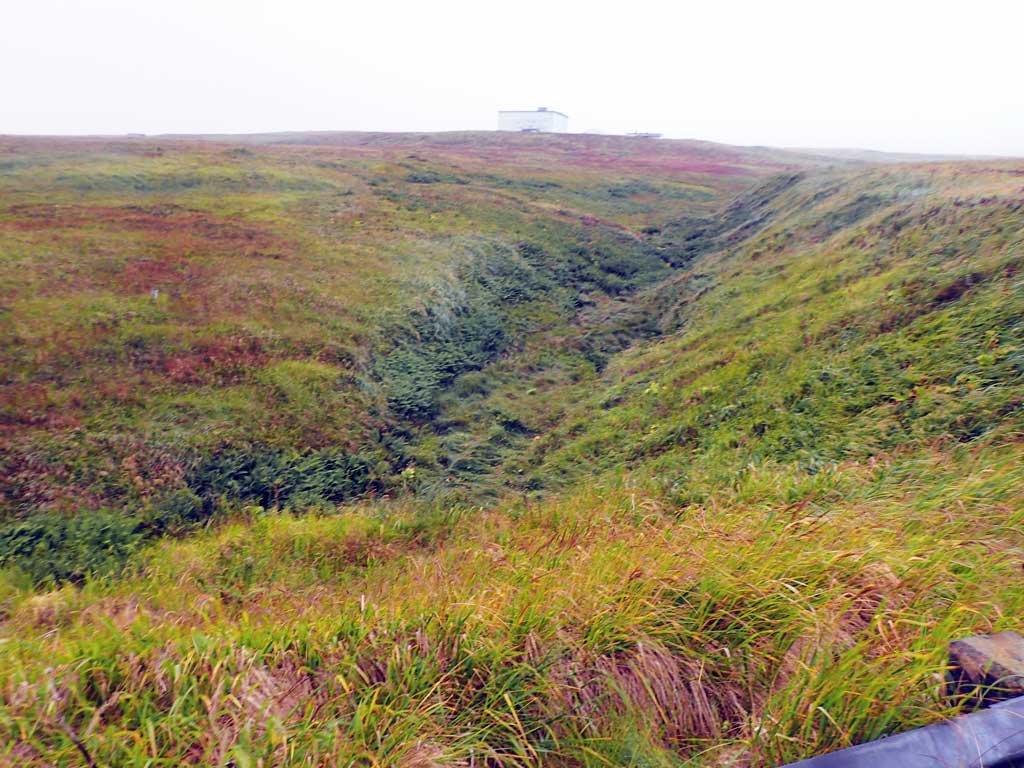

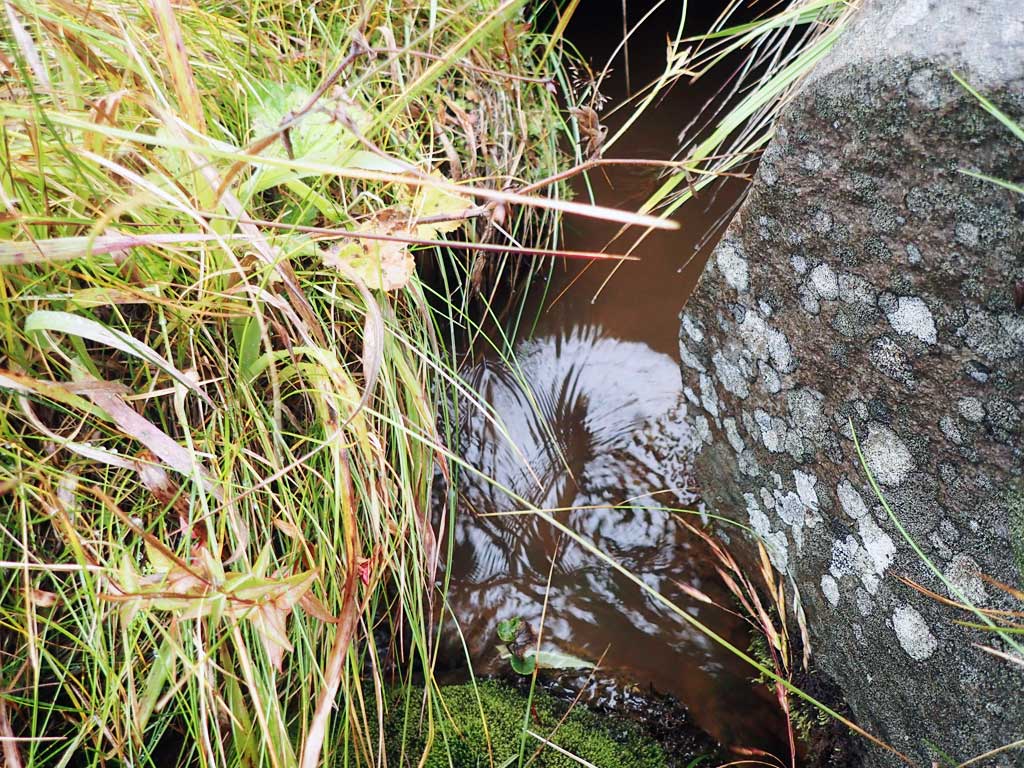

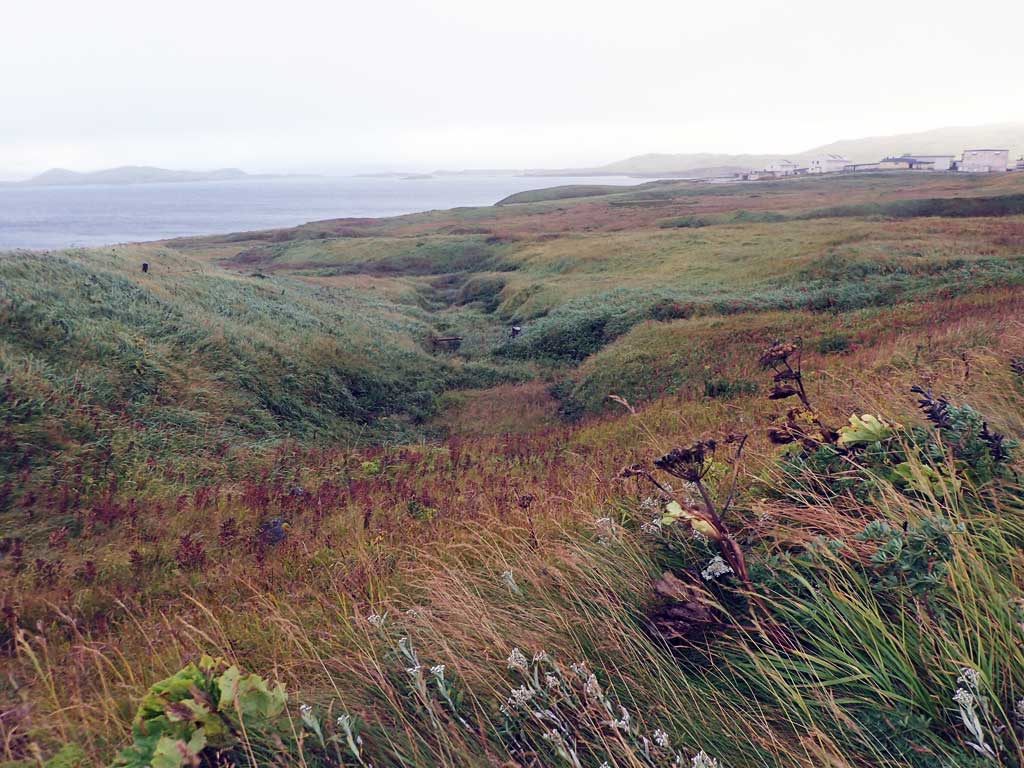

Comments: This information was gathered as part of the joint reconnaissance level project between the ADF&G Habitat Division and the Fish Passage Assessment Project on Adak Island. Due to time constraints full site assessments were not conducted, but base line information was collected. Creek comes out of culvert and cascades over rocks downstream for about 10 to 20 feet. Marginal habitat upstream, but could be Dolly Varden.

Culvert Measurements

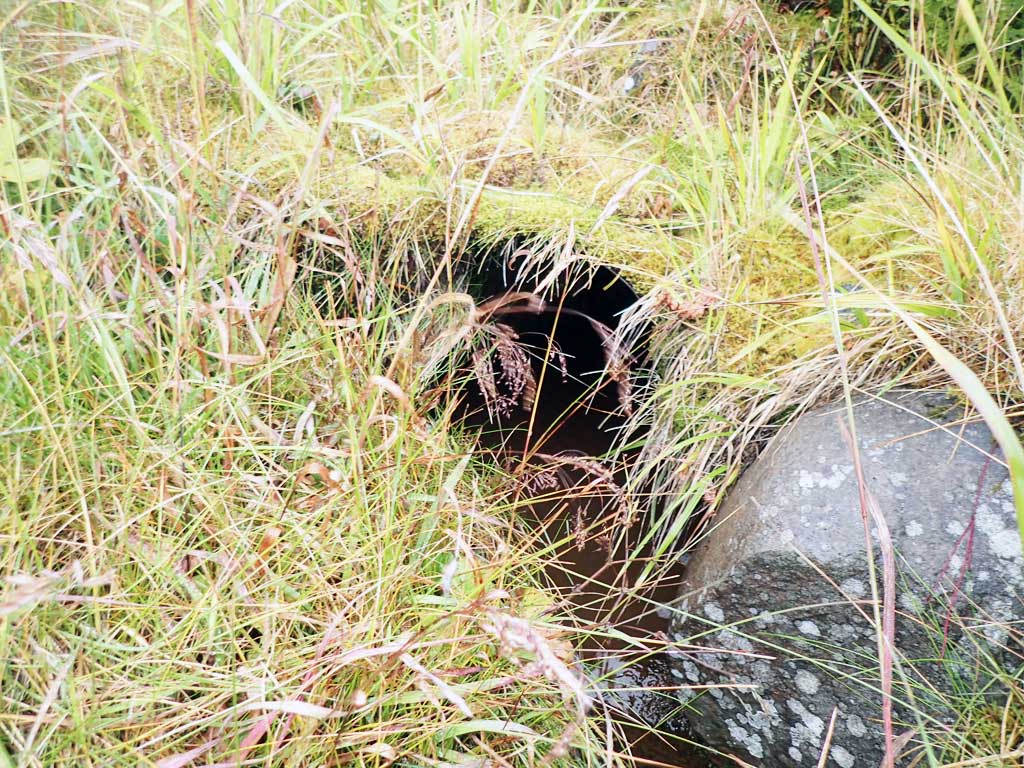

ID: 1 Structure Type: Circular pipe (Corrugated steel) Fish Passage Rating: Black

Length(ft): 93.0
Inlet Type: Projecting
Outlet Type: Projecting
Corrugation Depth(in.):
Corrugation Width(in.):
Condition Rating(1-5): 2
Approach Angle:
Sedimentation At Inlet: Yes
Inlet Substrate:
Outlet Substrate:
InletOutlet
Width(ft):3.0 3.0
Height(ft):3.0 3.0
Apron Length(ft):
Water Depth(ft):
Rustline Height(ft):
Substrate Depth(ft):
Backwatered?: No
Baffles Present: No
Embedded?: No
Outfall Height:
Outfall Type: Cascade Over Rip-Rap
Constriction Ratio:
Culvert Gradient:
Max Slope:
Max Slope Length:

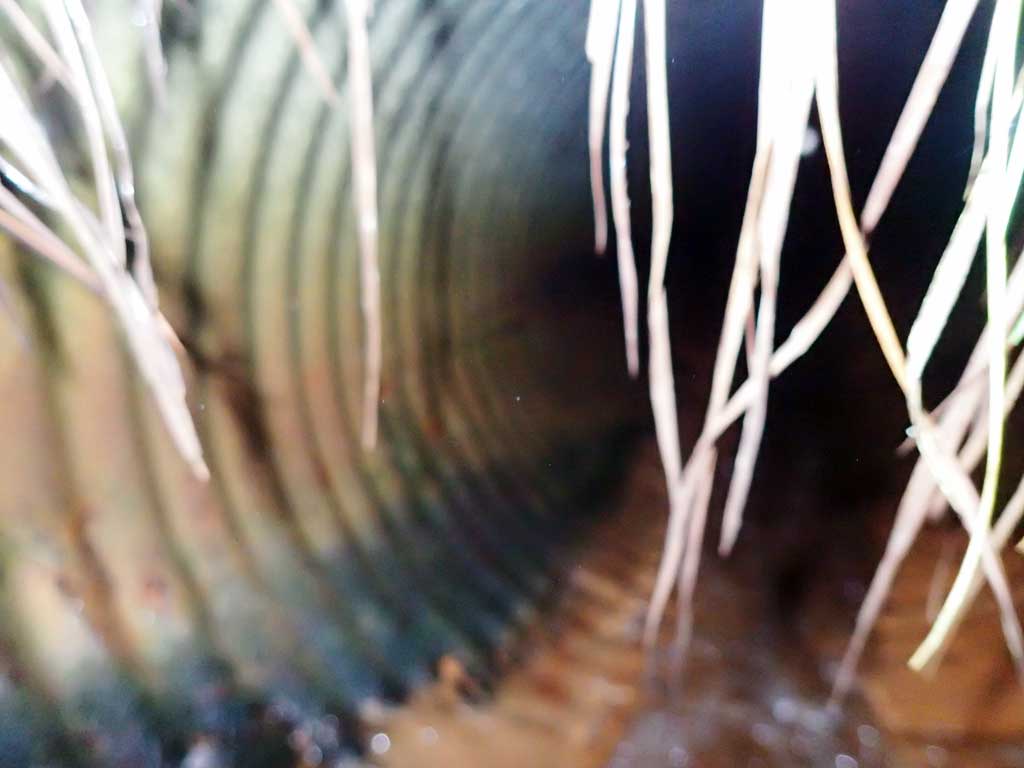

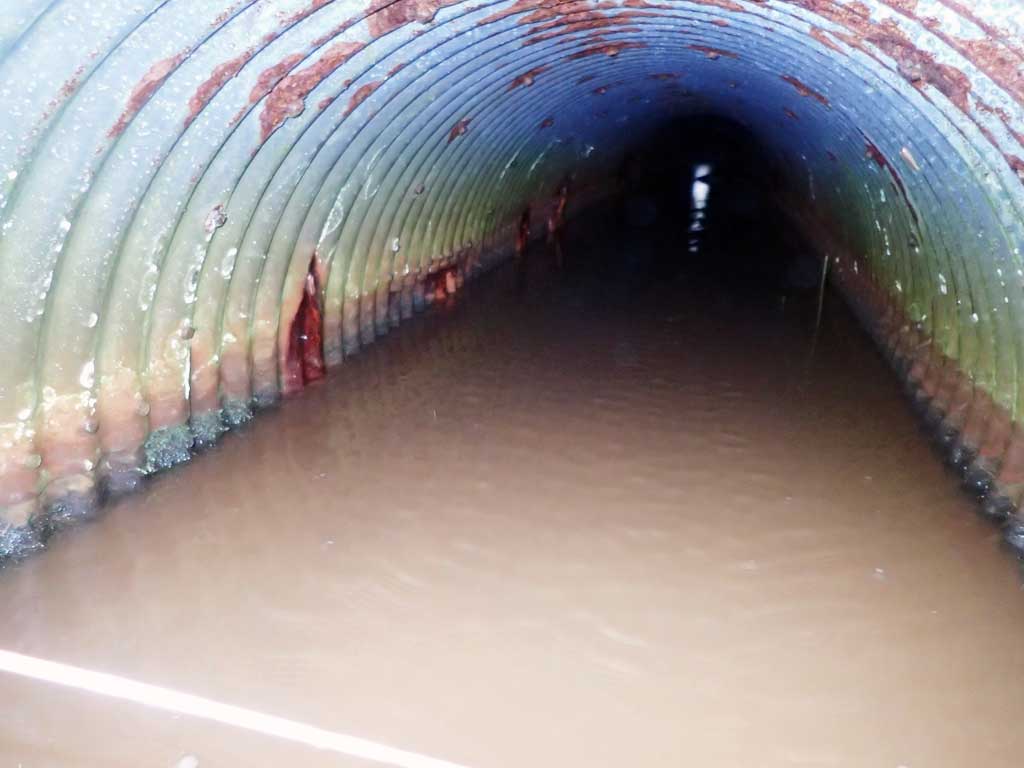

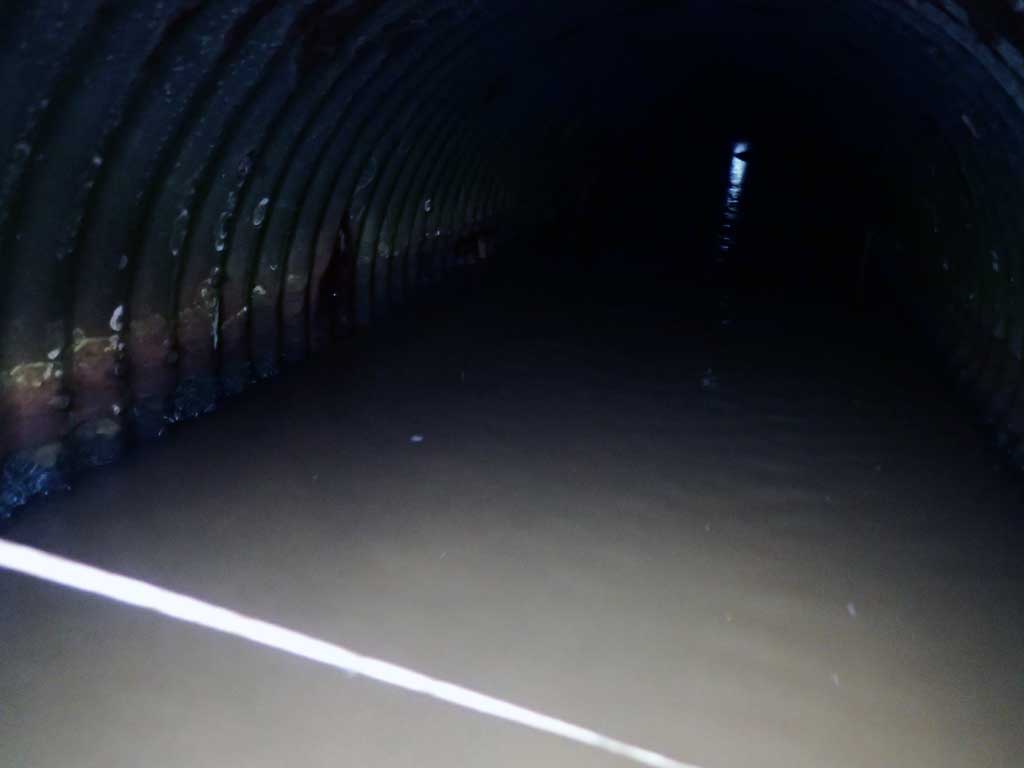

Comments: Culvert shows quite a bit of deterioration inside barrel. Water fairly flat for a distance into culvert from outlet.

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:
Subdominant:
Stream Slope(deg.):
Stream Flow Stage:Medium

No stream width data available.

Elevations

No elevation data available.

Fish Sampling Efforts

No fish sampling occurred during this survey.

Fish Observations

No fish observations occurred during this survey.
