Fish Passage Site 30103664

Coordinates (dec. deg.): 51.92794°, -176.64328°
Legal Description: S095S195W23
Region: Southwest

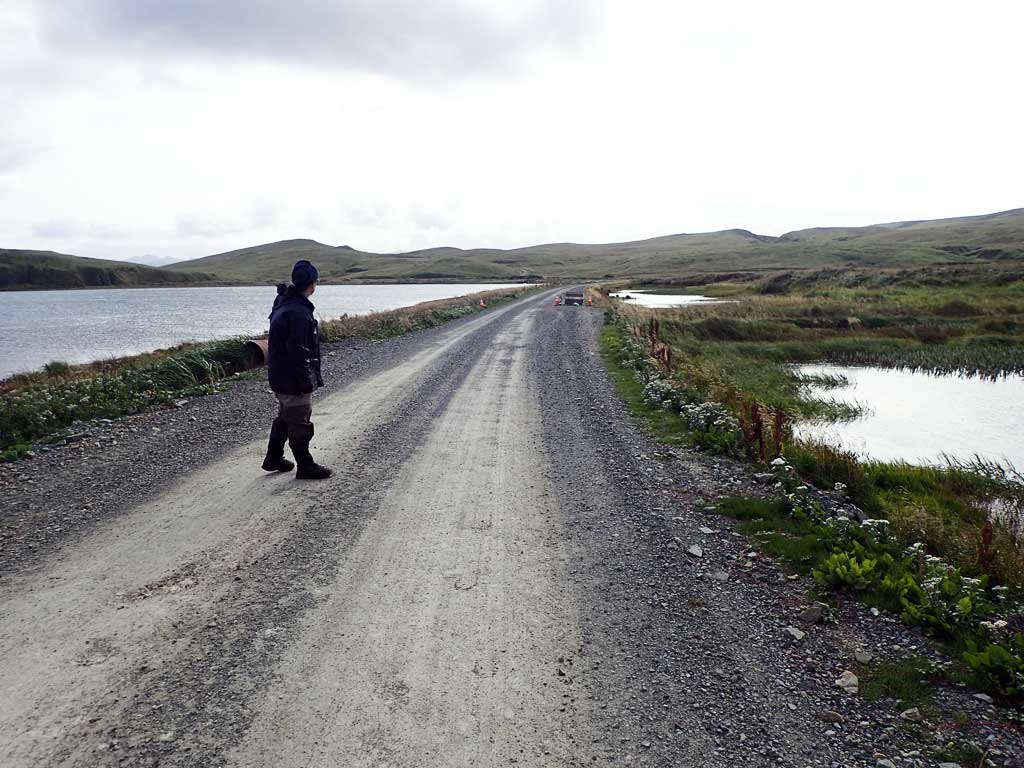

Road Name: Andrew Lake Road

Datum: NAD83
Quad Name / ITM: Adak C-2
AWC Stream #:
Stream Name: Unnamed

Elevation:

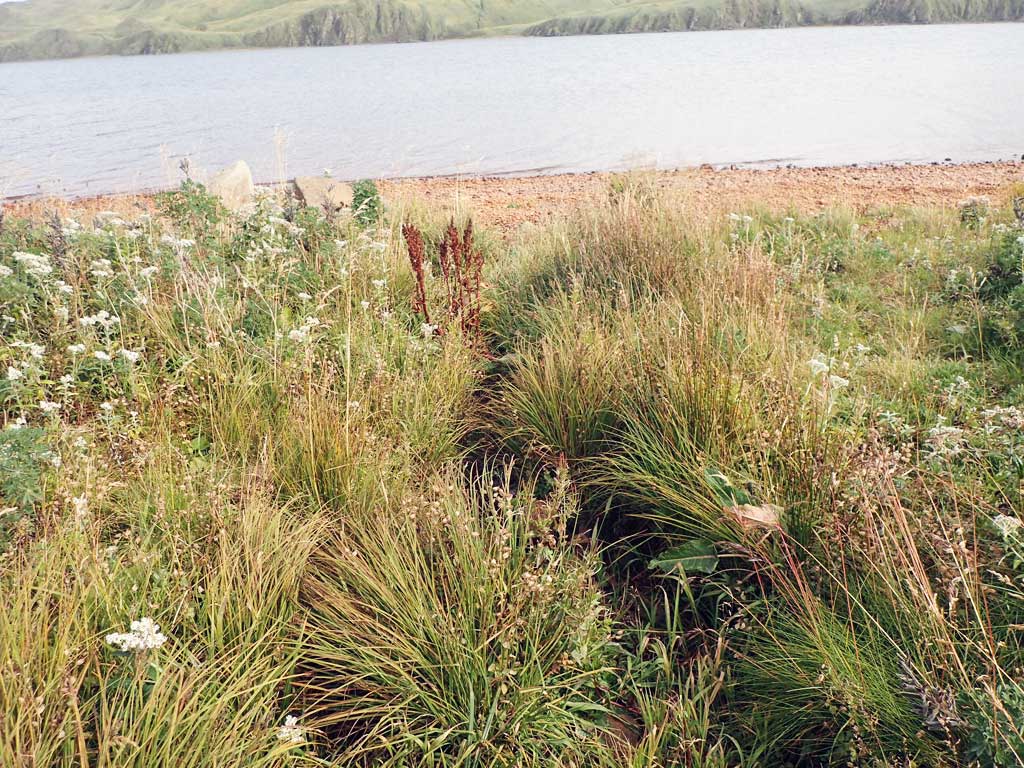

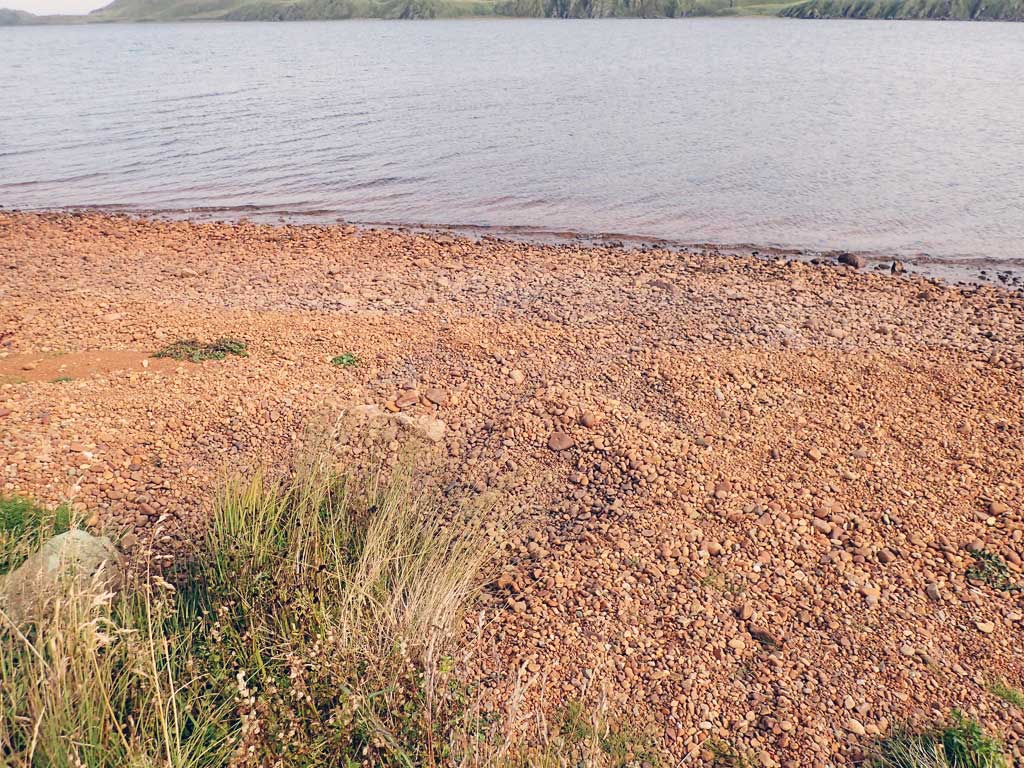

Site Comments: Flows directly into Andrew Lake downstream.

Survey Date: Sep 16, 2017

Survey ADAK17-C44

Observers: Mark Eisenman, Jeanette Alas

Overall Fish Passage Rating: Black

Tidal: No
Backwatered: No

Step Pools: No
Construction Year:


Site Observations:

  1. Compound gradient in pipe

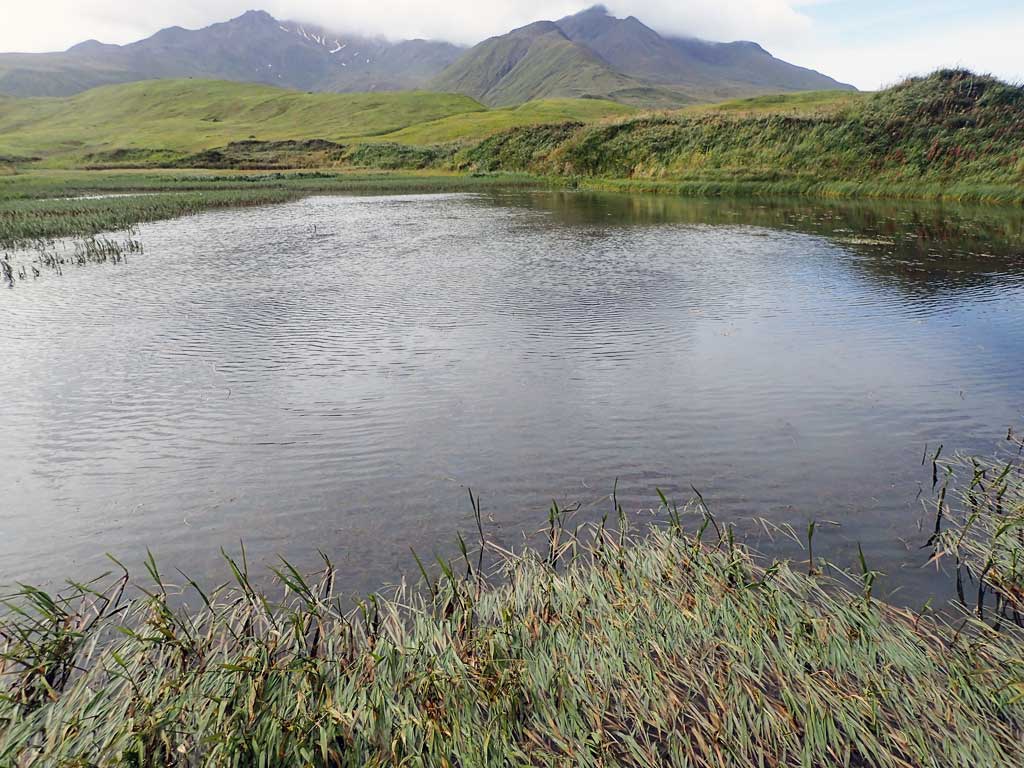

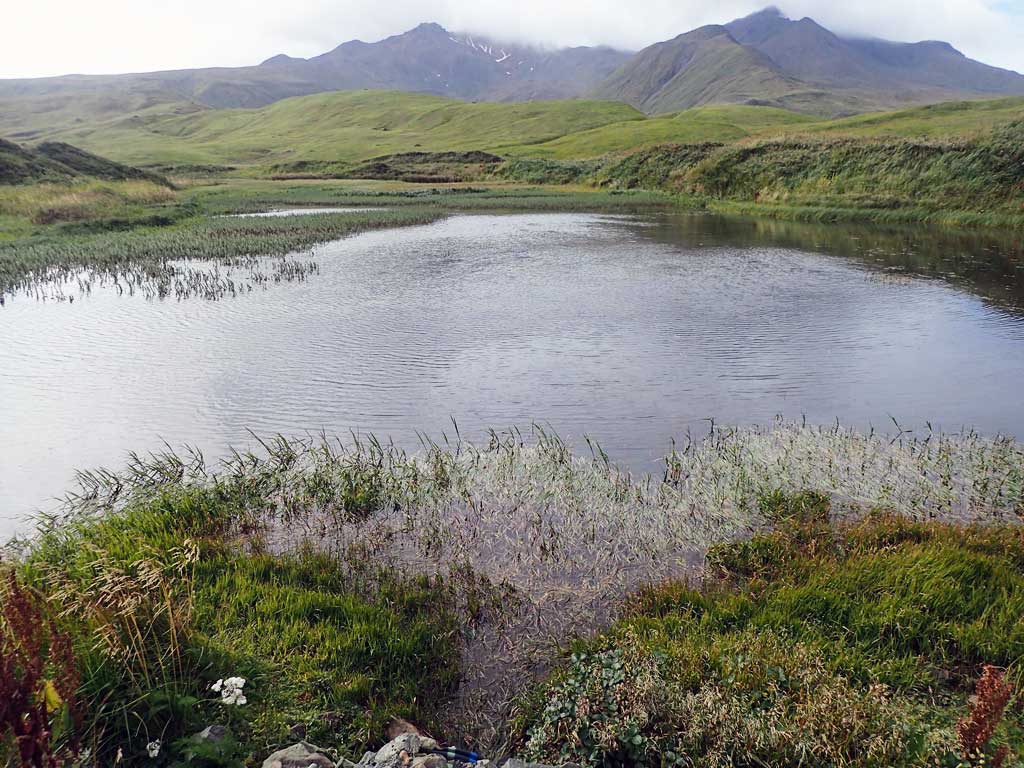

Comments: This information was gathered as part of the joint reconnaissance level project between the ADF&G Habitat Division and the Fish Passage Assessment Project on Adak Island. Due to time constraints full site assessments were not conducted, but base line information was collected. Pond upstream of culvert, no flow at time of survey.

Culvert Measurements

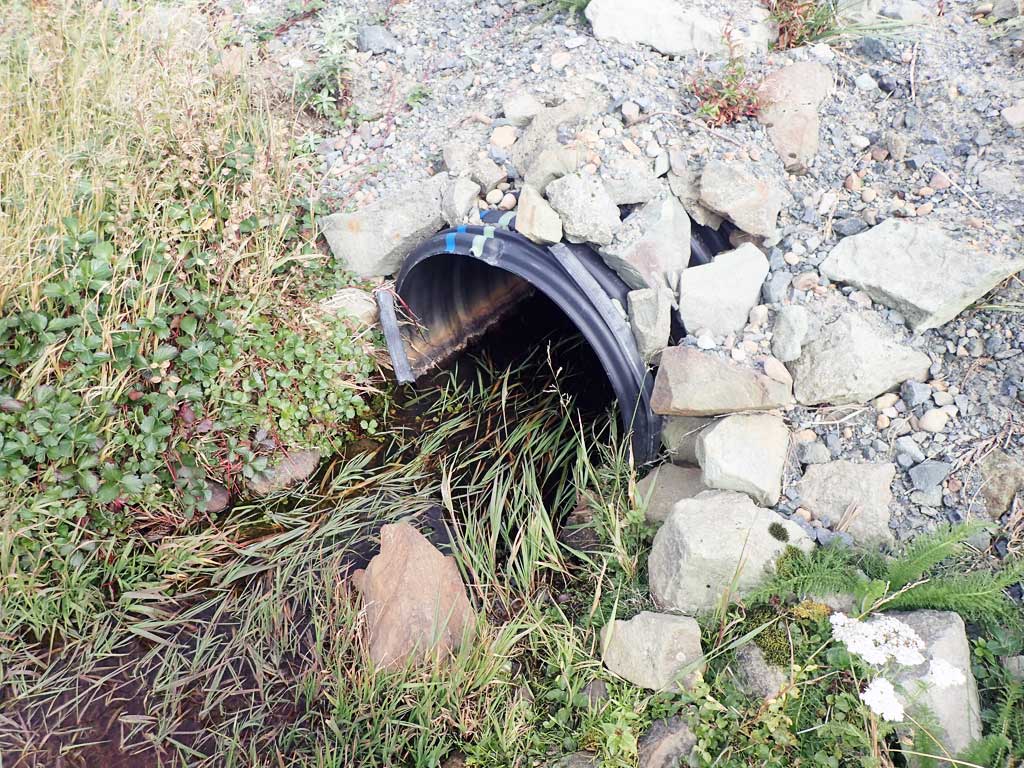

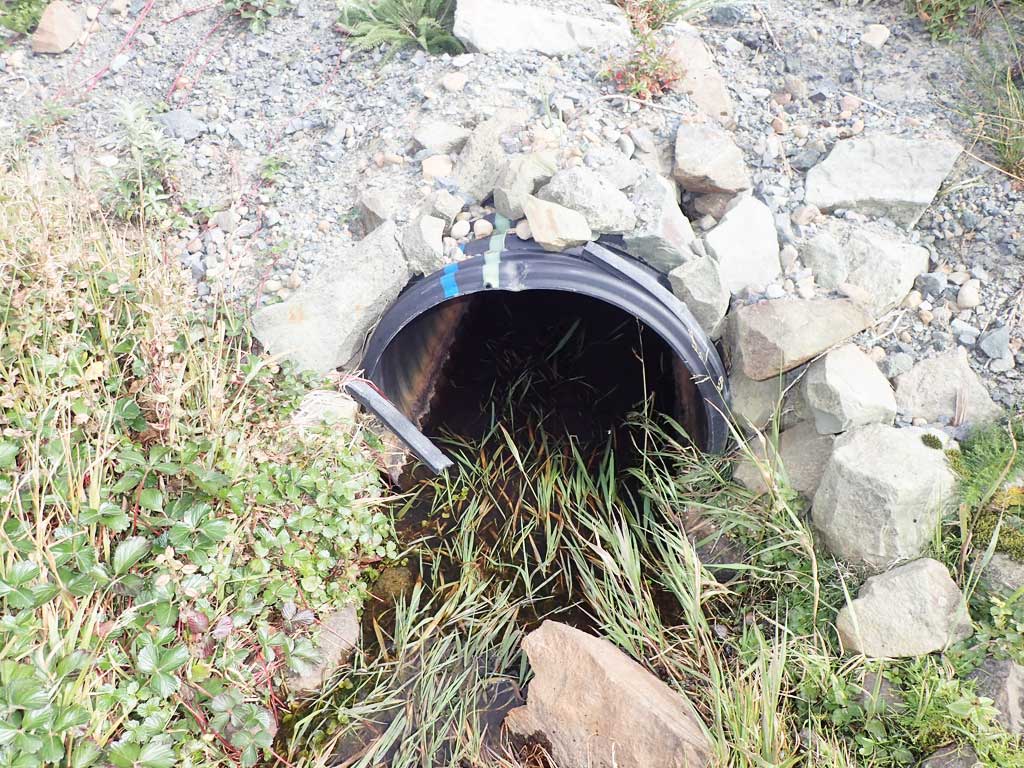

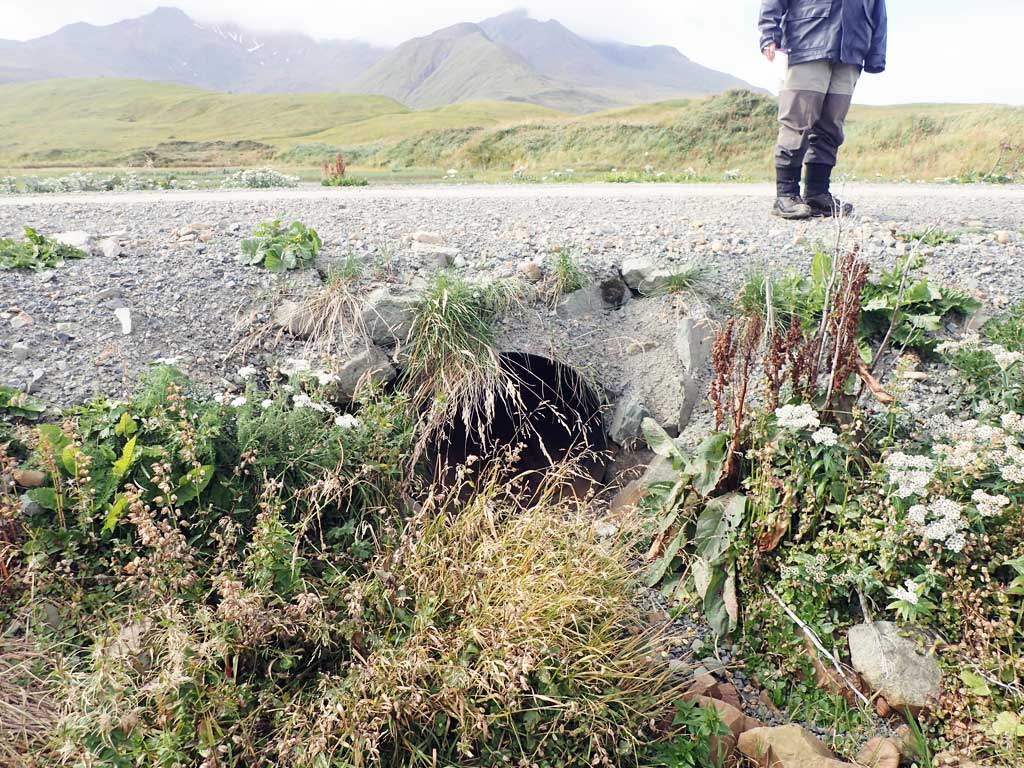

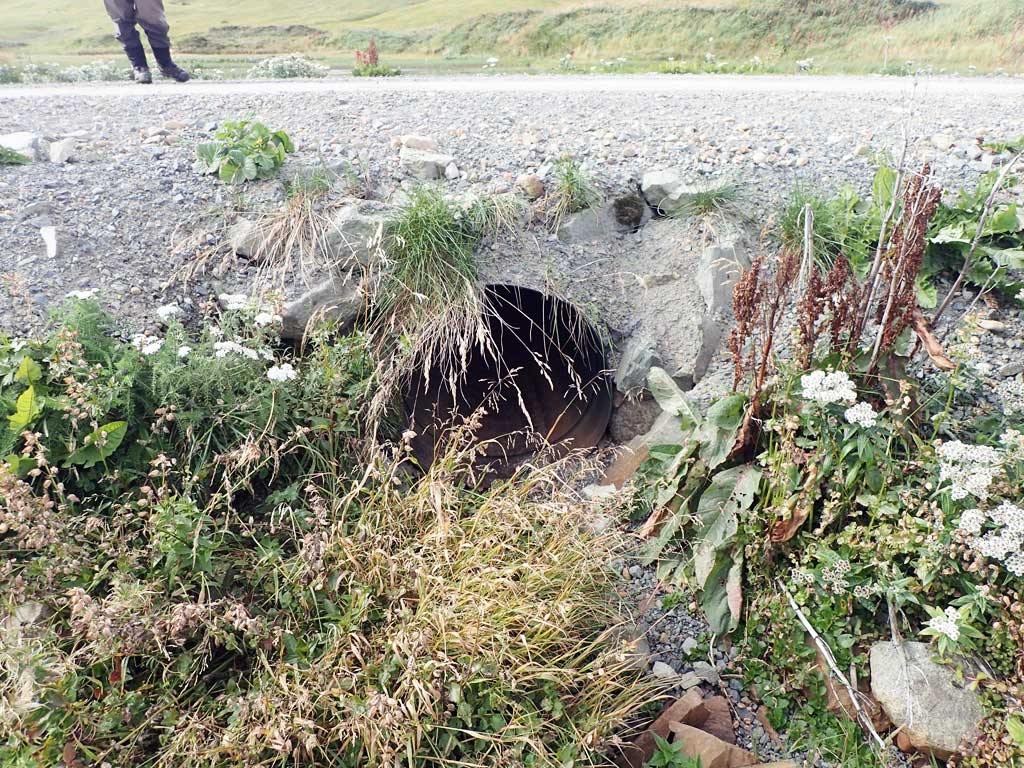

ID: 1 Structure Type: Circular pipe (Corrugated plastic) Fish Passage Rating: Black

Length(ft): 30.0
Inlet Type: Projecting
Outlet Type: Projecting
Corrugation Depth(in.):
Corrugation Width(in.):
Condition Rating(1-5): 3
Approach Angle:
Sedimentation At Inlet:
Inlet Substrate:
Outlet Substrate:
InletOutlet
Width(ft):1.9 2.0
Height(ft):1.9 2.0
Apron Length(ft):
Water Depth(ft): 0.0
Rustline Height(ft):
Substrate Depth(ft):
Backwatered?:
Baffles Present:
Embedded?:
Outfall Height: 0.0
Outfall Type: At Stream Grade
Constriction Ratio:
Culvert Gradient:
Max Slope:
Max Slope Length:

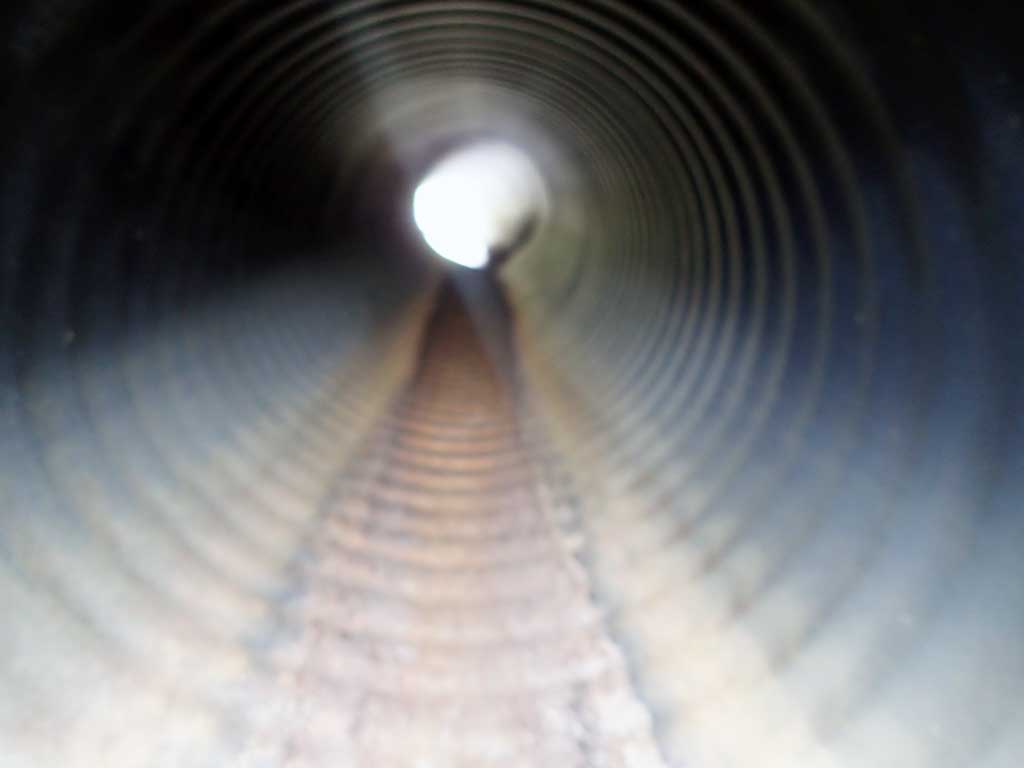

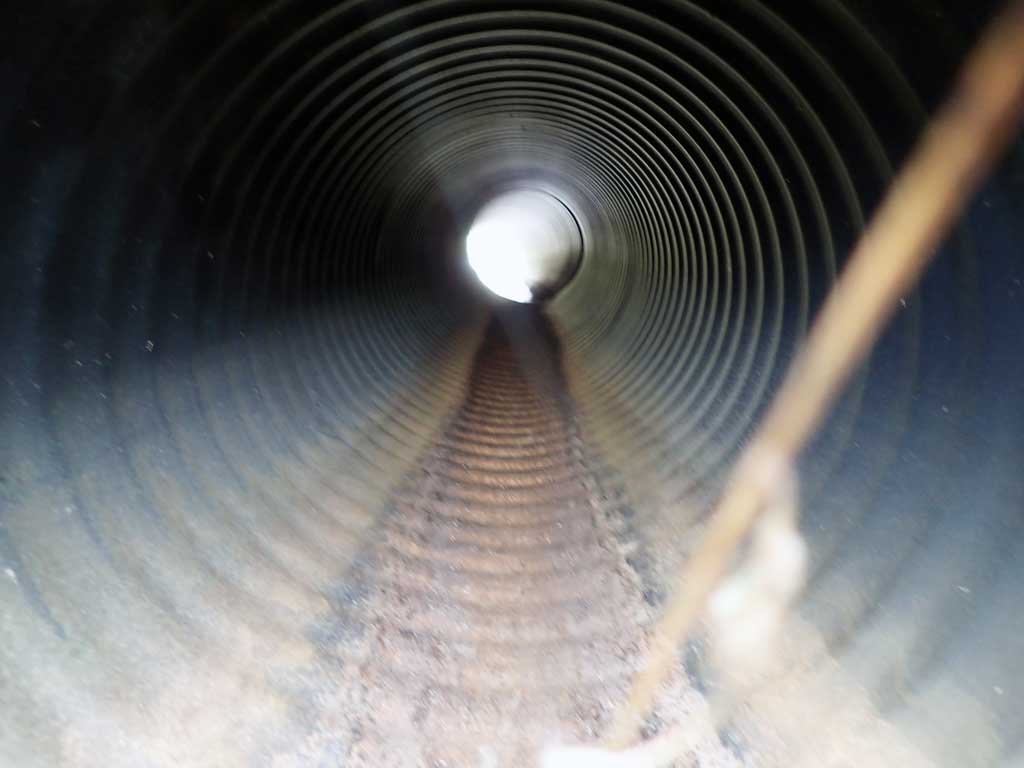

Comments: Culvert dry at time of assessment. Looks like culvert maybe bowing in middle or have a subsidence issue. Compound gradient in culvert.
  Culvert Observations:
  1. Compound gradient in pipe

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:
Subdominant:
Stream Slope(deg.):
Stream Flow Stage:Dry

No stream width data available.

Elevations

No elevation data available.

Fish Sampling Efforts

No fish sampling occurred during this survey.

Fish Observations

No fish observations occurred during this survey.
