Fish Passage Site 30103652

Coordinates (dec. deg.): 51.91005°, -176.59927°
Legal Description: S095S194W31
Region: Southwest

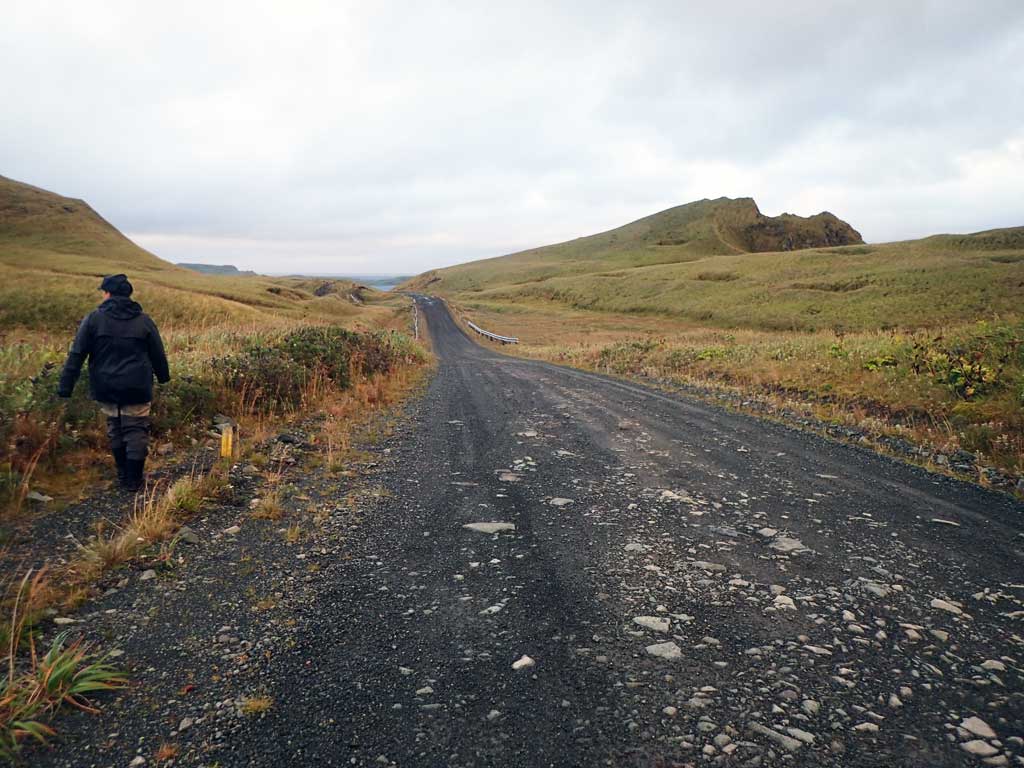

Road Name: Hillside Boulevard

Datum: NAD83
Quad Name / ITM: Adak C-2
AWC Stream #:
Stream Name: Unnamed

Elevation:

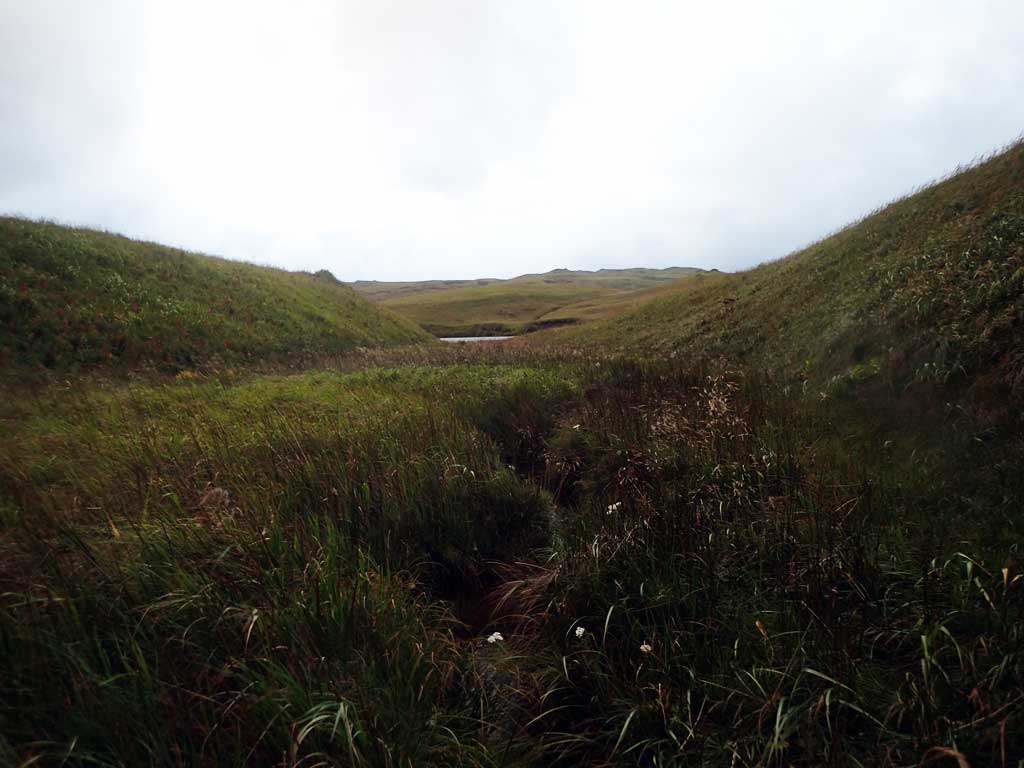

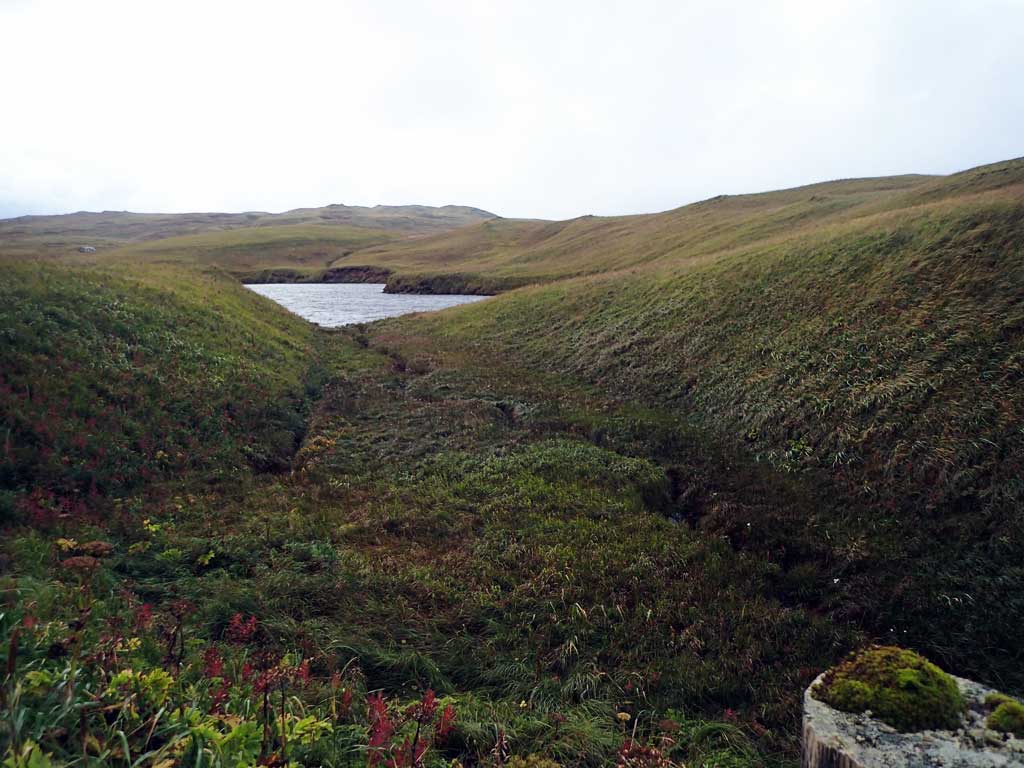

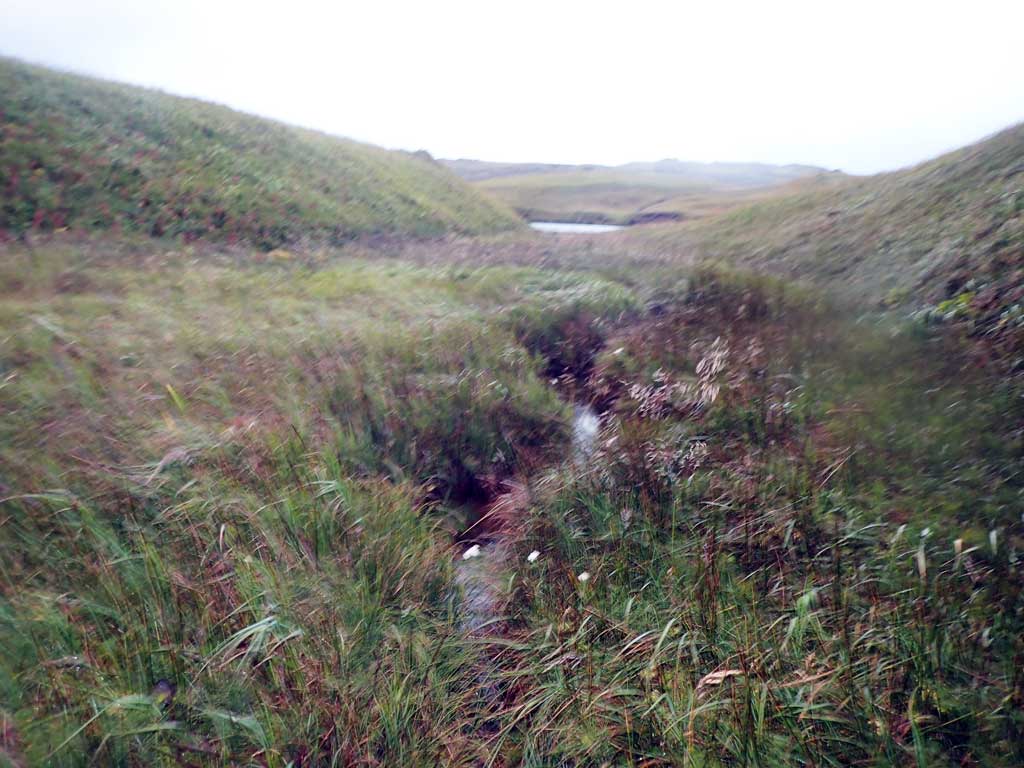

Site Comments: Pond upstream

Survey Date: Sep 14, 2017

Survey ADAK17-C19

Observers: Mark Eisenman, Jeanette Alas

Overall Fish Passage Rating: Black

Tidal: No
Backwatered: No

Step Pools: No
Construction Year:


Comments: This information was gathered as part of the joint reconnaissance level project between the ADF&G Habitat Division and the Fish Passage Assessment Project on Adak Island. Due to time constraints full site assessments were not conducted, but base line information was collected. Pond upstream, 2 more culverts downstream. Traps set in pond upstream overnight. No fish caught.

Culvert Measurements

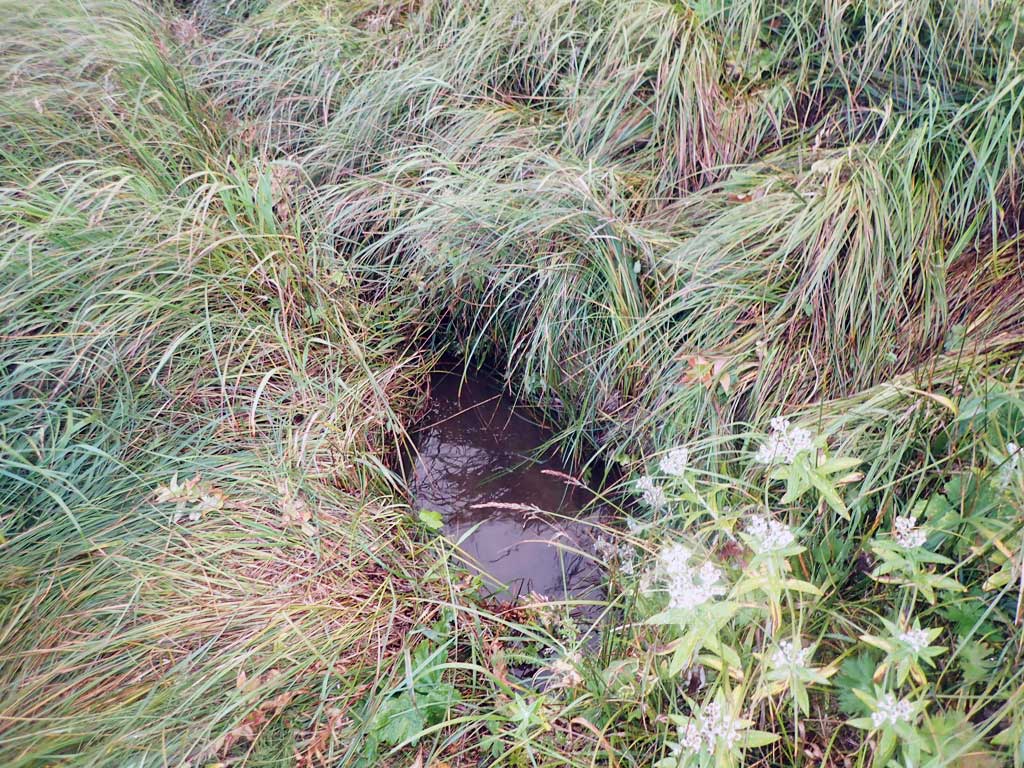

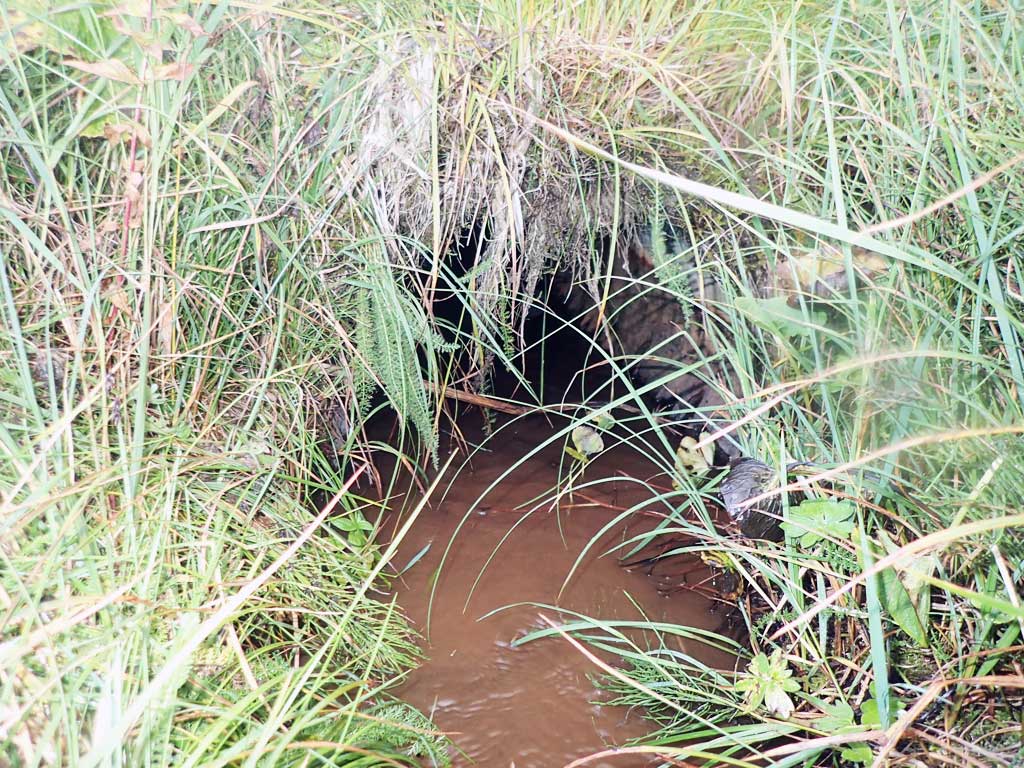

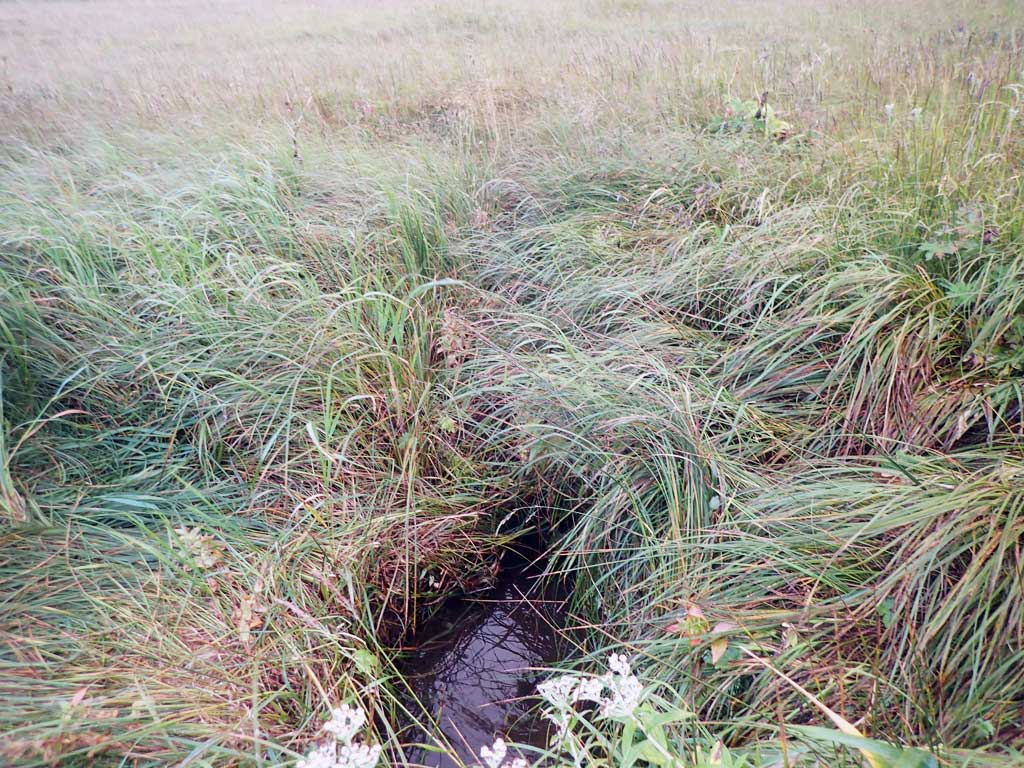

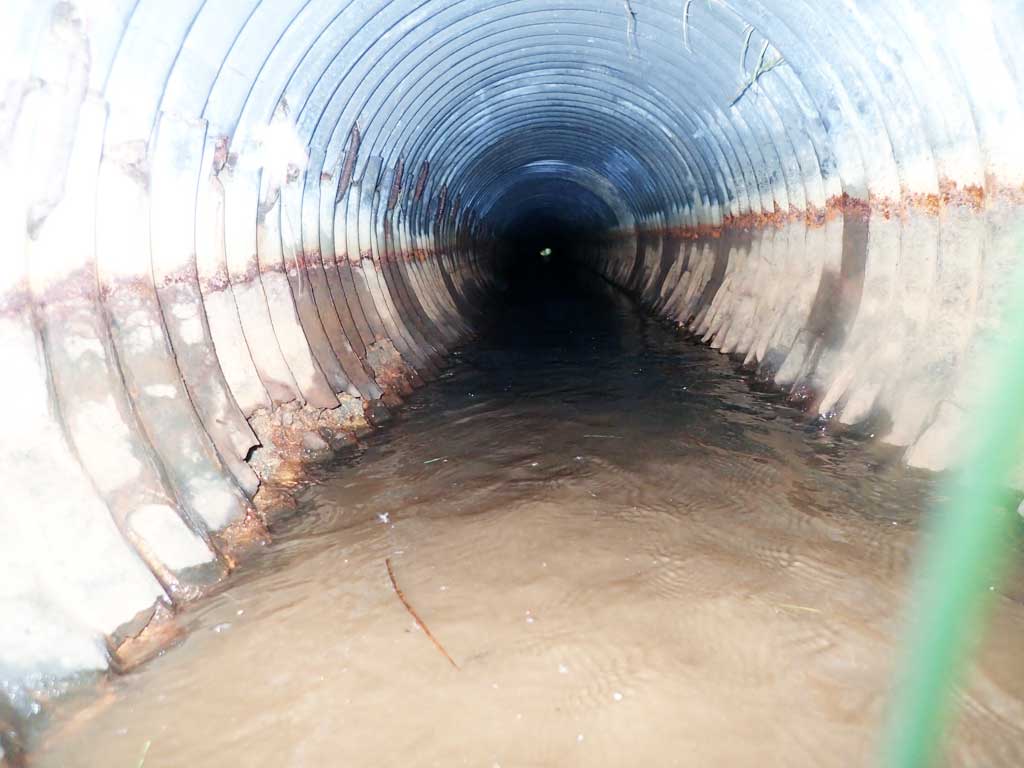

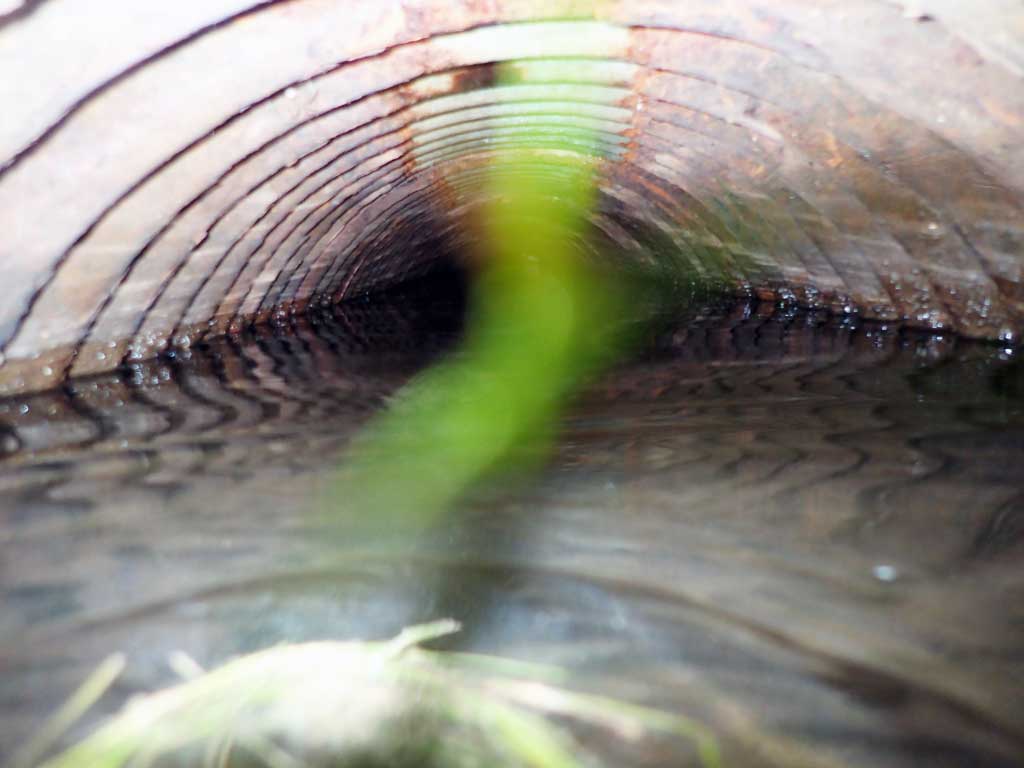

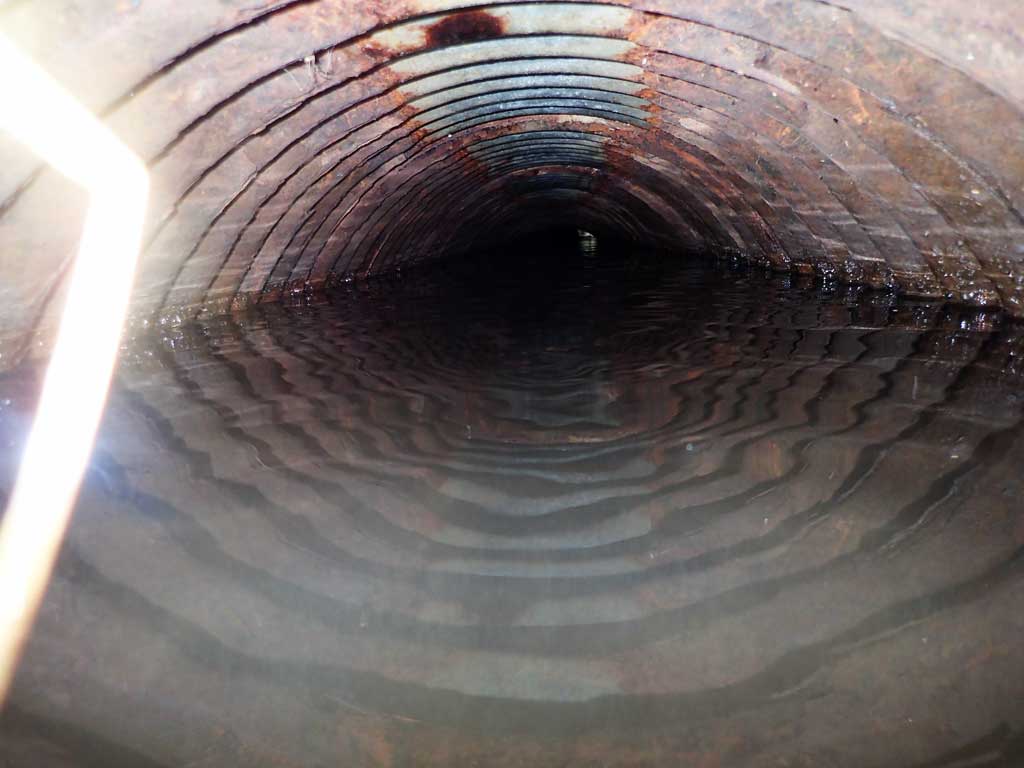

ID: 1 Structure Type: Circular pipe (Corrugated steel) Fish Passage Rating: Black

Length(ft): 84.0

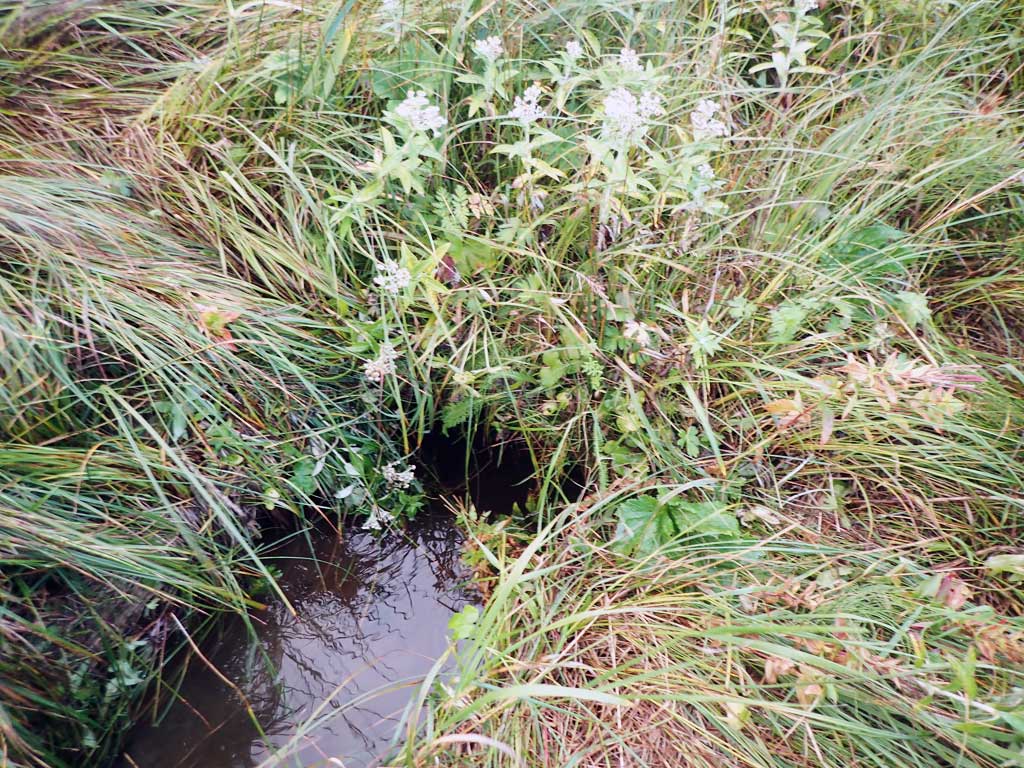

Inlet Type: Projecting

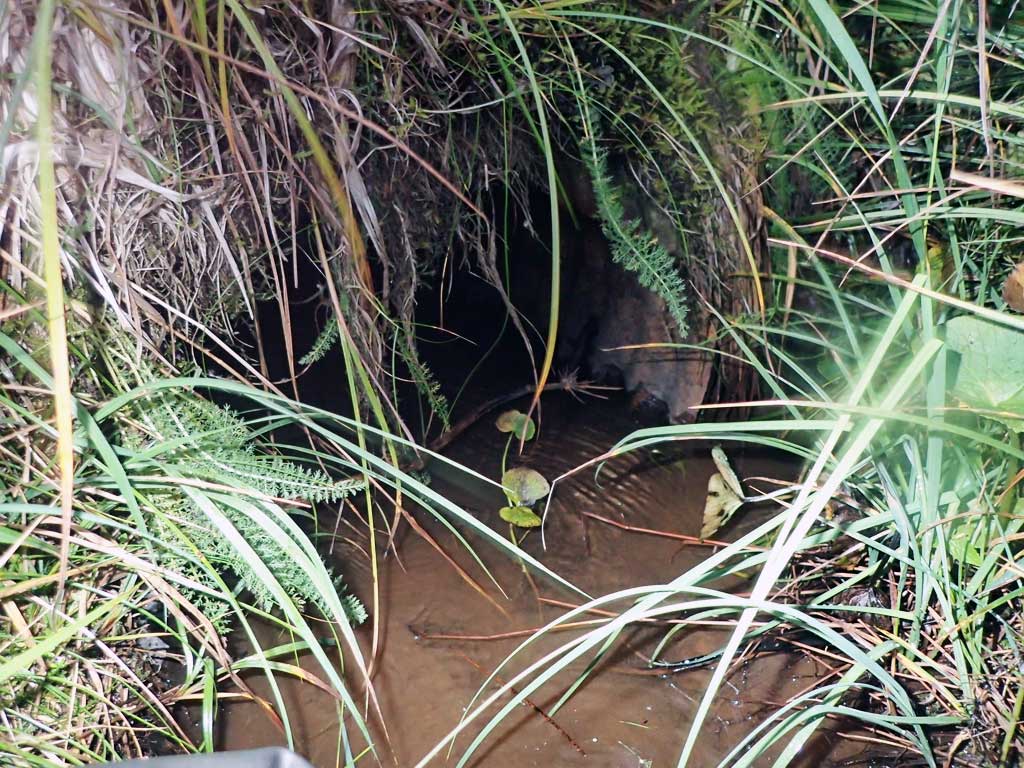

Outlet Type: Projecting
Corrugation Depth(in.):
Corrugation Width(in.):
Condition Rating(1-5): 2
Approach Angle:
Sedimentation At Inlet: Yes
Inlet Substrate:
Outlet Substrate:
InletOutlet
Width(ft):2.0 2.0
Height(ft):2.0 2.0
Apron Length(ft):
Water Depth(ft):
Rustline Height(ft):
Substrate Depth(ft):
Backwatered?: No
Baffles Present: No
Embedded?: No
Outfall Height: 0.0
Outfall Type: At Stream Grade
Constriction Ratio:
Culvert Gradient:
Max Slope:
Max Slope Length:

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:
Subdominant:
Stream Slope(deg.):
Stream Flow Stage:Low

No stream width data available.

Elevations

No elevation data available.

Fish Sampling Efforts

Gear Type: Minnow Trap (A) Trap Duration(h): 18
Comments: Trap set in upstream pond

Gear Type: Minnow Trap (B) Trap Duration(h): 18
Comments: Trap set in upstream pond

Fish Observations

No fish observations occurred during this survey.
