Fish Passage Site 30103637

Coordinates (dec. deg.): 51.84093°, -176.62756°
Legal Description: S096S195W24
Region: Southwest

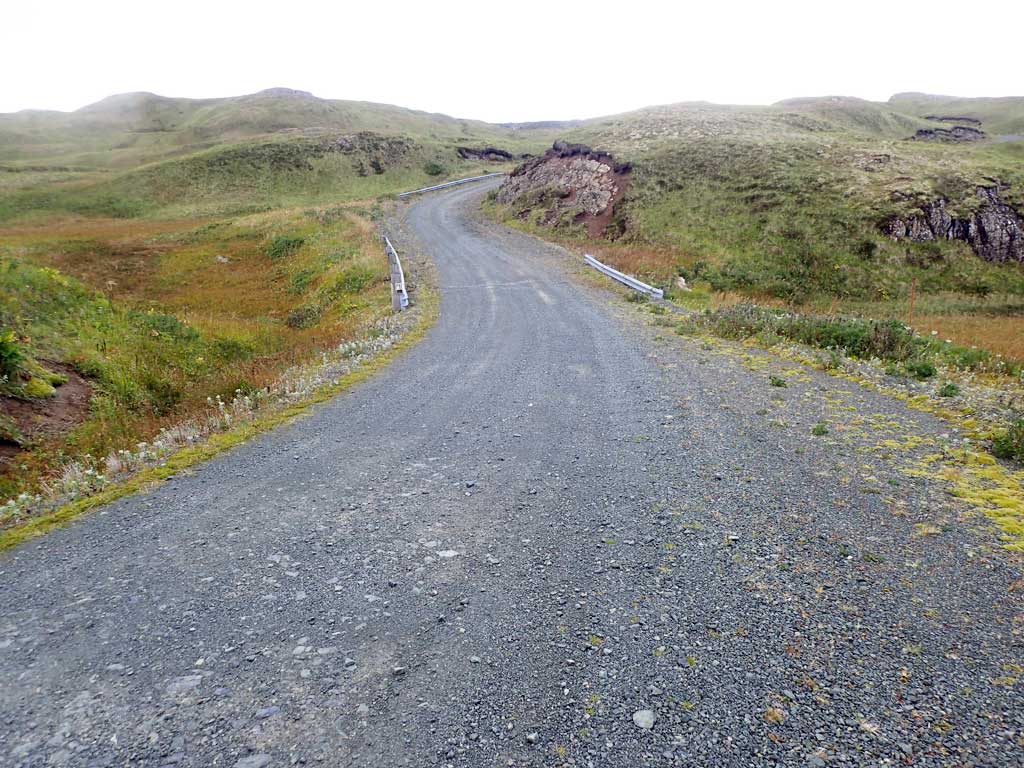

Road Name: Finger Bay Road

Datum: NAD83
Quad Name / ITM: Adak C-2
AWC Stream #:
Stream Name: Unnamed

Elevation:

Site Comments: None

Survey Date: Sep 15, 2017

Survey ADAK17-C156

Observers: Mark Eisenman, Jeanette Alas

Overall Fish Passage Rating: Black

Tidal: No
Backwatered: Maybe

Step Pools: No
Construction Year:

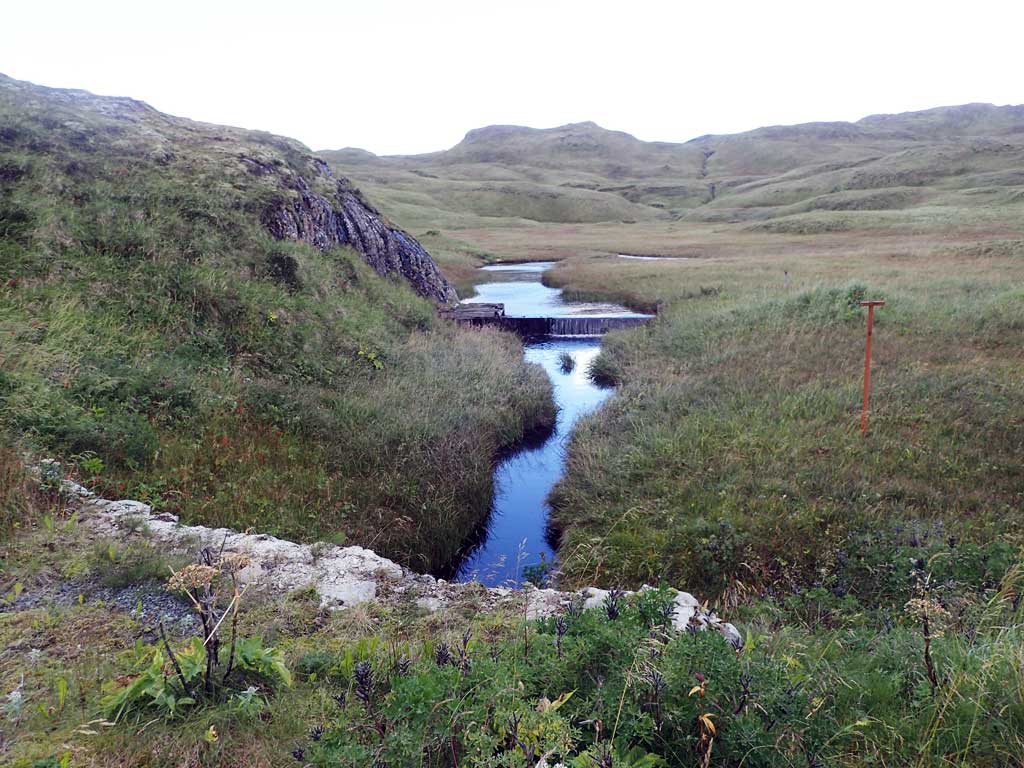

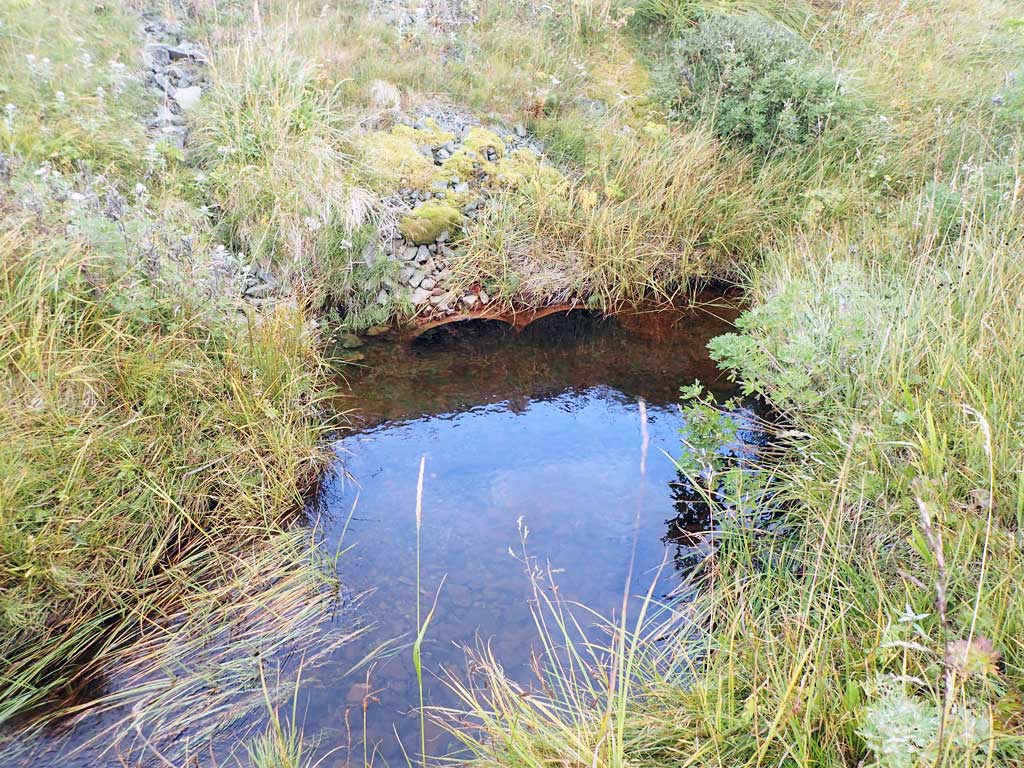

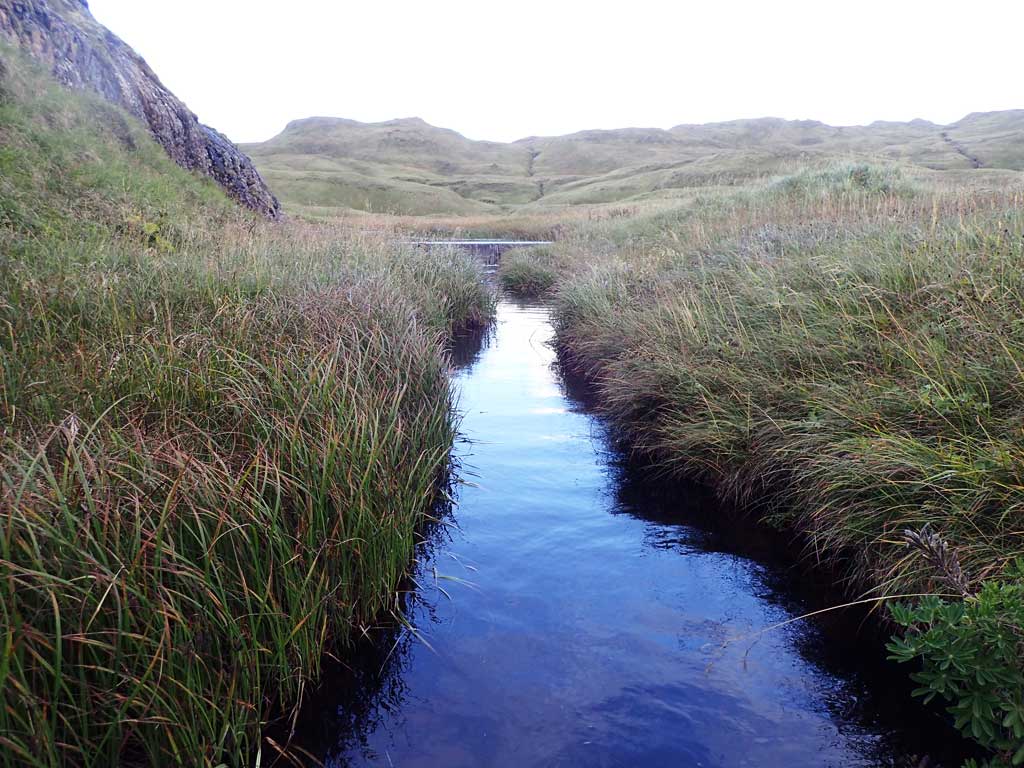

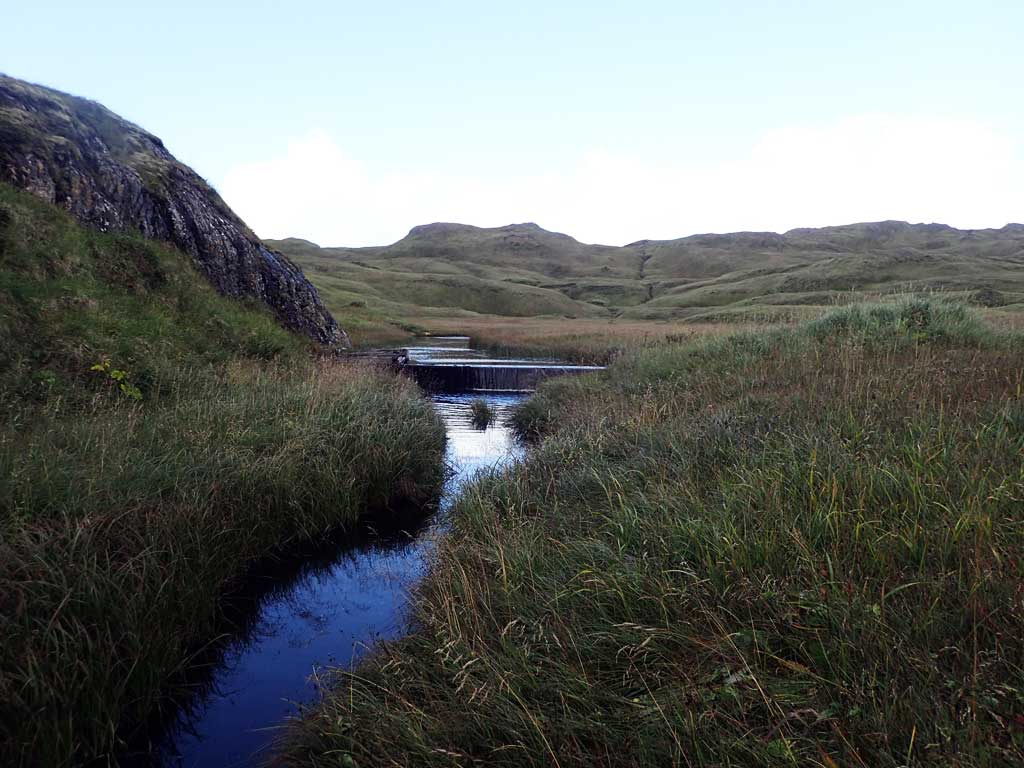

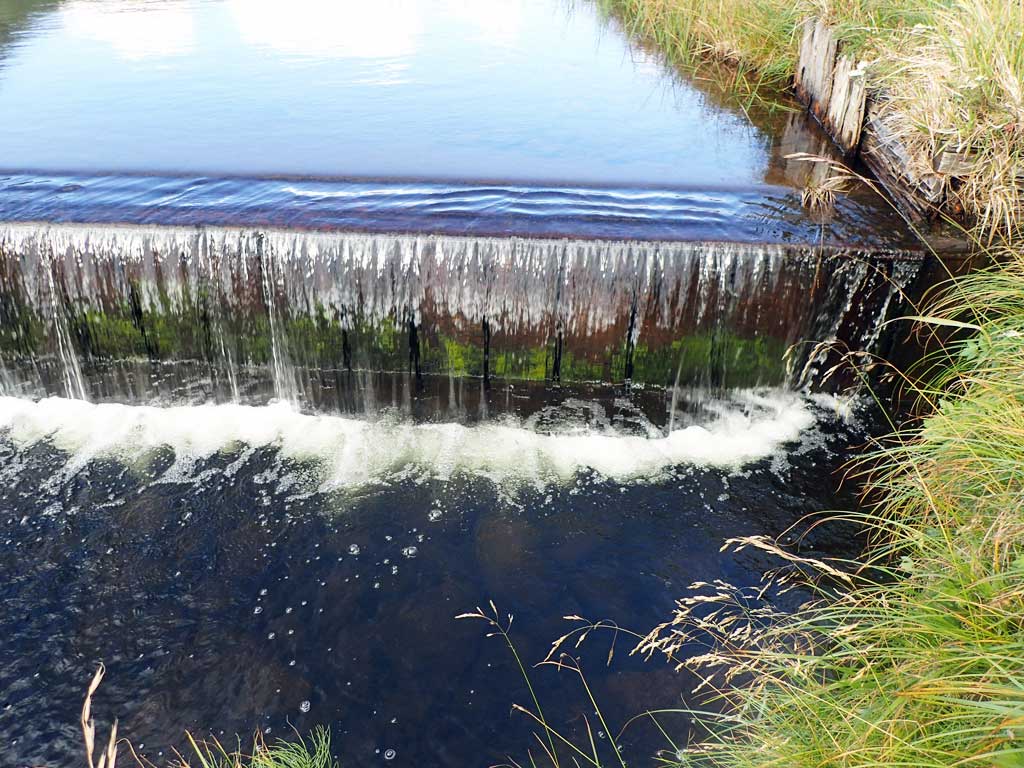

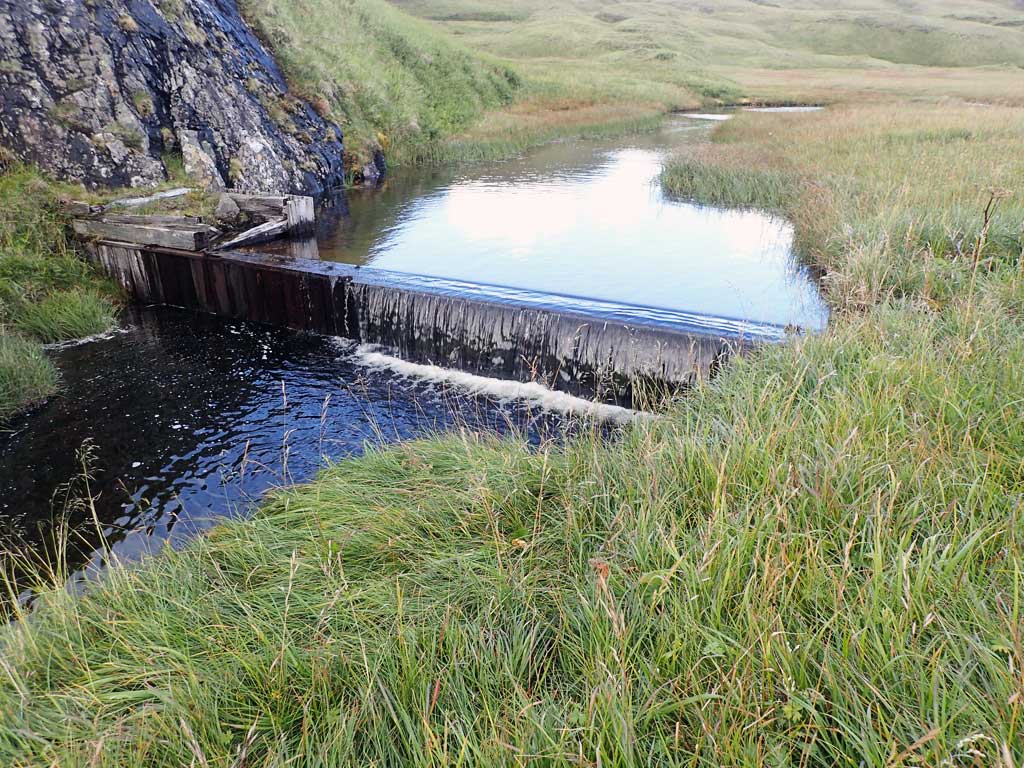

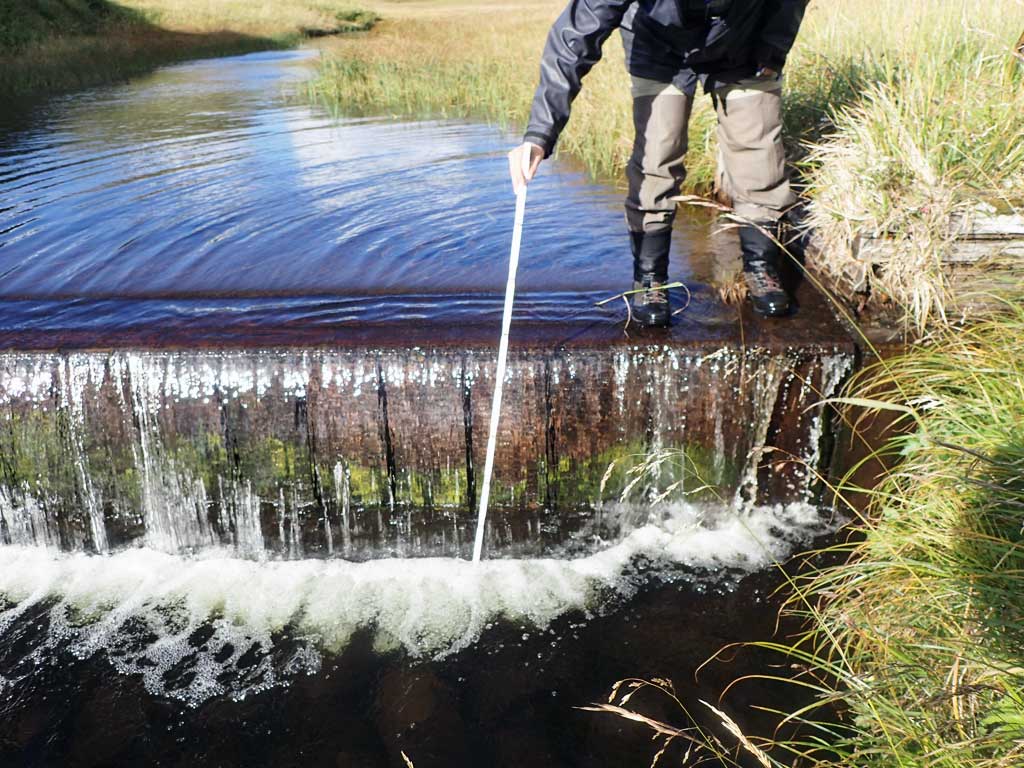

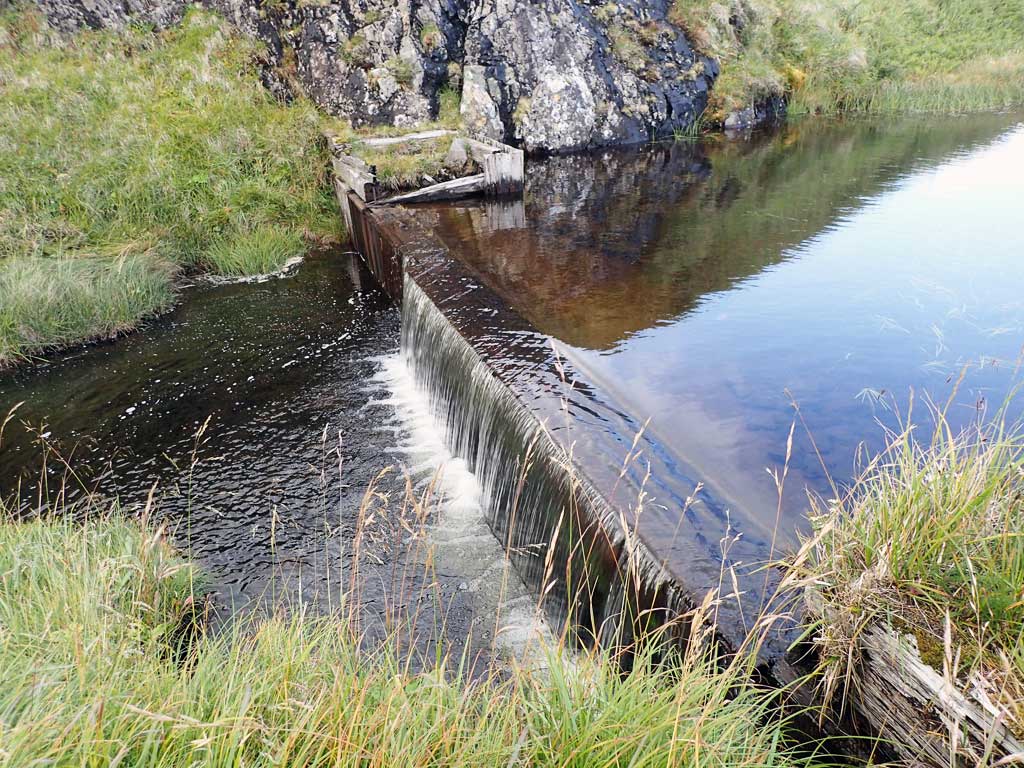

Comments: This information was gathered as part of the joint reconnaissance level project between the ADF&G Habitat Division and the Fish Passage Assessment Project on Adak Island. Due to time constraints full site assessments were not conducted, but base line information was collected. Low Head wooden dam about 70 feet upstream from inlets. Fish observed surfacing upstream above dam. Dolly Varden char and rainbow trout caught upstream above dam and below crossing. Site is upstream from C157 which has a 25' waterfall barrier. Habitat upstream and downstream of this crossing looks very high quality. The downstream portion of this creek below the waterfall barrier has been nominated to the AWC for pink salmon spawning.

Culvert Measurements

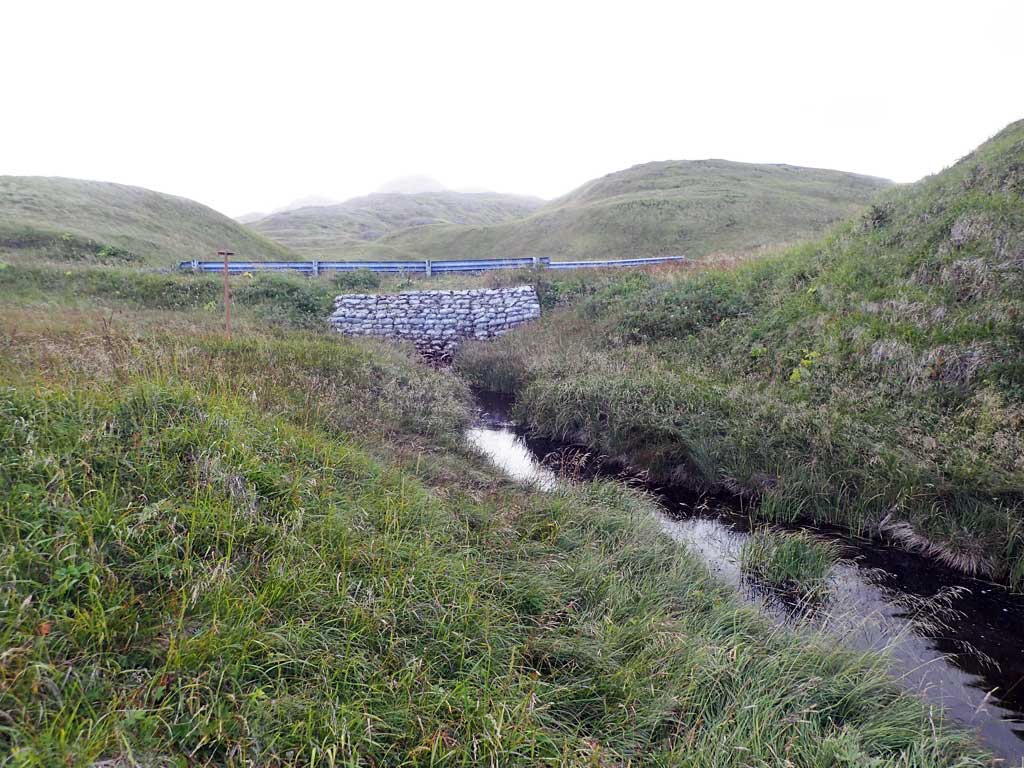

ID: 1 Structure Type: Circular pipe (Corrugated steel) Fish Passage Rating: Black

Length(ft): 55.0
Inlet Type: Headwall
Outlet Type: Headwall
Corrugation Depth(in.):
Corrugation Width(in.):
Condition Rating(1-5): 2
Approach Angle:
Sedimentation At Inlet: Yes
Inlet Substrate:
Outlet Substrate:
InletOutlet
Width(ft):2.0 2.0
Height(ft):2.0 2.0
Apron Length(ft):
Water Depth(ft):
Rustline Height(ft):
Substrate Depth(ft):
Backwatered?: Maybe
Baffles Present: No
Embedded?:
Outfall Height: 0.0
Outfall Type: At Stream Grade
Constriction Ratio:
Culvert Gradient:
Max Slope:
Max Slope Length:

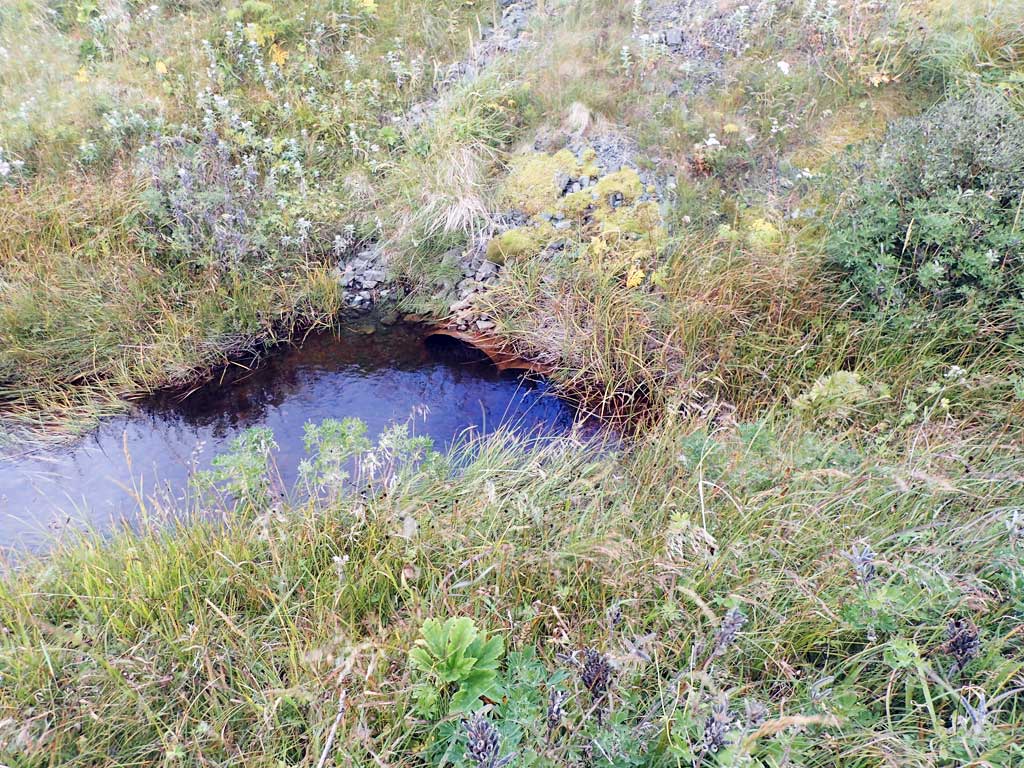

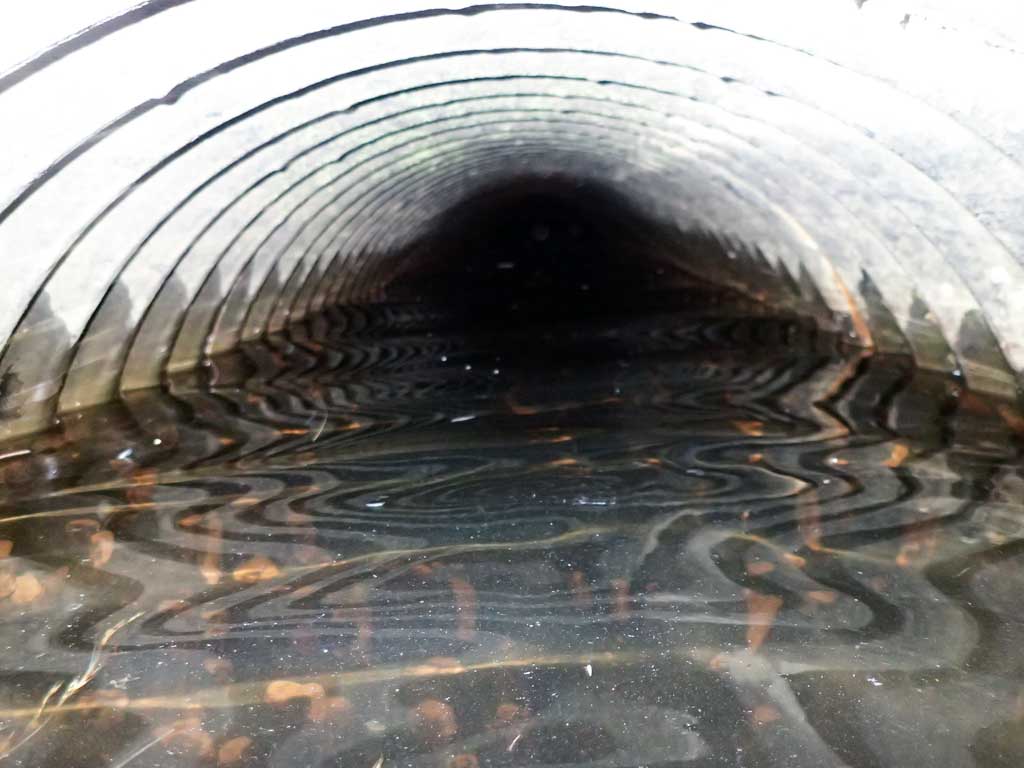

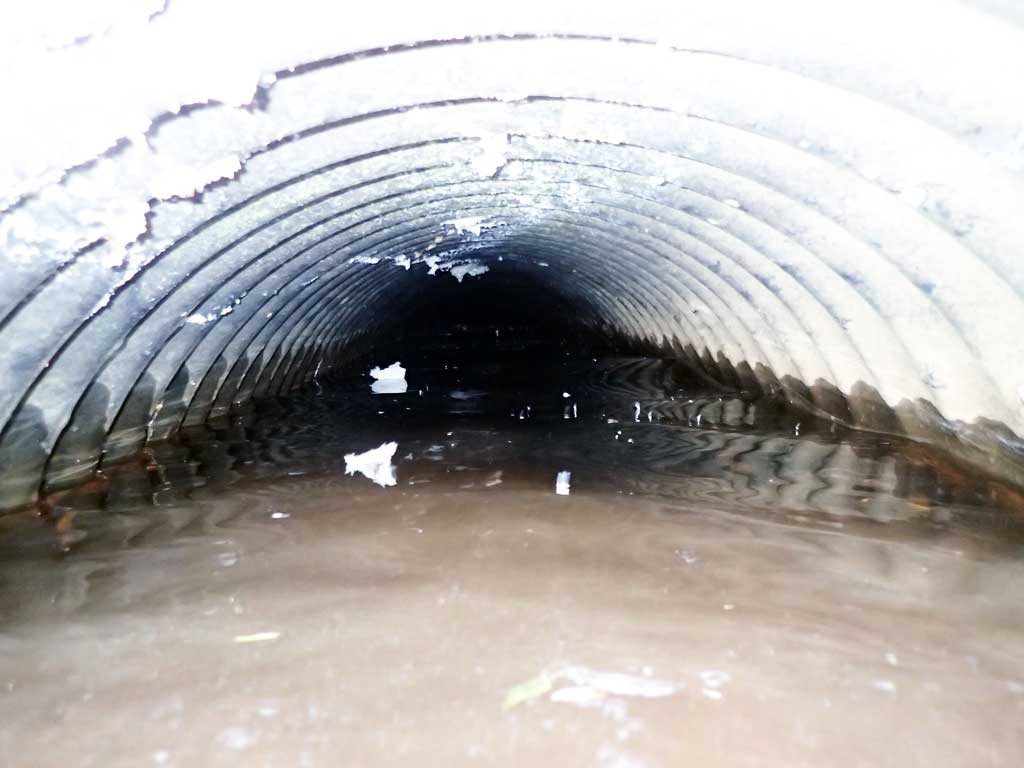

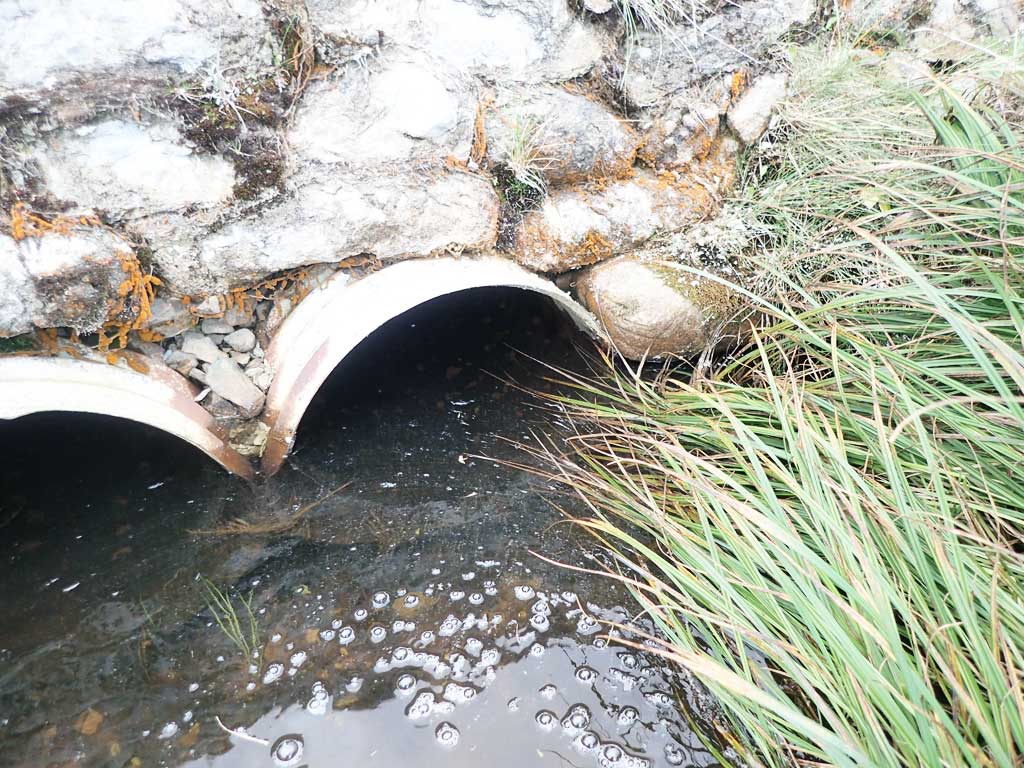

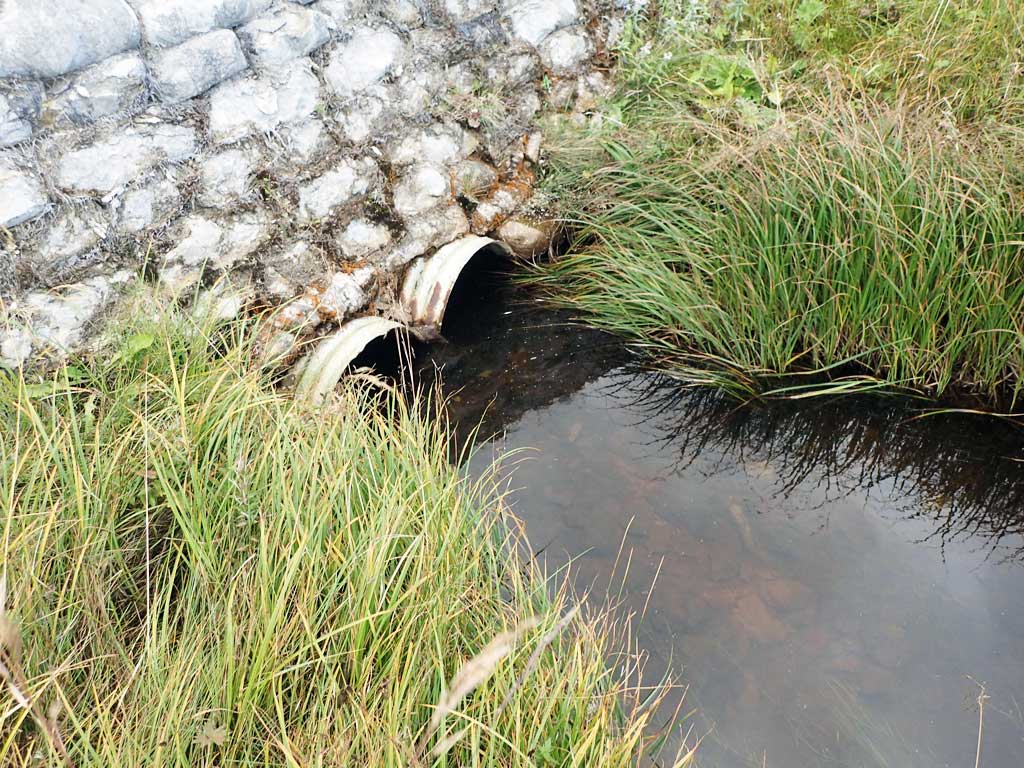

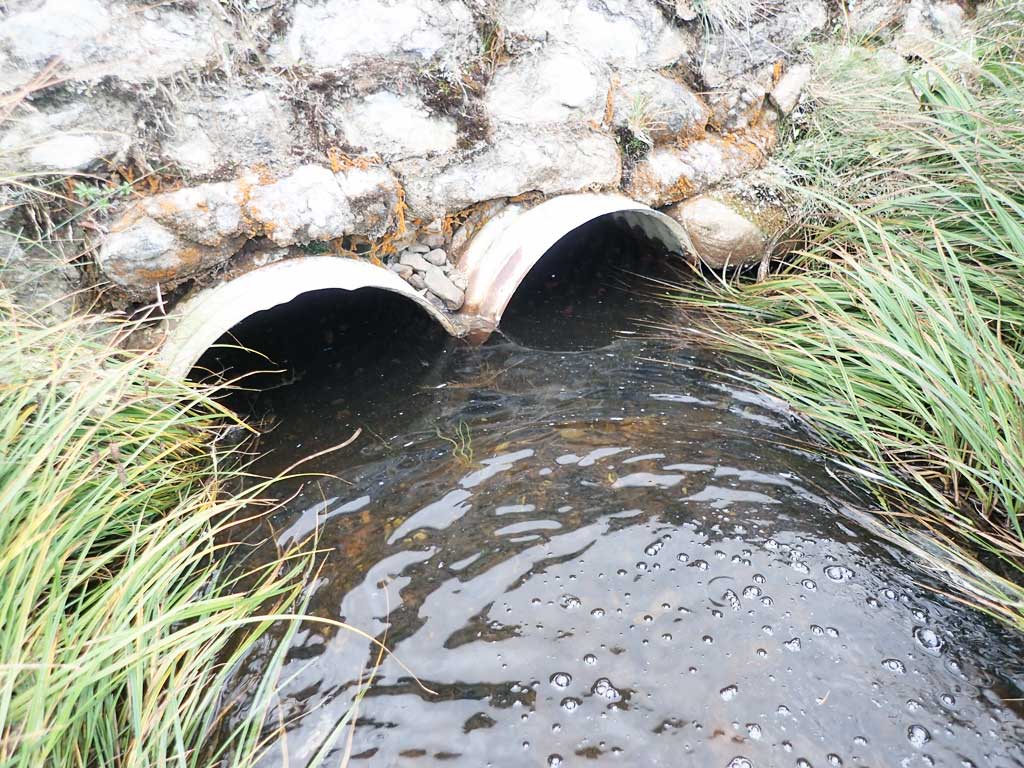

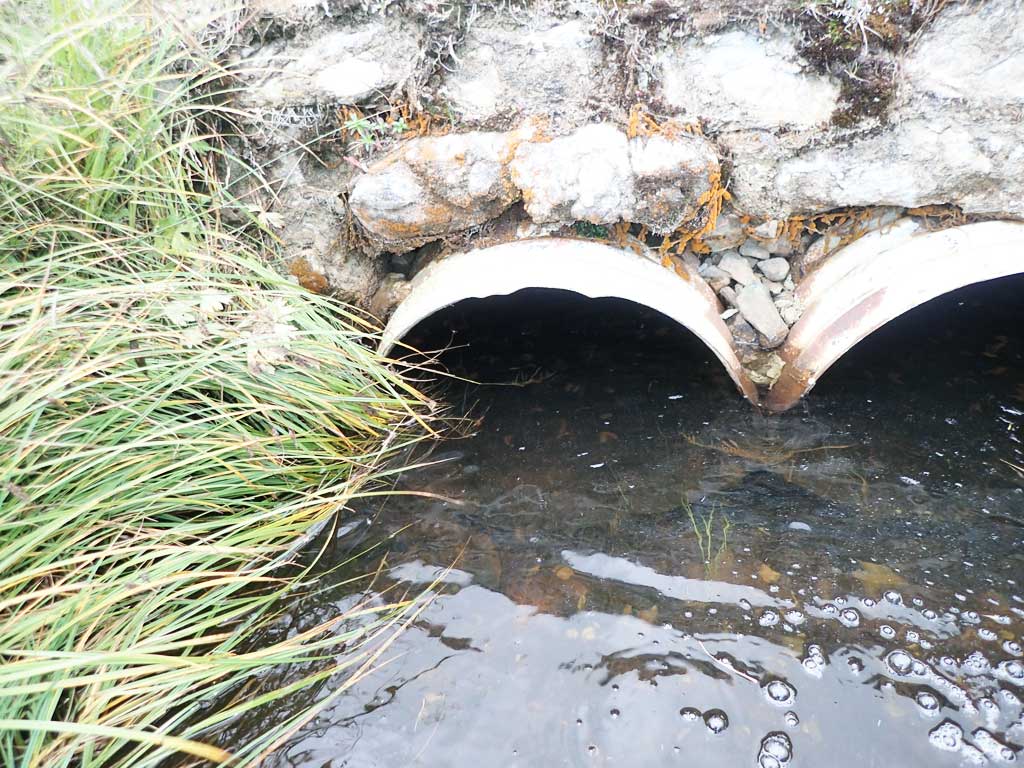

Comments: Culvert outlets submerged. Cuvlert length estimated using aerial imagery.
ID: 2 Structure Type: Circular pipe (Corrugated steel) Fish Passage Rating: Black

Length(ft): 55.0
Inlet Type: Headwall
Outlet Type: Headwall
Corrugation Depth(in.):
Corrugation Width(in.):
Condition Rating(1-5): 2
Approach Angle:
Sedimentation At Inlet: Yes
Inlet Substrate:
Outlet Substrate:
InletOutlet
Width(ft):2.0 2.0
Height(ft):2.0 2.0
Apron Length(ft):
Water Depth(ft):
Rustline Height(ft):
Substrate Depth(ft):
Backwatered?: No
Baffles Present: No
Embedded?: No
Outfall Height: 0.0
Outfall Type: At Stream Grade
Constriction Ratio:
Culvert Gradient:
Max Slope:
Max Slope Length:


Comments: Culvert outlets submerged. Cuvlert length estimated using aerial imagery.

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:
Subdominant:
Stream Slope(deg.):
Stream Flow Stage:Medium

No stream width data available.

Elevations

No elevation data available.

Fish Sampling Efforts

Gear Type: Minnow Trap (A) Trap Duration(h): 16.0
Comments: Trap set about 100 feet upstream from crossing above lowhead dam

Gear Type: Minnow Trap (B) Trap Duration(h): 16.0

Fish Observations

Species: juvenile/adult Dolly Varden Life History: Unknown
Total Fish Observed: 10 Fish Measured: 10 Fork Lengths (mm) Min: 92 Max: 122 Mean: 110
Collected/Observed by Gear Type: Downstream Minnow Trap (1)  Upstream Minnow Trap (9)

Species: juvenile rainbow trout Life History: Resident
Total Fish Observed: 1 Fish Measured: 1 Fork Lengths (mm) Min: 50 Max: 50 Mean: 50
Collected/Observed by Gear Type: Upstream Minnow Trap (1)
