Fish Passage Site 30103632

Coordinates (dec. deg.): 51.93798°, -176.60983°
Legal Description: S095S195W24
Region: Southwest

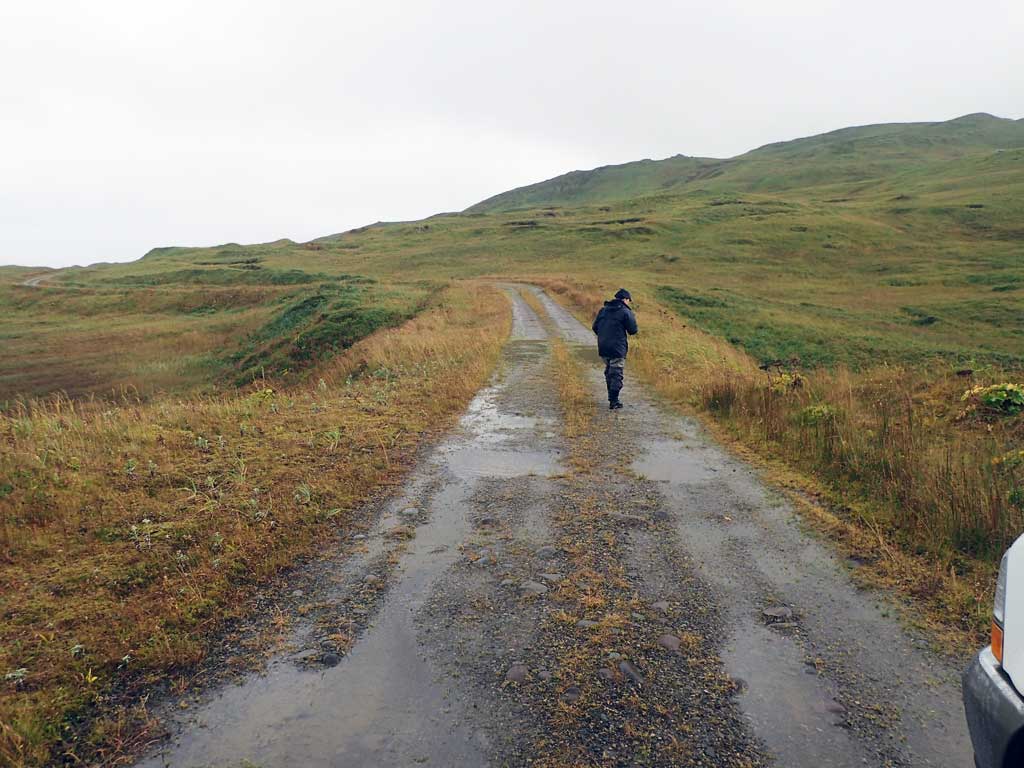

Road Name: Old Military Road

Datum: NAD83
Quad Name / ITM: Adak C-2
AWC Stream #:

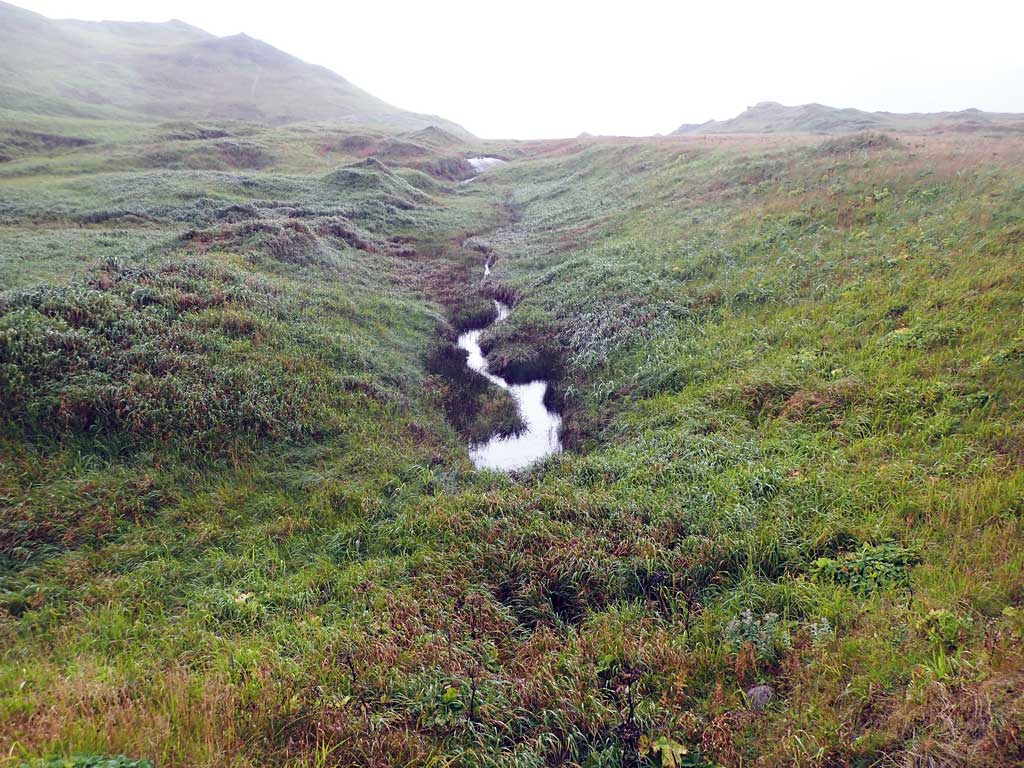

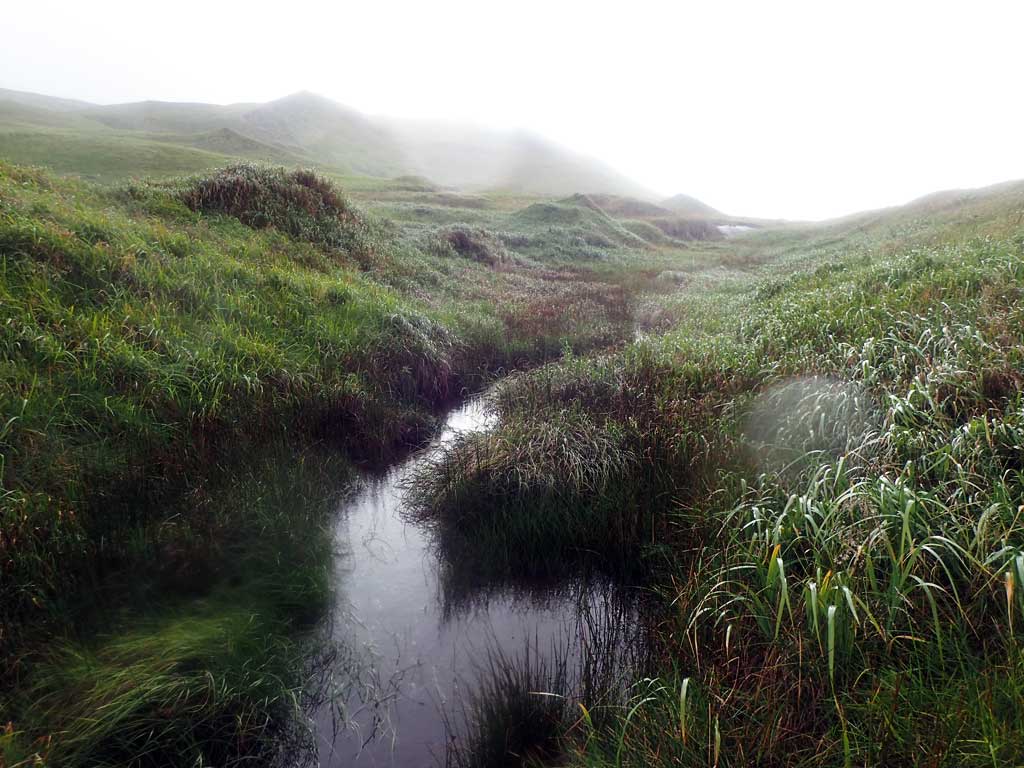

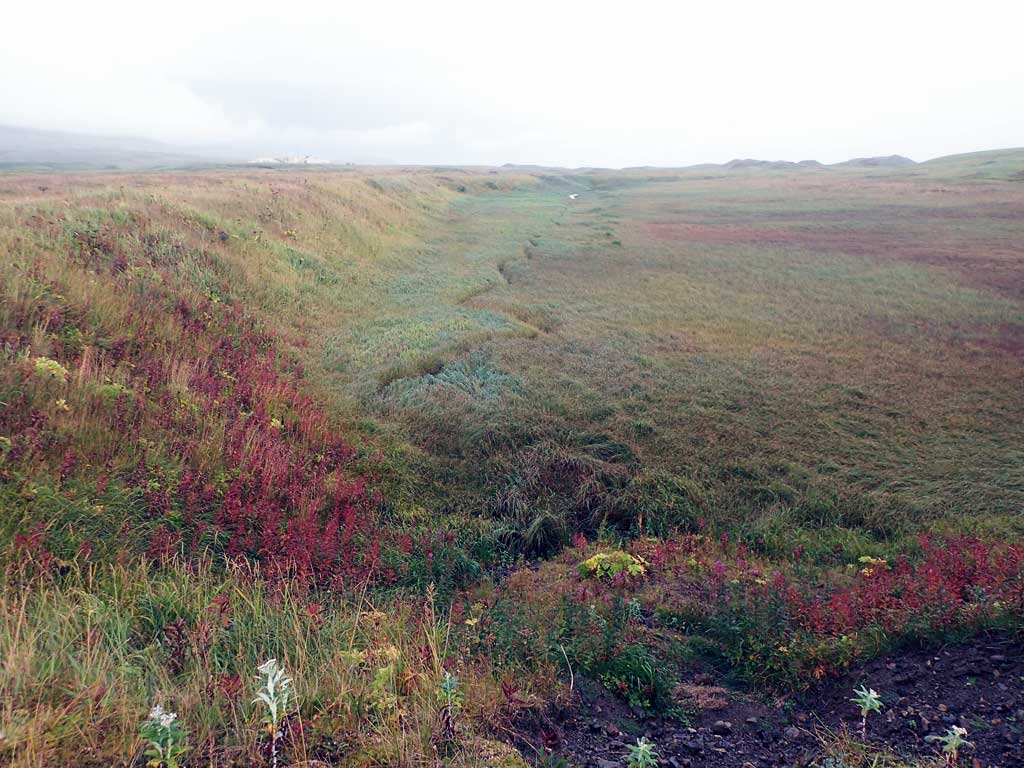

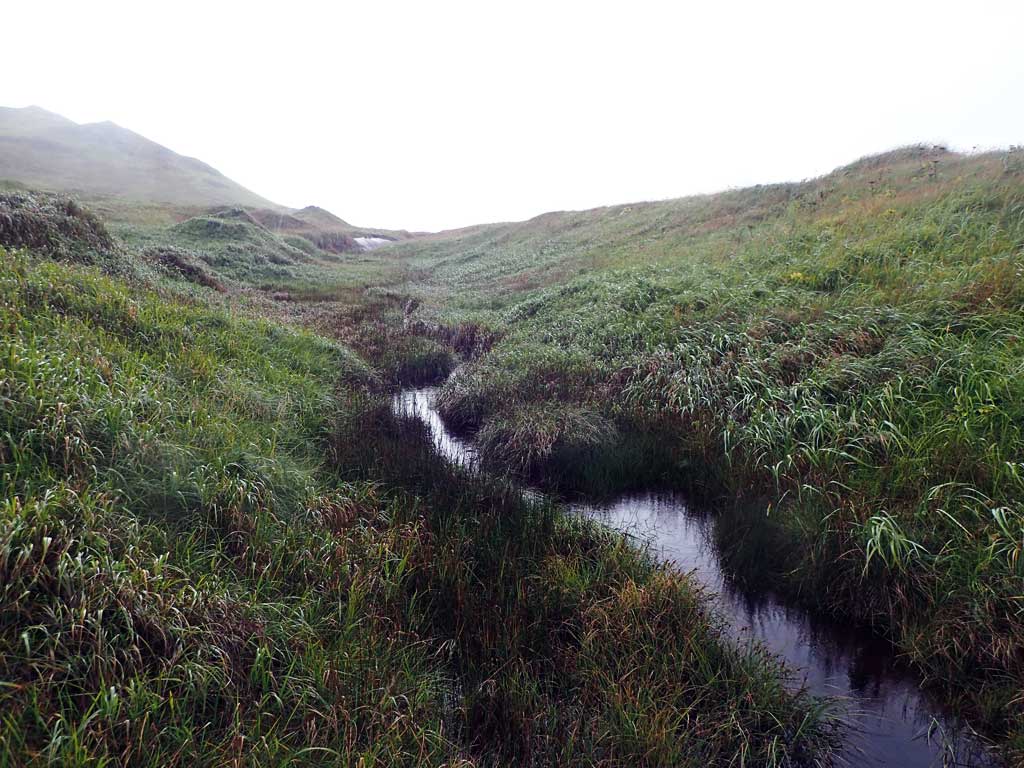

Stream Name: Shotgun Creek

Elevation:

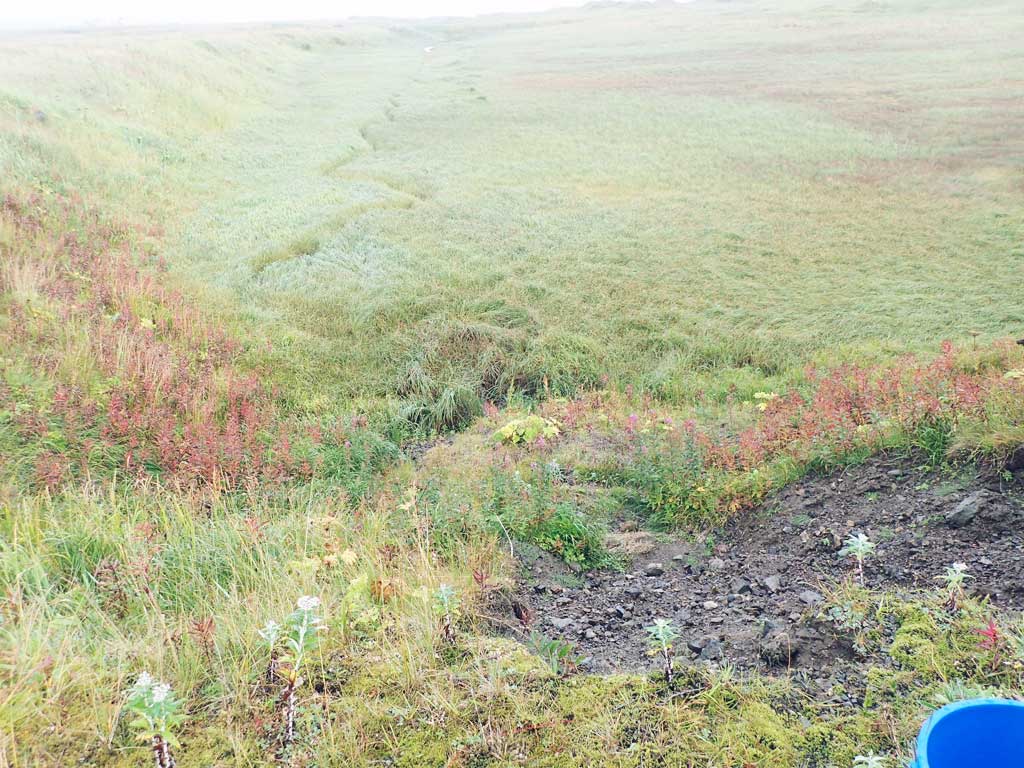

Site Comments: Site is upstream from C11 and C12 and well above cataloged anadromy.

Survey Date: Sep 14, 2017

Survey ADAK17-C13

Observers: Mark Eisenman, Jeanette Alas

Overall Fish Passage Rating: Black

Tidal: No
Backwatered: No

Step Pools: No
Construction Year:

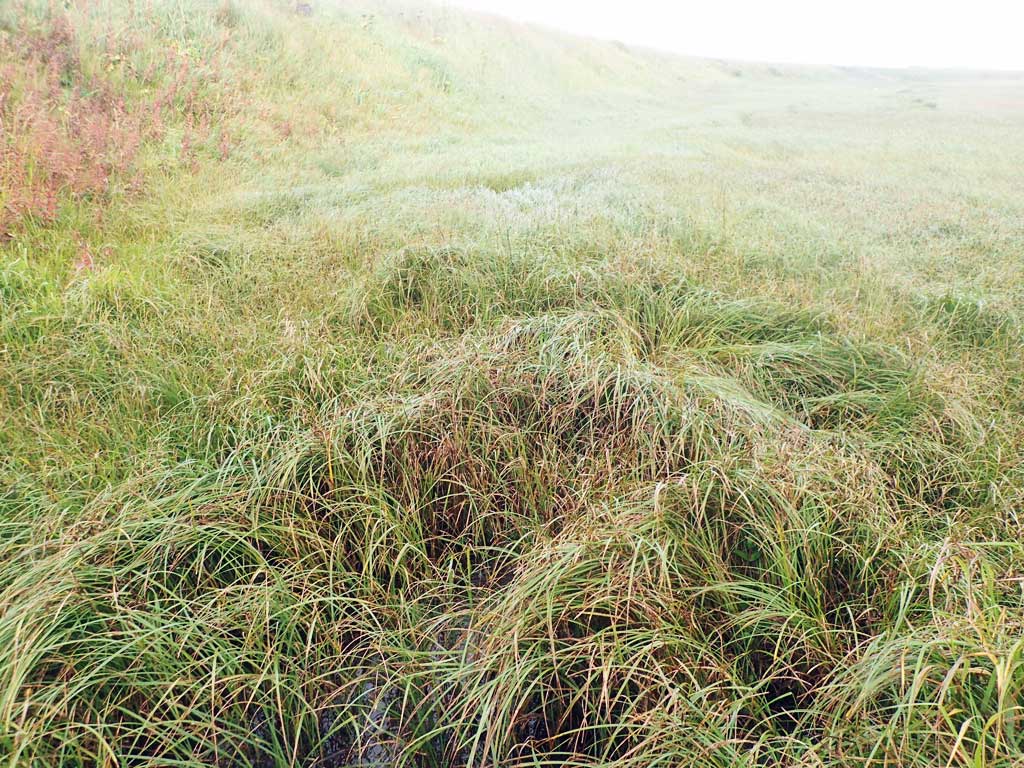

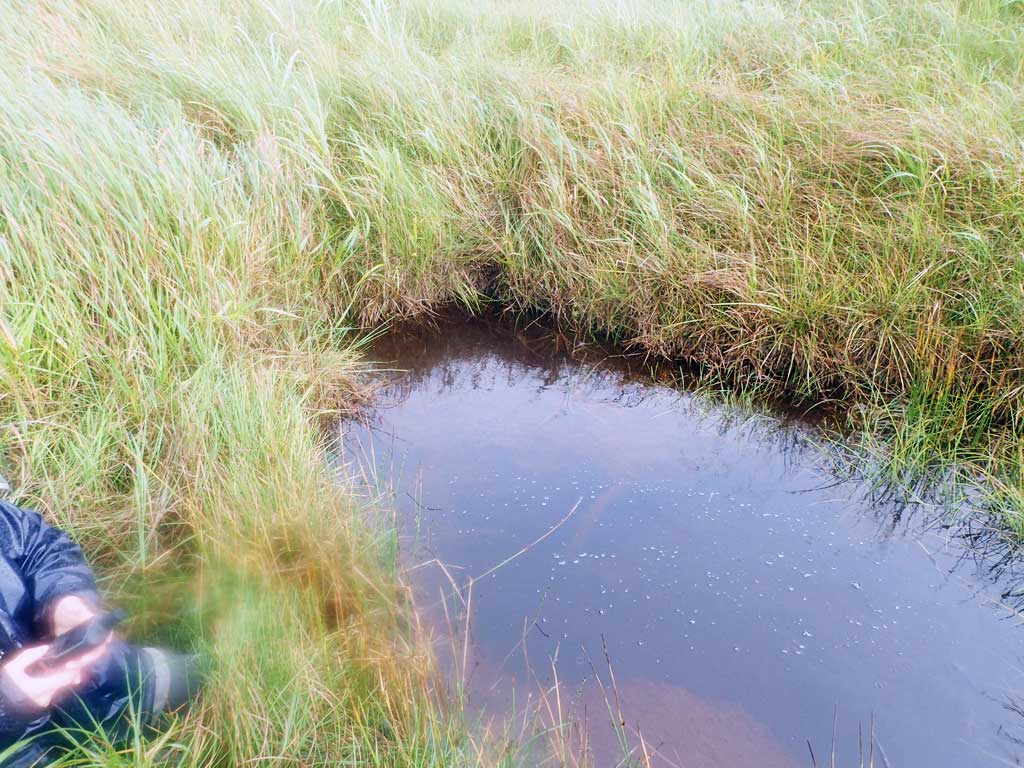

Comments: This information was gathered as part of the joint reconnaissance level project between the ADF&G Habitat Division and the Fish Passage Assessment Project on Adak Island. Due to time constraints full site assessments were not conducted, but base line information was collected. Culvert submerged. Unable to identify the type of structure here, but most likely a wooden box culvert like many of sites in the area that date back to WWII. Lots of Dolly Varden Char caught upstream and downstream of crossing.

Culvert Measurements

ID: 1 Structure Type: Other Fish Passage Rating: Black

Length(ft): 89.0
Inlet Type:
Outlet Type:
Corrugation Depth(in.):
Corrugation Width(in.):
Condition Rating(1-5): 1
Approach Angle:
Sedimentation At Inlet: Yes
Inlet Substrate:
Outlet Substrate:
InletOutlet
Width(ft):
Height(ft):
Apron Length(ft):
Water Depth(ft):
Rustline Height(ft):
Substrate Depth(ft):
Backwatered?: No
Baffles Present: No
Embedded?: No
Outfall Height:
Outfall Type: At Stream Grade
Constriction Ratio:
Culvert Gradient:
Max Slope:
Max Slope Length:

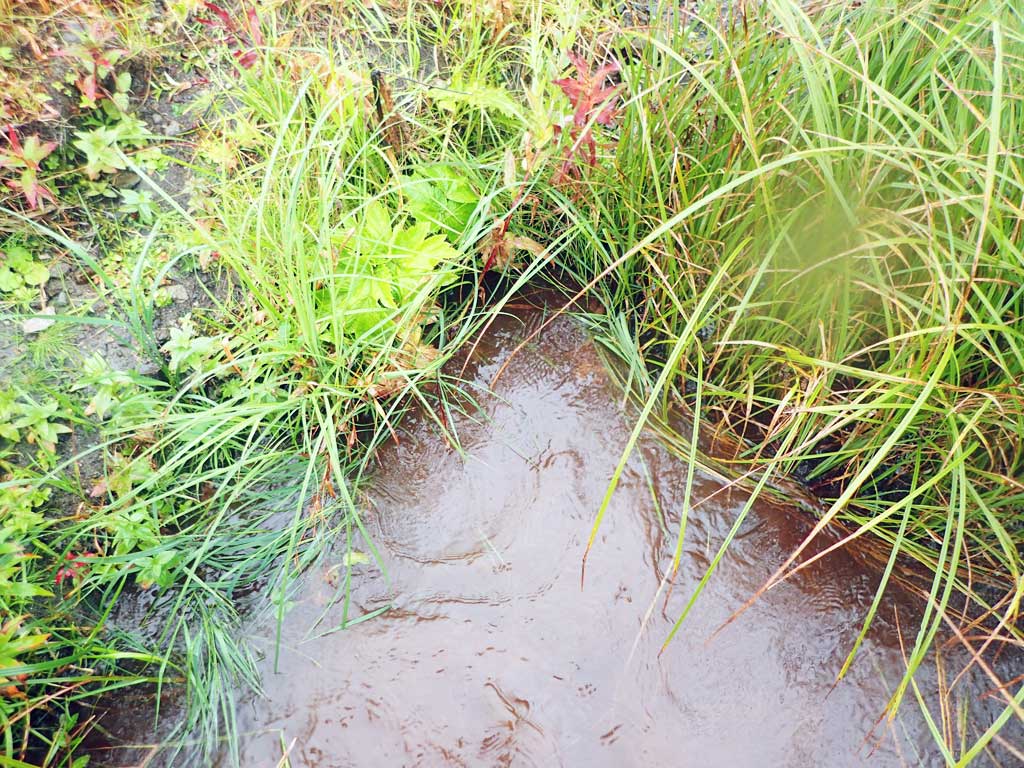

Comments: Culvert inverts are submerege. Unable to tell what type of structure is here, but from the age of the site and what other types of culverts were in the area, it is likely a wooden box/bridge culvert.

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:
Subdominant:
Stream Slope(deg.):
Stream Flow Stage:Medium

No stream width data available.

Elevations

No elevation data available.

Fish Sampling Efforts

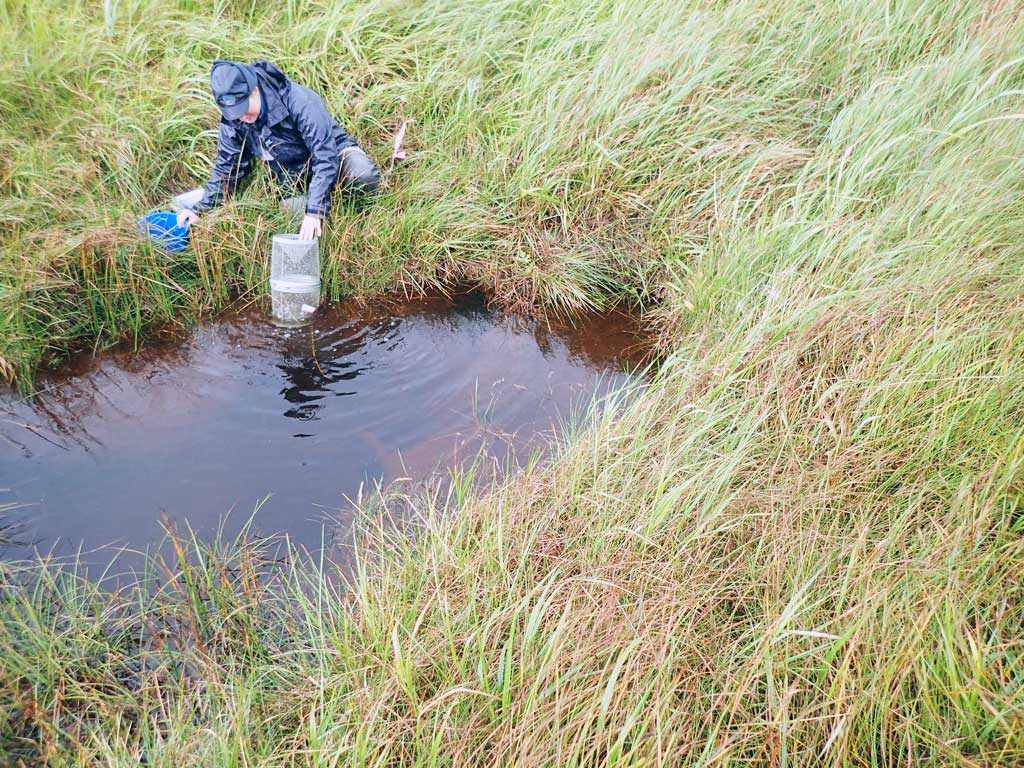

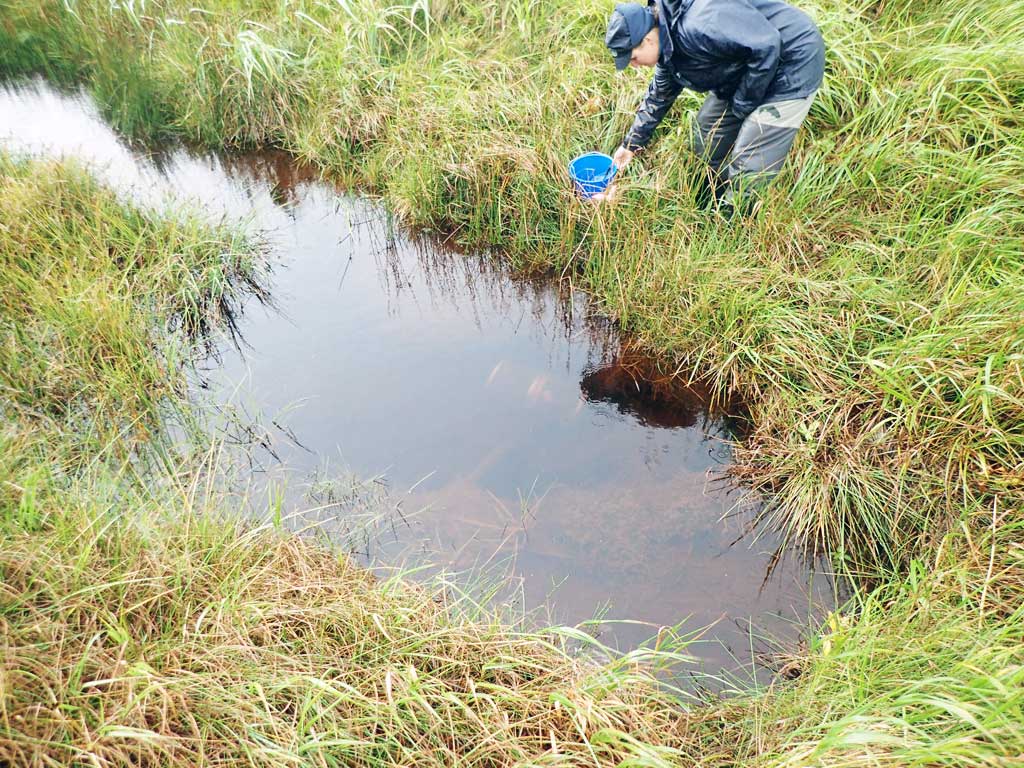

Gear Type: Minnow Trap (A) Trap Duration(h): 24.0

Gear Type: Minnow Trap (B) Trap Duration(h): 24.0

Fish Observations

Species: juvenile/adult Dolly Varden Life History: Unknown
Total Fish Observed: 29 Fish Measured: 29 Fork Lengths (mm) Min: 32 Max: 160 Mean: 96
Collected/Observed by Gear Type: Downstream Minnow Trap (14)  Upstream Minnow Trap (15)
