Fish Passage Improvement site 30103625

Fish Passage Site 30103625

Coordinates (dec. deg.): 51.93671°, -176.59230°
Legal Description: S095S194W19
Region: Southwest
Road Name: Hillside Boulevard

Datum: NAD83
Quad Name / ITM: Adak C-2
AWC Stream #: 306-70-10120
Stream Name: Shotgun Creek

Elevation:

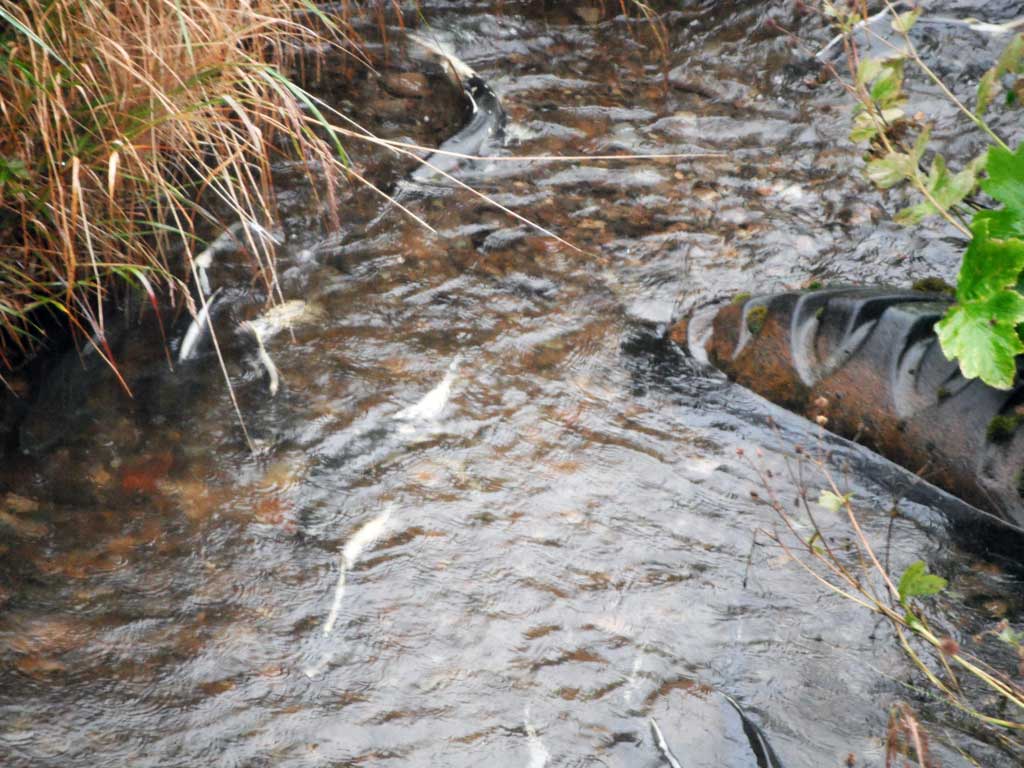

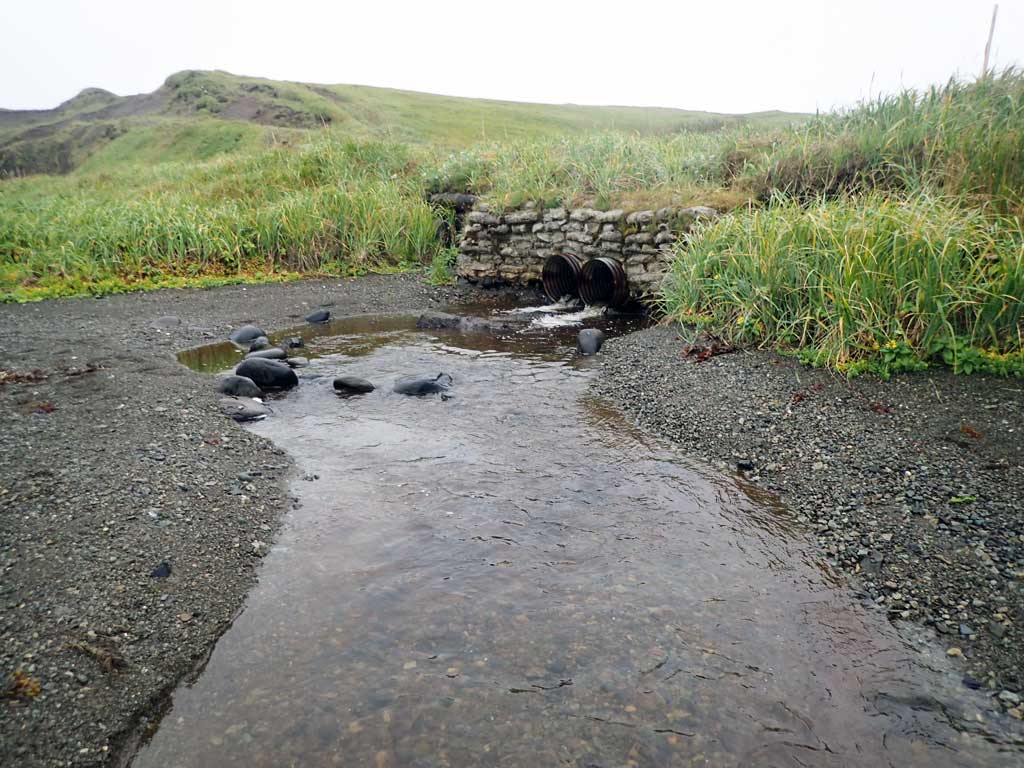

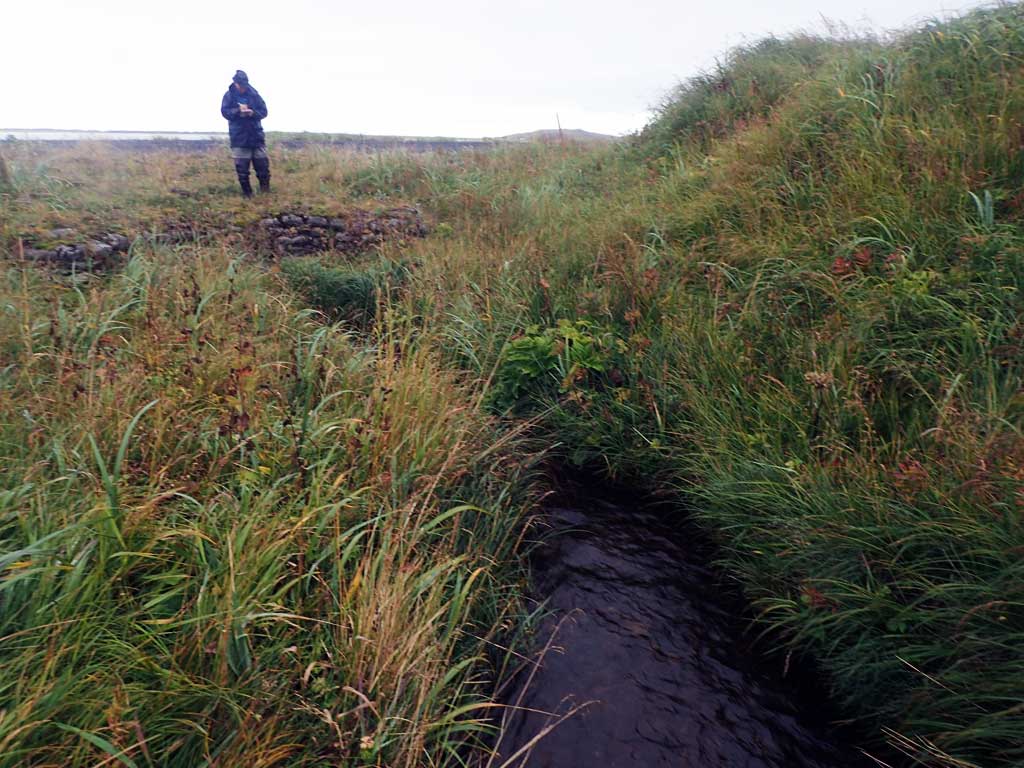

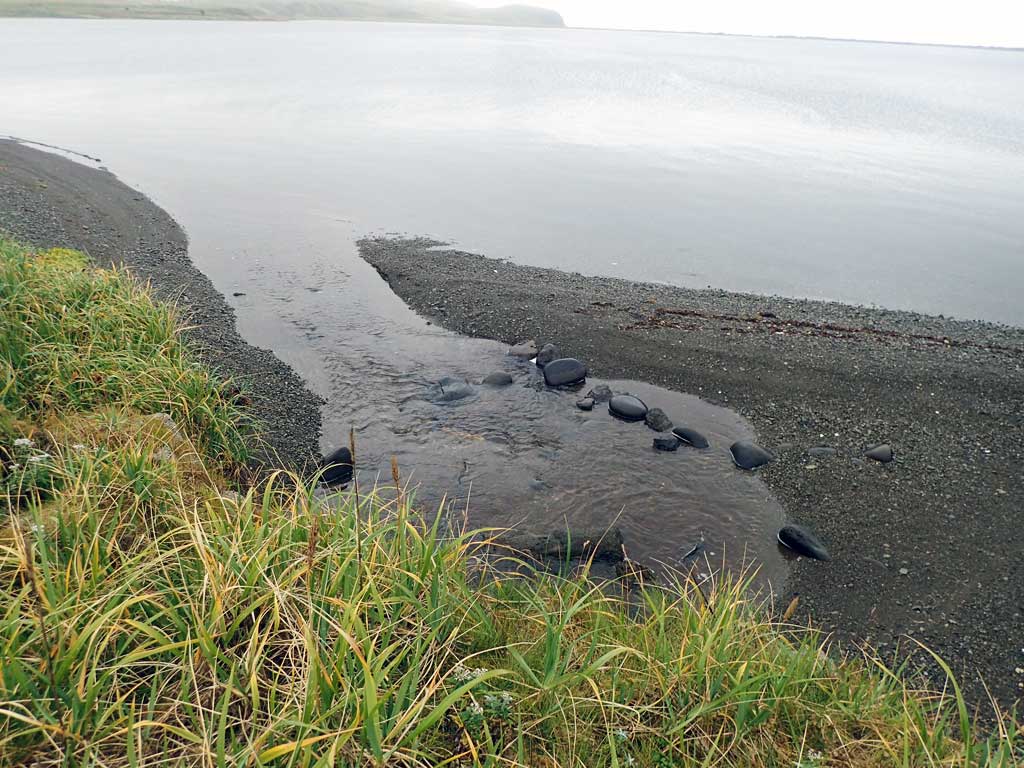

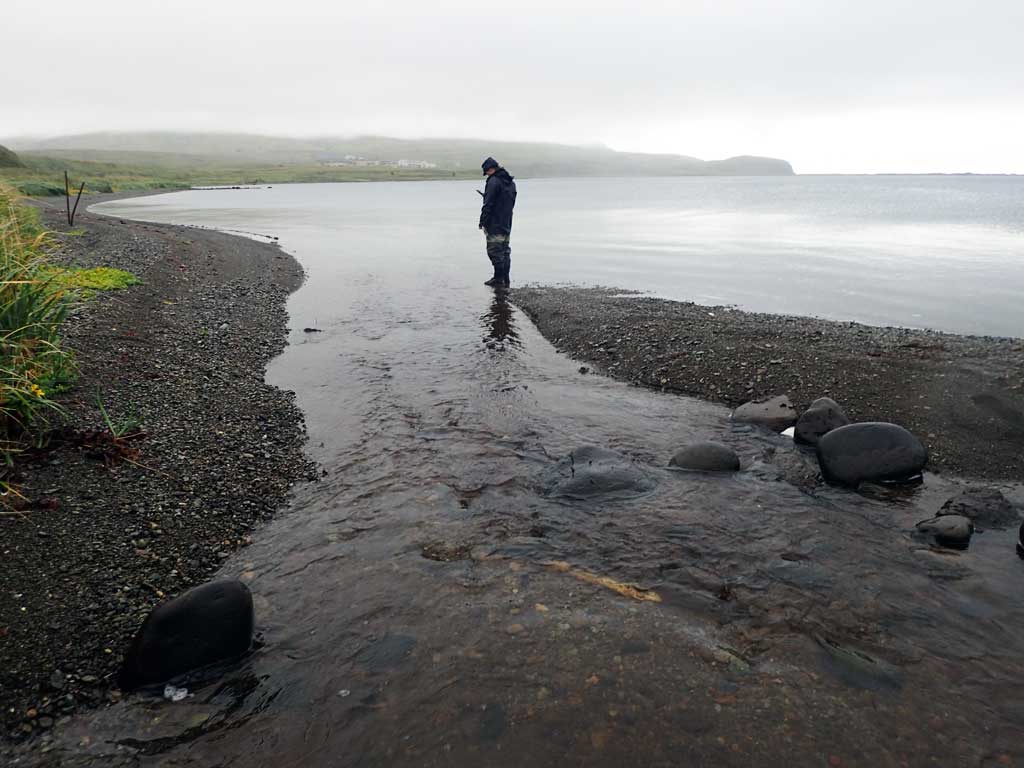

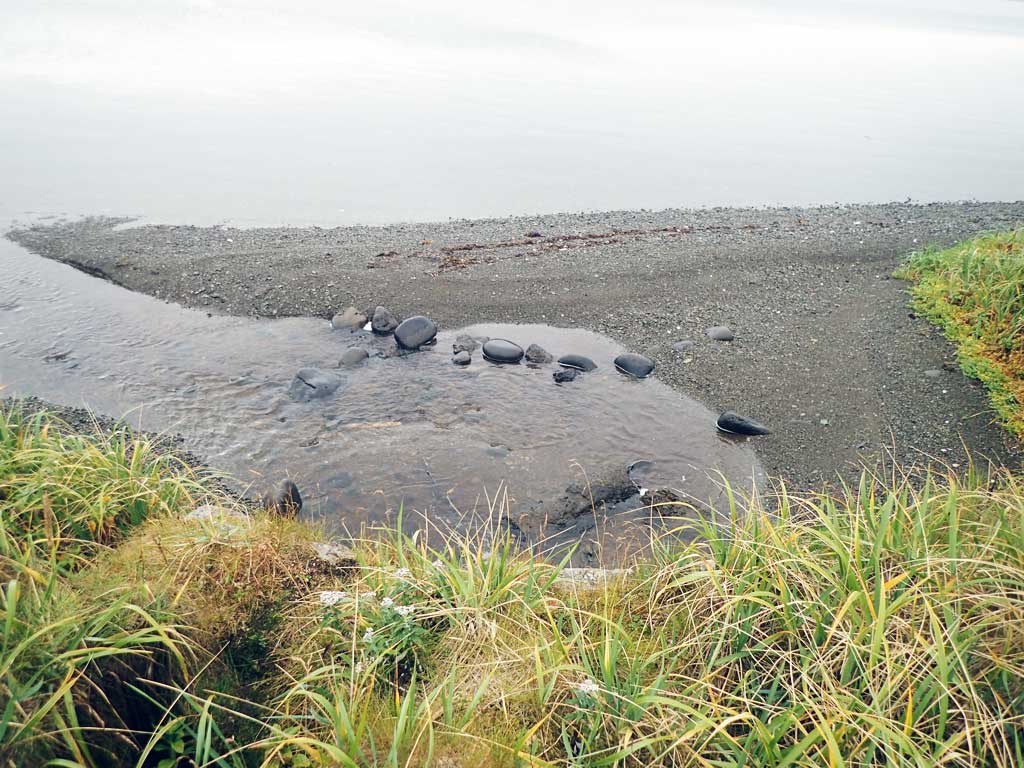

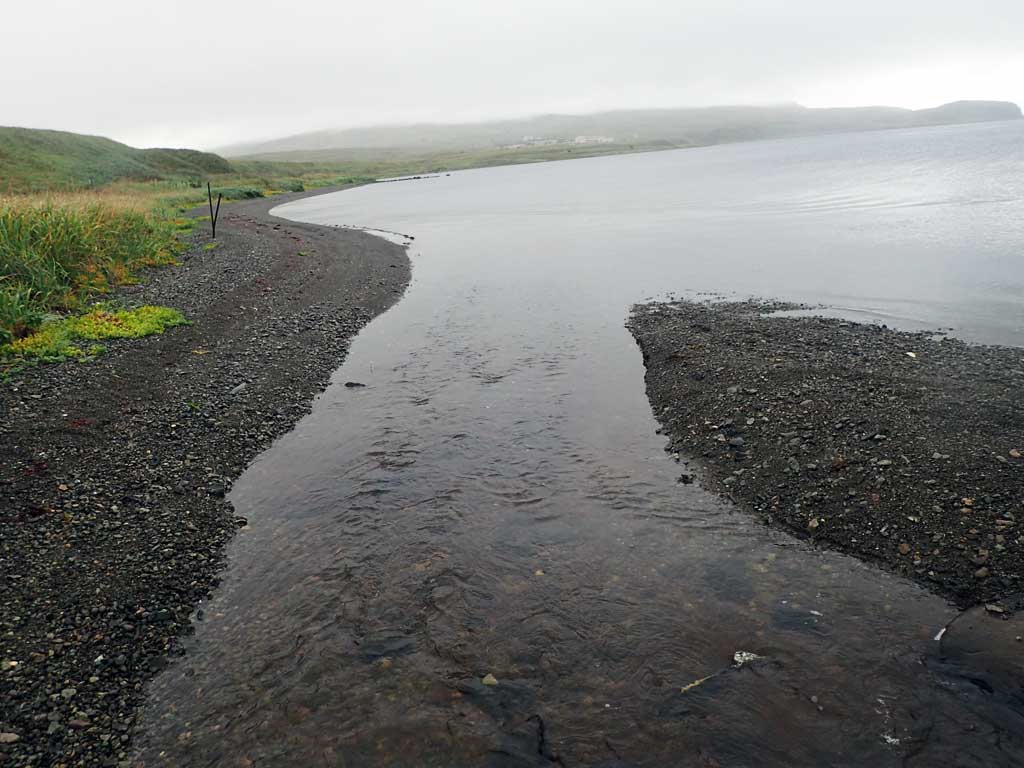

Site Comments: Creek empties into Clam Lagoon directly downstream.

Survey Date: Sep 14, 2017

Survey ADAK17-C11

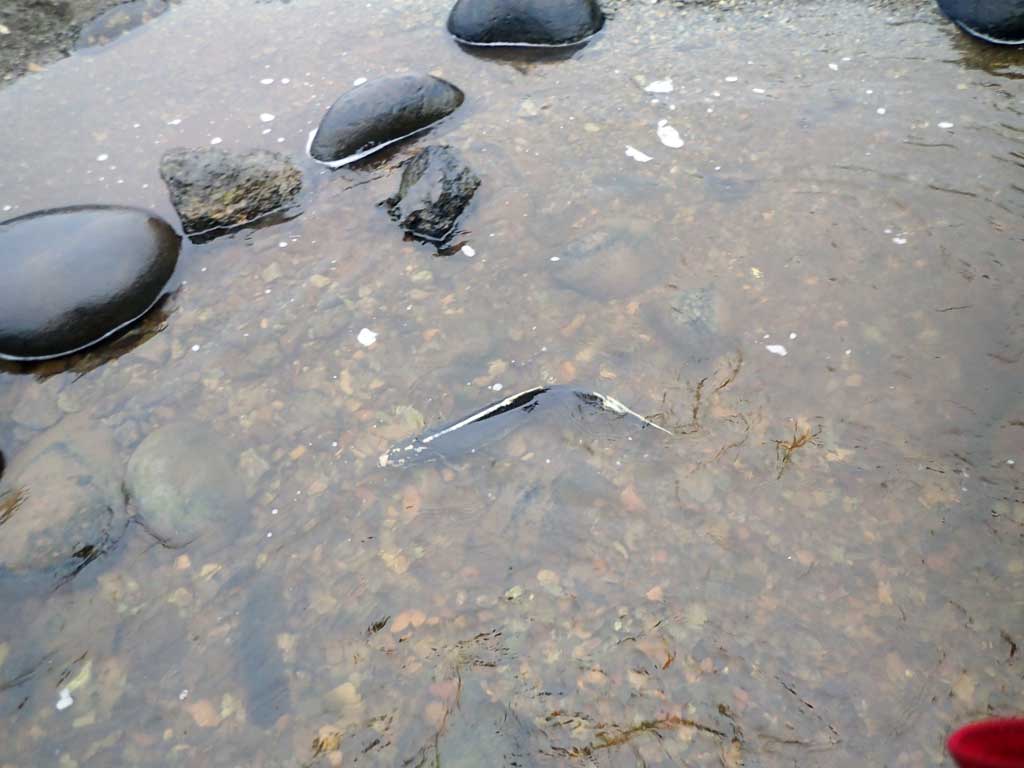

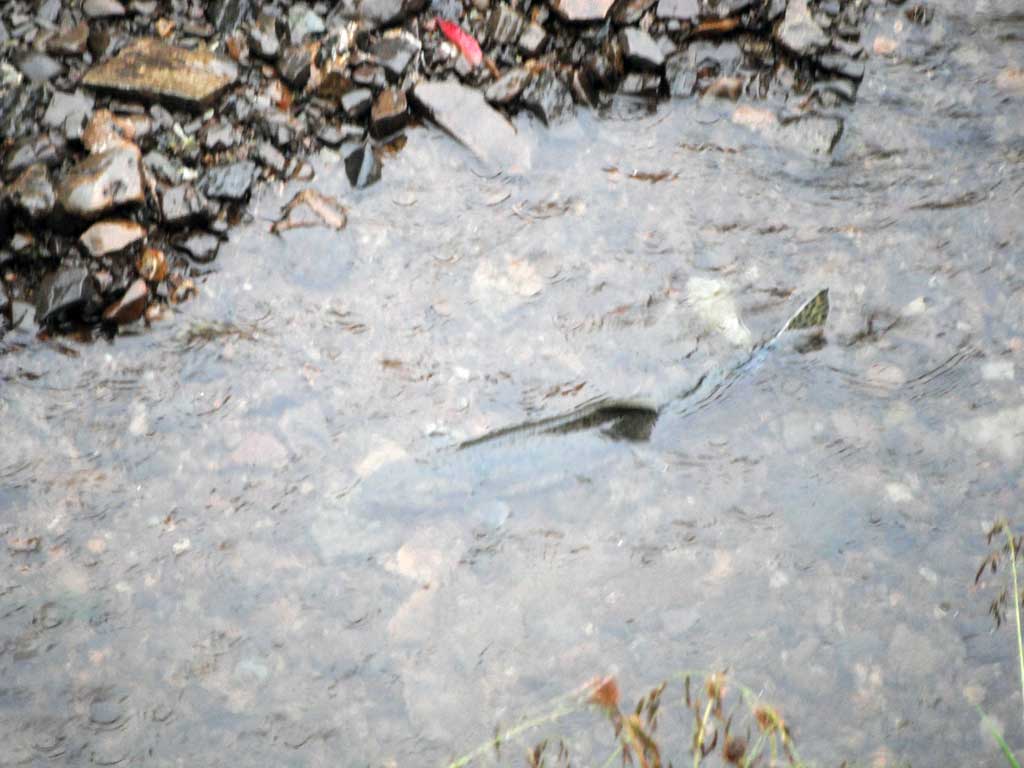

site photos

Observers: Mark Eisenman, Jeanette Alas

Overall Fish Passage Rating: Gray

Tidal: Yes
Backwatered: No

Step Pools: No
Construction Year:

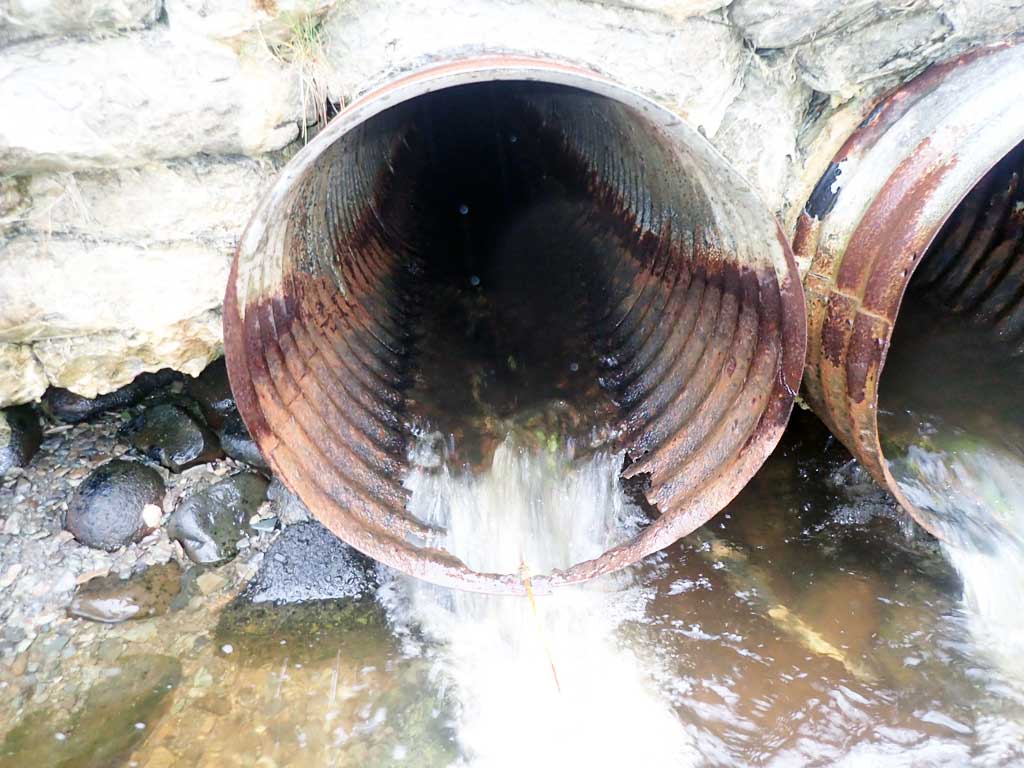

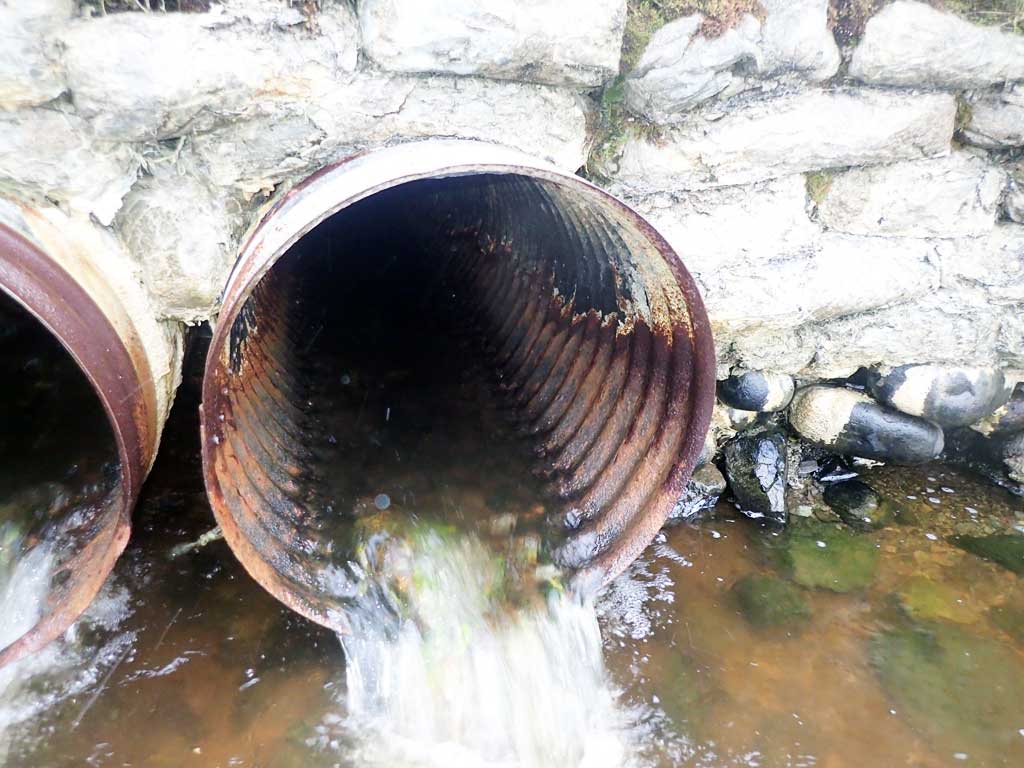

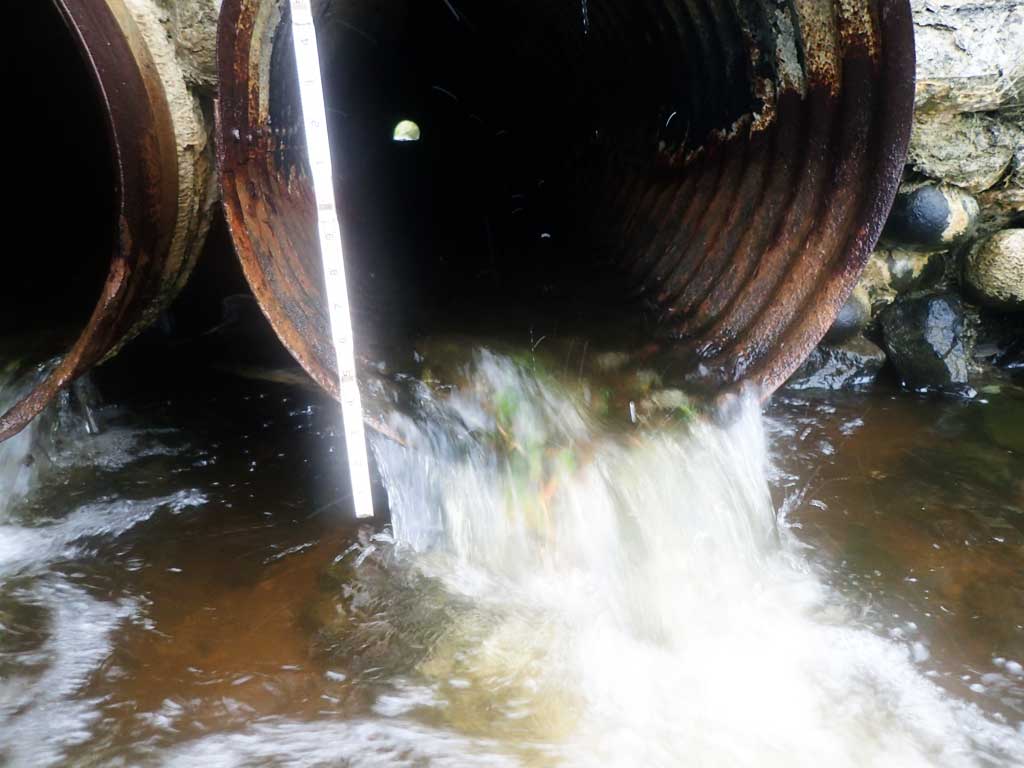

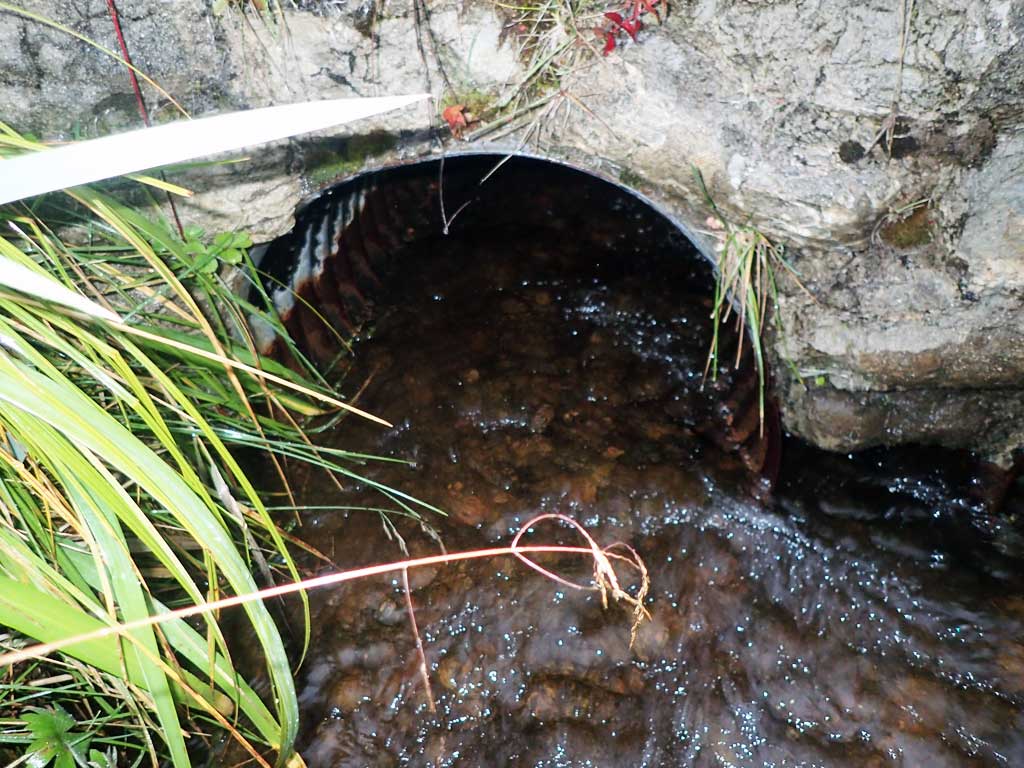

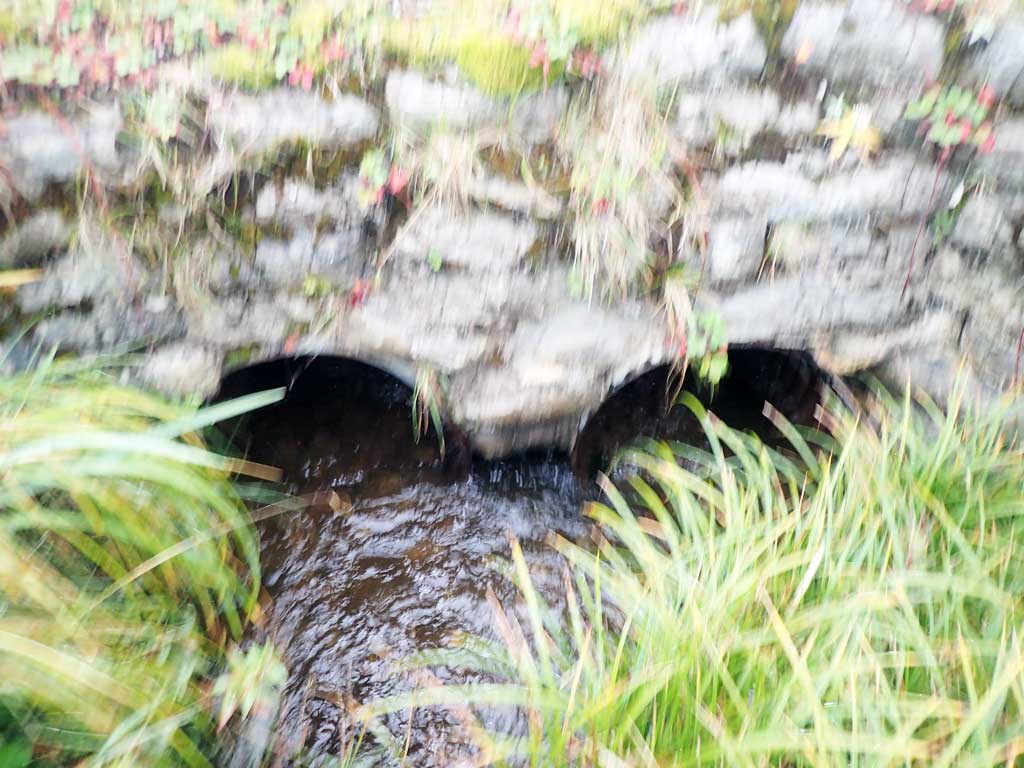

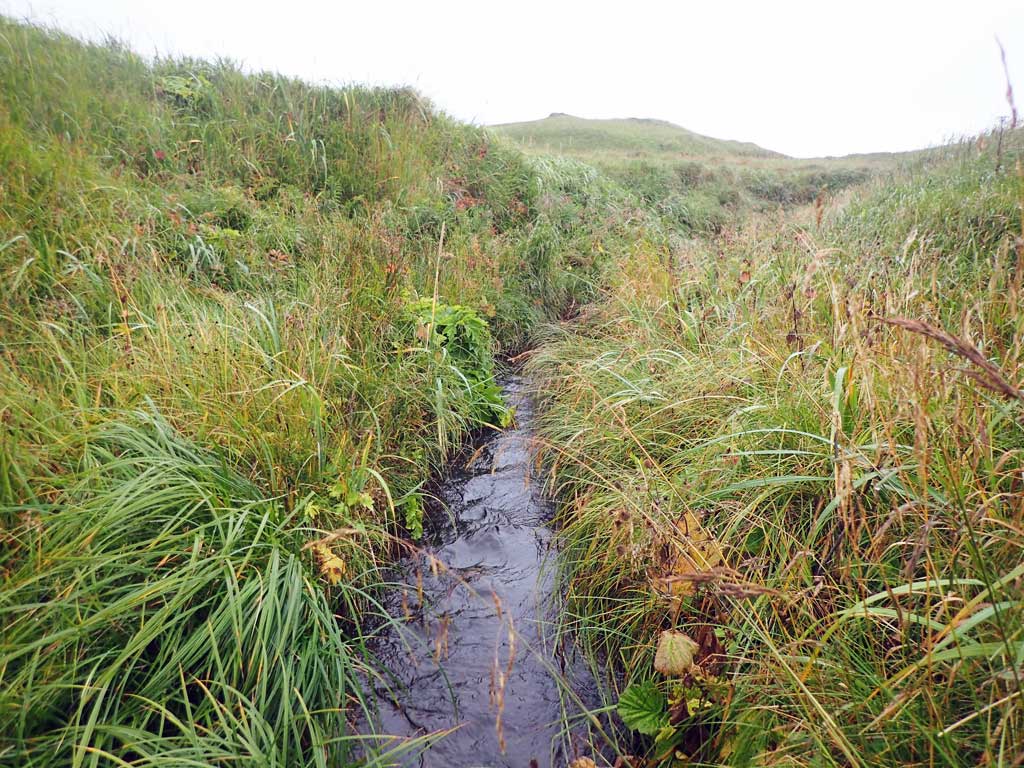

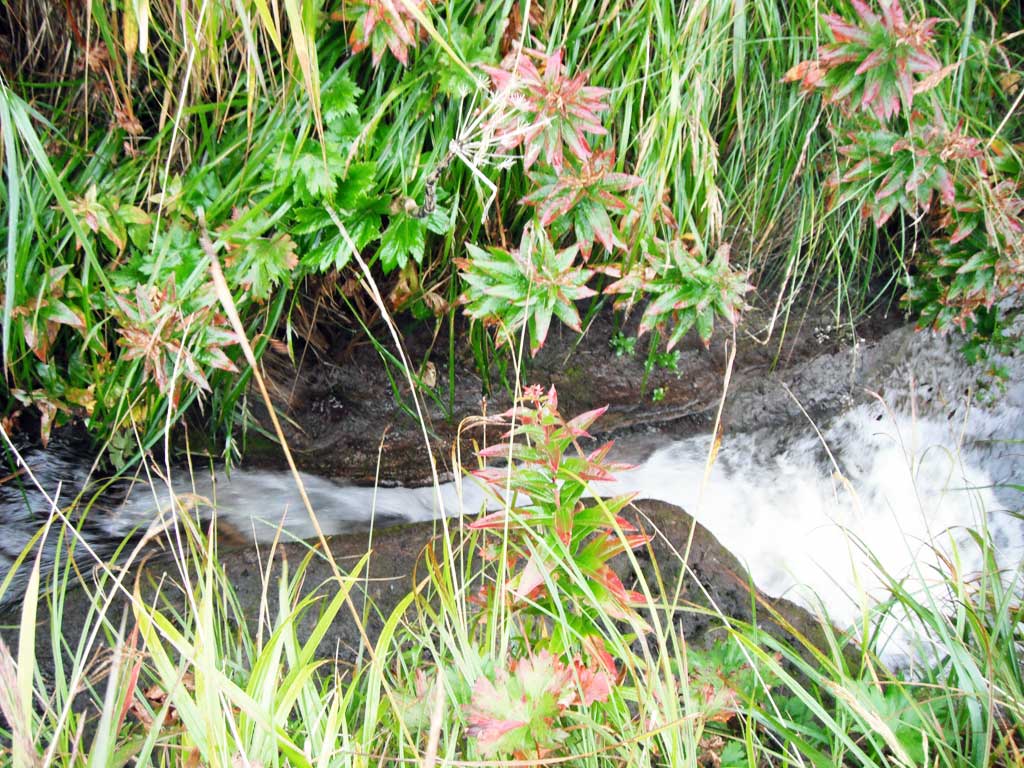

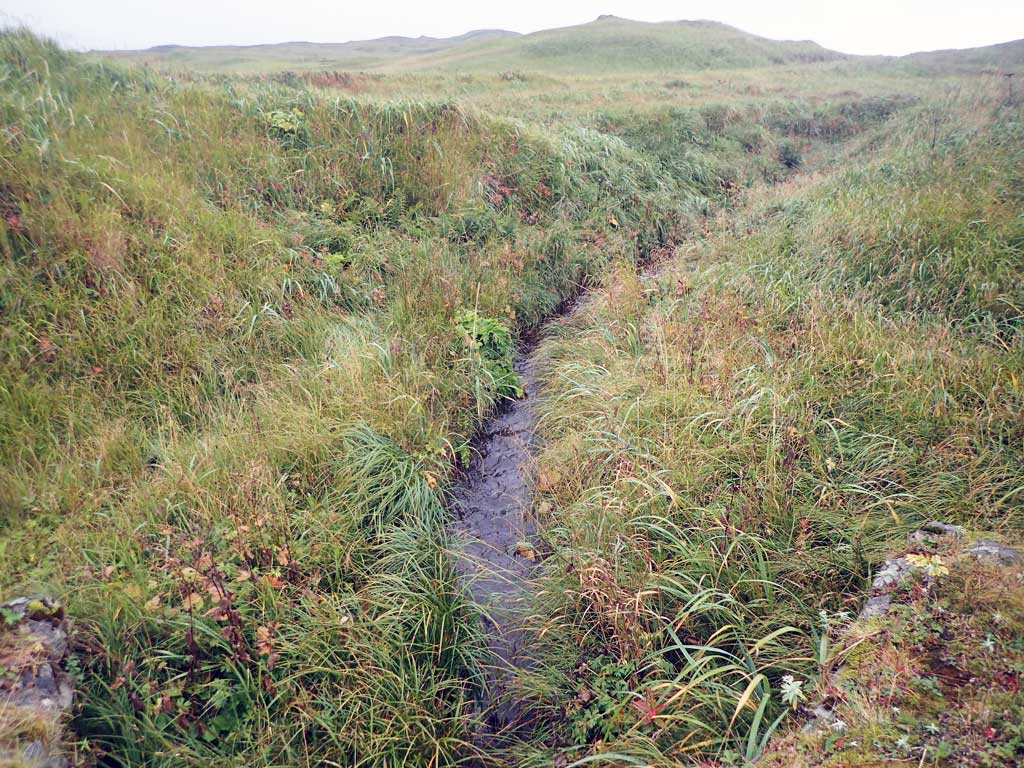

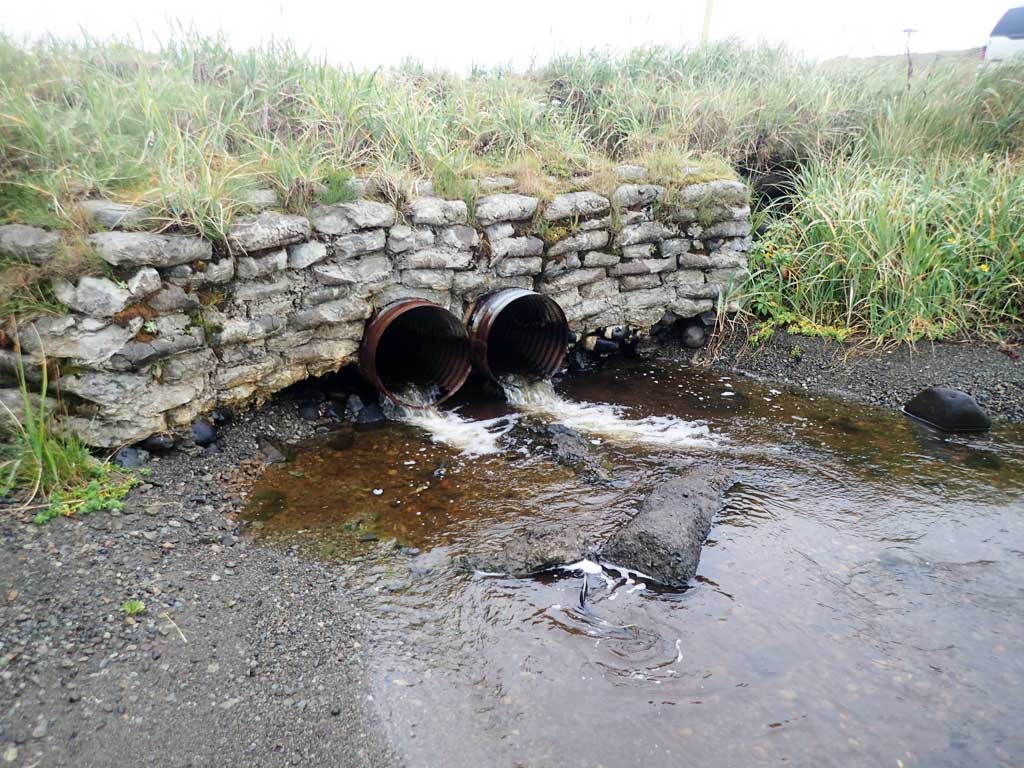

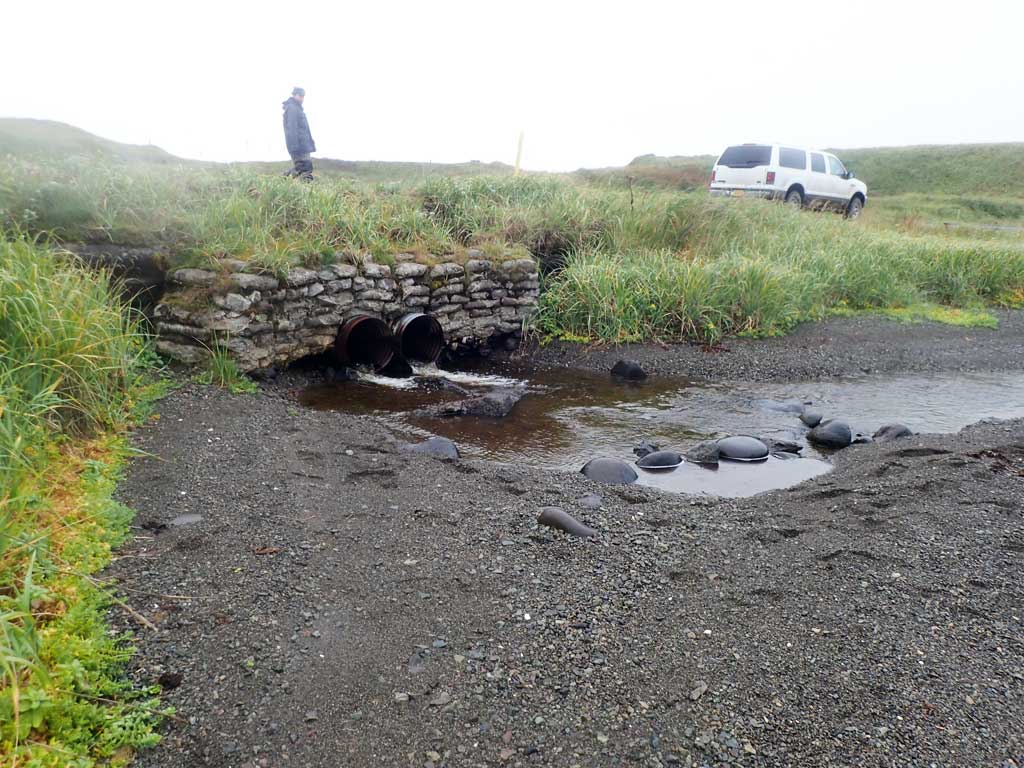

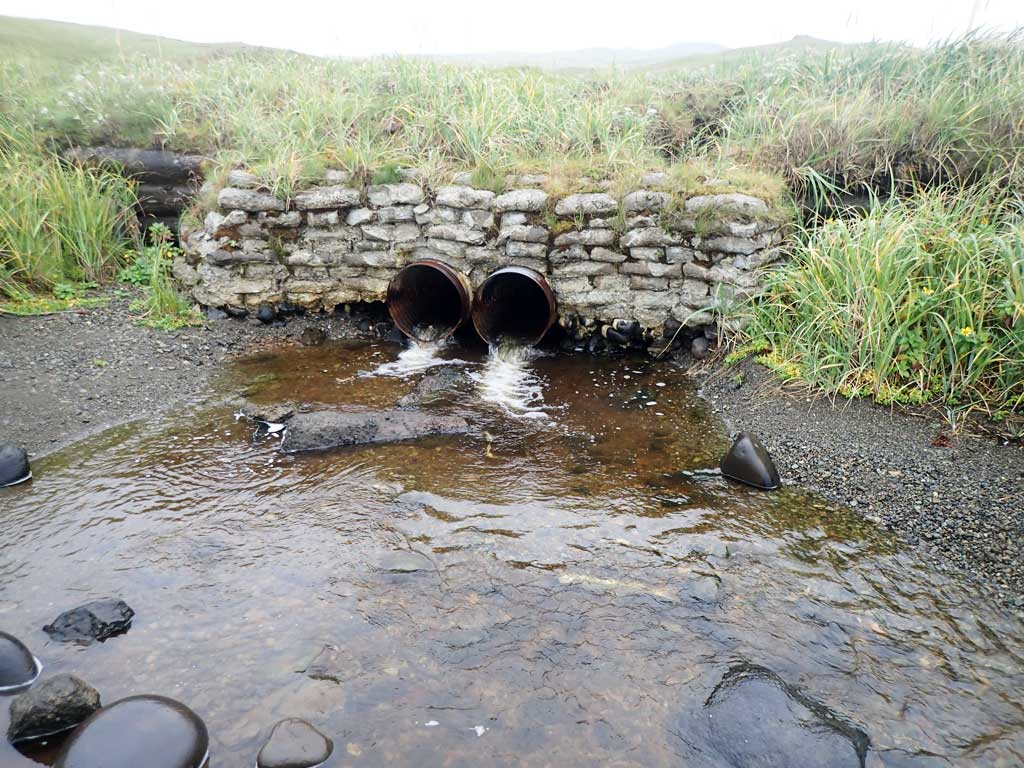

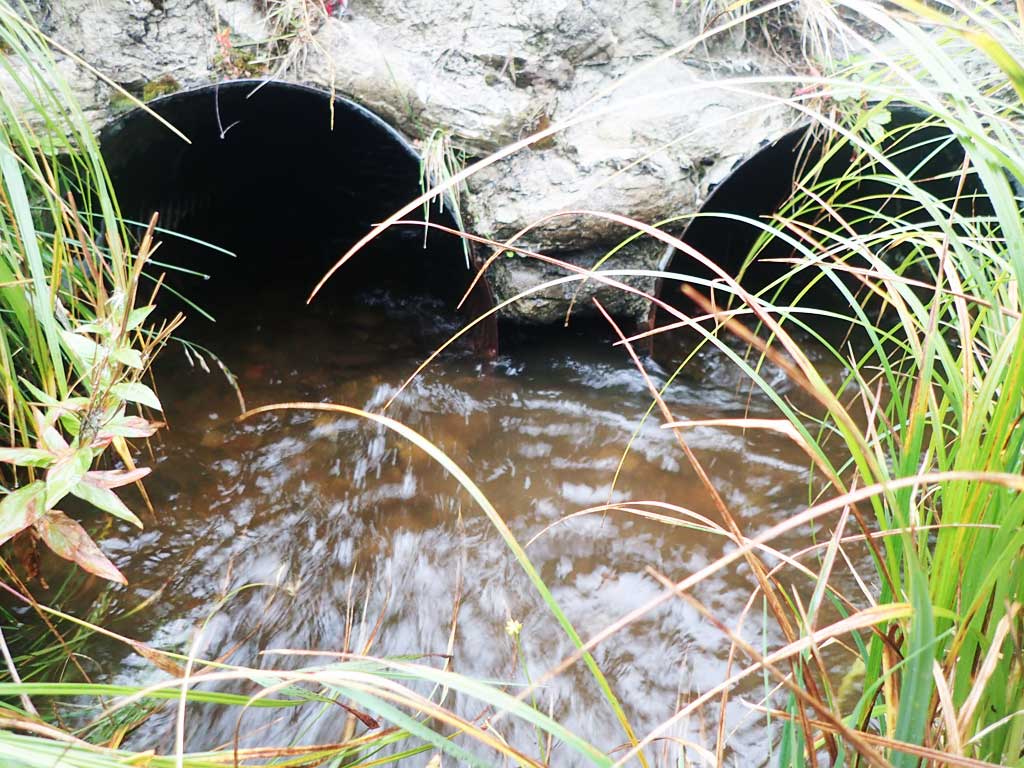

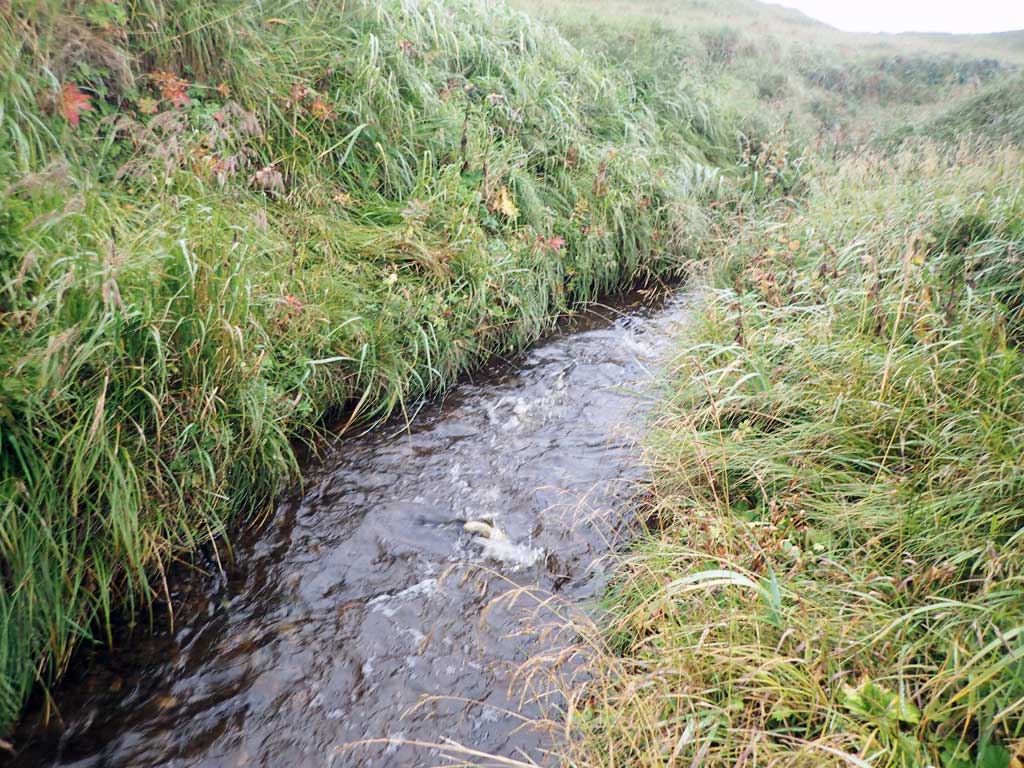

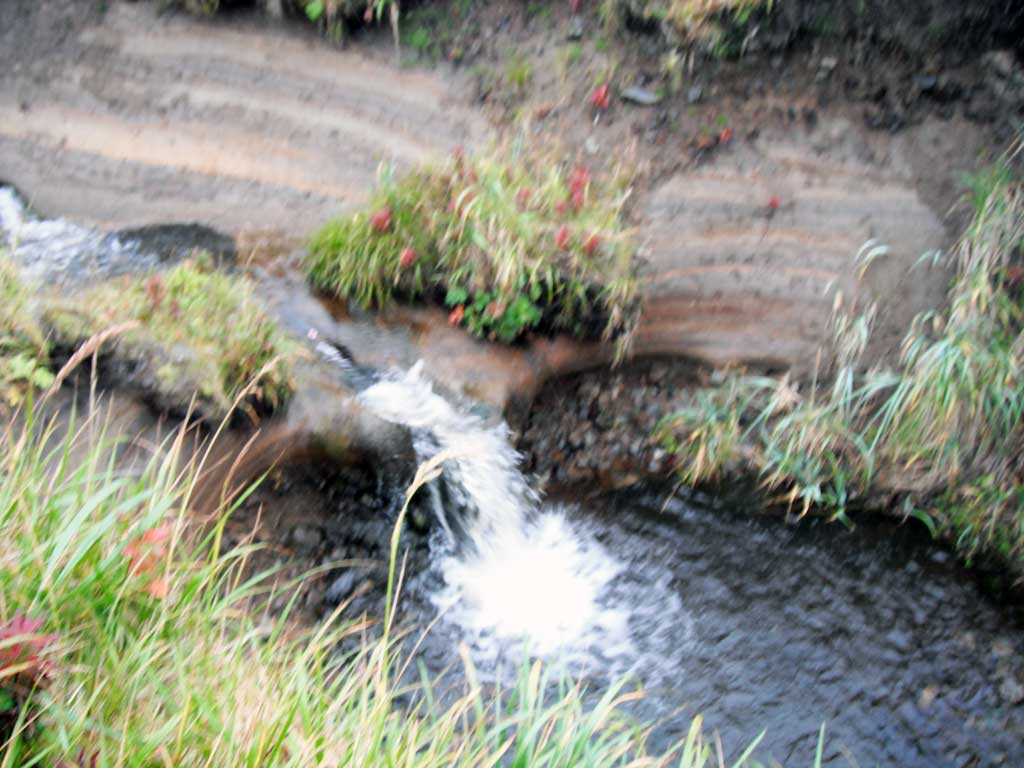

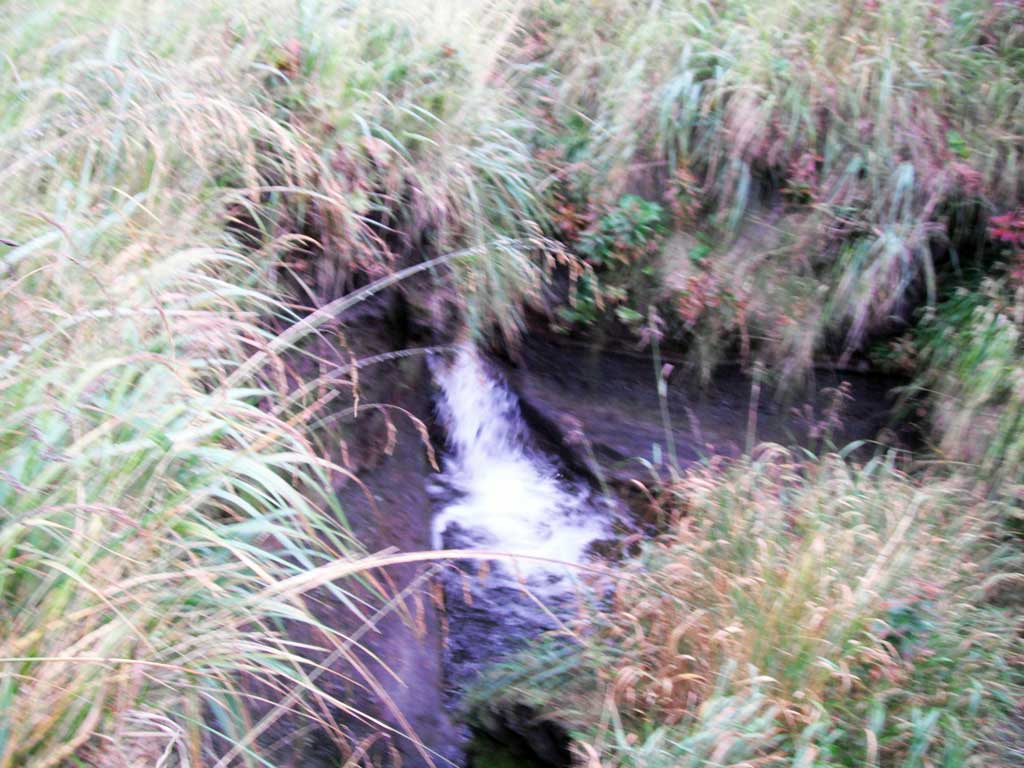

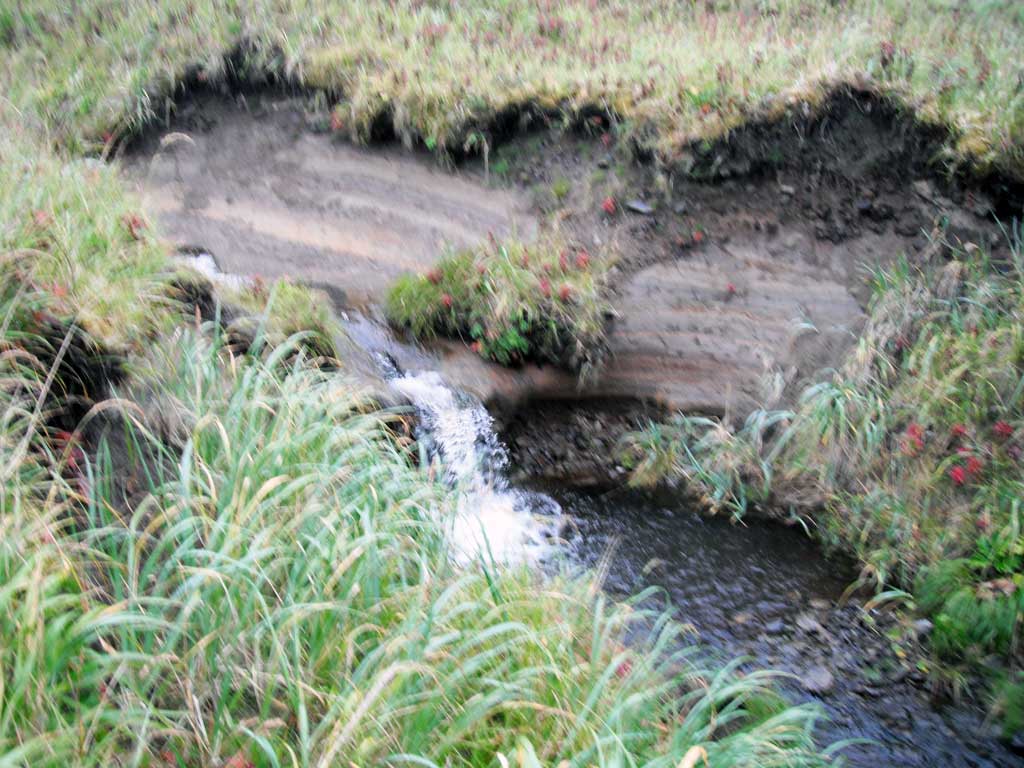

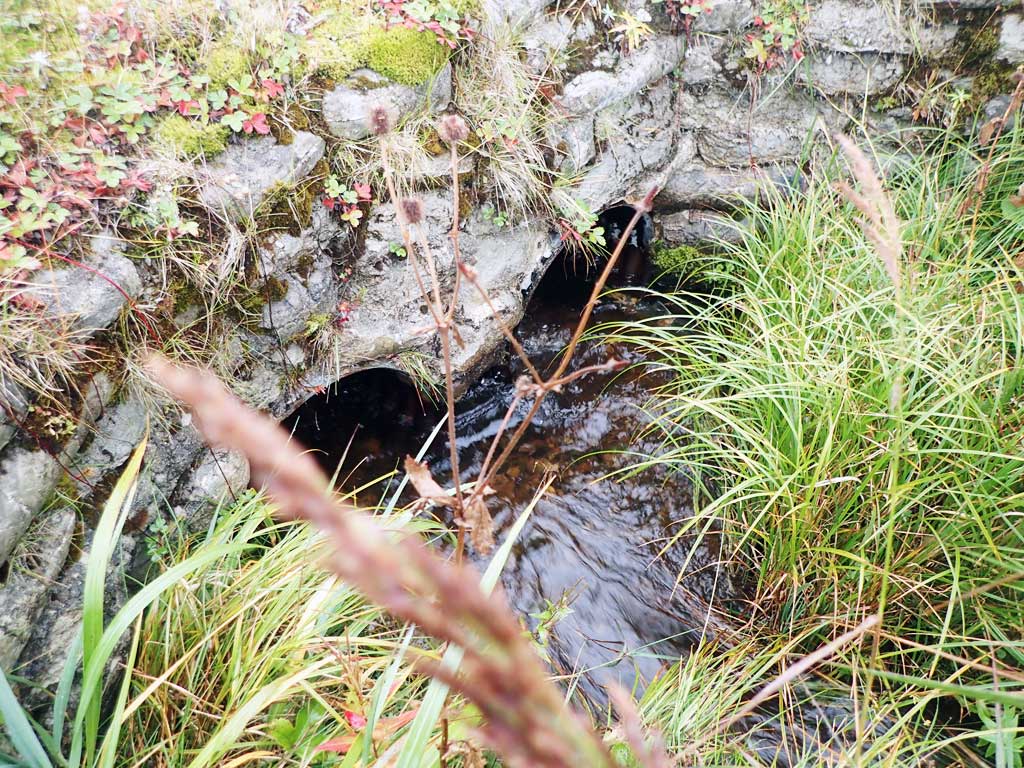

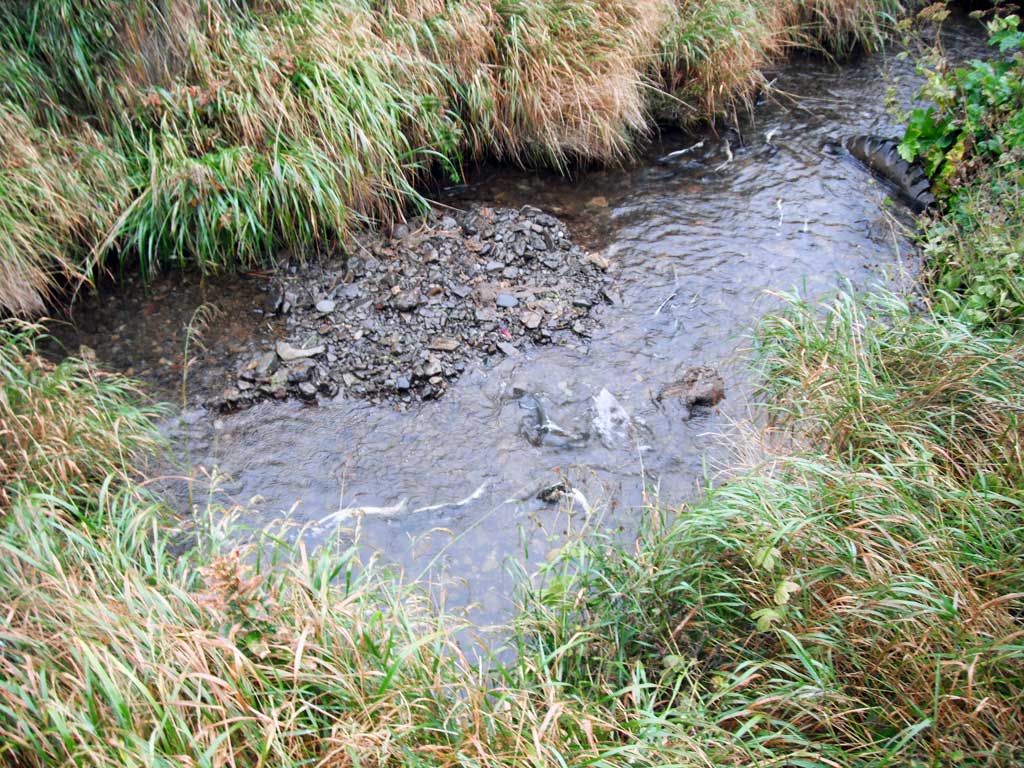

Comments: This information was gathered as part of the joint reconnaissance level project between the ADF&G's Habitat Division and the Fish Passage Assessment Project on Adak Island. Due to time constraints full site assessments were not conducted, but base line information was collected. Concrete pillow headwalls at inlet and outlet. Outlet headwall is being undercut. Both culverts perched at low tide. Upstream gradient barrier identified and marked.

Culvert Measurements

ID: 1

Structure Type: Circular pipe (Corrugated steel)

Fish Passage Rating: Green

Length(ft): 60.0

Inlet Type: Headwall

Outlet Type: Headwall

Corrugation Depth(in.):

Corrugation Width(in.):

Condition Rating(1-5): 1

Approach Angle:

Sedimentation At Inlet: Yes

Inlet Substrate: None

Outlet Substrate: None

	Inlet	Outlet
Width(ft):	2.0	2.0
Height(ft):	2.0	2.0
Apron Length(ft):
Water Depth(ft):
Rustline Height(ft):
Substrate Depth(ft):	0.0	0.0

Backwatered?: No

Baffles Present: No

Embedded?: No

Outfall Height:

Outfall Type: Free Fall In To Pool

Constriction Ratio:

Culvert Gradient:

Max Slope:

Max Slope Length:

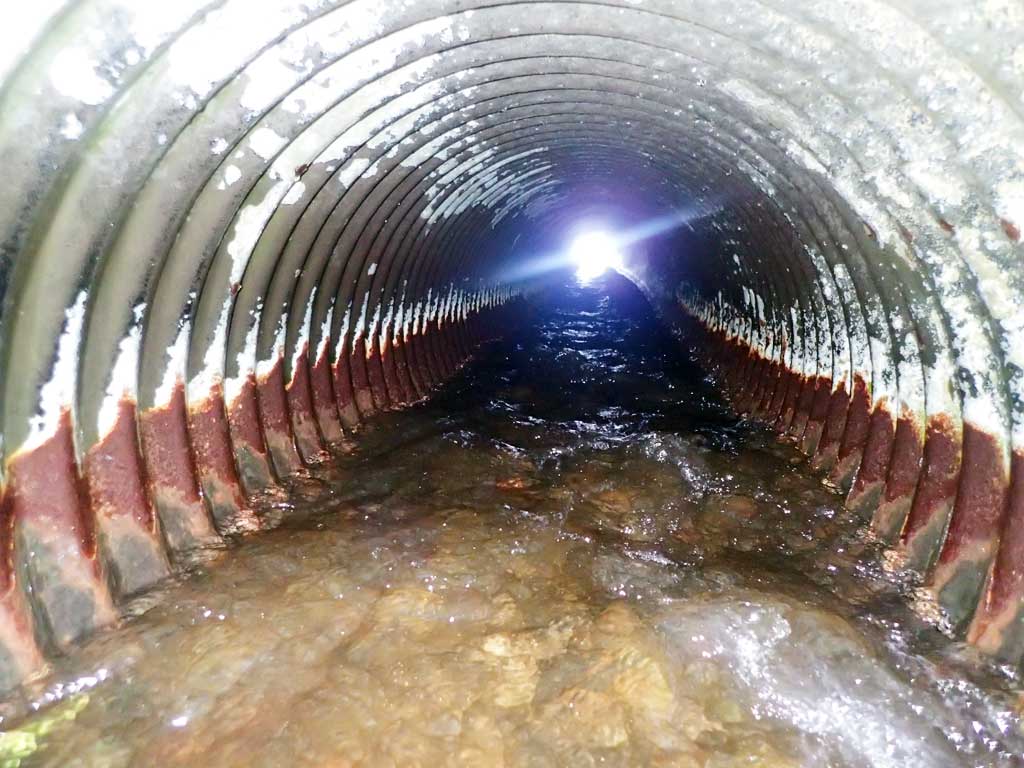

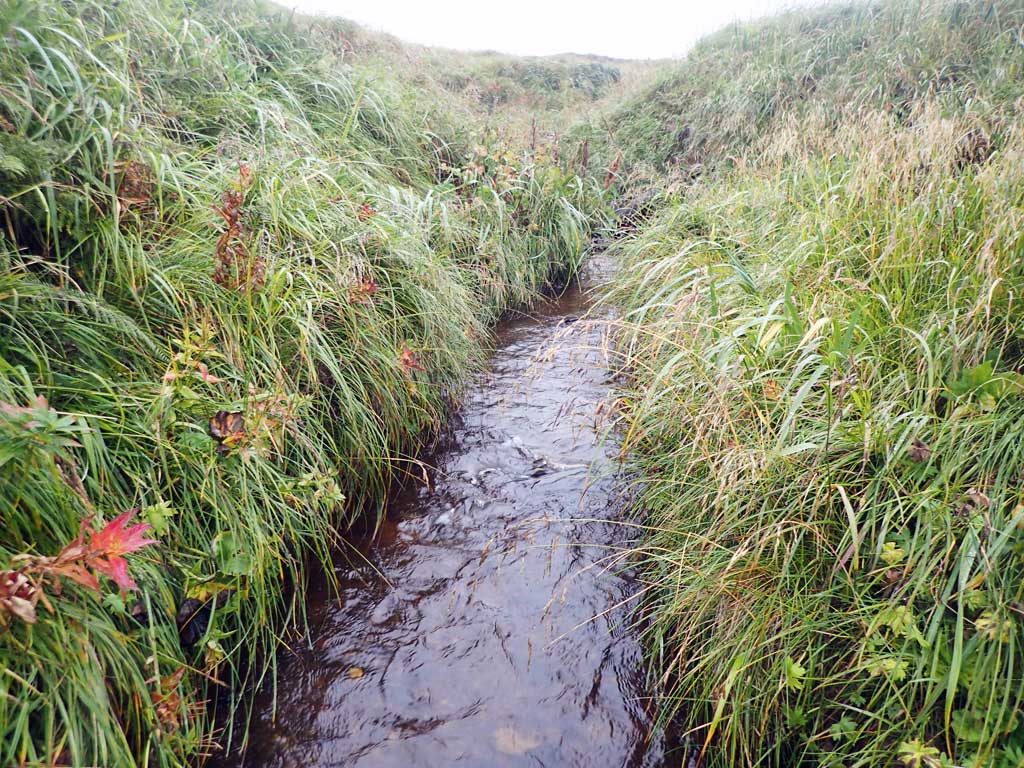

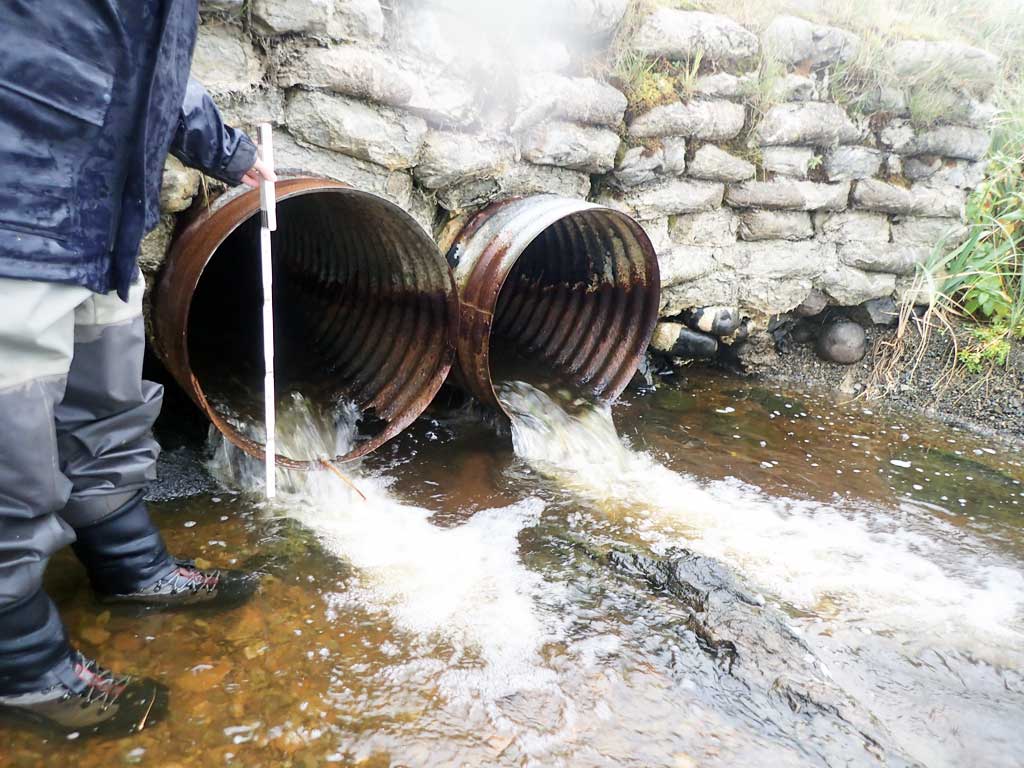

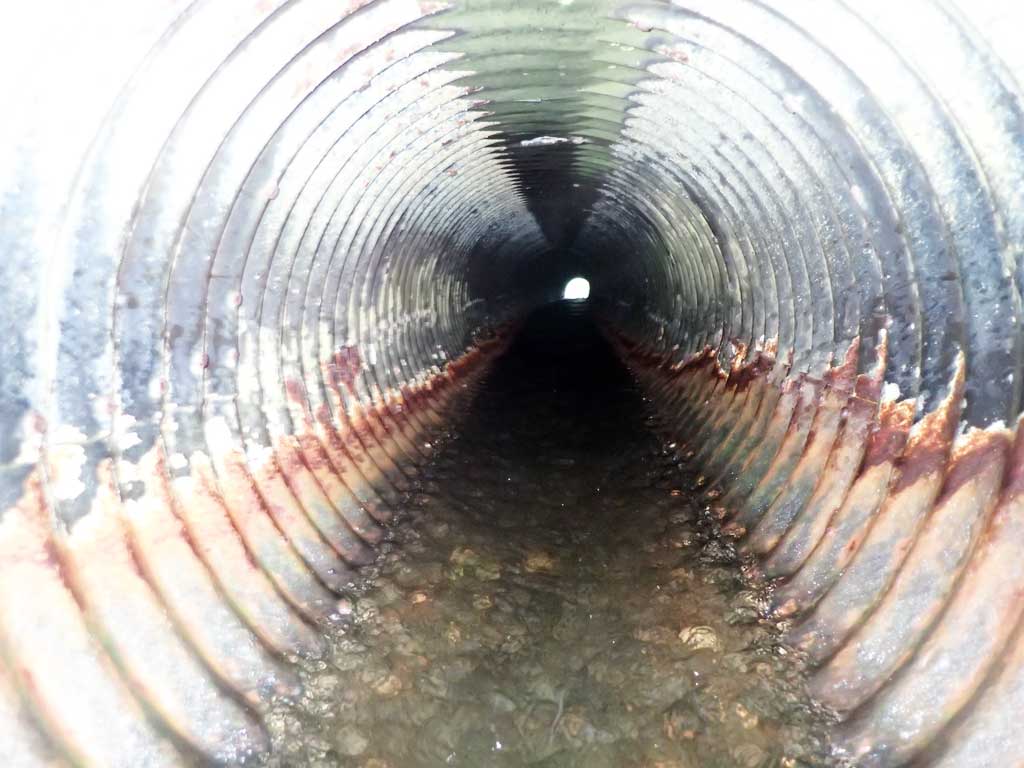

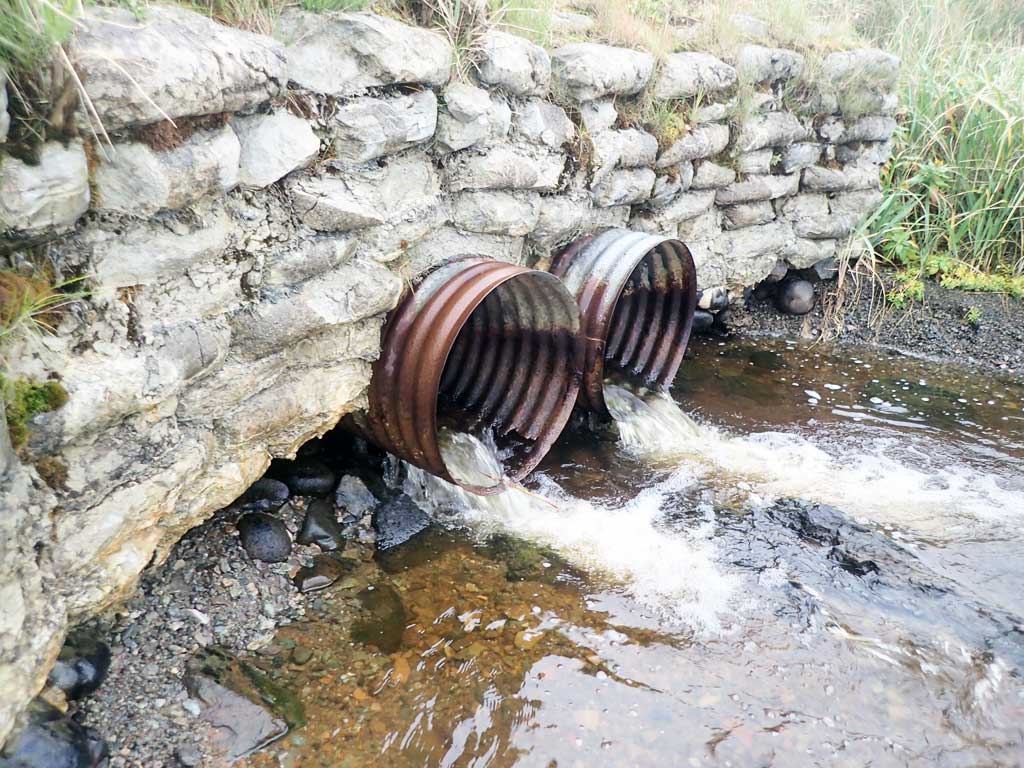

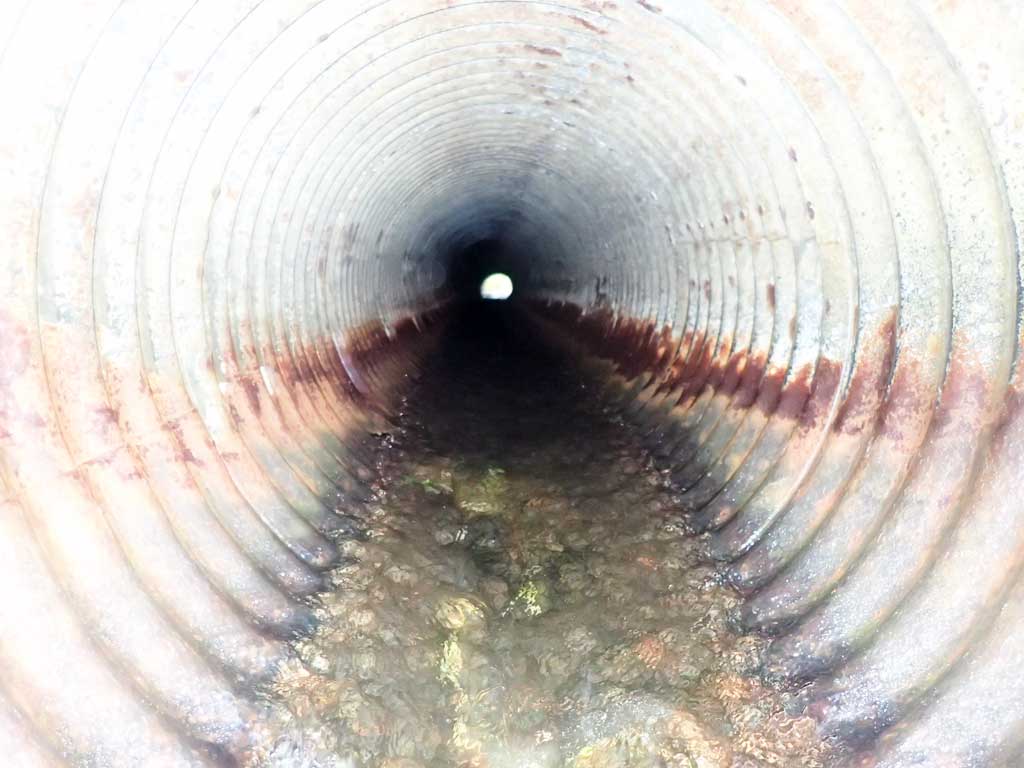

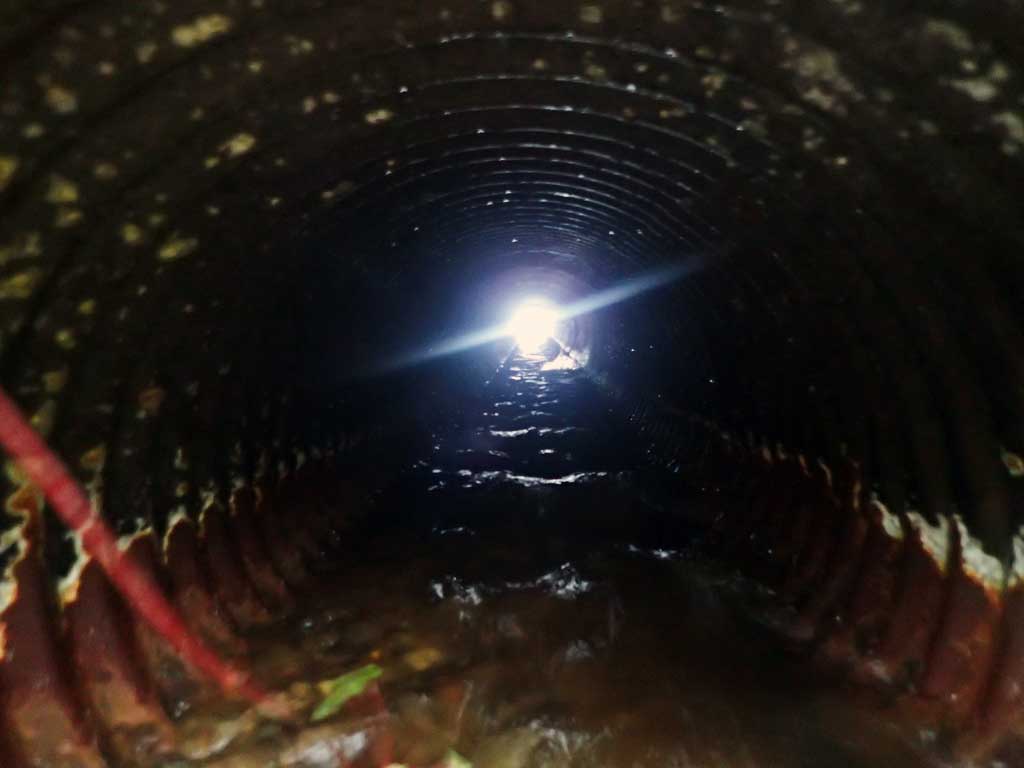

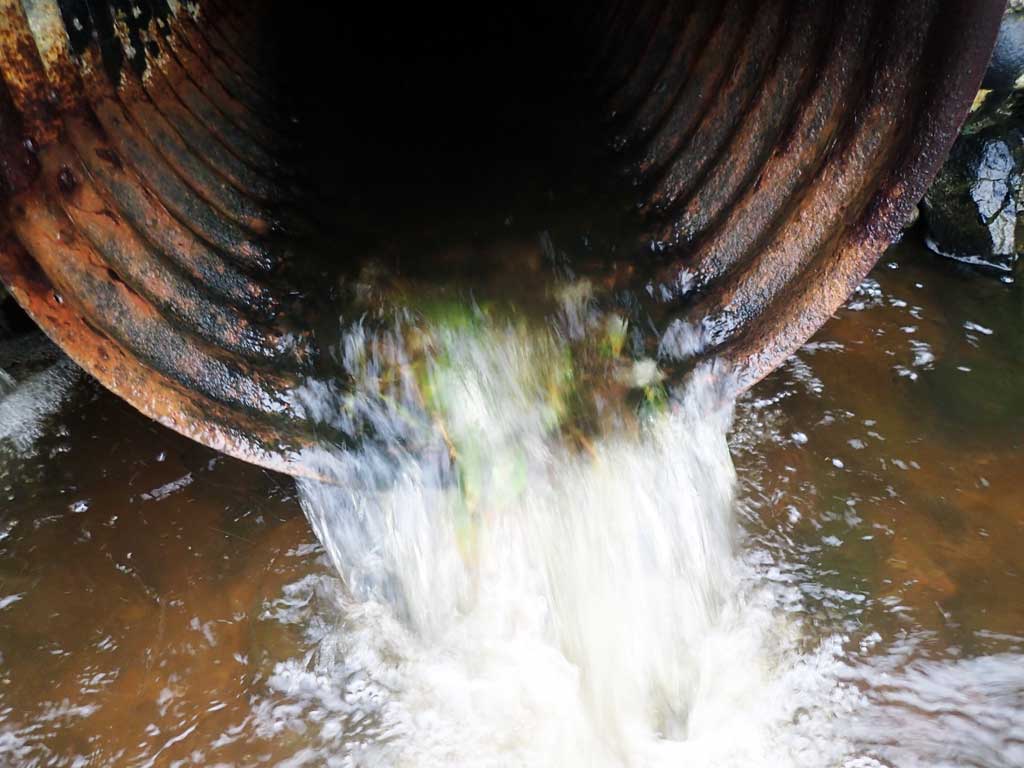

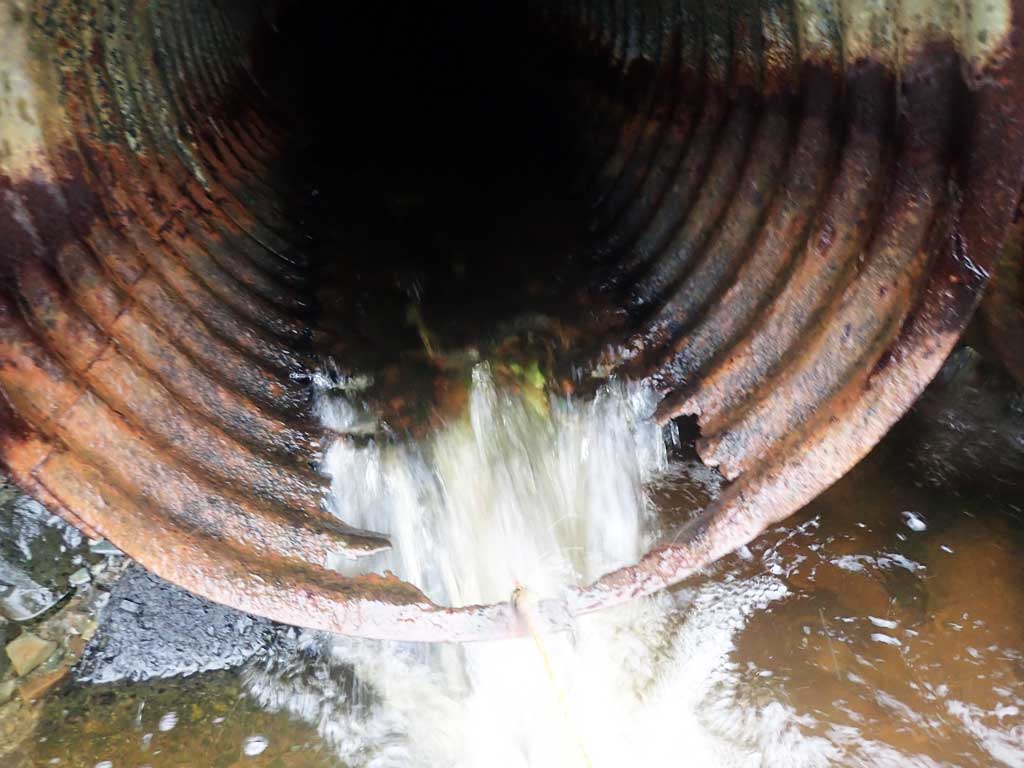

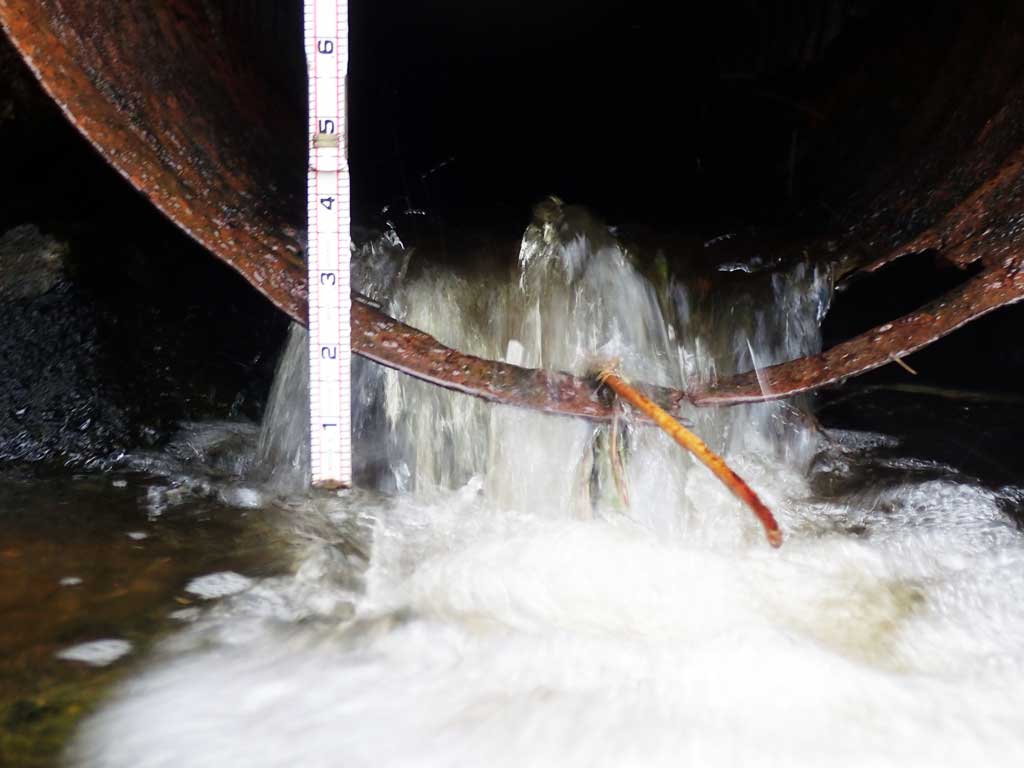

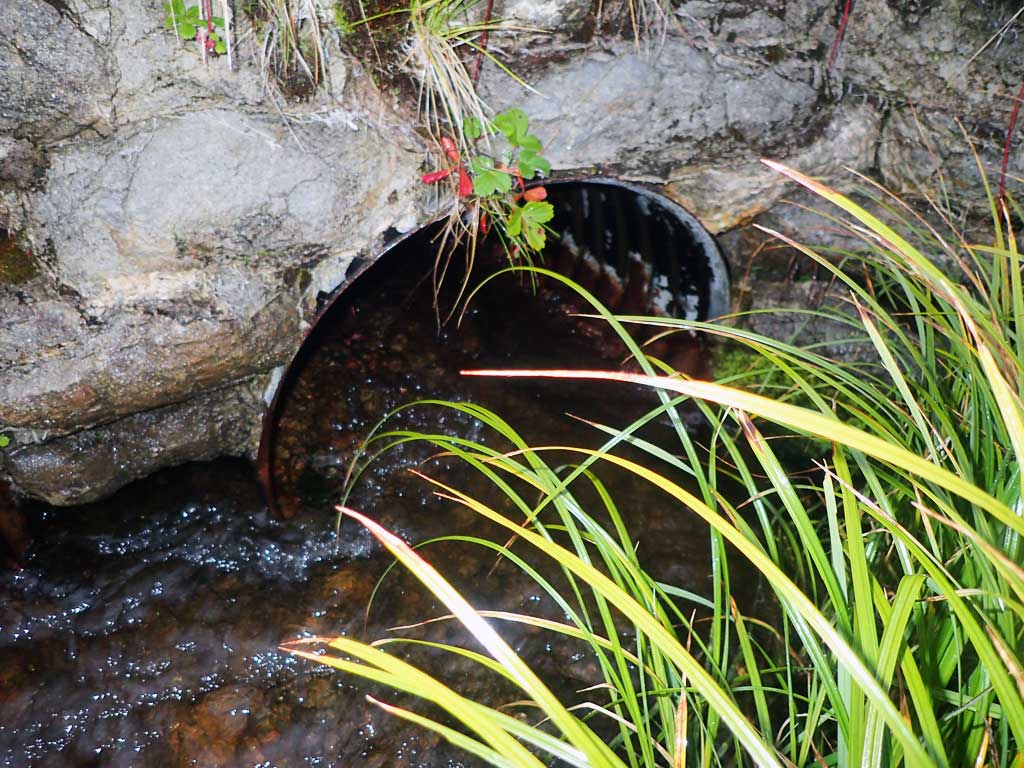

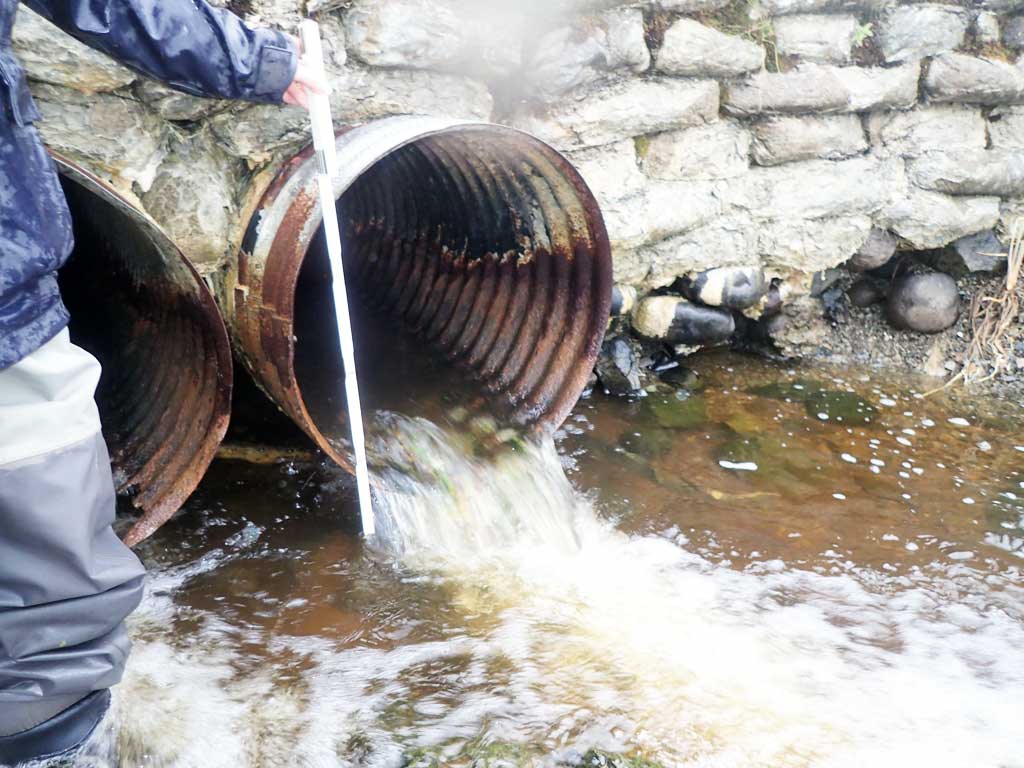

Comments: Culvert is perched at low tide. Culvert invert has rusted away. Culverts show major deteriroation from saltwater exposure. Outlet head wall being undercut.

ID: 2
