Fish Passage Site 30103621

Coordinates (dec. deg.): 51.87023°, -176.65648°
Legal Description: S096S195W10
Region: Southwest

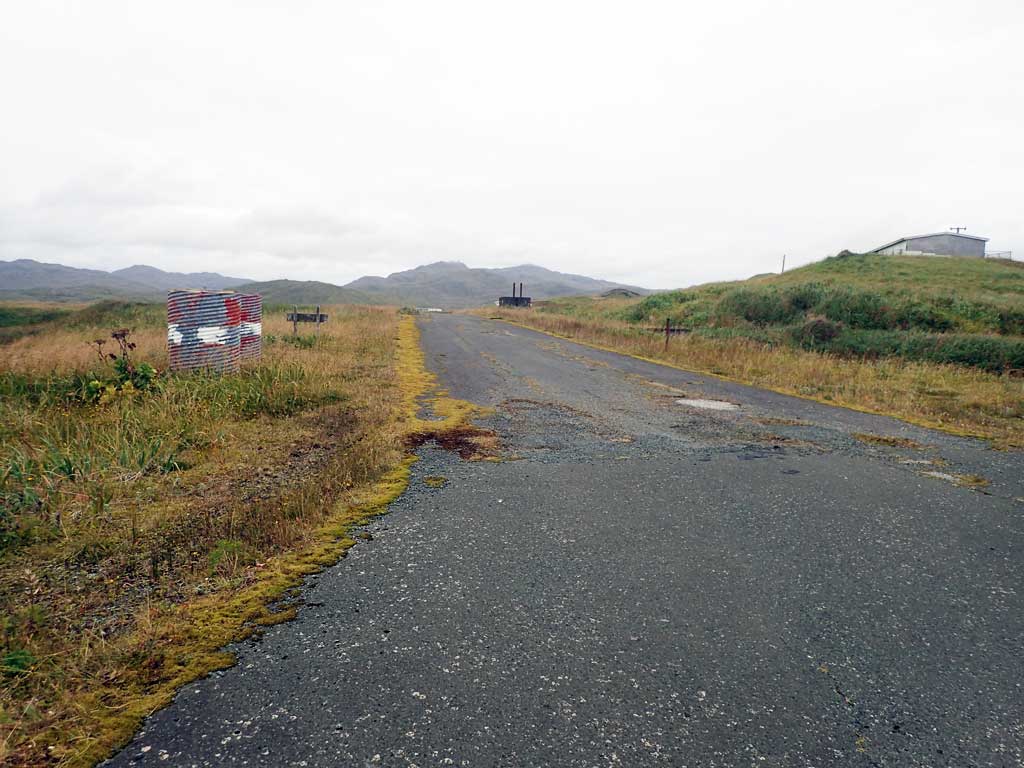

Road Name: Amulet Road

Datum: NAD83
Quad Name / ITM: Adak C-2
AWC Stream #: 306-70-10200-2007
Stream Name: Amulet Creek

Elevation:

Site Comments: None

Survey Date: Sep 17, 2017

Survey ADAK17-C104

Observers: Mark Eisenman, Jeanette Alas

Overall Fish Passage Rating: Red

Tidal: No
Backwatered: No

Step Pools: No
Construction Year:


Site Observations:

  1. Outfall height red

Comments: This information was gathered as part of the joint reconnaissance level project between the ADF&G Habitat Division and the Fish Passage Assessment Project on Adak Island. Due to time constraints full site assessments were not conducted, but base line information was collected. Lots of pink carcasses upstream and downstream of culvert.

Culvert Measurements

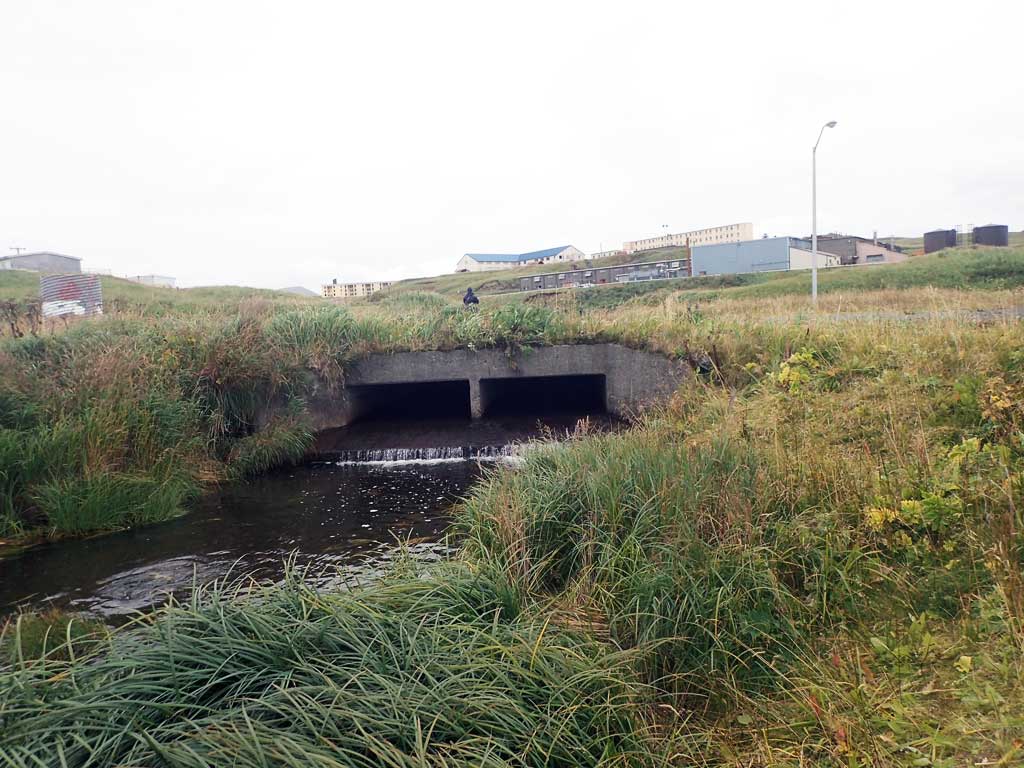

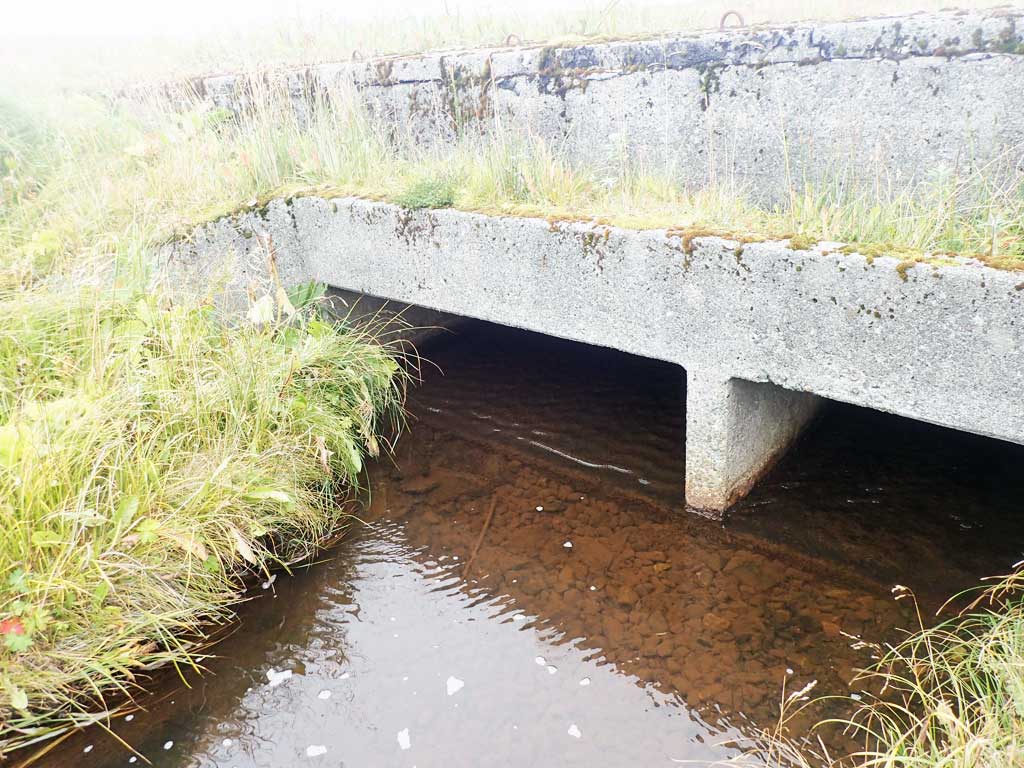

ID: 1 Structure Type: Box culvert (Reinforced concrete) Fish Passage Rating: Red

Length(ft): 93.0

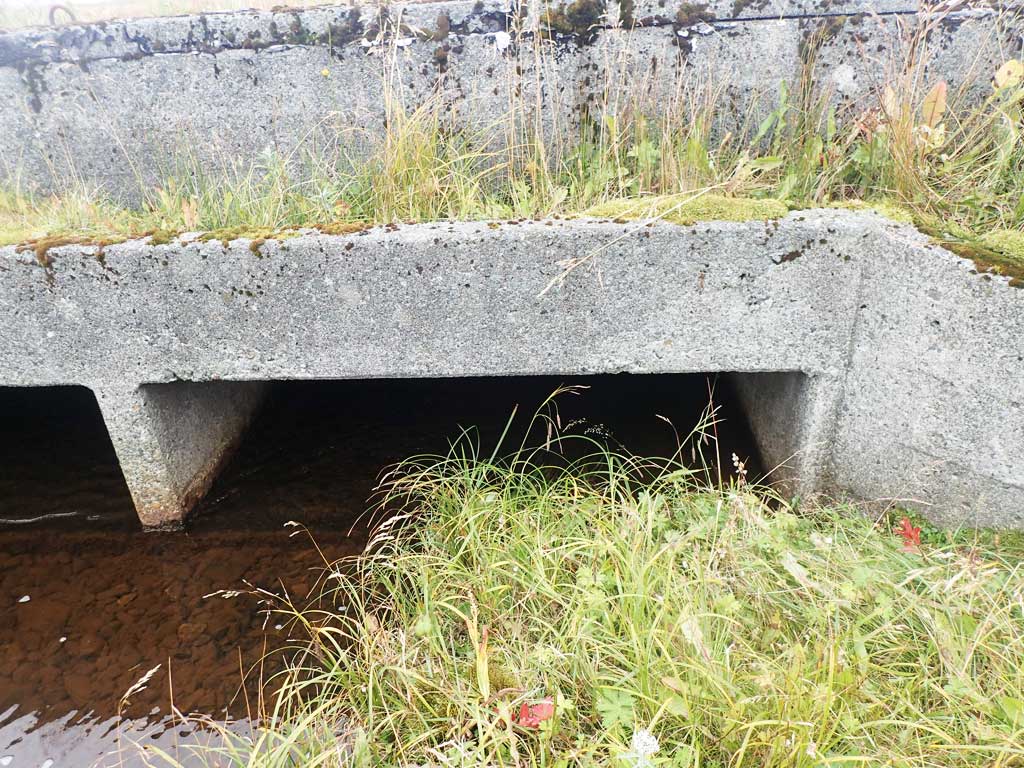

Inlet Type: Headwall
Outlet Type: Headwall
Corrugation Depth(in.):
Corrugation Width(in.):
Condition Rating(1-5): 3
Approach Angle:
Sedimentation At Inlet: Yes
Inlet Substrate: None
Outlet Substrate: None
InletOutlet
Width(ft):7.0 7.0
Height(ft):2.0 2.0
Apron Length(ft):
Water Depth(ft):
Rustline Height(ft):
Substrate Depth(ft):
Backwatered?: No
Baffles Present: No
Embedded?: No
Outfall Height:

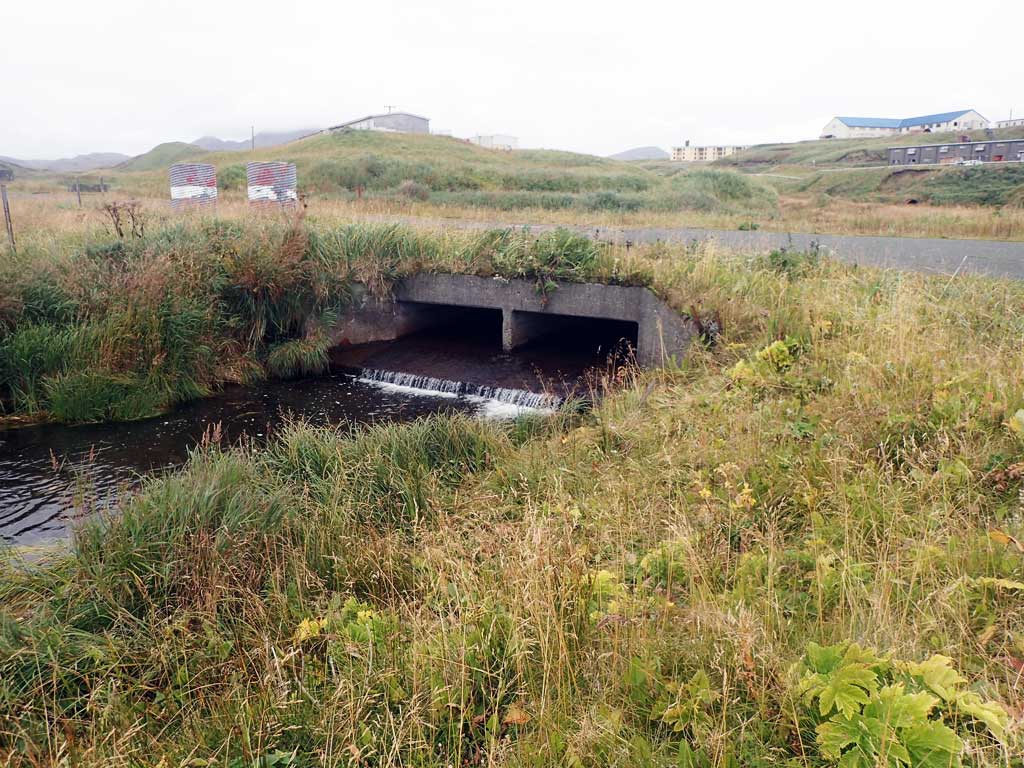

Outfall Type: Free Fall In To Pool
Constriction Ratio:
Culvert Gradient:
Max Slope:
Max Slope Length:

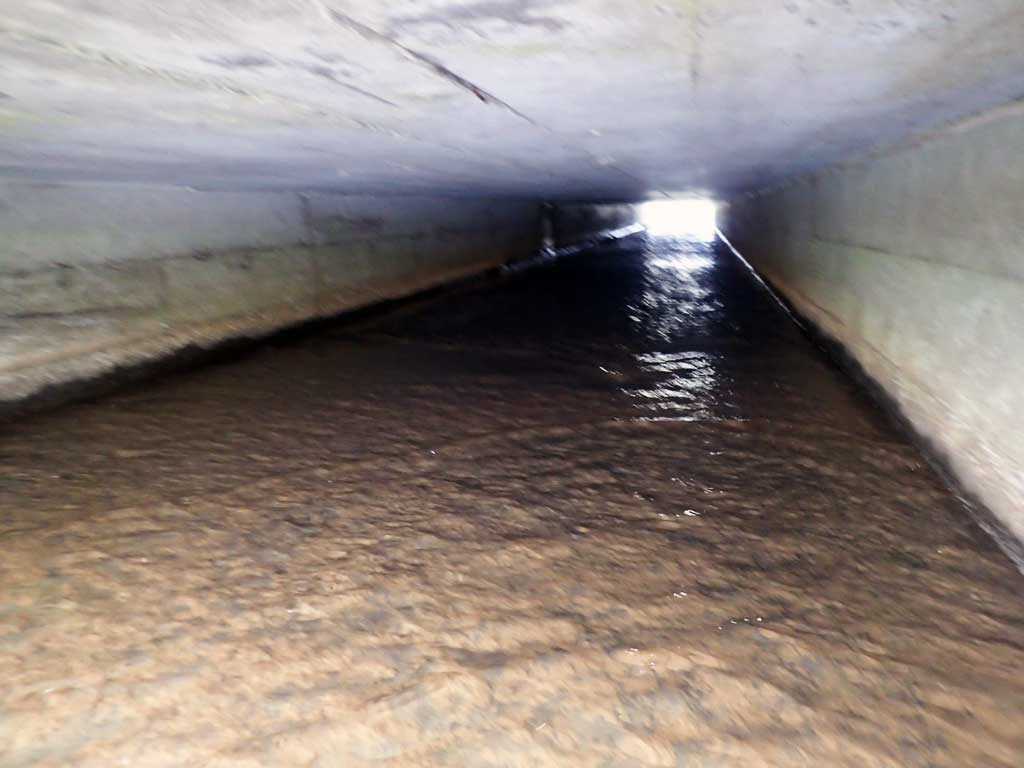

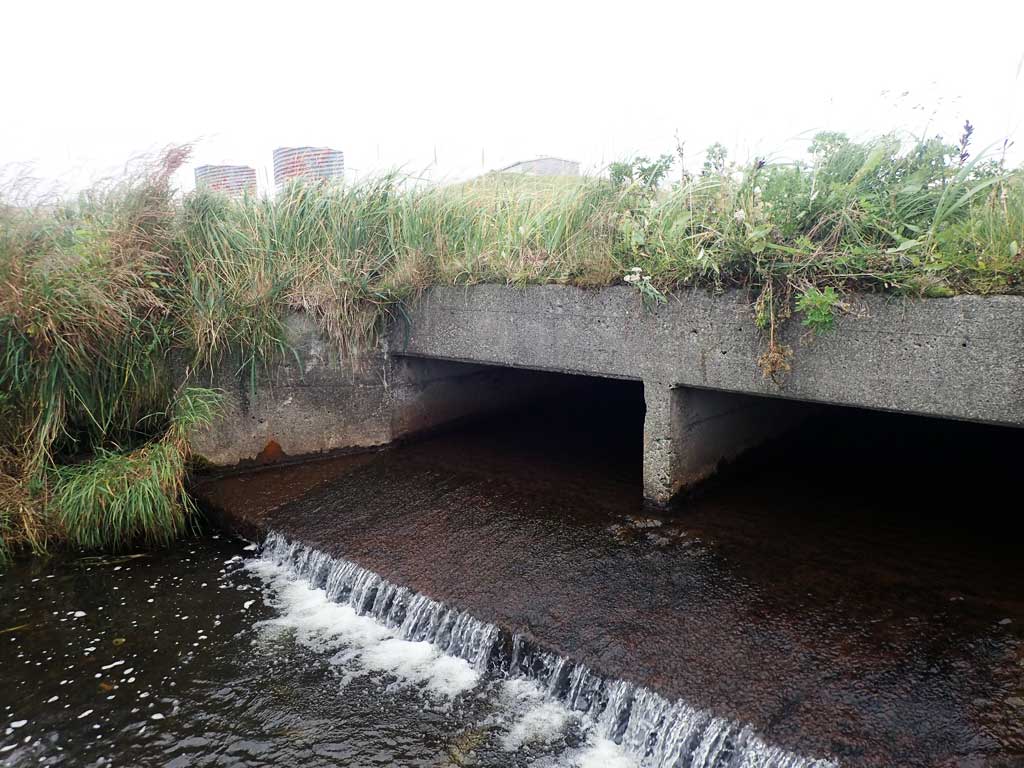

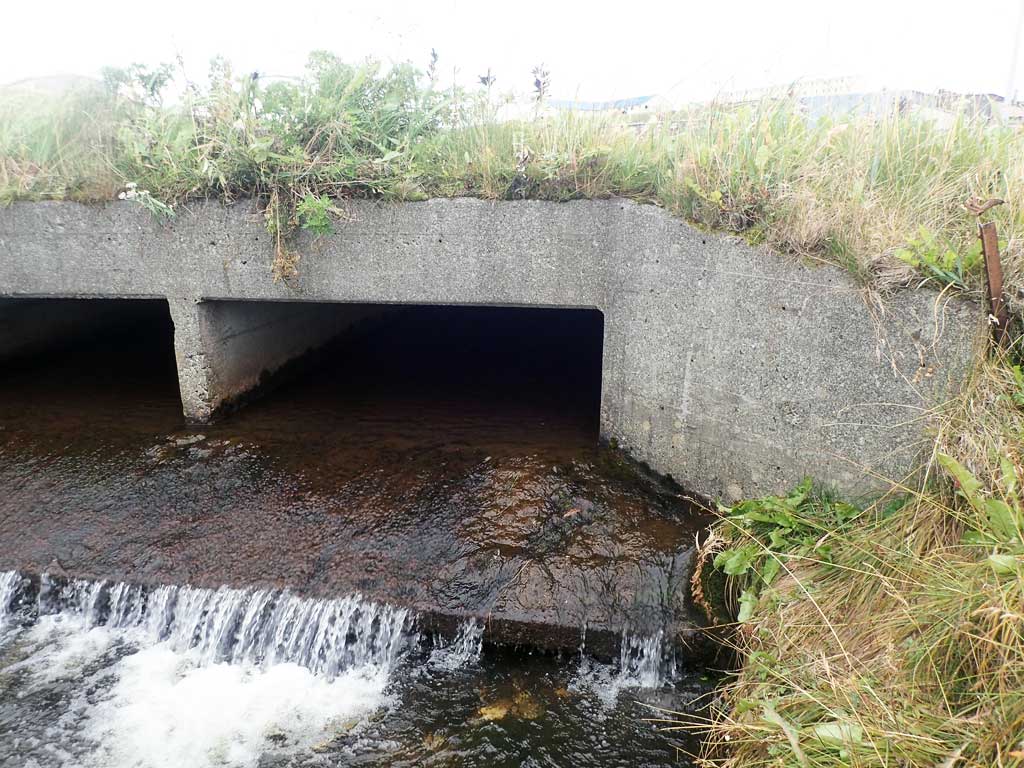

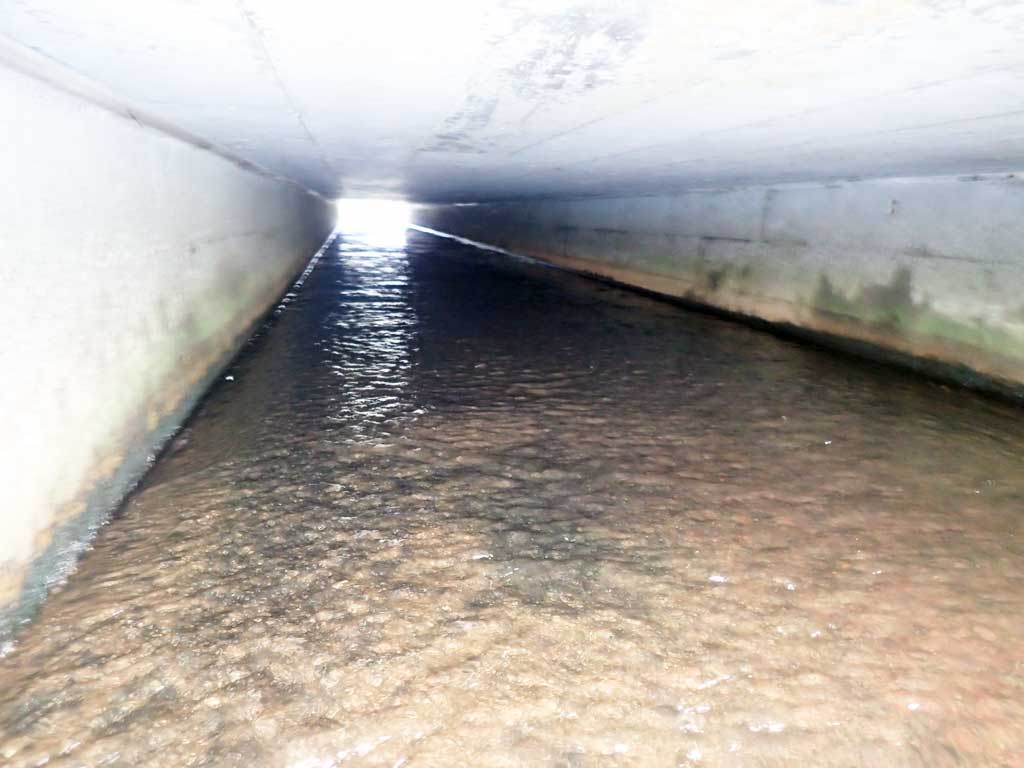

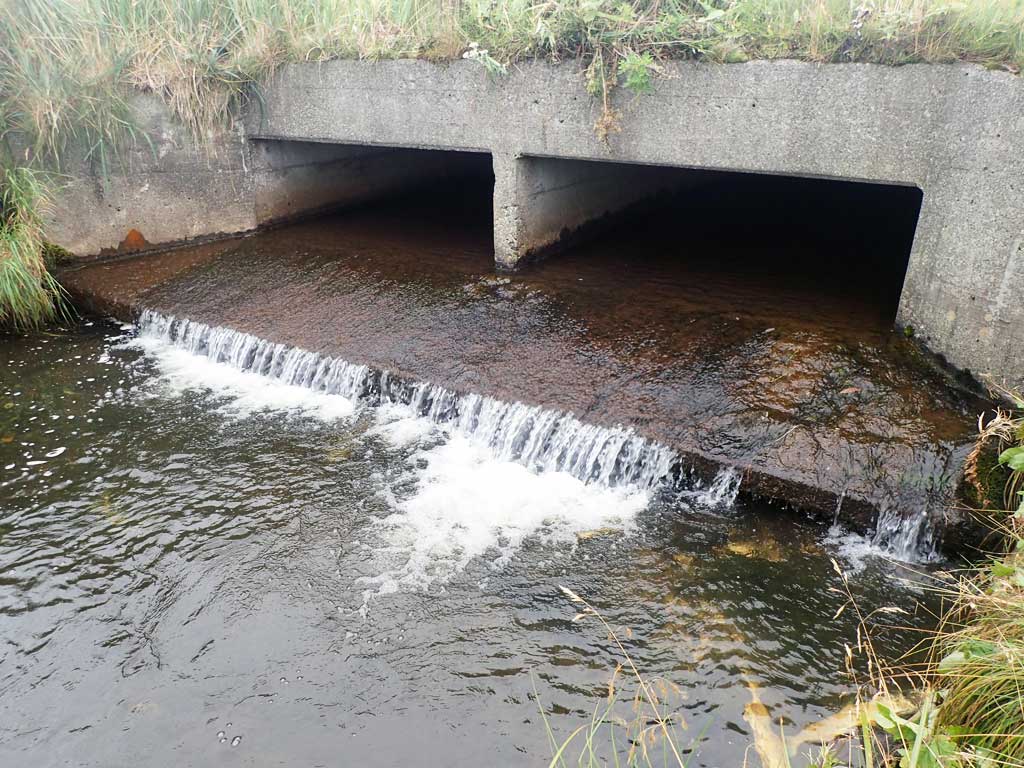

Comments: Outfall height greater than 0.40 feet. Concrete apron at outlet. Low water depth barrier inside culverts.
  Culvert Observations:
  1. Outfall height red
ID: 2 Structure Type: Box culvert (Reinforced concrete) Fish Passage Rating: Red

Length(ft): 94.0
Inlet Type: Headwall
Outlet Type: Headwall
Corrugation Depth(in.):
Corrugation Width(in.):
Condition Rating(1-5): 3
Approach Angle:
Sedimentation At Inlet: Yes
Inlet Substrate: None
Outlet Substrate: None
InletOutlet
Width(ft):7.0 7.0
Height(ft):2.0 2.0
Apron Length(ft):
Water Depth(ft):
Rustline Height(ft):
Substrate Depth(ft):
Backwatered?: No
Baffles Present: No
Embedded?: No
Outfall Height:
Outfall Type: Free Fall In To Pool
Constriction Ratio:
Culvert Gradient:
Max Slope:
Max Slope Length:


Comments: Outfall height greater than 0.40 feet. Concrete apron at outlet. Low water depth barrier inside culverts.
  Culvert Observations:
  1. Outfall height red

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:
Subdominant:
Stream Slope(deg.):
Stream Flow Stage:Medium

No stream width data available.

Elevations

No elevation data available.

Fish Sampling Efforts

Gear Type: Visual Observation, Ground (A)

Fish Observations

Species: adult spawning pink salmon Life History: Anadromous
Total Fish Observed: 100 Fish Measured: Fork Lengths (mm) Min: Max: Mean:
Collected/Observed by Gear Type: At Site Visual Observation, Ground (100)
Comments: Hundreds of pink carcasses upstream and downstream, at least 10 live adults observed above culvert.
