Fish Passage Site 30103620

Coordinates (dec. deg.): 51.86852°, -176.66029°
Legal Description: S096S195W10
Region: Southwest

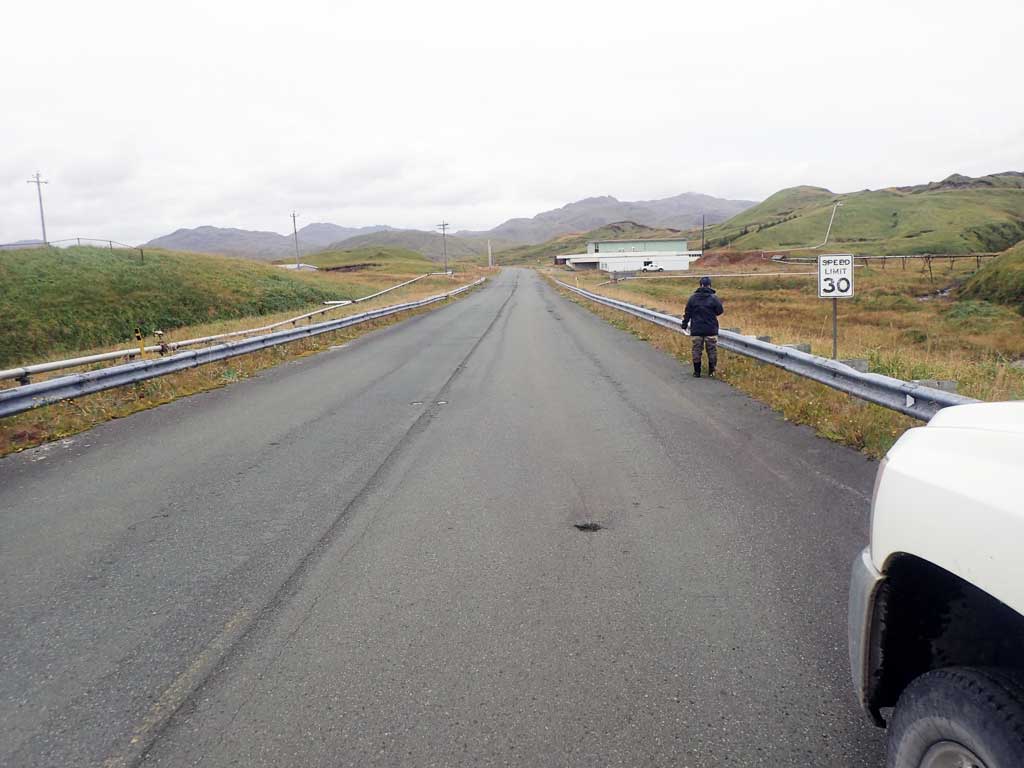

Road Name: Hillside Boulevard

Datum: NAD83
Quad Name / ITM: Adak C-2
AWC Stream #: 306-70-10200-2007
Stream Name: Amulet Creek

Elevation:

Site Comments: Site is upstream from C104.

Survey Date: Sep 17, 2017

Survey ADAK17-C103

Observers: Mark Eisenman, Jeanette Alas

Overall Fish Passage Rating: Black

Tidal: No
Backwatered: No

Step Pools: No
Construction Year:


Site Observations:

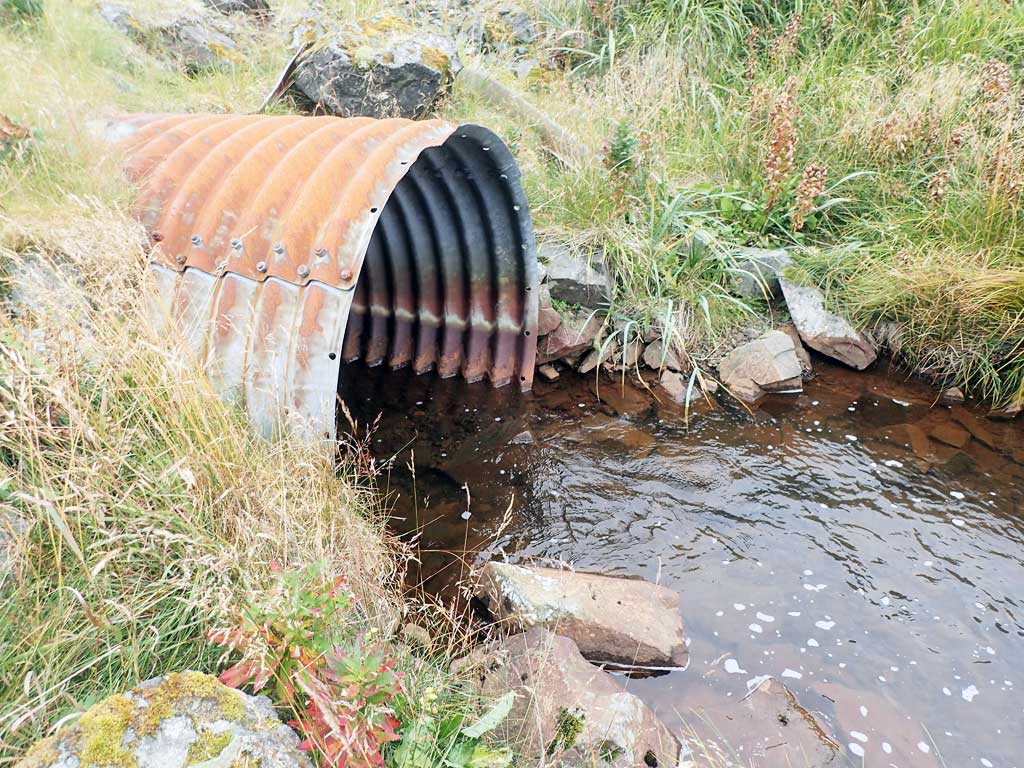

  1. Inlet perch

Comments: This information was gathered as part of the joint reconnaissance level project between the ADF&G Habitat Division and the Fish Passage Assessment Project on Adak Island. Due to time constraints full site assessments were not conducted, but base line information was collected. Pink salmon observed upstream and downstream of culvert.

Culvert Measurements

ID: 1 Structure Type: Circular pipe (Structural steel plate) Fish Passage Rating: Black

Length(ft): 210.0

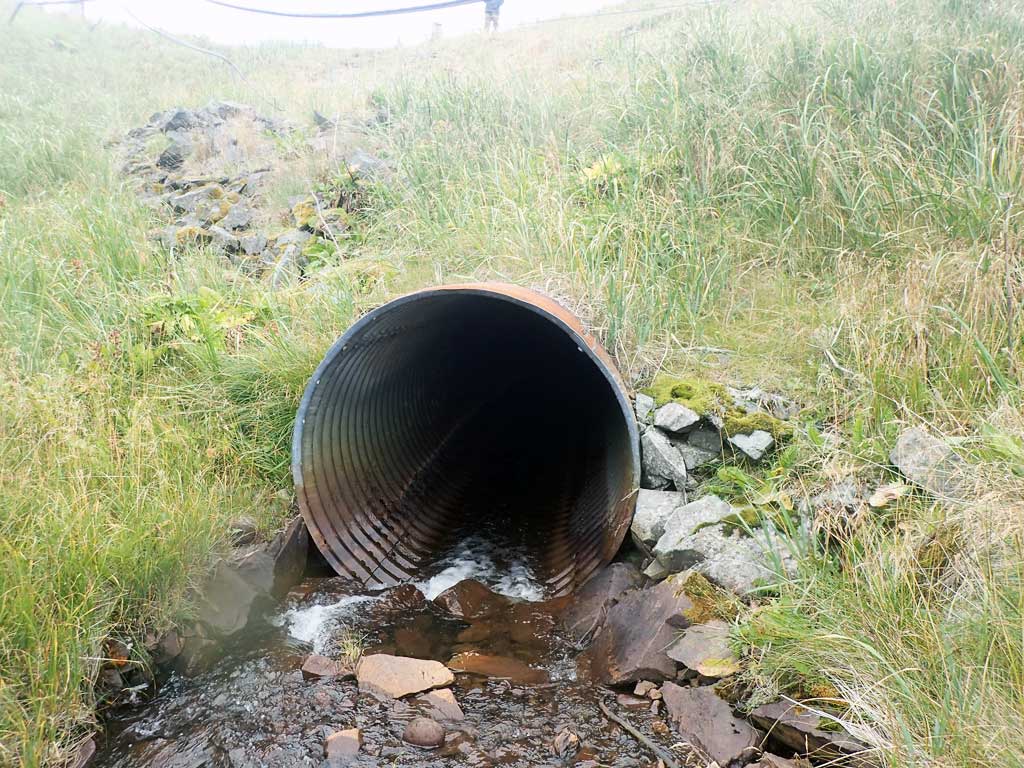

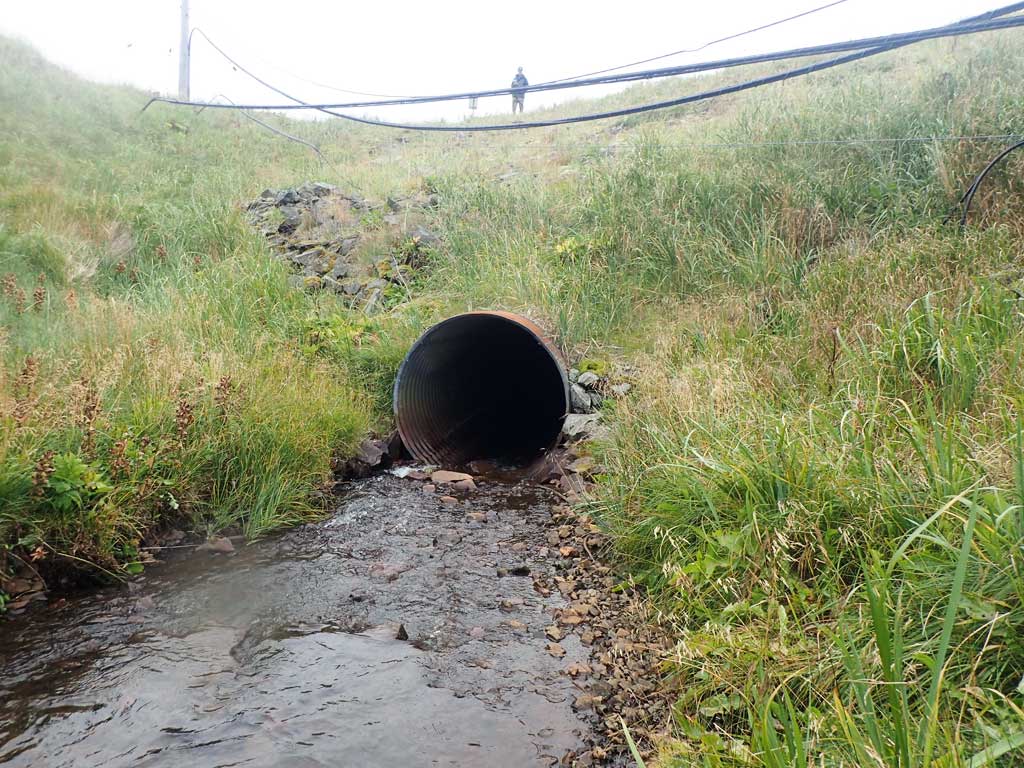

Inlet Type: Projecting

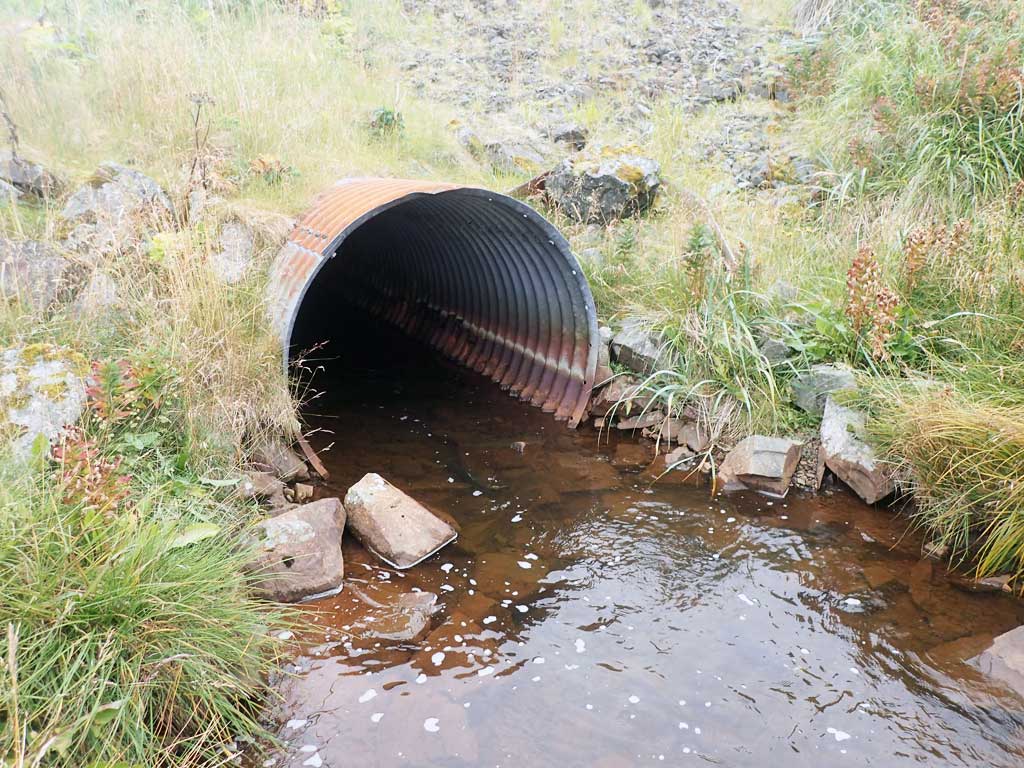

Outlet Type: Projecting
Corrugation Depth(in.):
Corrugation Width(in.):
Condition Rating(1-5): 2
Approach Angle:
Sedimentation At Inlet:
Inlet Substrate: None
Outlet Substrate: Cobble
InletOutlet
Width(ft):6.0 6.0
Height(ft):6.0 6.0
Apron Length(ft):
Water Depth(ft):
Rustline Height(ft):
Substrate Depth(ft):
Backwatered?: No
Baffles Present: No
Embedded?: No
Outfall Height: 0.0
Outfall Type: At Stream Grade
Constriction Ratio:
Culvert Gradient:
Max Slope:
Max Slope Length:

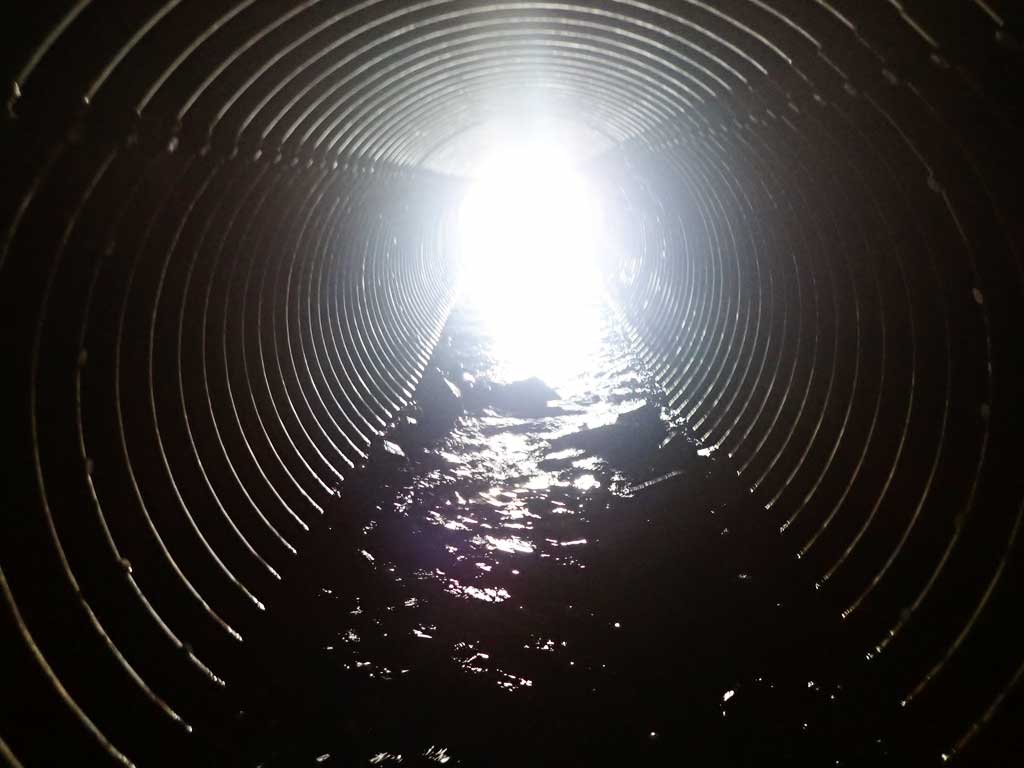

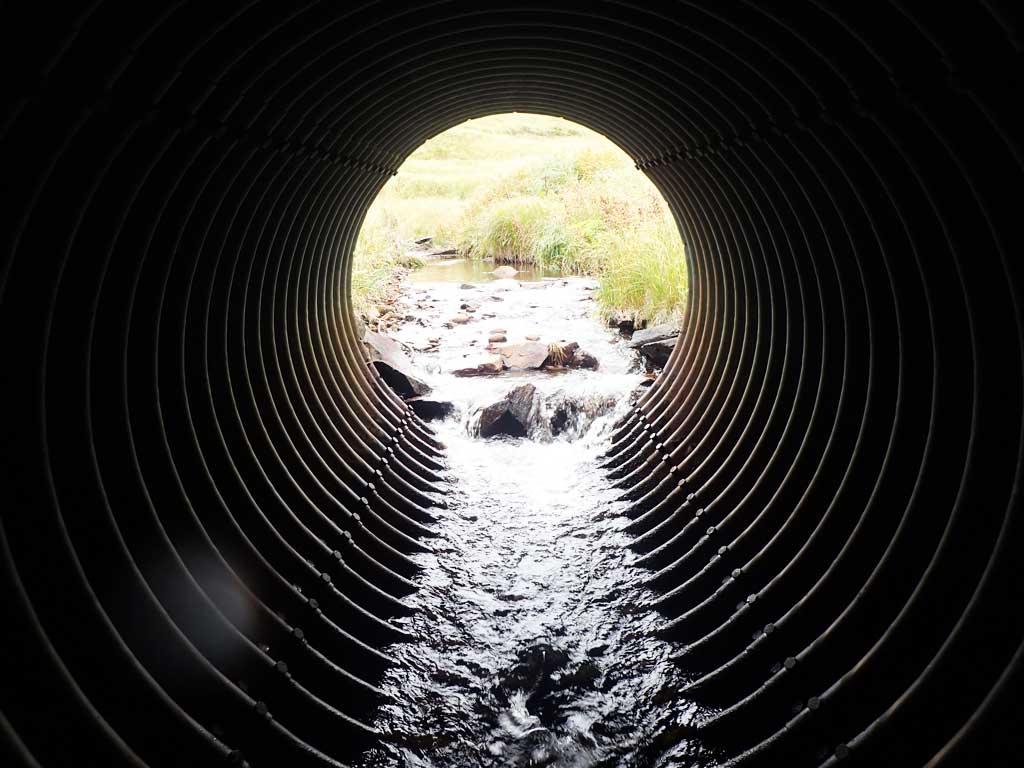

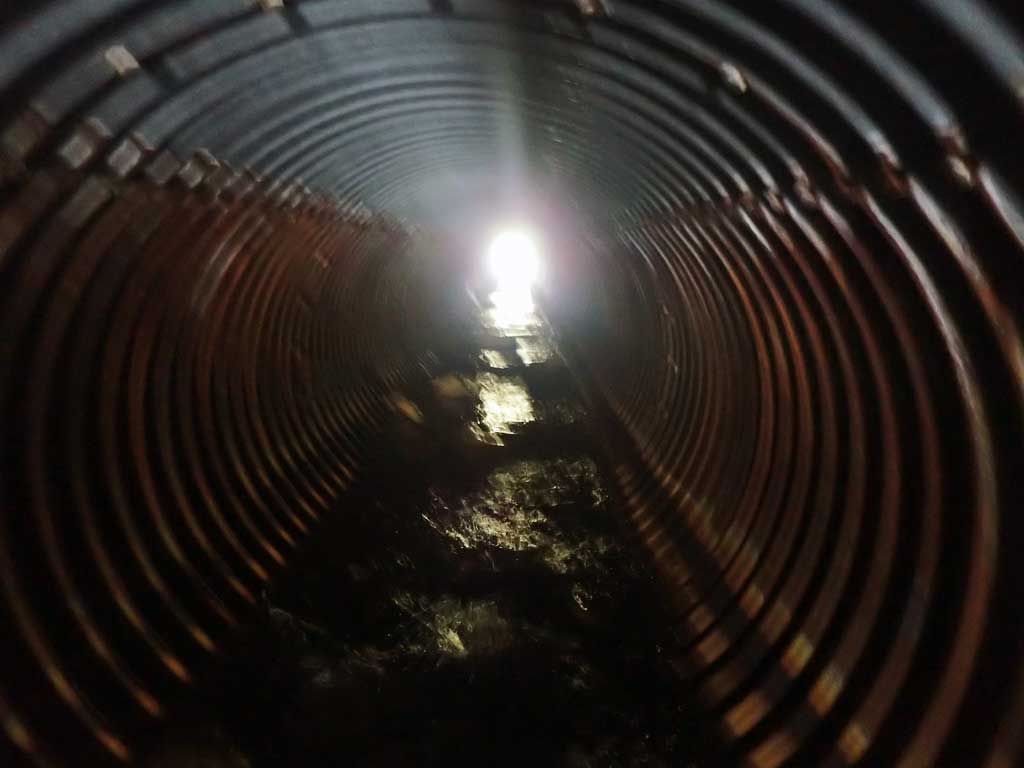

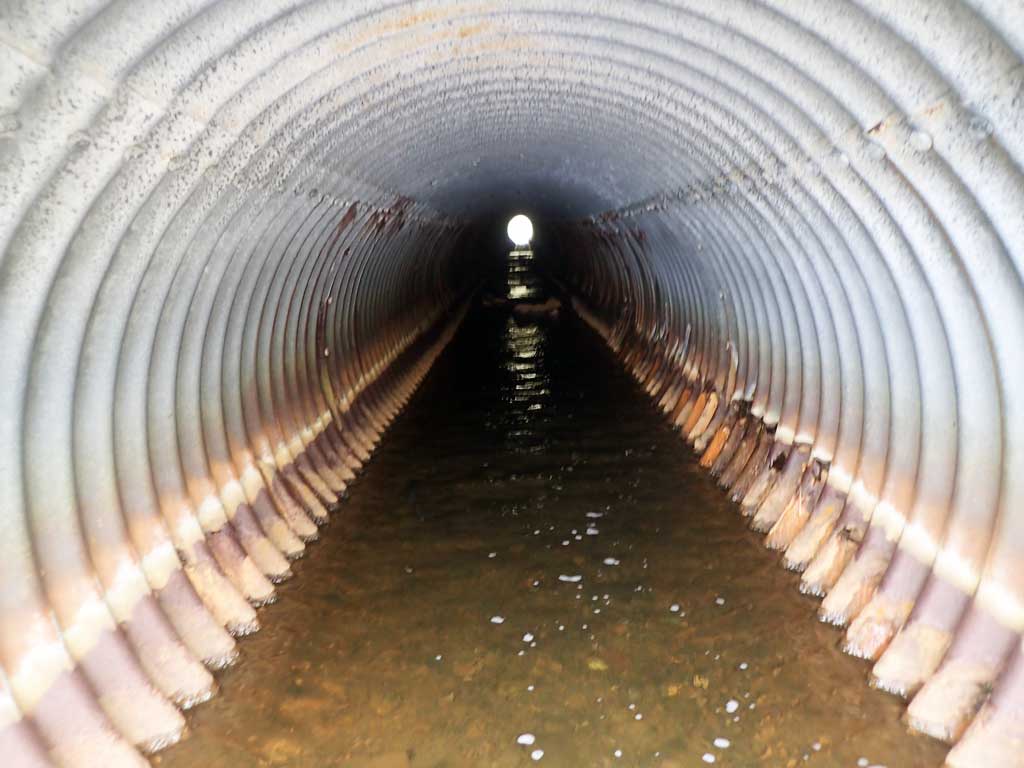

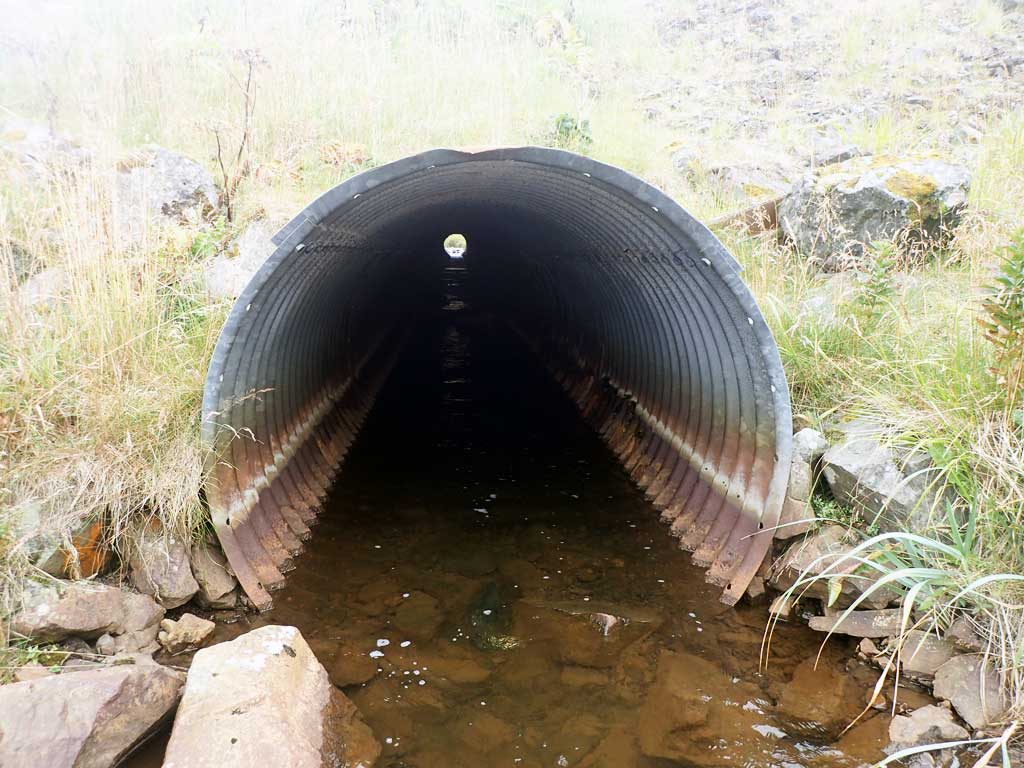

Comments: Noticible deterioration inside of culvert at outlet. Large pieces of the culvert wall have rusted away. Outlet does have accumulated large substrate. Gradient does look to be an issue with this culvert and is most likely red. Adult pinks were observed swimming up culvert, but there is a low water depth issue near inlet.
  Culvert Observations:
  1. Inlet perch

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:
Subdominant:
Stream Slope(deg.):
Stream Flow Stage:Medium

No stream width data available.

Elevations

No elevation data available.

Fish Sampling Efforts

Gear Type: Visual Observation, Ground (A)

Gear Type: Visual Observation, Ground (B)

Fish Observations

Species: adult spawning pink salmon Life History: Anadromous
Total Fish Observed: 45 Fish Measured: Fork Lengths (mm) Min: Max: Mean:
Collected/Observed by Gear Type: Downstream Visual Observation, Ground (20)  Upstream Visual Observation, Ground (25)
Comments: Adult pinks observed upstream of culvert.
