Fish Passage Improvement site 30103619

Fish Passage Site 30103619

Coordinates (dec. deg.): 51.87864°, -176.65254°
Legal Description: S096S195W10
Region: Southwest

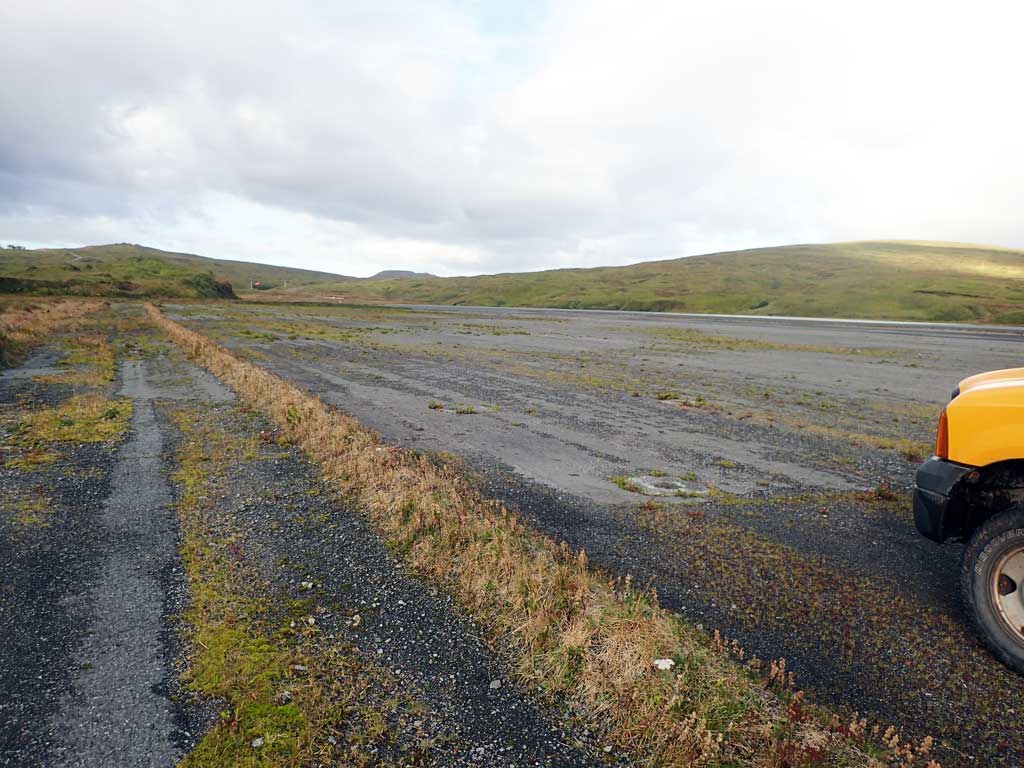

Road Name: Airport Runway 5

Datum: NAD83
Quad Name / ITM: Adak C-2
AWC Stream #: 306-70-10200
Stream Name: Sweeper Creek

Elevation:

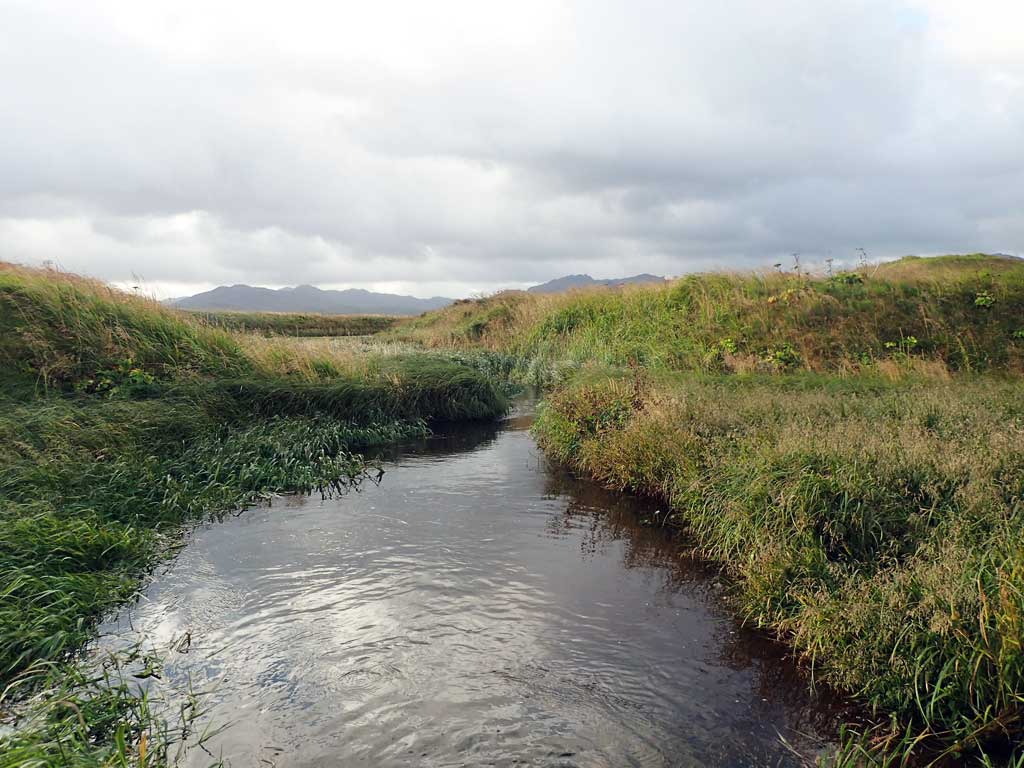

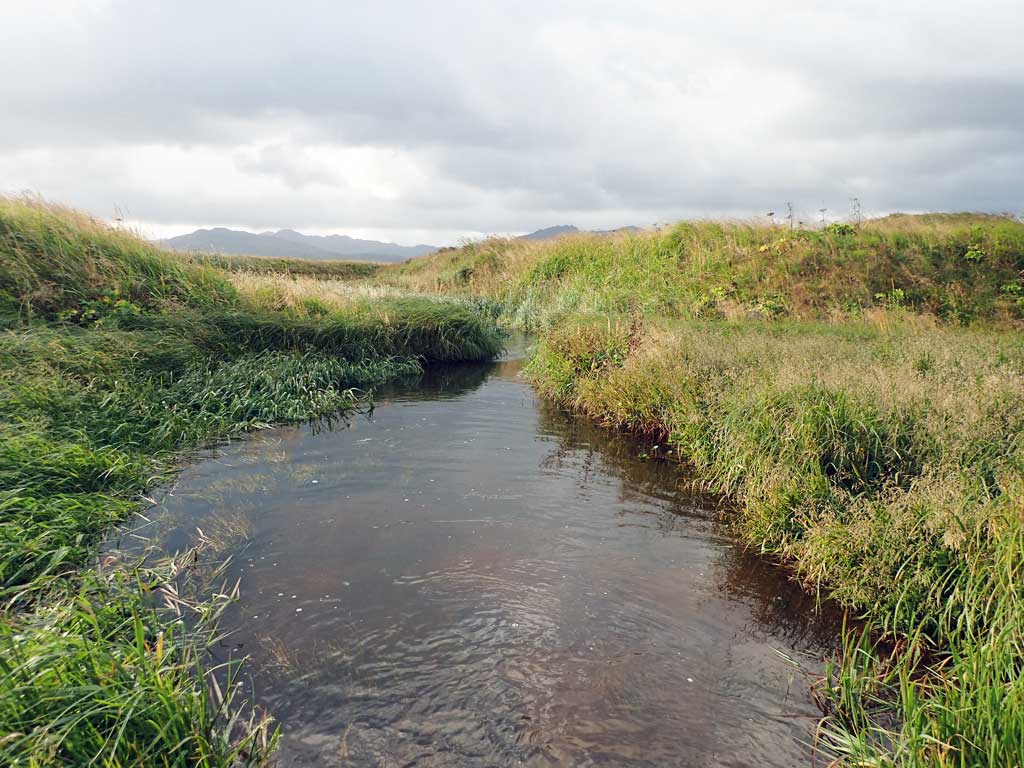

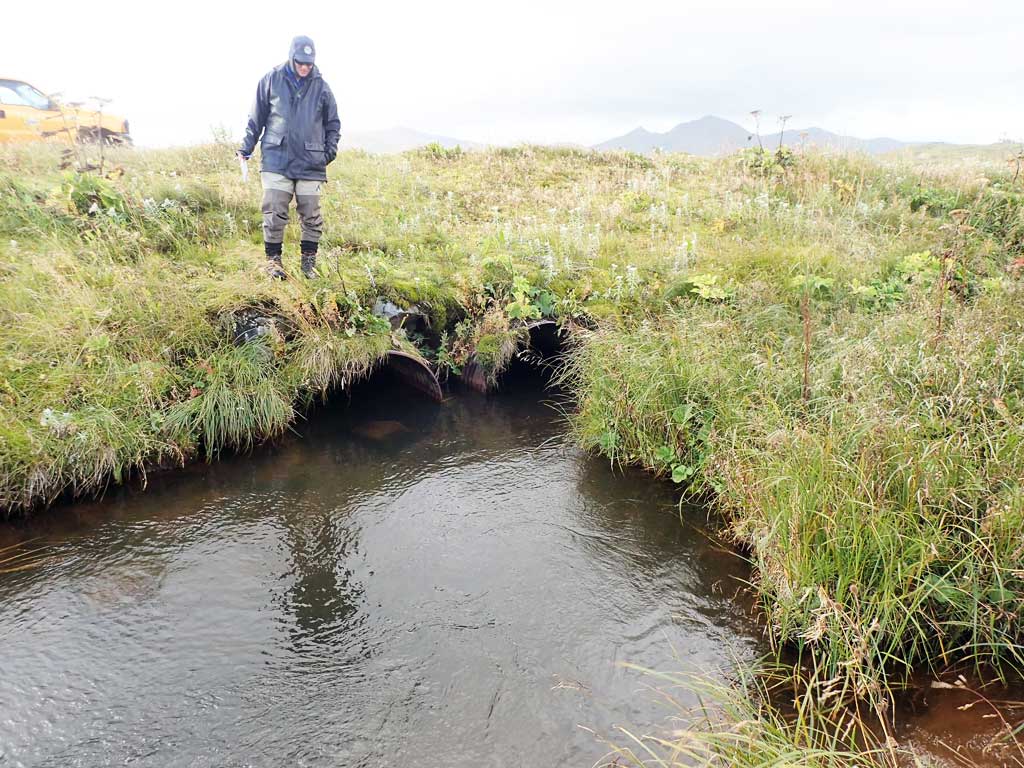

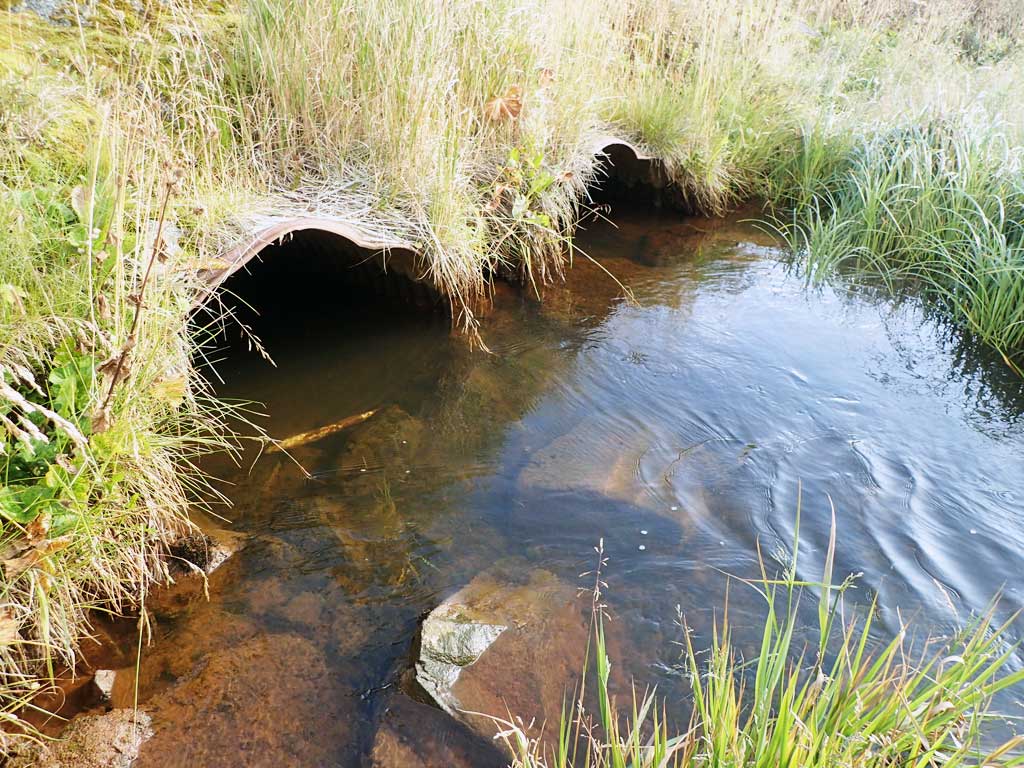

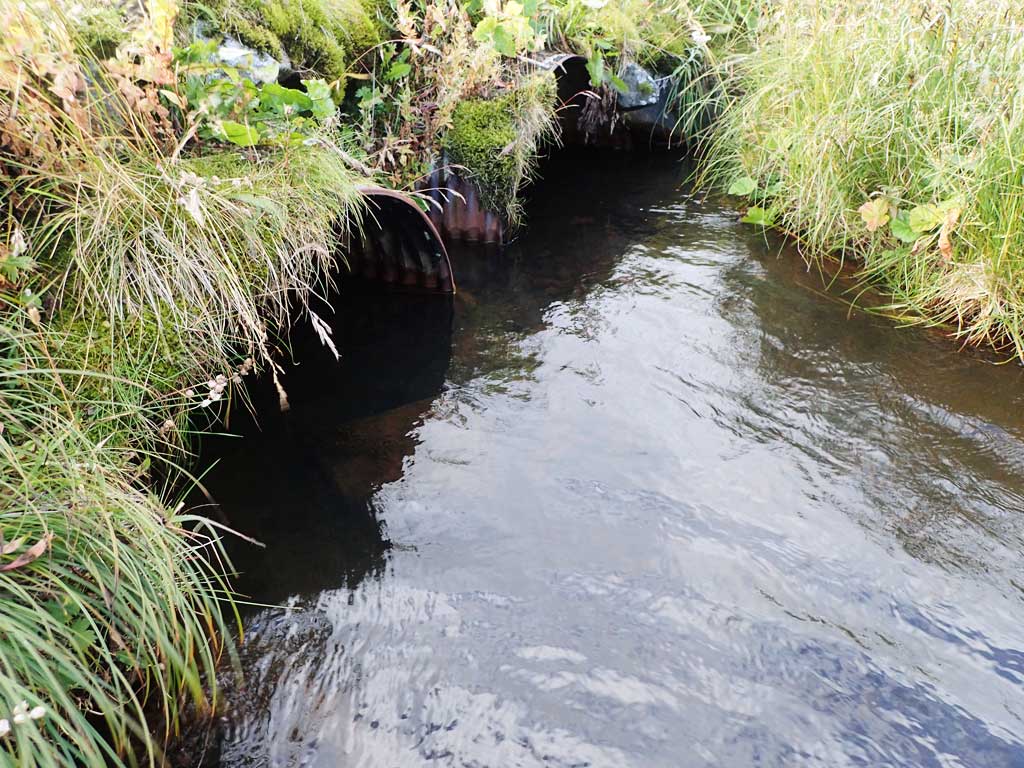

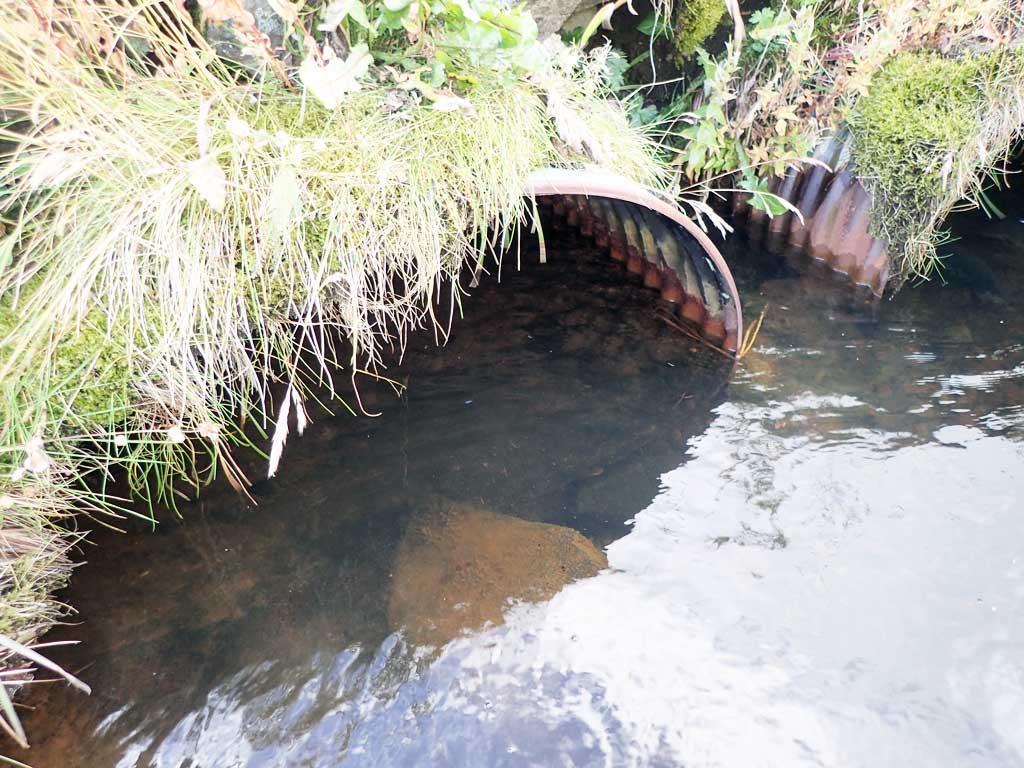

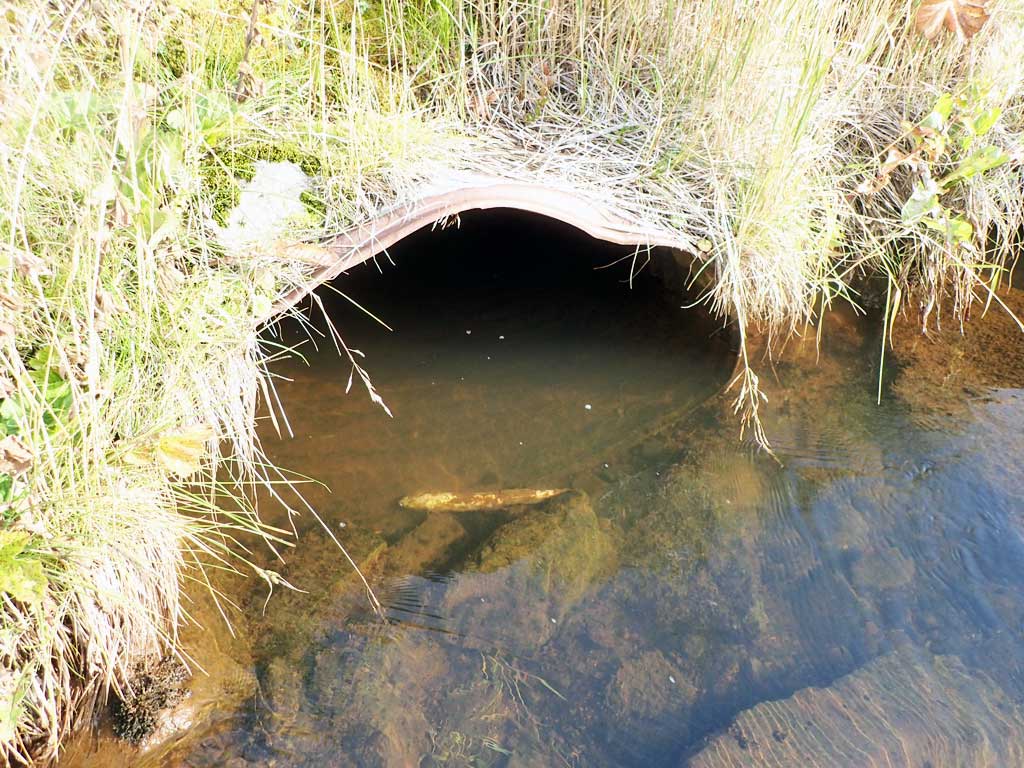

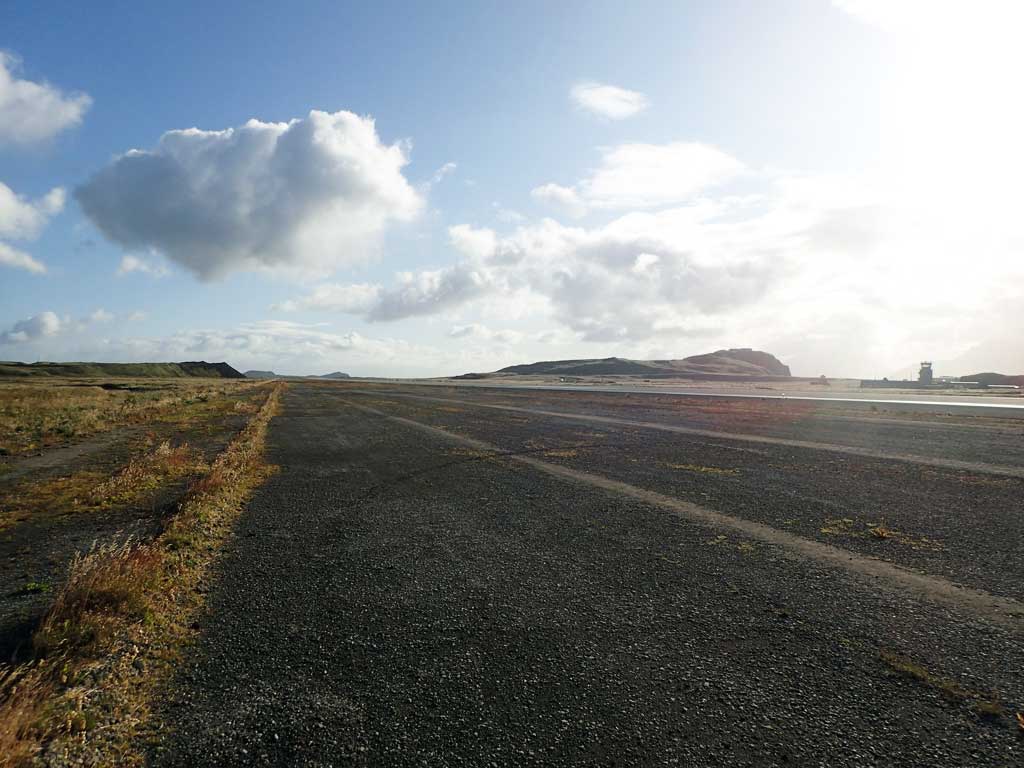

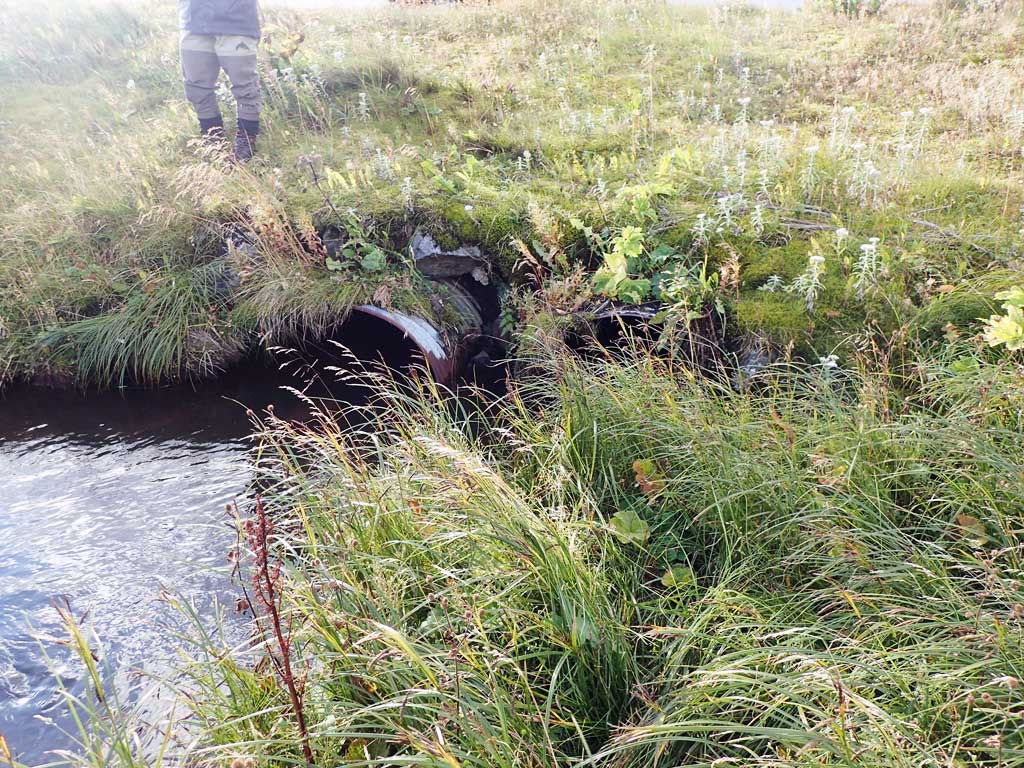

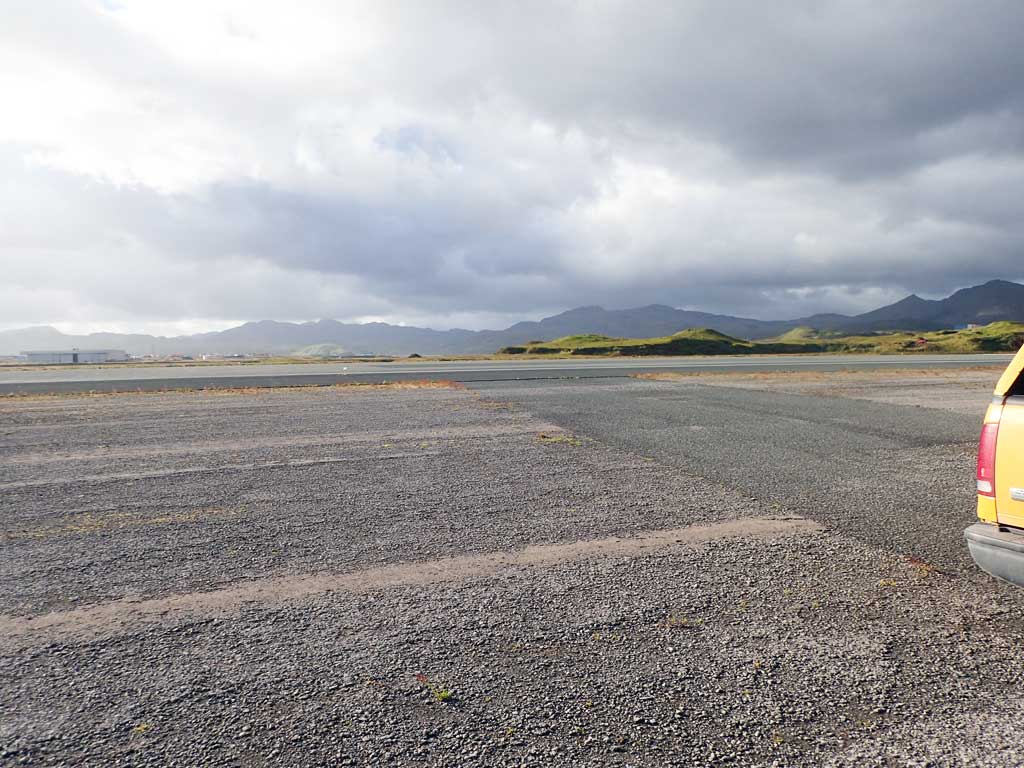

Site Comments: Creek runs under Runway 5. Northside inlets at 51.88060, -176.65346, southside outlets at 51.87864, -176.65254.

Survey Date: Sep 15, 2017

Survey ADAK17-C101

site photos

Observers: Mark Eisenman, Jeanette Alas

Overall Fish Passage Rating: Black

Tidal: No
Backwatered: Maybe

Step Pools: No
Construction Year:

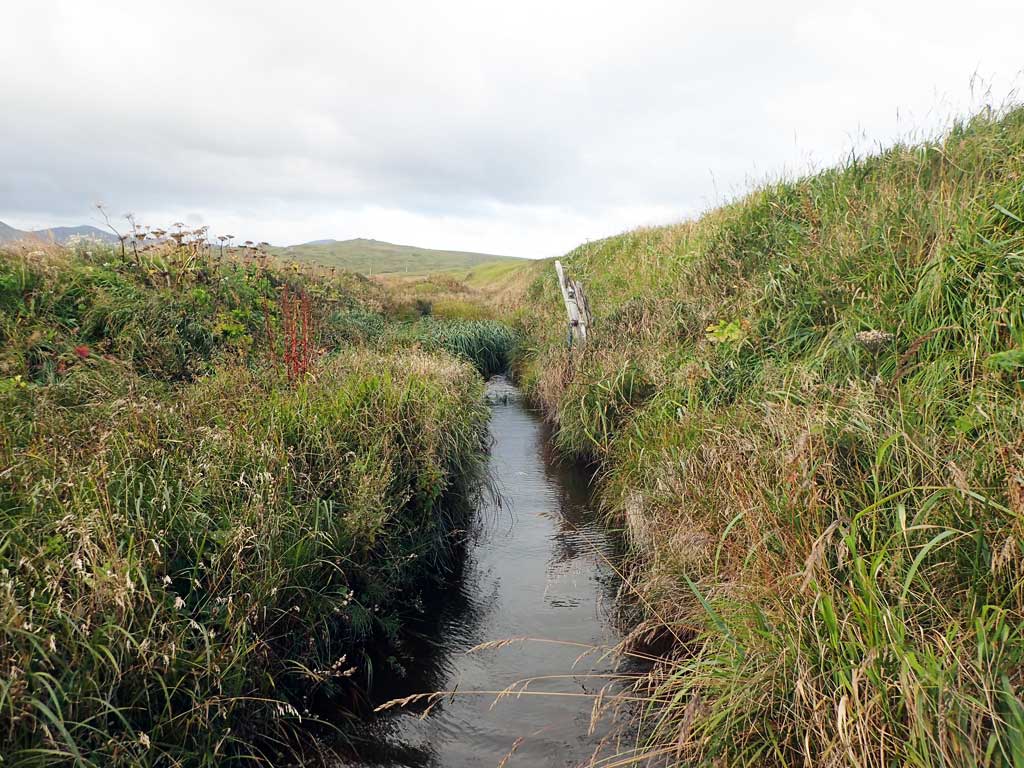

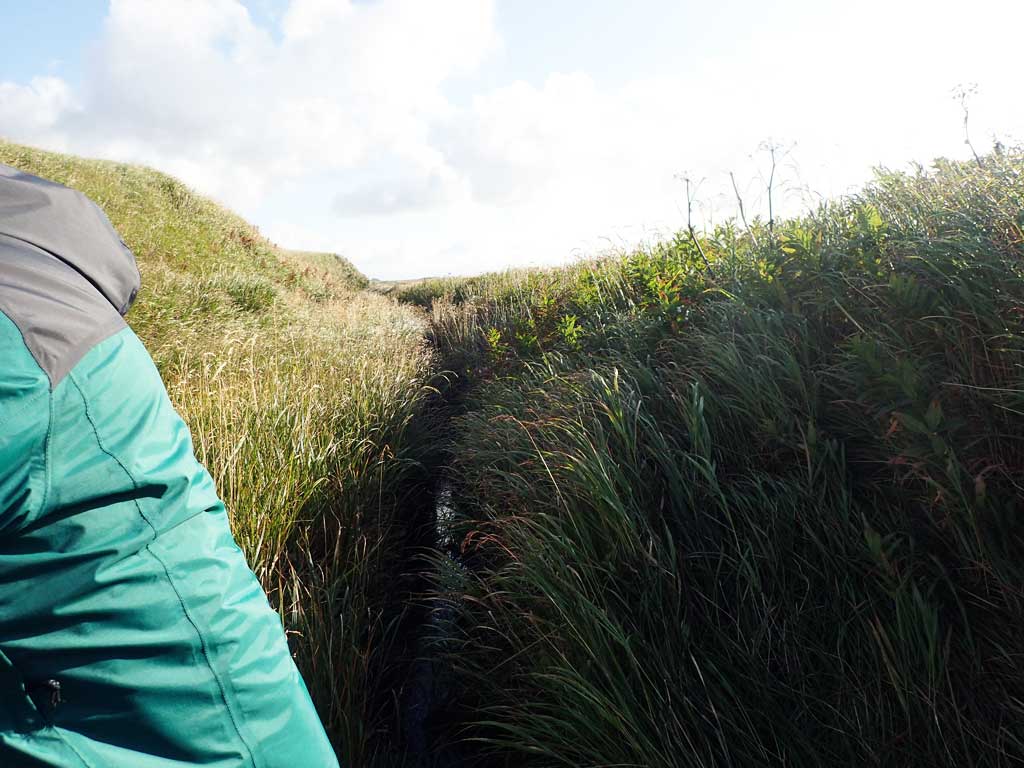

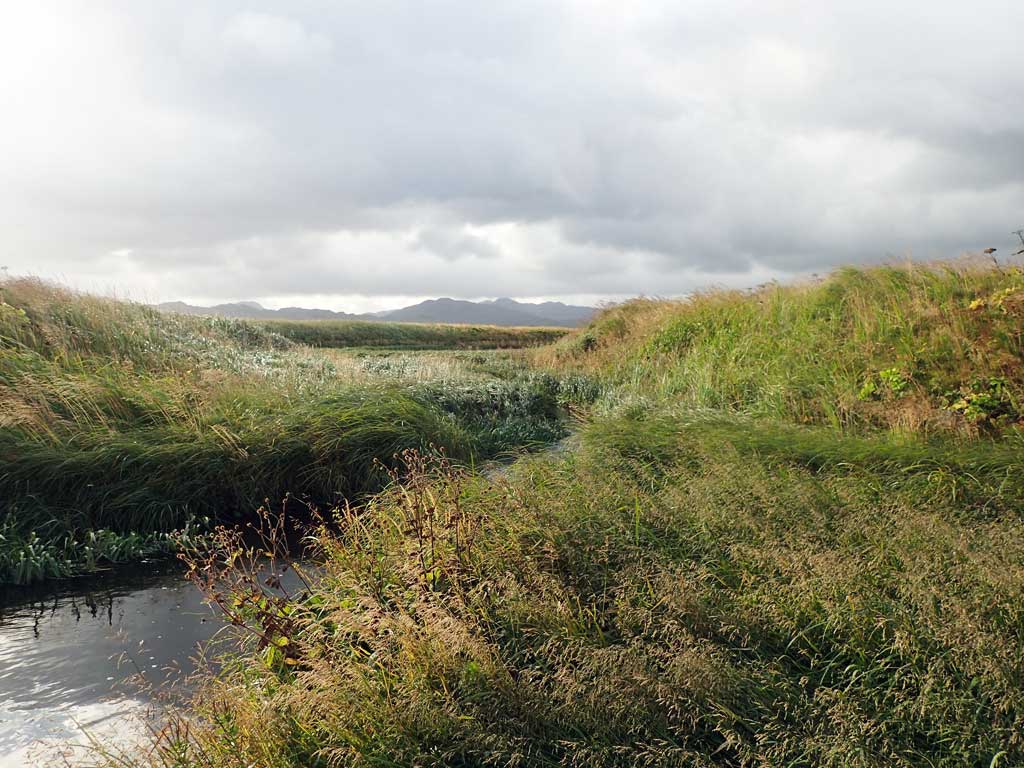

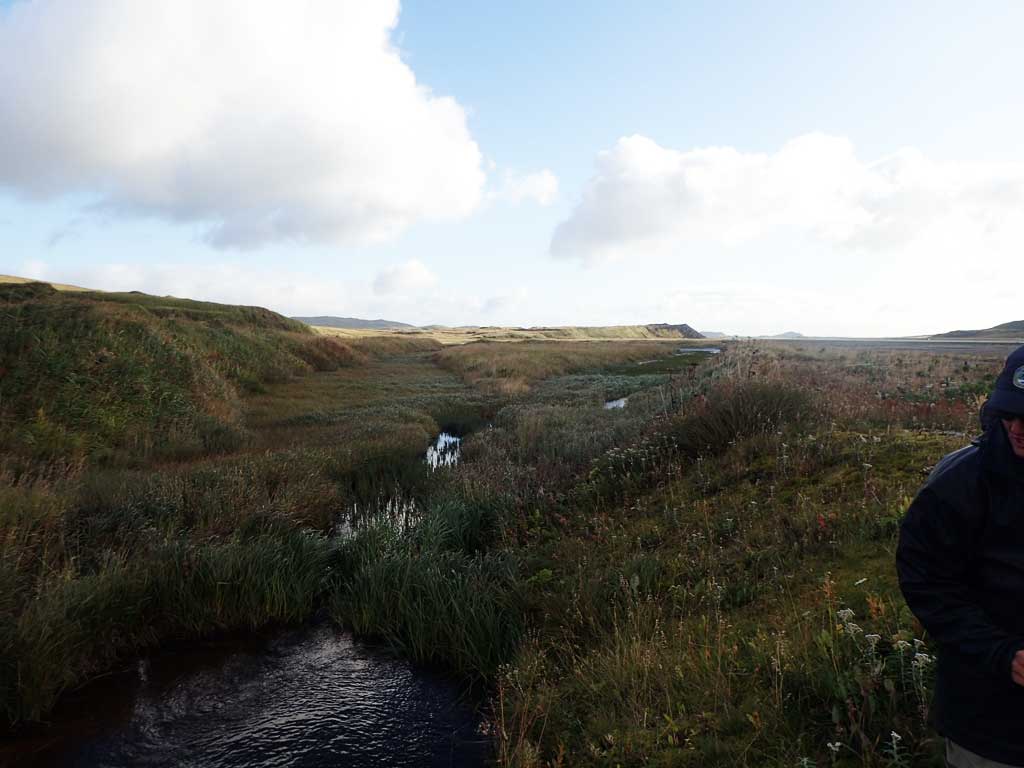

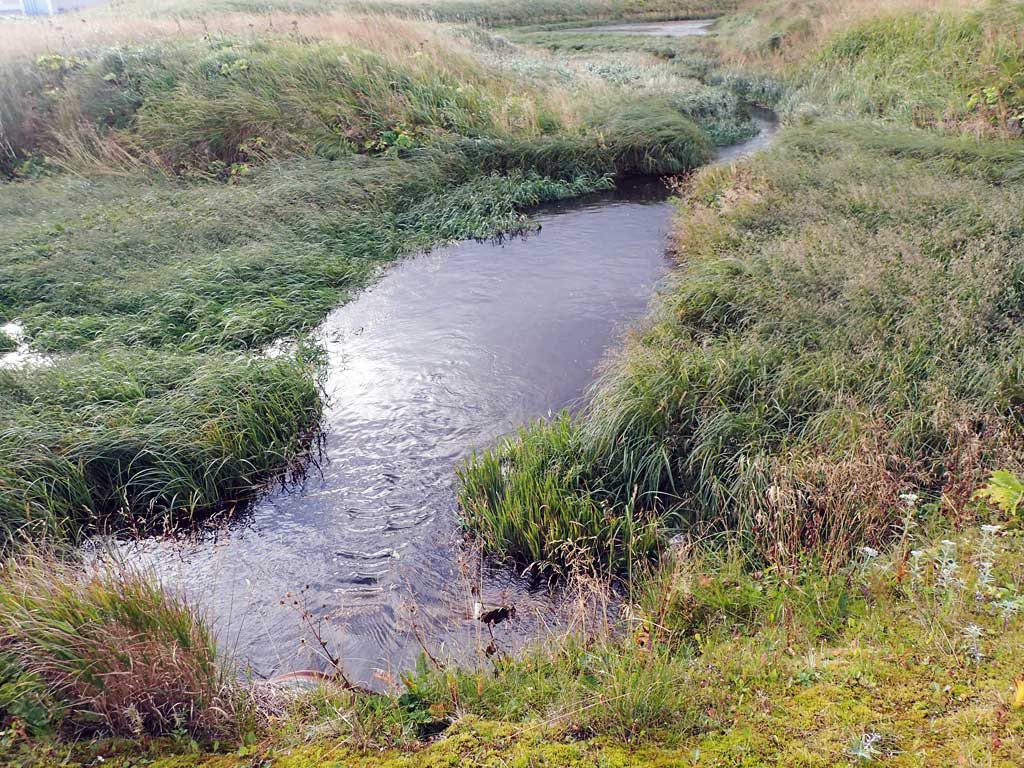

Comments: This information was gathered as part of the joint reconnaissance level project between the ADF&G Habitat Division and the Fish Passage Assessment Project on Adak Island. Due to time constraints full site assessments were not conducted, but base line information was collected. Sweeper Creek is currently cataloged to the southern side of Runway 5. Adult sockeye and pink salmon were observed on the upstream side of the crossing and juvenile coho salmon were electrofished in the ditch that runs southwest along Runway 5 and coho salmon were also electrofished at site ADK03 on the Northeast side of Runway 5. All areas will be nominated to the AWC.

Culvert Measurements

ID: 1

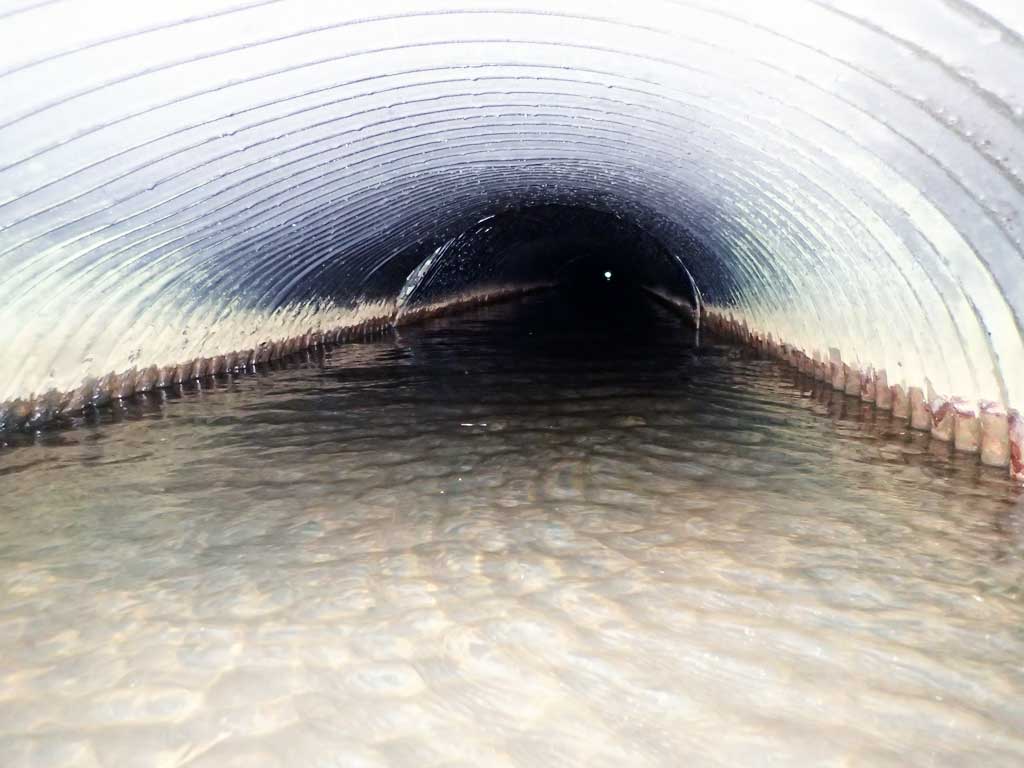

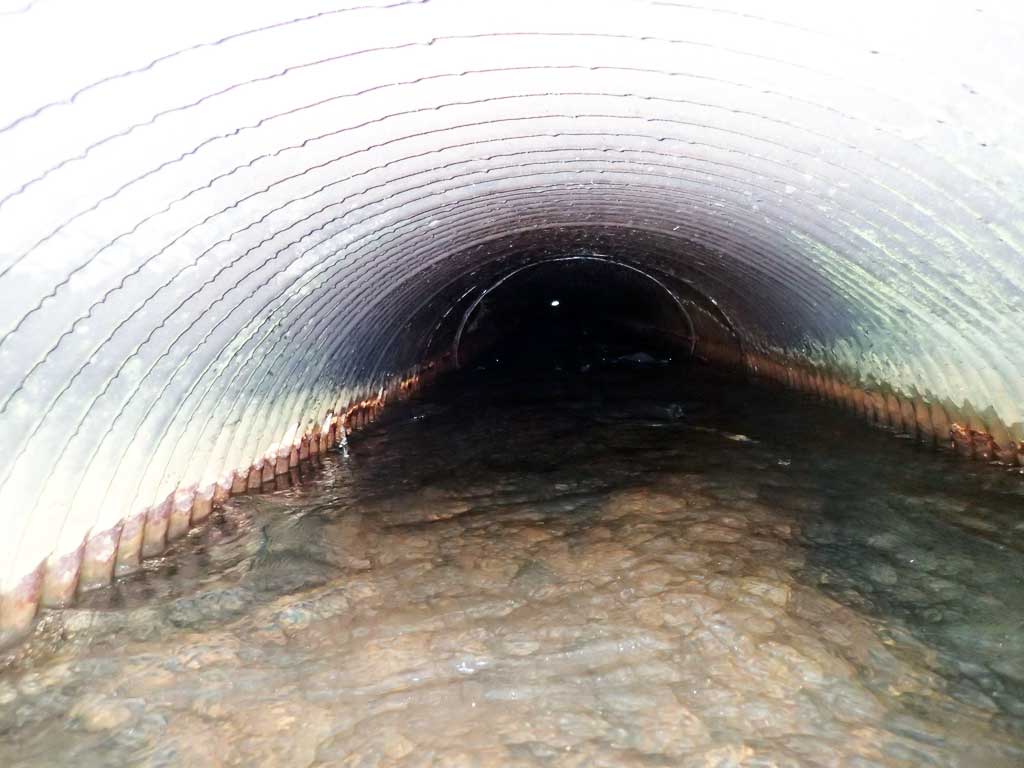

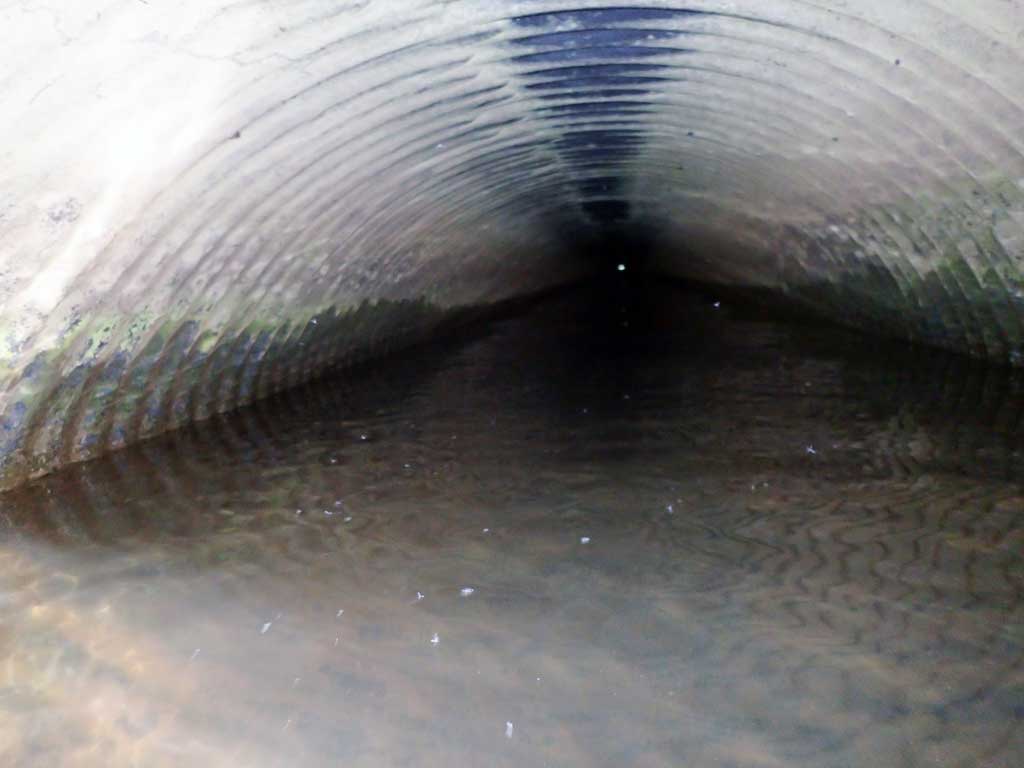

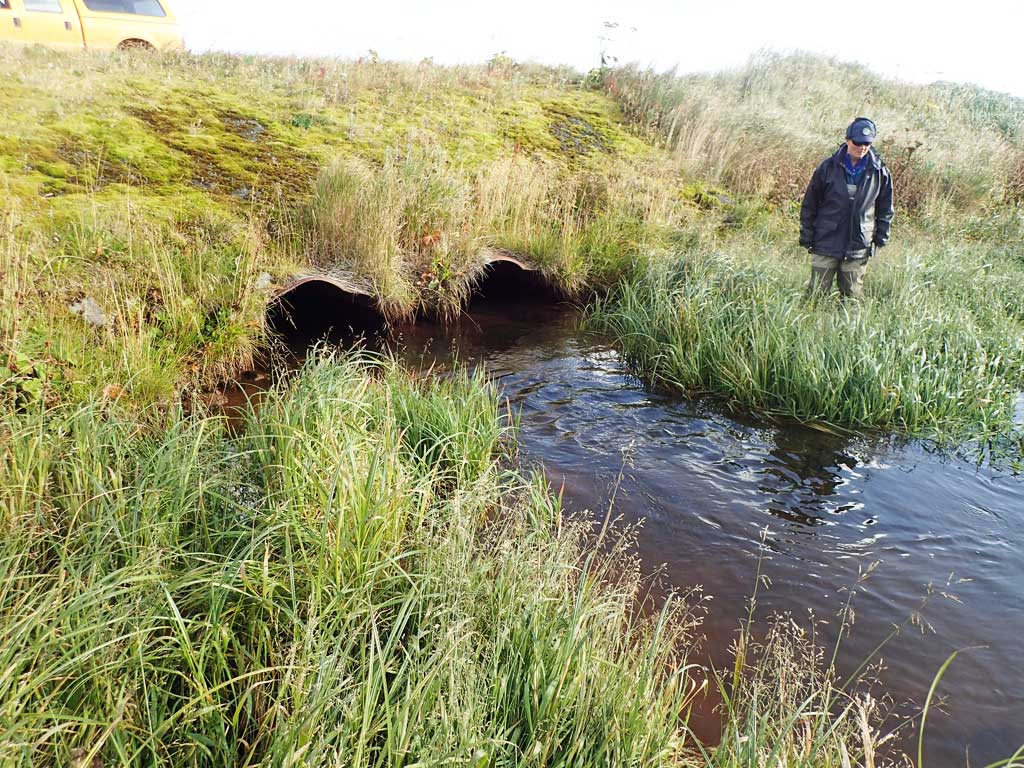

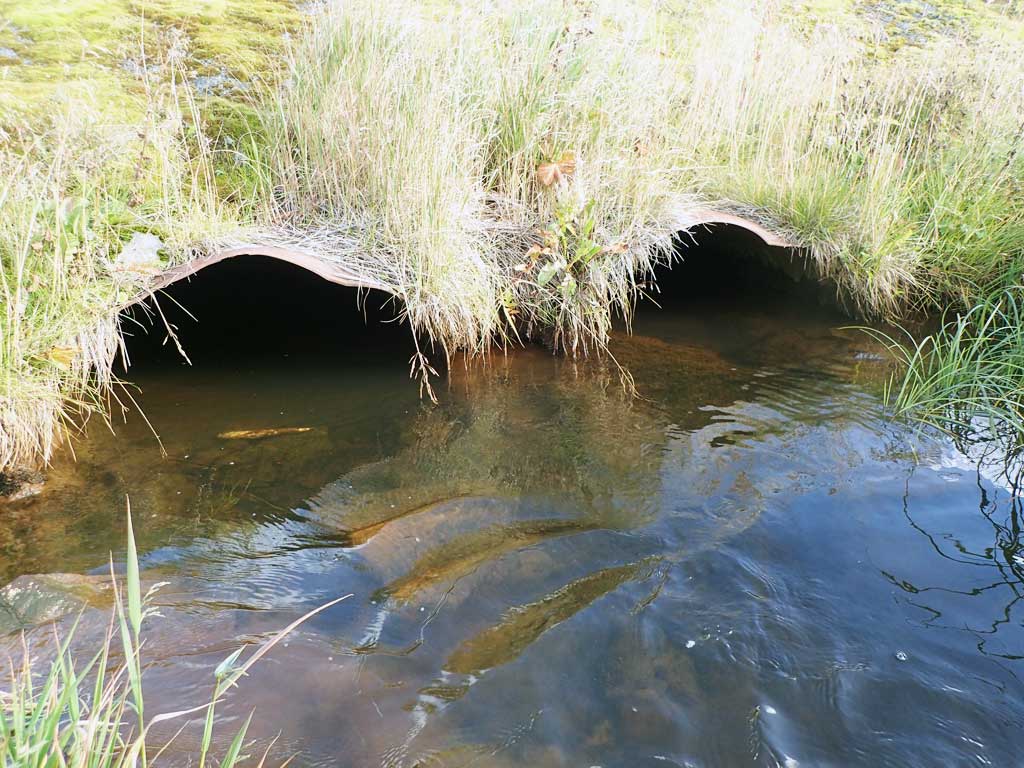

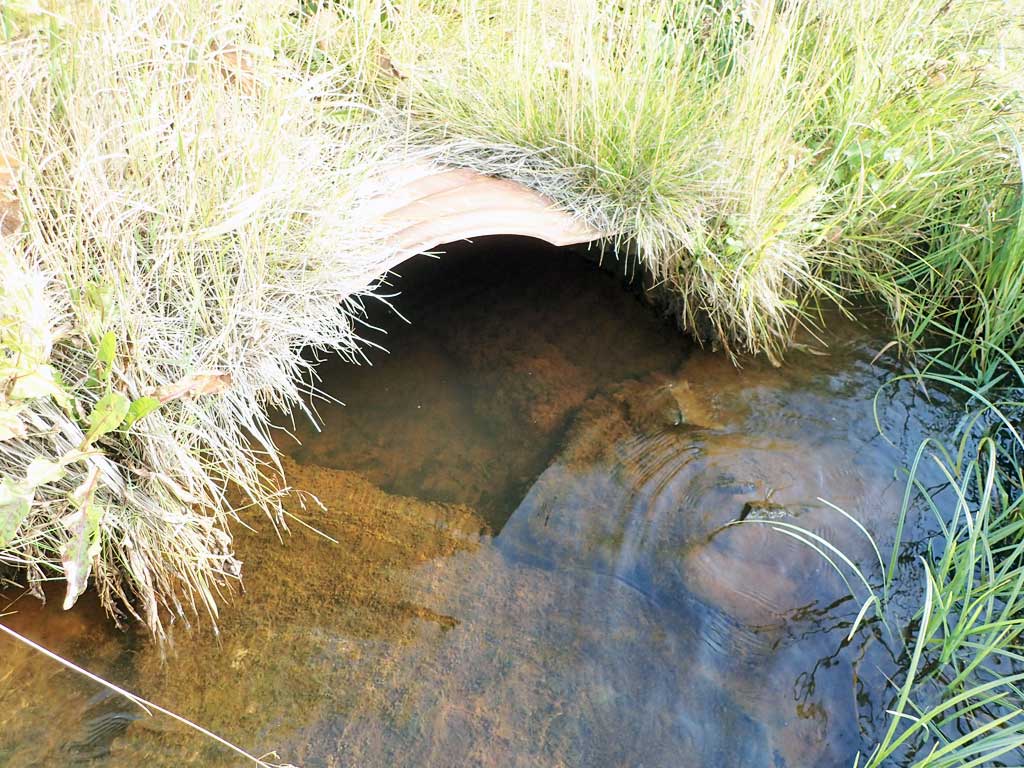

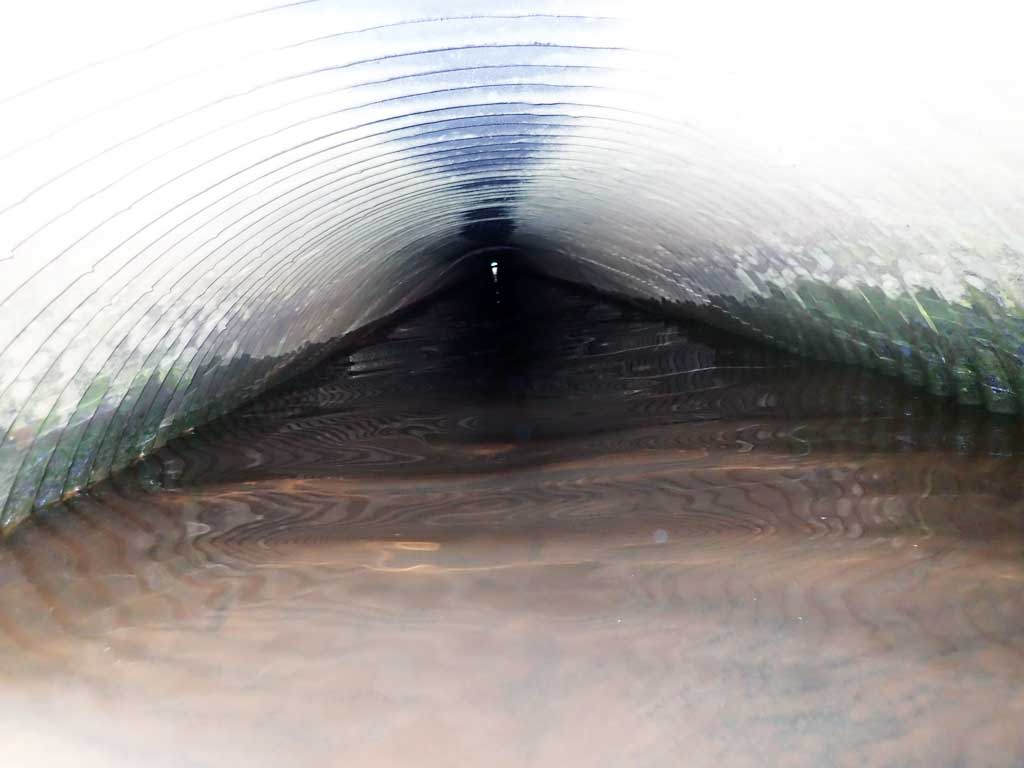

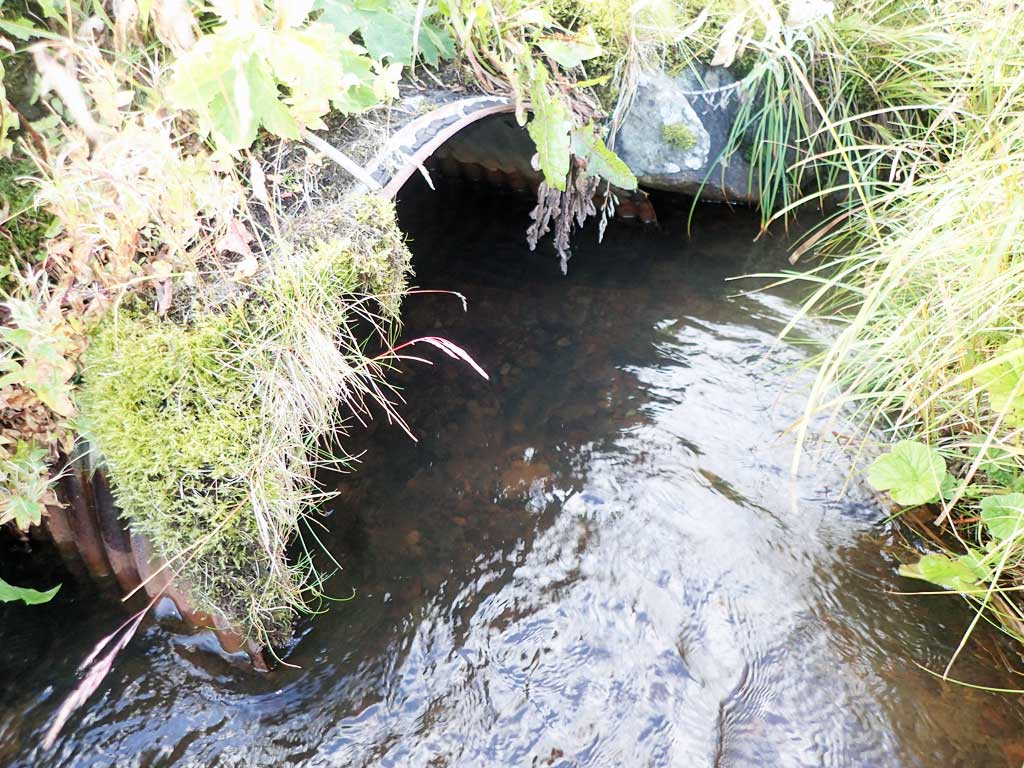

Structure Type: Circular pipe (Corrugated steel)

Fish Passage Rating: Black

Length(ft): 765.0

Inlet Type: Projecting

Outlet Type: Projecting

Corrugation Depth(in.):

Corrugation Width(in.):

Condition Rating(1-5): 2

Approach Angle:

Sedimentation At Inlet: Yes

Inlet Substrate:

Outlet Substrate:

	Inlet	Outlet
Width(ft):	4.0	4.0
Height(ft):	2.6	4.0
Apron Length(ft):
Water Depth(ft):
Rustline Height(ft):
Substrate Depth(ft):

Backwatered?: Maybe

Baffles Present: No

Embedded?: No

Outfall Height: 0.0

Outfall Type: At Stream Grade

Constriction Ratio:

Culvert Gradient:

Max Slope:

Max Slope Length:

ID: 2
