Fish Passage Site 30103612

Coordinates (dec. deg.): 51.94859°, -176.61162°
Legal Description: S095S195W13
Region: Southwest

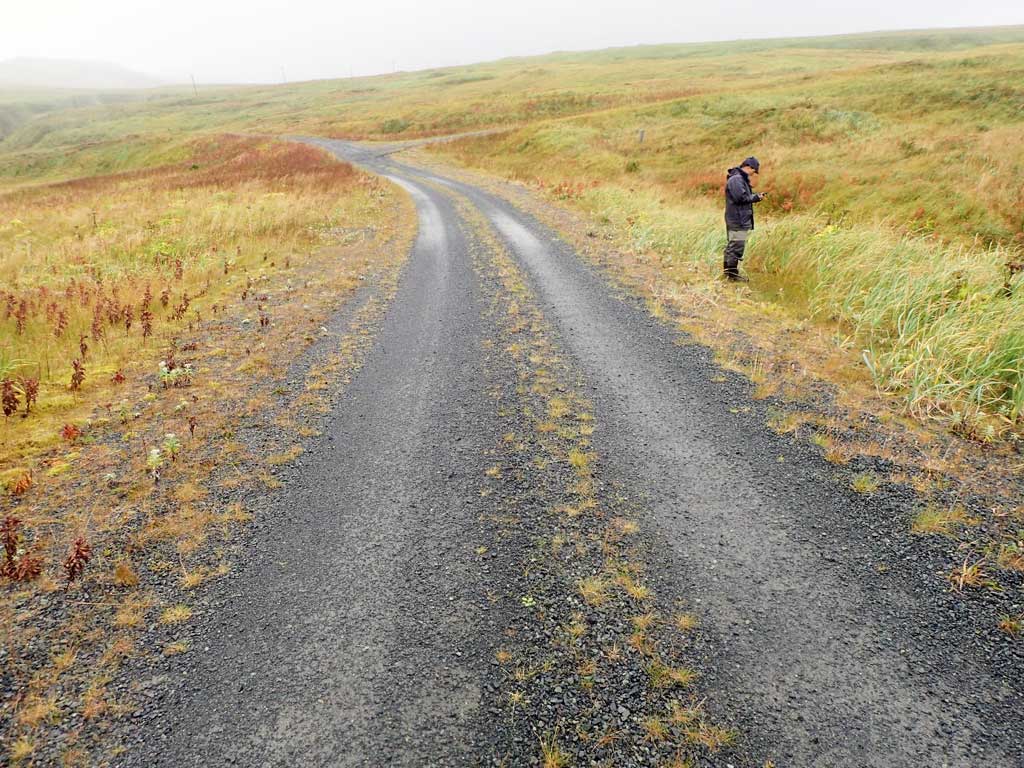

Road Name: Hillside Boulevard

Datum: NAD83
Quad Name / ITM: Adak C-2
AWC Stream #:

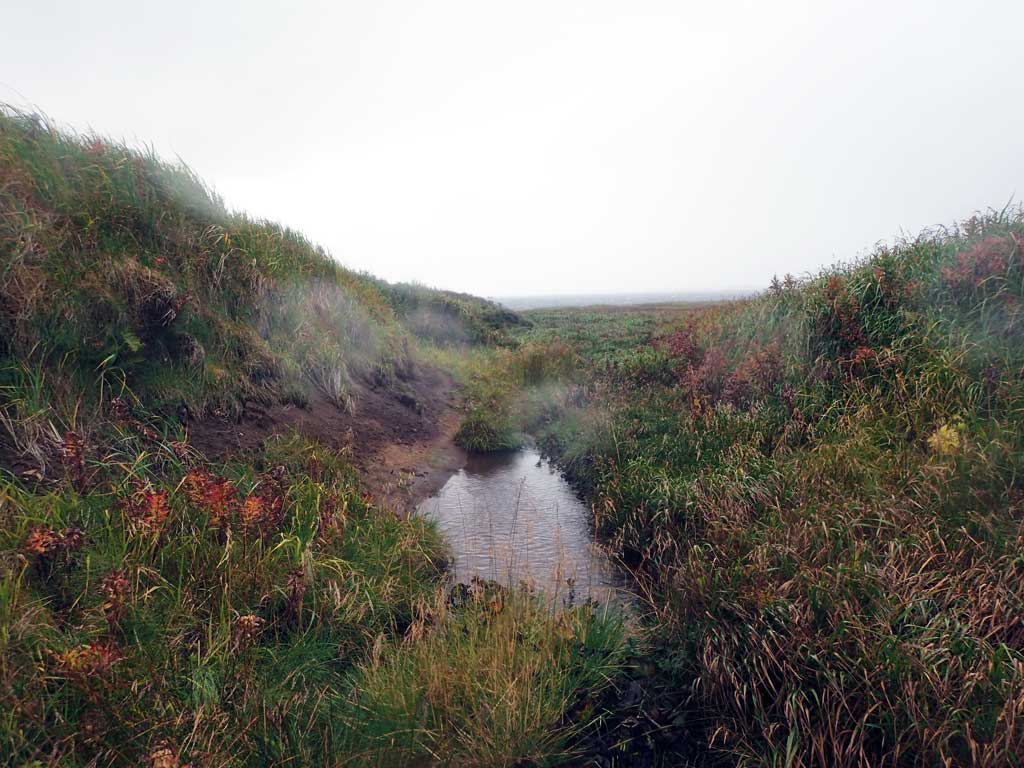

Stream Name: East Creek

Elevation:

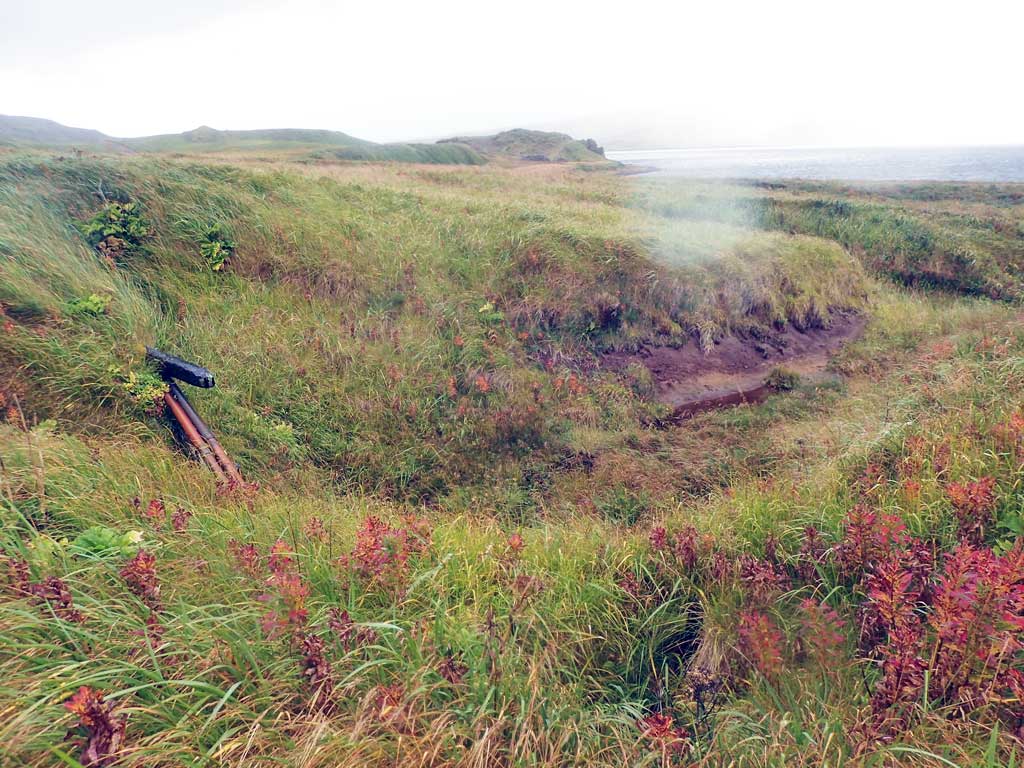

Site Comments: Site near Andrew Lake recreation cabin.

Survey Date: Sep 14, 2017

Survey ADAK17-ADK02

Observers: Mark Eisenman, Jeanette Alas

Overall Fish Passage Rating: Black

Tidal: No
Backwatered: No

Step Pools: No
Construction Year:


Site Observations:

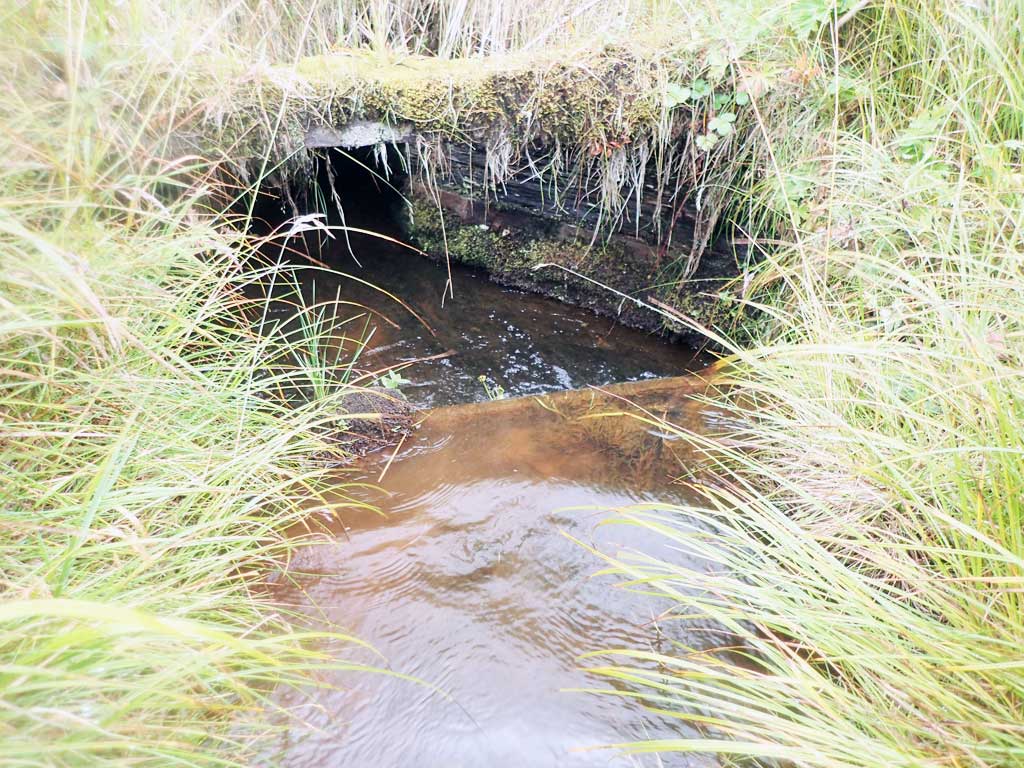

  1. Inlet perch

Comments: This information was gathered as part of the joint reconnaissance level project between the ADF&G Habitat Division and the Fish Passage Assessment Project on Adak Island. Due to time constraints full site assessments were not conducted, but base line information was collected. Creek empties into Andrew Lake downstream. Dolly Varden char trapped upstream.

Culvert Measurements

ID: 1 Structure Type: Box culvert (Wood) Fish Passage Rating: Black

Length(ft): 98.0
Inlet Type: Headwall
Outlet Type: Headwall
Corrugation Depth(in.):
Corrugation Width(in.):
Condition Rating(1-5): 1
Approach Angle:
Sedimentation At Inlet: Yes
Inlet Substrate:
Outlet Substrate:
InletOutlet
Width(ft):3.0 3.0
Height(ft):2.5 2.5
Apron Length(ft):
Water Depth(ft):
Rustline Height(ft):
Substrate Depth(ft):
Backwatered?: No
Baffles Present: No
Embedded?: No
Outfall Height:
Outfall Type: At Stream Grade
Constriction Ratio:
Culvert Gradient:
Max Slope:
Max Slope Length:

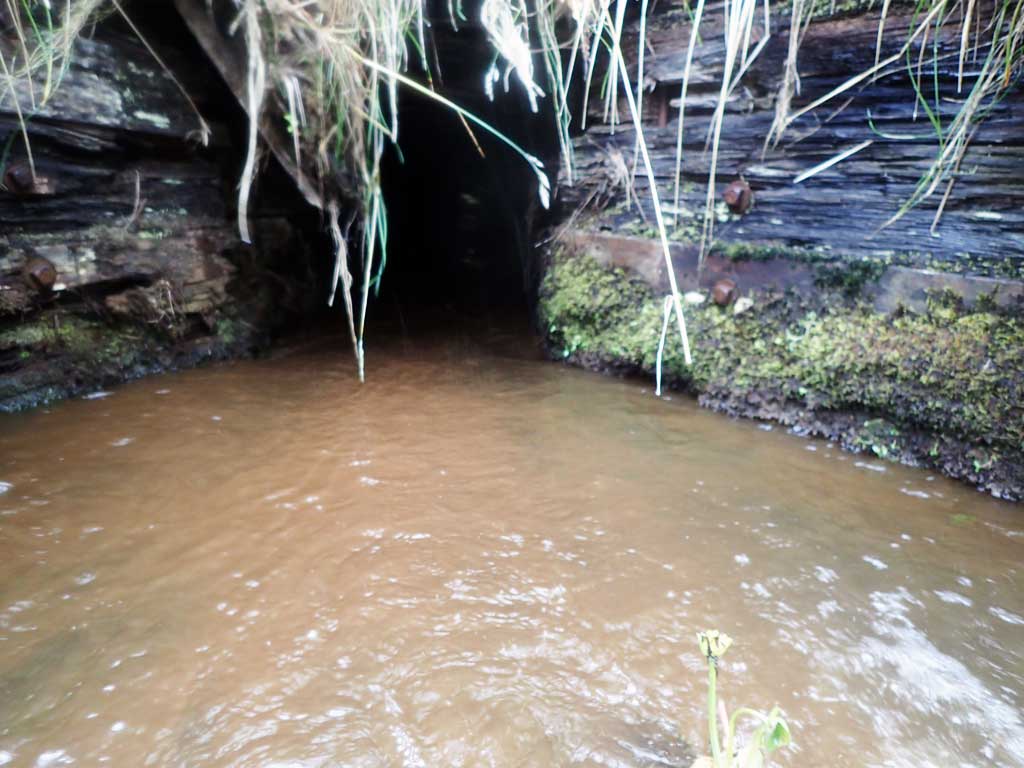

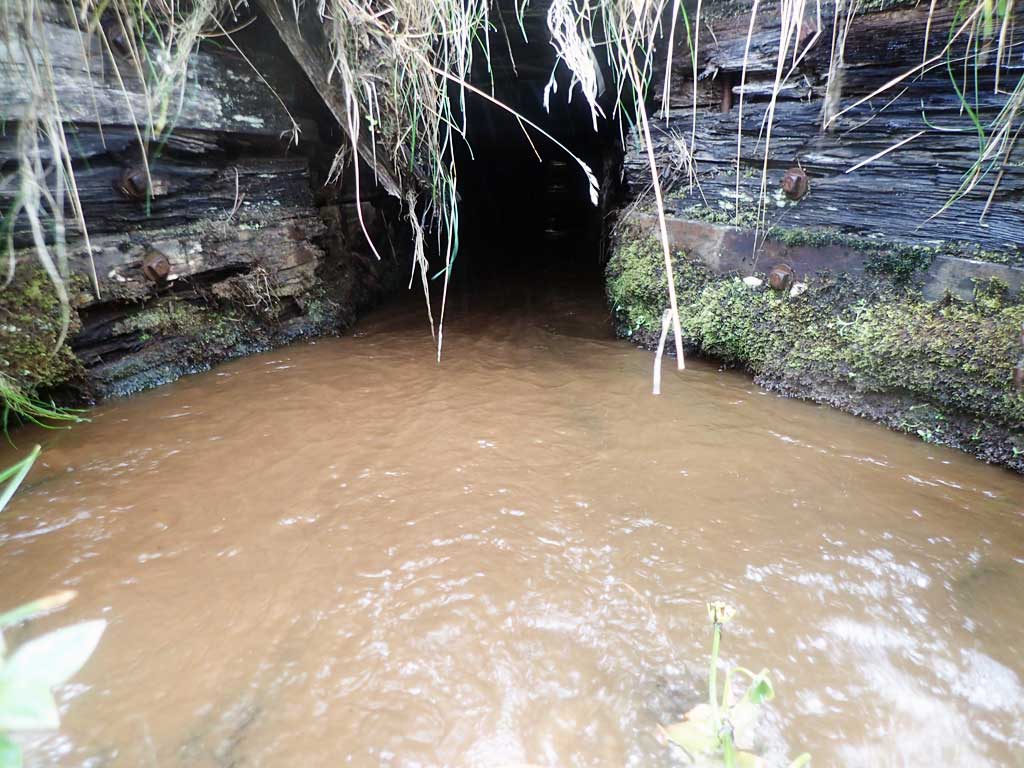

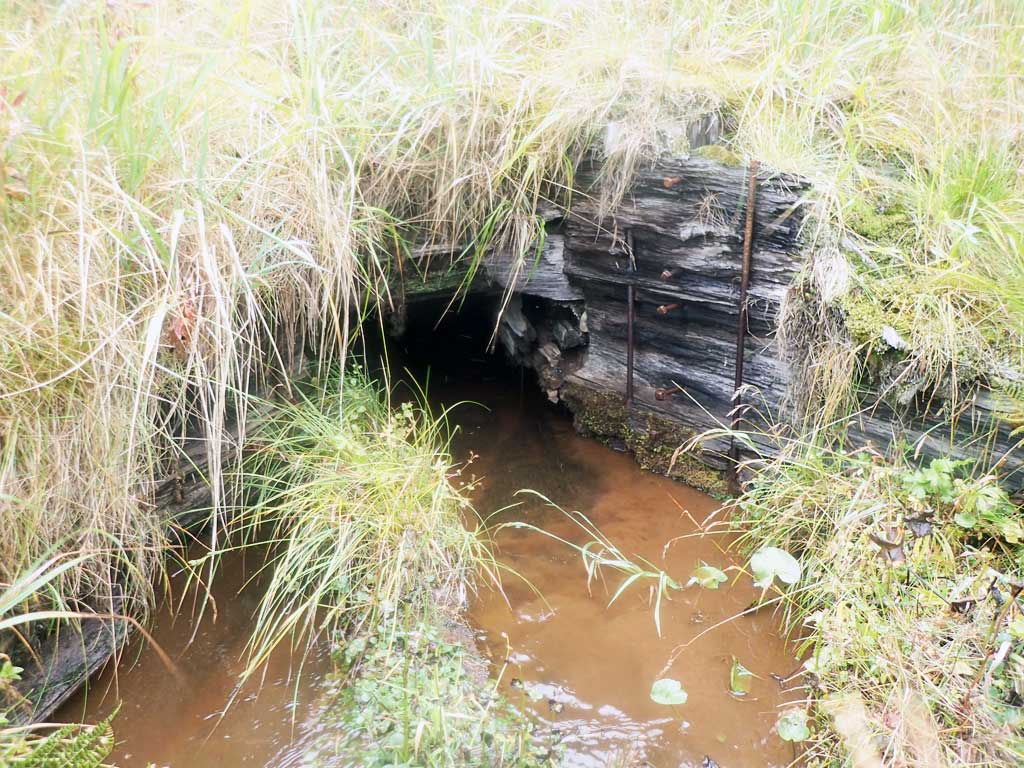

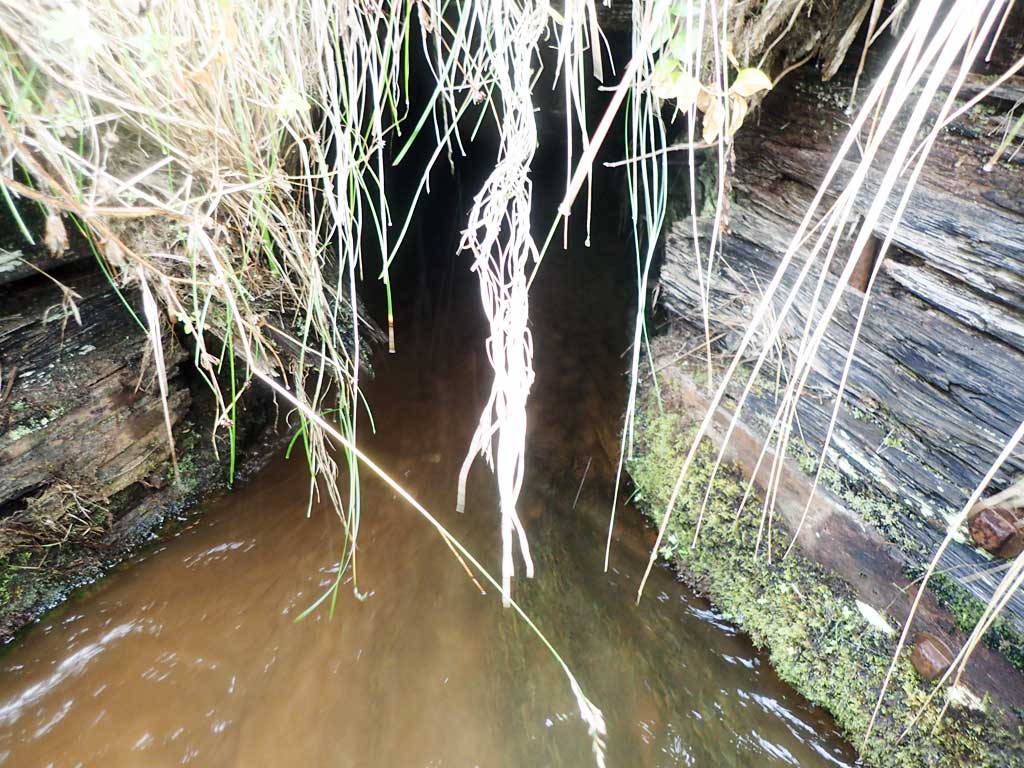

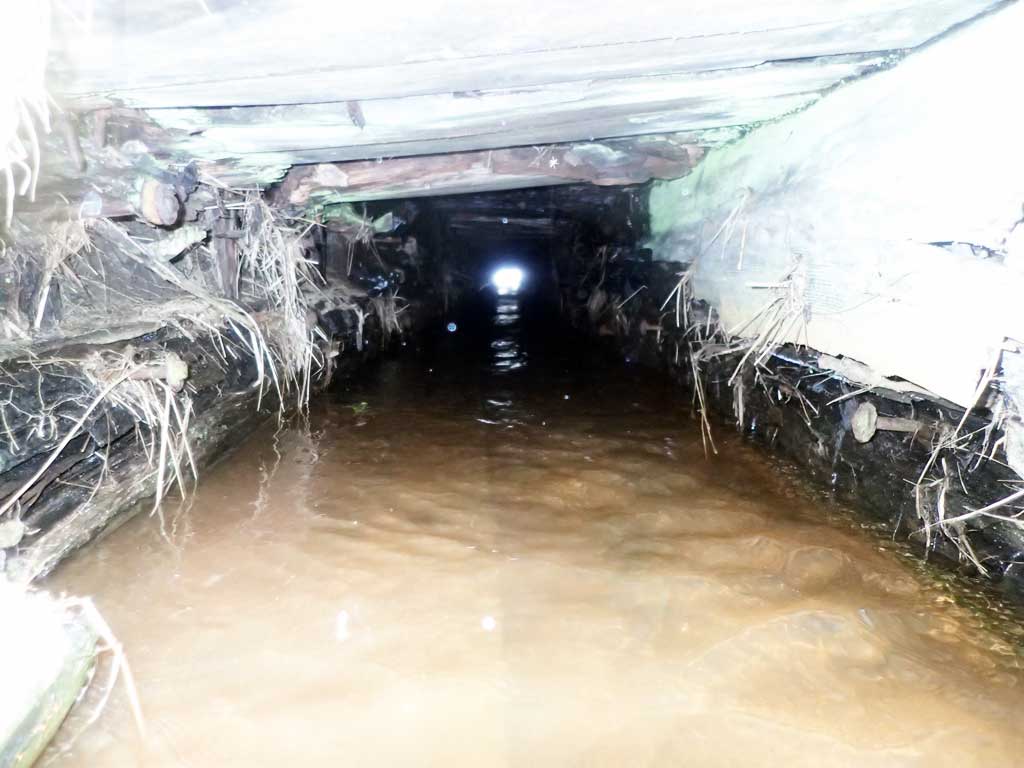

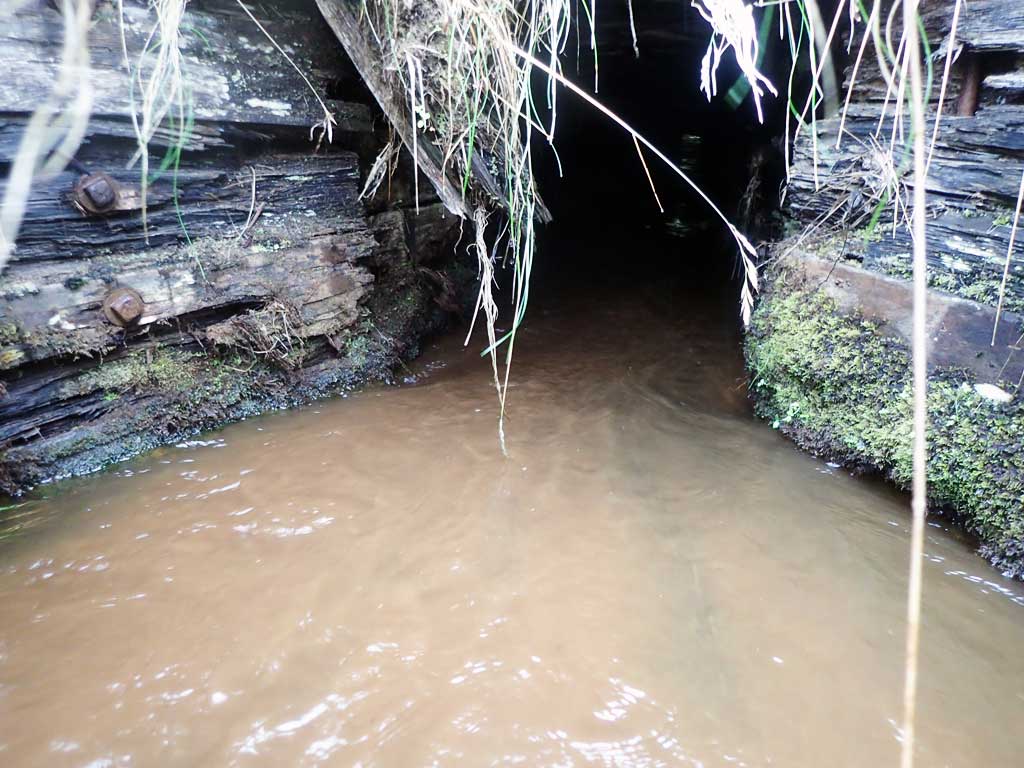

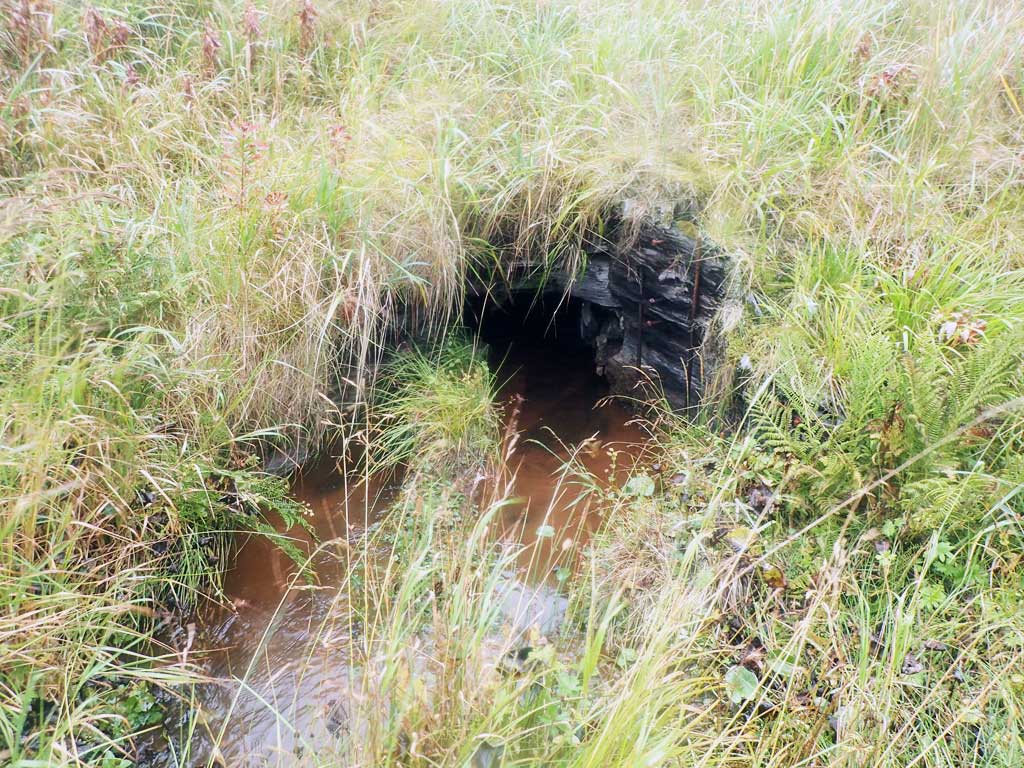

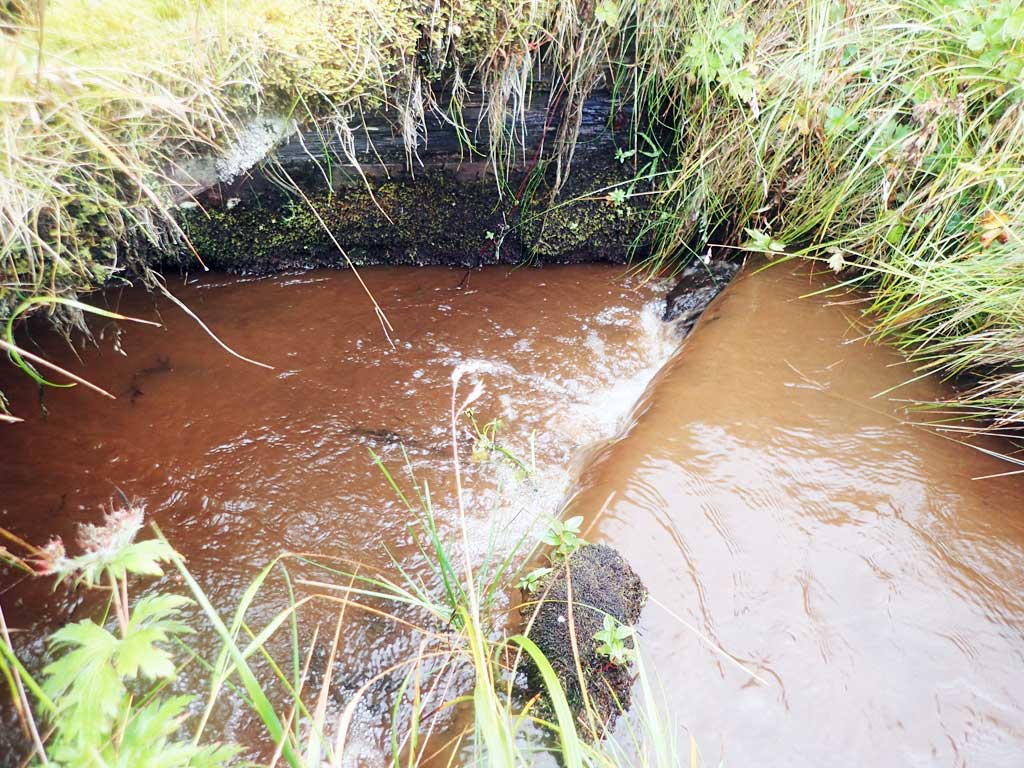

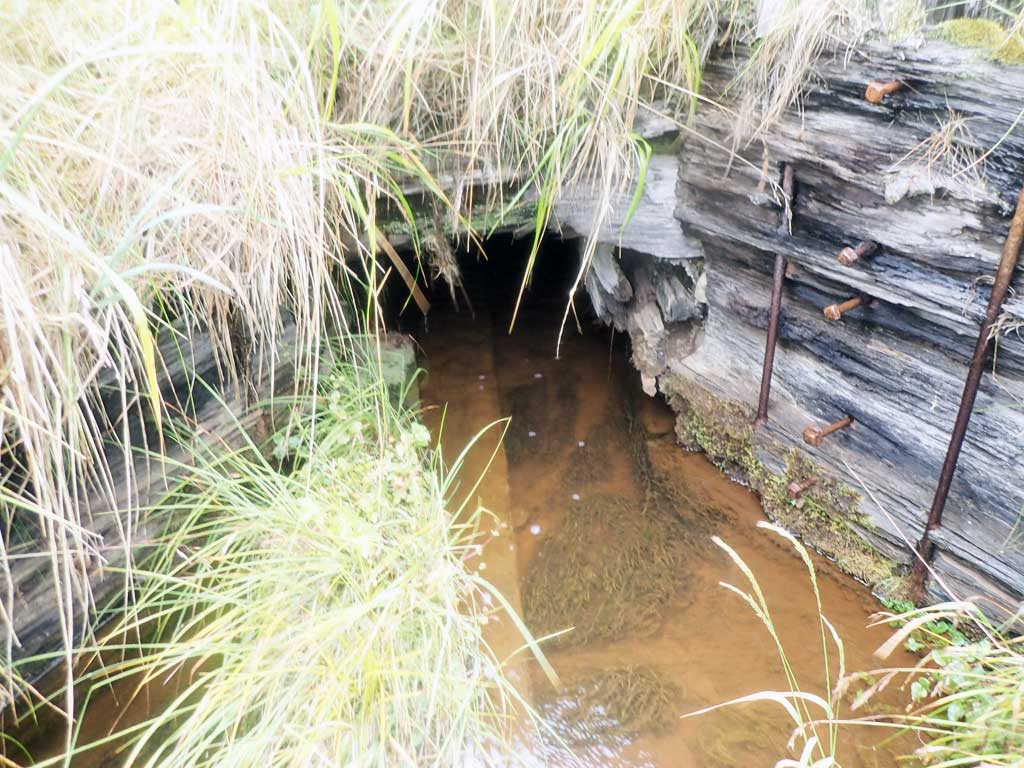

Comments: Old wooden box culvert. Wood shows signs of a lot of deterioration especially at the inverts. Unsure if this is a three-sided bridge culvert or if there is or was a bottom to it. Inlet perch just upstream at end of wing-walls.
  Culvert Observations:
  1. Inlet perch

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:
Subdominant:
Stream Slope(deg.):
Stream Flow Stage:Medium

No stream width data available.

Elevations

No elevation data available.

Fish Sampling Efforts

Gear Type: Minnow Trap (A) Trap Duration(h): 24.25

Fish Observations

Species: juvenile/adult Dolly Varden Life History: Unknown
Total Fish Observed: 3 Fish Measured: 3 Fork Lengths (mm) Min: 65 Max: 104 Mean: 88
Collected/Observed by Gear Type: Upstream Minnow Trap (3)
