Fish Passage Site 20703713

Coordinates (dec. deg.): 57.76923°, -152.52761°
Legal Description: S028S020W09
Region: Southwest

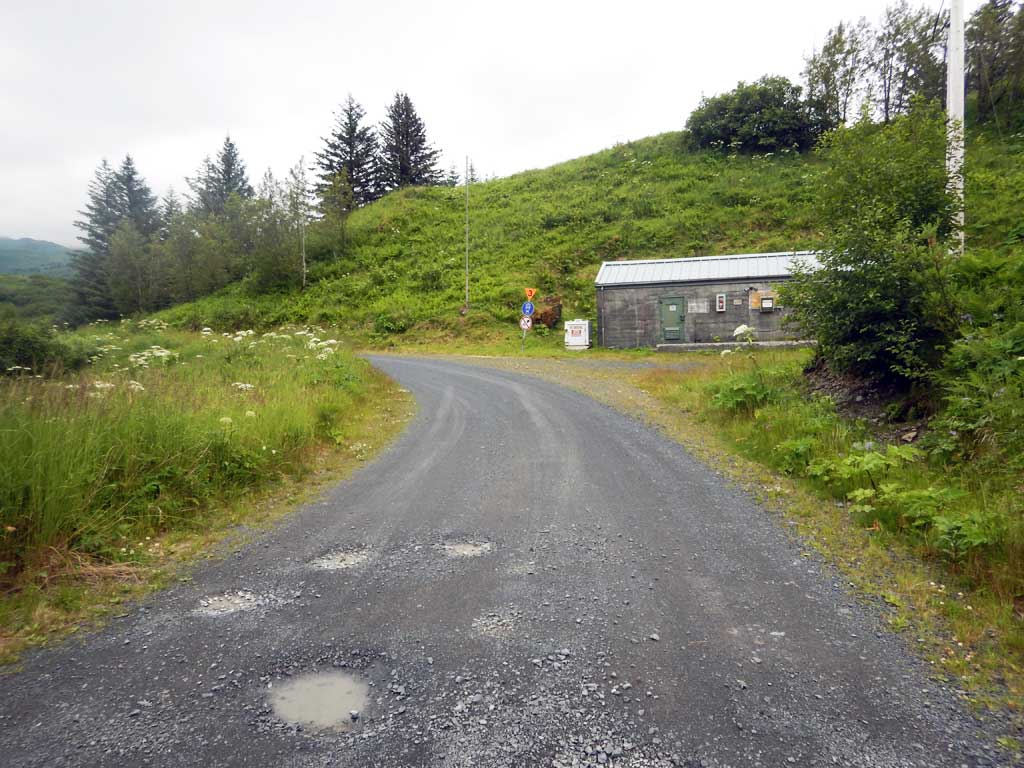

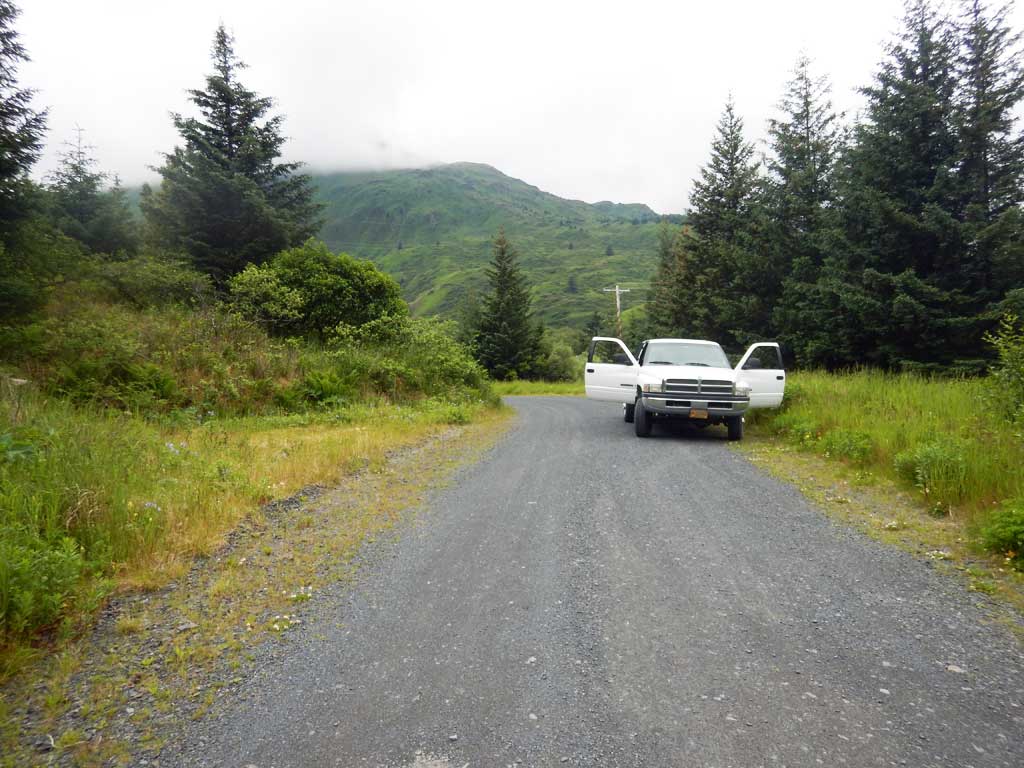

Road Name: Old Military Road

Datum: NAD83
Quad Name / ITM: Kodiak D-2
AWC Stream #:
Stream Name: Unnamed Tributary to Battery Creek

Elevation:

Site Comments: None

Survey Date: Jul 17, 2017

Survey UPDATE-KOD27

Project Supervisor: Gillian O'Doherty, ADFG
Observers: William Frost

Overall Fish Passage Rating: Blue

Tidal: No
Backwatered:

Step Pools: No
Construction Year:


Comments: Submitted by Will Frost HB, ADF&G. All Photos Will Frost. Limited habitat above culvert. Only about 60 feet of stream before gradient barrier.

Culvert Measurements

ID: 1 Structure Type: Circular pipe (Corrugated plastic) Fish Passage Rating: Black

Length(ft):

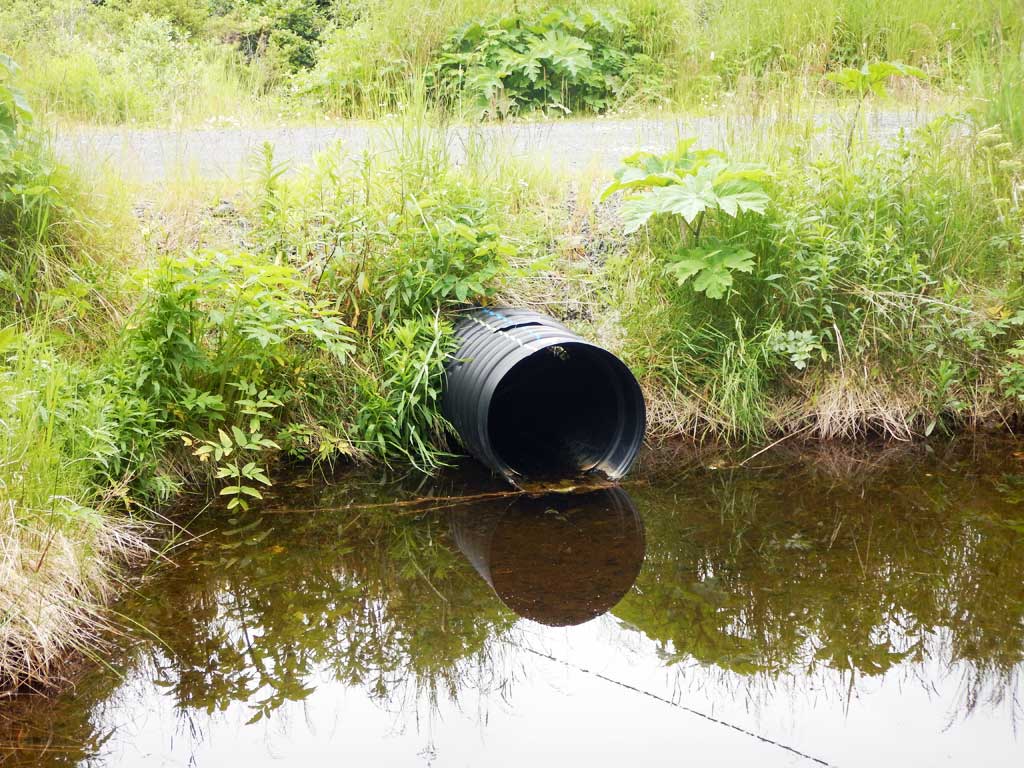

Inlet Type: Projecting

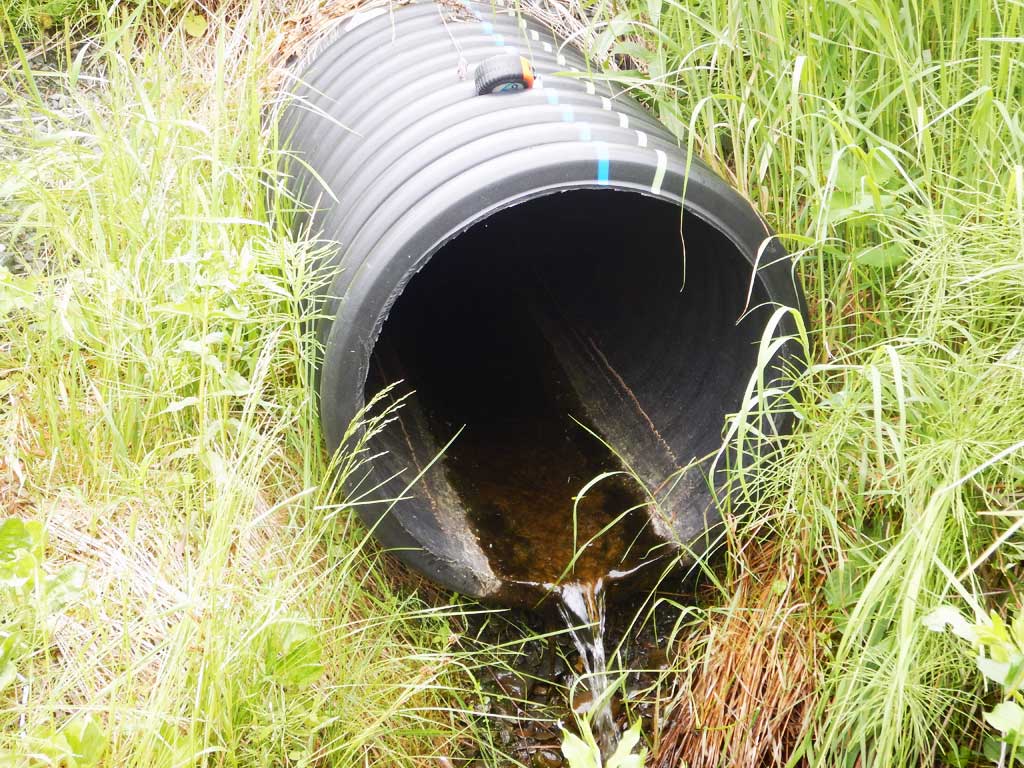

Outlet Type: Projecting
Corrugation Depth(in.):
Corrugation Width(in.):
Condition Rating(1-5): 3
Approach Angle:
Sedimentation At Inlet: No
Inlet Substrate:
Outlet Substrate:
InletOutlet
Width(ft):
Height(ft):
Apron Length(ft):
Water Depth(ft):
Rustline Height(ft):
Substrate Depth(ft):
Backwatered?: No
Baffles Present: No
Embedded?: No
Outfall Height:

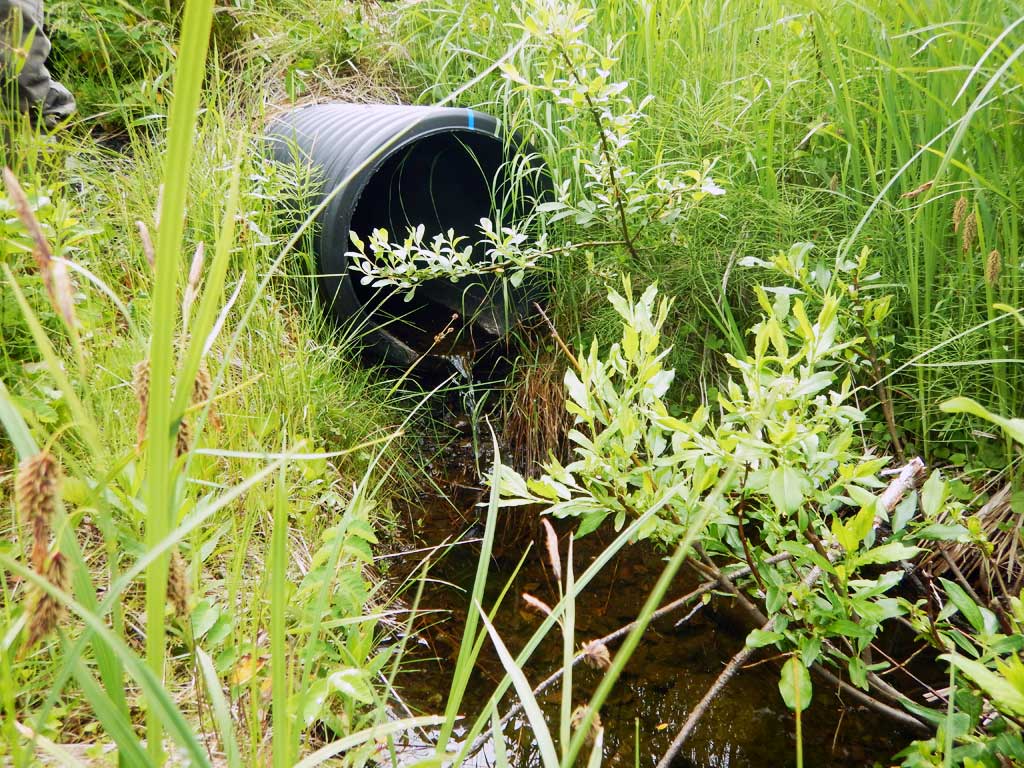

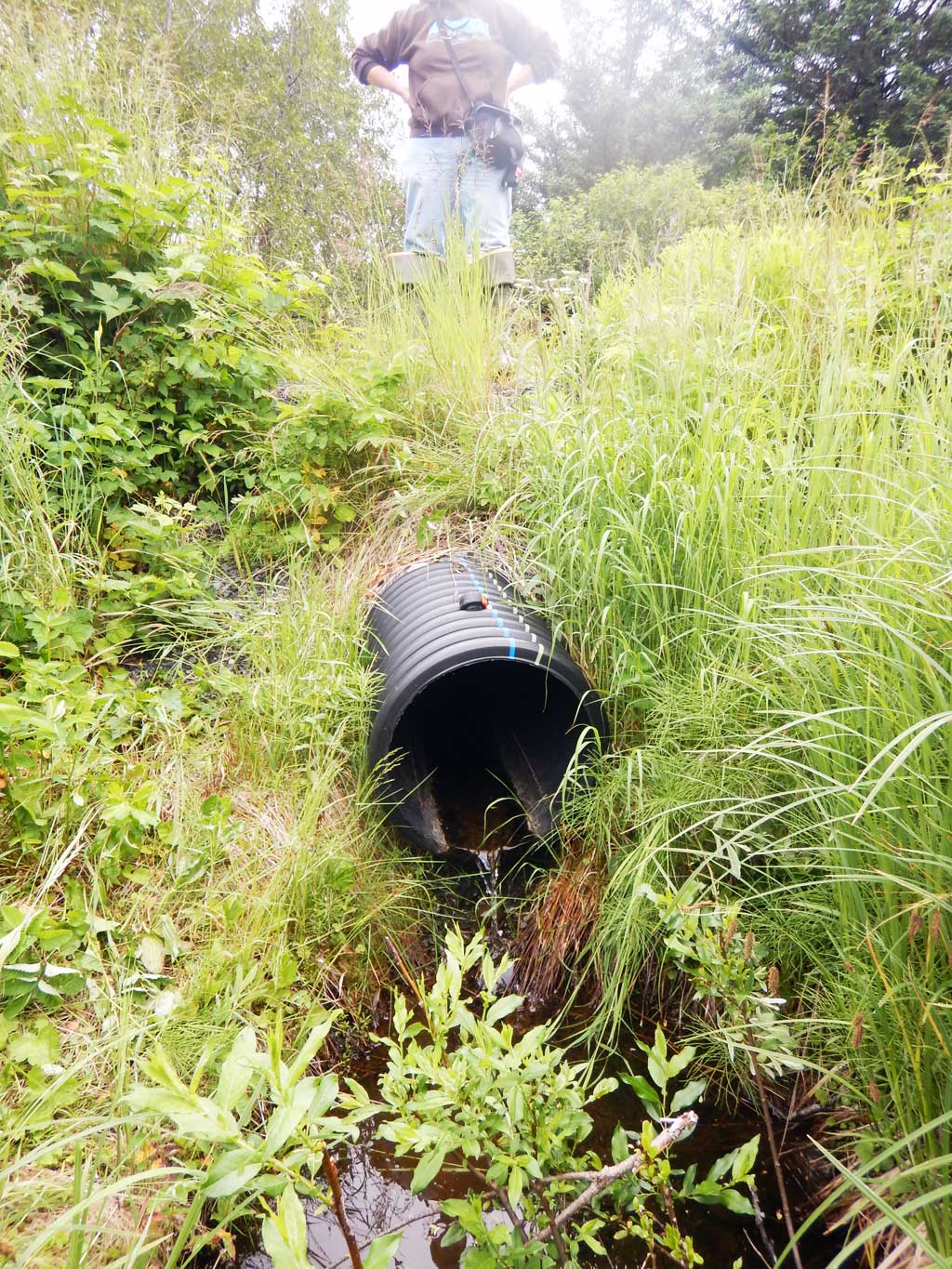

Outfall Type: Free Fall In To Pool
Constriction Ratio:
Culvert Gradient:
Max Slope:
Max Slope Length:

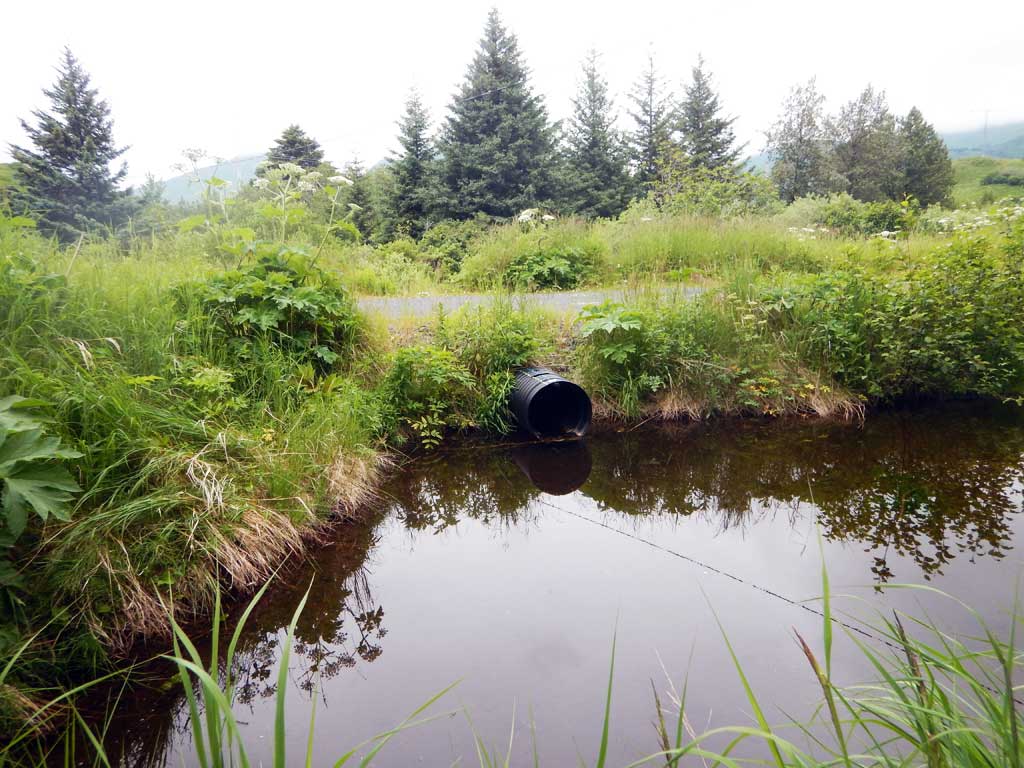

Comments: Ponded above inlet. Culvert diameter estimated to be about 1.5 ft.

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:
Subdominant:
Stream Slope(deg.):
Stream Flow Stage:Low

No stream width data available.

Elevations

No elevation data available.

Fish Sampling Efforts

Gear Type: Smith-Root LR-24 (A)

Fish Observations

Species: juvenile coho salmon Life History: Anadromous
Total Fish Observed: 2 Fish Measured: Fork Lengths (mm) Min: Max: Mean:
Collected/Observed by Gear Type: At Site Smith-Root LR-24 (2)
Comments: Coho caught downstream of culvert

Species: juvenile Dolly Varden Life History: Unknown
Total Fish Observed: 5 Fish Measured: Fork Lengths (mm) Min: Max: Mean:
Collected/Observed by Gear Type: At Site Smith-Root LR-24 (5)
Comments: Dolly Varden caught upstream of culvert.

Questions or comments about this report can be directed to dfg.dsf.webmaster@alaska.gov
