Fish Passage Site 20703258

Coordinates (dec. deg.): 57.76875°, -152.54132°
Legal Description: S028S020W09
Region: Southwest
Road Name: Magazine Access Road

Datum: NAD83
Quad Name / ITM: Kodiak D-2
AWC Stream #:
Stream Name: Unnamed

Elevation:

Site Comments: Culvert is on a access road to two decommissions artillery magazines.

Survey Date: Oct 24, 2013

Survey UPDATE-KOD09

Project Supervisor: Gillian O'Doherty, ADFG
Observers: William Frost

Overall Fish Passage Rating: Blue

Tidal: No
Backwatered: Unknown

Step Pools: No
Construction Year:

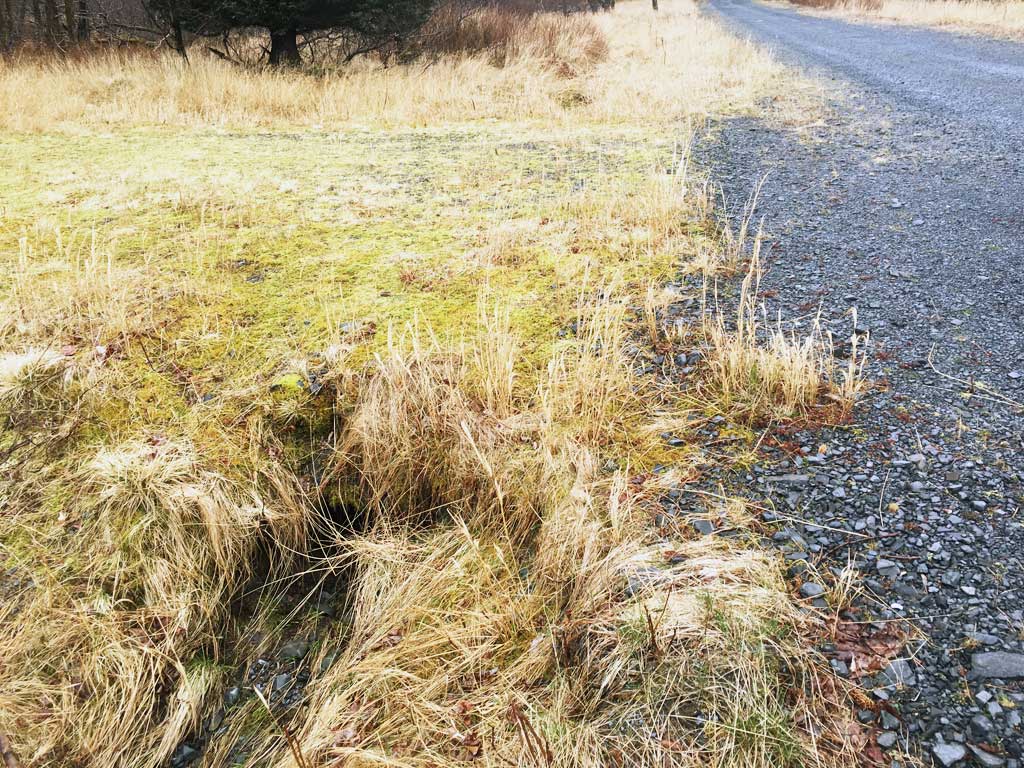

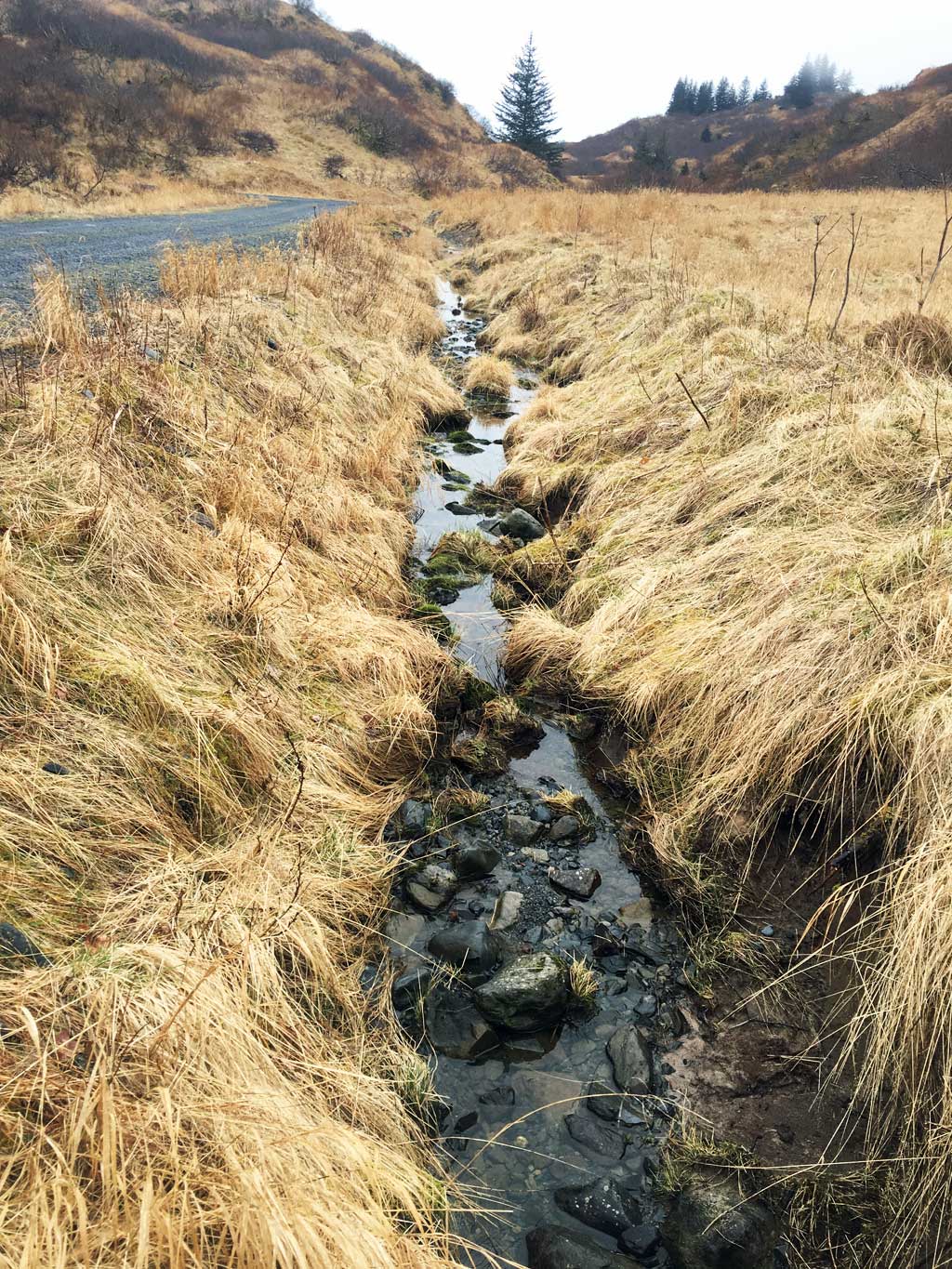

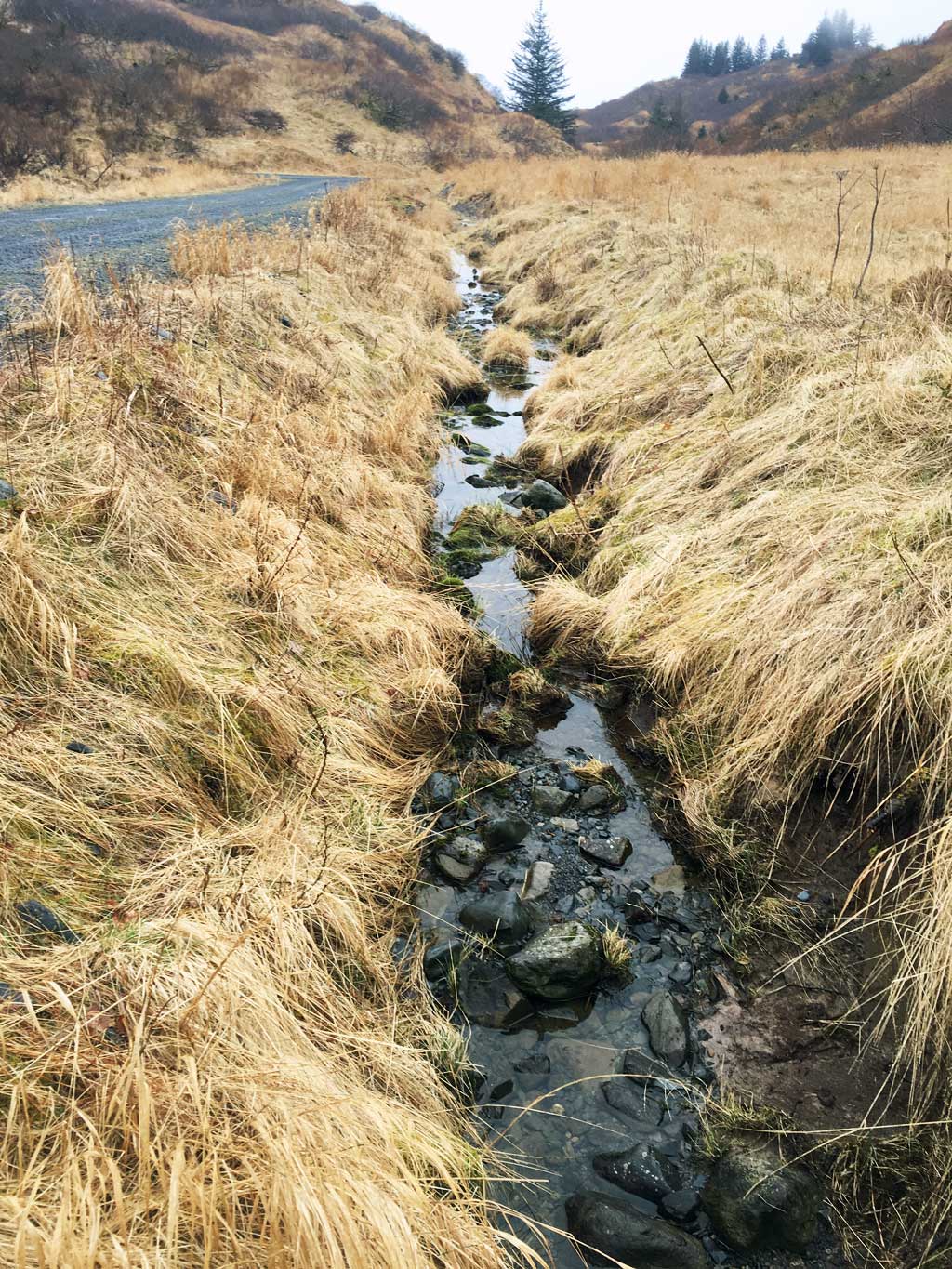

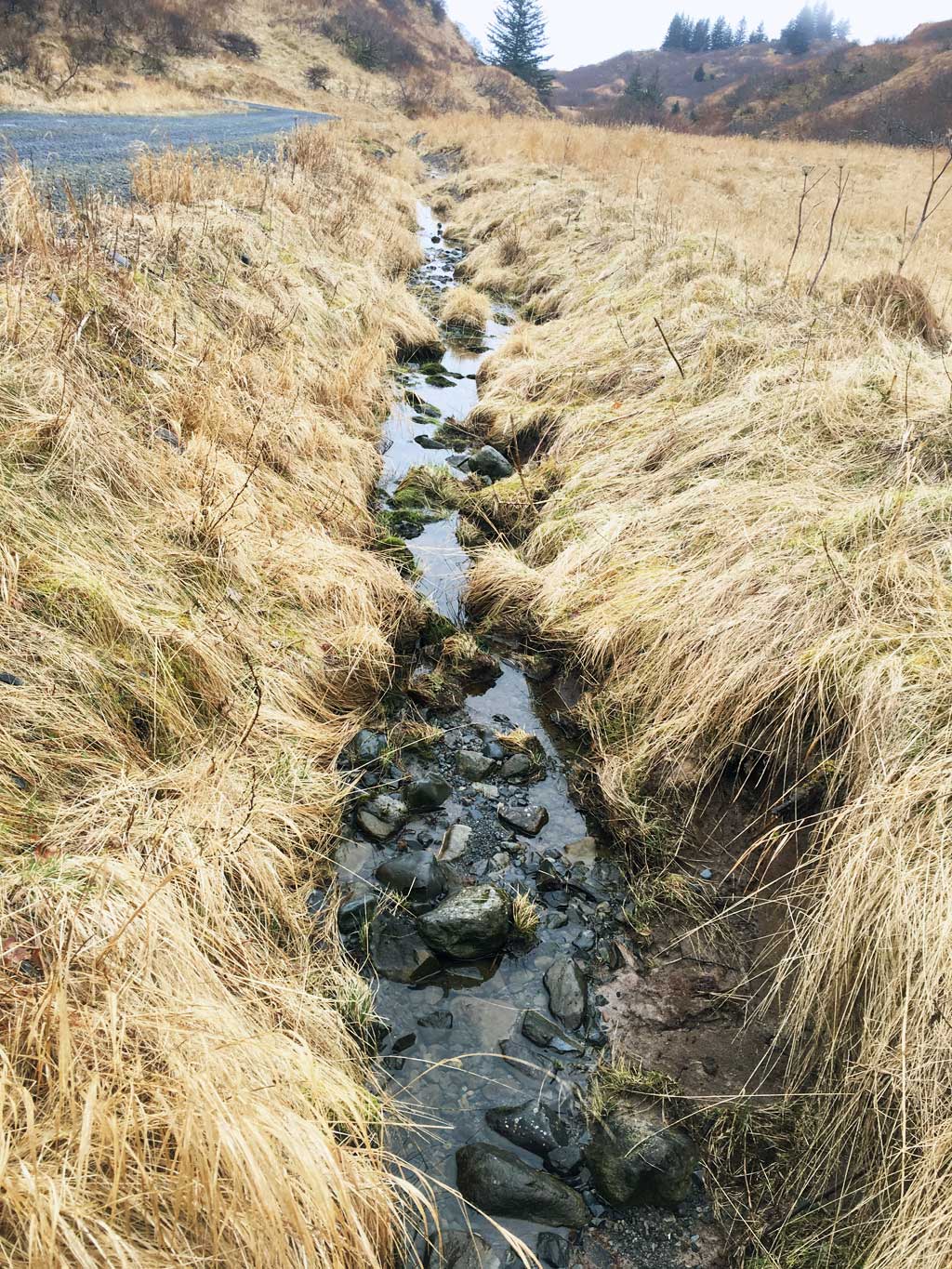

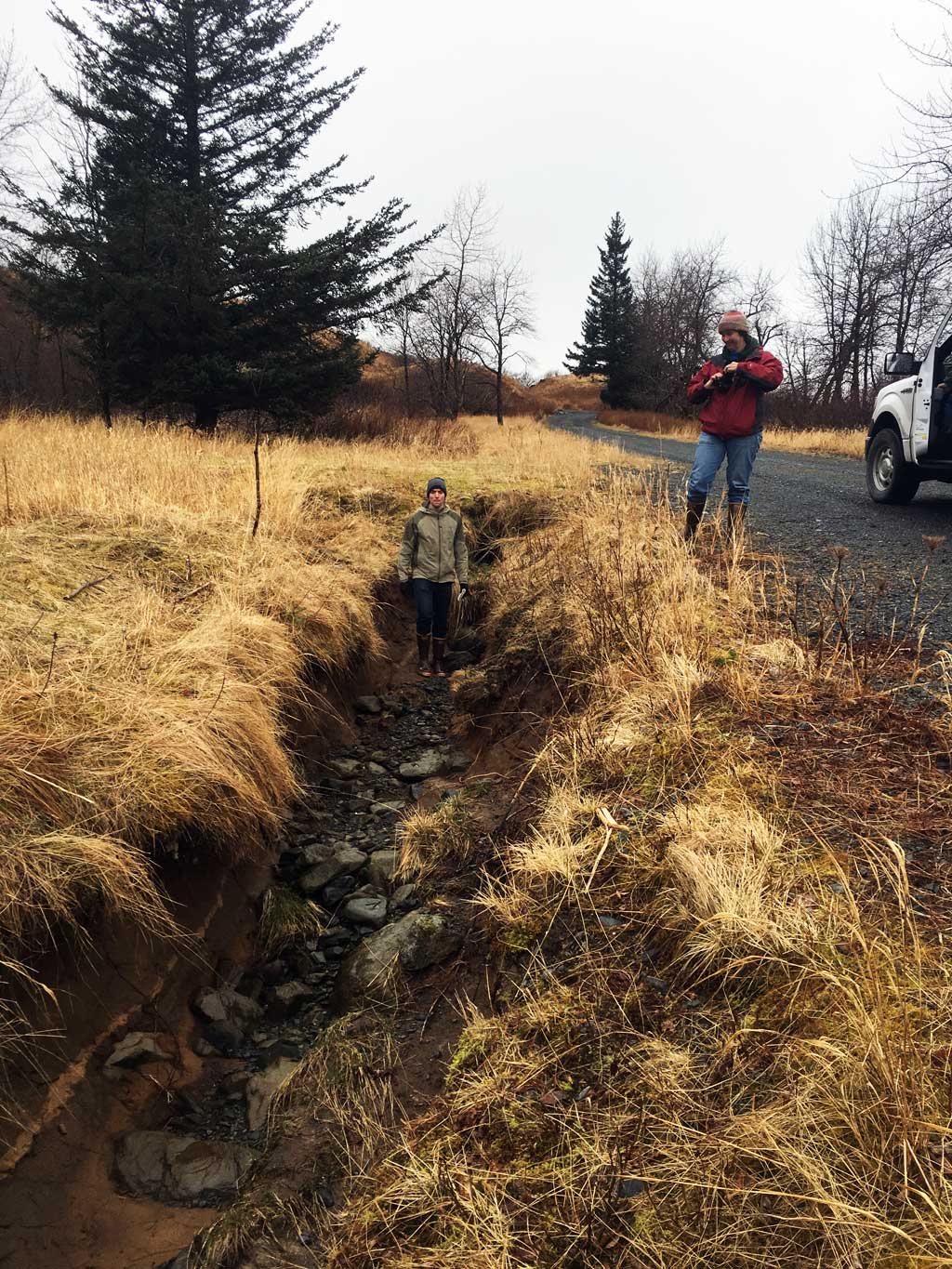

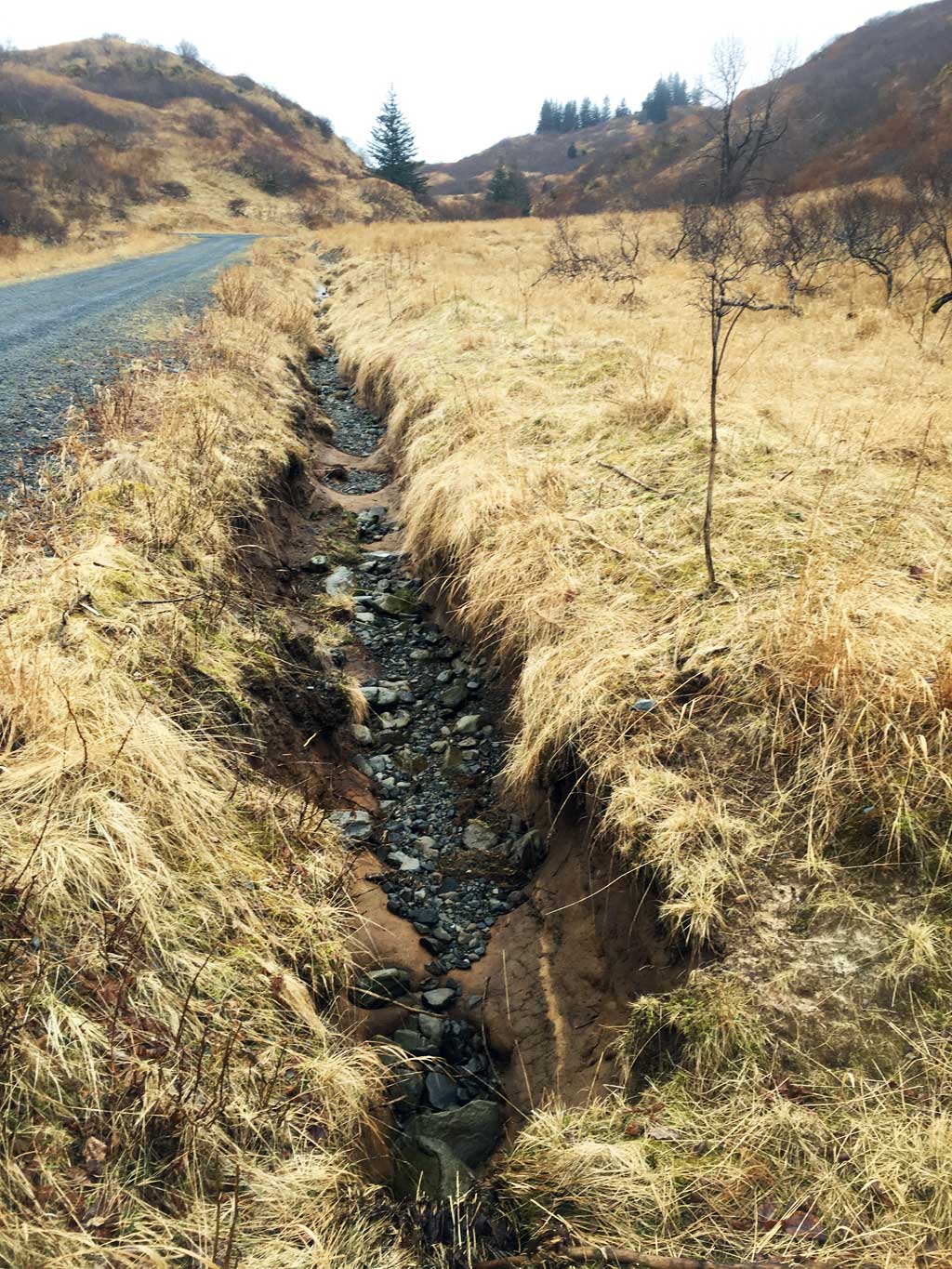

Comments: Site submitted by ADFG HB Will Frost. ADF&G has recommended that this road be closed and this culvert be removed. Additional site photos submitted by Heather Hanson USFWS from April 2016 site visit

Culvert Measurements

ID: 1 Structure Type: Circular pipe (Corrugated steel) Fish Passage Rating: Black

Length(ft):
Inlet Type: Projecting
Outlet Type: Projecting
Corrugation Depth(in.):
Corrugation Width(in.):
Condition Rating(1-5): 2
Approach Angle:
Sedimentation At Inlet: Yes
Inlet Substrate:
Outlet Substrate:
InletOutlet
Width(ft):
Height(ft):
Apron Length(ft):
Water Depth(ft):
Rustline Height(ft):
Substrate Depth(ft):
Backwatered?: Unknown
Baffles Present: No
Embedded?:
Outfall Height:
Outfall Type: At Stream Grade
Constriction Ratio:
Culvert Gradient:
Max Slope:
Max Slope Length:

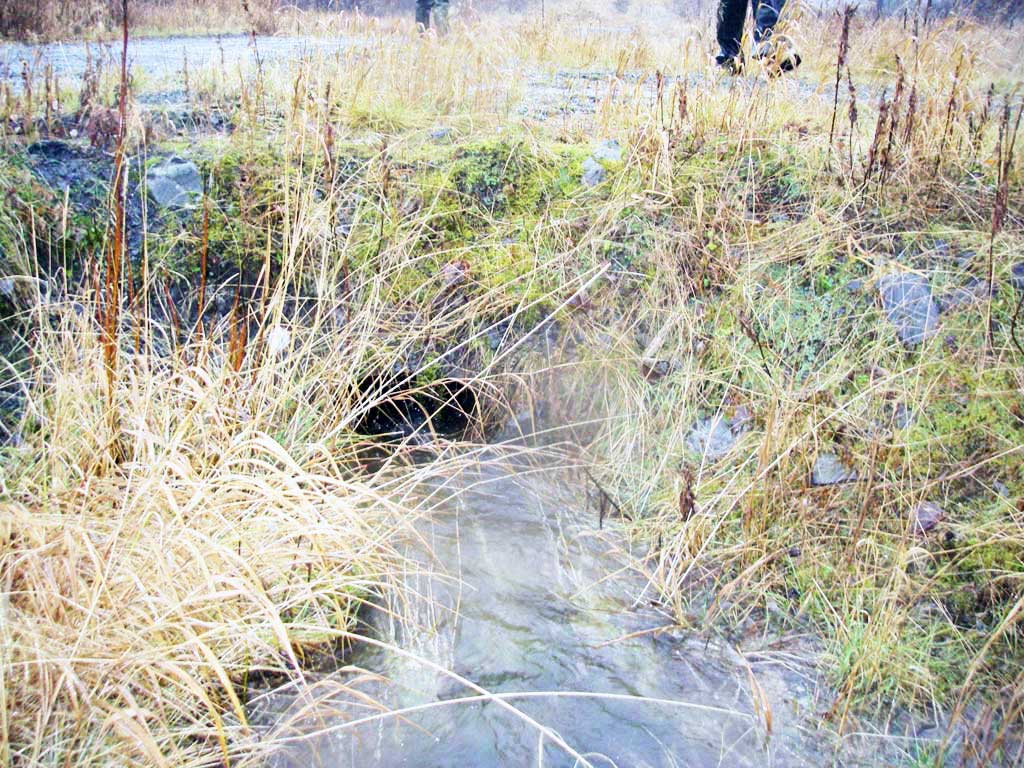

Comments: Culvert visually estimated to have about a 2 ft diameter.

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:
Subdominant:
Stream Slope(deg.):
Stream Flow Stage:High

No stream width data available.

Elevations

No elevation data available.

Fish Sampling Efforts

No fish sampling occurred during this survey.

Fish Observations

No fish observations occurred during this survey.
