Fish Passage Site 20503789

Coordinates (dec. deg.): 62.01898°, -149.92795°
Legal Description: S022N004W01
Region: South Central

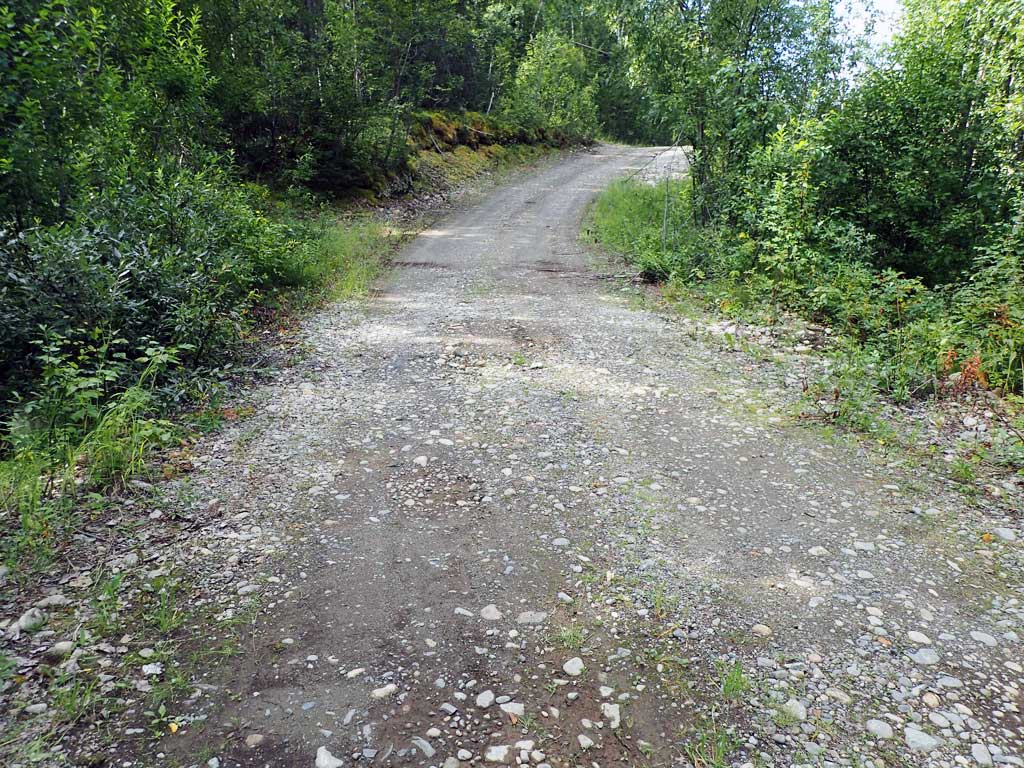

Road Name: East Breesway Drive

Datum: NAD83
Quad Name / ITM: Talkeetna Mts A-6
AWC Stream #:
Stream Name: Unnamed

Elevation:

Site Comments: None

Survey Date: Aug 17, 2018

Survey UPDATE-EBD01

Project Supervisor: Gillian O'Doherty, ADFG
Observers: Mark Eisenman

Overall Fish Passage Rating: Blue

Tidal: No
Backwatered: No

Step Pools: No
Construction Year:


Comments: Site visited 8/17/18 for baseline measurements, photographs and fish sampling. No fish caught.

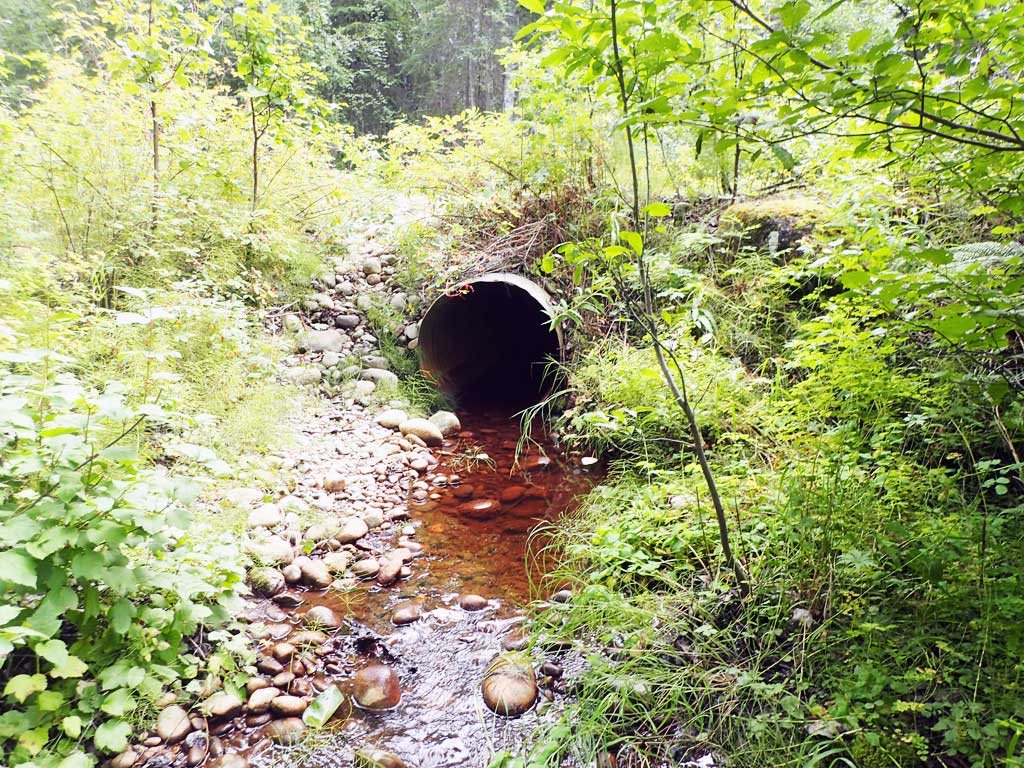

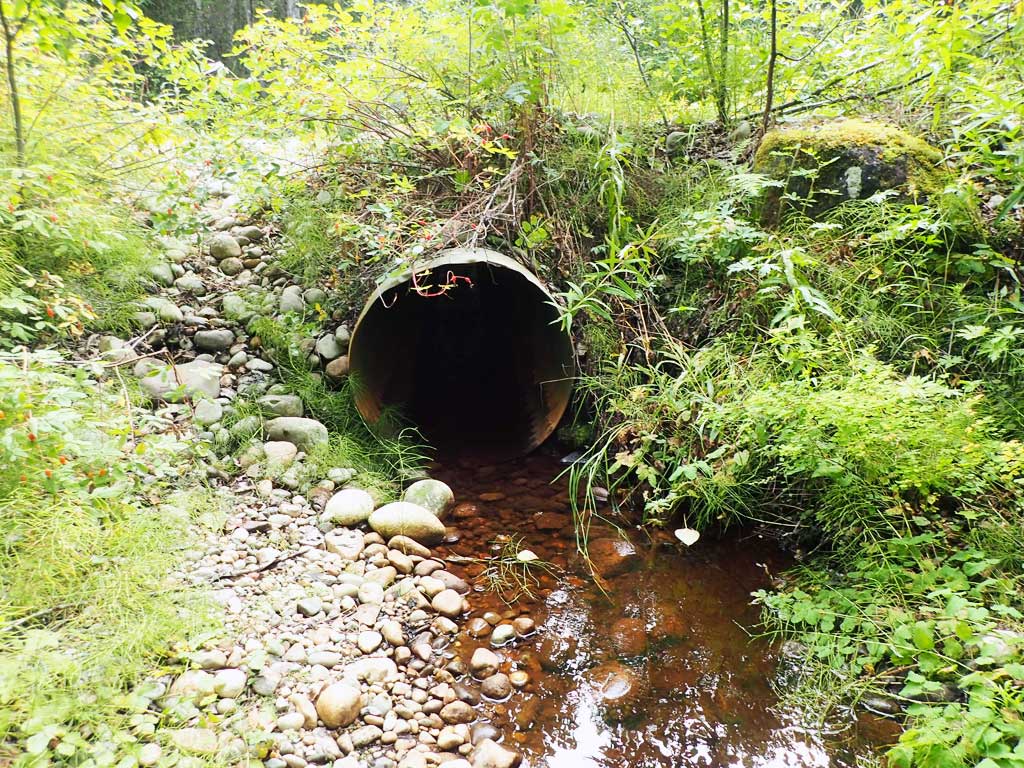

Culvert Measurements

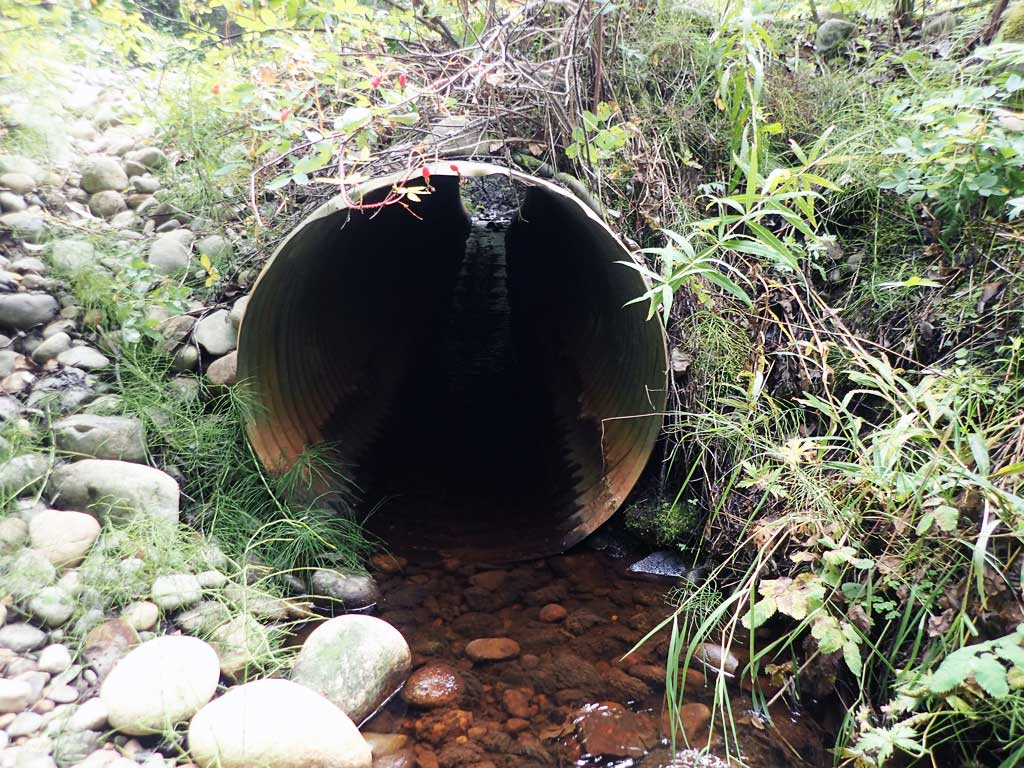

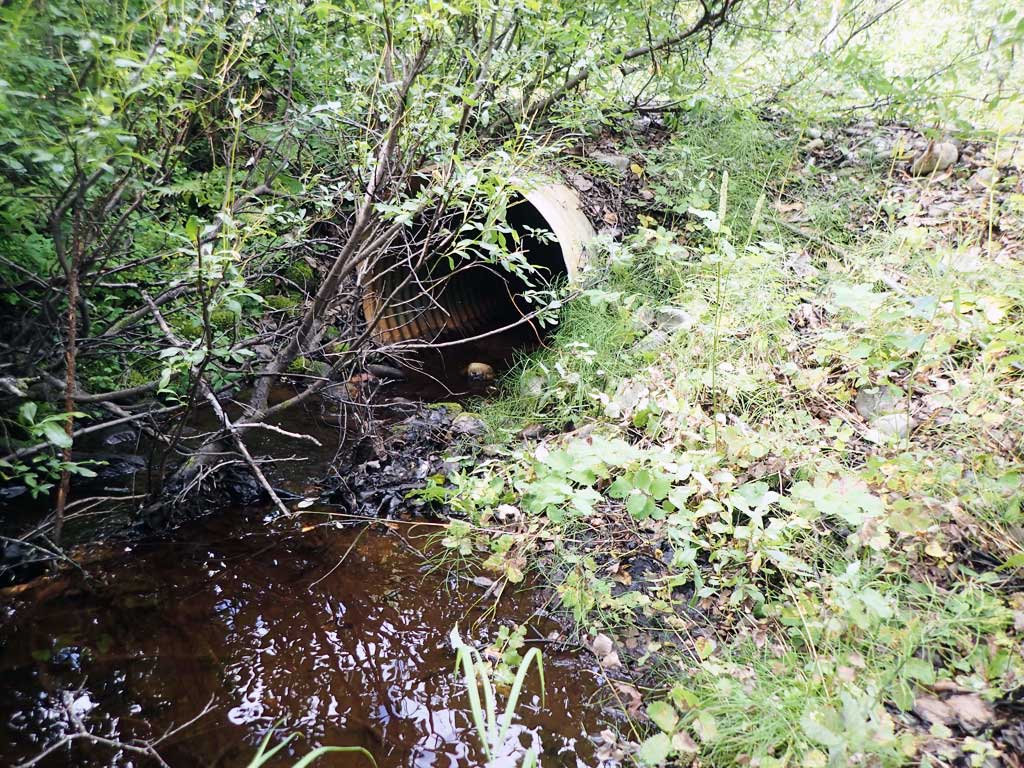

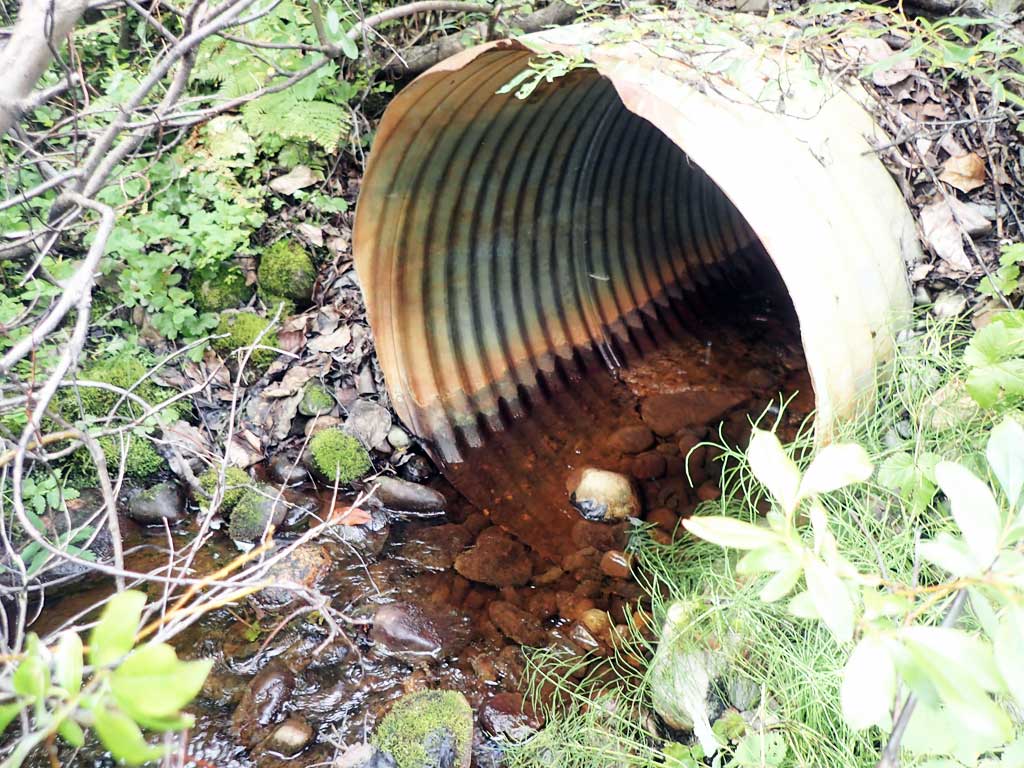

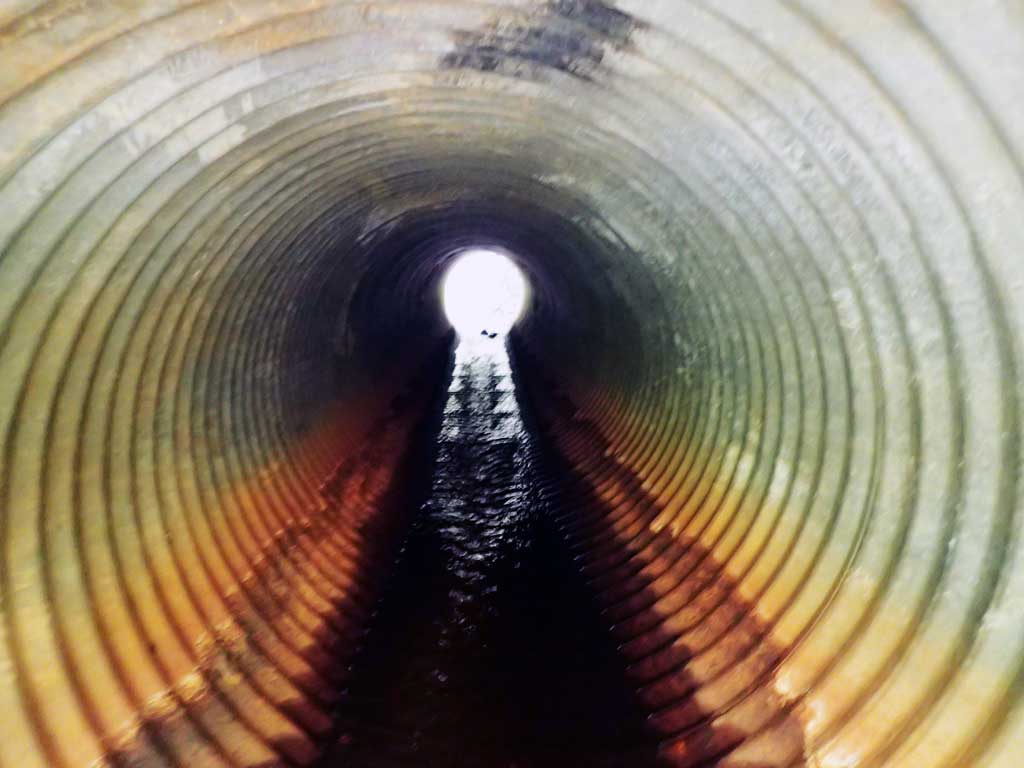

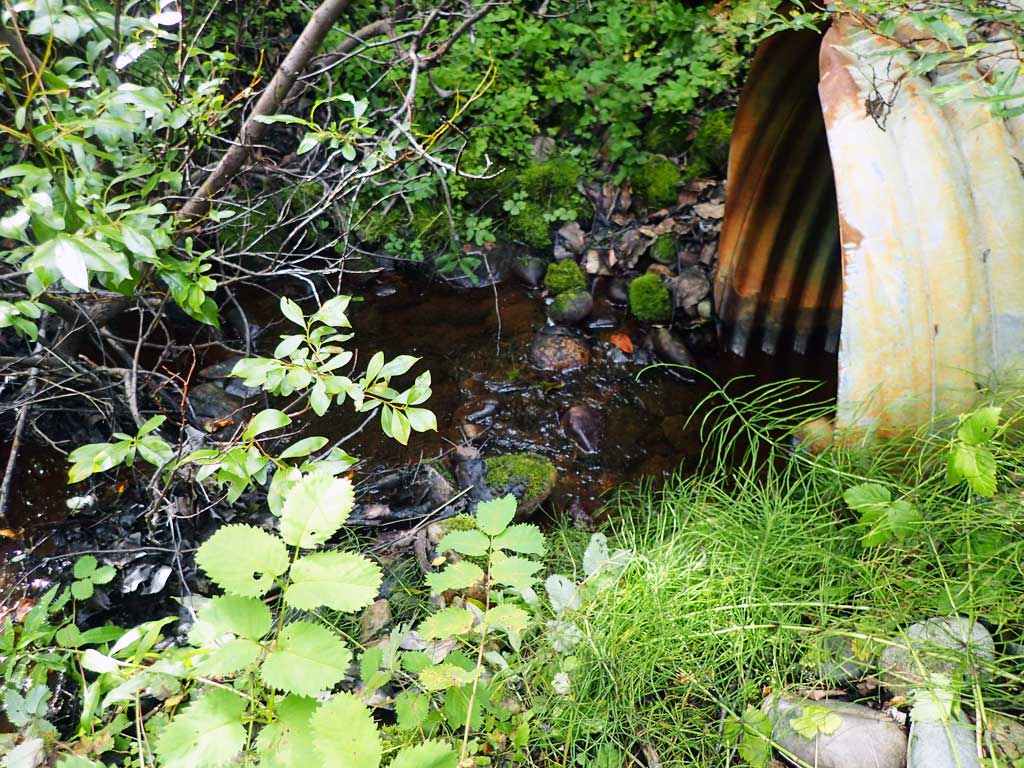

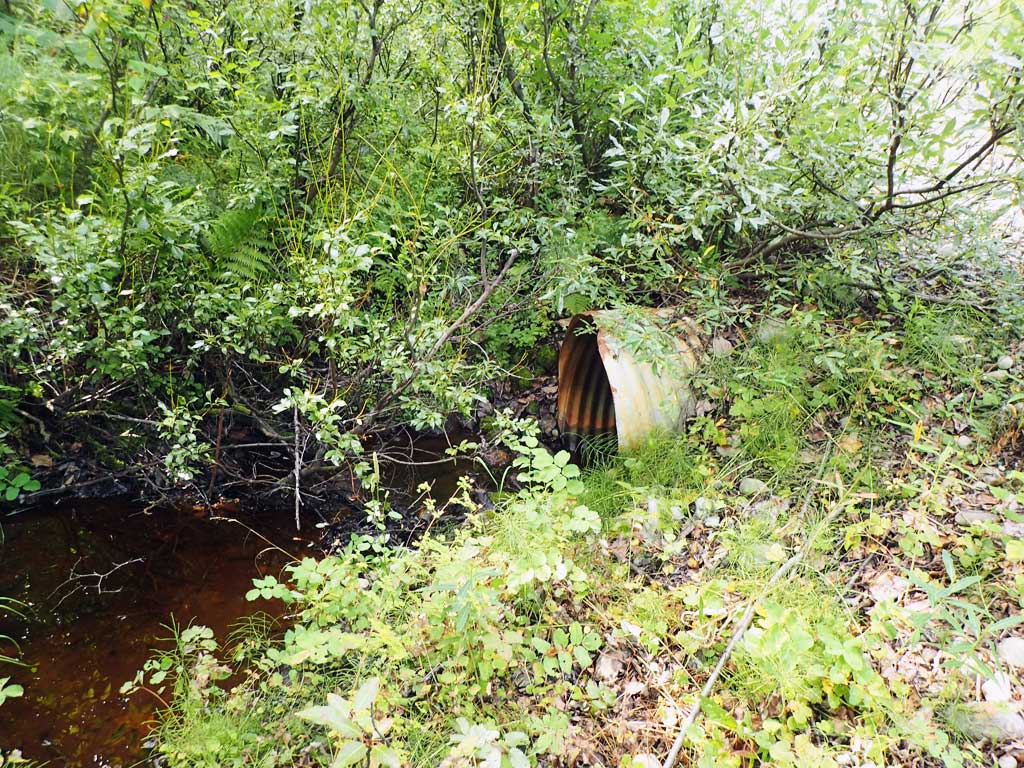

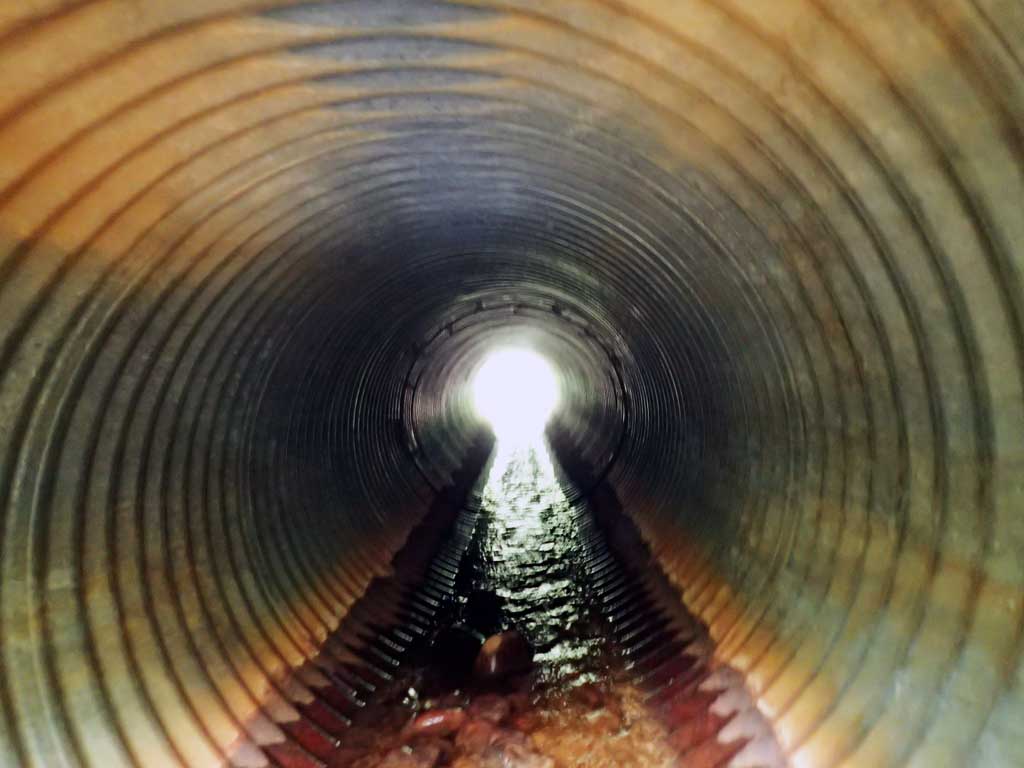

ID: 1 Structure Type: Circular pipe (Corrugated steel) Fish Passage Rating: Black

Length(ft): 29.9
Inlet Type: Projecting
Outlet Type: Projecting
Corrugation Depth(in.): 0.5
Corrugation Width(in.): 2.75
Condition Rating(1-5): 3
Approach Angle:
Sedimentation At Inlet:
Inlet Substrate: Gravel
Outlet Substrate: None
InletOutlet
Width(ft):3.0 3.0
Height(ft):3.0 3.0
Apron Length(ft):
Water Depth(ft):
Rustline Height(ft):0.5
Substrate Depth(ft):0.1
Backwatered?: No
Baffles Present: No
Embedded?: No
Outfall Height: 0.0
Outfall Type: At Stream Grade
Constriction Ratio:
Culvert Gradient:
Max Slope:
Max Slope Length:

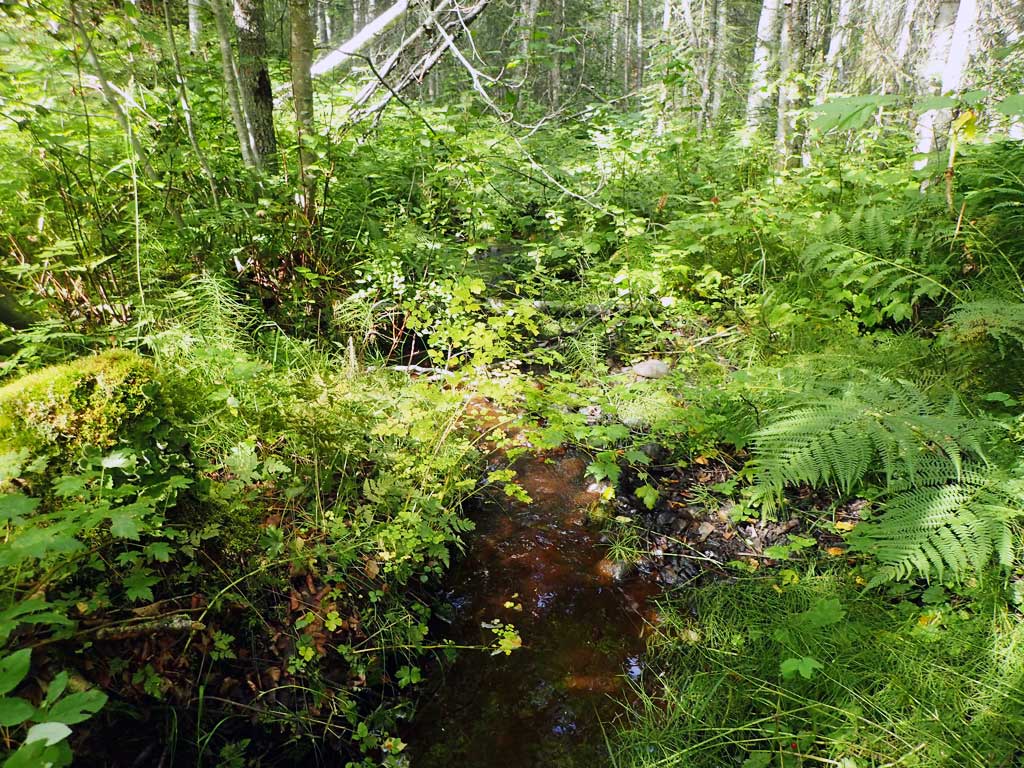

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:CobbleGravel
Subdominant:GravelCobble
Stream Slope(deg.):
Stream Flow Stage:Medium

No stream width data available.

Elevations

No elevation data available.

Fish Sampling Efforts

Gear Type: Minnow Trap (A) Trap Duration(h): 2.5
Comments: Trap set about 20 feet upstream. No fish caught or observed.

Gear Type: Minnow Trap (B) Trap Duration(h): 2.5
Comments: Trap set about 30 feet downstream. No fish caught or observed.

Gear Type: Smith-Root LR-24 (C) Trap Duration(h): 0
Comments: 08/31/18 No fish captured or observed

Fish Observations

No fish observations occurred during this survey.

Questions or comments about this report can be directed to dfg.dsf.webmaster@alaska.gov
