Fish Passage Site 20501164

Coordinates (dec. deg.): 61.63005°, -149.83389°
Legal Description: S018N003W21
Region: South Central

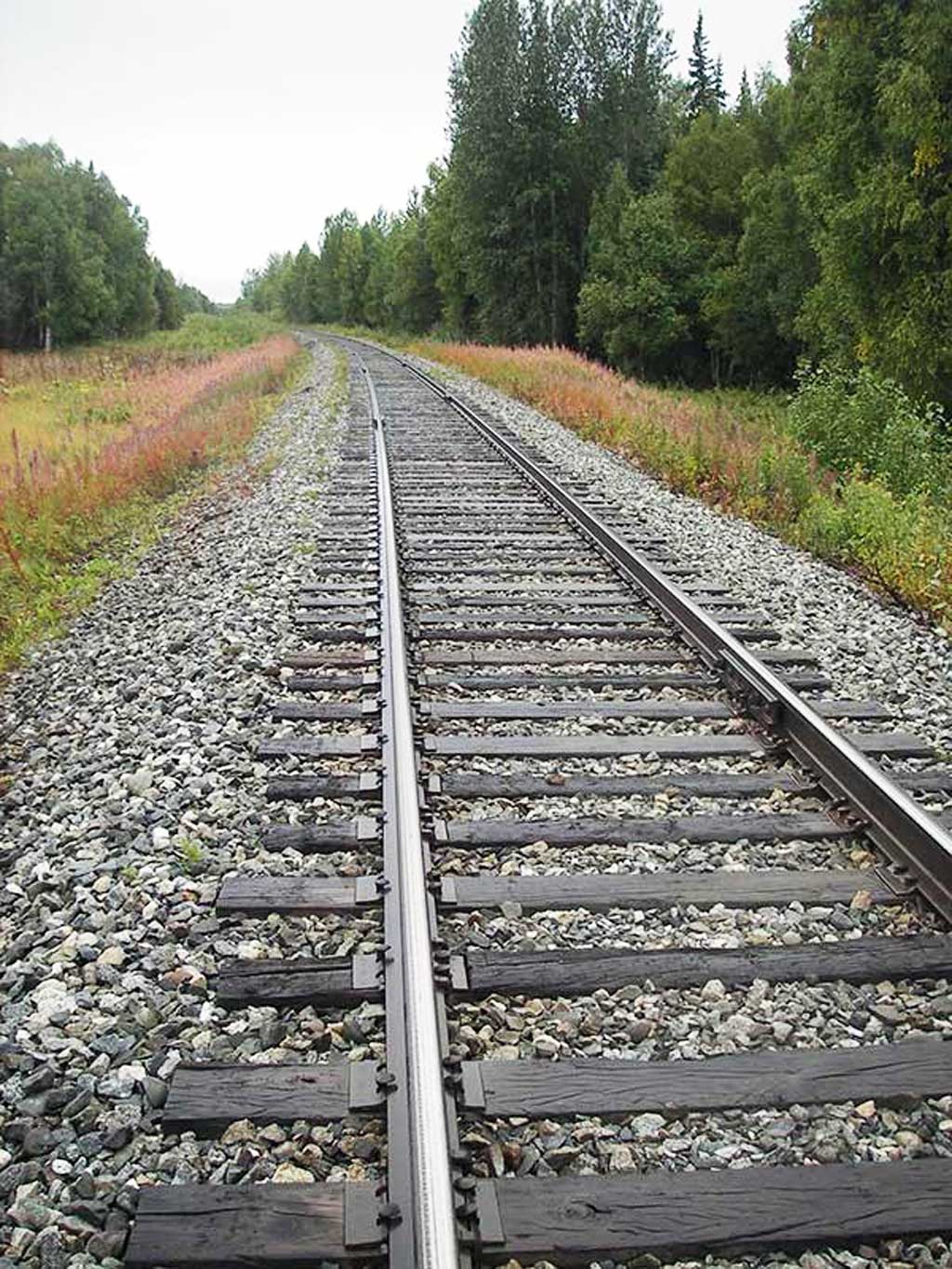

Road Name: Alaska Railroad

Datum: WGS84
Quad Name / ITM: Anchorage C-8
AWC Stream #:
Stream Name:

Elevation:

Site Comments: MP 174.548 Located right where the Little Su crosses the railway.but on a trib.

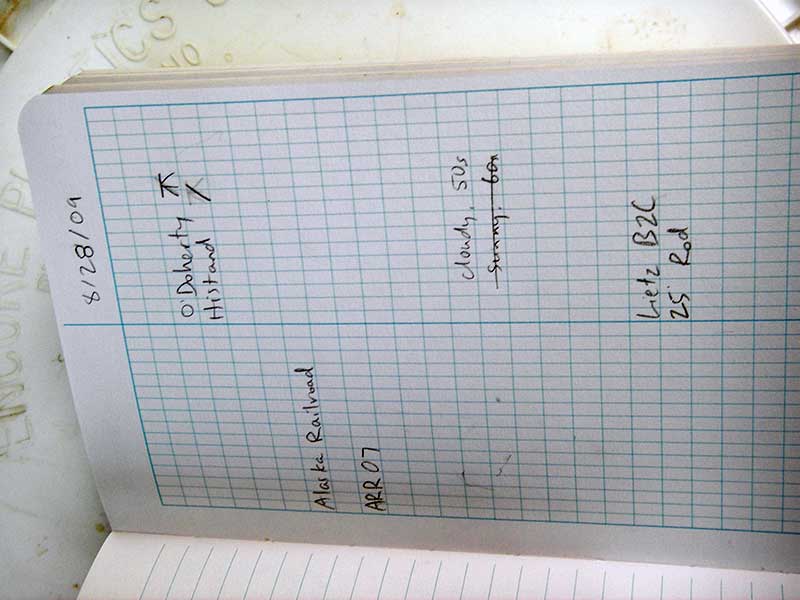

Survey Date: Aug 28, 2009

Survey MSB09-ARR07

Project Supervisor: Gillian O'Doherty, ADFG
Observers: Gillian O'Doherty, Ben Histand

Overall Fish Passage Rating: Black

Tidal: No
Backwatered: No

Step Pools: No
Construction Year:


Site Observations:

  1. Mechanical damage or joints parting

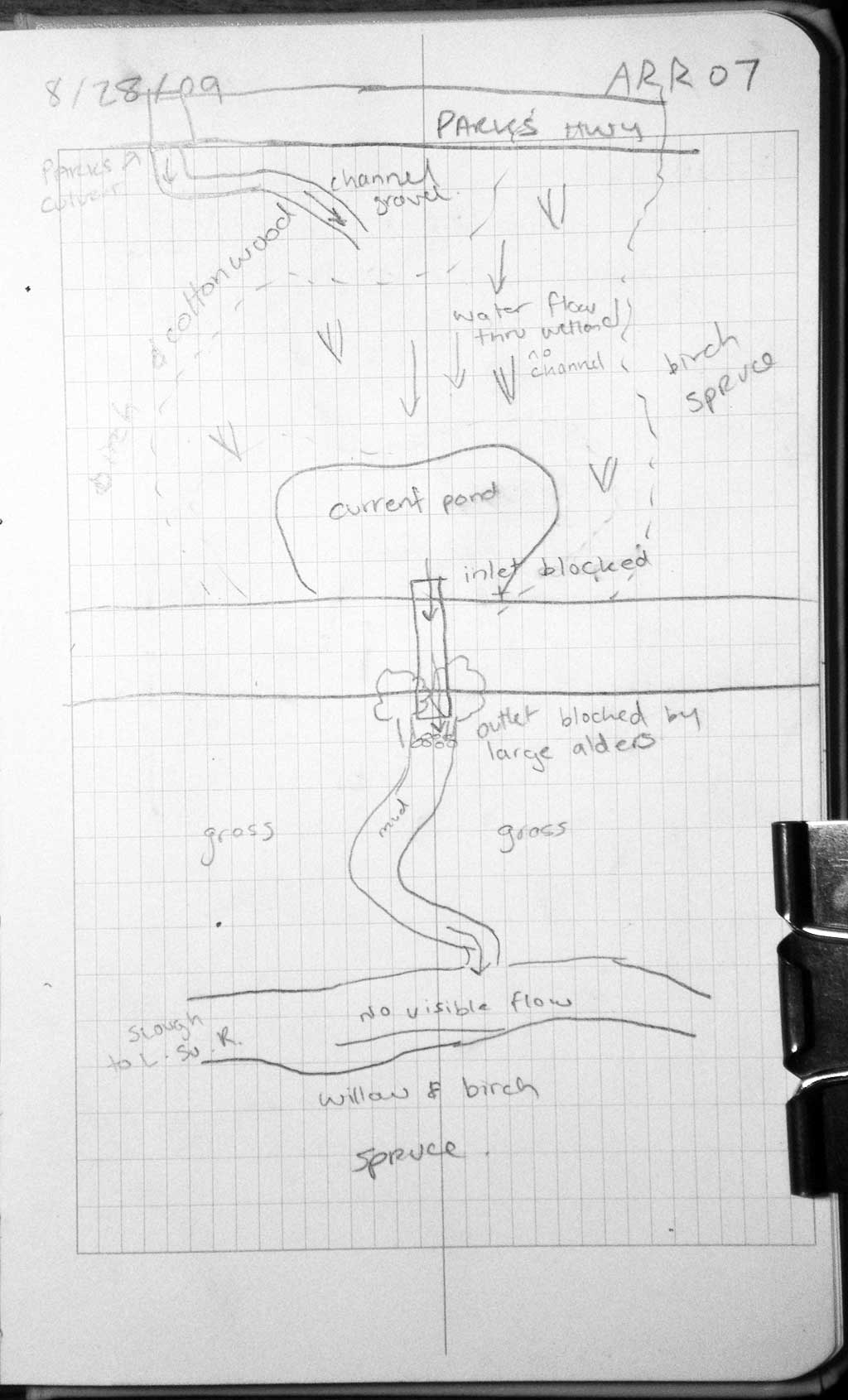

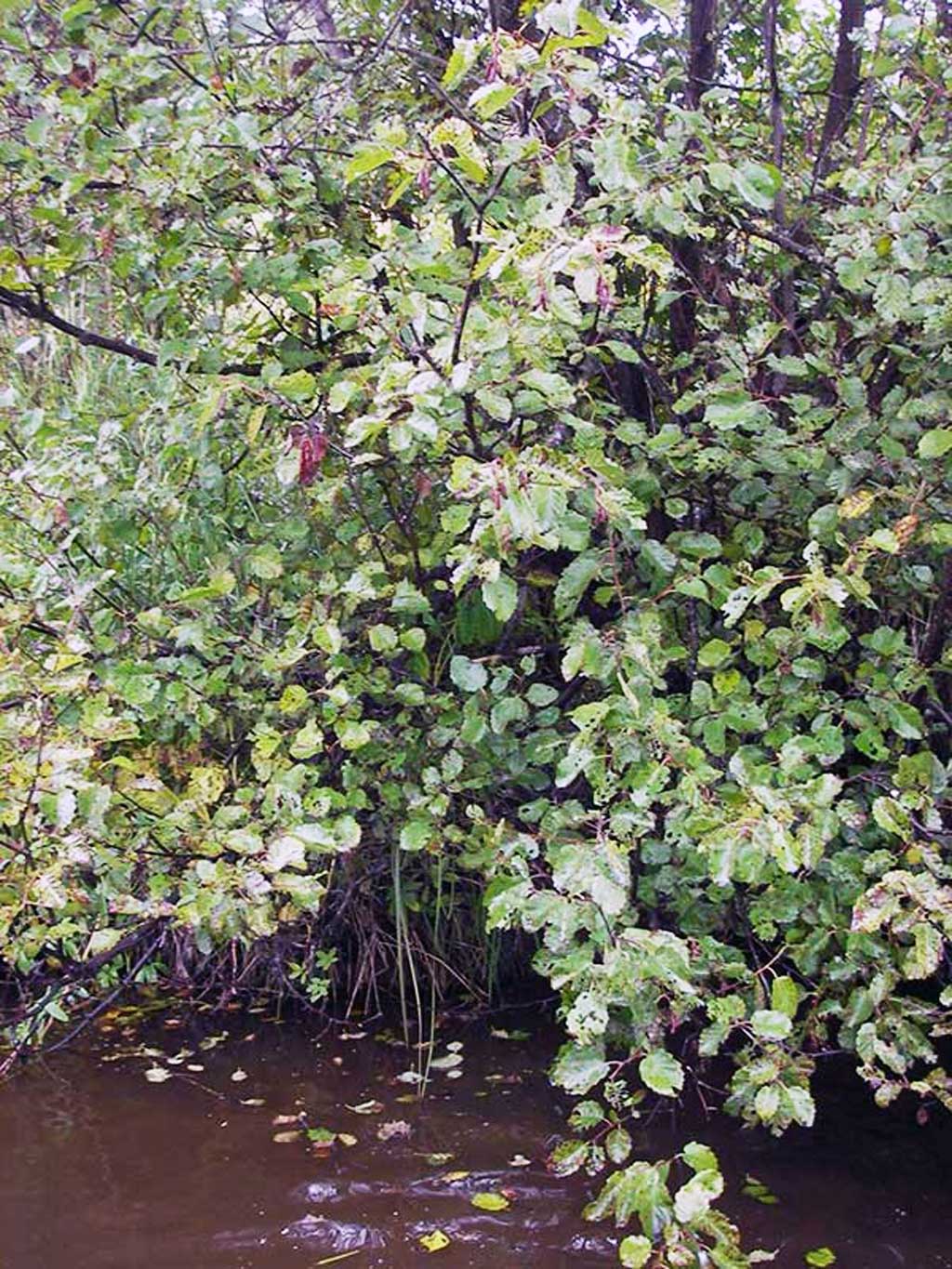

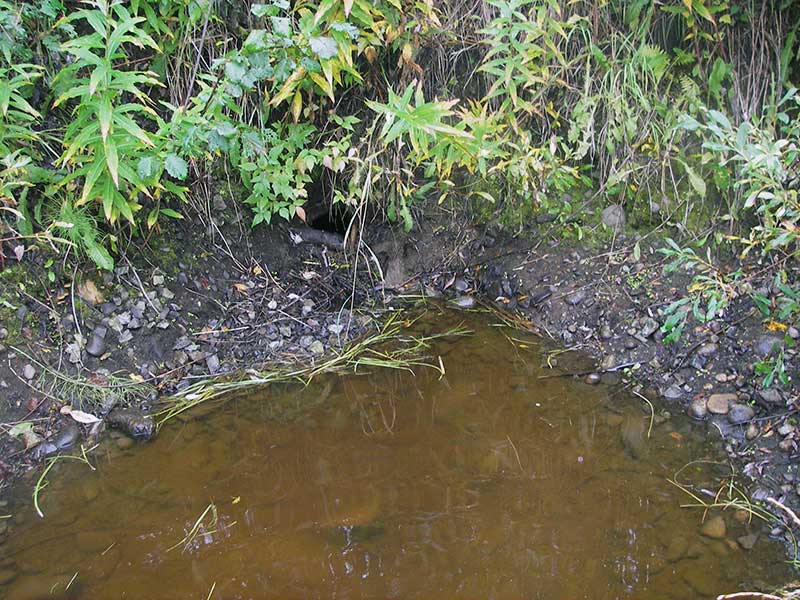

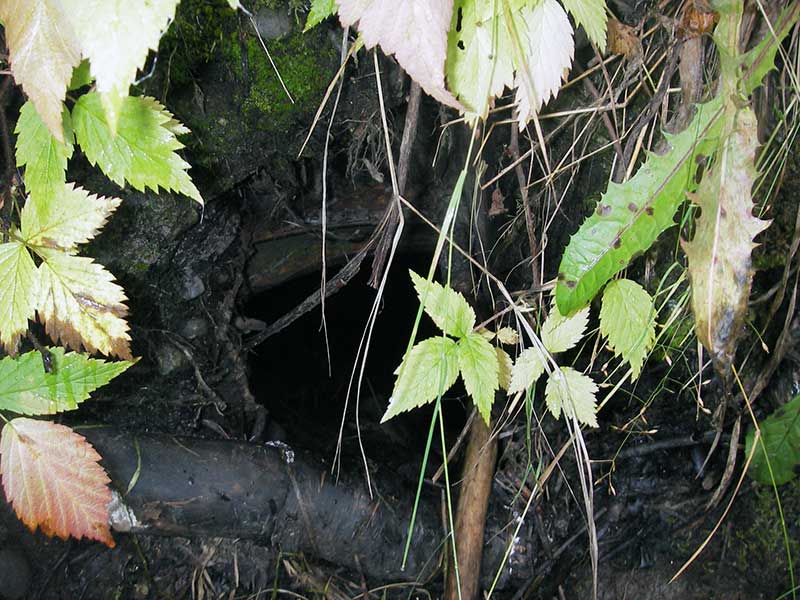

Comments: Inlet collapsed, blocked, outlet damaged; unable to take other measurements.

Culvert Measurements

ID: 1 Structure Type: Circular pipe (Reinforced concrete) Fish Passage Rating: Black

Length(ft):
Inlet Type: Projecting
Outlet Type: Projecting
Corrugation Depth(in.):
Corrugation Width(in.):
Condition Rating(1-5): 1
Approach Angle: 0.0
Sedimentation At Inlet: Yes
Inlet Substrate: Gravel
Outlet Substrate: Gravel
InletOutlet
Width(ft): 2.5
Height(ft): 1.9
Apron Length(ft):
Water Depth(ft): 1.3
Rustline Height(ft):
Substrate Depth(ft):
Backwatered?: No
Baffles Present: No
Embedded?: No
Outfall Height: 0.0
Outfall Type: At Stream Grade
Constriction Ratio:
Culvert Gradient:
Max Slope:
Max Slope Length:
  Culvert Observations:
  1. Mechanical damage or joints parting

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:Silt/ClaySilt/Clay
Subdominant:Silt/ClaySilt/Clay
Stream Slope(deg.):
Stream Flow Stage:Medium

No stream width data available.

Elevations

No elevation data available.

Fish Sampling Efforts

No fish sampling occurred during this survey.

Fish Observations

No fish observations occurred during this survey.

Questions or comments about this report can be directed to dfg.dsf.webmaster@alaska.gov
