Fish Passage Site 20501115

Coordinates (dec. deg.): 62.48607°, -150.76566°
Legal Description: S028N008W28
Region: South Central

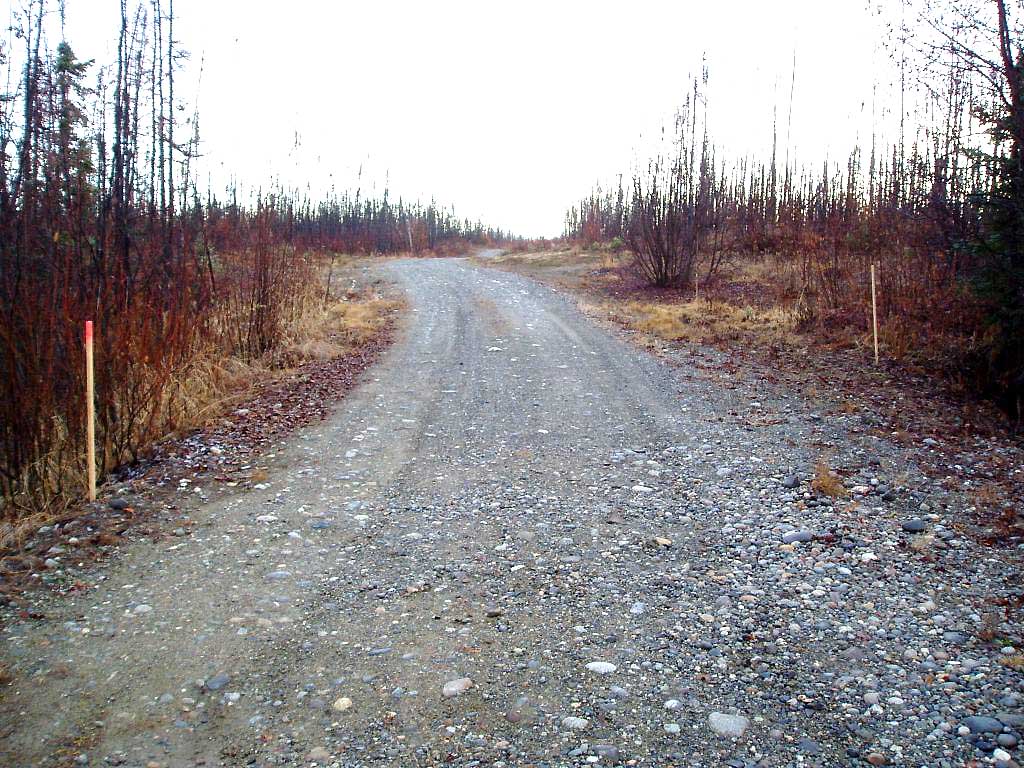

Road Name: Horseshoe Lake Road

Datum: NAD83
Quad Name / ITM: Talkeetna B-2
AWC Stream #:
Stream Name: Unnamed

Elevation:

Site Comments: None

Multiple surveys have been conducted at this site — click on the drop down
arrow to the right of the survey date below to choose a different report for this site.

Survey MSB04-ML089

Observers: Gary Greenberg, Jen Ransom

Overall Fish Passage Rating: Green

Tidal: No
Backwatered: No

Step Pools:
Construction Year:

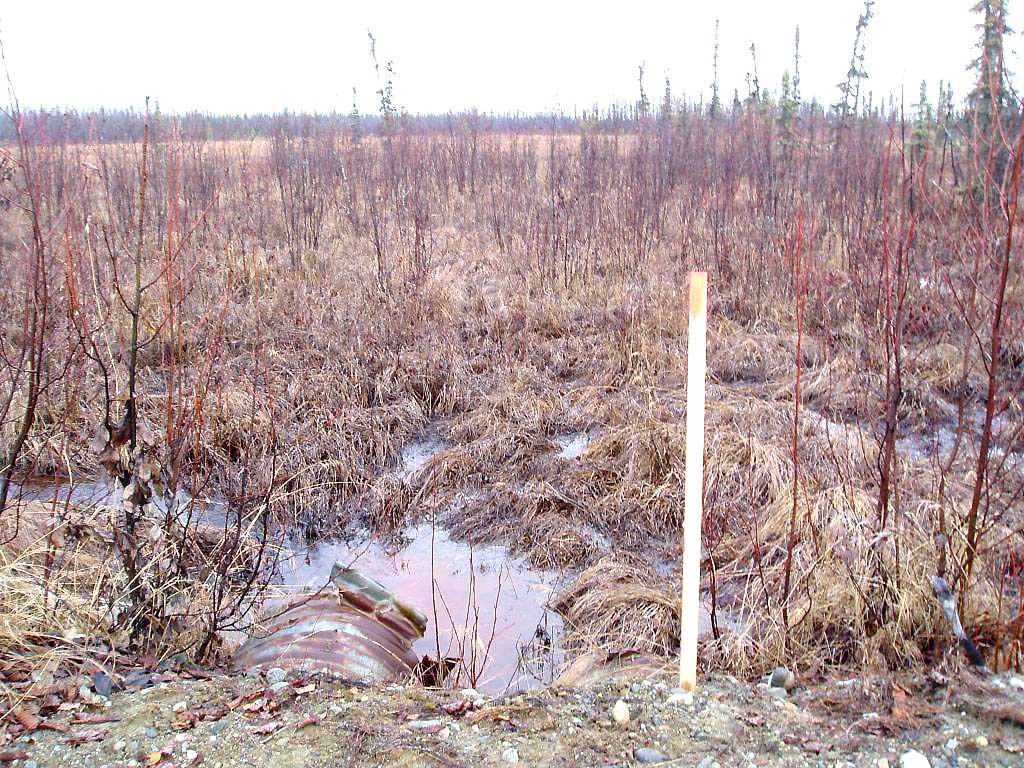

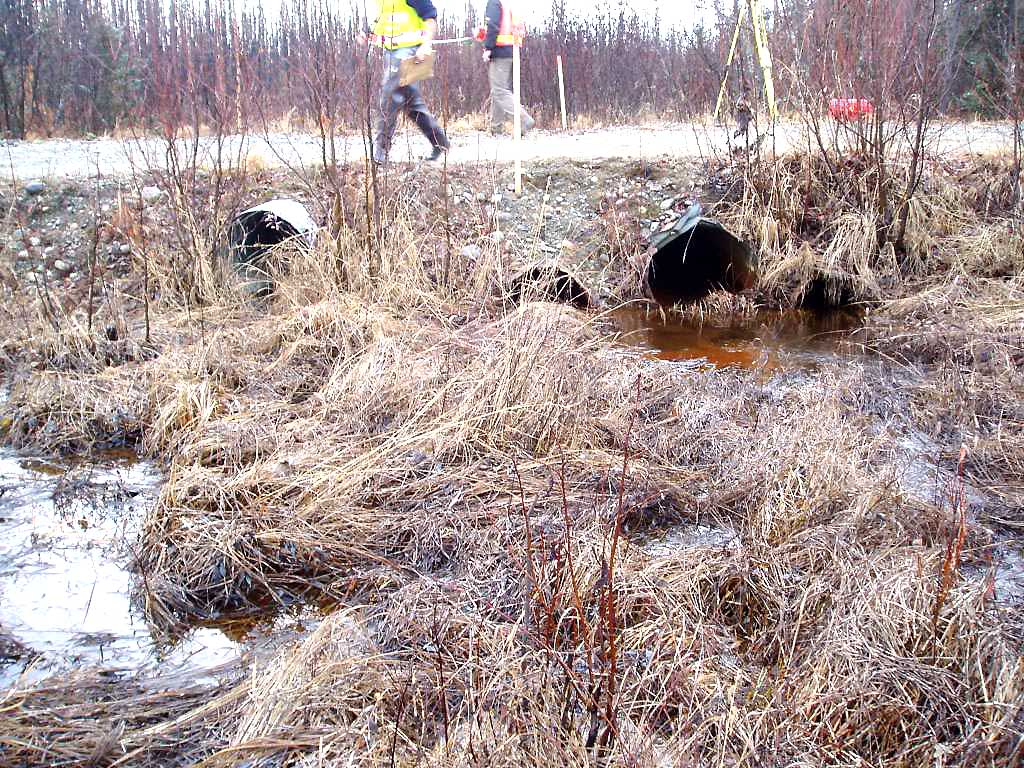

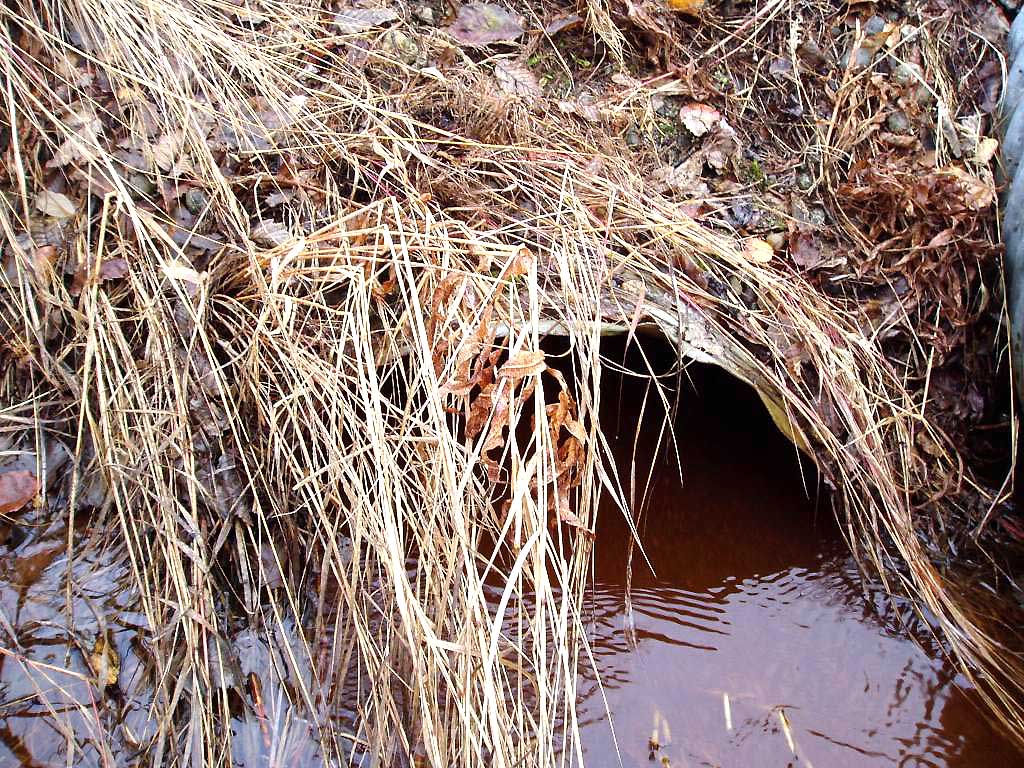

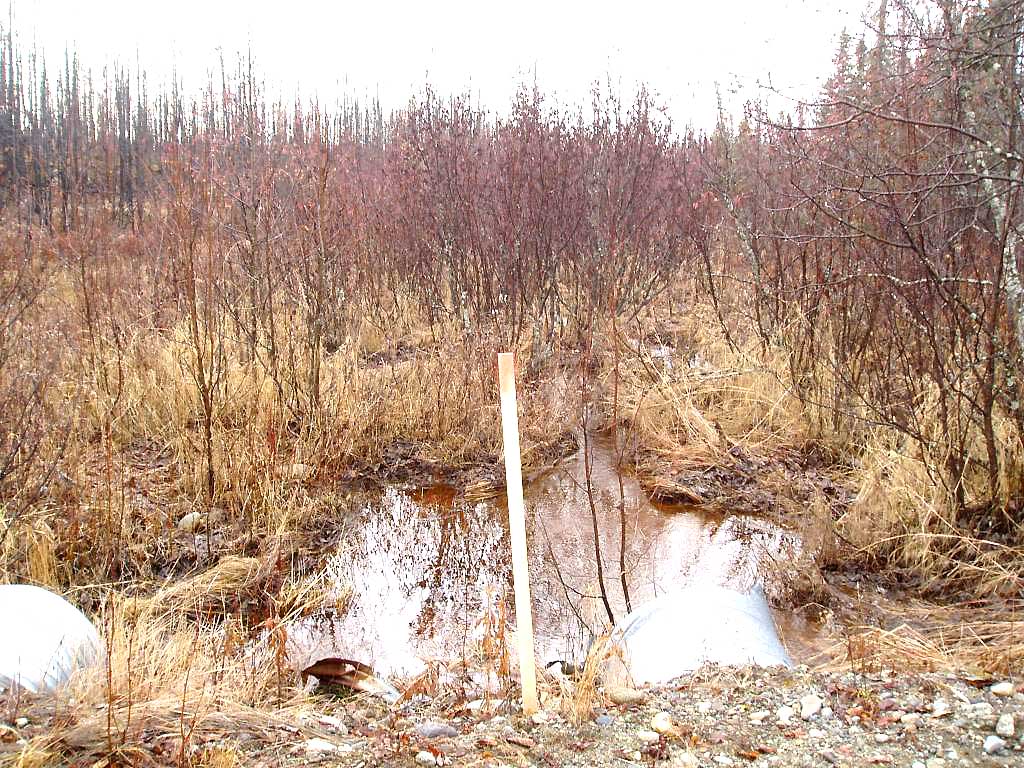

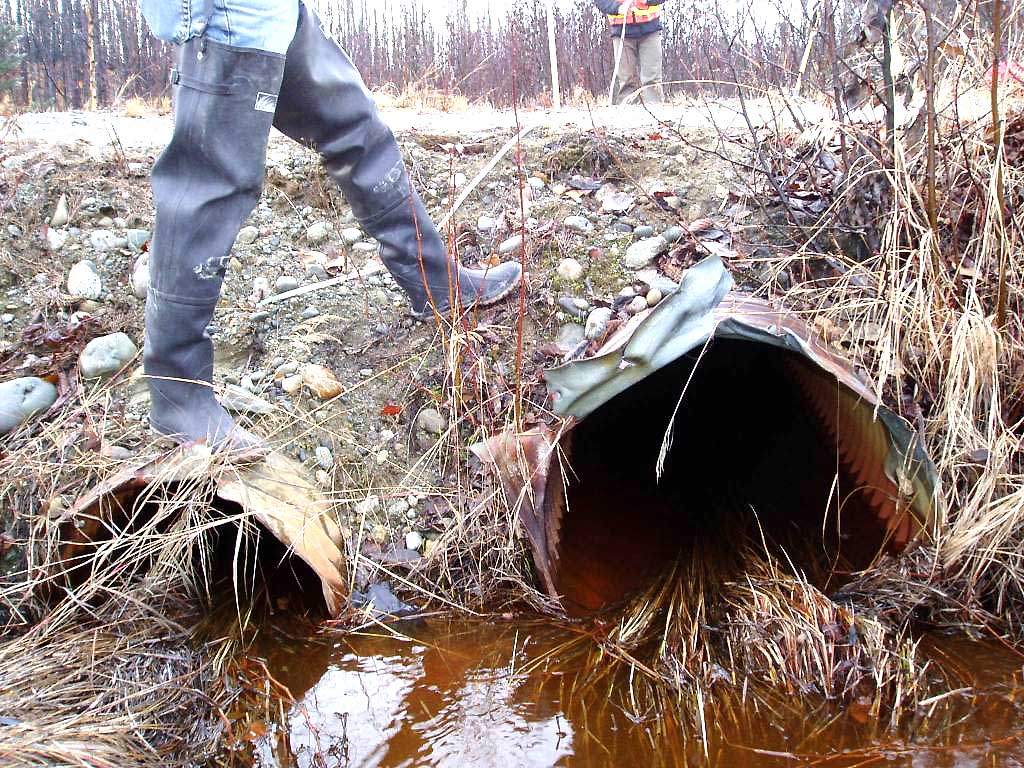

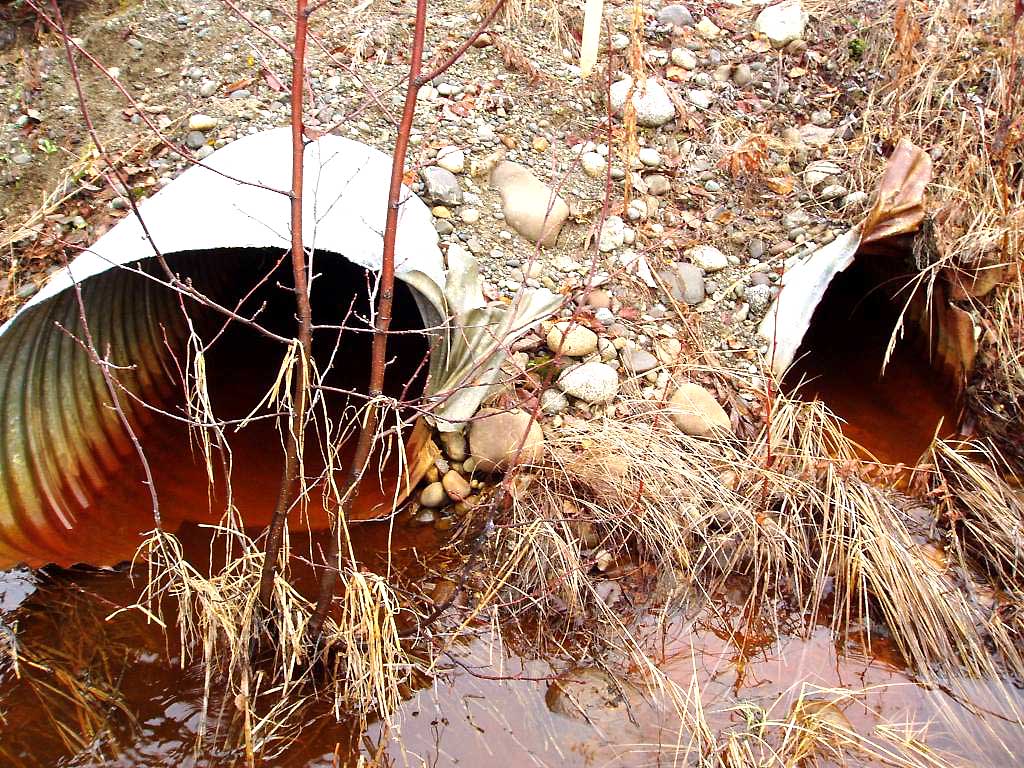

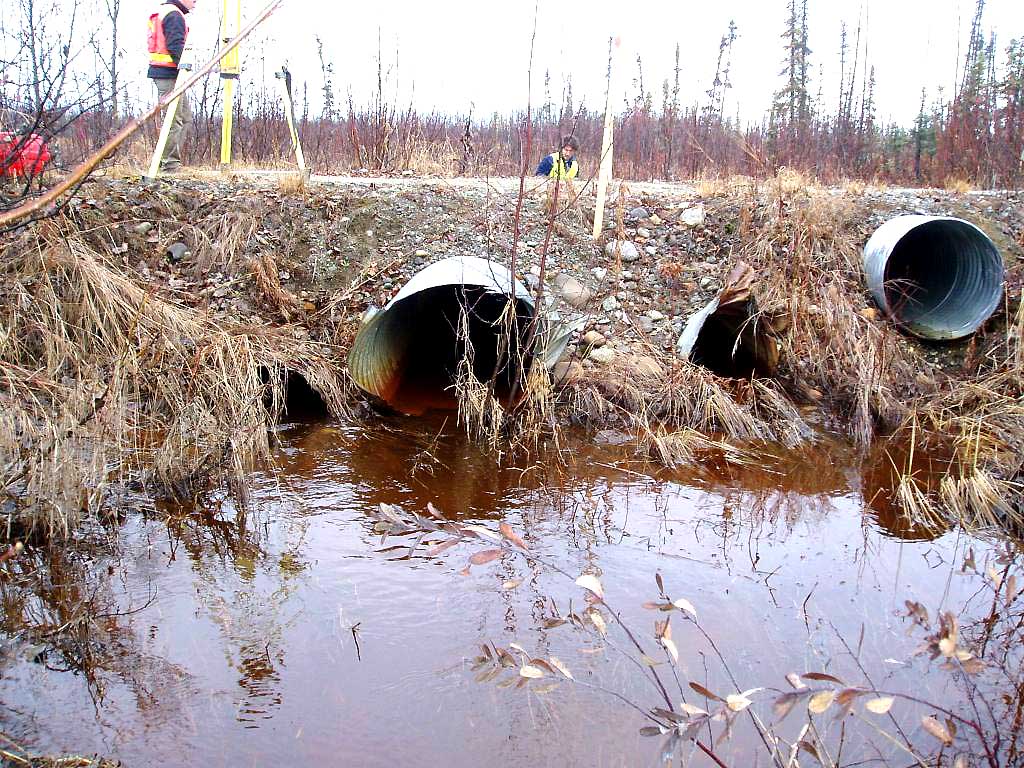

Comments: Likely passes fish but very undersized and in bad condition.

Culvert Measurements

ID: 1 Structure Type: Circular pipe (Corrugated Metal) Fish Passage Rating: Green

Length(ft): 24.3
Inlet Type: Projecting
Outlet Type: Projecting
Corrugation Depth(in.):
Corrugation Width(in.): 0.0
Condition Rating(1-5): 1
Approach Angle:
Sedimentation At Inlet:
Inlet Substrate:
Outlet Substrate:
InletOutlet
Width(ft):2.0
Height(ft):1.7
Apron Length(ft):
Water Depth(ft):0.9 0.6
Rustline Height(ft):1.2
Substrate Depth(ft):
Backwatered?:
Baffles Present: No
Embedded?: No
Outfall Height:
Outfall Type:
Constriction Ratio:
Culvert Gradient: -0.74%
Max Slope:
Max Slope Length:
ID: 2 Structure Type: Circular pipe (Corrugated Metal) Fish Passage Rating: Green

Length(ft): 26.0
Inlet Type: Projecting
Outlet Type: Projecting
Corrugation Depth(in.):
Corrugation Width(in.): 0.0
Condition Rating(1-5): 1
Approach Angle:
Sedimentation At Inlet:
Inlet Substrate:
Outlet Substrate:
InletOutlet
Width(ft):2.0
Height(ft):2.0
Apron Length(ft):
Water Depth(ft):1.4 1.3
Rustline Height(ft):1.7
Substrate Depth(ft):
Backwatered?:
Baffles Present: No
Embedded?: No
Outfall Height:
Outfall Type: At Stream Grade
Constriction Ratio:
Culvert Gradient: -0.88%
Max Slope:
Max Slope Length:
ID: 3 Structure Type: Circular pipe (Corrugated Metal) Fish Passage Rating: Green

Length(ft): 25.9
Inlet Type: Projecting
Outlet Type: Projecting
Corrugation Depth(in.):
Corrugation Width(in.): 0.0
Condition Rating(1-5): 1
Approach Angle:
Sedimentation At Inlet:
Inlet Substrate:
Outlet Substrate:
InletOutlet
Width(ft):2.4
Height(ft):2.4
Apron Length(ft):
Water Depth(ft):0.7 0.4
Rustline Height(ft):1.3
Substrate Depth(ft):
Backwatered?:
Baffles Present: No
Embedded?: No
Outfall Height:
Outfall Type: At Stream Grade
Constriction Ratio:
Culvert Gradient: 0.31%
Max Slope:
Max Slope Length:

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:
Subdominant:
Stream Slope(deg.):
Stream Flow Stage:

No stream width data available.

Elevations

Locator ID Culvert
Number		 River
Distance (ft)1		 Distance From
Crossing (ft)2		 Relative
Elevation (ft)
OHW Left Bank 97.16
OHW Left Bank 97.20
D/S Tailcrest or 1st Thalweg 0.00 11.5 96.25
D/S Thalweg 6.10 5.4 95.93
Max Pool Depth 6.50 5.0 96.60
Outlet Invert 1 11.50 0.0 96.68
Outlet Invert 2 11.50 0.0 96.13
Outlet Invert 3 11.50 0.0 96.45
Road Elev 24.00 100.04
Inlet Culvert Invert 2 36.50 0.0 95.90
Inlet Culvert Invert 1 36.50 0.0 96.50
Inlet Culvert Invert 3 36.50 0.0 96.53
U/S Water Surface Elev 1 38.50 2.0 95.86
U/S Water Surface Elev 2 38.50 2.0 95.86
U/S Water Surface Elev 3 38.50 2.0 95.86
U/S Thalweg 3 41.50 5.0 94.91
U/S Thalweg 2 41.50 5.0 94.94
U/S Thalweg 1 41.50 5.0 95.31

Notes:

  1. River distance is measured continuously throughout the survey reach along the thalweg of the stream.
  2. Measured from each end of the crossing along the thalweg of the stream.

Fish Sampling Efforts

No fish sampling occurred during this survey.

Fish Observations

No fish observations occurred during this survey.
