Fish Passage Site 20501059

Coordinates (dec. deg.): 61.59306°, -149.62889°
Legal Description: S017N002W03
Region: South Central

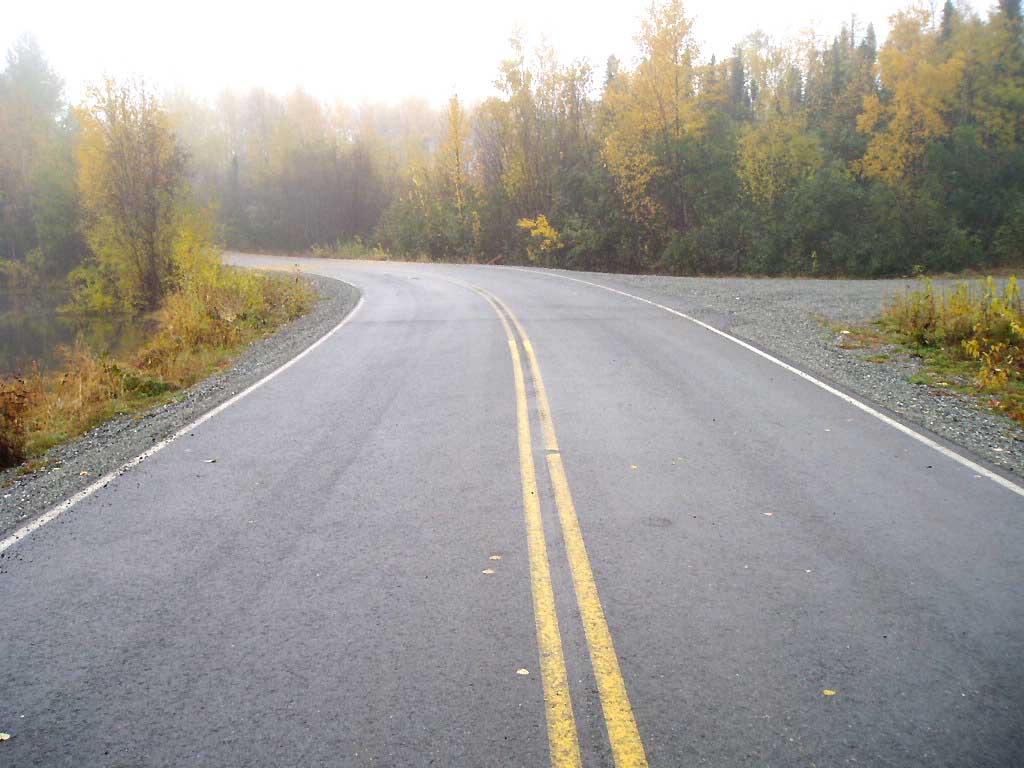

Road Name: LAKEVIEW CIRCLE

Datum: NAD83
Quad Name / ITM: Anchorage C-8
AWC Stream #:
Stream Name: Rainbow Lake Drainage

Elevation:

Site Comments: Rainbow Lake Drainage

Multiple surveys have been conducted at this site — click on the drop down
arrow to the right of the survey date below to choose a different report for this site.

Survey MSB04-ML033

Observers: Gary Greenberg, I S

Overall Fish Passage Rating: Gray

Tidal: No
Backwatered: No

Step Pools:
Construction Year:


Comments: Site resurveyed in 2010. This survey should be used for historical purposes only.

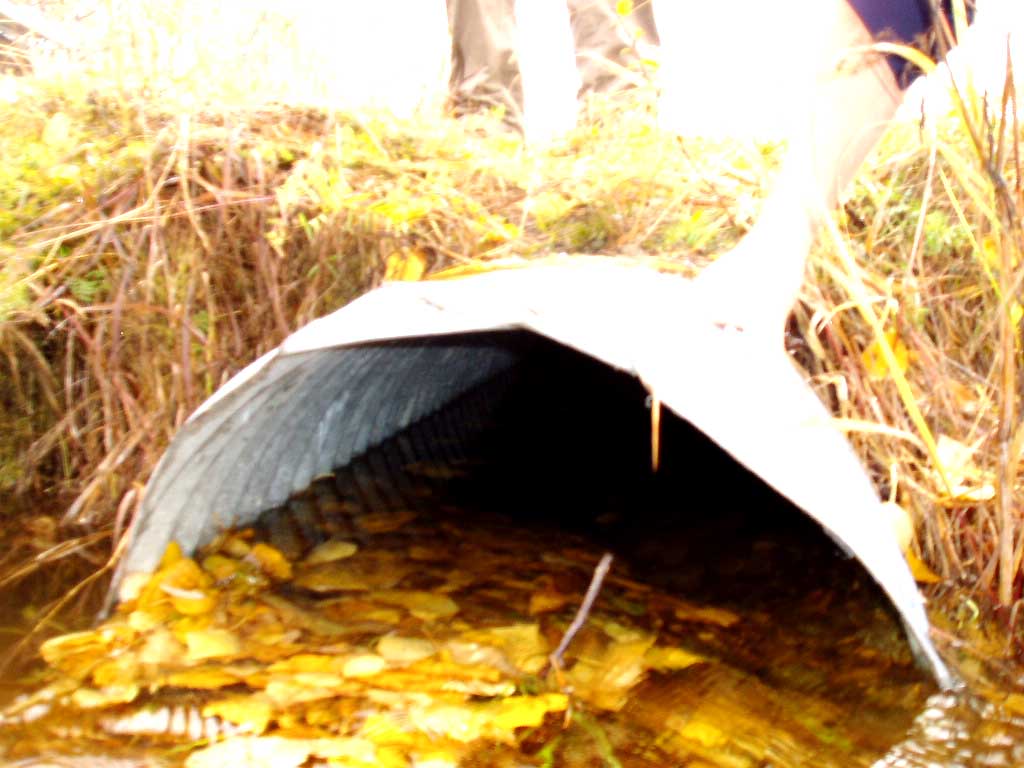

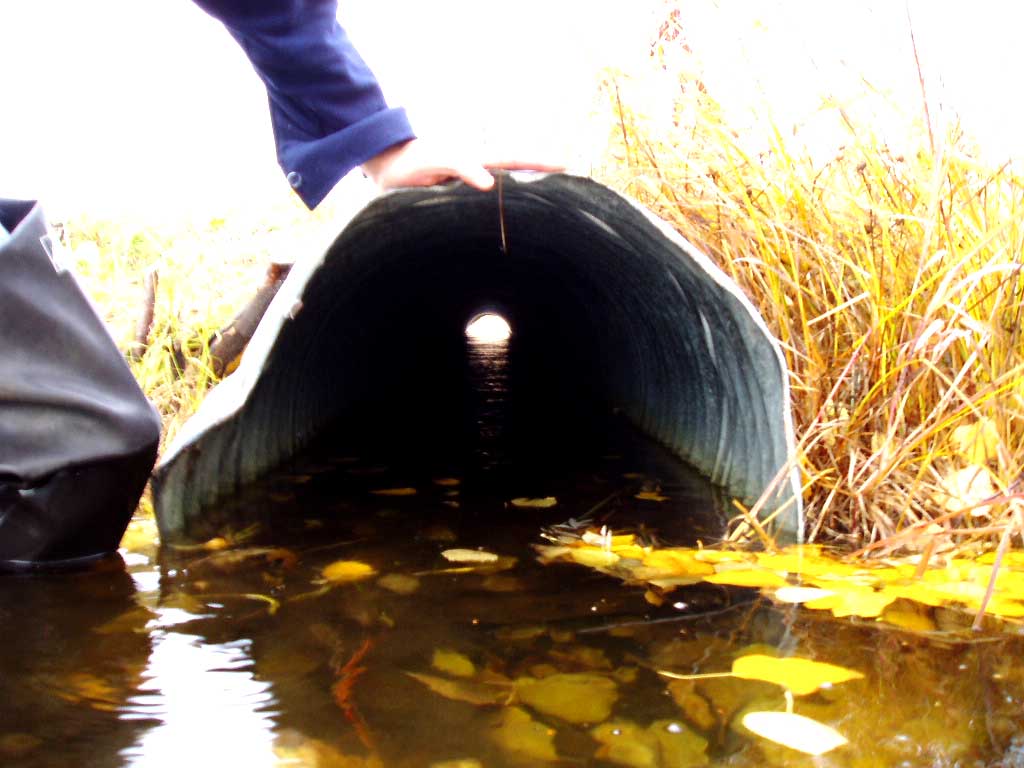

Culvert Measurements

ID: 1 Structure Type: Circular pipe (Corrugated Metal) Fish Passage Rating: Gray

Length(ft): 44.0
Inlet Type: Projecting
Outlet Type: Projecting
Corrugation Depth(in.):
Corrugation Width(in.): 0.0
Condition Rating(1-5):
Approach Angle:
Sedimentation At Inlet:
Inlet Substrate:
Outlet Substrate:
InletOutlet
Width(ft):2.0
Height(ft):2.0
Apron Length(ft):
Water Depth(ft):0.9 1.2
Rustline Height(ft):0.7
Substrate Depth(ft):
Backwatered?:
Baffles Present: No
Embedded?: No
Outfall Height:
Outfall Type: At Stream Grade
Constriction Ratio:
Culvert Gradient:
Max Slope:
Max Slope Length:

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:
Subdominant:
Stream Slope(deg.):
Stream Flow Stage:

No stream width data available.

Elevations

Locator ID Culvert
Number		 River
Distance (ft)1		 Distance From
Crossing (ft)2		 Relative
Elevation (ft)
OHW Left Bank 99.09
Max Pool Depth 0.00 3.0 97.25
D/S Thalweg 0.00 3.0 97.25
Outlet Invert 1 3.00 0.0 97.70
Road Elev 25.00 101.57
Inlet Culvert Invert 1 47.00 0.0 98.38
U/S Thalweg 1 51.00 4.0 96.18

Notes:

  1. River distance is measured continuously throughout the survey reach along the thalweg of the stream.
  2. Measured from each end of the crossing along the thalweg of the stream.

Fish Sampling Efforts

No fish sampling occurred during this survey.

Fish Observations

No fish observations occurred during this survey.
