Fish Passage Site 20703440

Coordinates (dec. deg.): 57.76481°, -152.48702°
Legal Description: S028S020W11
Region: Southwest
Road Name: Old Military Road

Datum: WGS84
Quad Name / ITM: Kodiak D-2
AWC Stream #: 259-21-10120-2006-3050
Stream Name: Genivieve Creek

Elevation:

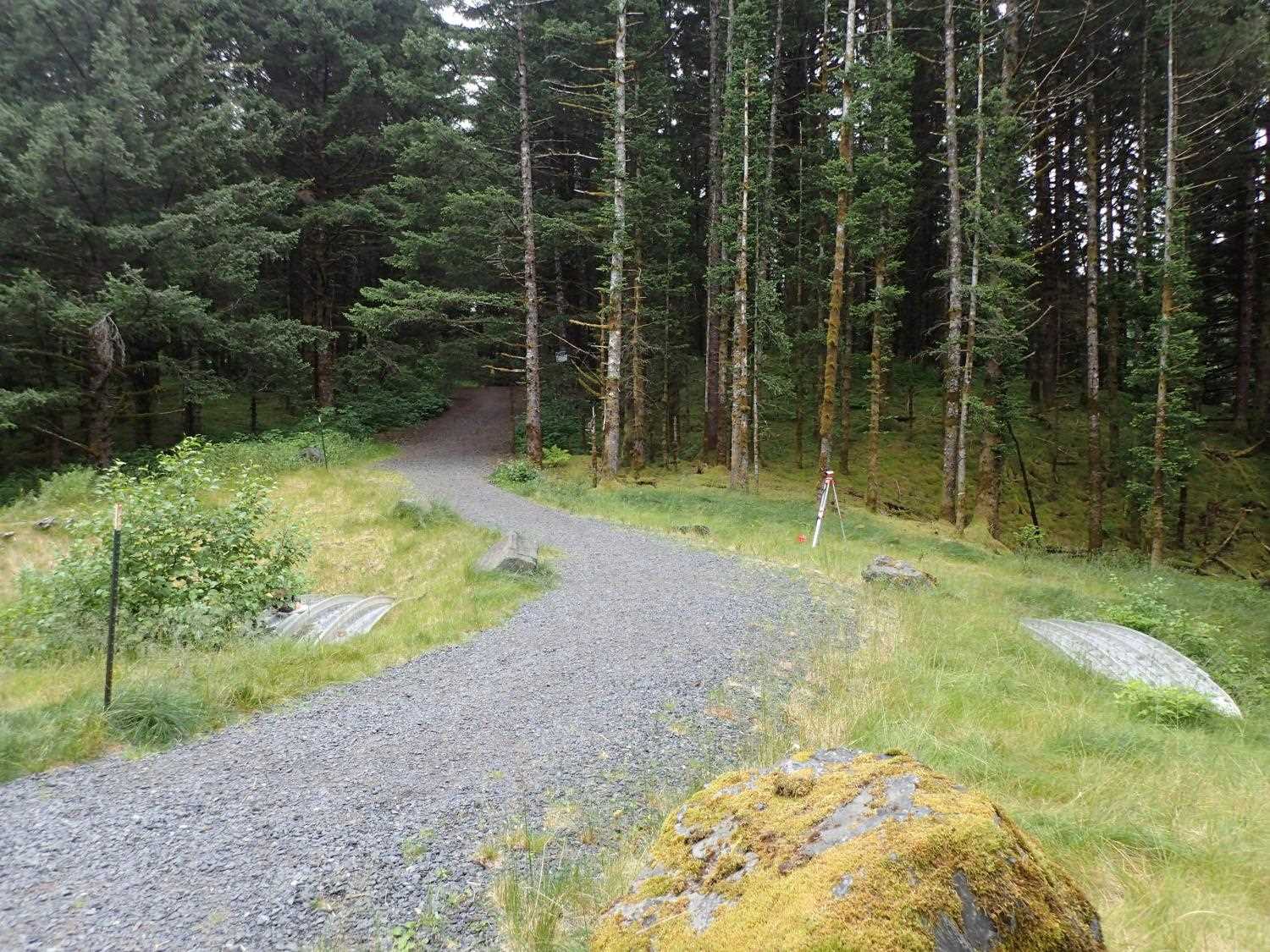

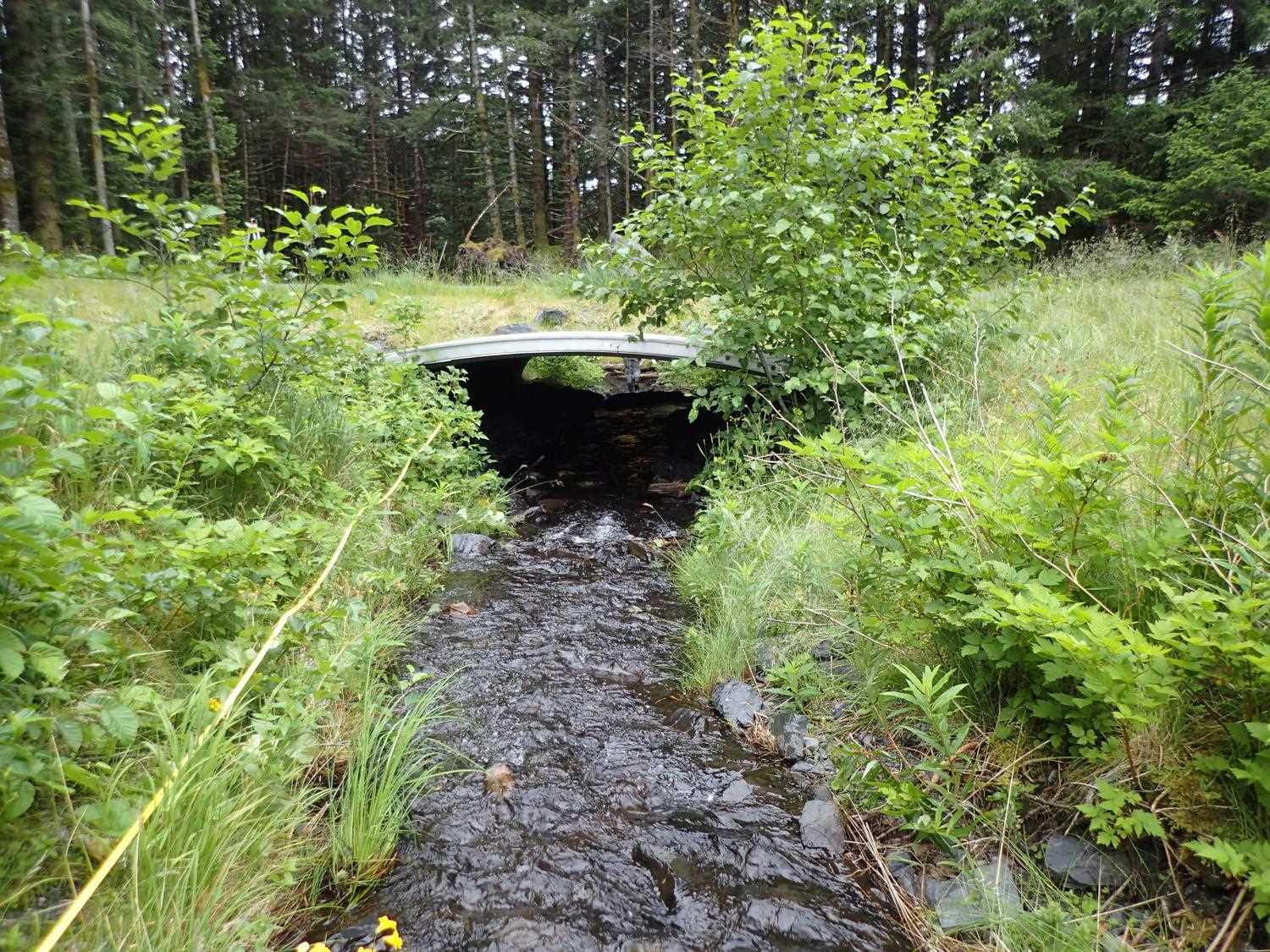

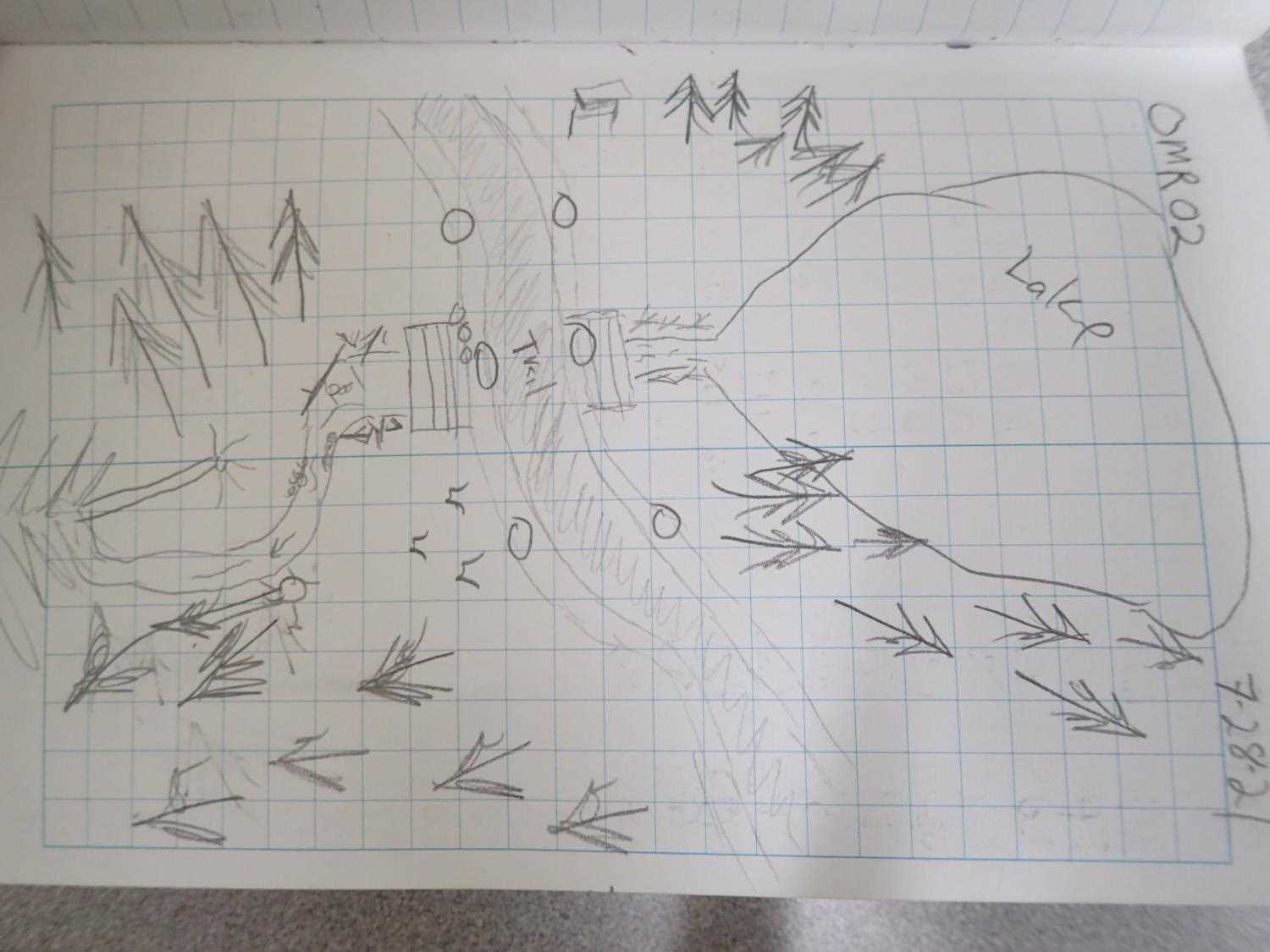

Site Comments: This is an old road converted to a trail over the outlet of Boy Scout Lake.

Multiple surveys have been conducted at this site — click on the drop down
arrow to the right of the survey date below to choose a different report for this site.

Survey UPD21-OMR01

Project Supervisor: Kim Clark, ADFG — Anchorage, AK
Observers: Kim Clark, Michael Mazzacavallo

Overall Fish Passage Rating: Green

Tidal: No
Backwatered: No

Step Pools: No
Construction Year: 2018

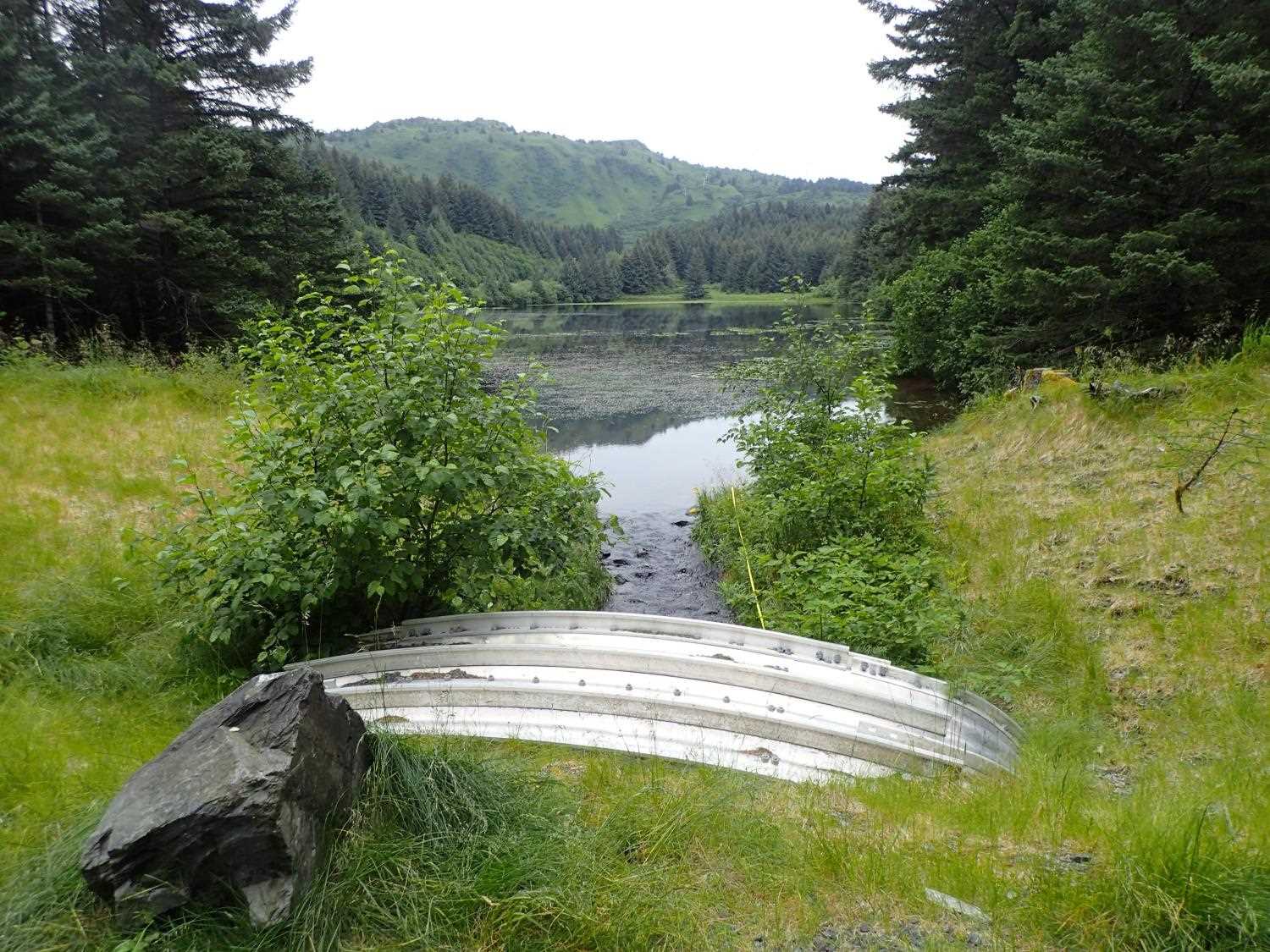

Comments: There is a lake 28 feet upstream of the culvert. Sandbag still present near lake/creek transition. Upstream stream slope is 0, downstream is 5.77%.

Culvert Measurements

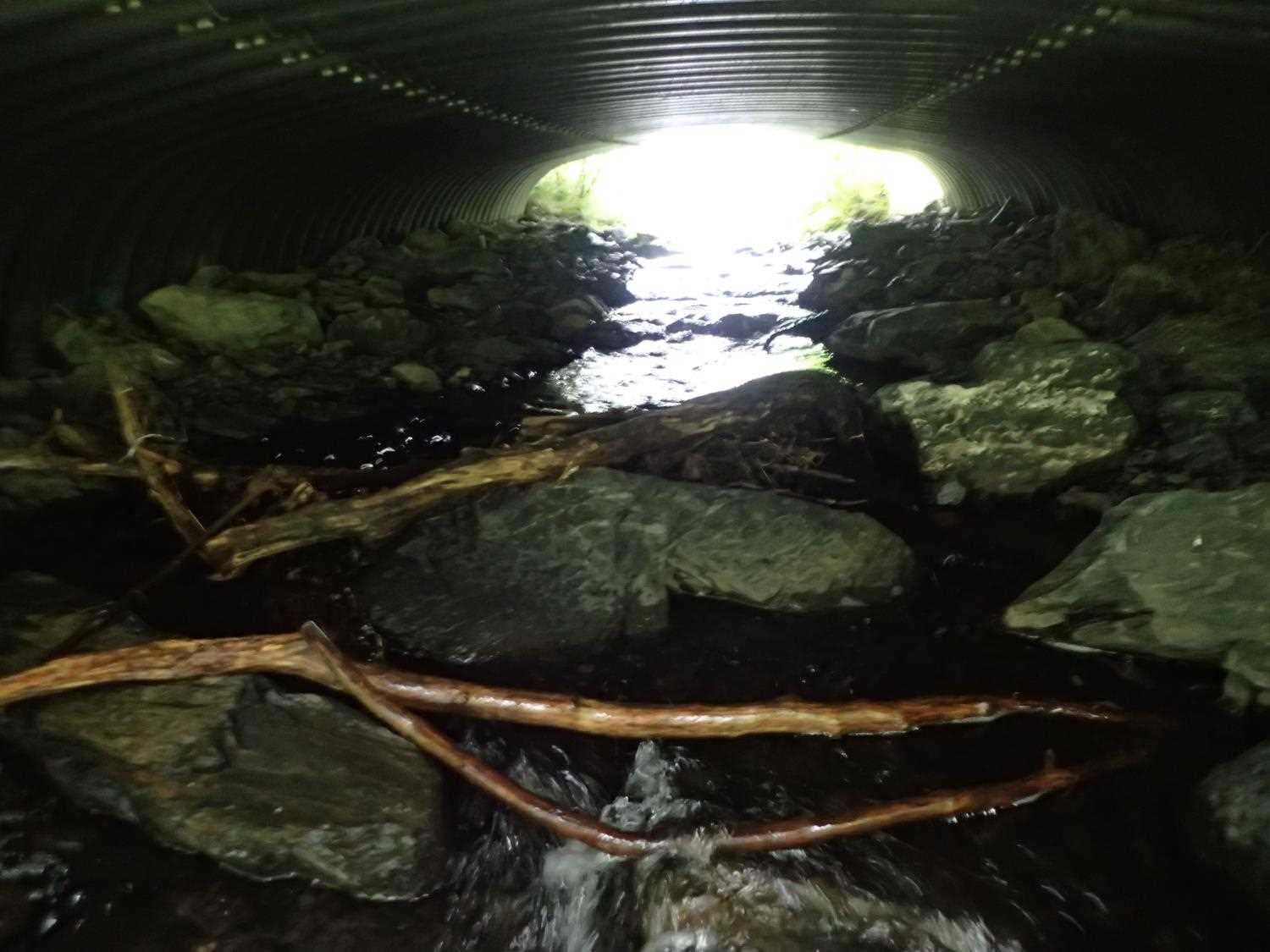

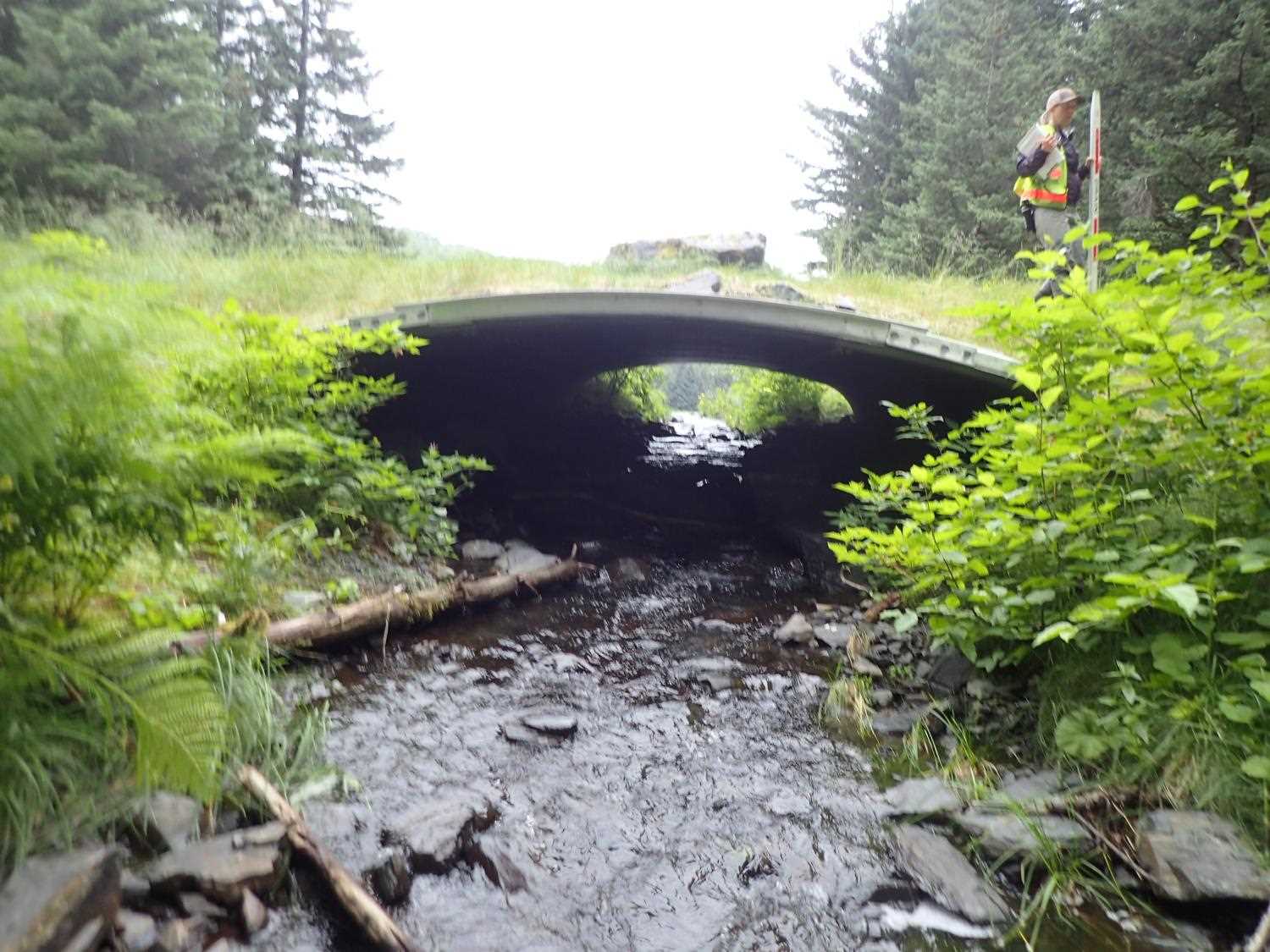

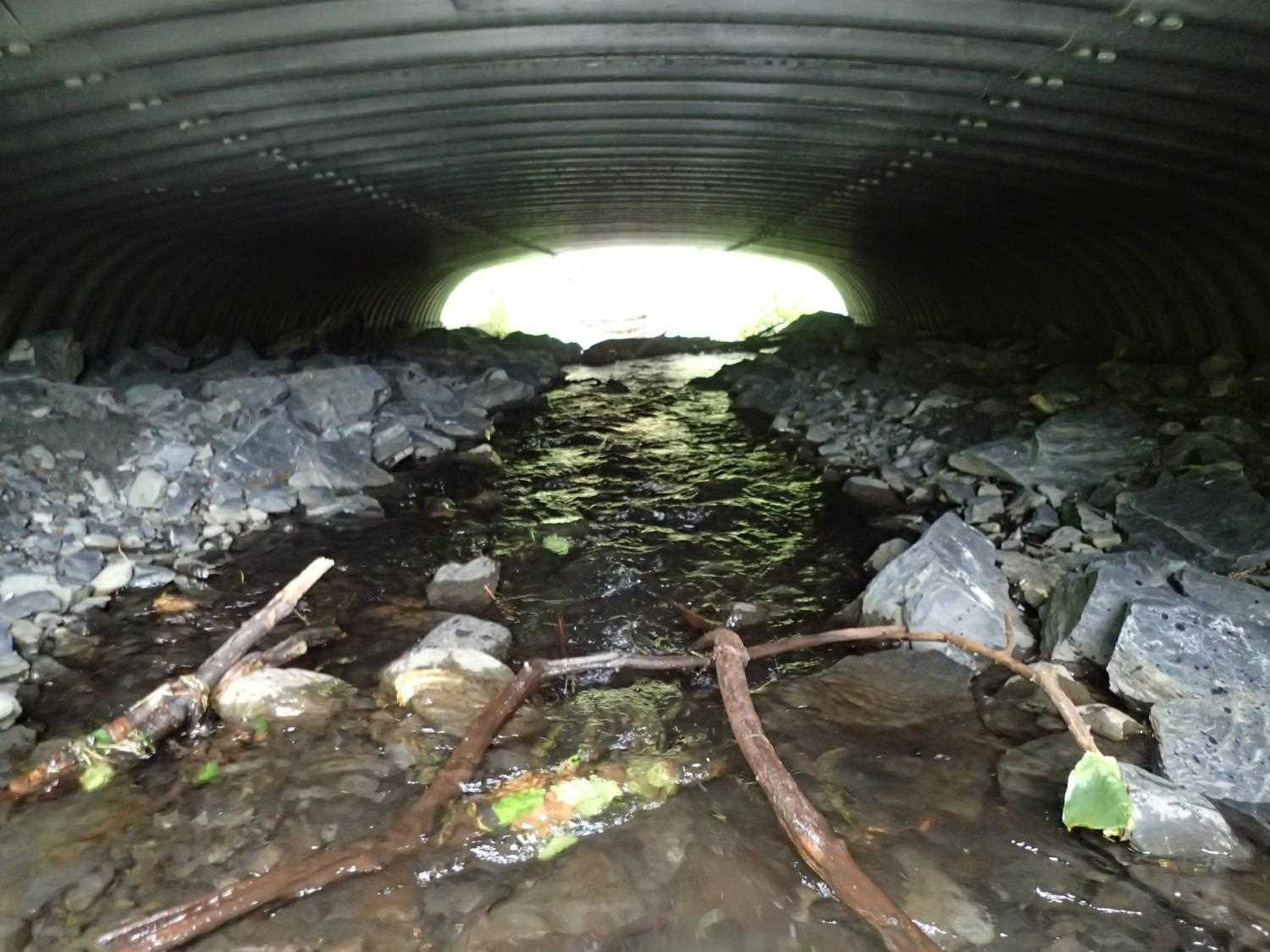

ID: 1 Structure Type: Box culvert (Structural aluminum plate) Fish Passage Rating: Green

Length(ft): 36.2
Inlet Type: Projecting
Outlet Type: Projecting
Corrugation Depth(in.): 3.0
Corrugation Width(in.): 9.0
Condition Rating(1-5): 5
Approach Angle: 0.0
Sedimentation At Inlet: No
Inlet Substrate: Gravel
Outlet Substrate: Boulder
InletOutlet
Width(ft):15.3 15.7
Height(ft):4.13 4.12
Apron Length(ft):
Water Depth(ft): 0.38
Rustline Height(ft):
Substrate Depth(ft):2.77 2.78
Backwatered?: No
Baffles Present: No
Embedded?: Yes
Embedded Depth(ft): 2.77
Outfall Height: 0.0
Outfall Type: At Stream Grade
Constriction Ratio: 2.03
Culvert Gradient: 4.12%
Max Slope:
Max Slope Length:


Comments: Culvert is at a lake outlet. Measured culvert gradient is Top: 4.12%, Water surface: 5.34%, and Invert 4.12%. Culvert dimensions per design are 16'6" x 6'8"

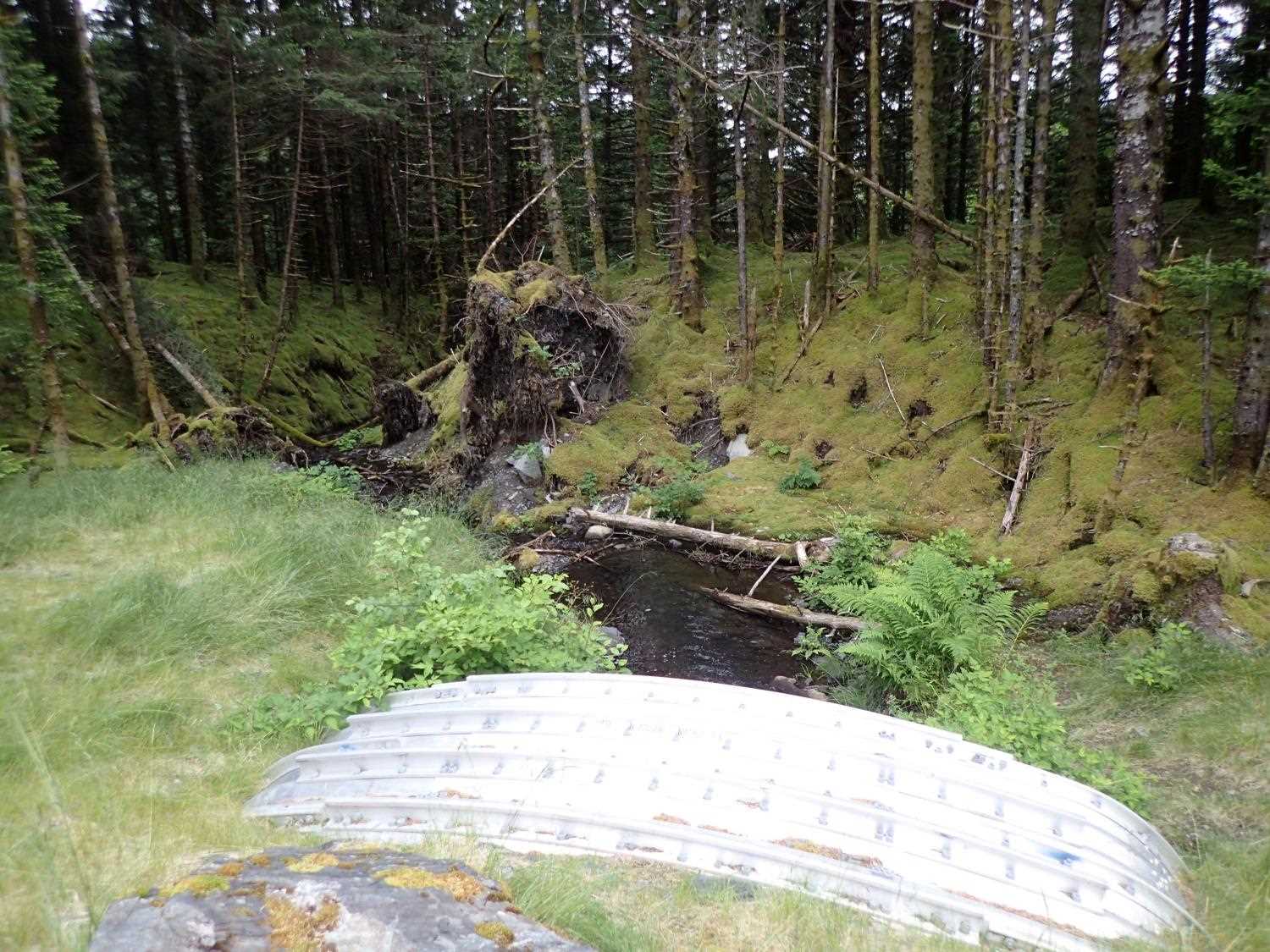

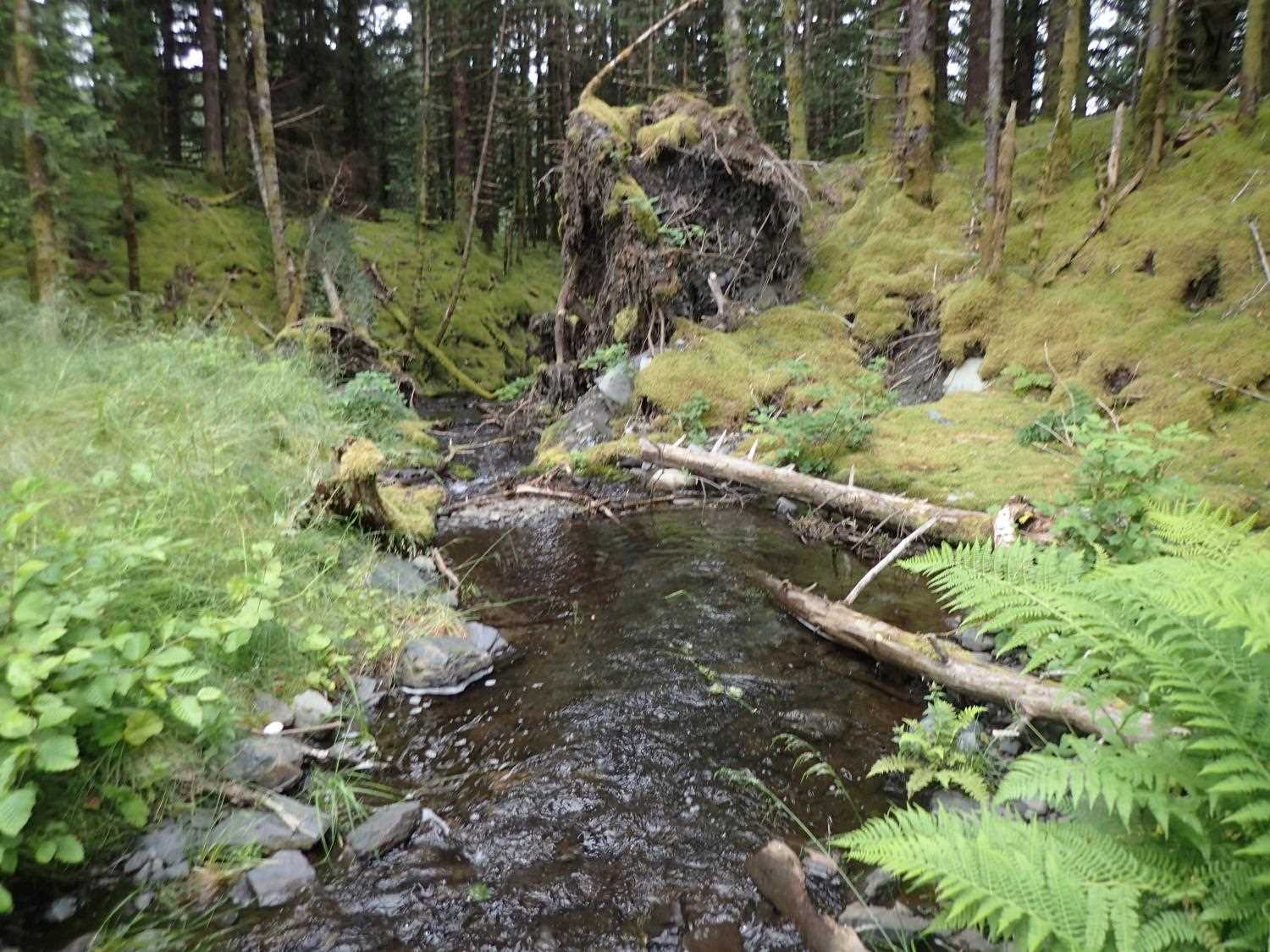

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:BoulderGravel
Subdominant:GravelSand
Stream Slope(deg.):
Stream Flow Stage:Medium
Stream Width Type Distance From
Crossing (ft)
Stream
Width (ft)
Downstream ordinary high water 59.0 9.80
Downstream ordinary high water 85.0 6.20
Downstream ordinary high water 98.0 7.20

Elevations

Locator ID Culvert
Number
River
Distance (ft)1
Distance From
Crossing (ft)2
Relative
Elevation (ft)
D/S Water Surface Elev (tailwater control) 0.00 90.11
D/S Thalweg (tailwater control) 0.00 89.86
D/S Water Surface Elev (pool water surface) 3.00 90.07
D/S Thalweg (pool depth) 3.00 89.19

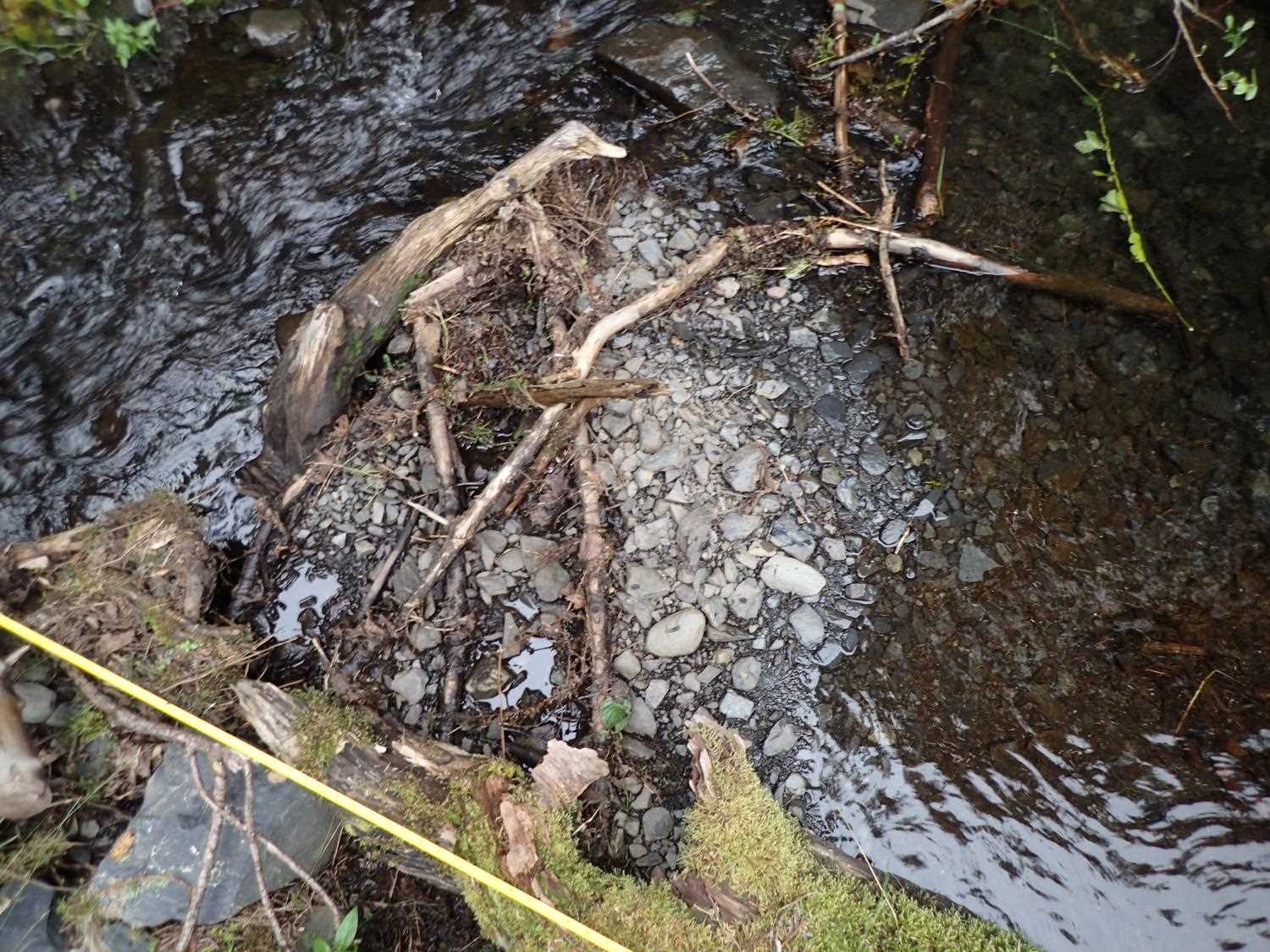

D/S Thalweg (on wood) 6.00 90.25
D/S Water Surface Elev 6.00 90.44
D/S Thalweg (tailwater control, head of riffle) 40.00 92.07
D/S Water Surface Elev 40.00 92.13
D/S Water Surface Elev 43.00 92.20
D/S Thalweg 43.00 91.59
D/S Water Surface Elev 44.00 92.43
D/S Thalweg (on wood) 44.00 92.44
D/S Thalweg 71.00 92.91
D/S Water Surface Elev 71.00 93.36
D/S Thalweg (pool tailwater control) 82.00 94.46
D/S Water Surface Elev 82.00 94.87
D/S Water Surface Elev 89.00 94.92
D/S Thalweg (max pool depth) 89.00 94.08
D/S Thalweg 95.00 94.76
D/S Water Surface Elev 95.00 95.02
D/S Water Surface Elev 103.00 95.21
Outlet Culvert Top (on rib) 103.00 100.00
Outlet Invert 103.00 94.83
Inlet Culvert Top 139.17 101.49
Inlet Culvert Invert 139.17 96.78
U/S Water Surface Elev 139.17 97.14
U/S Thalweg (top of grade control) 149.17 97.46
U/S Water Surface Elev 149.17 97.65
U/S Thalweg (head of riffle) 166.17 97.92
U/S Water Surface Elev 166.17 98.19
U/S Water Surface Elev (lake water surface) 172.17 98.21
U/S Thalweg (in the lake) 172.17 97.28

Notes:

  1. River distance is measured continuously throughout the survey reach along the thalweg of the stream.
  2. Measured from each end of the crossing along the thalweg of the stream.

Fish Sampling Efforts

No fish sampling occurred during this survey.

Fish Observations

No fish observations occurred during this survey.

Questions or comments about this report can be directed to dfg.dsf.webmaster@alaska.gov
