Fish Passage Site 20400105

Coordinates (dec. deg.): 61.14382°, -149.82961°
Legal Description: S012N003W09
Region: South Central

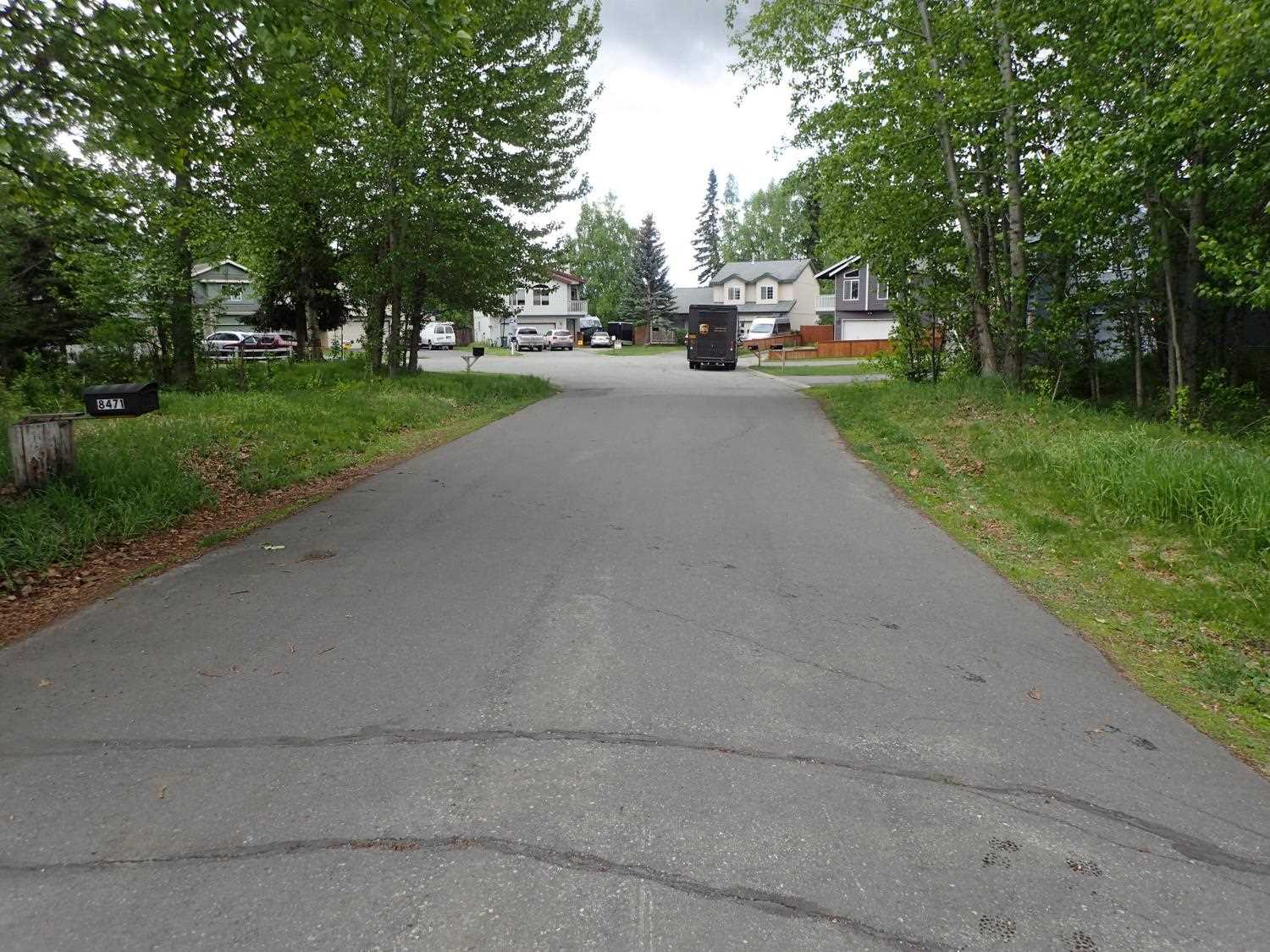

Road Name: Atkins Road

Datum: NAD83
Quad Name / ITM: Anchorage A-8
AWC Stream #: 247-60-10340-2018
Stream Name: Little Campbell Creek South Fork

Elevation:

Site Comments: None

Multiple surveys have been conducted at this site — click on the drop down
arrow to the right of the survey date below to choose a different report for this site.

Survey UPD21-ATK01

Project Supervisor: Kim Clark, ADFG — Anchorage, AK
Observers: Kim Clark, Michael Mazzacavallo

Overall Fish Passage Rating: Green

Tidal: No
Backwatered: No

Step Pools: No
Construction Year: 2010

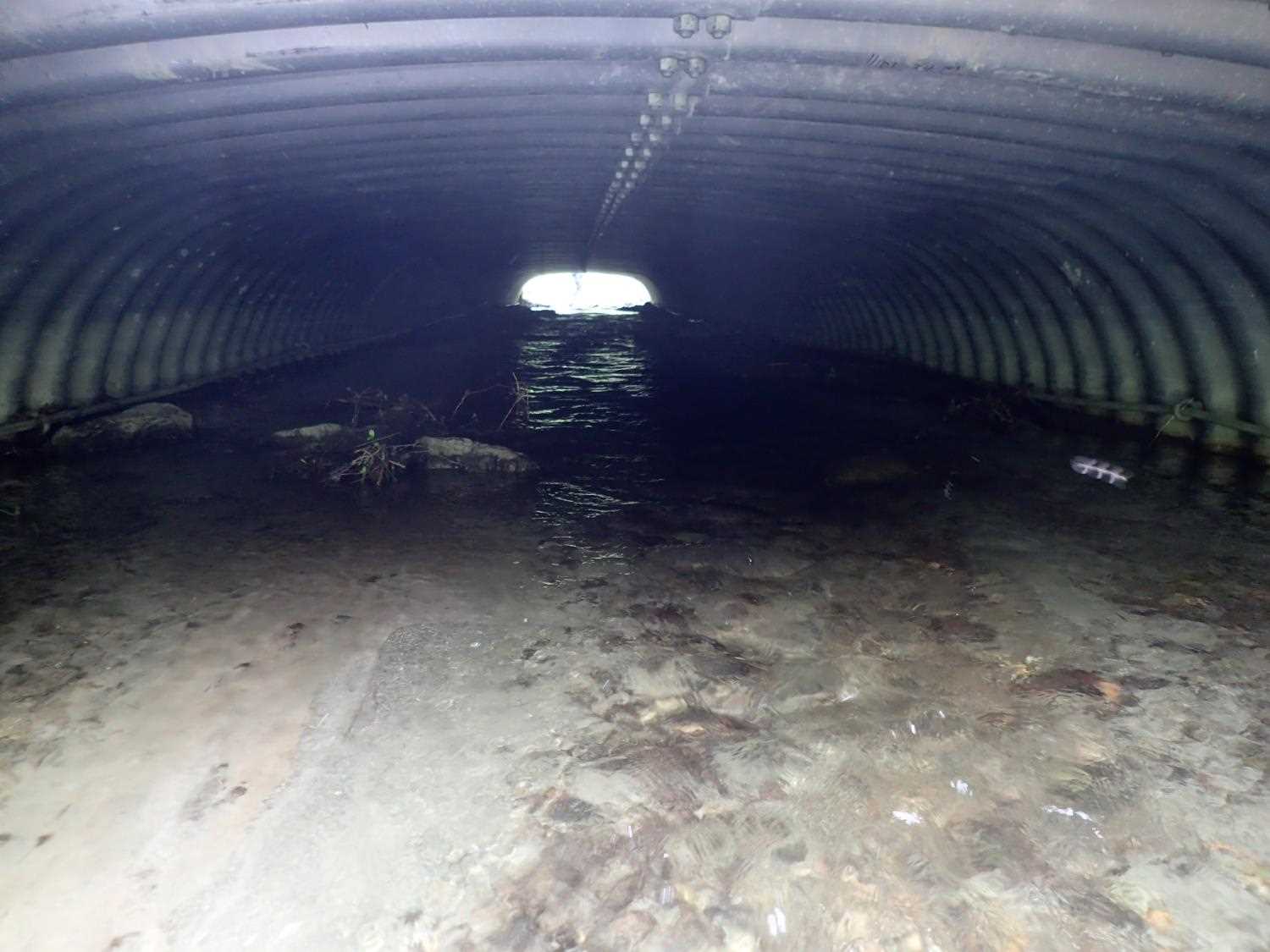

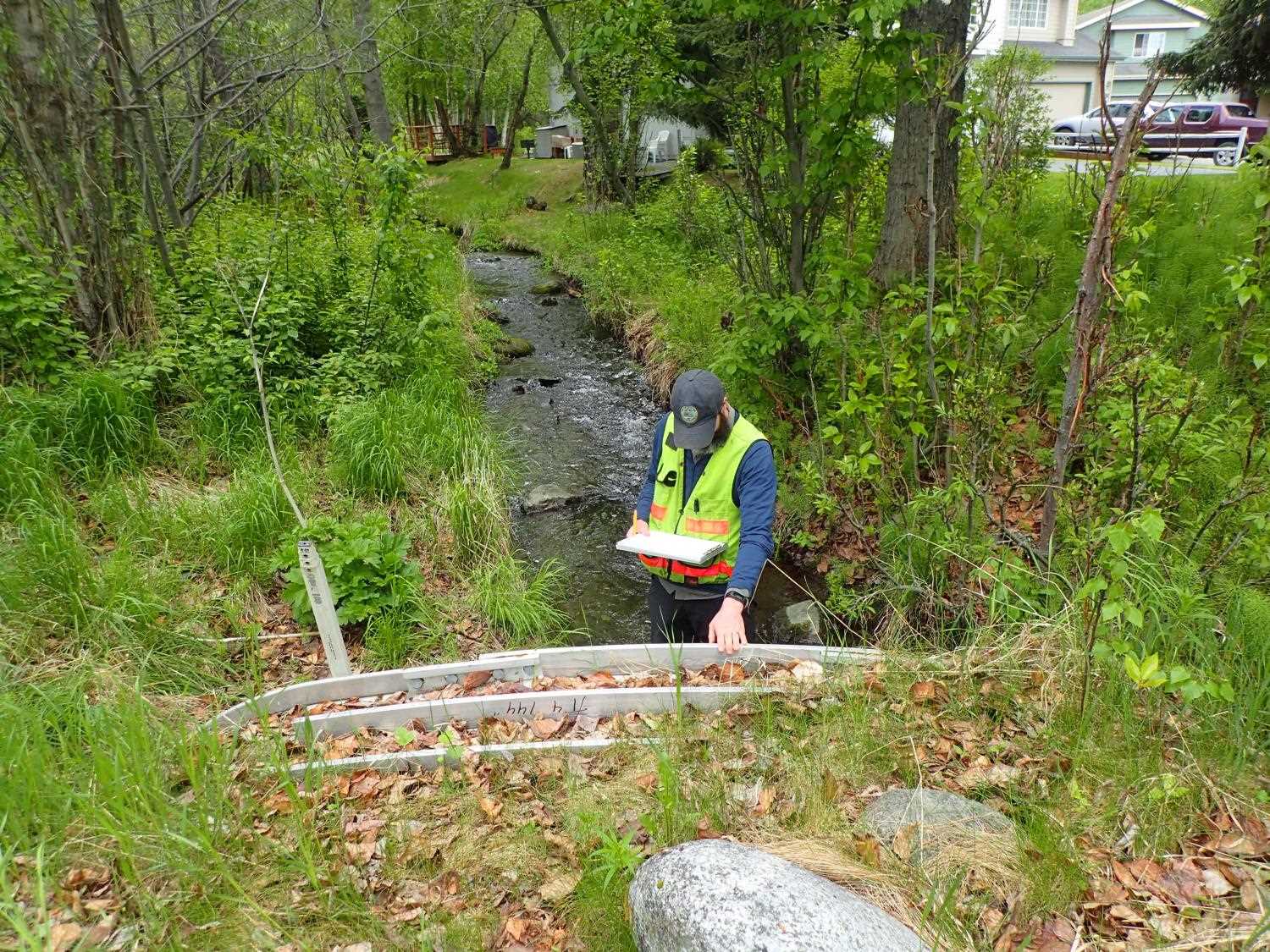

Comments: This crossing constructed as part of realignment of Campbell Creek circa 1988. Replaced again in 2010 by City of Anchorage and USFWS. Boulders at outlet, possibly fell in from banks. Large amount of fine sediment in channel inside culvert.

Culvert Measurements

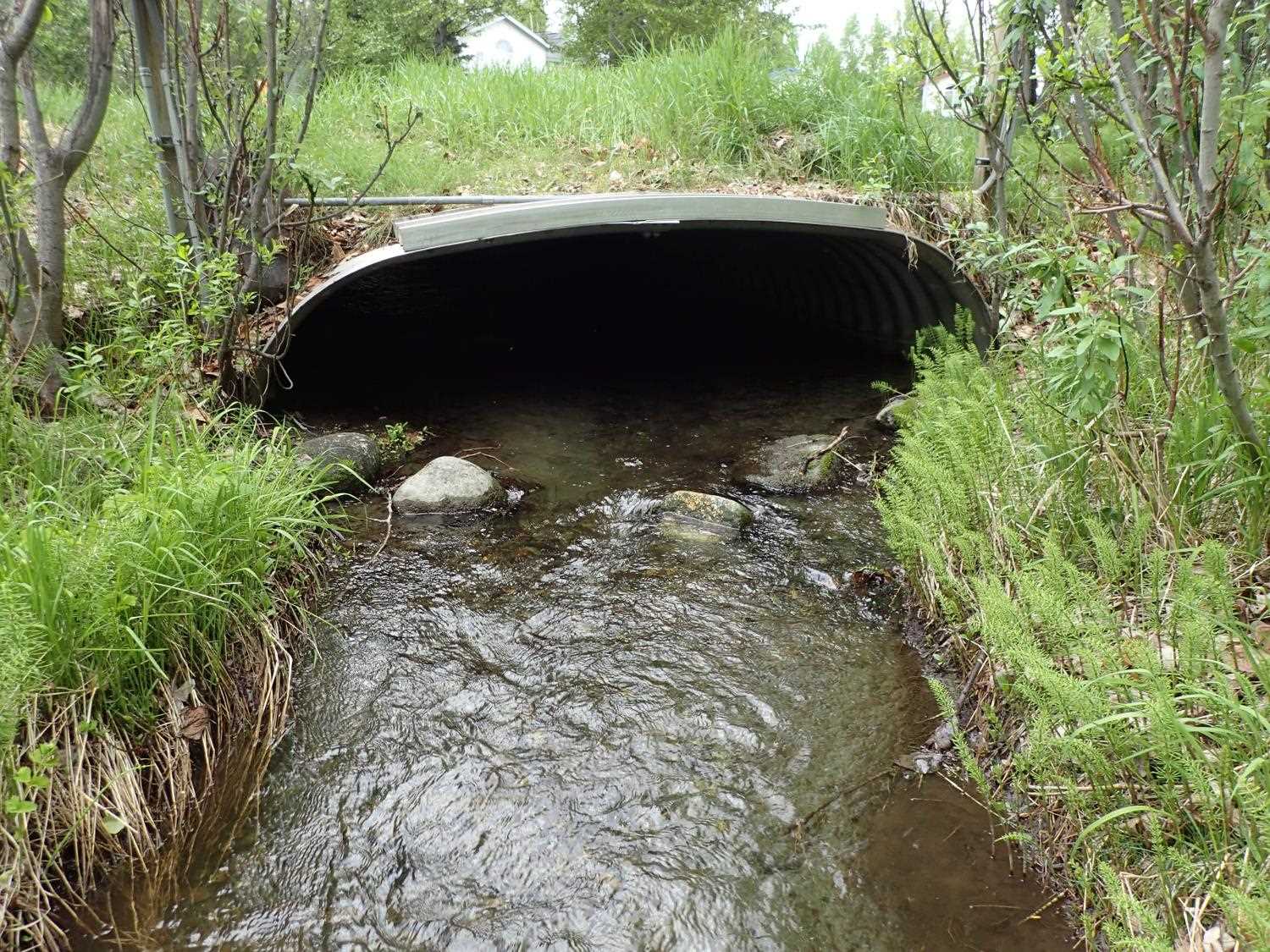

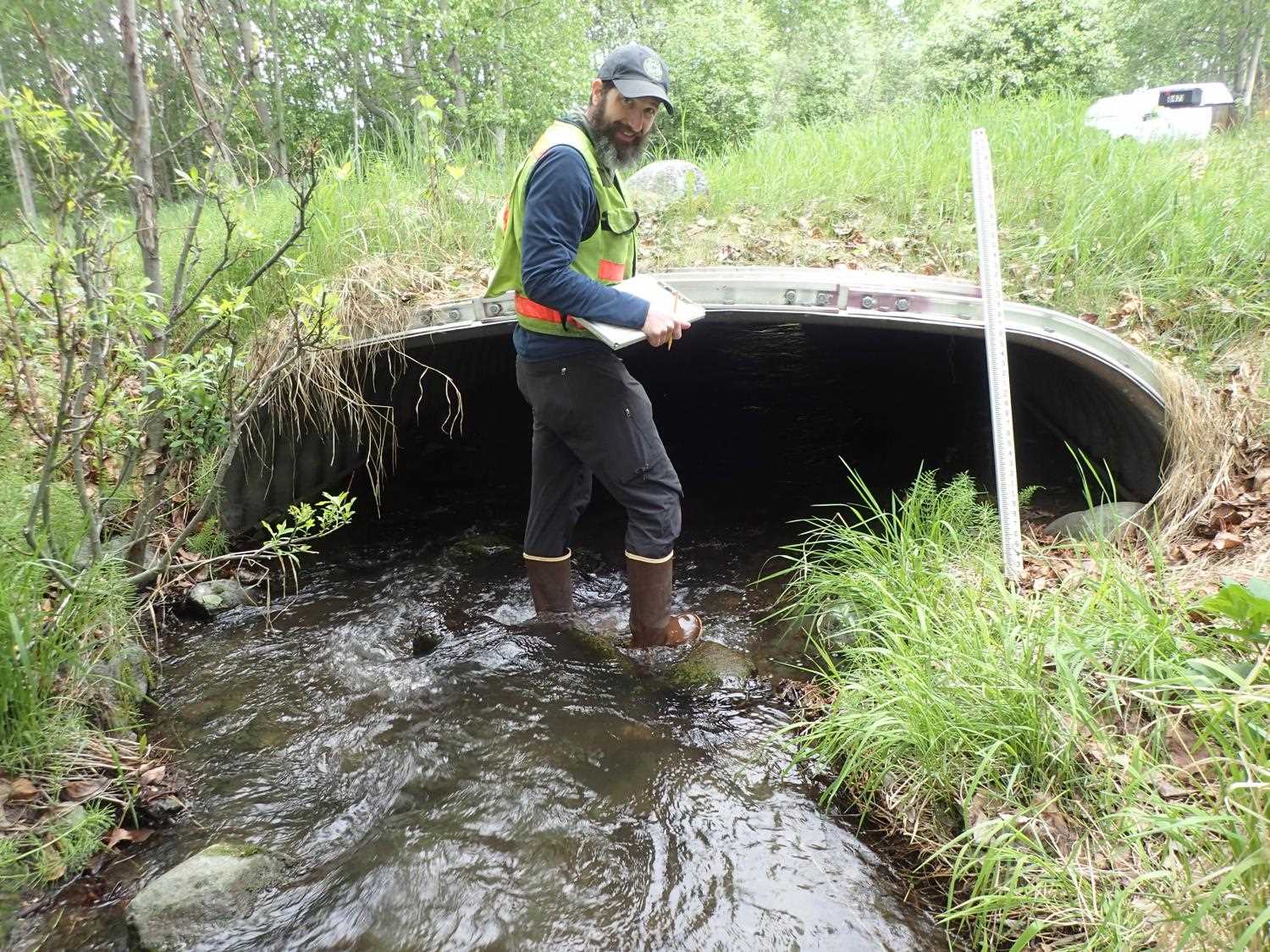

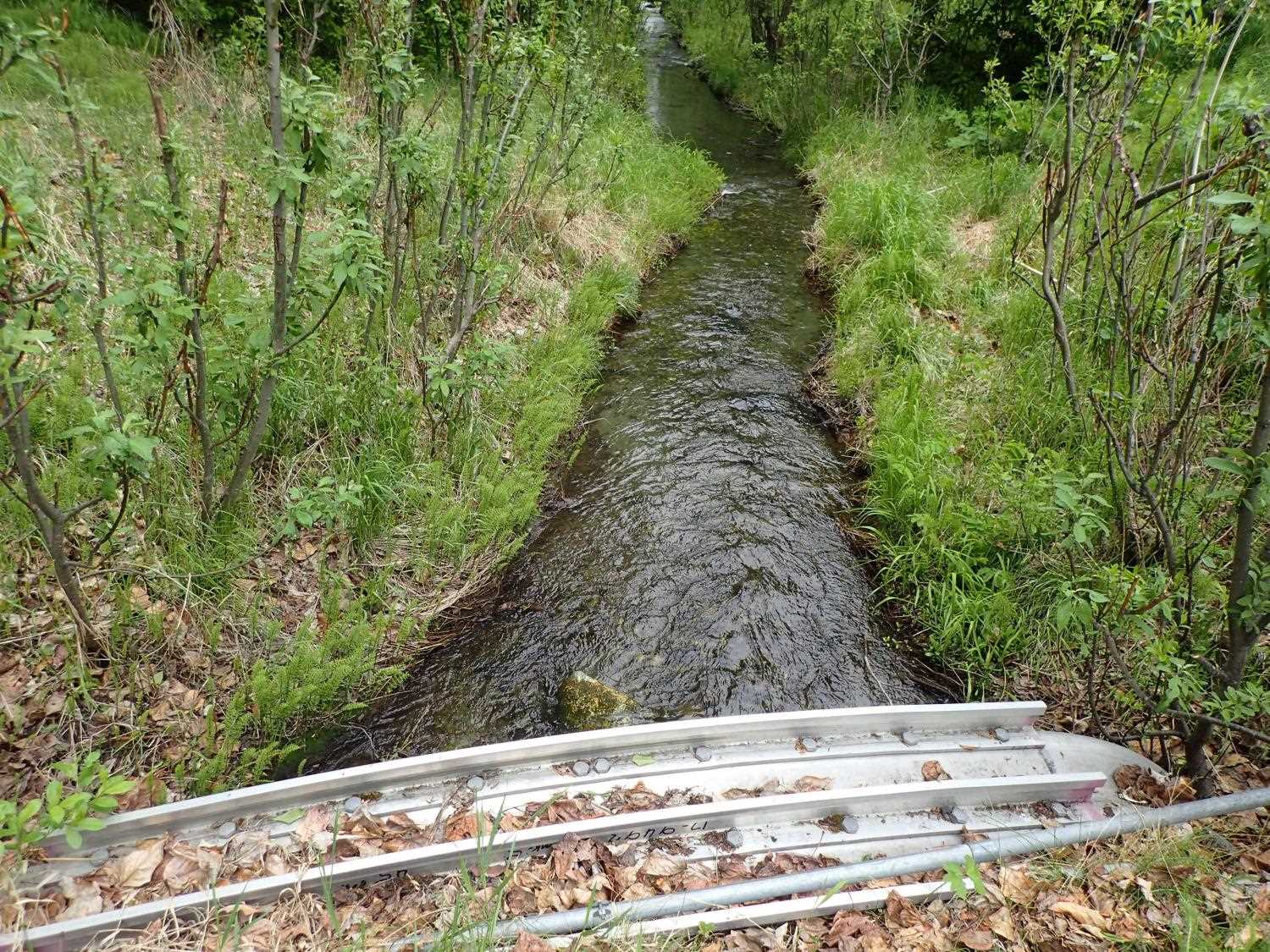

ID: 1 Structure Type: Box culvert (Structural aluminum plate) Fish Passage Rating: Green

Length(ft): 81.2
Inlet Type: Projecting
Outlet Type: Projecting
Corrugation Depth(in.): 2.0
Corrugation Width(in.): 9.5
Condition Rating(1-5): 5
Approach Angle: 20.0
Sedimentation At Inlet: No
Inlet Substrate: Sand
Outlet Substrate: Sand
InletOutlet
Width(ft):11.6 11.6
Height(ft):3.73 3.46
Apron Length(ft):
Water Depth(ft): 0.52
Rustline Height(ft):
Substrate Depth(ft):0.77 1.04
Backwatered?: No
Baffles Present: No
Embedded?: Yes
Embedded Depth(ft): 0.77
Outfall Height: 0.0
Outfall Type: At Stream Grade
Constriction Ratio: 1.7
Culvert Gradient: 1.00%
Max Slope:
Max Slope Length:


Comments: Pipe gradient measured using water surface 0.9%. Stream slope from designs is 1.28%. Design measurements are 12'3" wide and 4'5" in height.

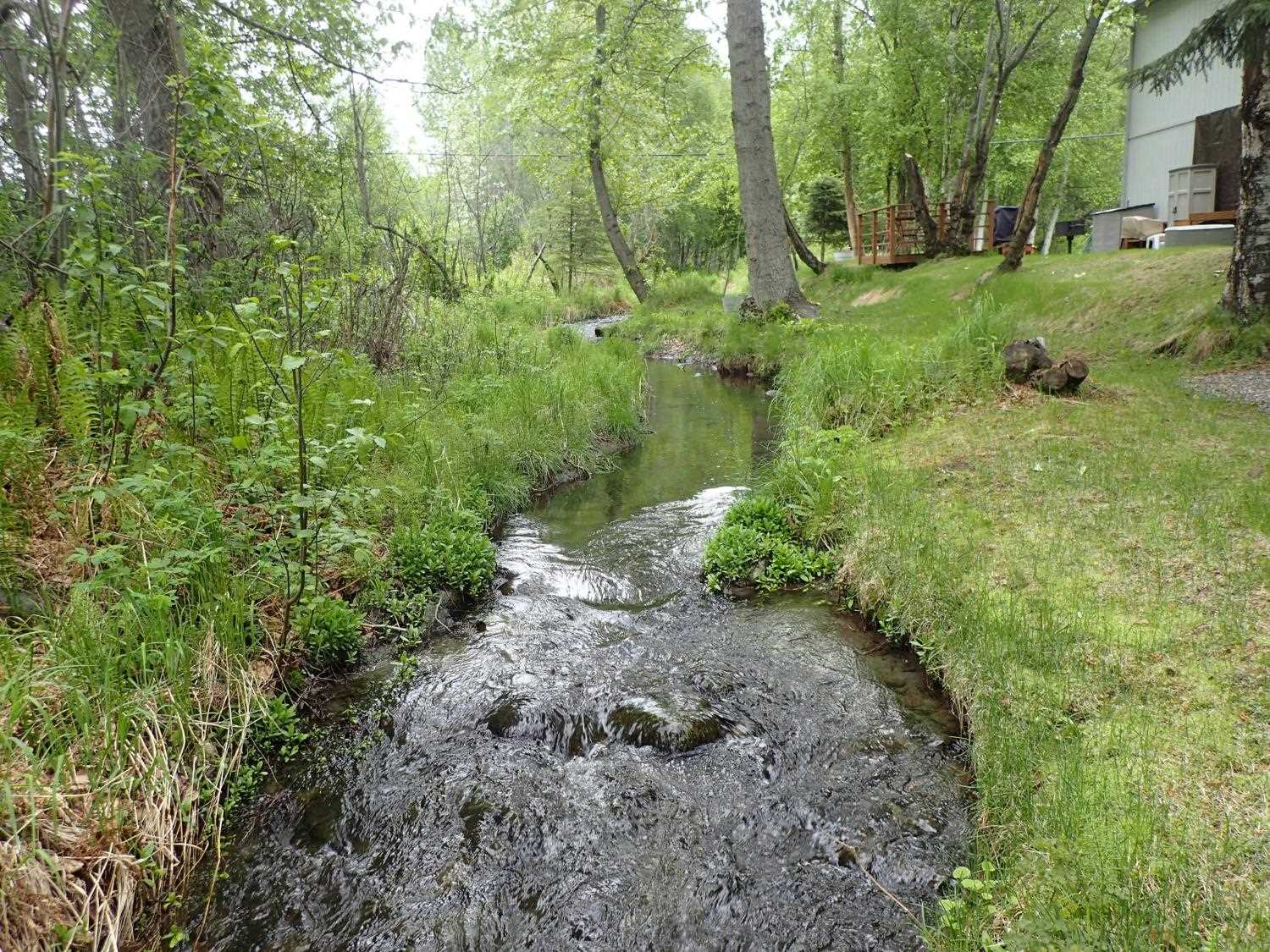

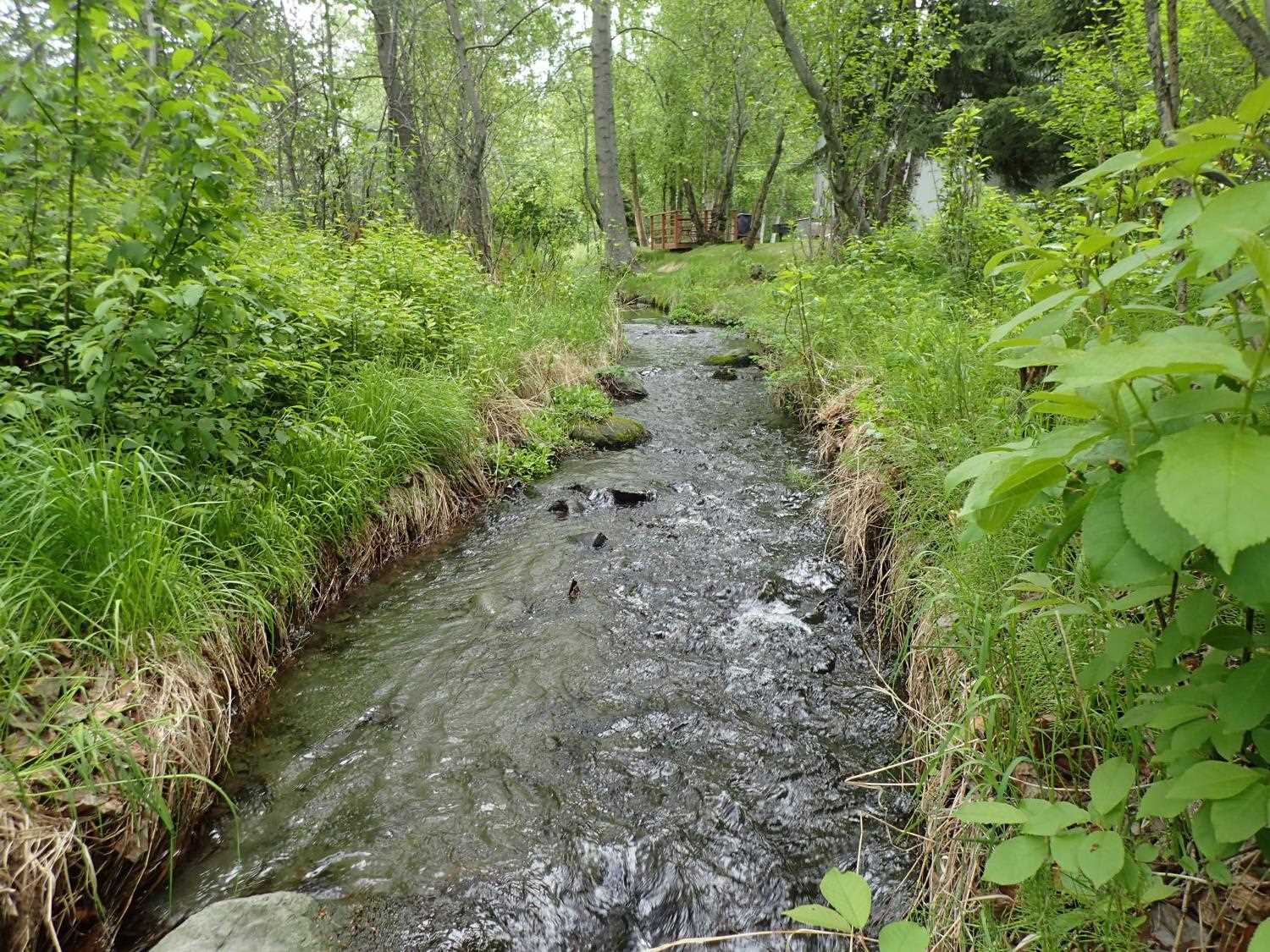

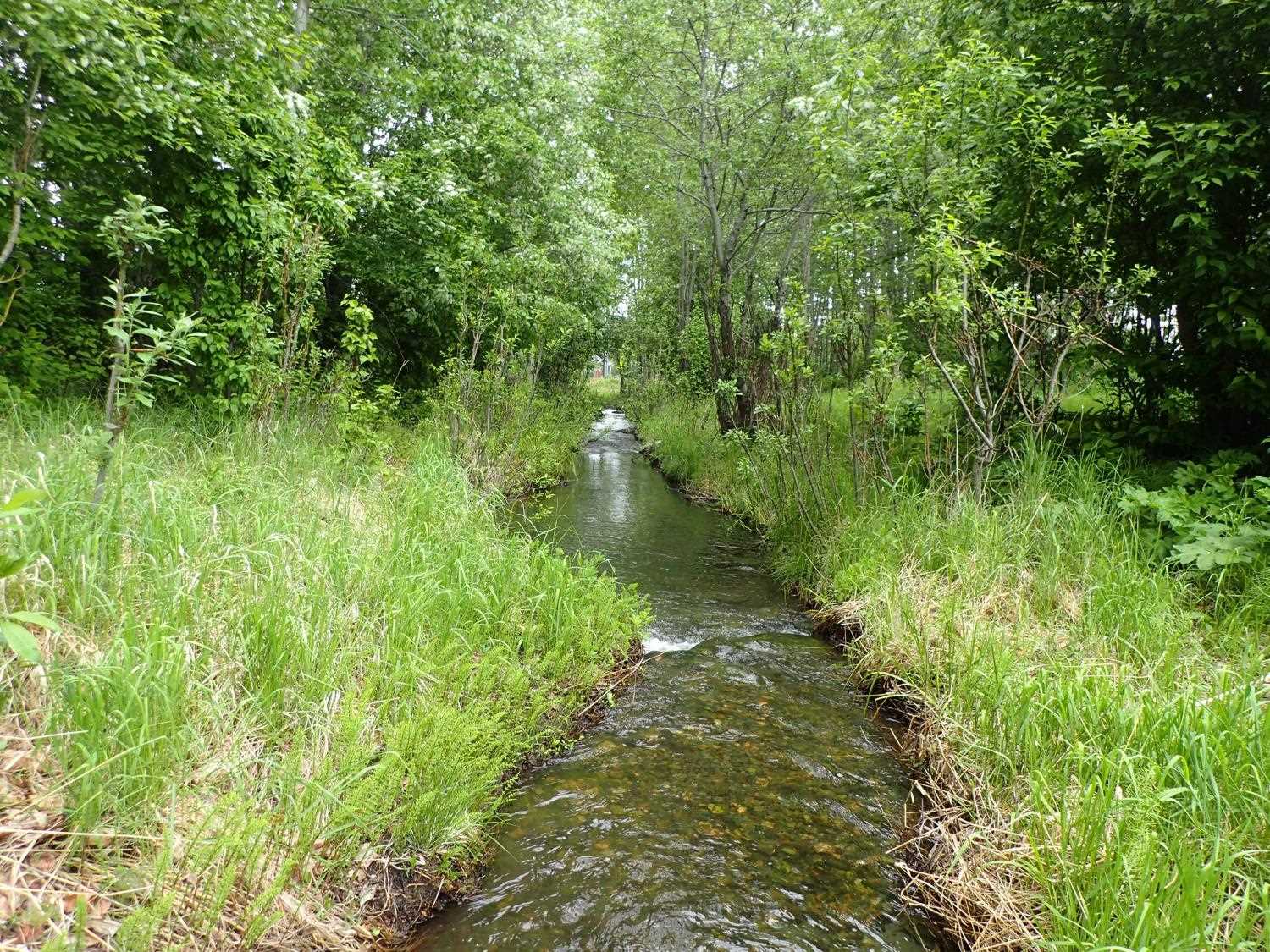

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:CobbleSand
Subdominant:SandGravel
Stream Slope(deg.):1.28
Stream Flow Stage:Medium
Stream Width Type Distance From
Crossing (ft)		 Stream
Width (ft)
Upstream ordinary high water 23.0 6.40
Upstream ordinary high water 37.0 6.80
Upstream ordinary high water 50.0 7.20

Elevations

Locator ID Culvert
Number		 River
Distance (ft)1		 Distance From
Crossing (ft)2		 Relative
Elevation (ft)
Max Pool Depth 0.00 94.20
D/S Water Surface Elev 0.00 96.09
D/S Grade Ctrl (Thalweg) 11.00 95.77
D/S Water Surface Elev 11.00 96.41
D/S Water Surface Elev 26.00 96.64
D/S Thalweg 26.00 95.89
Outlet Invert 40.00 96.25
D/S Water Surface Elev 40.00 96.77
Outlet Culvert Top (on the rib) 40.00 99.99
Inlet Culvert Top 121.21 100.84
U/S Water Surface Elev 121.21 97.50
Inlet Culvert Invert 121.21 97.02
U/S Water Surface Elev 124.21 97.56
U/S Grade Ctrl (Thalweg) 124.21 96.89
U/S Thalweg 132.81 97.08
U/S Water Surface Elev 132.81 97.85
U/S Water Surface Elev 158.21 98.36
U/S Thalweg 158.21 97.62
U/S Thalweg 175.21 97.76
U/S Water Surface Elev 175.21 98.65

Notes:

  1. River distance is measured continuously throughout the survey reach along the thalweg of the stream.
  2. Measured from each end of the crossing along the thalweg of the stream.

Fish Sampling Efforts

No fish sampling occurred during this survey.

Fish Observations

No fish observations occurred during this survey.
