Fish Passage Site 30303082

Coordinates (dec. deg.): 59.02452°, -158.53804°
Legal Description: S013S056W25
Region: Southwest
Road Name: Kanakanak Road

Datum: NAD83
Quad Name / ITM: Dillingham A-7
AWC Stream #: 325-30-10100-2017
Stream Name: Nushagak River tributary

Elevation:

Site Comments: None

Multiple surveys have been conducted at this site — click on the drop down
arrow to the right of the survey date below to choose a different report for this site.

Survey UPDATE-3082

Project Supervisor: Gillian O'Doherty, ADFG
Observers:

Overall Fish Passage Rating: Black

Tidal:
Backwatered:

Step Pools:
Construction Year: 2013

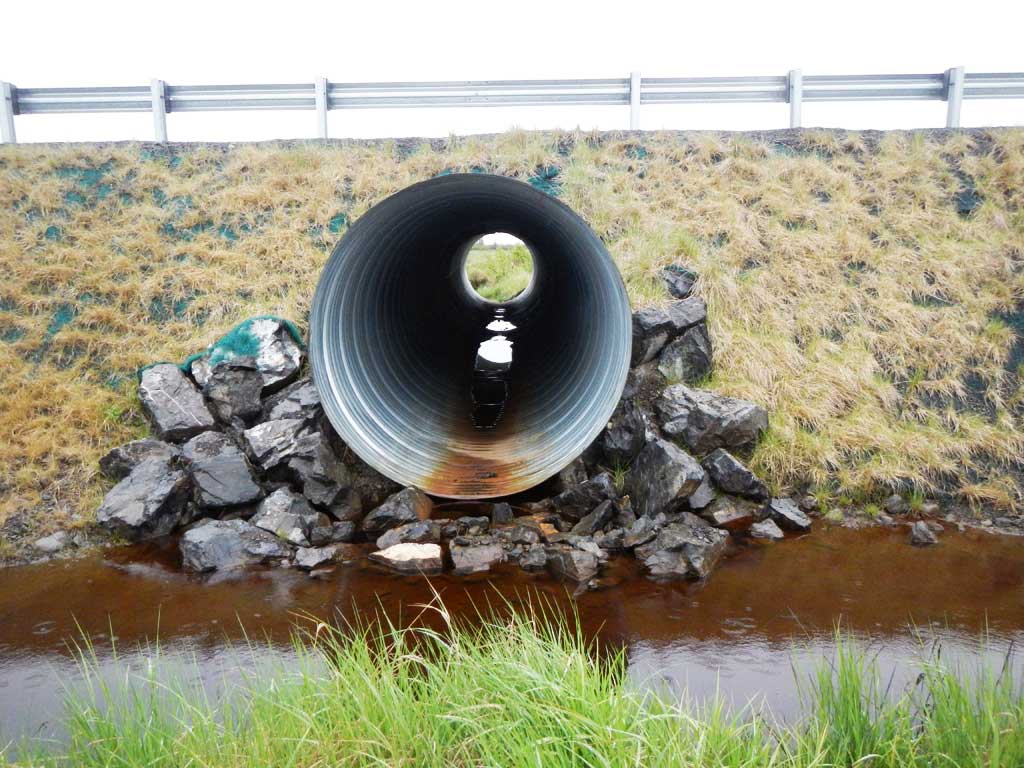

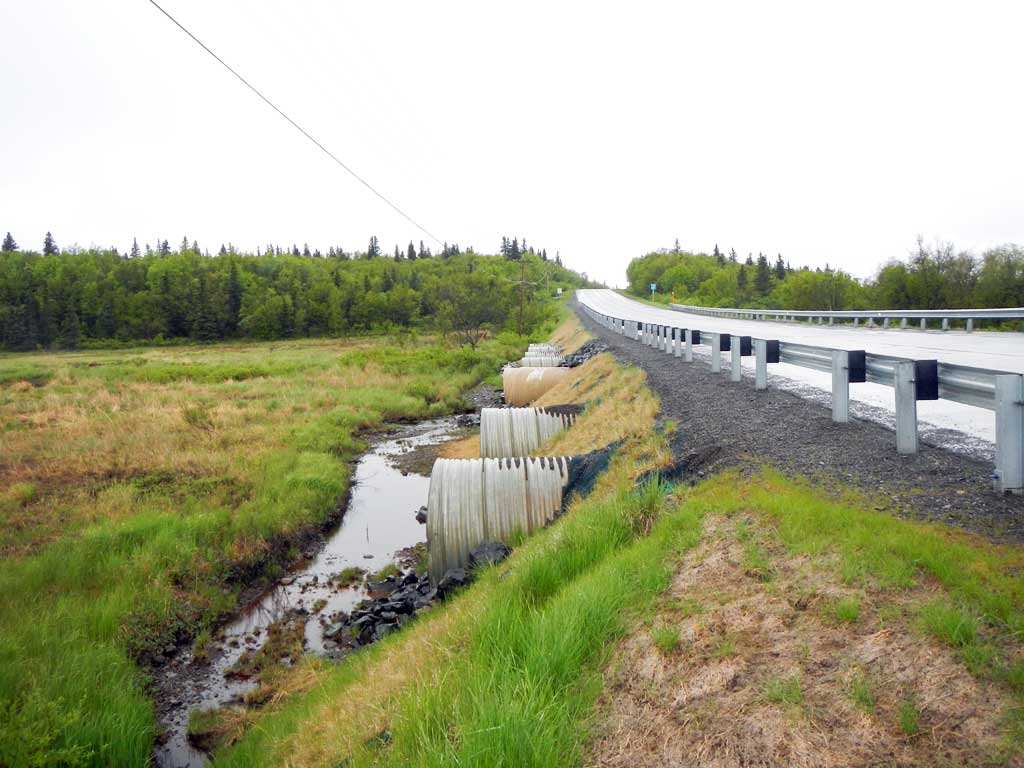

Comments: Site was replaced in 2013 and needs to be resurveyed. Six 7' diameter overflow culverts flank the main culvert to take heavy flows.

Culvert Measurements

ID: 1 Structure Type: Circular pipe (Corrugated aluminum) Fish Passage Rating: Black

Length(ft):
Inlet Type: Projecting
Outlet Type: Projecting
Corrugation Depth(in.):
Corrugation Width(in.):
Condition Rating(1-5): 5
Approach Angle:
Sedimentation At Inlet:
Inlet Substrate:
Outlet Substrate:
InletOutlet
Width(ft):
Height(ft):
Apron Length(ft):
Water Depth(ft):
Rustline Height(ft):
Substrate Depth(ft):
Backwatered?:
Baffles Present:
Embedded?:
Outfall Height:
Outfall Type: At Stream Grade
Constriction Ratio:
Culvert Gradient:
Max Slope:
Max Slope Length:


Comments: Culvert measurements and slope were taken from site plans and have not been verified by project staff. Culvert width 9.5 ft. Culvert height 9.5ft. Culvert length 85 ft. Culvert gradient 1%.

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:
Subdominant:
Stream Slope(deg.):
Stream Flow Stage:

No stream width data available.

Elevations

No elevation data available.

Fish Sampling Efforts

No fish sampling occurred during this survey.

Fish Observations

No fish observations occurred during this survey.

Photos

Questions or comments about this report can be directed to dfg.dsf.webmaster@alaska.gov
