Fish Passage Site 30103693

Coordinates (dec. deg.): 52.21662°, -174.21051°
Legal Description: S092S176W09
Region: Southwest
Road Name: Atxax Way

Datum: NAD83
Quad Name / ITM: Atka C-1
AWC Stream #: 305-52-11600
Stream Name: Dancing Creek

Elevation:

Site Comments: None

Survey Date: May 05, 2016

Survey UPDATE-ATKA4

Project Supervisor: Gillian O'Doherty, ADFG
Observers: Jeanette Alas

Overall Fish Passage Rating: Black

Tidal:
Backwatered:

Step Pools:
Construction Year:


Comments: Site submitted by HB Jeanette Alas from her May 2016 trip to Atka. No traps deployed at this site, but fish were caught up and downstream at other road crossings.

Culvert Measurements

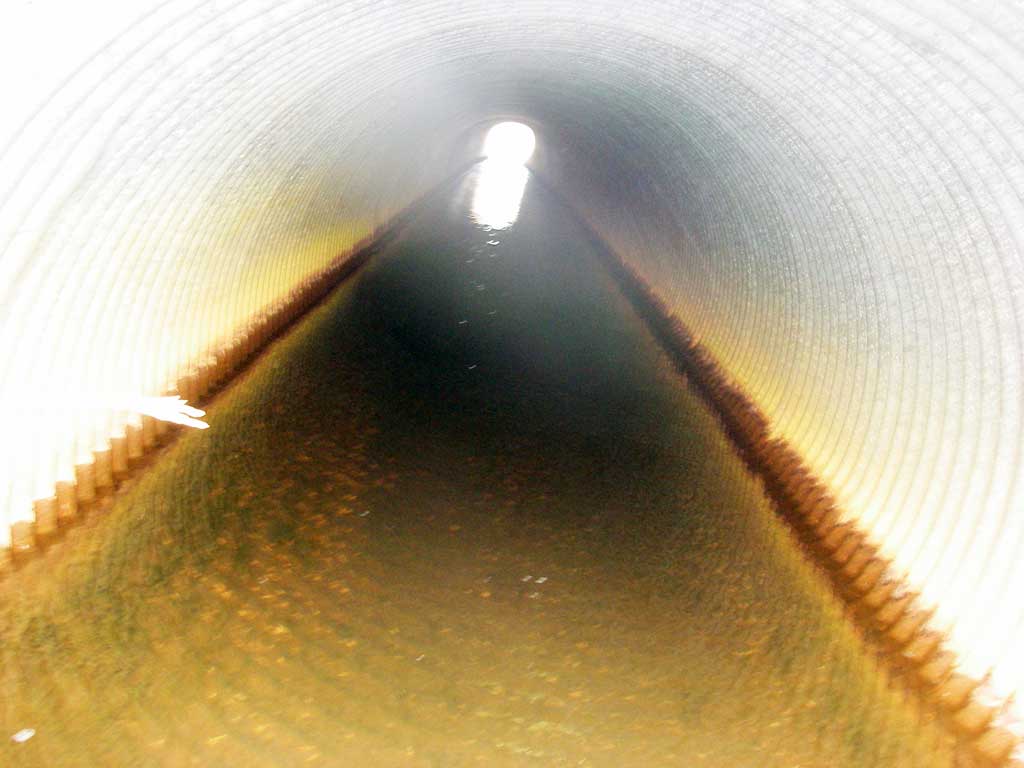

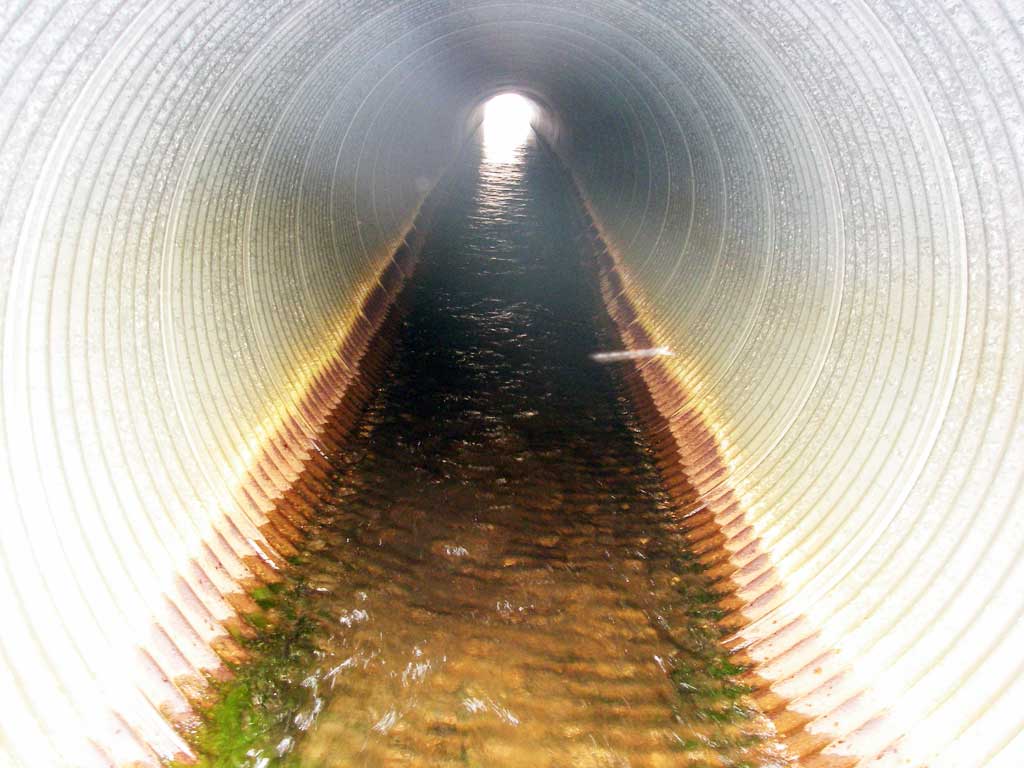

ID: 1 Structure Type: Circular pipe (Corrugated steel) Fish Passage Rating: Black

Length(ft):
Inlet Type: Projecting
Outlet Type: Projecting
Corrugation Depth(in.):
Corrugation Width(in.):
Condition Rating(1-5): 3
Approach Angle:
Sedimentation At Inlet:
Inlet Substrate:
Outlet Substrate:
InletOutlet
Width(ft):3.75 3.8
Height(ft):4.0 4.0
Apron Length(ft):
Water Depth(ft):
Rustline Height(ft):
Substrate Depth(ft):
Backwatered?: No
Baffles Present: No
Embedded?: No
Outfall Height: 0.0
Outfall Type: At Stream Grade
Constriction Ratio:
Culvert Gradient:
Max Slope:
Max Slope Length:

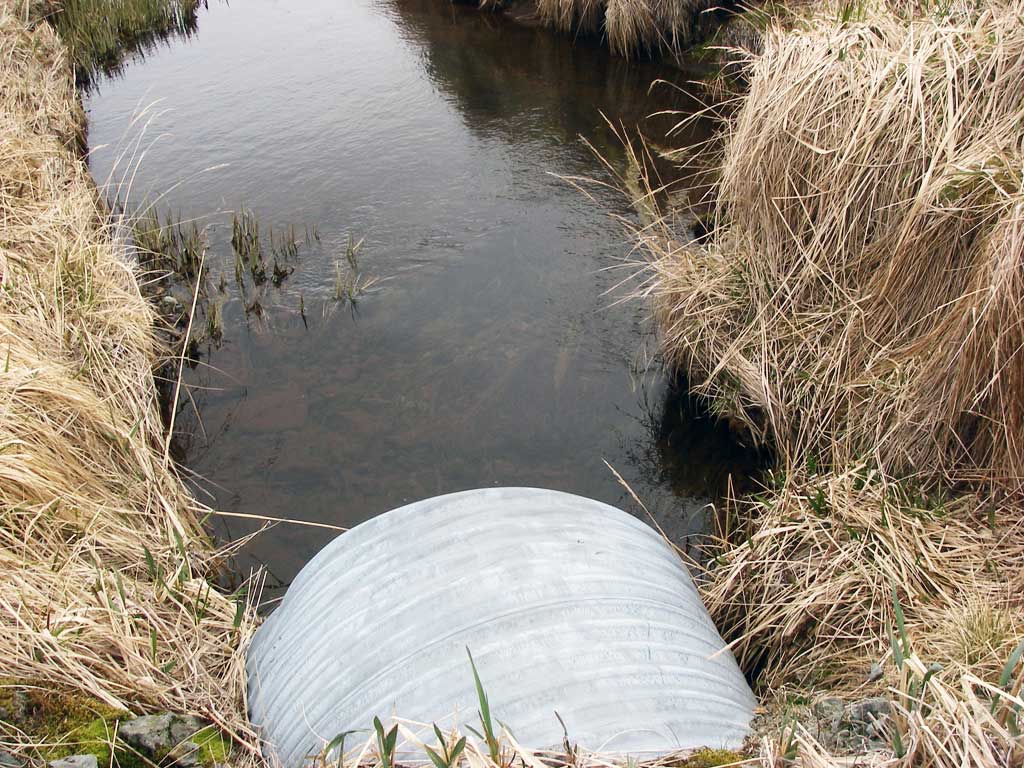

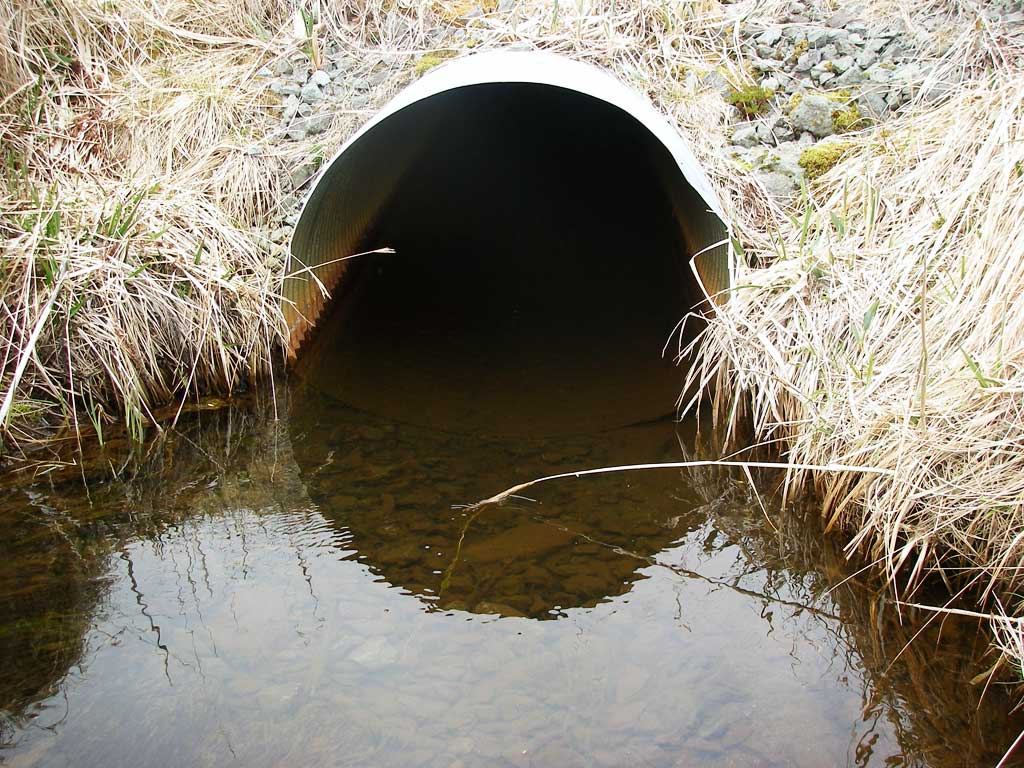

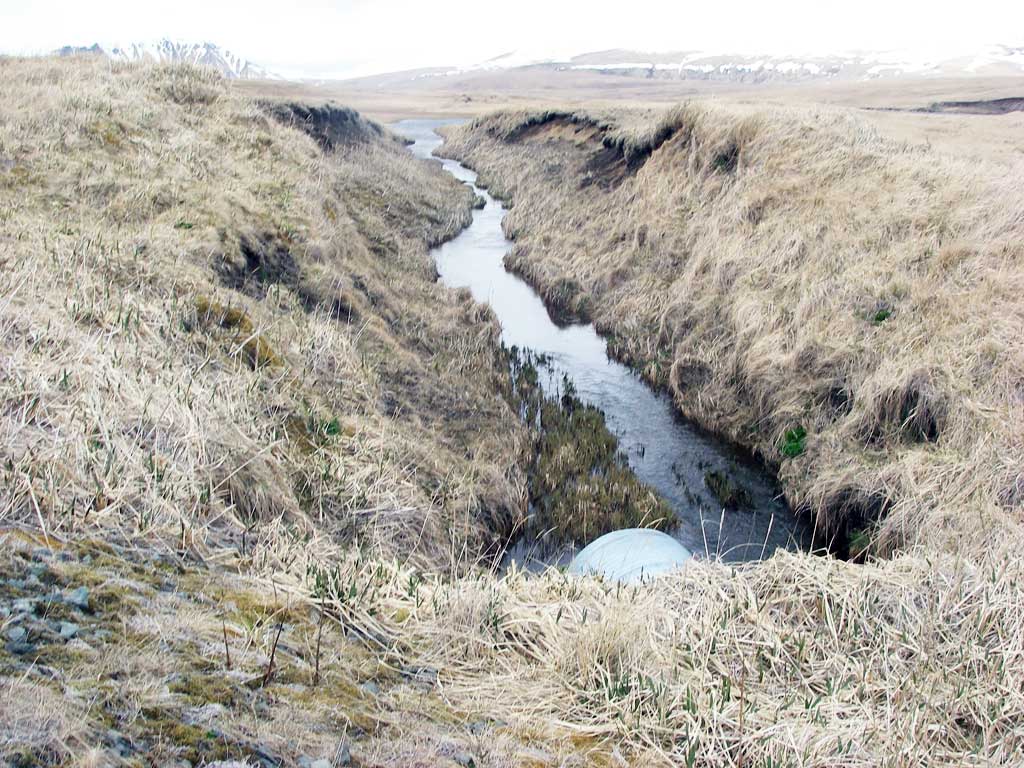

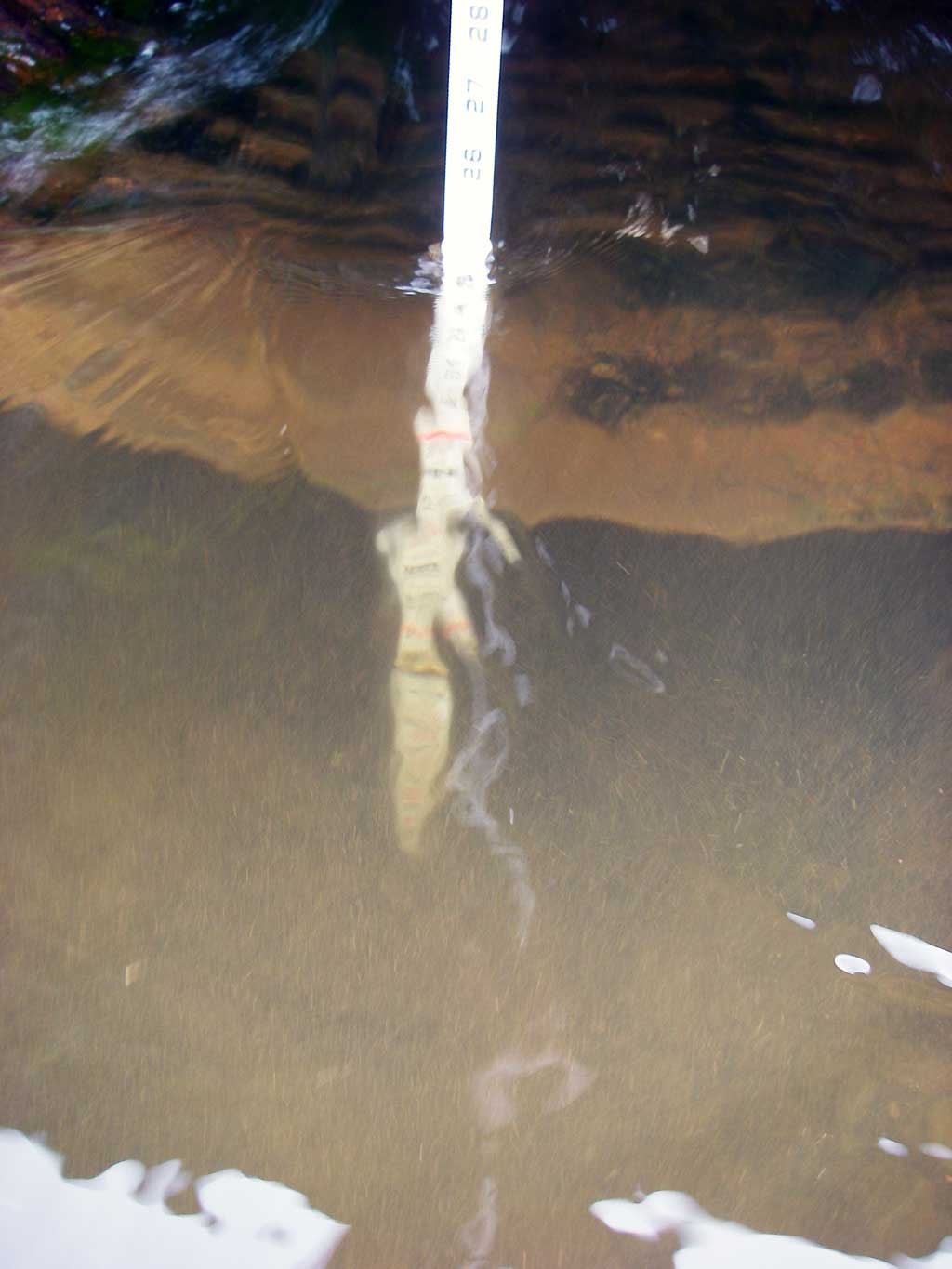

Comments: Culvert inlet sitting about 17 inches above streambed, but at water levels observed during visit did not appear to affect fish passage, but might at lower flows.

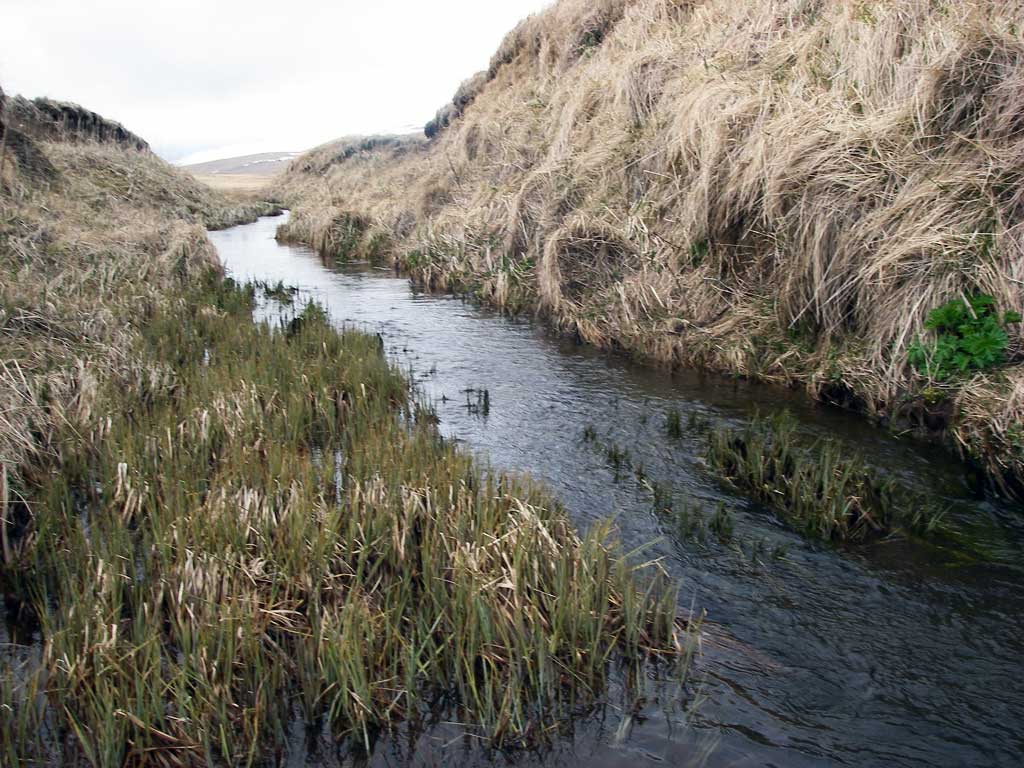

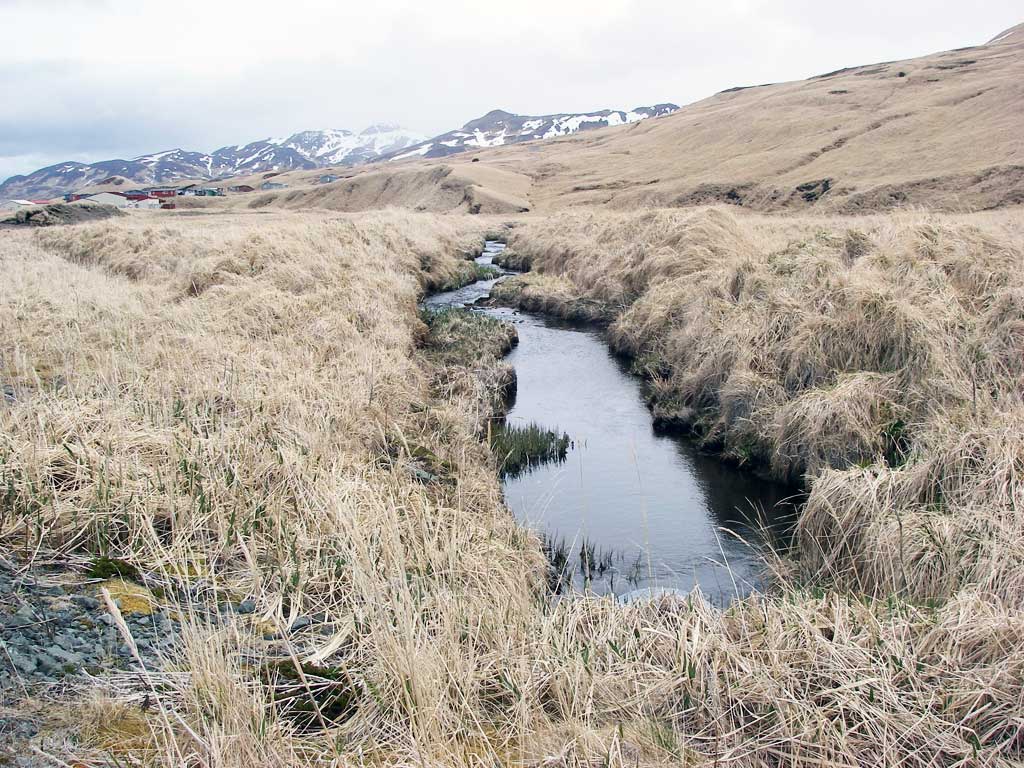

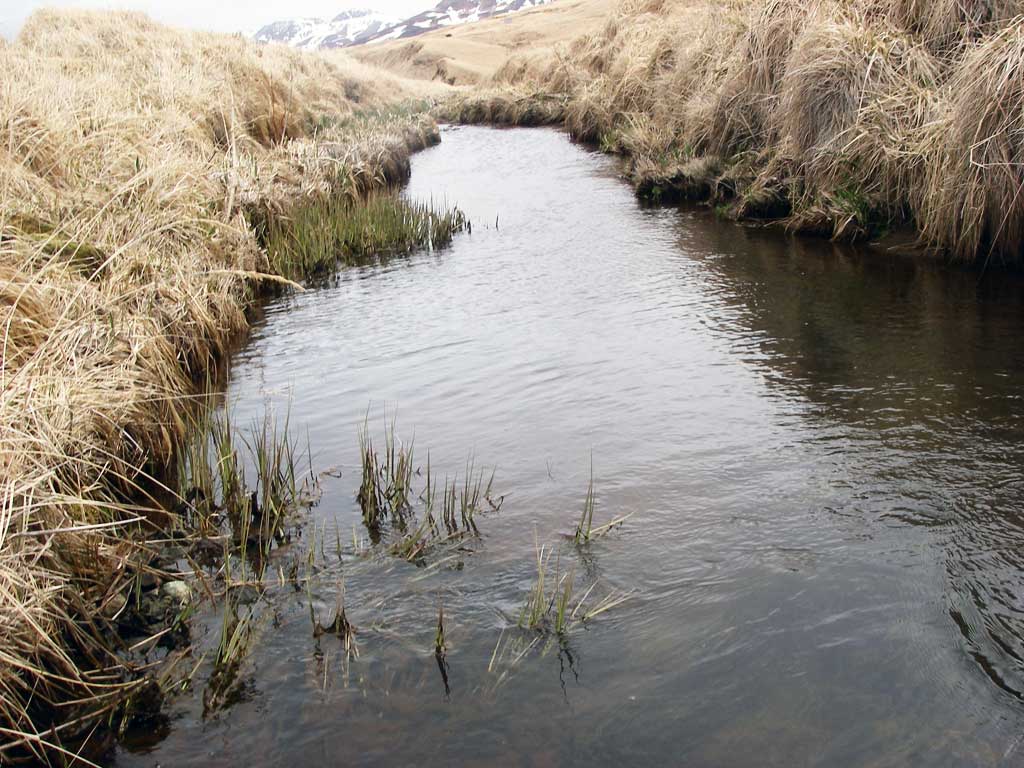

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:
Subdominant:
Stream Slope(deg.):
Stream Flow Stage:

No stream width data available.

Elevations

No elevation data available.

Fish Sampling Efforts

No fish sampling occurred during this survey.

Fish Observations

No fish observations occurred during this survey.
