Fish Passage Site 30103692

Coordinates (dec. deg.): 52.19971°, -174.19866°
Legal Description: S092S176W22
Region: Southwest
Road Name: Atxax Way

Datum: NAD83
Quad Name / ITM: Atka C-1
AWC Stream #:
Stream Name: Unnamed

Elevation:

Site Comments: None

Survey Date: May 06, 2016

Survey UPDATE-ATKA3

Project Supervisor: Gillian O'Doherty, ADFG
Observers: Jeanette Alas

Overall Fish Passage Rating: Red

Tidal: No
Backwatered: No

Step Pools: No
Construction Year:


Site Observations:

  1. Outfall height red

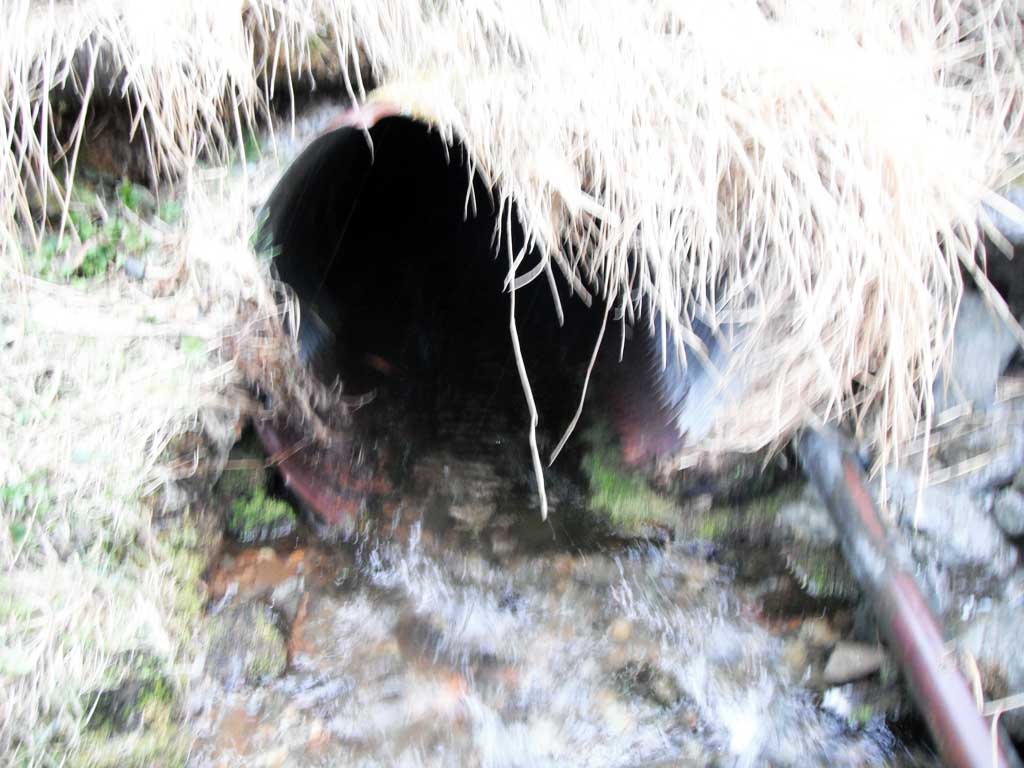

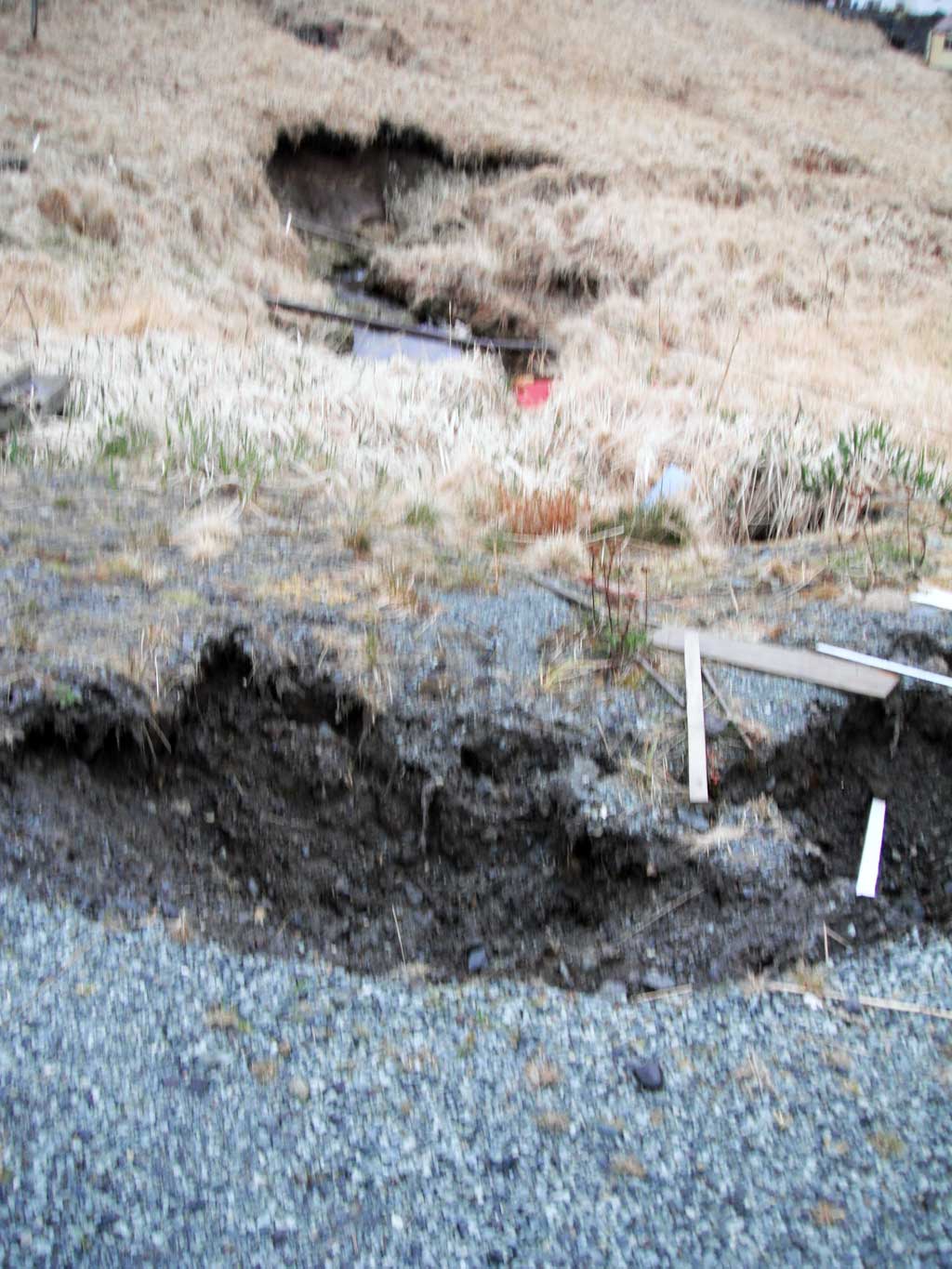

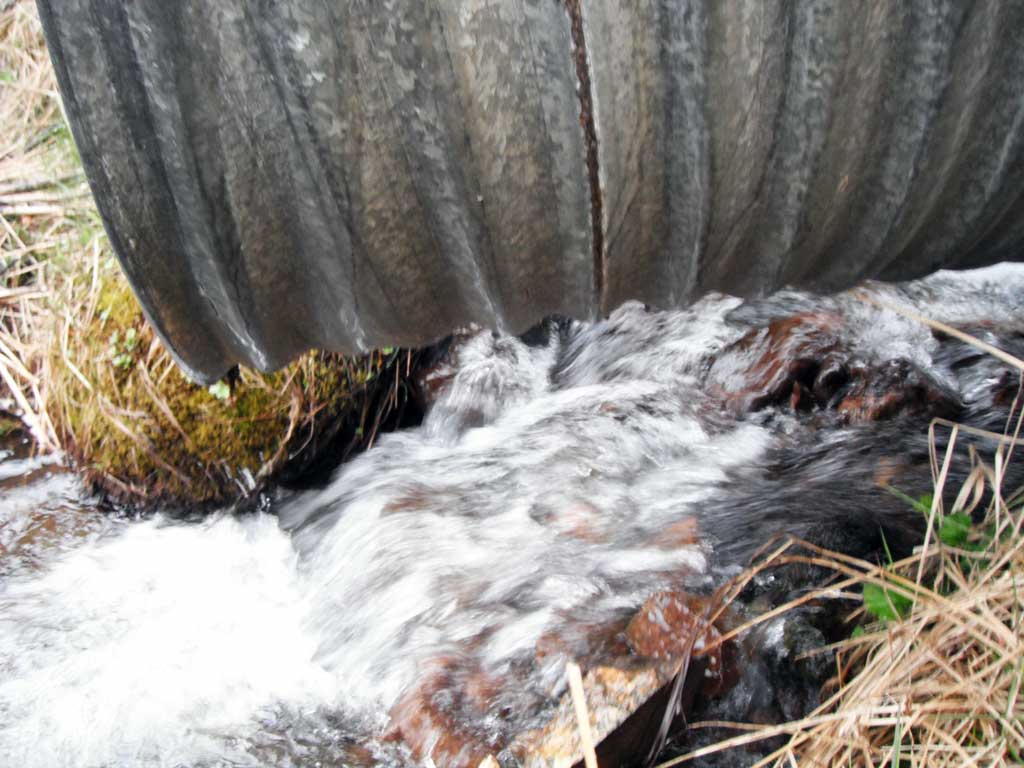

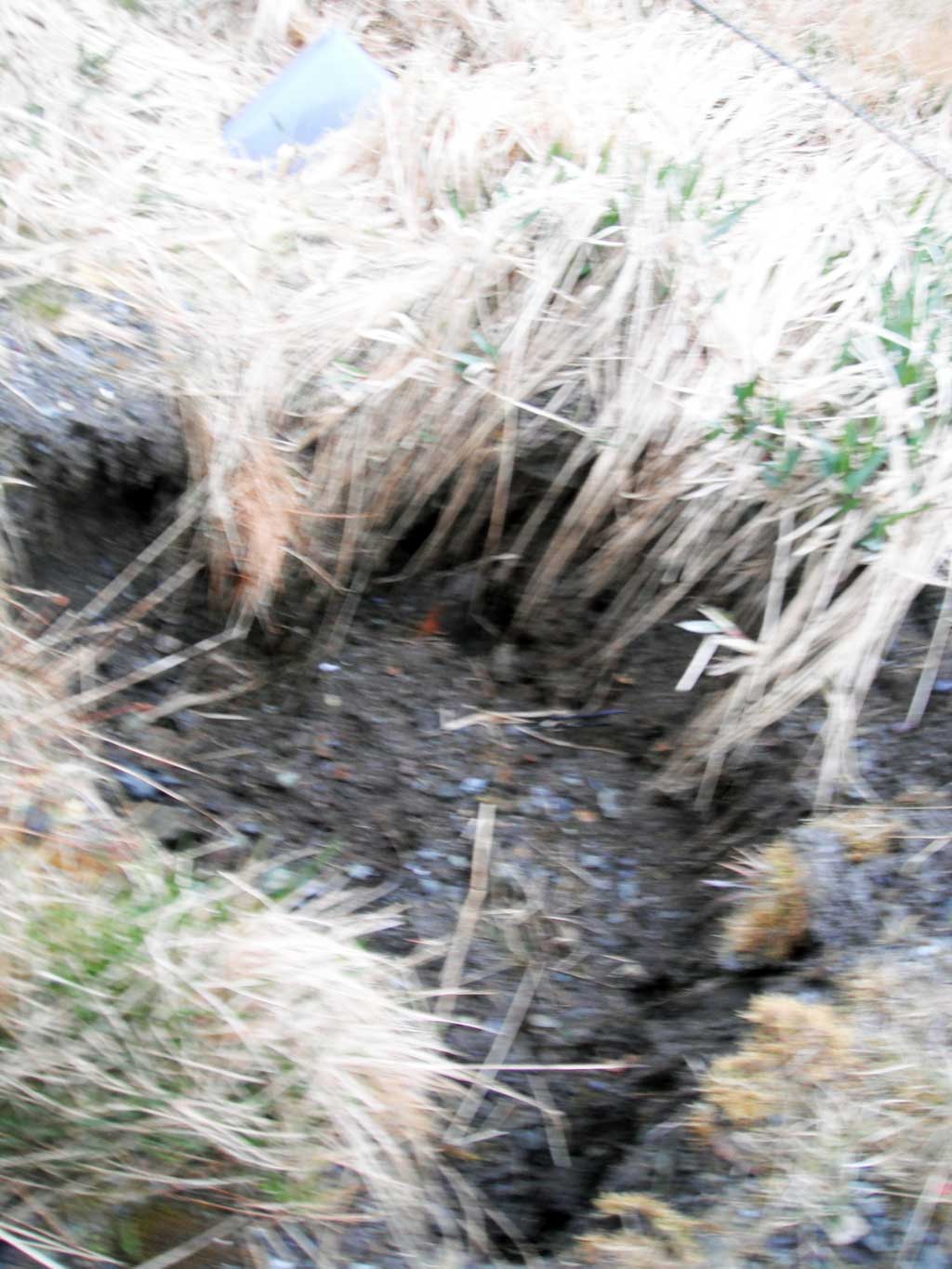

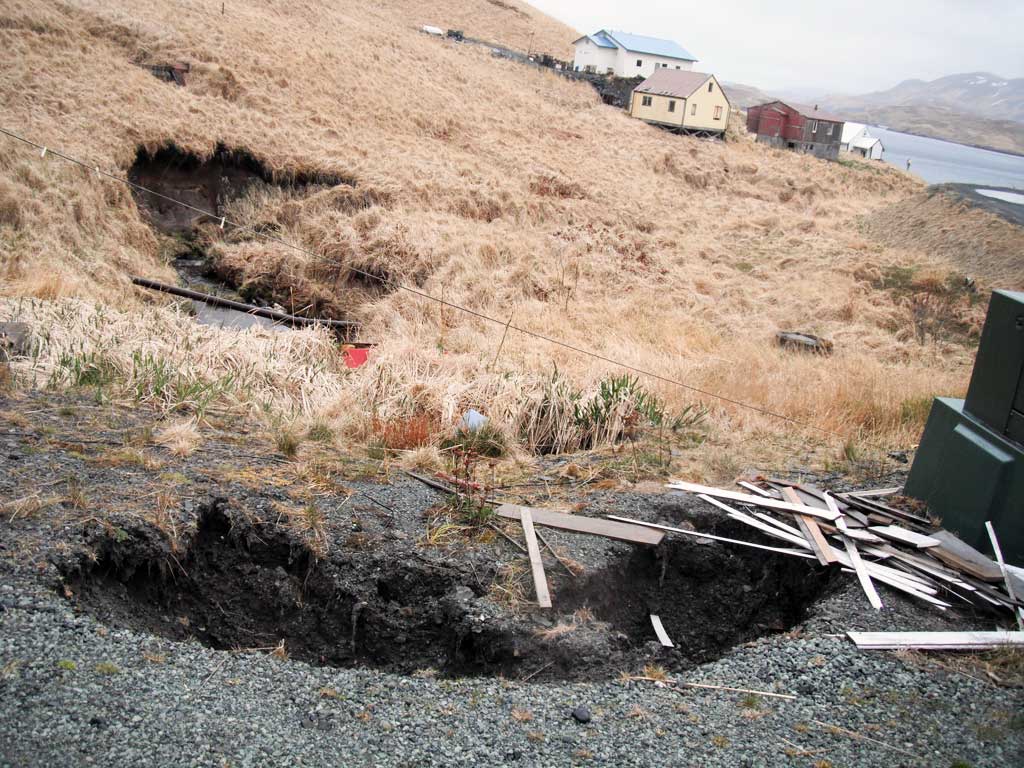

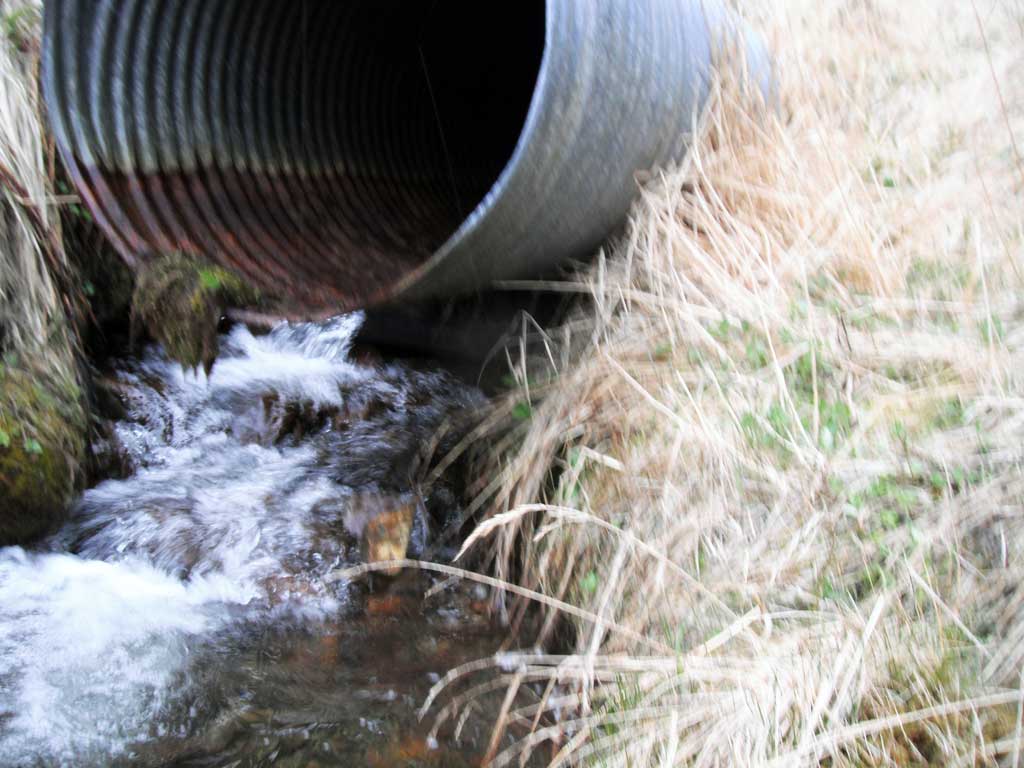

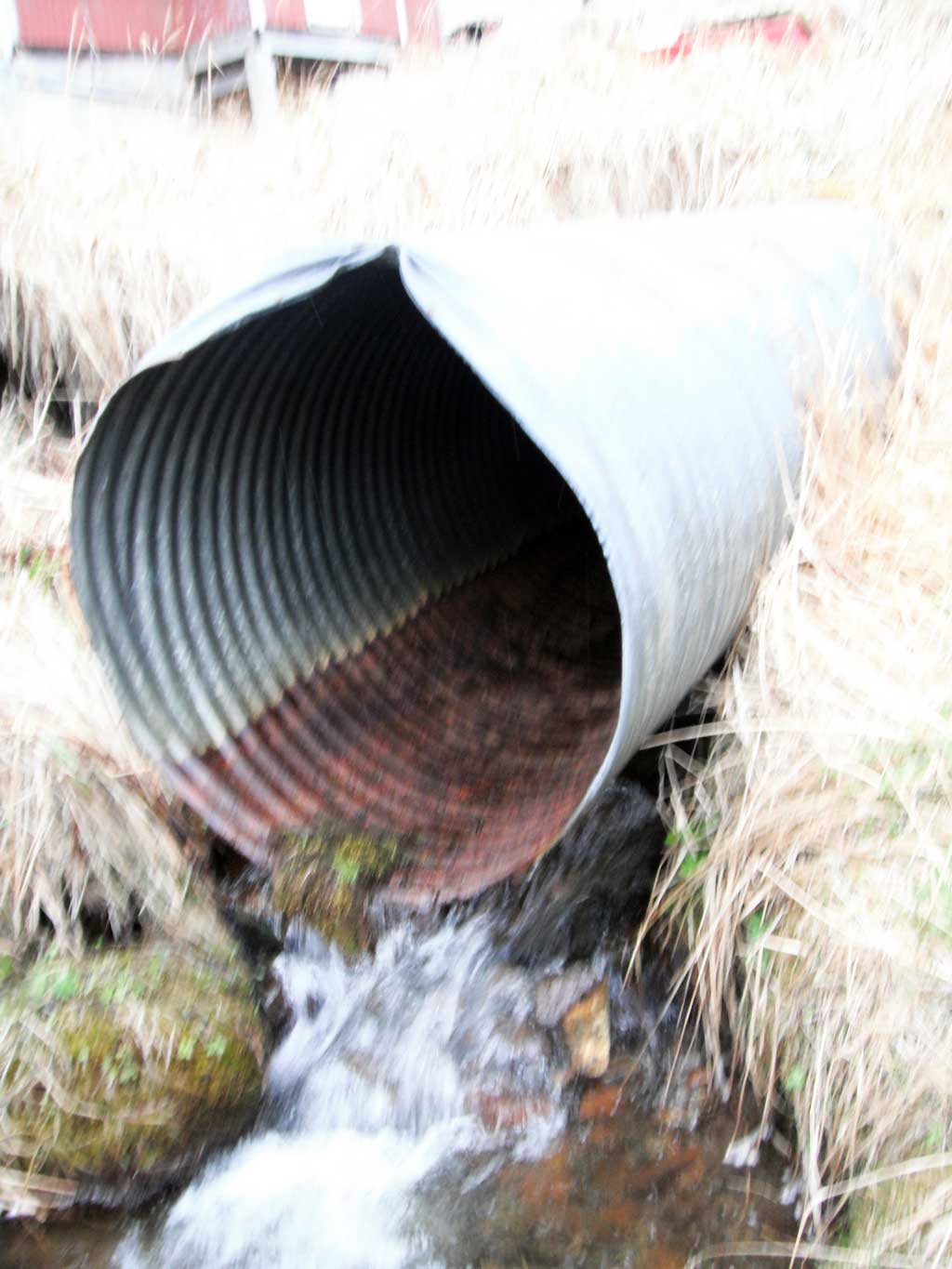

Comments: Site submitted by HB Jeanette Alas from her May 2016 trip to Atka. Culvert has been permitted to be replaced with a 48 inch diameter culvert. Fish Habitat Permit FH 16-II-0074. Road is eroding on the downstream side and the bottom of the culvert outlet is perched about 22 inched. Corrosion has damaged the pipe so water is exiting before invert. No trapping at site, but locals did say that the pink salmon use the lower reaches of this stream.

Culvert Measurements

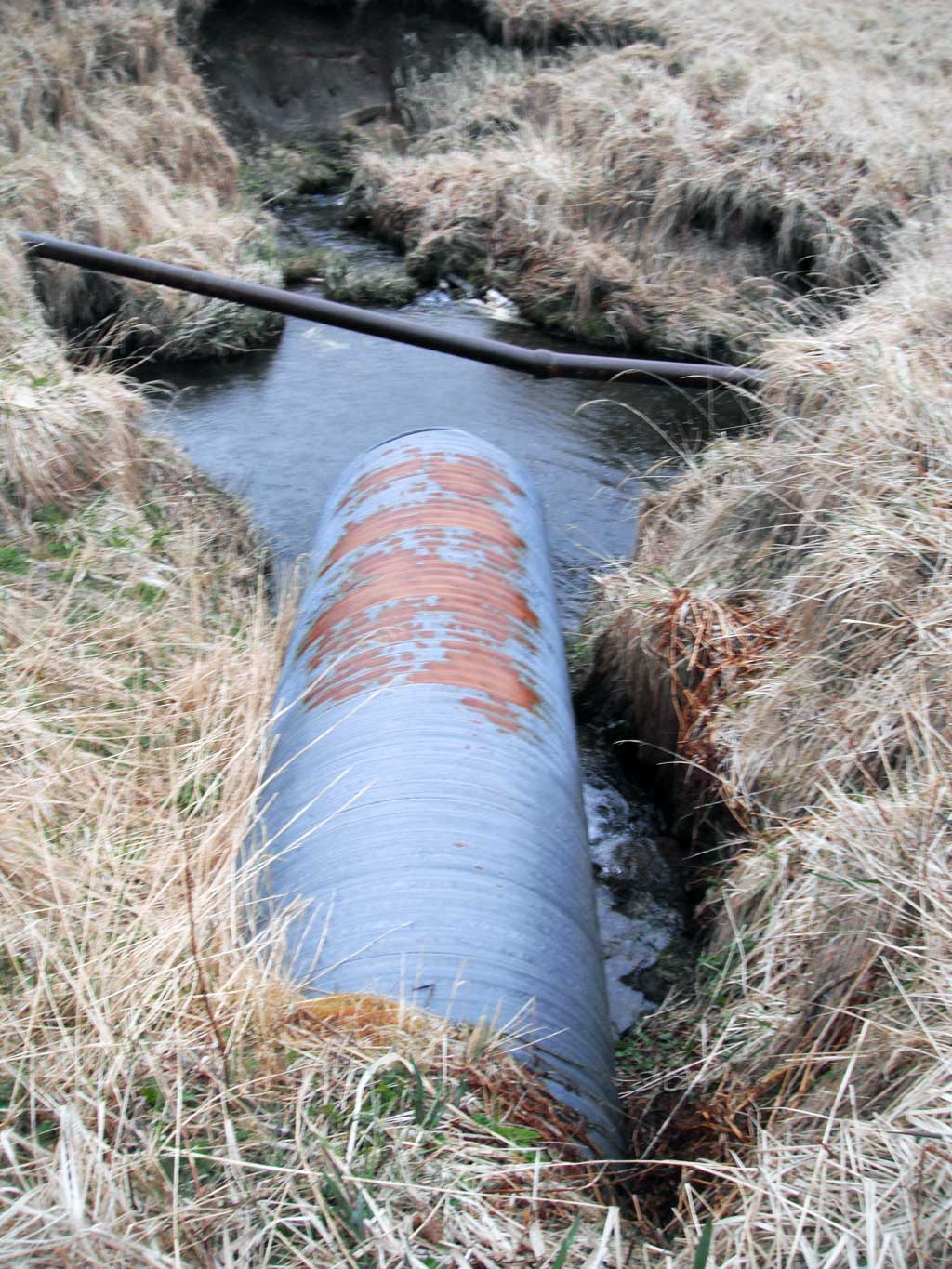

ID: 1 Structure Type: Circular pipe (Corrugated steel) Fish Passage Rating: Red

Length(ft):
Inlet Type: Projecting
Outlet Type: Projecting
Corrugation Depth(in.):
Corrugation Width(in.):
Condition Rating(1-5): 1
Approach Angle:
Sedimentation At Inlet: No
Inlet Substrate: None
Outlet Substrate: None
InletOutlet

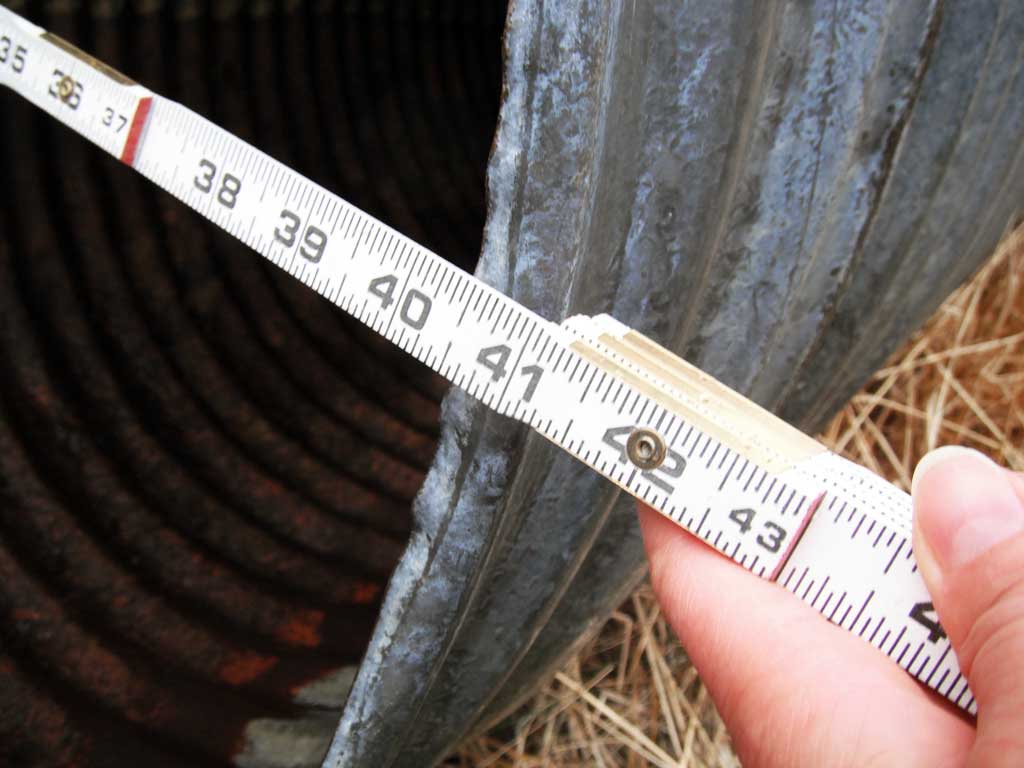

Width(ft):4.0 4.0
Height(ft):4.0 4.0
Apron Length(ft):
Water Depth(ft):
Rustline Height(ft):
Substrate Depth(ft):0.0 0.0
Backwatered?: No
Baffles Present: No
Embedded?: No

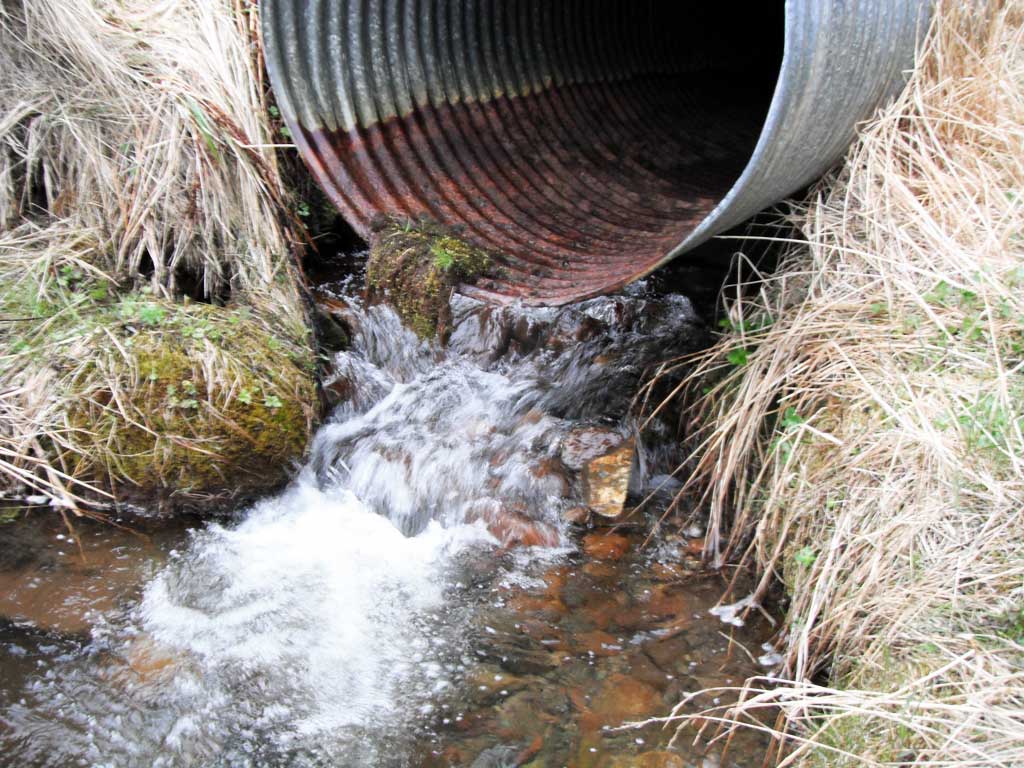

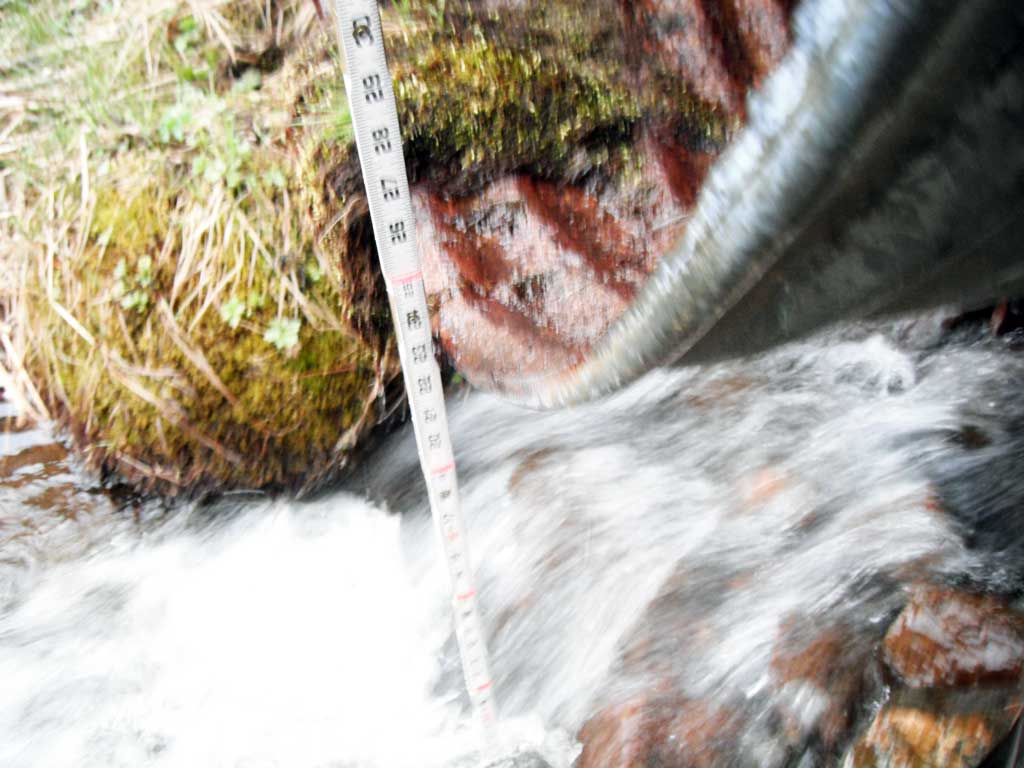

Outfall Height: 2.0
Outfall Type: Free Fall on To Rip Rap
Constriction Ratio:
Culvert Gradient:
Max Slope:
Max Slope Length:
  Culvert Observations:
  1. Outfall height red

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:
Subdominant:
Stream Slope(deg.):
Stream Flow Stage:Medium

No stream width data available.

Elevations

No elevation data available.

Fish Sampling Efforts

No fish sampling occurred during this survey.

Fish Observations

No fish observations occurred during this survey.

Questions or comments about this report can be directed to dfg.dsf.webmaster@alaska.gov
