Fish Passage Site 20703933

Coordinates (dec. deg.): 57.78398°, -152.54296°
Legal Description: S028S020W04
Region: Southwest

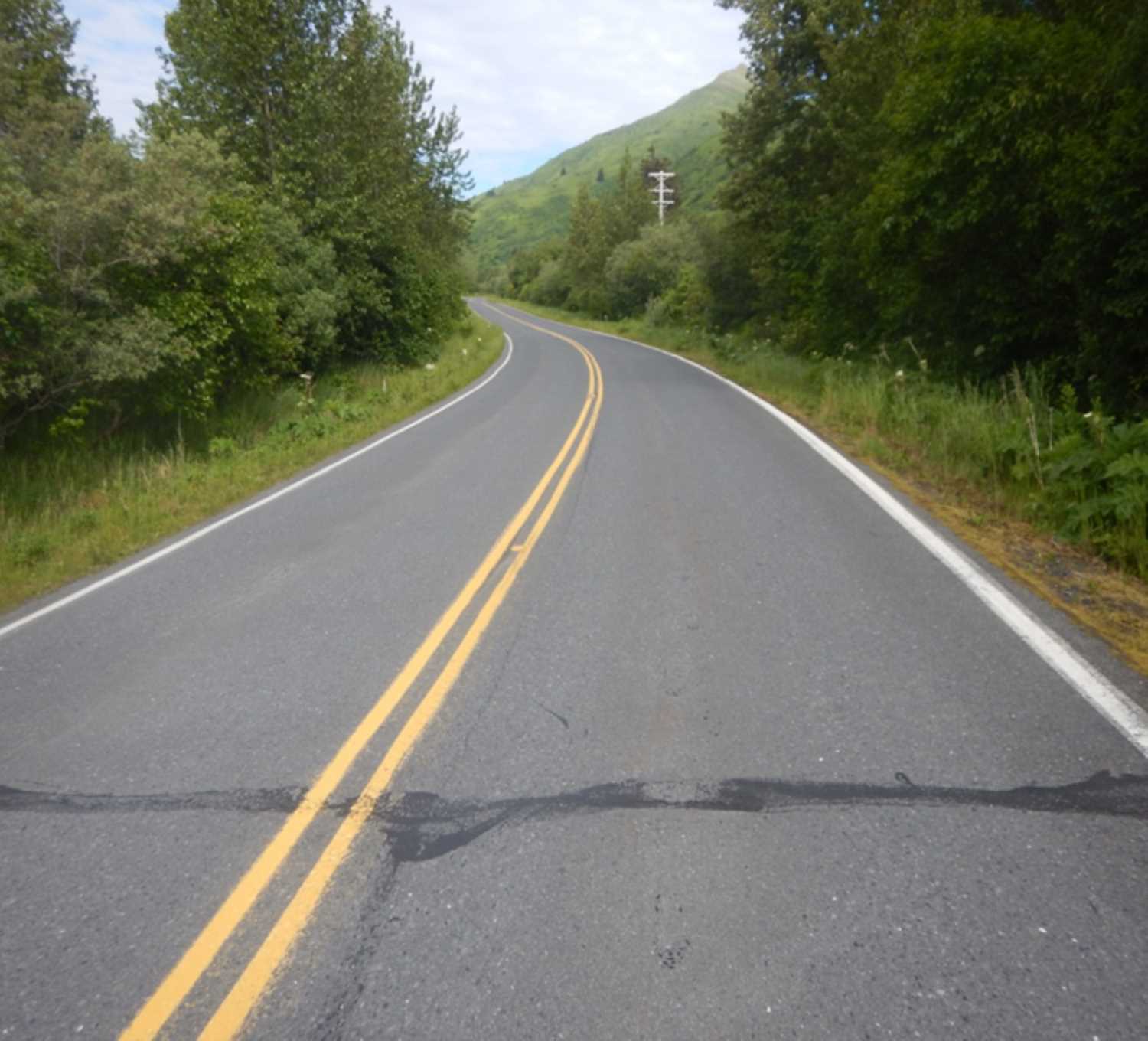

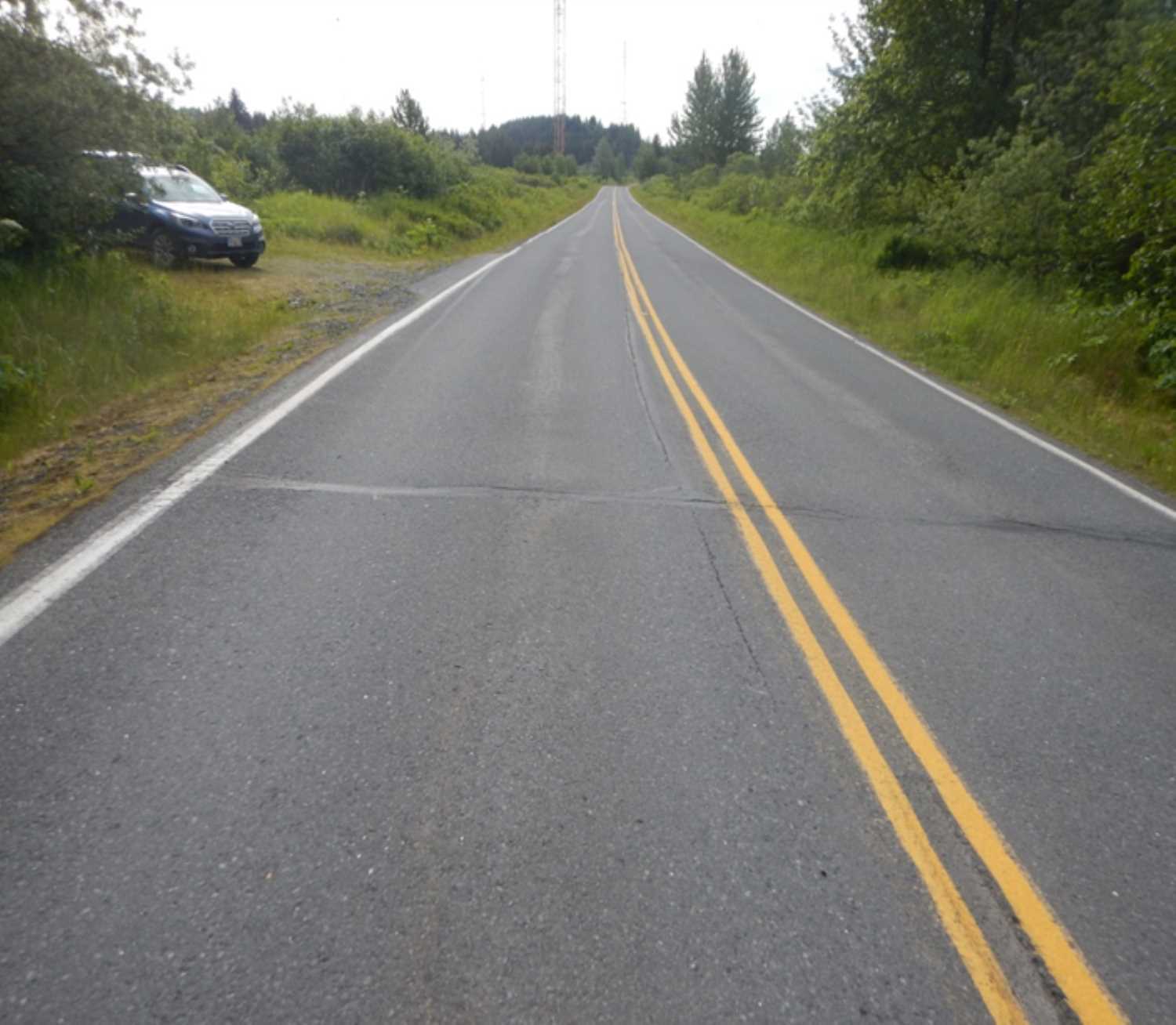

Road Name: Anton Larsen Bay Road

Datum: WGS84
Quad Name / ITM: Kodiak D-2
AWC Stream #:
Stream Name: unnamed

Elevation:

Site Comments: Upstream of Water Body No. 259-21-10120-2015. Juvenile coho salmon captured upstream of culvert.

Survey Date: Jun 24, 2019

Survey UPD20-ALBR02

Project Supervisor: Gillian O'Doherty, Alaska Department of Fish and Game — Anchorage, AK
Observers: William Frost

Overall Fish Passage Rating: Black

Tidal:
Backwatered:

Step Pools:
Construction Year:


Comments: New Site submitted by Will Frost. Upstream of Water Body No. 259-21-10120-2015. Juvenile Coho salmon captured upstream of culvert.

Culvert Measurements

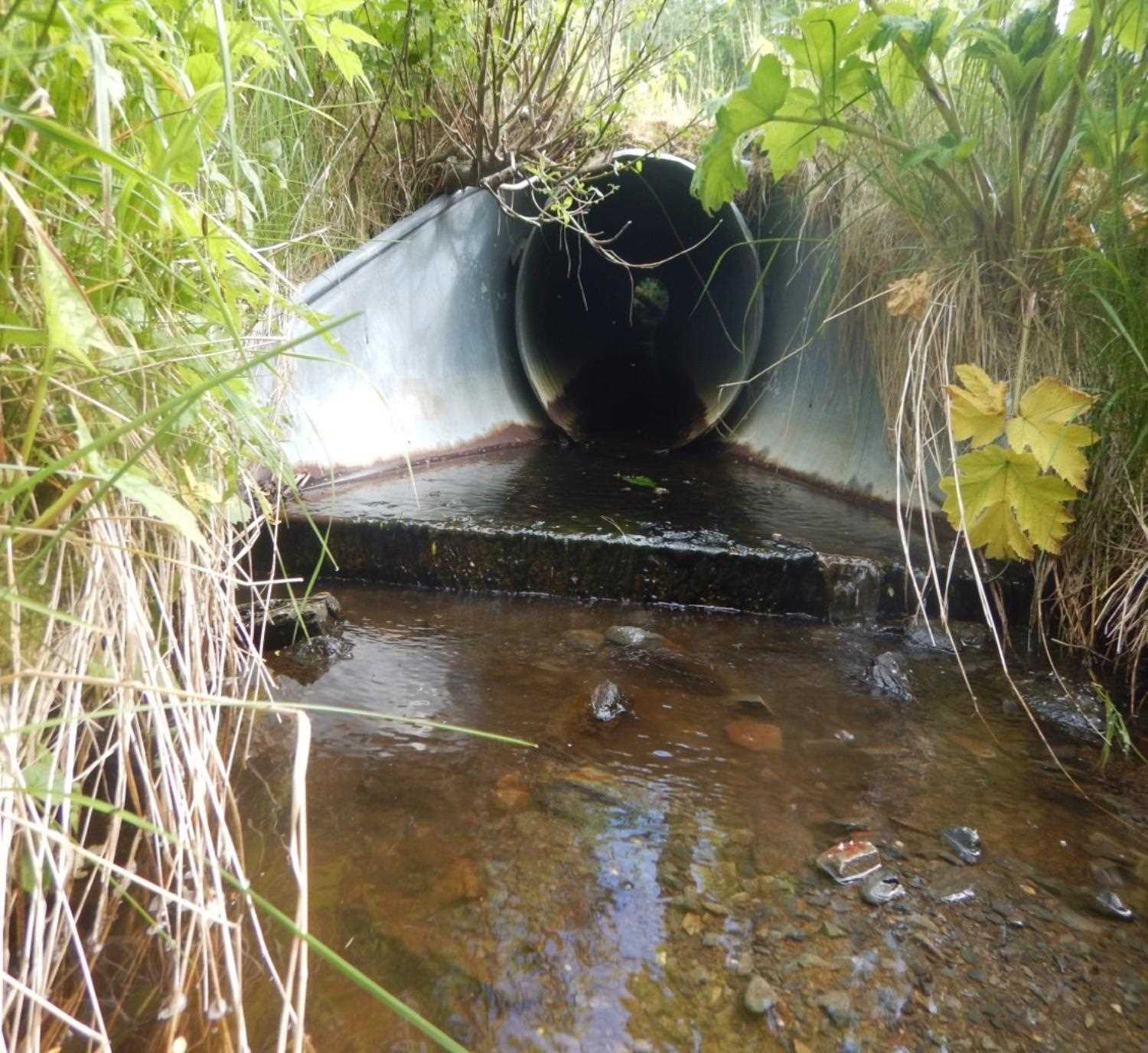

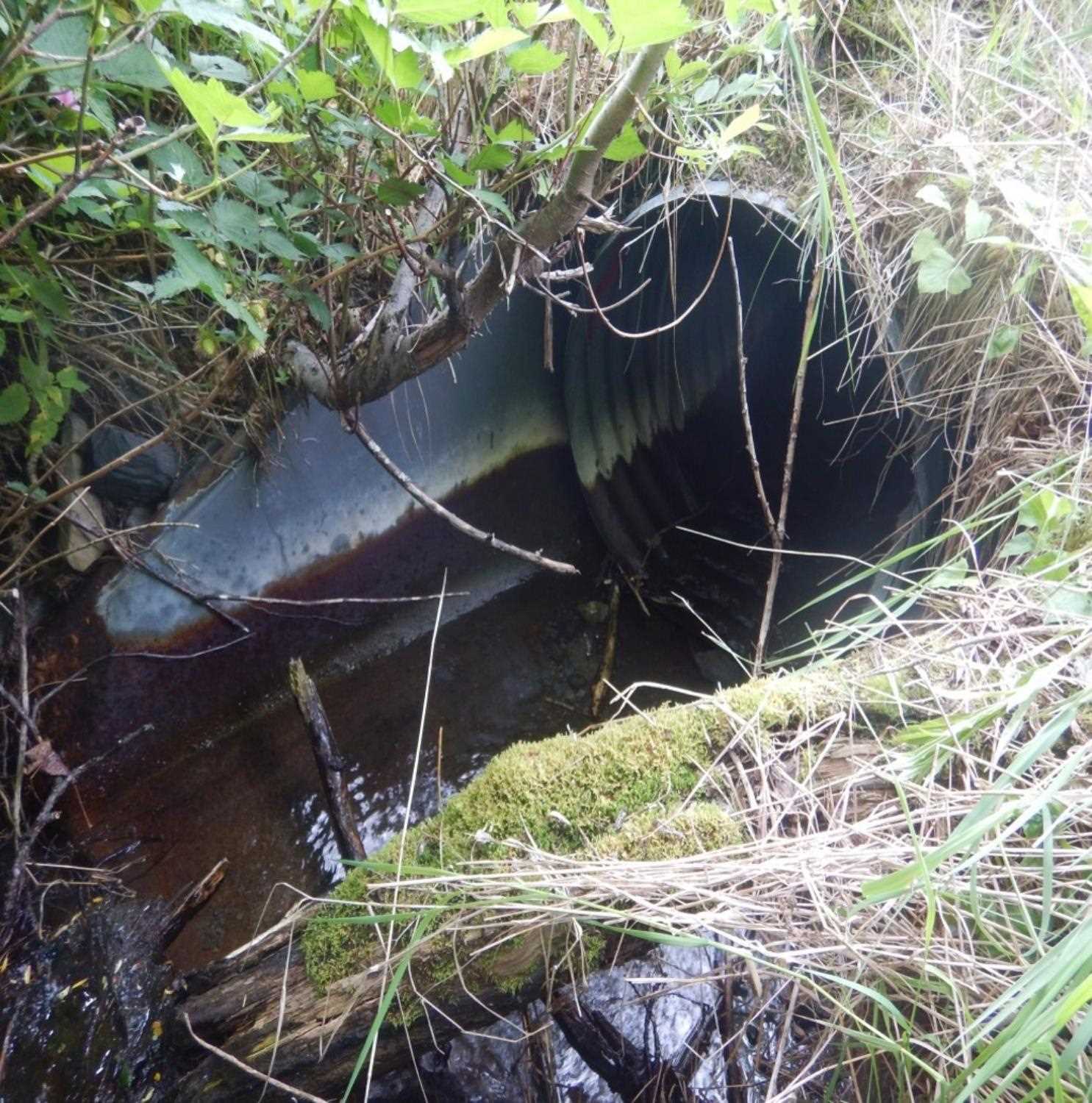

ID: 1 Structure Type: Circular pipe (Structural steel plate) Fish Passage Rating: Black

Length(ft): 35.0
Inlet Type:
Outlet Type:
Corrugation Depth(in.):
Corrugation Width(in.):
Condition Rating(1-5):
Approach Angle:
Sedimentation At Inlet:
Inlet Substrate:
Outlet Substrate:
InletOutlet
Width(ft):24.0 24.0
Height(ft):24.0 24.0
Apron Length(ft):
Water Depth(ft):
Rustline Height(ft):
Substrate Depth(ft):
Backwatered?:
Baffles Present:
Embedded?:
Outfall Height:
Outfall Type: At Stream Grade
Constriction Ratio:
Culvert Gradient:
Max Slope:
Max Slope Length:


Comments: Measurements provided by Will Frost (ADFG)

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:
Subdominant:
Stream Slope(deg.):
Stream Flow Stage:

No stream width data available.

Elevations

No elevation data available.

Fish Sampling Efforts

No fish sampling occurred during this survey.

Fish Observations

No fish observations occurred during this survey.

Questions or comments about this report can be directed to dfg.dsf.webmaster@alaska.gov
